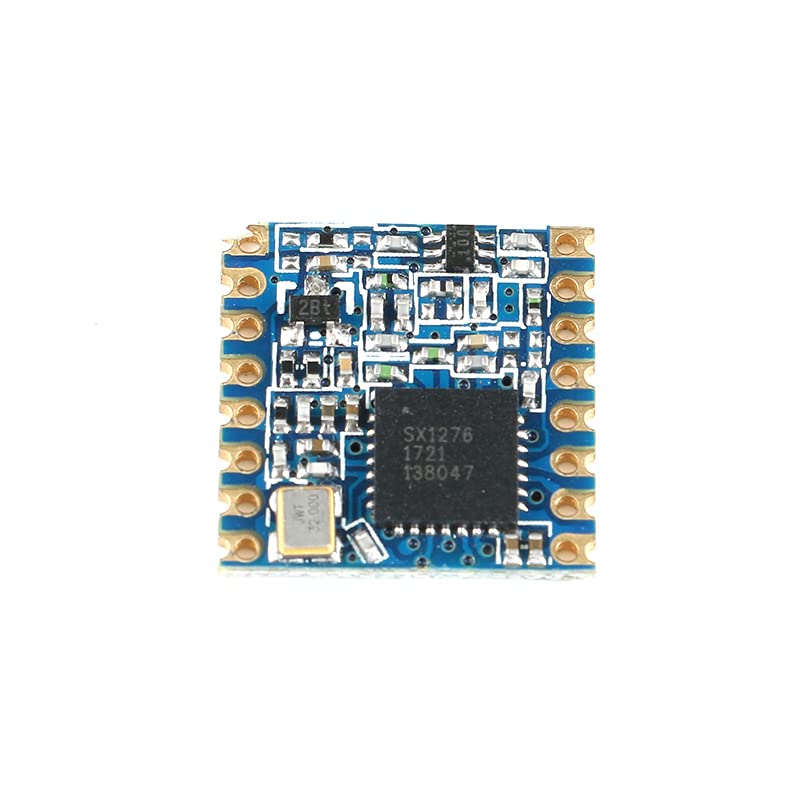

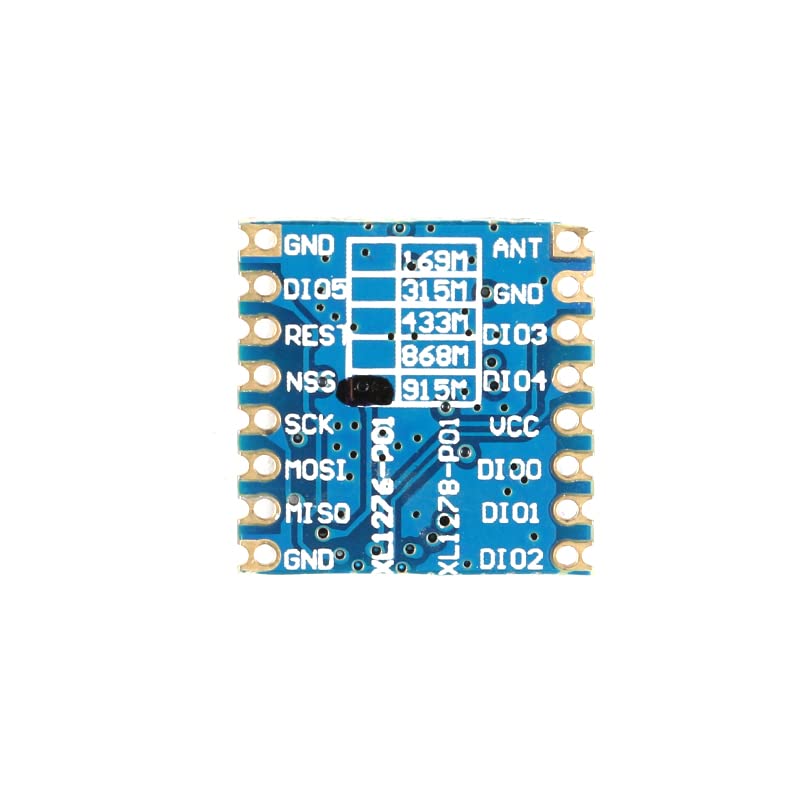

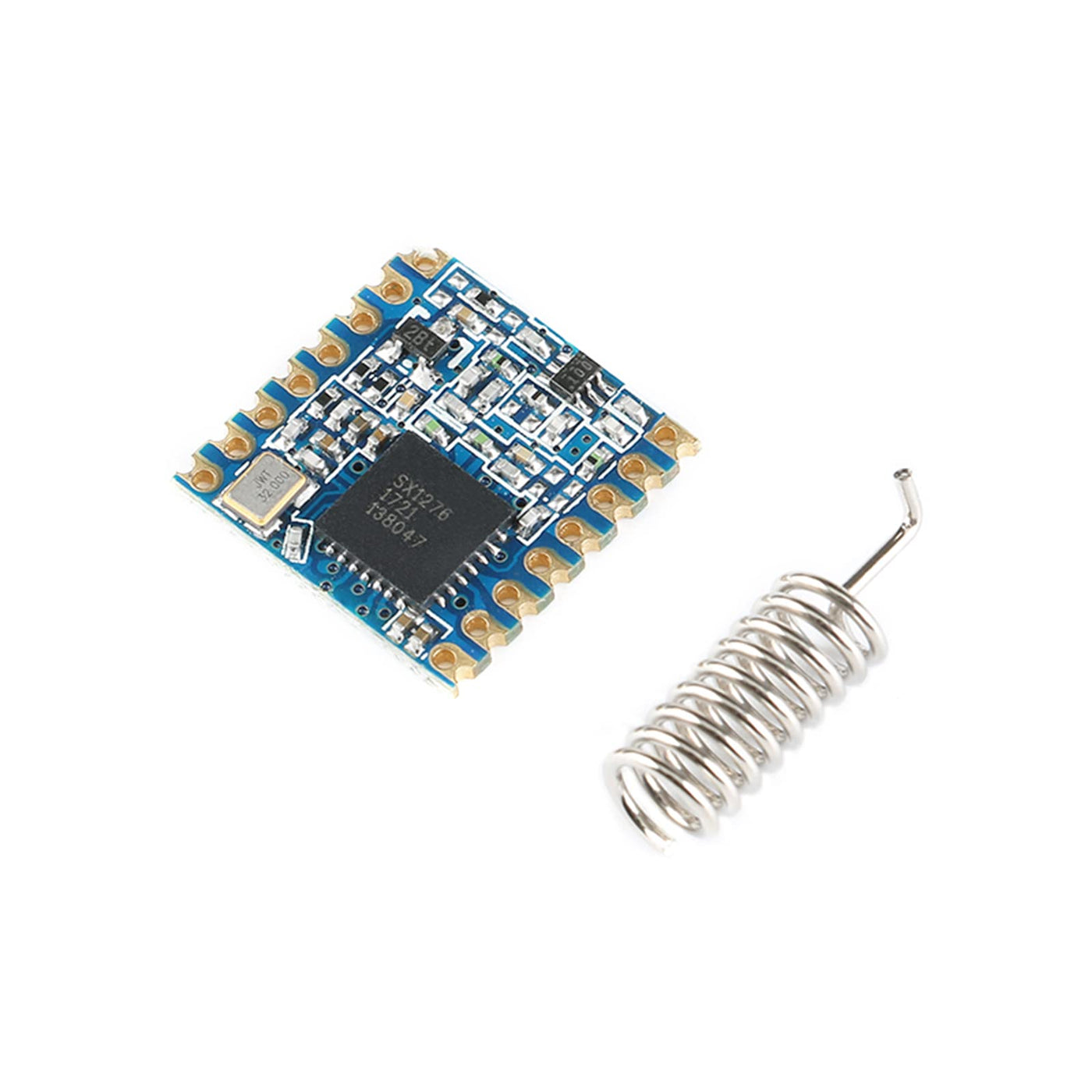

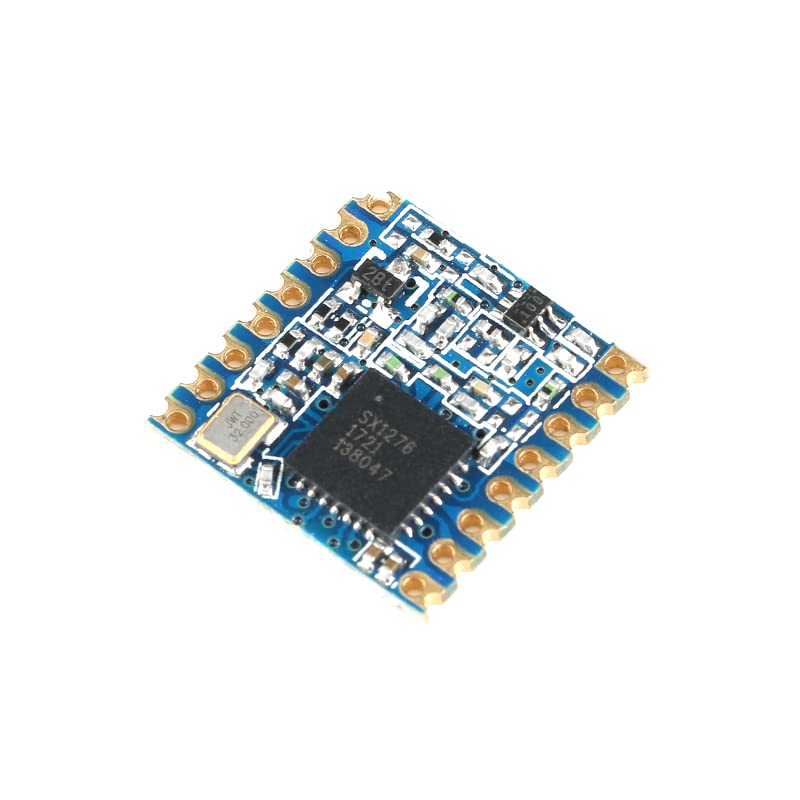

{"id":9143317725421,"title":"XL1276-P01 Wireless LoRa Transceiver Module, SPI Connectivity, Long Distance Data Transmission","handle":"xl1276-p01-wireless-lora-transceiver-module-spi-connectivity-long-distance-data-transmission","description":"\u003ch3\u003eXL1276-P01 Wireless LoRa Transceiver Module, SPI Connectivity, Long Distance Data Transmission\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eProduct Information Frequency band: 915MHZ Module size: 1616mm interface\r\nspacing 2.0mm Output power: 20dBm\/100mW Emission current: 120mA@100mw\/3.3V\r\nReceiving sensitivity: -139dBm@146B Receiving current: 10mA\/3.3V Modulation\r\nmode: LORA\/GFSK Sleep current: 0.2uA Data interface: four-wire SPI Frequency\r\nerror:+\/-5KHZ Module function FSK\/GFKS technology, LoRa (remote) spread\r\nspectrum technology Half-duplex communication Super anti-interference (channel\r\nrejection ratio: 56db) High receiving sensitivity - 139dbm ISM multi-band, no\r\nneed to apply for frequency, free use Multi-frequency optional, multiple\r\ntransmission rates Intelligent reset, low voltage monitoring, timed wake-up,\r\nlow power consumption mode, sleep mode Low power consumption acceptance\r\ncurrent: 10-12mA 56-bit FIFO TX\/RX RSSI channel detection function\r\nTransmission mode: FIFO\/direct mode (FIFO packet mode is recommended)\r\nConfiguration: AFC\/wake-up in the air function\/low power consumption\/carrier\r\ninterception\/FEC error correction\/AEC encryption The distance of ultra-long\r\ndistance transmission is up to 3km Module size: 16 16 3mm\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eXL1276-P01 uses the spread spectrum chip sx1276, which has the advantages of low power consumption, large capacity, long transmission distance, and strong anti-interference ability. The transmission power, working frequency, modulation rate, and other parameters of the module can be configured by the single-chip computer.\u003c\/li\u003e\r\n \u003cli\u003eBased on the SPI interface mode, it is very convenient for various MCU connections. It can do all kinds of wireless and two-way data receiving and sending. The single-chip computer controls the wireless module to transmit, receive data or sleep through SPI.\u003c\/li\u003e\r\n \u003cli\u003eThe wireless module receives data through the NIRQ port to notify the single-chip computer to receive, and the single-chip computer reads the data received by the wireless module through the SPI interface.\u003c\/li\u003e\r\n \u003cli\u003eThe module can be easily embedded into the design of customers' existing products or systems. The standard SPI interface makes communication easy. Customers only need to compile a simple communication protocol in the original micro-control device to realize two-way communication and data transmission.\u003c\/li\u003e\r\n \u003cli\u003eThis module applies to any wireless data transmission application with complex environments, such as wireless meter reading, smart home control, automotive electronics, security alarm, industrial monitoring, and control system, remote agricultural irrigation control system, etc.\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2025-10-17T03:45:55+11:00","created_at":"2025-10-17T03:45:51+11:00","vendor":"JESSINIE","type":"","tags":["electronics_selected_Oct2025"],"price":9700,"price_min":9700,"price_max":9700,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":48882215321837,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0BXDNFZ2B","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"XL1276-P01 Wireless LoRa Transceiver Module, SPI Connectivity, Long Distance Data Transmission","public_title":null,"options":["Default Title"],"price":9700,"weight":10,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/leoforward.com\/cdn\/shop\/files\/B0BXDNFZ2B.jpg?v=1775789591","\/\/leoforward.com\/cdn\/shop\/files\/51Yl_AQc5lL.jpg?v=1760633153","\/\/leoforward.com\/cdn\/shop\/files\/51EETyZl7YL.jpg?v=1760633153","\/\/leoforward.com\/cdn\/shop\/files\/510Jwq_WDML.jpg?v=1760633153"],"featured_image":"\/\/leoforward.com\/cdn\/shop\/files\/B0BXDNFZ2B.jpg?v=1775789591","options":["Title"],"media":[{"alt":null,"id":36920035180781,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/files\/B0BXDNFZ2B.jpg?v=1775789591"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/B0BXDNFZ2B.jpg?v=1775789591","width":1600},{"alt":null,"id":36920035213549,"position":2,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/leoforward.com\/cdn\/shop\/files\/51Yl_AQc5lL.jpg?v=1760633153"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/51Yl_AQc5lL.jpg?v=1760633153","width":800},{"alt":null,"id":36920035246317,"position":3,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/leoforward.com\/cdn\/shop\/files\/51EETyZl7YL.jpg?v=1760633153"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/51EETyZl7YL.jpg?v=1760633153","width":800},{"alt":null,"id":36920035279085,"position":4,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/leoforward.com\/cdn\/shop\/files\/510Jwq_WDML.jpg?v=1760633153"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/510Jwq_WDML.jpg?v=1760633153","width":800}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eXL1276-P01 Wireless LoRa Transceiver Module, SPI Connectivity, Long Distance Data Transmission\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eProduct Information Frequency band: 915MHZ Module size: 1616mm interface\r\nspacing 2.0mm Output power: 20dBm\/100mW Emission current: 120mA@100mw\/3.3V\r\nReceiving sensitivity: -139dBm@146B Receiving current: 10mA\/3.3V Modulation\r\nmode: LORA\/GFSK Sleep current: 0.2uA Data interface: four-wire SPI Frequency\r\nerror:+\/-5KHZ Module function FSK\/GFKS technology, LoRa (remote) spread\r\nspectrum technology Half-duplex communication Super anti-interference (channel\r\nrejection ratio: 56db) High receiving sensitivity - 139dbm ISM multi-band, no\r\nneed to apply for frequency, free use Multi-frequency optional, multiple\r\ntransmission rates Intelligent reset, low voltage monitoring, timed wake-up,\r\nlow power consumption mode, sleep mode Low power consumption acceptance\r\ncurrent: 10-12mA 56-bit FIFO TX\/RX RSSI channel detection function\r\nTransmission mode: FIFO\/direct mode (FIFO packet mode is recommended)\r\nConfiguration: AFC\/wake-up in the air function\/low power consumption\/carrier\r\ninterception\/FEC error correction\/AEC encryption The distance of ultra-long\r\ndistance transmission is up to 3km Module size: 16 16 3mm\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eXL1276-P01 uses the spread spectrum chip sx1276, which has the advantages of low power consumption, large capacity, long transmission distance, and strong anti-interference ability. The transmission power, working frequency, modulation rate, and other parameters of the module can be configured by the single-chip computer.\u003c\/li\u003e\r\n \u003cli\u003eBased on the SPI interface mode, it is very convenient for various MCU connections. It can do all kinds of wireless and two-way data receiving and sending. The single-chip computer controls the wireless module to transmit, receive data or sleep through SPI.\u003c\/li\u003e\r\n \u003cli\u003eThe wireless module receives data through the NIRQ port to notify the single-chip computer to receive, and the single-chip computer reads the data received by the wireless module through the SPI interface.\u003c\/li\u003e\r\n \u003cli\u003eThe module can be easily embedded into the design of customers' existing products or systems. The standard SPI interface makes communication easy. Customers only need to compile a simple communication protocol in the original micro-control device to realize two-way communication and data transmission.\u003c\/li\u003e\r\n \u003cli\u003eThis module applies to any wireless data transmission application with complex environments, such as wireless meter reading, smart home control, automotive electronics, security alarm, industrial monitoring, and control system, remote agricultural irrigation control system, etc.\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
