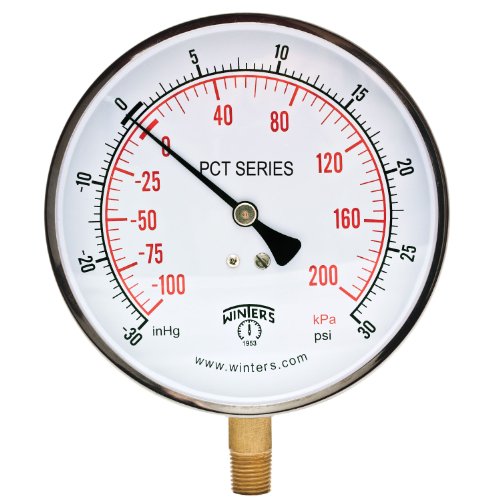

{"id":9574957449453,"title":"Winters PCT Series Stainless Steel 304 Dual Scale Contractor Pressure Gauge, 30\" Hg Vacuum-0-30 psi\/kpa, 4-1\/2\" Dial Display, +\/-1% Accuracy, 1\/4\" NPT Bottom Mount 30\"Hg Vacuum-0-30 psi\/kpa","handle":"winters-pct-series-stainless-steel-304-dual-scale-contractor-pressure-gauge-30-hg-vacuum-0-30-psi-kpa-4-1-2-dial-display-1-accuracy-1-4-npt-bottom-mount-30hg-vacuum-0-30-psi-kpa","description":"\u003ch3\u003eWinters PCT Series Stainless Steel 304 Dual Scale Contractor Pressure Gauge, 30\" Hg Vacuum-0-30 psi\/kpa, 4-1\/2\" Dial Display, +\/-1% Accuracy, 1\/4\" NPT Bottom Mount\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eMost commercial air, water and steam services that require a +\/-1 percent\nfull-scale accuracy. Specifications: dial: 4-1\/2\" (115mm) white aluminum dial\nwith black and red markings. Case: stainless steel 304. Lens: acrylic. Ring:\nstainless steel 304. Socket: brass. Connection: 1\/4\" NPT standard. Bourdon\ntube: phosphor bronze. Movement: brass. Pointer: aluminum, anodized black,\nrecalibrator screw. Welding: silver solder. Over-pressure limit: 25 for\npressures up to 1400 psi (9,653 kPa) and 15 percent for pressures over 1400\npsi (9,653 kPa). Working pressure: maximum 75 percent of full scale value.\nAmbient\/process temperature: -40 degree Fahrenheit to 250 degree Fahrenheit\n(-40 degree C to 65 degree C). Accuracy: +\/-1 percent ANSI\/ASME grade 1A.\nEnclosure rating: IP52. Economical 4-1\/2\" stainless steel case gauge. Case is\nmade of stainless steel 304. Zero adjustment screw. CRN registered. Pressure\nrange: 30\" Hg vacuum\/kPa.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eEconomical 4-1\/2\" stainless steel case gauge\u003c\/li\u003e\n \u003cli\u003eCase is made of stainless steel 304\u003c\/li\u003e\n \u003cli\u003eZero adjustment screw\u003c\/li\u003e\n \u003cli\u003eCRN registered\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-09-16T01:13:51+10:00","created_at":"2026-09-09T15:45:38+10:00","vendor":"Winters Instruments","type":"Pressure Gauges","tags":["industrial_Sep2026"],"price":16800,"price_min":16800,"price_max":16800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":50651635876077,"title":"30\"Hg Vacuum-0-30 psi\/kpa \/ 1\/4\" NPT Bottom Mount","option1":"30\"Hg Vacuum-0-30 psi\/kpa","option2":"1\/4\" NPT Bottom Mount","option3":null,"sku":"B0087UB2P2","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Winters PCT Series Stainless Steel 304 Dual Scale Contractor Pressure Gauge, 30\" Hg Vacuum-0-30 psi\/kpa, 4-1\/2\" Dial Display, +\/-1% Accuracy, 1\/4\" NPT Bottom Mount 30\"Hg Vacuum-0-30 psi\/kpa - 30\"Hg Vacuum-0-30 psi\/kpa \/ 1\/4\" NPT Bottom Mount","public_title":"30\"Hg Vacuum-0-30 psi\/kpa \/ 1\/4\" NPT Bottom Mount","options":["30\"Hg Vacuum-0-30 psi\/kpa","1\/4\" NPT Bottom Mount"],"price":16800,"weight":340,"compare_at_price":null,"inventory_management":"shopify","barcode":"628311251012","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/leoforward.com\/cdn\/shop\/files\/B0087UB2P2.jpg?v=1788932740"],"featured_image":"\/\/leoforward.com\/cdn\/shop\/files\/B0087UB2P2.jpg?v=1788932740","options":["Size","Style"],"media":[{"alt":null,"id":41958934020333,"position":1,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/leoforward.com\/cdn\/shop\/files\/B0087UB2P2.jpg?v=1788932740"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/B0087UB2P2.jpg?v=1788932740","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eWinters PCT Series Stainless Steel 304 Dual Scale Contractor Pressure Gauge, 30\" Hg Vacuum-0-30 psi\/kpa, 4-1\/2\" Dial Display, +\/-1% Accuracy, 1\/4\" NPT Bottom Mount\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eMost commercial air, water and steam services that require a +\/-1 percent\nfull-scale accuracy. Specifications: dial: 4-1\/2\" (115mm) white aluminum dial\nwith black and red markings. Case: stainless steel 304. Lens: acrylic. Ring:\nstainless steel 304. Socket: brass. Connection: 1\/4\" NPT standard. Bourdon\ntube: phosphor bronze. Movement: brass. Pointer: aluminum, anodized black,\nrecalibrator screw. Welding: silver solder. Over-pressure limit: 25 for\npressures up to 1400 psi (9,653 kPa) and 15 percent for pressures over 1400\npsi (9,653 kPa). Working pressure: maximum 75 percent of full scale value.\nAmbient\/process temperature: -40 degree Fahrenheit to 250 degree Fahrenheit\n(-40 degree C to 65 degree C). Accuracy: +\/-1 percent ANSI\/ASME grade 1A.\nEnclosure rating: IP52. Economical 4-1\/2\" stainless steel case gauge. Case is\nmade of stainless steel 304. Zero adjustment screw. CRN registered. Pressure\nrange: 30\" Hg vacuum\/kPa.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eEconomical 4-1\/2\" stainless steel case gauge\u003c\/li\u003e\n \u003cli\u003eCase is made of stainless steel 304\u003c\/li\u003e\n \u003cli\u003eZero adjustment screw\u003c\/li\u003e\n \u003cli\u003eCRN registered\u003c\/li\u003e\n \u003c\/ul\u003e"}
