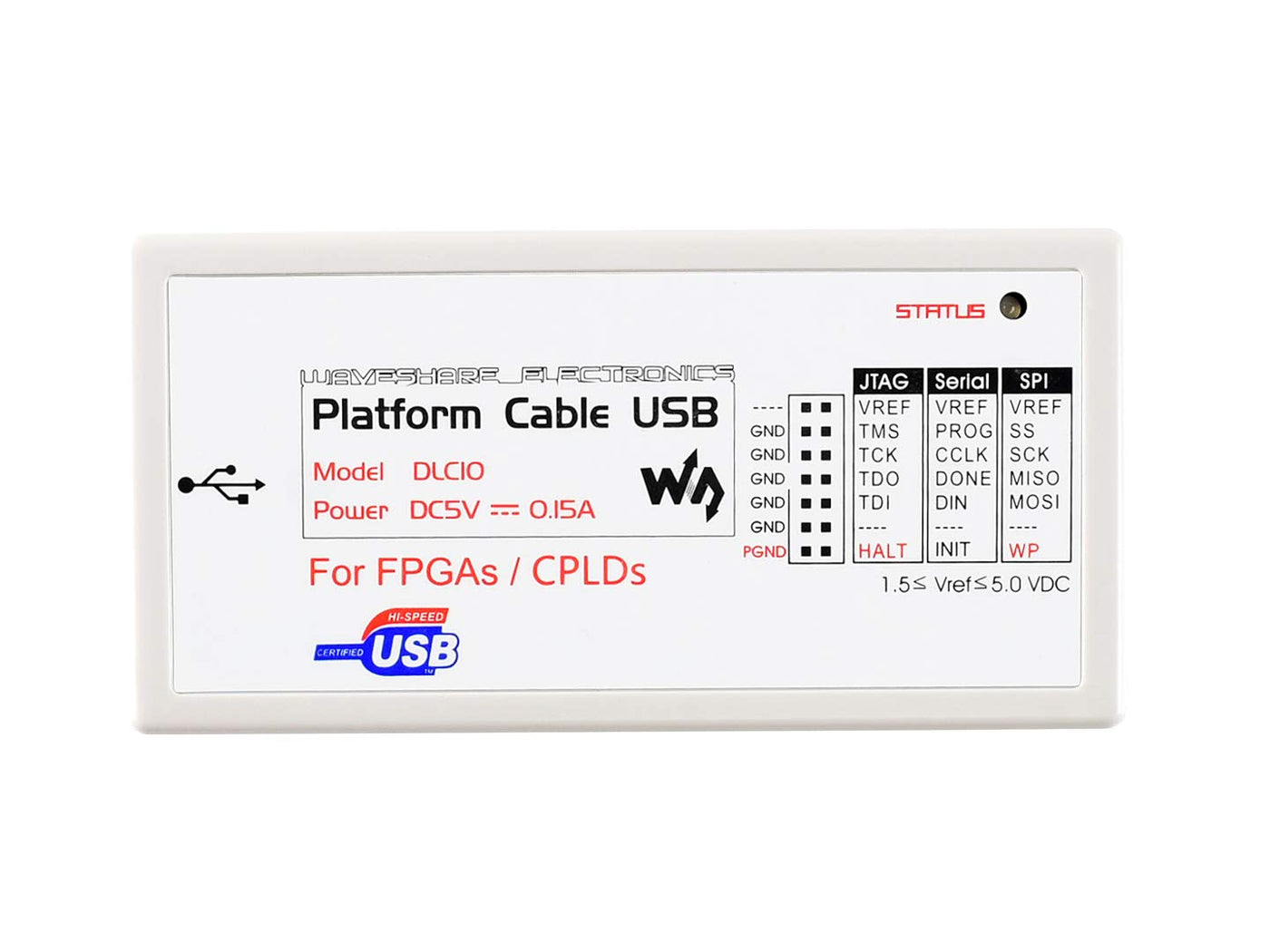

Waveshare XILINX JTAG Download Debugger Compatible XILINX Platform Cable USB FPGA CPLD in-Circuit Debugger Programmer
Waveshare XILINX JTAG Download Debugger Compatible XILINX Platform Cable USB FPGA CPLD in-Circuit Debugger Programmer
Description
Overview The Platform Cable USB a USB compatible cable for in-circuit configuration and programming of all Xilinx devices. Performance Utilizing CY7C68013A+FPGA new hardware solution, compatible with the original XILINX Platform Cable USB and Platform Cable USB IIPrograms all Xilinx devices, including FPGAs / CPLDs / ISP Configuration PROMsSupports JTAG, Slave-Serial and SPI programming, to config all Xilinx devicesInterfaces to devices operating at 5V / 3.3V / 2.5V / 1.8V / 1.5VOptional target clock frequency, supports XILINX software automatic frequency adjustmentFirmware auto upgrade, it's possible to support more new released software and devicesAnti-static and multi-layers signal isolation, to protect the target and the programmer itselfComes with adapter board and multi cables for easily connecting with official development board or other circuit boards Supported software Xilinx ISEiMPACTChipScopeVivado Supported devices Xilinx FPGA devices: UltraScale / 7 series / Zynq / Kintex / Virtex / Artix / Spartan, etc.Xilinx CPLD devices: XC9500 / XC9500XL / XC9500XV / CoolRunner XPLA3 / CoolRunner-II, etc.Xilinx PROM devices: Platform Flash XCF00S / XCF00P / XL, etc. LED Status Red: USB connectedYellow: USB connected, and Vref (the target board) is powered How to Connect Connects to PCVia USB interface Connects to target boardPlatform Cable USB provides 3 different interfaces to connect with the target board: JTAG, Slave Serial, and SPI. The figure below shows the header pinouts of the interfaces: Note: please make sure the VCC and GND are connected correctly, to avoid damaging the Platform Cable USB
Features:
- Category:XILINX FPGA/CPLD configuration and programming Cable
- Software:Xilinx ISE, iMPACT, ChipScope
- Interfaces:JTAG, Slave-Serial and SPI
- Solution:CY7C68013A+XC2C256
- User Guide CD?schematic,software, drivers and examples
