Description

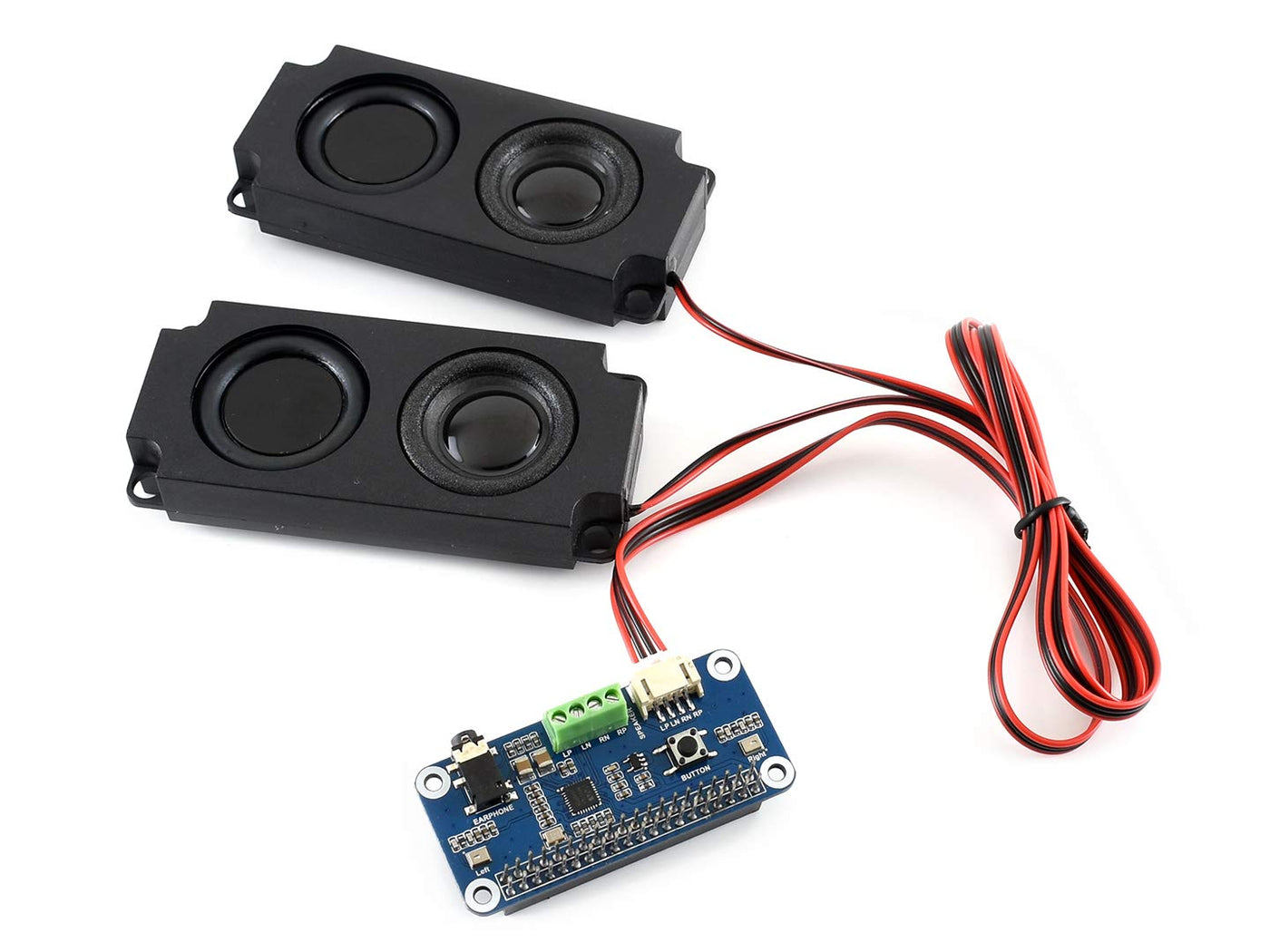

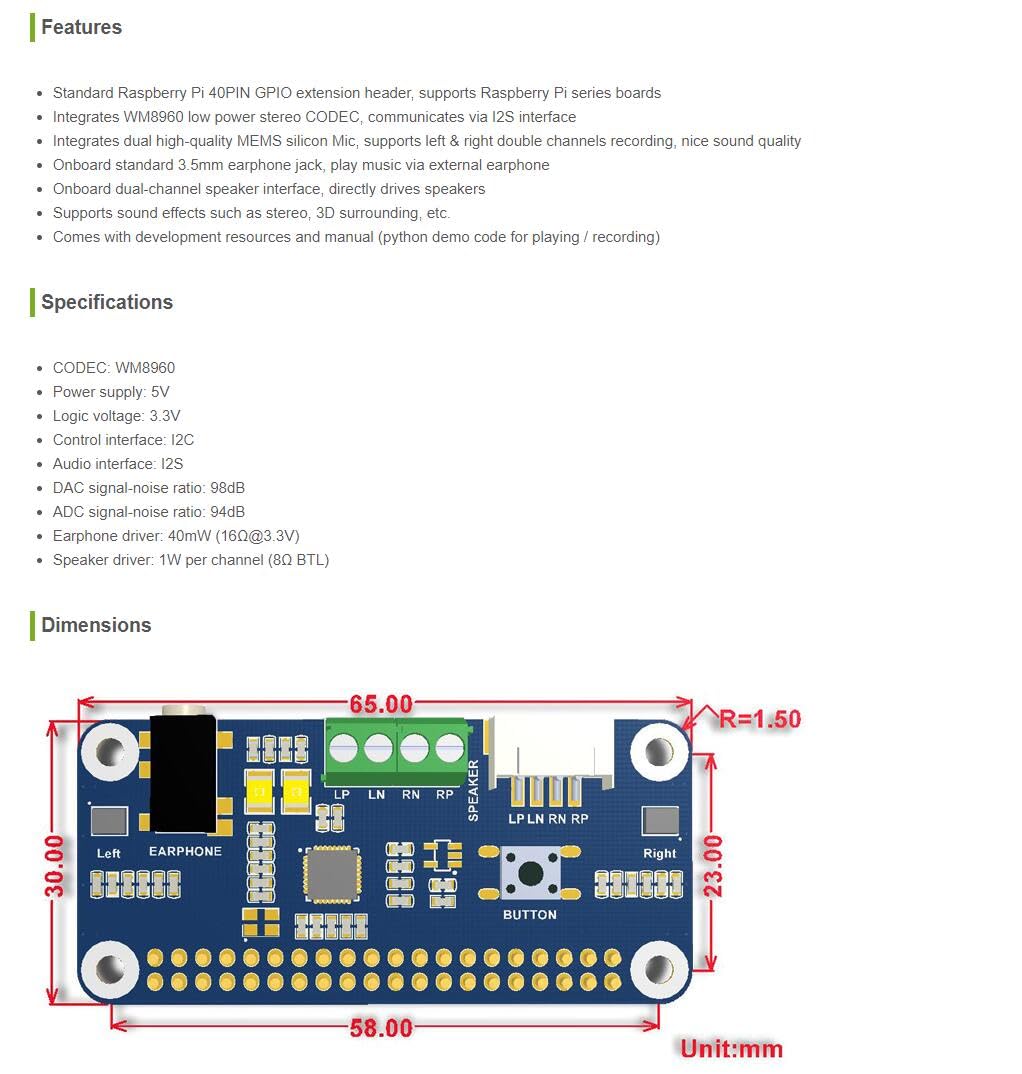

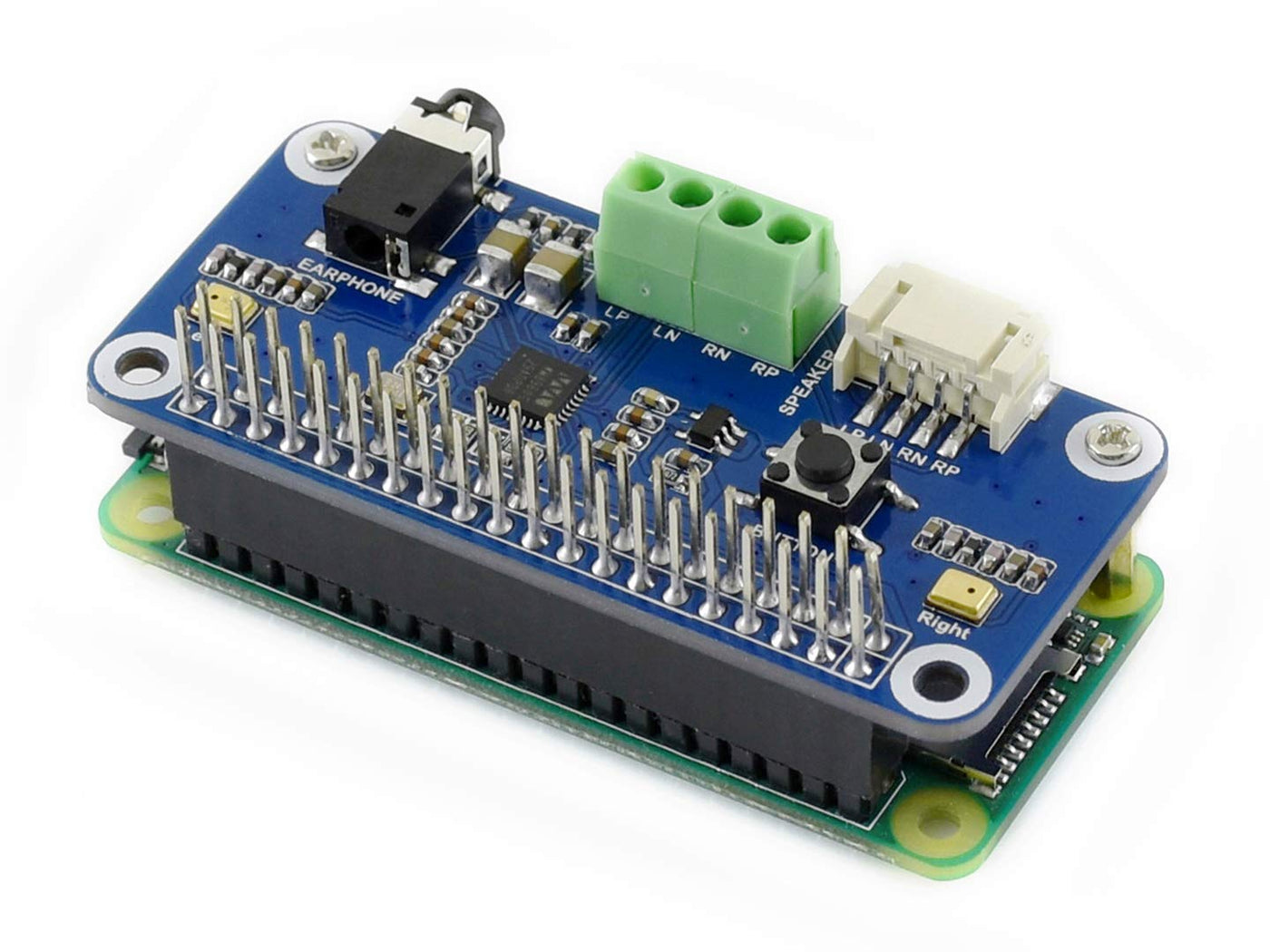

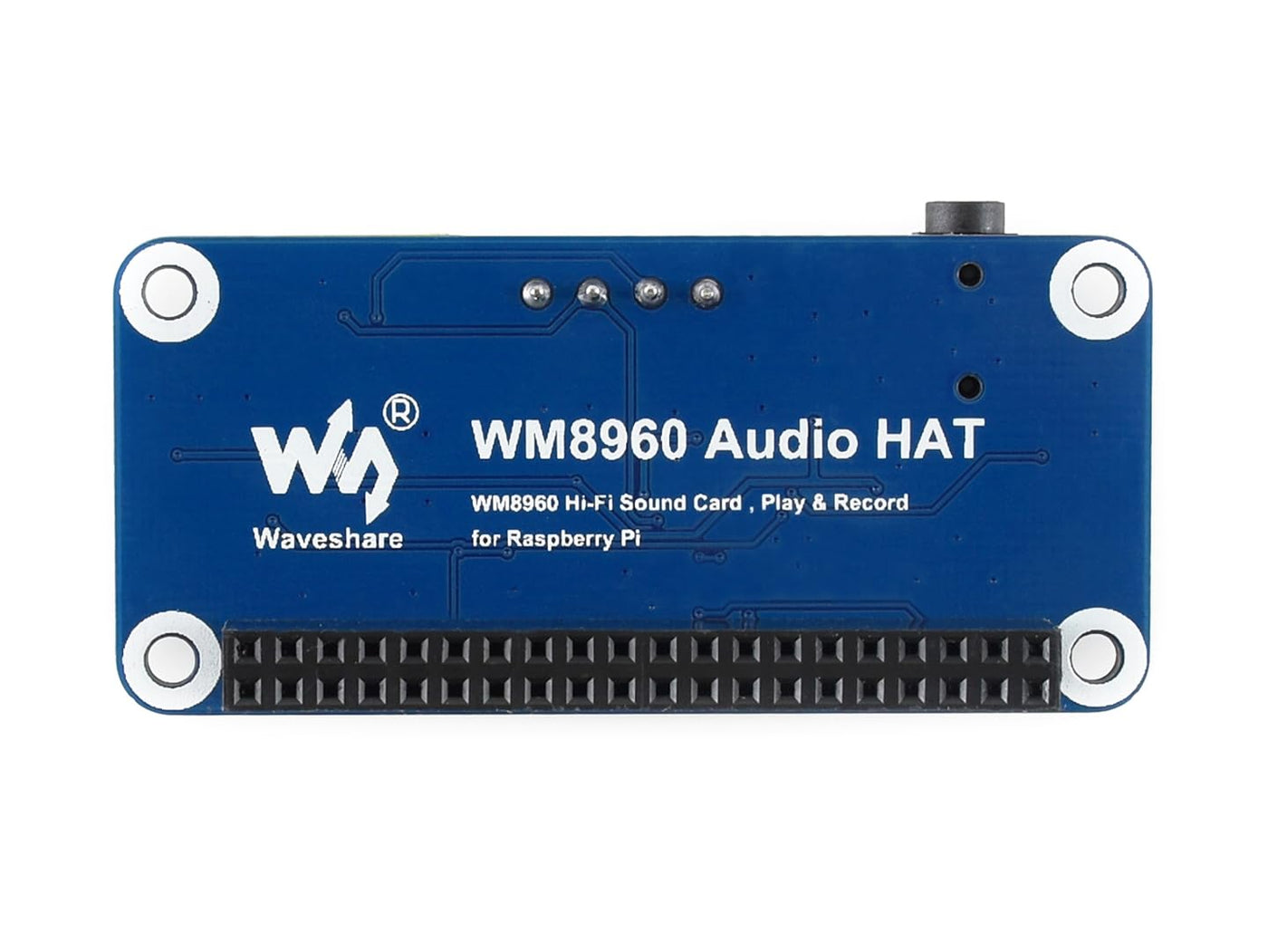

Overview This is a sound card HAT designed for Raspberry Pi, low power consumption, supports stereo encoding / decoding, features Hi-Fi playing / recording, what's more, it can directly drive speakers to play music. Features Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boardsIntegrates WM8960 low power stereo CODEC, communicates via I2S interfaceIntegrates dual high-quality MEMS silicon Mic, supports left & right double channels recording, nice sound qualityOnboard standard 3.5mm earphone jack, play music via external earphoneOnboard dual-channel speaker interface, directly drives speakersSupports sound effects such as stereo, 3D surrounding, etc.Comes with development resources and manual (python demo code for playing / recording) Specifications CODEC: WM8960Power supply: 5VLogic voltage: 3.3VControl interface: I2CAudio interface: I2SDAC signal-noise ratio: 98dBADC signal-noise ratio: 94dBEarphone driver: 40mW ()Speaker driver: 1W per channel (8Ω BTL)PACKAGE CONTENT Note: Raspberry Pi in the photos is NOT included. WM8960 Audio HAT x1 8Ω 5W Speaker x1 RPi screws pack (2pcs) x1
Features:
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards,low power consumption, supports stereo encoding / decoding, features Hi-Fi playing / recording, what's more, it can directly drive speakers to play music.
- Integrates WM8960 low power stereo CODEC, communicates via I2S interface, integrates dual high-quality MEMS silicon Mic, supports left & right double channels recording, nice sound quality
- Onboard standard 3.5mm earphone jack, play music via external earphone, onboard dual-channel speaker interface, directly drives speakers,supports sound effects such as stereo, 3D surrounding, etc.
- CODEC: WM8960; Power supply: 5V; Logic voltage: 3.3V; DAC signal-noise ratio: 98dB; ADC signal-noise ratio: 94dB; Earphone driver: 40mW (); Speaker driver: 1W per channel (8 BTL)
