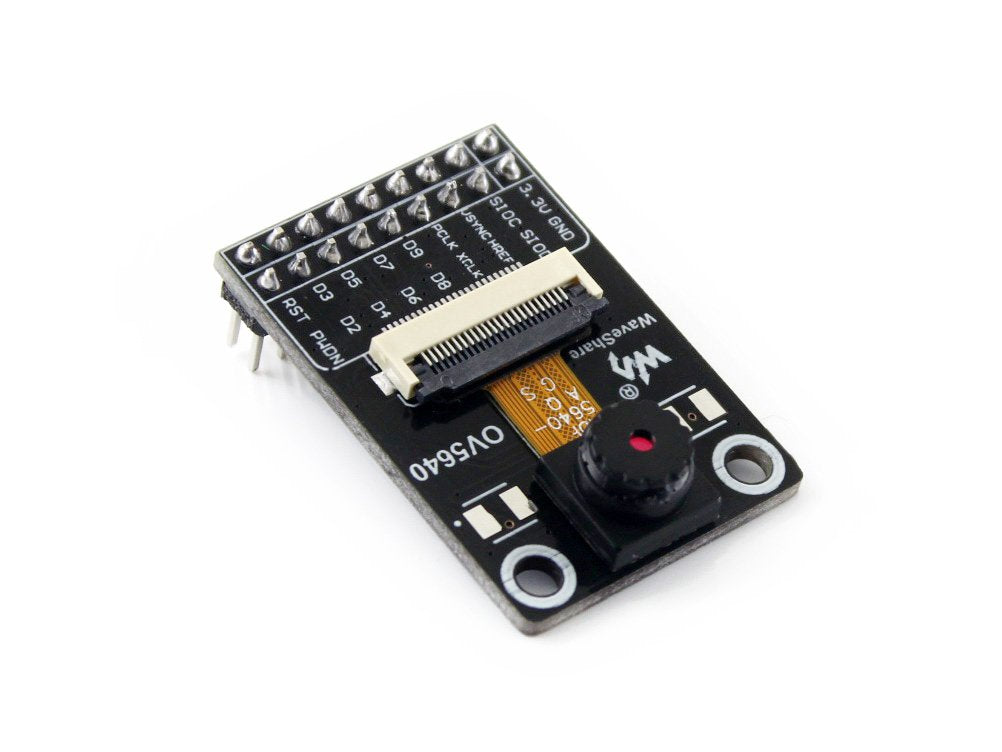

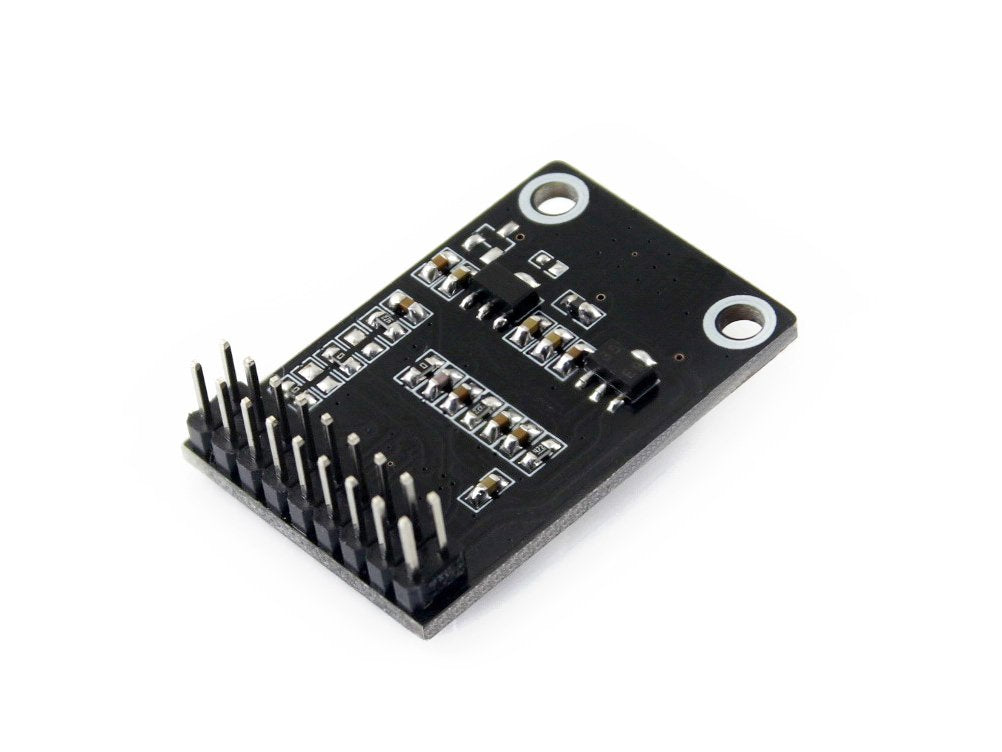

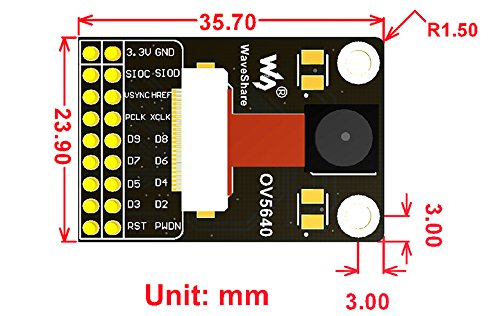

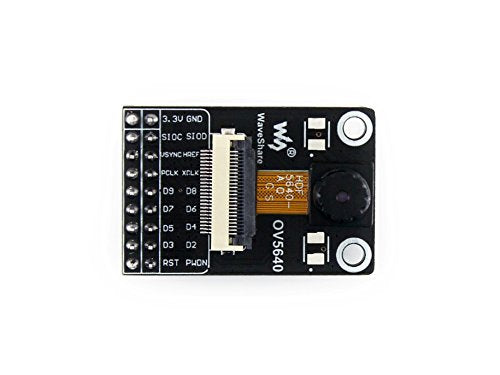

{"id":9152216858861,"title":"Waveshare OV5640 Camera Board (A) 5 Megapixel 2592x1944 Image Sensor Module High Sensitivity Low Crosstalk Low Noise","handle":"waveshare-ov5640-camera-board-a-5-megapixel-2592x1944-image-sensor-module-high-sensitivity-low-crosstalk-low-noise","description":"\u003ch3\u003eWaveshare OV5640 Camera Board (A) 5 Megapixel 2592x1944 Image Sensor Module High Sensitivity Low Crosstalk Low Noise\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eFeatures Pixels: 5 megapixel Resolution: 2592x1944 Sensor: OV5640 1.4um x\r\n1.4um pixel with OmniBSI technology, high sensitivity, low crosstalk, low\r\nnoise Automatic image control functions: AEC, AWB, ABF, ABLC, etc. Image\r\nquality controls: color saturation, hue, gamma, sharpness, lens correction,\r\netc. Supports image scaling, panning, windowing, etc. Lens: CCD size: 1\/4inch\r\nAperture (F): 3.0 Focal Length: 3.8mm Diagonal: 60 degree Output Formats:\r\nYUV(422\/420)\/YCbCr422 RGB565\/555\/444 CCIR656 RAW RGB Compressed Data Operating\r\nVoltage: 3.3V Control Interface: SCCB (I2C compatible) Data Interface: DVP\r\n8-bit Dimension: 35.70mm × 23.90mm PACKAGE CONTENT OV5640 Camera Board (A) x1\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eCamera Module Based on OV5640 Image Sensor, 5 Megapixel (2592x1944)\u003c\/li\u003e\r\n \u003cli\u003eAutomatic image control functions: AEC, AWB, ABF, ABLC, etc.Supports image scaling, panning, windowing, etc.\u003c\/li\u003e\r\n \u003cli\u003eImage quality controls: color saturation, hue, gamma, sharpness, lens correction, etc.\u003c\/li\u003e\r\n \u003cli\u003eCCD size: 1\/4inch.Aperture (F): 3.0.Focal Length: 3.8mm.Diagonal: 60 degree\u003c\/li\u003e\r\n \u003cli\u003eOutput Formats:YUV(422\/420)\/YCbCr422,RGB565\/555\/444,CCIR656,RAW RGB,Compressed Data\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2025-10-21T14:39:55+11:00","created_at":"2025-10-21T14:39:52+11:00","vendor":"waveshare","type":"","tags":["electronics_selected_Oct2025"],"price":15300,"price_min":15300,"price_max":15300,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":48904100151533,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B078MQP2Z2","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Waveshare OV5640 Camera Board (A) 5 Megapixel 2592x1944 Image Sensor Module High Sensitivity Low Crosstalk Low Noise","public_title":null,"options":["Default Title"],"price":15300,"weight":30,"compare_at_price":null,"inventory_management":"shopify","barcode":"614961951495","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/leoforward.com\/cdn\/shop\/files\/B078MQP2Z2.jpg?v=1775796463","\/\/leoforward.com\/cdn\/shop\/files\/41I6HmJLpRL.jpg?v=1761017994","\/\/leoforward.com\/cdn\/shop\/files\/51QlYJcsP7L.jpg?v=1761017994","\/\/leoforward.com\/cdn\/shop\/files\/41onLF_F2AL.jpg?v=1761017994","\/\/leoforward.com\/cdn\/shop\/files\/51RYP-uR74L.jpg?v=1761017994","\/\/leoforward.com\/cdn\/shop\/files\/51vi2iFjXbL.jpg?v=1761017994"],"featured_image":"\/\/leoforward.com\/cdn\/shop\/files\/B078MQP2Z2.jpg?v=1775796463","options":["Title"],"media":[{"alt":null,"id":36944116973805,"position":1,"preview_image":{"aspect_ratio":1.332,"height":752,"width":1002,"src":"\/\/leoforward.com\/cdn\/shop\/files\/B078MQP2Z2.jpg?v=1775796463"},"aspect_ratio":1.332,"height":752,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/B078MQP2Z2.jpg?v=1775796463","width":1002},{"alt":null,"id":36944117006573,"position":2,"preview_image":{"aspect_ratio":1.333,"height":375,"width":500,"src":"\/\/leoforward.com\/cdn\/shop\/files\/41I6HmJLpRL.jpg?v=1761017994"},"aspect_ratio":1.333,"height":375,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/41I6HmJLpRL.jpg?v=1761017994","width":500},{"alt":null,"id":36944117039341,"position":3,"preview_image":{"aspect_ratio":1.332,"height":752,"width":1002,"src":"\/\/leoforward.com\/cdn\/shop\/files\/51QlYJcsP7L.jpg?v=1761017994"},"aspect_ratio":1.332,"height":752,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/51QlYJcsP7L.jpg?v=1761017994","width":1002},{"alt":null,"id":36944117072109,"position":4,"preview_image":{"aspect_ratio":1.333,"height":375,"width":500,"src":"\/\/leoforward.com\/cdn\/shop\/files\/41onLF_F2AL.jpg?v=1761017994"},"aspect_ratio":1.333,"height":375,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/41onLF_F2AL.jpg?v=1761017994","width":500},{"alt":null,"id":36944117104877,"position":5,"preview_image":{"aspect_ratio":1.333,"height":375,"width":500,"src":"\/\/leoforward.com\/cdn\/shop\/files\/51RYP-uR74L.jpg?v=1761017994"},"aspect_ratio":1.333,"height":375,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/51RYP-uR74L.jpg?v=1761017994","width":500},{"alt":null,"id":36944117137645,"position":6,"preview_image":{"aspect_ratio":1.582,"height":316,"width":500,"src":"\/\/leoforward.com\/cdn\/shop\/files\/51vi2iFjXbL.jpg?v=1761017994"},"aspect_ratio":1.582,"height":316,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/51vi2iFjXbL.jpg?v=1761017994","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eWaveshare OV5640 Camera Board (A) 5 Megapixel 2592x1944 Image Sensor Module High Sensitivity Low Crosstalk Low Noise\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eFeatures Pixels: 5 megapixel Resolution: 2592x1944 Sensor: OV5640 1.4um x\r\n1.4um pixel with OmniBSI technology, high sensitivity, low crosstalk, low\r\nnoise Automatic image control functions: AEC, AWB, ABF, ABLC, etc. Image\r\nquality controls: color saturation, hue, gamma, sharpness, lens correction,\r\netc. Supports image scaling, panning, windowing, etc. Lens: CCD size: 1\/4inch\r\nAperture (F): 3.0 Focal Length: 3.8mm Diagonal: 60 degree Output Formats:\r\nYUV(422\/420)\/YCbCr422 RGB565\/555\/444 CCIR656 RAW RGB Compressed Data Operating\r\nVoltage: 3.3V Control Interface: SCCB (I2C compatible) Data Interface: DVP\r\n8-bit Dimension: 35.70mm × 23.90mm PACKAGE CONTENT OV5640 Camera Board (A) x1\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eCamera Module Based on OV5640 Image Sensor, 5 Megapixel (2592x1944)\u003c\/li\u003e\r\n \u003cli\u003eAutomatic image control functions: AEC, AWB, ABF, ABLC, etc.Supports image scaling, panning, windowing, etc.\u003c\/li\u003e\r\n \u003cli\u003eImage quality controls: color saturation, hue, gamma, sharpness, lens correction, etc.\u003c\/li\u003e\r\n \u003cli\u003eCCD size: 1\/4inch.Aperture (F): 3.0.Focal Length: 3.8mm.Diagonal: 60 degree\u003c\/li\u003e\r\n \u003cli\u003eOutput Formats:YUV(422\/420)\/YCbCr422,RGB565\/555\/444,CCIR656,RAW RGB,Compressed Data\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
