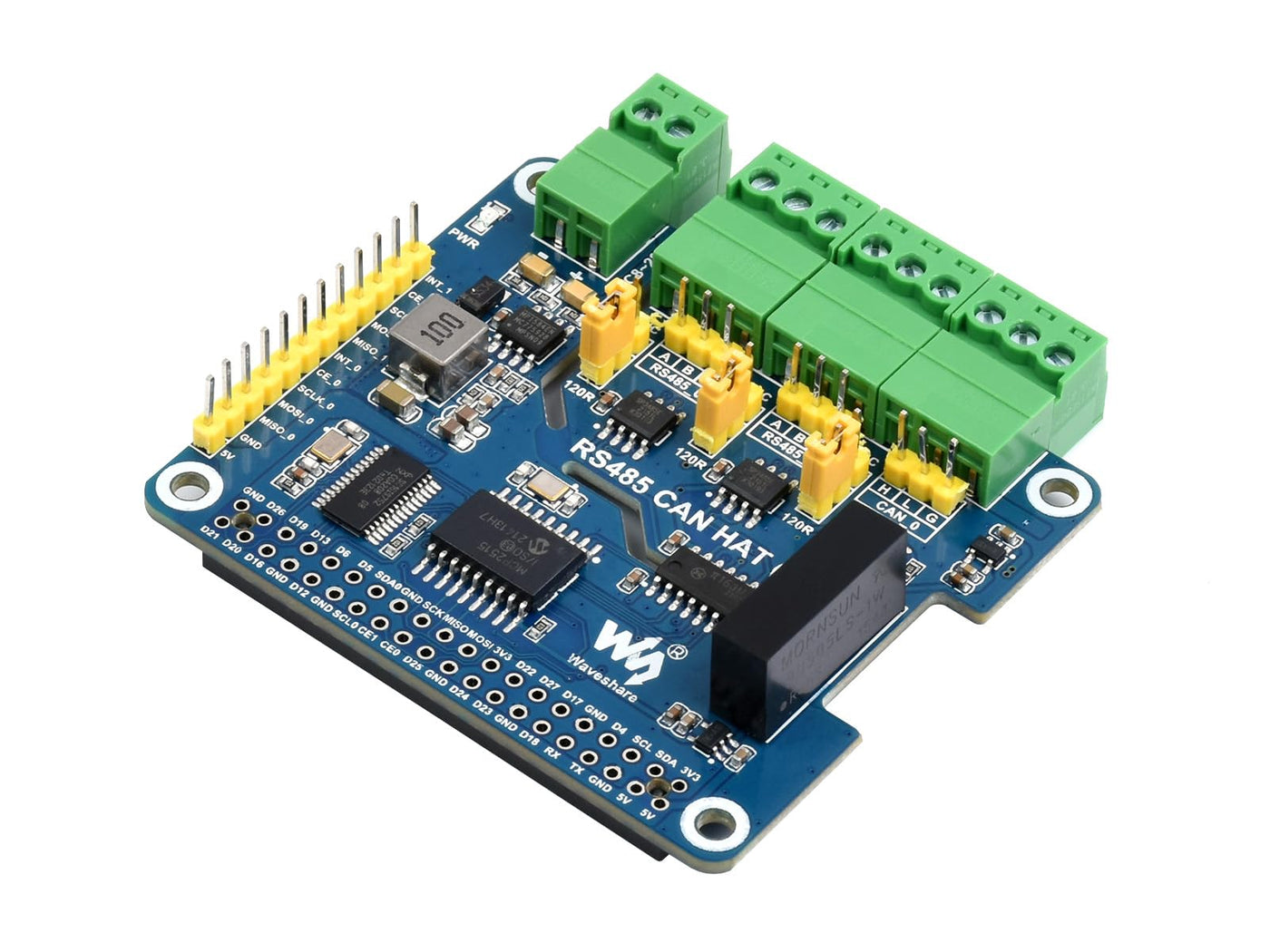

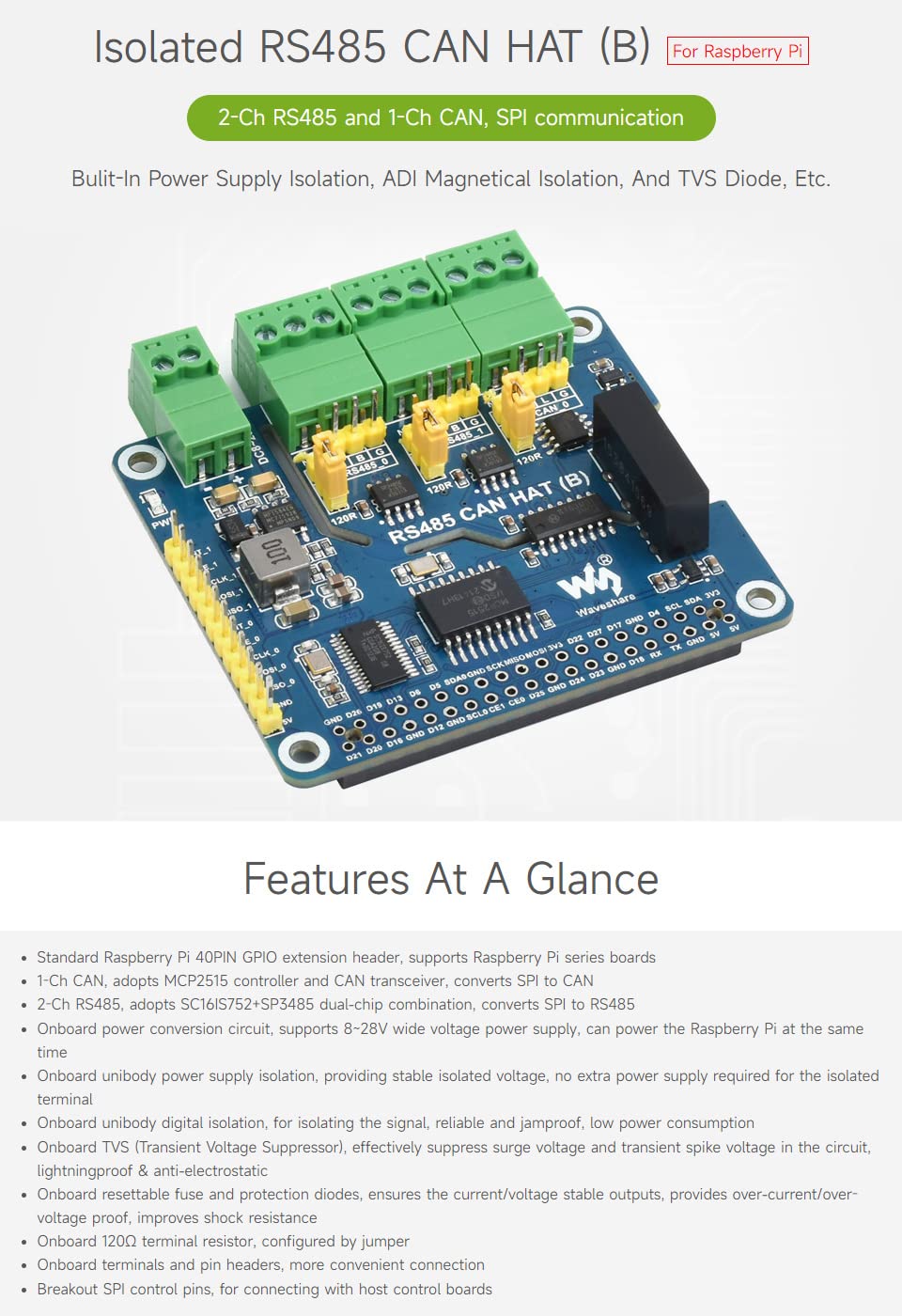

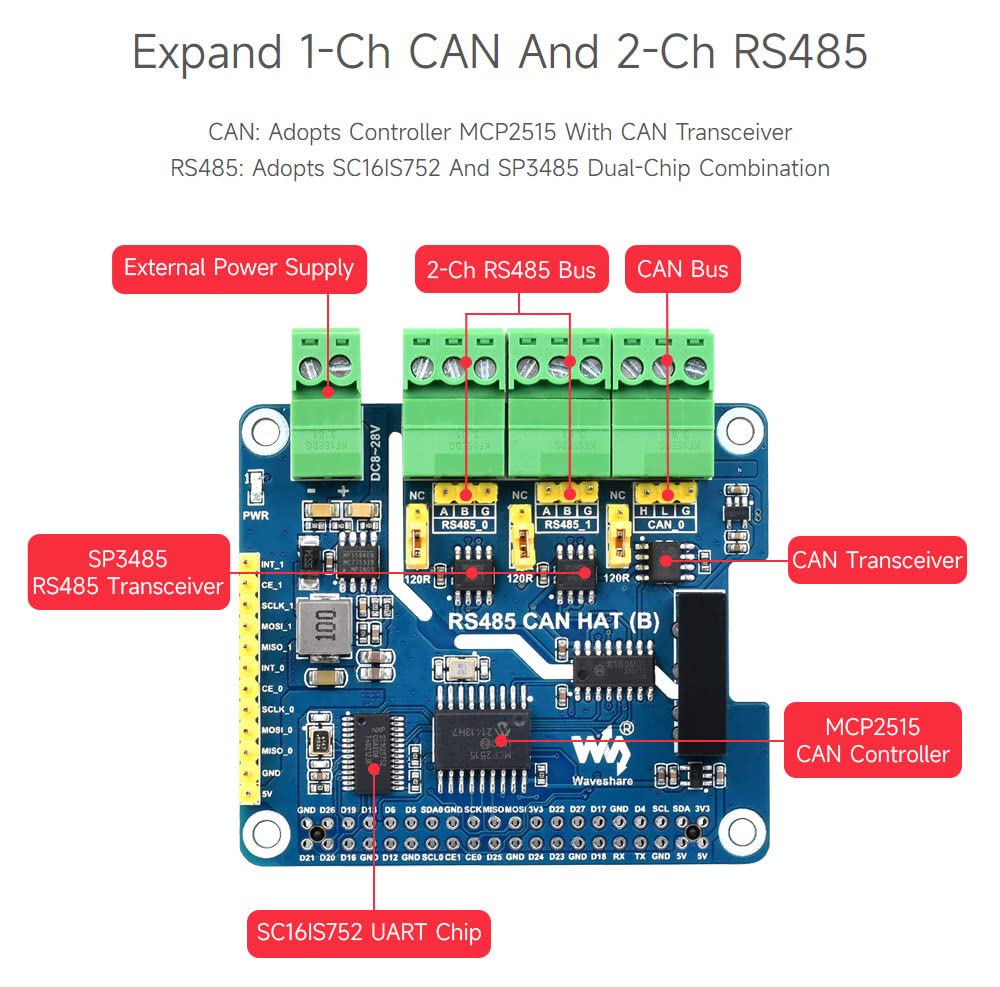

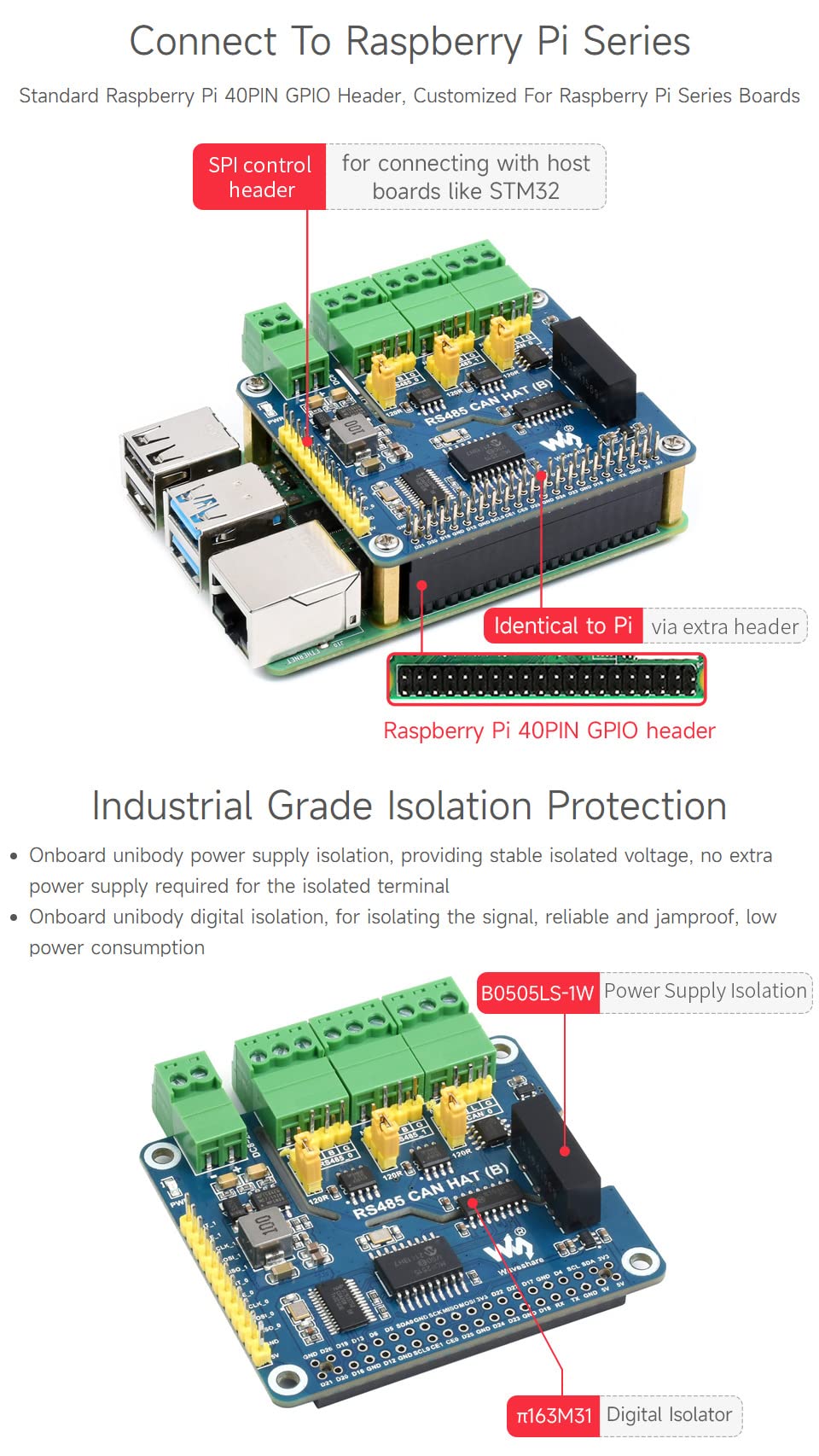

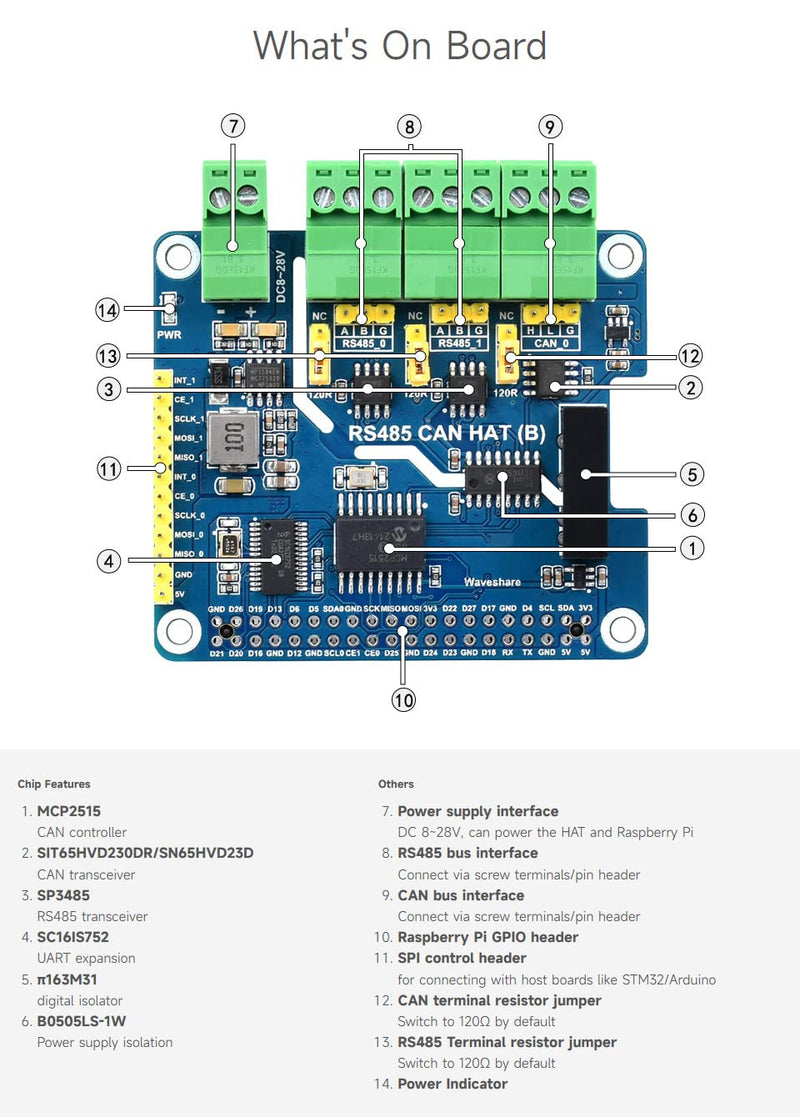

{"id":9147915600109,"title":"waveshare Isolated RS485 CAN HAT B, Compatible with Raspberry Pi 5\/4B\/3B\/Zero\/Zero W\/Zero 2W\/Pico\/Pico W\/Pico WH, Type 2-Ch RS485 and 1-Ch CAN Multi Protections","handle":"waveshare-isolated-rs485-can-hat-b-compatible-with-raspberry-pi-5-4b-3b-zero-zero-w-zero-2w-pico-pico-w-pico-wh-type-2-ch-rs485-and-1-ch-can-multi-protections","description":"\u003ch3\u003ewaveshare Isolated RS485 CAN HAT B, Compatible with Raspberry Pi 5\/4B\/3B\/Zero\/Zero W\/Zero 2W\/Pico\/Pico W\/Pico WH, Type 2-Ch RS485 and 1-Ch CAN Multi Protections\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003e\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eStandard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards. 1-Ch CAN, adopts MCP2515 controller and CAN transceiver, converts SPI to CAN. 2-Ch RS485, adopts SC16IS752+SP3485 dual-chip combination, converts SPI to RS485\u003c\/li\u003e\r\n \u003cli\u003eOnboard power conversion circuit, supports 8~28V wide voltage power supply, can power the Raspberry Pi at the same time. Onboard unibody power supply isolation, providing stable isolated voltage, no extra power supply required for the isolated terminal\u003c\/li\u003e\r\n \u003cli\u003eOnboard unibody digital isolation, for isolating the signal, reliable and jamproof, low power consumption. Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof \u0026amp; anti-electrostatic\u003c\/li\u003e\r\n \u003cli\u003eOnboard resettable fuse and protection diodes, ensures the current\/voltage stable outputs, provides over-current\/over-voltage proof, improves shock resistance\u003c\/li\u003e\r\n \u003cli\u003eOnboard 120 terminal resistor, configured by jumper. Onboard terminals and pin headers, more convenient connection. Breakout SPI control pins, for connecting with host control boards\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2025-10-18T03:49:07+11:00","created_at":"2025-10-18T03:49:03+11:00","vendor":"waveshare","type":"","tags":["electronics_selected_Oct2025"],"price":15300,"price_min":15300,"price_max":15300,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":48889906921709,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0BKKXB9JJ","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"waveshare Isolated RS485 CAN HAT B, Compatible with Raspberry Pi 5\/4B\/3B\/Zero\/Zero W\/Zero 2W\/Pico\/Pico W\/Pico WH, Type 2-Ch RS485 and 1-Ch CAN Multi Protections","public_title":null,"options":["Default Title"],"price":15300,"weight":59,"compare_at_price":null,"inventory_management":"shopify","barcode":"717186097884","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/leoforward.com\/cdn\/shop\/files\/B0BKKXB9JJ.jpg?v=1775790141","\/\/leoforward.com\/cdn\/shop\/files\/71DW-LNXAJL.jpg?v=1760719746","\/\/leoforward.com\/cdn\/shop\/files\/71EUuaBOtLL.jpg?v=1760719745","\/\/leoforward.com\/cdn\/shop\/files\/714mgqK3D2L.jpg?v=1760719746","\/\/leoforward.com\/cdn\/shop\/files\/71z92t6bD8L.jpg?v=1760719746","\/\/leoforward.com\/cdn\/shop\/files\/61e832VXXvL.jpg?v=1760719746","\/\/leoforward.com\/cdn\/shop\/files\/71b9HqgJ1UL.jpg?v=1760719745","\/\/leoforward.com\/cdn\/shop\/files\/71sFCQt7tLL.jpg?v=1760719746"],"featured_image":"\/\/leoforward.com\/cdn\/shop\/files\/B0BKKXB9JJ.jpg?v=1775790141","options":["Title"],"media":[{"alt":null,"id":36926631870701,"position":1,"preview_image":{"aspect_ratio":1.333,"height":1200,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/files\/B0BKKXB9JJ.jpg?v=1775790141"},"aspect_ratio":1.333,"height":1200,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/B0BKKXB9JJ.jpg?v=1775790141","width":1600},{"alt":null,"id":36926631903469,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/files\/71DW-LNXAJL.jpg?v=1760719746"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/71DW-LNXAJL.jpg?v=1760719746","width":1600},{"alt":null,"id":36926631936237,"position":3,"preview_image":{"aspect_ratio":0.686,"height":1400,"width":960,"src":"\/\/leoforward.com\/cdn\/shop\/files\/71EUuaBOtLL.jpg?v=1760719745"},"aspect_ratio":0.686,"height":1400,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/71EUuaBOtLL.jpg?v=1760719745","width":960},{"alt":null,"id":36926631969005,"position":4,"preview_image":{"aspect_ratio":0.674,"height":1424,"width":960,"src":"\/\/leoforward.com\/cdn\/shop\/files\/714mgqK3D2L.jpg?v=1760719746"},"aspect_ratio":0.674,"height":1424,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/714mgqK3D2L.jpg?v=1760719746","width":960},{"alt":null,"id":36926632001773,"position":5,"preview_image":{"aspect_ratio":0.563,"height":1706,"width":960,"src":"\/\/leoforward.com\/cdn\/shop\/files\/71z92t6bD8L.jpg?v=1760719746"},"aspect_ratio":0.563,"height":1706,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/71z92t6bD8L.jpg?v=1760719746","width":960},{"alt":null,"id":36926632034541,"position":6,"preview_image":{"aspect_ratio":1.013,"height":987,"width":1000,"src":"\/\/leoforward.com\/cdn\/shop\/files\/61e832VXXvL.jpg?v=1760719746"},"aspect_ratio":1.013,"height":987,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/61e832VXXvL.jpg?v=1760719746","width":1000},{"alt":null,"id":36926632067309,"position":7,"preview_image":{"aspect_ratio":0.716,"height":1340,"width":960,"src":"\/\/leoforward.com\/cdn\/shop\/files\/71b9HqgJ1UL.jpg?v=1760719745"},"aspect_ratio":0.716,"height":1340,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/71b9HqgJ1UL.jpg?v=1760719745","width":960},{"alt":null,"id":36926632100077,"position":8,"preview_image":{"aspect_ratio":0.592,"height":1622,"width":960,"src":"\/\/leoforward.com\/cdn\/shop\/files\/71sFCQt7tLL.jpg?v=1760719746"},"aspect_ratio":0.592,"height":1622,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/71sFCQt7tLL.jpg?v=1760719746","width":960}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003ewaveshare Isolated RS485 CAN HAT B, Compatible with Raspberry Pi 5\/4B\/3B\/Zero\/Zero W\/Zero 2W\/Pico\/Pico W\/Pico WH, Type 2-Ch RS485 and 1-Ch CAN Multi Protections\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003e\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eStandard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards. 1-Ch CAN, adopts MCP2515 controller and CAN transceiver, converts SPI to CAN. 2-Ch RS485, adopts SC16IS752+SP3485 dual-chip combination, converts SPI to RS485\u003c\/li\u003e\r\n \u003cli\u003eOnboard power conversion circuit, supports 8~28V wide voltage power supply, can power the Raspberry Pi at the same time. Onboard unibody power supply isolation, providing stable isolated voltage, no extra power supply required for the isolated terminal\u003c\/li\u003e\r\n \u003cli\u003eOnboard unibody digital isolation, for isolating the signal, reliable and jamproof, low power consumption. Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof \u0026amp; anti-electrostatic\u003c\/li\u003e\r\n \u003cli\u003eOnboard resettable fuse and protection diodes, ensures the current\/voltage stable outputs, provides over-current\/over-voltage proof, improves shock resistance\u003c\/li\u003e\r\n \u003cli\u003eOnboard 120 terminal resistor, configured by jumper. Onboard terminals and pin headers, more convenient connection. Breakout SPI control pins, for connecting with host control boards\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
