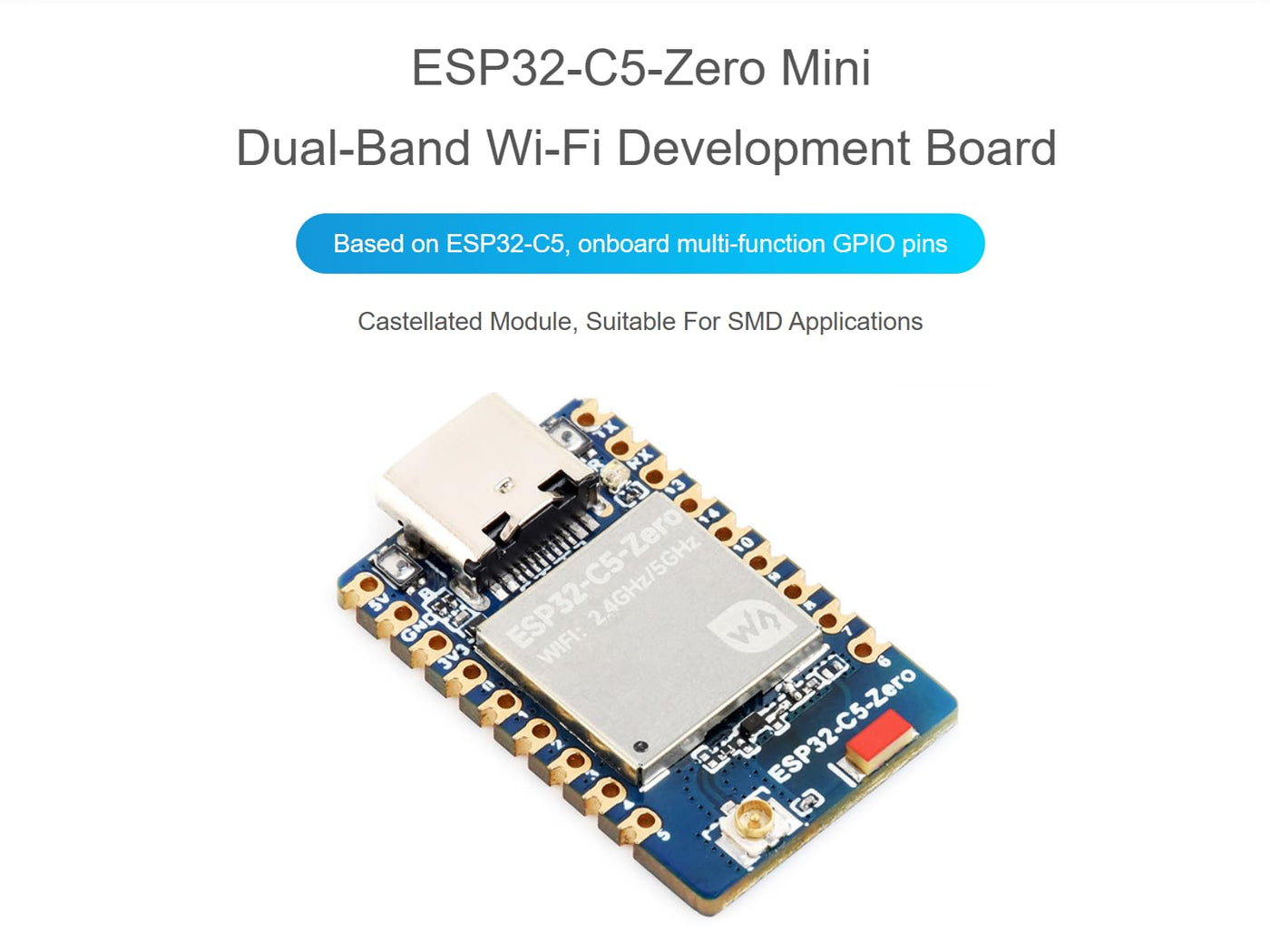

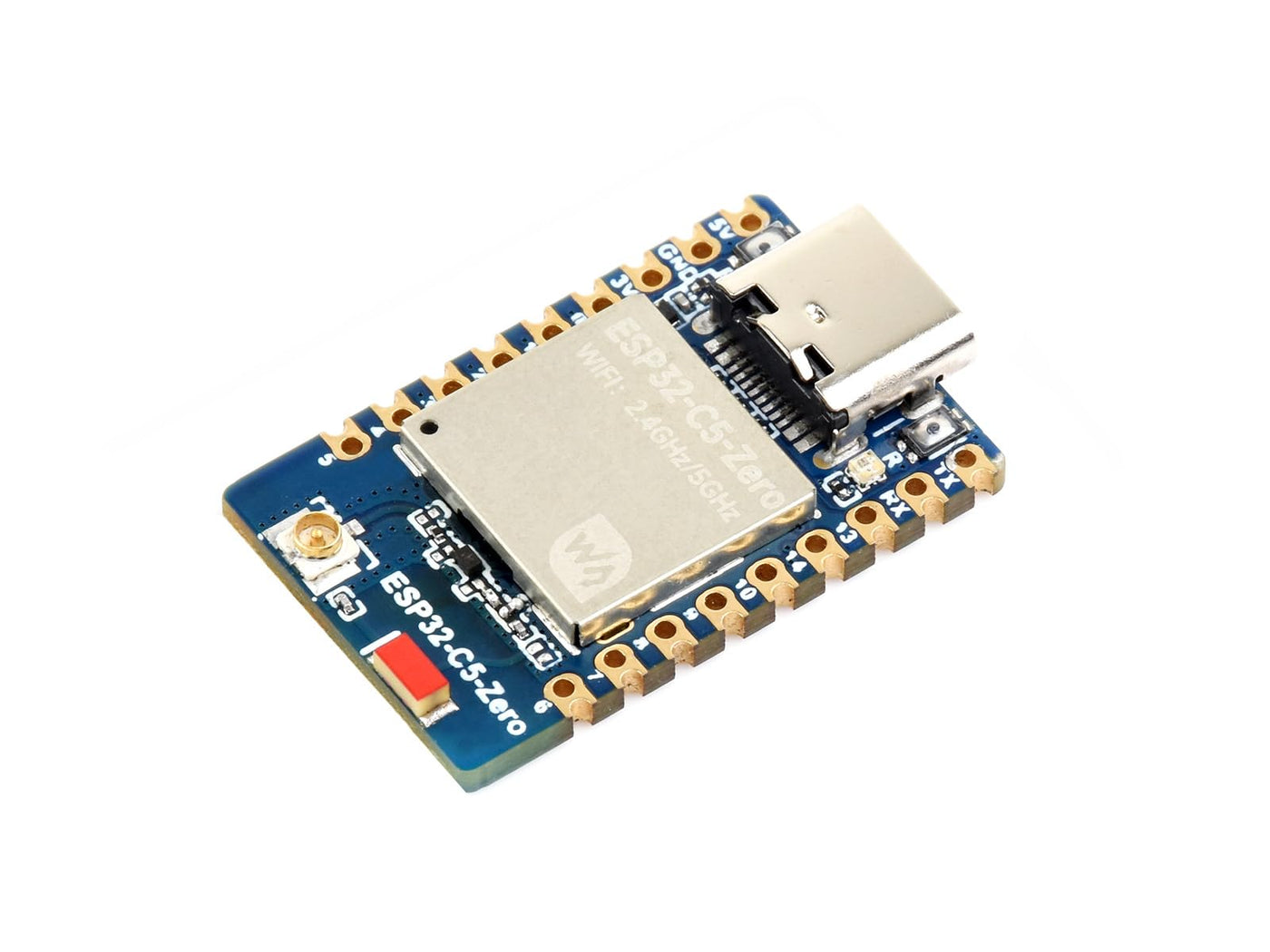

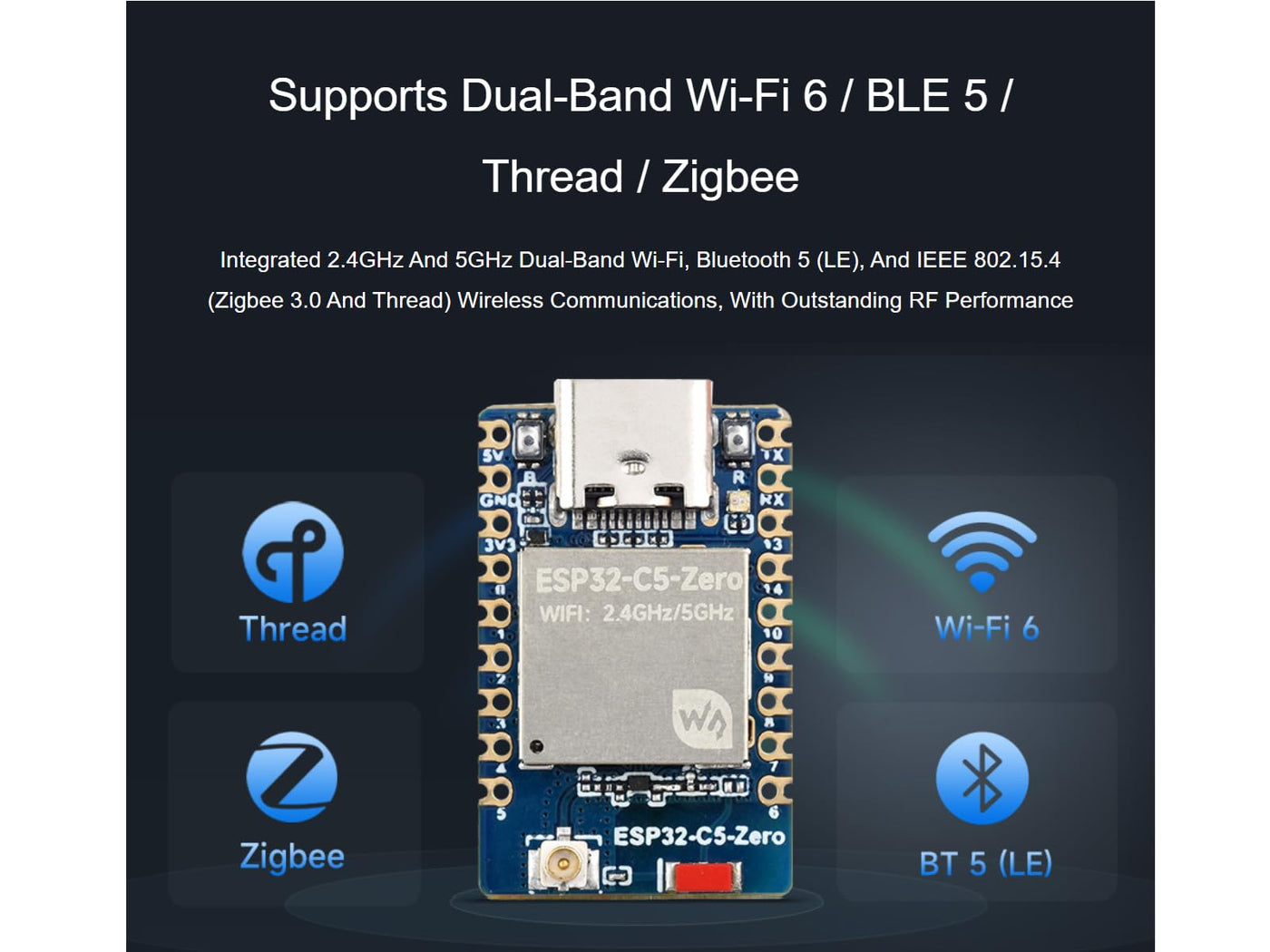

{"id":9533302669549,"title":"waveshare ESP32-C5 Mini 2.4GHz\/5GHz Dual-Band Wi-Fi Development Board Based on ESP32-C5-HF4，Integrated Bluetooth 5 (LE),IEEE 802.15.4 (Zigbee 3.0 and Thread) Wireless Communications","handle":"waveshare-esp32-c5-mini-2-4ghz-5ghz-dual-band-wi-fi-development-board-based-on-esp32-c5-hf4-integrated-bluetooth-5-le-ieee-802-15-4-zigbee-3-0-and-thread-wireless-communications","description":"\u003ch3\u003ewaveshare ESP32-C5 Mini 2.4GHz\/5GHz Dual-Band Wi-Fi Development Board Based on ESP32-C5-HF4，Integrated Bluetooth 5 (LE),IEEE 802.15.4 (Zigbee 3.0 and Thread) Wireless Communications\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eESP32-C5 Mini Development Board, Equipped With 32-Bit RISC-V Processor,\nIntegrated 2.4GHz\/5GHz Dual-Band Wi-Fi 6 And Bluetooth 5 Features The\nESP32-C5-Zero is an ultra-compact multi-protocol development board based on\nthe ESP32-C5-HF4, integrated with wireless communication, USB port, and\nonboard multiple peripheral interfaces, making it suitable for embedded and\nIoT applications. Equipped with 32-bit RISC-V processor, up to 240MHz main\nfrequency Integrated with 384KB Static RAM, 320KB ROM, and 4MB Flash\nIntegrated 2.4GHz and 5GHz dual-band Wi-Fi, Bluetooth 5 (LE), and IEEE\n802.15.4 (Zigbee 3.0 and Thread) wireless communications, with outstanding RF\nperformance Onboard antenna switching chip, supports onboard antenna or\nexternal antenna (IPEX-1) USB Type-C port, easier to use Castellated module\nallows soldering directly to carrier boards, with rich peripheral interfaces\nSupports multiple low-power operating modes, enabling flexible adjustment of\nthe balance between communication range, data rate, and power consumption to\nmeet the power requirements of various application scenarios Package Content\nESP32-C5-Zero x1 FAQ 1.After powering on the module, the recognized serial\nport devices and USB port keep resetting\/rebooting? Check if the supply\nvoltage of the USB port is less than 5V. Generally, if the USB port's supply\nvoltage is above 4.9V, both USB ports on the module should function normally.\nIf it is below 4.9V, insufficient power supply may occur, leading to the USB\nport disconnecting. In this case, you need to switch to a USB port that\nprovides adequate voltage.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eESP32-C5-Zero Mini Dual-Band Wi-Fi Development Board Based on ESP32-C5, onboard multi-function GPIO pins\u003c\/li\u003e\n \u003cli\u003eBased On ESP32-C5 Chip.The ESP32-C5 Is A Multi-Protocol RISC-V MCU, Supports Dual-Band Wi-Fi 6, Bluetooth (LE), And Zigbee\/Thread, Specifically Designed For IoT Applications Requiring Efficient Wireless Transmission\u003c\/li\u003e\n \u003cli\u003eSupports Dual-Band Wi-Fi 6 \/ BLE 5 \/ Thread \/ Zigbee.Integrated 2.4GHz And 5GHz Dual-Band Wi-Fi, Bluetooth 5 (LE), And IEEE 802.15.4 (Zigbee 3.0 And Thread) Wireless Communications, With Outstanding RF Performance\u003c\/li\u003e\n \u003cli\u003eSupports ESP-IDF, Arduino, And MicroPython.Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started\u003c\/li\u003e\n \u003cli\u003eUSB Type-C port, easier to use\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-08-17T22:01:55+10:00","created_at":"2026-08-17T17:54:32+10:00","vendor":"waveshare","type":"Single Board Computers","tags":["electronics_NR_Aug2026"],"price":9600,"price_min":9600,"price_max":9600,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":50497990721773,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0H38RZ98Z","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"waveshare ESP32-C5 Mini 2.4GHz\/5GHz Dual-Band Wi-Fi Development Board Based on ESP32-C5-HF4，Integrated Bluetooth 5 (LE),IEEE 802.15.4 (Zigbee 3.0 and Thread) Wireless Communications","public_title":null,"options":["Default Title"],"price":9600,"weight":36,"compare_at_price":null,"inventory_management":"shopify","barcode":"788046390551","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/leoforward.com\/cdn\/shop\/files\/B0H38RZ98Z.jpg?v=1786953274","\/\/leoforward.com\/cdn\/shop\/files\/61UA46fNk9L.jpg?v=1786953274","\/\/leoforward.com\/cdn\/shop\/files\/61QxYQqetAL.jpg?v=1786953275","\/\/leoforward.com\/cdn\/shop\/files\/71AnZFFHUdL.jpg?v=1786953274","\/\/leoforward.com\/cdn\/shop\/files\/61VSaZFjaLL.jpg?v=1786953274","\/\/leoforward.com\/cdn\/shop\/files\/61EhE84_YIL.jpg?v=1786953274","\/\/leoforward.com\/cdn\/shop\/files\/51HasukEpBL.jpg?v=1786953274","\/\/leoforward.com\/cdn\/shop\/files\/51p4-5aVk3L.jpg?v=1786953275"],"featured_image":"\/\/leoforward.com\/cdn\/shop\/files\/B0H38RZ98Z.jpg?v=1786953274","options":["Title"],"media":[{"alt":null,"id":41583579300077,"position":1,"preview_image":{"aspect_ratio":1.333,"height":1200,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/files\/B0H38RZ98Z.jpg?v=1786953274"},"aspect_ratio":1.333,"height":1200,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/B0H38RZ98Z.jpg?v=1786953274","width":1600},{"alt":null,"id":41583579332845,"position":2,"preview_image":{"aspect_ratio":1.333,"height":1200,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/files\/61UA46fNk9L.jpg?v=1786953274"},"aspect_ratio":1.333,"height":1200,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/61UA46fNk9L.jpg?v=1786953274","width":1600},{"alt":null,"id":41583579365613,"position":3,"preview_image":{"aspect_ratio":1.333,"height":1200,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/files\/61QxYQqetAL.jpg?v=1786953275"},"aspect_ratio":1.333,"height":1200,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/61QxYQqetAL.jpg?v=1786953275","width":1600},{"alt":null,"id":41583579398381,"position":4,"preview_image":{"aspect_ratio":1.333,"height":1200,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/files\/71AnZFFHUdL.jpg?v=1786953274"},"aspect_ratio":1.333,"height":1200,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/71AnZFFHUdL.jpg?v=1786953274","width":1600},{"alt":null,"id":41583579431149,"position":5,"preview_image":{"aspect_ratio":1.333,"height":1200,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/files\/61VSaZFjaLL.jpg?v=1786953274"},"aspect_ratio":1.333,"height":1200,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/61VSaZFjaLL.jpg?v=1786953274","width":1600},{"alt":null,"id":41583579463917,"position":6,"preview_image":{"aspect_ratio":1.333,"height":1200,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/files\/61EhE84_YIL.jpg?v=1786953274"},"aspect_ratio":1.333,"height":1200,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/61EhE84_YIL.jpg?v=1786953274","width":1600},{"alt":null,"id":41583579496685,"position":7,"preview_image":{"aspect_ratio":1.333,"height":1200,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/files\/51HasukEpBL.jpg?v=1786953274"},"aspect_ratio":1.333,"height":1200,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/51HasukEpBL.jpg?v=1786953274","width":1600},{"alt":null,"id":41583579529453,"position":8,"preview_image":{"aspect_ratio":1.333,"height":1200,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/files\/51p4-5aVk3L.jpg?v=1786953275"},"aspect_ratio":1.333,"height":1200,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/51p4-5aVk3L.jpg?v=1786953275","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003ewaveshare ESP32-C5 Mini 2.4GHz\/5GHz Dual-Band Wi-Fi Development Board Based on ESP32-C5-HF4，Integrated Bluetooth 5 (LE),IEEE 802.15.4 (Zigbee 3.0 and Thread) Wireless Communications\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eESP32-C5 Mini Development Board, Equipped With 32-Bit RISC-V Processor,\nIntegrated 2.4GHz\/5GHz Dual-Band Wi-Fi 6 And Bluetooth 5 Features The\nESP32-C5-Zero is an ultra-compact multi-protocol development board based on\nthe ESP32-C5-HF4, integrated with wireless communication, USB port, and\nonboard multiple peripheral interfaces, making it suitable for embedded and\nIoT applications. Equipped with 32-bit RISC-V processor, up to 240MHz main\nfrequency Integrated with 384KB Static RAM, 320KB ROM, and 4MB Flash\nIntegrated 2.4GHz and 5GHz dual-band Wi-Fi, Bluetooth 5 (LE), and IEEE\n802.15.4 (Zigbee 3.0 and Thread) wireless communications, with outstanding RF\nperformance Onboard antenna switching chip, supports onboard antenna or\nexternal antenna (IPEX-1) USB Type-C port, easier to use Castellated module\nallows soldering directly to carrier boards, with rich peripheral interfaces\nSupports multiple low-power operating modes, enabling flexible adjustment of\nthe balance between communication range, data rate, and power consumption to\nmeet the power requirements of various application scenarios Package Content\nESP32-C5-Zero x1 FAQ 1.After powering on the module, the recognized serial\nport devices and USB port keep resetting\/rebooting? Check if the supply\nvoltage of the USB port is less than 5V. Generally, if the USB port's supply\nvoltage is above 4.9V, both USB ports on the module should function normally.\nIf it is below 4.9V, insufficient power supply may occur, leading to the USB\nport disconnecting. In this case, you need to switch to a USB port that\nprovides adequate voltage.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eESP32-C5-Zero Mini Dual-Band Wi-Fi Development Board Based on ESP32-C5, onboard multi-function GPIO pins\u003c\/li\u003e\n \u003cli\u003eBased On ESP32-C5 Chip.The ESP32-C5 Is A Multi-Protocol RISC-V MCU, Supports Dual-Band Wi-Fi 6, Bluetooth (LE), And Zigbee\/Thread, Specifically Designed For IoT Applications Requiring Efficient Wireless Transmission\u003c\/li\u003e\n \u003cli\u003eSupports Dual-Band Wi-Fi 6 \/ BLE 5 \/ Thread \/ Zigbee.Integrated 2.4GHz And 5GHz Dual-Band Wi-Fi, Bluetooth 5 (LE), And IEEE 802.15.4 (Zigbee 3.0 And Thread) Wireless Communications, With Outstanding RF Performance\u003c\/li\u003e\n \u003cli\u003eSupports ESP-IDF, Arduino, And MicroPython.Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started\u003c\/li\u003e\n \u003cli\u003eUSB Type-C port, easier to use\u003c\/li\u003e\n \u003c\/ul\u003e"}
