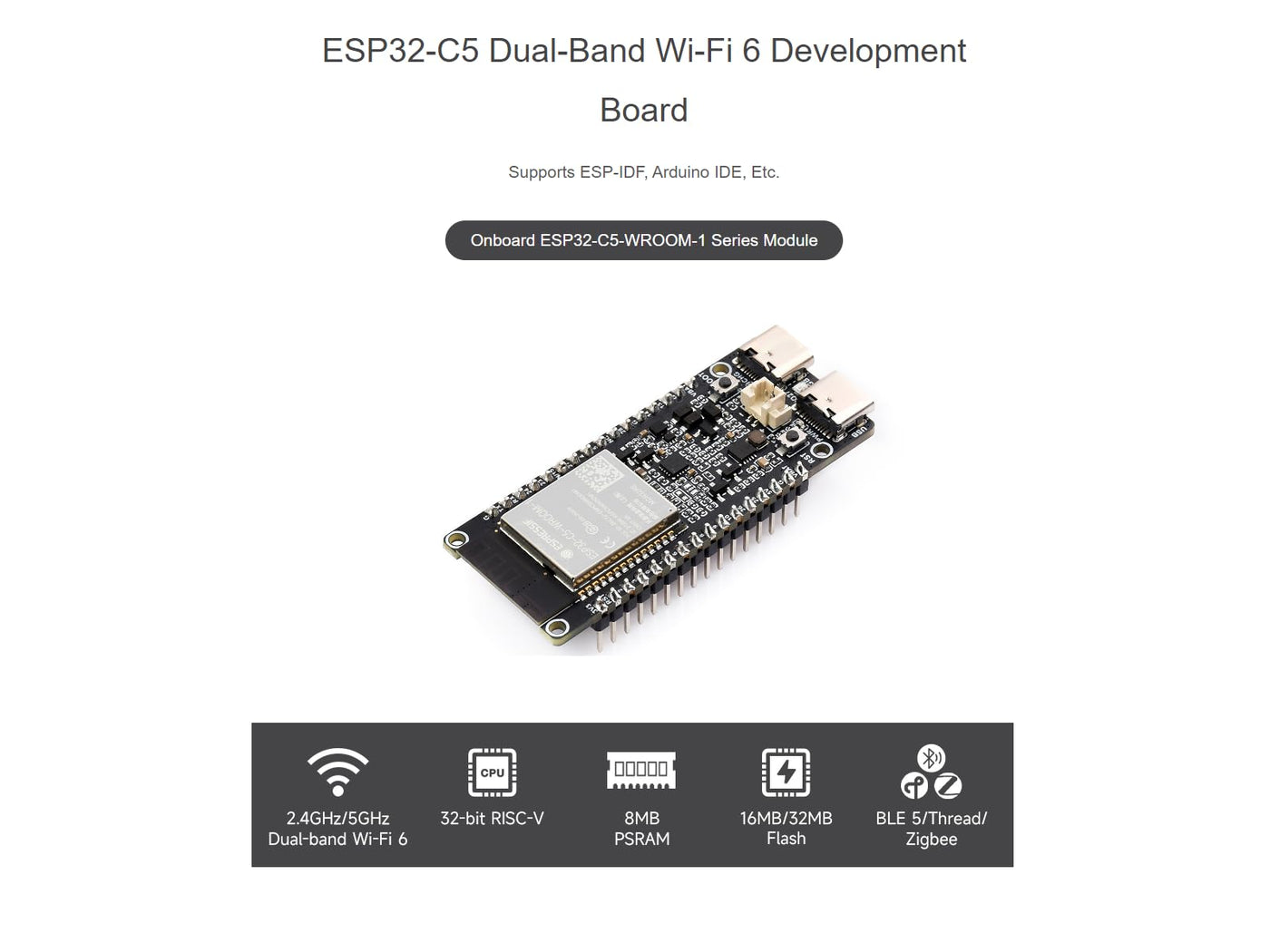

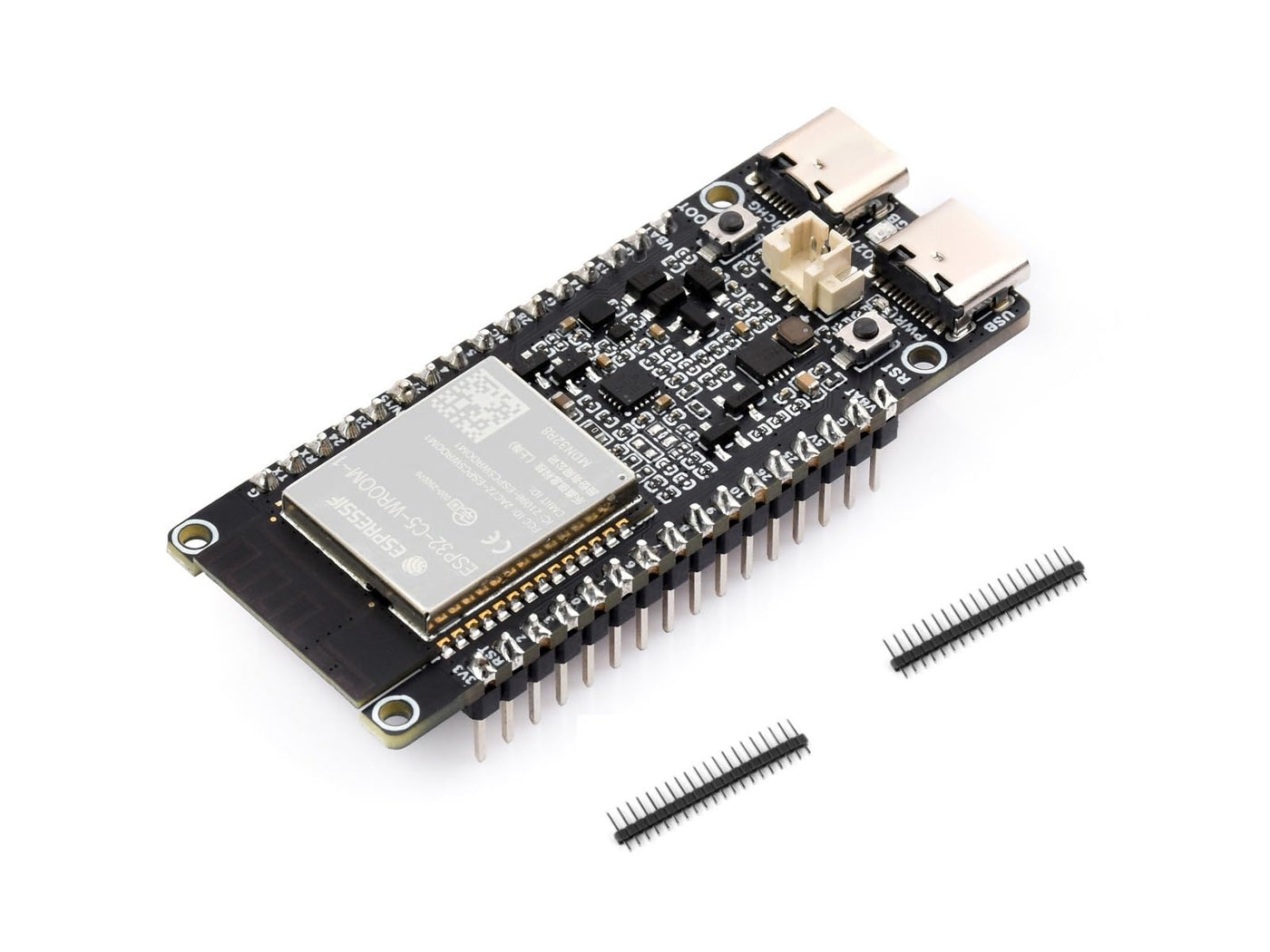

{"id":9533457203437,"title":"waveshare ESP32-C5 Development Board Wi-Fi 6 Devkit with pre-soldered Header Based on ESP32-C5-WROOM-1 Series Module,240MHz and 5GHz Dual-Band,32MB Flash and 8MB PSRAM,with Built-in Antenna","handle":"waveshare-esp32-c5-development-board-wi-fi-6-devkit-with-pre-soldered-header-based-on-esp32-c5-wroom-1-series-module-240mhz-and-5ghz-dual-band-32mb-flash-and-8mb-psram-with-built-in-antenna","description":"\u003ch3\u003ewaveshare ESP32-C5 Development Board Wi-Fi 6 Devkit with pre-soldered Header Based on ESP32-C5-WROOM-1 Series Module,240MHz and 5GHz Dual-Band,32MB Flash and 8MB PSRAM,with Built-in Antenna\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eESP32-C5 Dual-Band Wi-Fi 6 Development Board with pre-soldered Header , 240MHz\nRISC-V Processor, ESP32-C5-WROOM-1 Series Module Specifications The\nESP32-C5-WIFI6-KIT is a development board designed by Waveshare based on the\nESP32-C5-WROOM-1 module for dual-band Wi-Fi and multi-protocol IoT gateway\napplications. The ESP32-C5 is a single-core RISC-V chip, supports dual-band\nWi-Fi 6 (2.4GHz and 5GHz), and integrates BLE 5, Zigbee, and Thread protocols\nfor flexible use as a smart home hub or cross-protocol communication gateway.\nEquipped with 240MHz RISC-V processor, 384KB Static RAM, 8MB PSRAM, 32MB\nFlash, enables stable handling the concurrent tasks of multiple protocol\nstacks and running medium-load applications. Developers can leverage mature\ndevelopment frameworks such as ESP-IDF and Arduino for rapid prototyping and\nproduct implementation, making it suitable for IoT scenarios such as smart\ngateways and multi-protocol device integration. Key features include: Adopts\nESP32-C5-WROOM-1 series module with RISC-V 32-bit processor, up to 240MHz main\nfrequency Integrated with 384KB Static RAM, 320KB ROM, and 8MB PSRAM, 32MB\nFlash Integrated 2.4GHz and 5GHz dual-band Wi-Fi, Bluetooth 5 (LE), and IEEE\n802.15.4 (Zigbee 3.0 and Thread) wireless communications, with outstanding RF\nperformance Onboard batt. recharge management module, with reserved 3.7V\nMX1.25 Lithium batt. header for external batt. power supply USB Type-C port,\neasier to use Castellated module allows soldering directly to carrier boards,\nwith rich peripheral interfaces Supports multiple low-power operating modes,\nenabling flexible adjustment of the balance between communication range, data\nrate, and power consumption to meet the power requirements of various\napplication scenarios Package Content ESP32-C5-WIFI6-KIT-N16R8 with pre-\nsoldered headers x1\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eESP32-C5 Dual-Band Wi-Fi 6 Development Board with pre-soldered Header Onboard ESP32-C5-WROOM-1 Series Module\u003c\/li\u003e\n \u003cli\u003eSupports ESP-IDF, Arduino IDE.Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started\u003c\/li\u003e\n \u003cli\u003eBased On ESP32-C5 Chip.The ESP32-C5 Is A Multi-Protocol RISC-V MCU, Supports Dual-Band Wi-Fi 6, Bluetooth (LE), And Zigbee \/ Thread, Specifically Designed For IoT Applications Requiring Efficient Wireless Transmission\u003c\/li\u003e\n \u003cli\u003eSupports Dual-Band Wi-Fi 6 \/BLE 5 \/ Thread \/ Zigbee.Integrated 2.4GHz And 5GHz Dual-Band Wi-Fi, Bluetooth 5 (LE), And IEEE 802.15.4 (Zigbee 3.0 And Thread) Wireless Communications, With Outstanding RF Performance\u003c\/li\u003e\n \u003cli\u003eUSB Type-C port, easier to use\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-08-17T21:31:37+10:00","created_at":"2026-08-17T18:32:02+10:00","vendor":"waveshare","type":"Single Board Computers","tags":["electronics_NR_Aug2026"],"price":11900,"price_min":11900,"price_max":11900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":50498175860973,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0H2YBNPC4","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"waveshare ESP32-C5 Development Board Wi-Fi 6 Devkit with pre-soldered Header Based on ESP32-C5-WROOM-1 Series Module,240MHz and 5GHz Dual-Band,32MB Flash and 8MB PSRAM,with Built-in Antenna","public_title":null,"options":["Default Title"],"price":11900,"weight":45,"compare_at_price":null,"inventory_management":"shopify","barcode":"788046390544","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/leoforward.com\/cdn\/shop\/files\/B0H2YBNPC4.jpg?v=1786955525","\/\/leoforward.com\/cdn\/shop\/files\/61RCMIR-qUL.jpg?v=1786955525","\/\/leoforward.com\/cdn\/shop\/files\/619bKTk8ObL.jpg?v=1786955525","\/\/leoforward.com\/cdn\/shop\/files\/61sNe2o-BwL.jpg?v=1786955525","\/\/leoforward.com\/cdn\/shop\/files\/51YX4Ziqd1L.jpg?v=1786955525","\/\/leoforward.com\/cdn\/shop\/files\/61JbC0q-Y1L.jpg?v=1786955525","\/\/leoforward.com\/cdn\/shop\/files\/71QKNq3kBbL.jpg?v=1786955525"],"featured_image":"\/\/leoforward.com\/cdn\/shop\/files\/B0H2YBNPC4.jpg?v=1786955525","options":["Title"],"media":[{"alt":null,"id":41584403120365,"position":1,"preview_image":{"aspect_ratio":1.333,"height":1200,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/files\/B0H2YBNPC4.jpg?v=1786955525"},"aspect_ratio":1.333,"height":1200,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/B0H2YBNPC4.jpg?v=1786955525","width":1600},{"alt":null,"id":41584403153133,"position":2,"preview_image":{"aspect_ratio":1.333,"height":1200,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/files\/61RCMIR-qUL.jpg?v=1786955525"},"aspect_ratio":1.333,"height":1200,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/61RCMIR-qUL.jpg?v=1786955525","width":1600},{"alt":null,"id":41584403185901,"position":3,"preview_image":{"aspect_ratio":1.333,"height":1200,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/files\/619bKTk8ObL.jpg?v=1786955525"},"aspect_ratio":1.333,"height":1200,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/619bKTk8ObL.jpg?v=1786955525","width":1600},{"alt":null,"id":41584403218669,"position":4,"preview_image":{"aspect_ratio":1.333,"height":1200,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/files\/61sNe2o-BwL.jpg?v=1786955525"},"aspect_ratio":1.333,"height":1200,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/61sNe2o-BwL.jpg?v=1786955525","width":1600},{"alt":null,"id":41584403251437,"position":5,"preview_image":{"aspect_ratio":1.333,"height":1200,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/files\/51YX4Ziqd1L.jpg?v=1786955525"},"aspect_ratio":1.333,"height":1200,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/51YX4Ziqd1L.jpg?v=1786955525","width":1600},{"alt":null,"id":41584403284205,"position":6,"preview_image":{"aspect_ratio":1.333,"height":1200,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/files\/61JbC0q-Y1L.jpg?v=1786955525"},"aspect_ratio":1.333,"height":1200,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/61JbC0q-Y1L.jpg?v=1786955525","width":1600},{"alt":null,"id":41584403316973,"position":7,"preview_image":{"aspect_ratio":1.333,"height":1200,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/files\/71QKNq3kBbL.jpg?v=1786955525"},"aspect_ratio":1.333,"height":1200,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/71QKNq3kBbL.jpg?v=1786955525","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003ewaveshare ESP32-C5 Development Board Wi-Fi 6 Devkit with pre-soldered Header Based on ESP32-C5-WROOM-1 Series Module,240MHz and 5GHz Dual-Band,32MB Flash and 8MB PSRAM,with Built-in Antenna\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eESP32-C5 Dual-Band Wi-Fi 6 Development Board with pre-soldered Header , 240MHz\nRISC-V Processor, ESP32-C5-WROOM-1 Series Module Specifications The\nESP32-C5-WIFI6-KIT is a development board designed by Waveshare based on the\nESP32-C5-WROOM-1 module for dual-band Wi-Fi and multi-protocol IoT gateway\napplications. The ESP32-C5 is a single-core RISC-V chip, supports dual-band\nWi-Fi 6 (2.4GHz and 5GHz), and integrates BLE 5, Zigbee, and Thread protocols\nfor flexible use as a smart home hub or cross-protocol communication gateway.\nEquipped with 240MHz RISC-V processor, 384KB Static RAM, 8MB PSRAM, 32MB\nFlash, enables stable handling the concurrent tasks of multiple protocol\nstacks and running medium-load applications. Developers can leverage mature\ndevelopment frameworks such as ESP-IDF and Arduino for rapid prototyping and\nproduct implementation, making it suitable for IoT scenarios such as smart\ngateways and multi-protocol device integration. Key features include: Adopts\nESP32-C5-WROOM-1 series module with RISC-V 32-bit processor, up to 240MHz main\nfrequency Integrated with 384KB Static RAM, 320KB ROM, and 8MB PSRAM, 32MB\nFlash Integrated 2.4GHz and 5GHz dual-band Wi-Fi, Bluetooth 5 (LE), and IEEE\n802.15.4 (Zigbee 3.0 and Thread) wireless communications, with outstanding RF\nperformance Onboard batt. recharge management module, with reserved 3.7V\nMX1.25 Lithium batt. header for external batt. power supply USB Type-C port,\neasier to use Castellated module allows soldering directly to carrier boards,\nwith rich peripheral interfaces Supports multiple low-power operating modes,\nenabling flexible adjustment of the balance between communication range, data\nrate, and power consumption to meet the power requirements of various\napplication scenarios Package Content ESP32-C5-WIFI6-KIT-N16R8 with pre-\nsoldered headers x1\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eESP32-C5 Dual-Band Wi-Fi 6 Development Board with pre-soldered Header Onboard ESP32-C5-WROOM-1 Series Module\u003c\/li\u003e\n \u003cli\u003eSupports ESP-IDF, Arduino IDE.Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started\u003c\/li\u003e\n \u003cli\u003eBased On ESP32-C5 Chip.The ESP32-C5 Is A Multi-Protocol RISC-V MCU, Supports Dual-Band Wi-Fi 6, Bluetooth (LE), And Zigbee \/ Thread, Specifically Designed For IoT Applications Requiring Efficient Wireless Transmission\u003c\/li\u003e\n \u003cli\u003eSupports Dual-Band Wi-Fi 6 \/BLE 5 \/ Thread \/ Zigbee.Integrated 2.4GHz And 5GHz Dual-Band Wi-Fi, Bluetooth 5 (LE), And IEEE 802.15.4 (Zigbee 3.0 And Thread) Wireless Communications, With Outstanding RF Performance\u003c\/li\u003e\n \u003cli\u003eUSB Type-C port, easier to use\u003c\/li\u003e\n \u003c\/ul\u003e"}
