waveshare 1.5inch RGB OLED Display Module, 128x128 Pixels 16-bit High Color (65K Colors) SPI Interface Compatible with Arduino Raspberry Pi Jetson Nano STM32 1.5inch RGB OLED Module

In Stock. Leaves warehouse within 2 - 3 business days

$143.00 AUD
Maximum quantity available reached.
Shop now & enjoy FREE shipping Australia-wide
More detailed product descriptions
Free Shipping Australia Wide
100% Safe & Secure Checkout
100 Days Return Policy *
1 Year Warranty *

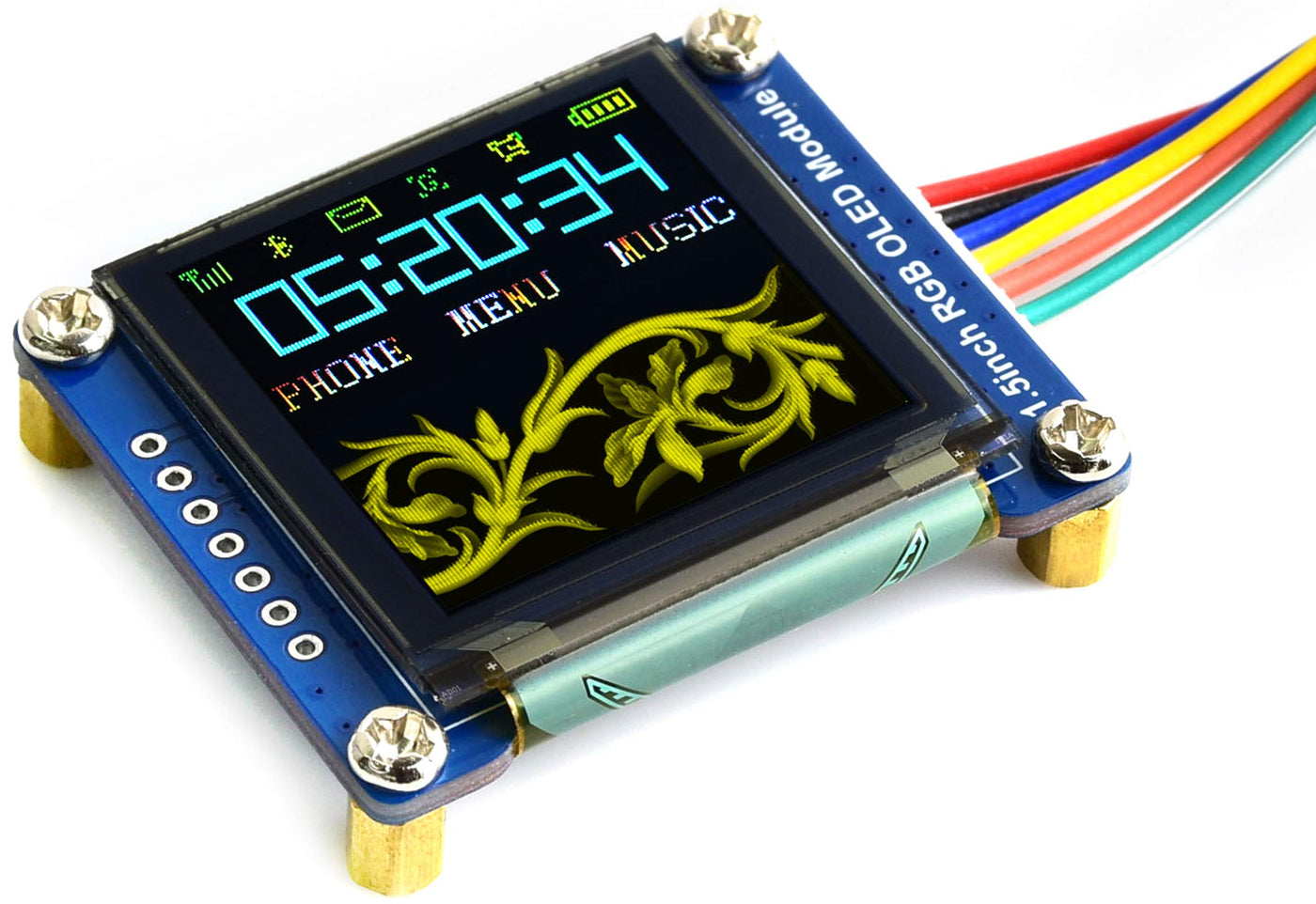

waveshare 1.5inch RGB OLED Display Module, 128x128 Pixels 16-bit High Color (65K Colors) SPI Interface Compatible with Arduino Raspberry Pi Jetson Nano STM32

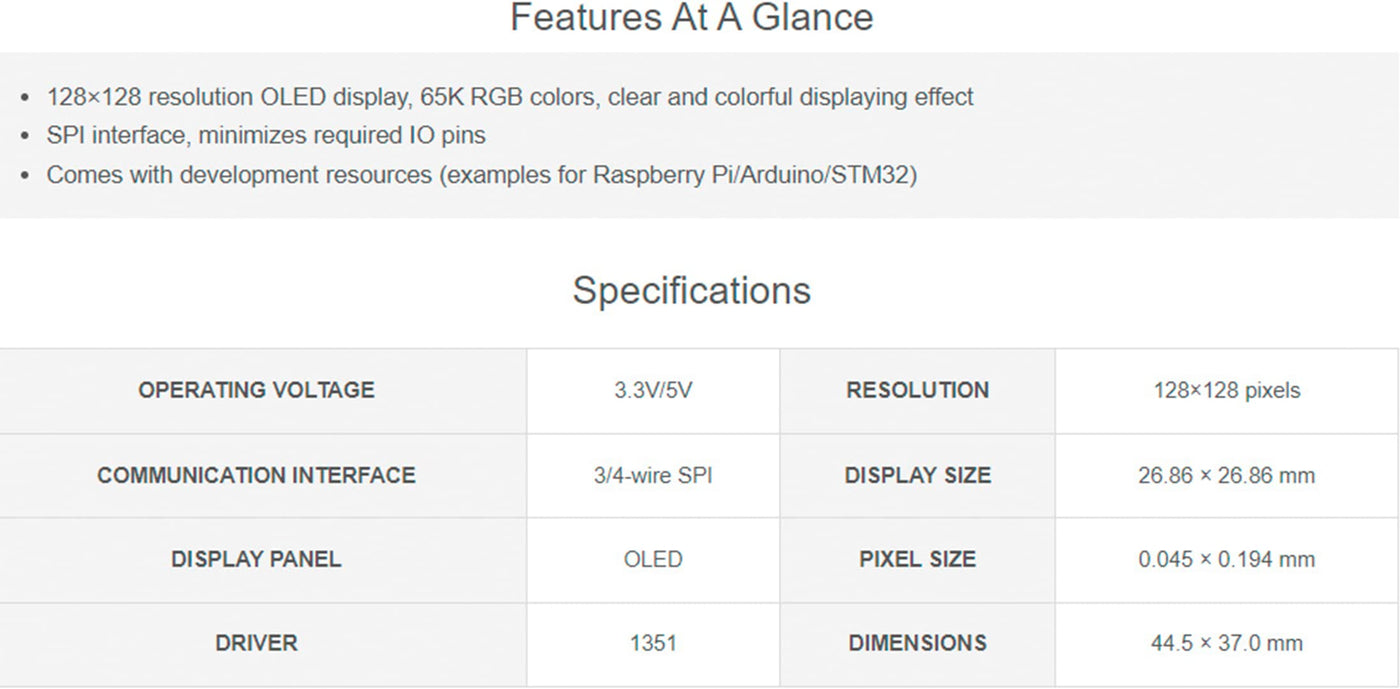

1.5inch RGB OLED display module, 128x128 pixels, 16-bit high color, SPI interface Overview This is a general RGB OLED display Module, 1.5inch diagonal, 128x128 pixels, 16-bit high color (65K colors), with embedded controller, communicating via SPI interface. Features 128x128 high resolution, 65K colors, clearly displays colorful images Supports 4-wire SPI OR 3-wire SPI interface, configured via onboard resistor Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32) Specifications Operating voltage: 3.3V/5V (Please ensure that the power supply voltage and logic voltage are consistent, otherwise it will not work properly) Support interface: 4-wire SPI, 3-wire SPI Controller: SSD1351 Resolution: 128(H)RGB x 128(V) Dimension: 26.855（H）x 26.855（V）mm Pixel size: 0.045(H) x 0.194(V) mm Display color: 65K color OLED and its controller The built-in driver used by this OLED is SSD1351, which is a 128RGB 128 Dot Matrix OLED/PLED controller with a 12812818bit SRAM as a display buffer area, which supports two color depths of 262k and 65k. And supports 8bit 8080 parallel, 8bit 6800 parallel, 3wire-SPI and 4wire-SPI and other communication methods. This module selects 4wire-SPI and 3wire-SPI as the communication method, which reduces the area of the module and saves the IO resources of the controller. Description VCC---3.3V/5V Power input GND---Ground DIN---Data input SCL--- Clock input CS ---Chip select, active low DC---Data/command signal selection, low level indicates command, high level indicates data RST--Reset signal, active low Online Document/ User Manual: //bit.ly/3TriWqs Package Content 1.5inch RGB OLED Module x1 PH2.0 7Pin x1

Product Features

  • This is a general 1.5inch RGB OLED display module, 128x128 pixels, 16-bit high color (65K colors),clearly displays colorful images, with embedded controller, communicating via SPI interface.
  • Driver: SSD1351. Display color: RGB, 65K colors
  • Supports 4-wire SPI OR 3-wire SPI interface, configured via onboard resistor

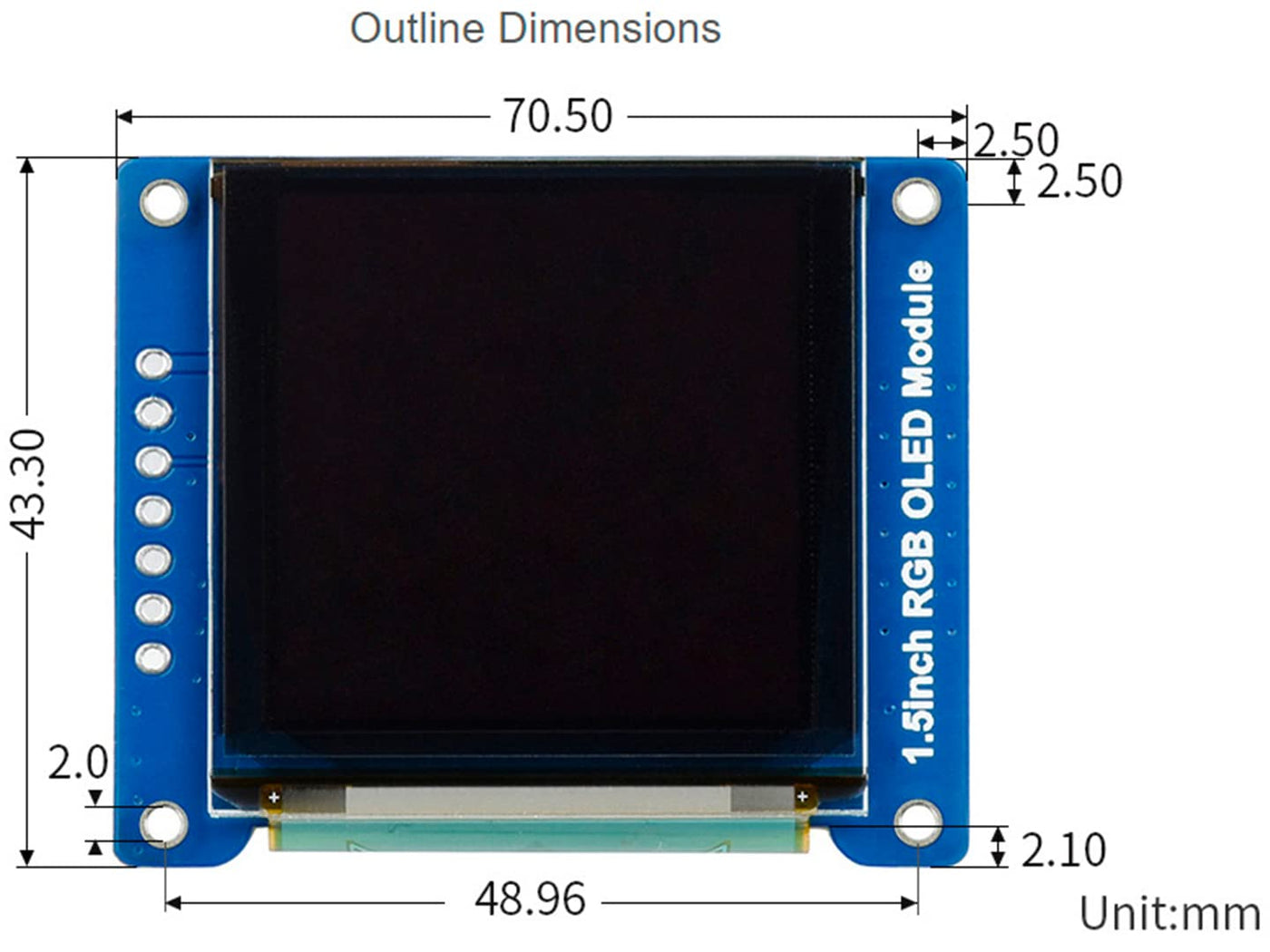

  • Dimension: 44.5 x 37 (mm),Operating voltage: 3.3V / 5V,Viewing angle: >160,Interface: 4-wire SPI, 3-wire SPI
