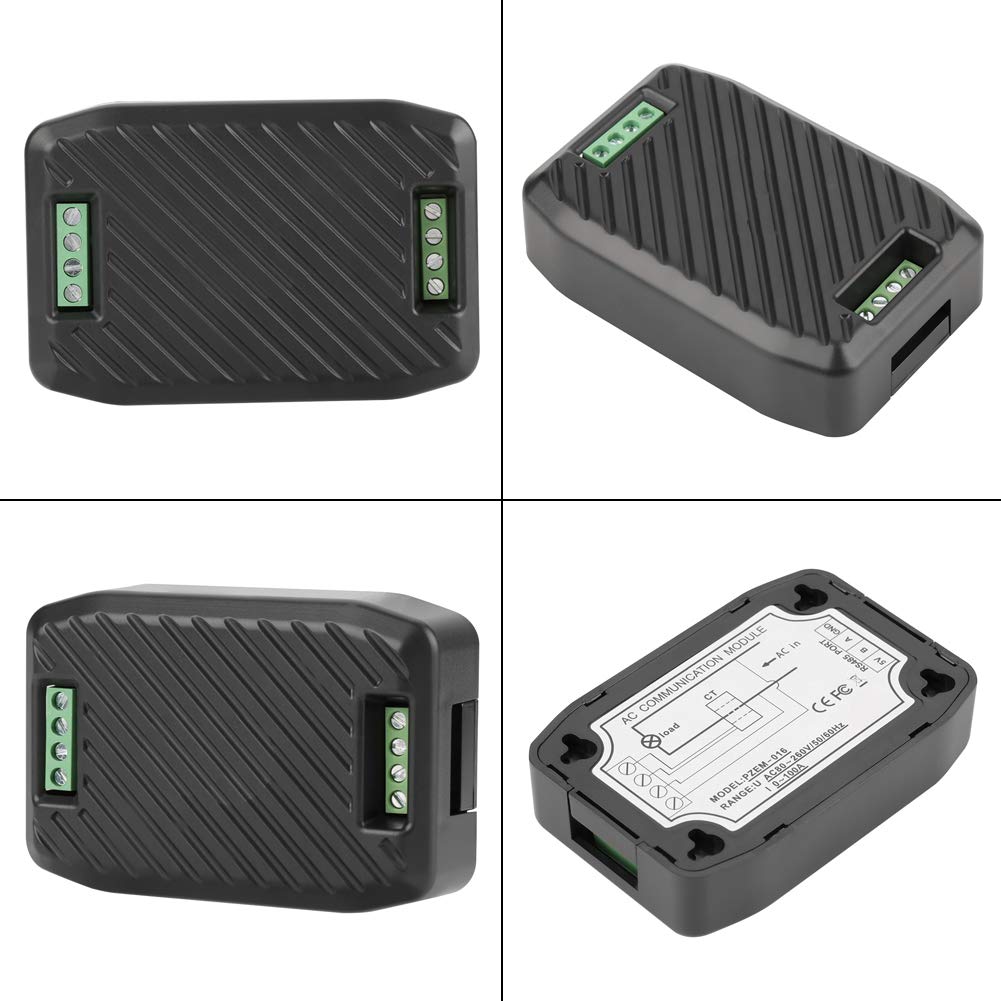

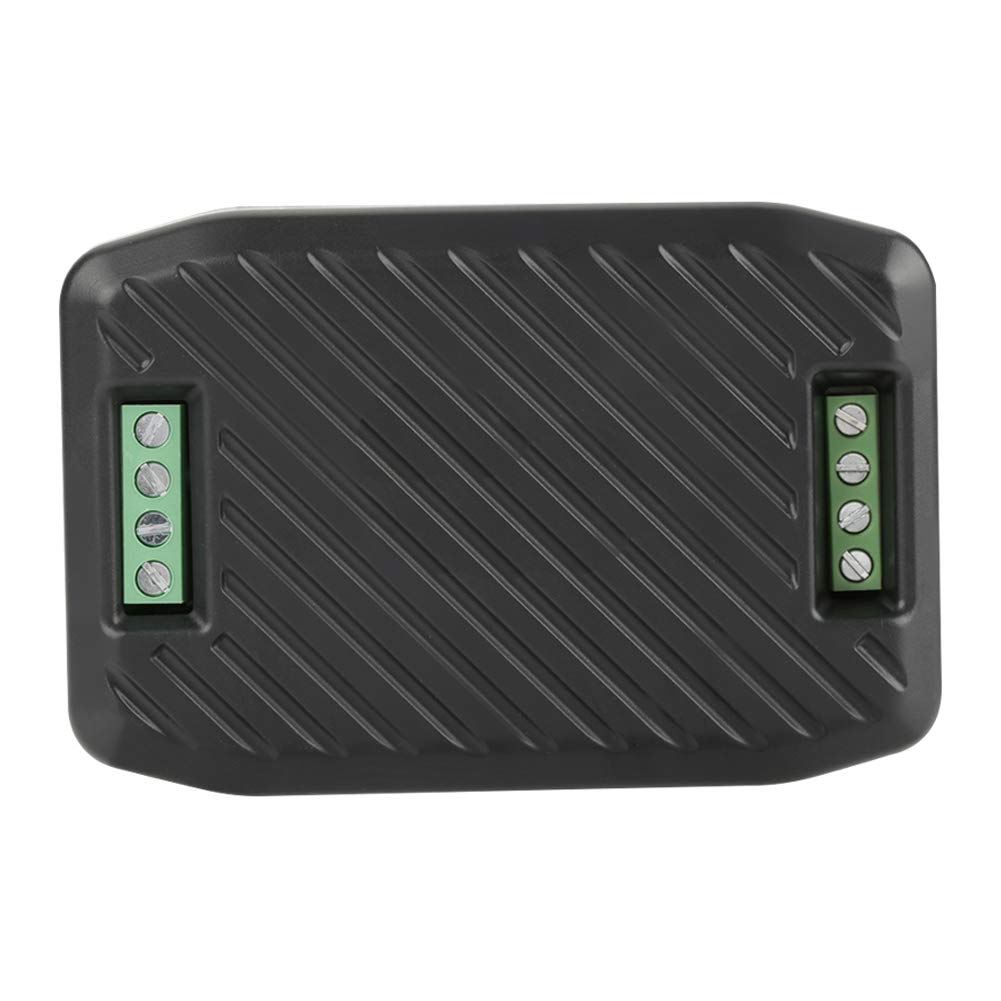

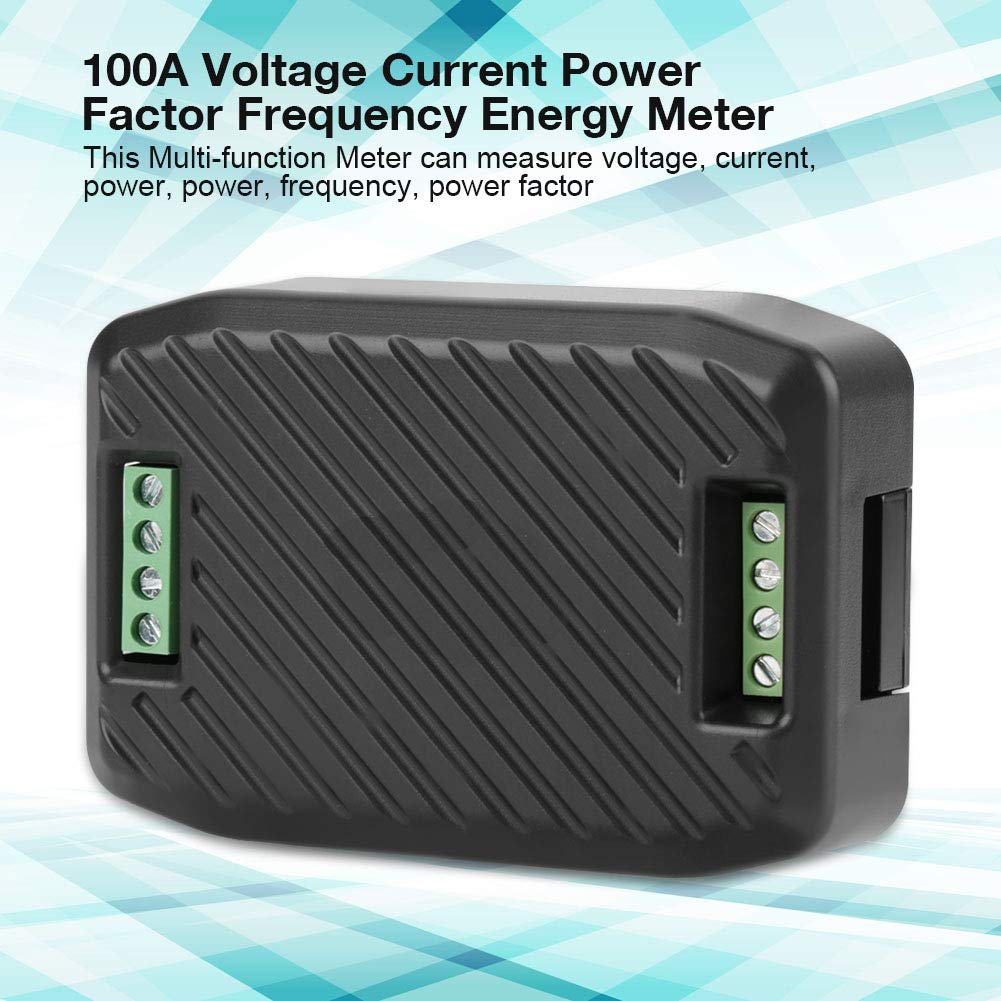

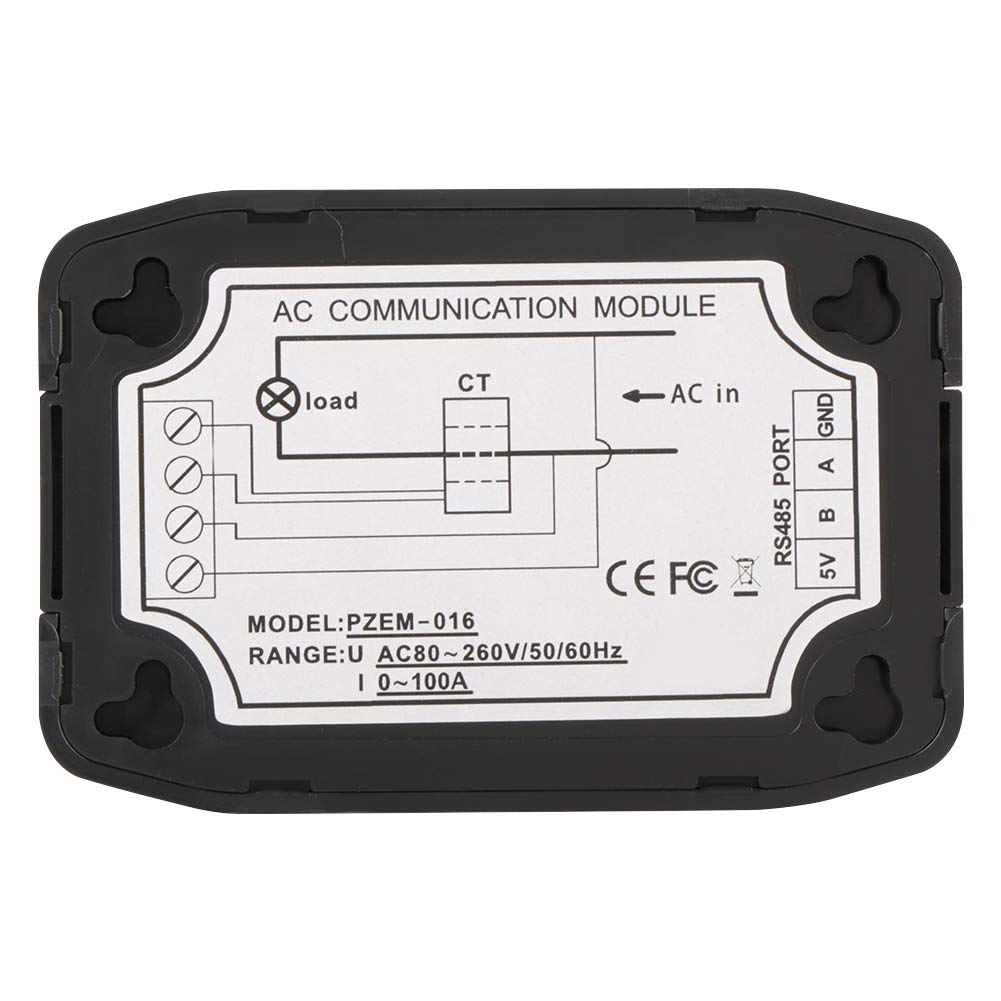

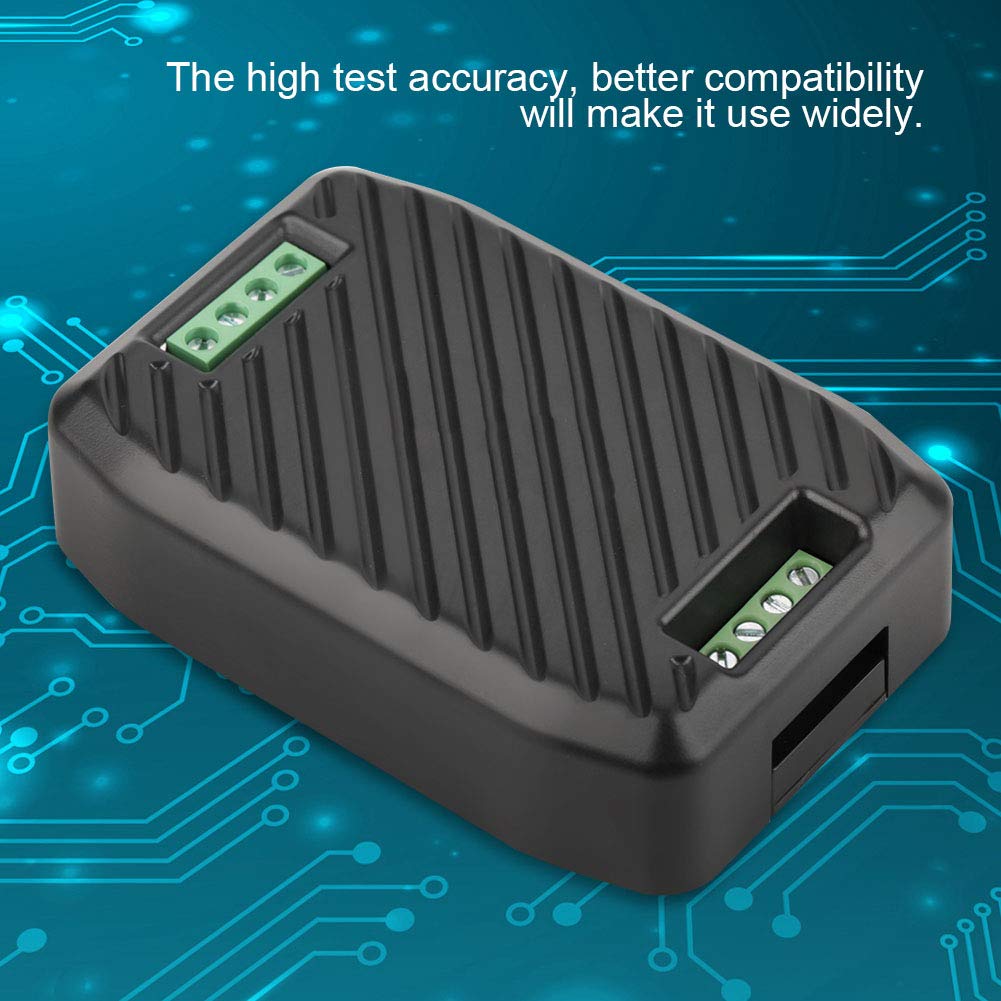

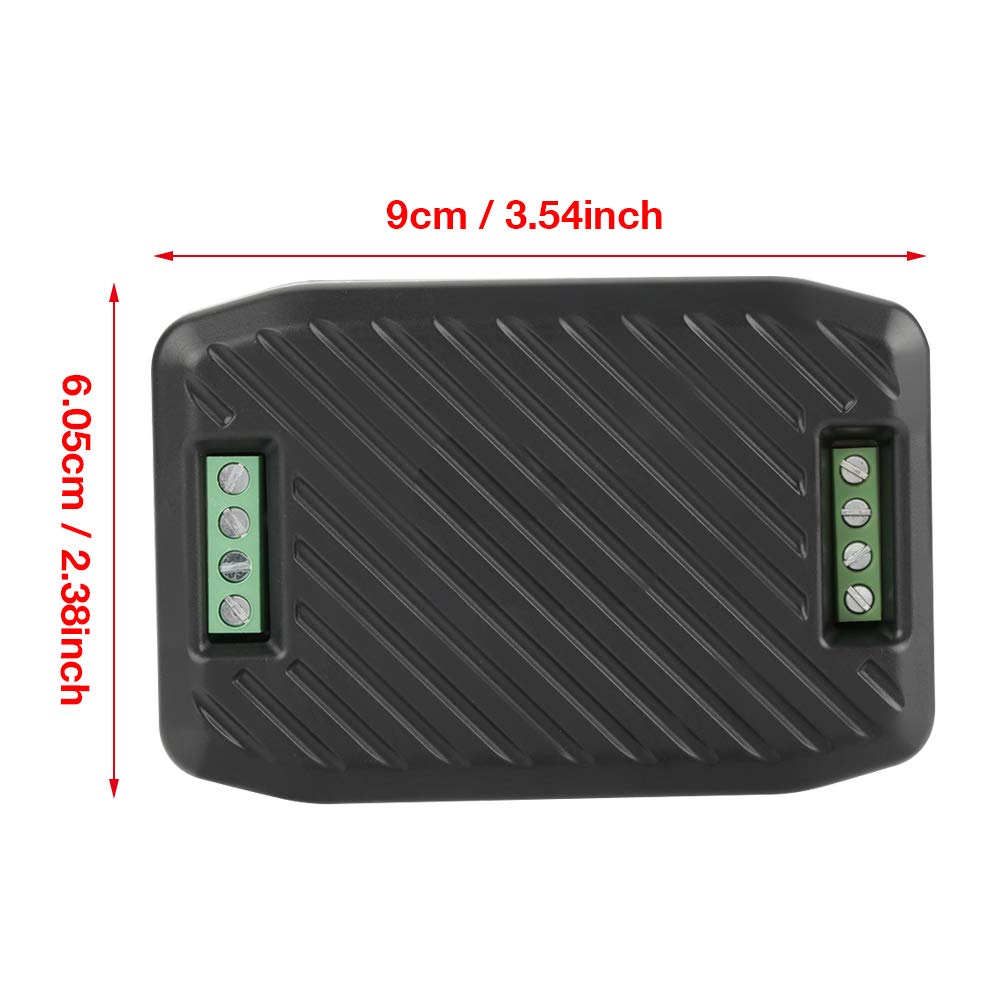

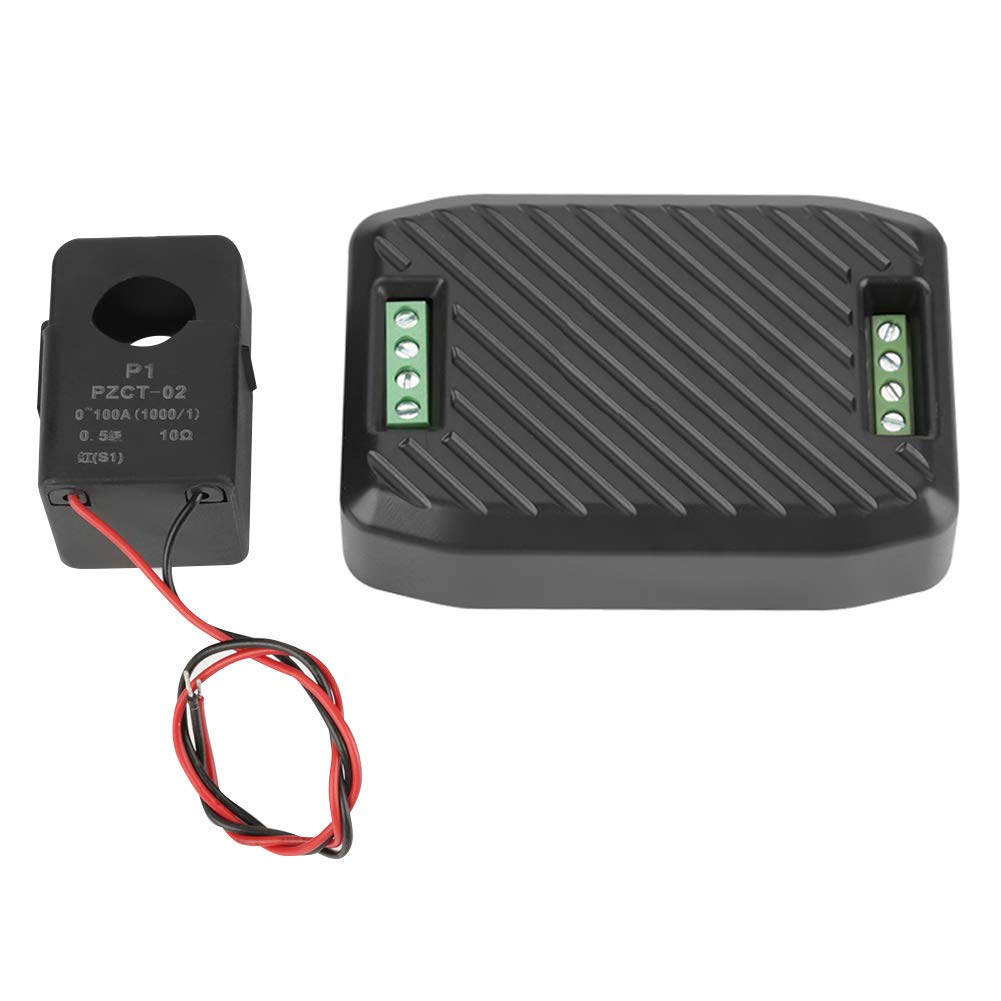

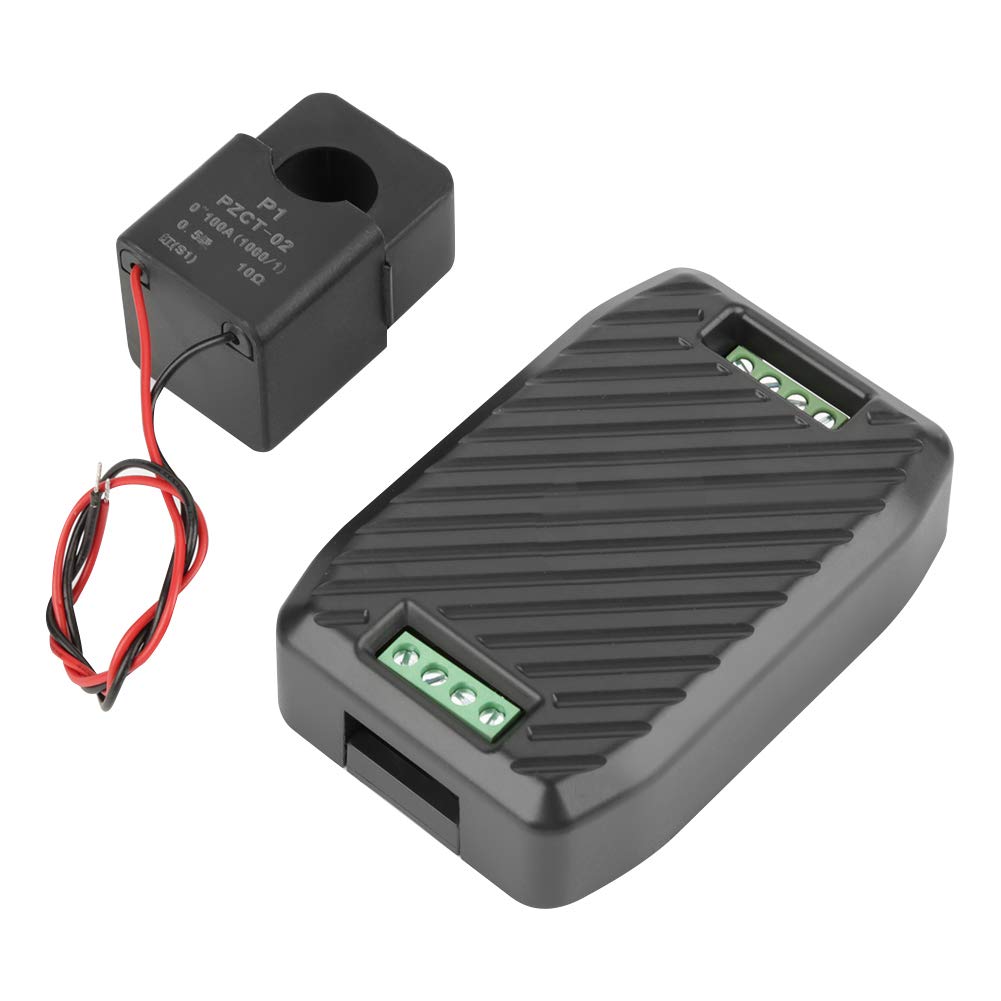

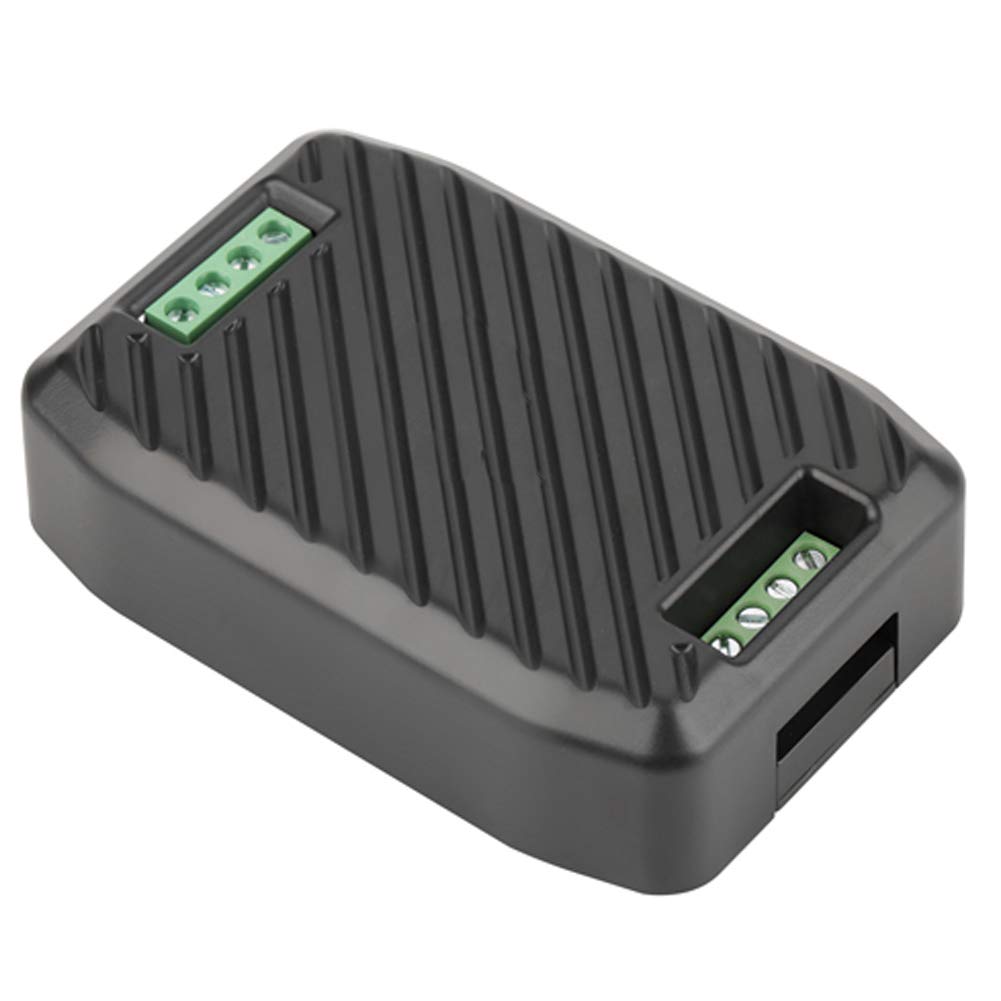

{"id":9336601673965,"title":"UART to RS485 Energy Meter Voltmeter Ammeter Monitor Voltage Current Power Frequency Power Factor Multifunction Tester(Split CT 100A PZEM-016) Split CT 100A PZEM-016","handle":"uart-to-rs485-energy-meter-voltmeter-ammeter-monitor-voltage-current-power-frequency-power-factor-multifunction-testersplit-ct-100a-pzem-016-split-ct-100a-pzem-016","description":"\u003ch3\u003eUART to RS485 Energy Meter Voltmeter Ammeter Monitor Voltage Current Power Frequency Power Factor Multifunction Tester(Split CT 100A PZEM-016)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecifications: Voltage Measuring range:80~260V Resolution: 0.1V Measurement\naccuracy: 0.5% Current Measuring range: 0~100A Starting measure current: 0.02A\nResolution: 0.001A Measurement accuracy: 0.5% Active power Measuring range:\n0~23kW Starting measure power: 0.4W Resolution: 0.1W Display format: When the\ndata is ＜1000W, it display one decimal, such as: .9W When the data is ≥1000W,\nit display only integer, such as: 1000W Measurement accuracy: 0.5% Power\nfactor Measuring range: 0.00~1.00 Resolution: 0.01 Measurement accuracy: 1%\nFrequency Measuring range: 45Hz~65Hz Resolution: 0.1Hz Measurement accuracy:\n0.5% Active energy Measuring range: 0~9999.99kWh Resolution: 1Wh Measurement\naccuracy: 0.5% Display format: When the data is ＜10kWh, the display unit is\nWh(1kWh=1000Wh), such as: 9Wh When the data is ≥10kWh, the display unit is\nkWh, such as: 9.99kWh Reset energy: use software to reset. Communication\ninterface: RS485 interface Size:90 x 60.5mm \/ 3.54 x 2.38in Weight:\nApprox.118~154g Package includes: Type1,Type2,Type3,Type4 (Optional) Type1:\n1Meter+1 Closed type CT Type2: 1Meter+ 1open type CT Type3: 1Meter+\n1Closed type CT+ 1USB to 485 Type4: 1Meter+ 1open type CT+ 1USB to 485\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eSPECIFICATIONS: The multi function meter physical layer adopts UART to RS485 communication interface, with baud rate of 9,600, 8-bit data bits, 1-bit stop bits and no verification\u003c\/li\u003e\n \u003cli\u003eOVER POWER ALARM: Active power threshold can be set, when the measured active power exceeds the threshold, it can alarm. Amperage voltage is practical and convenient\u003c\/li\u003e\n \u003cli\u003eFUNCTION: This multi-function meter can measure voltage, current, power, power, frequency, power factor, can meet your using requirement\u003c\/li\u003e\n \u003cli\u003eVolt amp tester has high test accuracy, better compatibility will make it use widely\u003c\/li\u003e\n \u003cli\u003eFEATURES: Voltage current meter can display six measurement parameters on the computer when communicate through the software, reset energy is use software to reset\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-04-14T14:37:17+10:00","created_at":"2026-04-14T14:37:13+10:00","vendor":"LiebeWH","type":"Power Meters","tags":["electronics_Apr2026"],"price":12200,"price_min":12200,"price_max":12200,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":49780568260845,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0BSV38XWG","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"UART to RS485 Energy Meter Voltmeter Ammeter Monitor Voltage Current Power Frequency Power Factor Multifunction Tester(Split CT 100A PZEM-016) Split CT 100A PZEM-016","public_title":null,"options":["Default Title"],"price":12200,"weight":145,"compare_at_price":null,"inventory_management":"shopify","barcode":"LiebeWHcwv670245d-02","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/leoforward.com\/cdn\/shop\/files\/B0BSV38XWG.jpg?v=1776924693","\/\/leoforward.com\/cdn\/shop\/files\/61i2SbqYazL.jpg?v=1776141435","\/\/leoforward.com\/cdn\/shop\/files\/617JS2pja1L.jpg?v=1776141436","\/\/leoforward.com\/cdn\/shop\/files\/61swjgOEc7L.jpg?v=1776141436","\/\/leoforward.com\/cdn\/shop\/files\/61oJsEN9a9L.jpg?v=1776141436","\/\/leoforward.com\/cdn\/shop\/files\/61sJdx9-RSL.jpg?v=1776141435","\/\/leoforward.com\/cdn\/shop\/files\/51xn35Ac_7L.jpg?v=1776141436","\/\/leoforward.com\/cdn\/shop\/files\/51QqN2Zvj1L.jpg?v=1776141436","\/\/leoforward.com\/cdn\/shop\/files\/51QliwfHTpL.jpg?v=1776141435"],"featured_image":"\/\/leoforward.com\/cdn\/shop\/files\/B0BSV38XWG.jpg?v=1776924693","options":["Title"],"media":[{"alt":null,"id":39369609773293,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/leoforward.com\/cdn\/shop\/files\/B0BSV38XWG.jpg?v=1776924693"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/B0BSV38XWG.jpg?v=1776924693","width":1001},{"alt":null,"id":39369609806061,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/leoforward.com\/cdn\/shop\/files\/61i2SbqYazL.jpg?v=1776141435"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/61i2SbqYazL.jpg?v=1776141435","width":1001},{"alt":null,"id":39369609838829,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/leoforward.com\/cdn\/shop\/files\/617JS2pja1L.jpg?v=1776141436"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/617JS2pja1L.jpg?v=1776141436","width":1001},{"alt":null,"id":39369609871597,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/leoforward.com\/cdn\/shop\/files\/61swjgOEc7L.jpg?v=1776141436"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/61swjgOEc7L.jpg?v=1776141436","width":1001},{"alt":null,"id":39369609904365,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/leoforward.com\/cdn\/shop\/files\/61oJsEN9a9L.jpg?v=1776141436"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/61oJsEN9a9L.jpg?v=1776141436","width":1001},{"alt":null,"id":39369609937133,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/leoforward.com\/cdn\/shop\/files\/61sJdx9-RSL.jpg?v=1776141435"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/61sJdx9-RSL.jpg?v=1776141435","width":1001},{"alt":null,"id":39369609969901,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/leoforward.com\/cdn\/shop\/files\/51xn35Ac_7L.jpg?v=1776141436"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/51xn35Ac_7L.jpg?v=1776141436","width":1001},{"alt":null,"id":39369610002669,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/leoforward.com\/cdn\/shop\/files\/51QqN2Zvj1L.jpg?v=1776141436"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/51QqN2Zvj1L.jpg?v=1776141436","width":1001},{"alt":null,"id":39369610035437,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/leoforward.com\/cdn\/shop\/files\/51QliwfHTpL.jpg?v=1776141435"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/51QliwfHTpL.jpg?v=1776141435","width":1001}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eUART to RS485 Energy Meter Voltmeter Ammeter Monitor Voltage Current Power Frequency Power Factor Multifunction Tester(Split CT 100A PZEM-016)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecifications: Voltage Measuring range:80~260V Resolution: 0.1V Measurement\naccuracy: 0.5% Current Measuring range: 0~100A Starting measure current: 0.02A\nResolution: 0.001A Measurement accuracy: 0.5% Active power Measuring range:\n0~23kW Starting measure power: 0.4W Resolution: 0.1W Display format: When the\ndata is ＜1000W, it display one decimal, such as: .9W When the data is ≥1000W,\nit display only integer, such as: 1000W Measurement accuracy: 0.5% Power\nfactor Measuring range: 0.00~1.00 Resolution: 0.01 Measurement accuracy: 1%\nFrequency Measuring range: 45Hz~65Hz Resolution: 0.1Hz Measurement accuracy:\n0.5% Active energy Measuring range: 0~9999.99kWh Resolution: 1Wh Measurement\naccuracy: 0.5% Display format: When the data is ＜10kWh, the display unit is\nWh(1kWh=1000Wh), such as: 9Wh When the data is ≥10kWh, the display unit is\nkWh, such as: 9.99kWh Reset energy: use software to reset. Communication\ninterface: RS485 interface Size:90 x 60.5mm \/ 3.54 x 2.38in Weight:\nApprox.118~154g Package includes: Type1,Type2,Type3,Type4 (Optional) Type1:\n1Meter+1 Closed type CT Type2: 1Meter+ 1open type CT Type3: 1Meter+\n1Closed type CT+ 1USB to 485 Type4: 1Meter+ 1open type CT+ 1USB to 485\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eSPECIFICATIONS: The multi function meter physical layer adopts UART to RS485 communication interface, with baud rate of 9,600, 8-bit data bits, 1-bit stop bits and no verification\u003c\/li\u003e\n \u003cli\u003eOVER POWER ALARM: Active power threshold can be set, when the measured active power exceeds the threshold, it can alarm. Amperage voltage is practical and convenient\u003c\/li\u003e\n \u003cli\u003eFUNCTION: This multi-function meter can measure voltage, current, power, power, frequency, power factor, can meet your using requirement\u003c\/li\u003e\n \u003cli\u003eVolt amp tester has high test accuracy, better compatibility will make it use widely\u003c\/li\u003e\n \u003cli\u003eFEATURES: Voltage current meter can display six measurement parameters on the computer when communicate through the software, reset energy is use software to reset\u003c\/li\u003e\n \u003c\/ul\u003e"}
