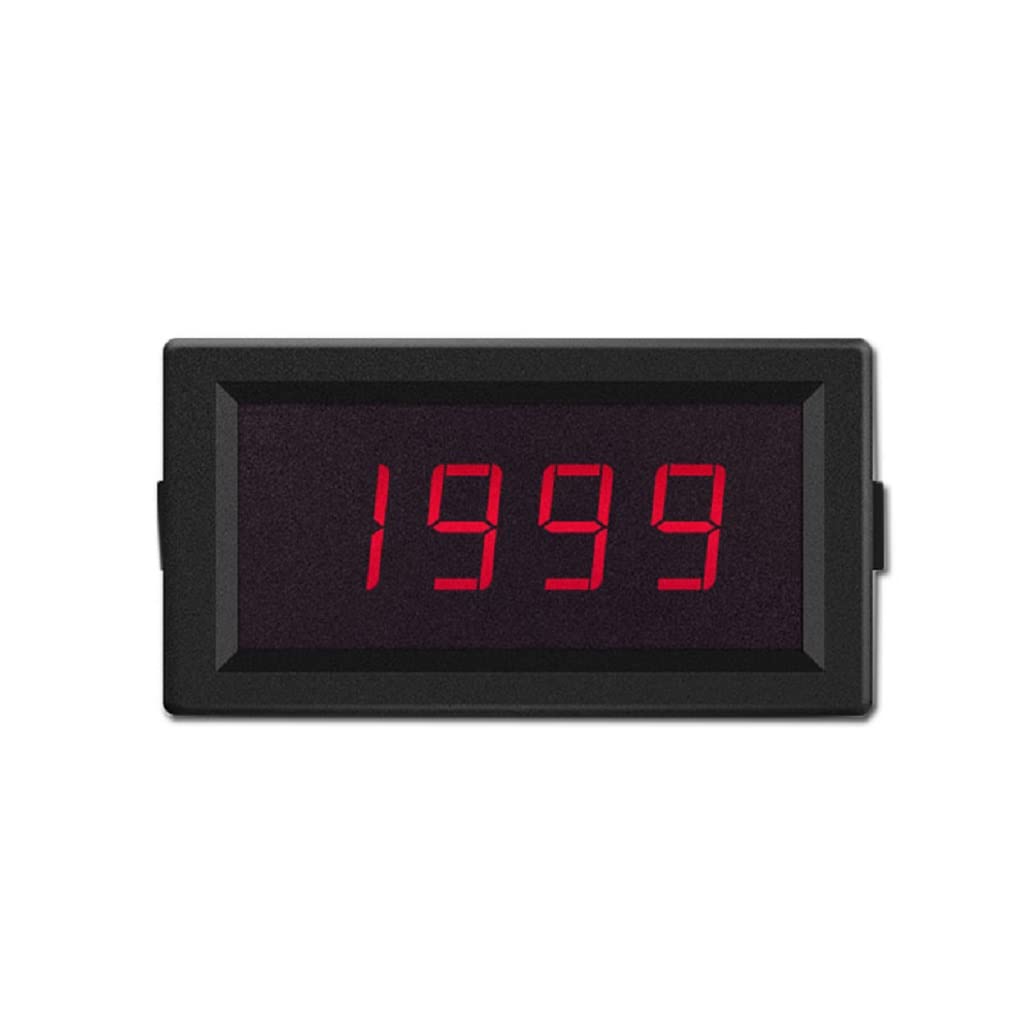

{"id":9336527880429,"title":"Taidacent Ohm Meter Resistance Tester Ohmmeter Digital DC Resistance Measuring Instrument Fixture Resistance Measure Panel Meter (200 Ohm, DC5V with Cover)","handle":"taidacent-ohm-meter-resistance-tester-ohmmeter-digital-dc-resistance-measuring-instrument-fixture-resistance-measure-panel-meter-200-ohm-dc5v-with-cover","description":"\u003ch3\u003eTaidacent Ohm Meter Resistance Tester Ohmmeter Digital DC Resistance Measuring Instrument Fixture Resistance Measure Panel Meter (200 Ohm, DC5V with Cover)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eParameter Power supply: DC5V\/DC12V optional (current consumption is less than\n50mA) Display range: -1999 ~ 1999 Font size: 0.56 inches red LED Measurement\naccuracy: 0.5 level ± 2 words Temperature drift coefficient: less than\n100PPM\/C Working environment: 0-50%℃; 80%RH Dimensions: 79x43x28mm Hole size:\n76x39.5mm (±0.5~1mm) Package type: flat right-angle frame, purple frosted\nwindow Resistance Range: 200Ω Display range: 0- 199.9 Resolution: 100mΩ Input\nimpedance: 200Ω Range: 2KΩ Display range: 0- 1.999 Resolution: 1Ω Input\nimpedance: 2KΩ Range: 20KΩ Display range: 0- 19.99 Resolution: 10Ω Input\nimpedance: 20KΩ Range: 200KΩ Display range: 0- 199.9 Resolution: 100Ω Input\nimpedance: 200KΩ Above 200Ω, within 2KΩ, please select 2KΩ range, resolution\nis 1Ω Above 2KΩ, within 20KΩ, please select 20KΩ range, resolution is 10Ω\nAbove 20KΩ, within 200KΩ, please select 200KΩ range, resolution is 100Ω\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003ePower supply: DC5V\/DC12V optional (current consumption is less than 50mA)\u003c\/li\u003e\n \u003cli\u003eThis ohmmeter is a common ground instrument, non-isolated, it is recommended to use a separate power supply, that is, the power supply is not related to the signal\u003c\/li\u003e\n \u003cli\u003eThe resistance meter cannot be measured with electricity, otherwise the meter will be burnt out\u003c\/li\u003e\n \u003cli\u003eSelect a suitable range, if the range is selected too much, the small resistance cannot be recognized or the measurement is inaccurate\u003c\/li\u003e\n \u003cli\u003eThe meter head is a common ground instrument (that is, the negative pole of the power supply and the negative pole of the signal are connected), it is recommended to use a separate, independent, and isolated power supply (that is, the power supply and the measurement terminal are not related)\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-04-14T14:16:22+10:00","created_at":"2026-04-14T14:16:18+10:00","vendor":"Taidacent","type":"Ohmmeters","tags":["electronics_Apr2026"],"price":16900,"price_min":16900,"price_max":16900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":49780419920109,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B09JBP37ZF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Taidacent Ohm Meter Resistance Tester Ohmmeter Digital DC Resistance Measuring Instrument Fixture Resistance Measure Panel Meter (200 Ohm, DC5V with Cover)","public_title":null,"options":["Default Title"],"price":16900,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"738190911874","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/leoforward.com\/cdn\/shop\/files\/B09JBP37ZF.jpg?v=1776924191"],"featured_image":"\/\/leoforward.com\/cdn\/shop\/files\/B09JBP37ZF.jpg?v=1776924191","options":["Title"],"media":[{"alt":null,"id":39369192014061,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1024,"width":1024,"src":"\/\/leoforward.com\/cdn\/shop\/files\/B09JBP37ZF.jpg?v=1776924191"},"aspect_ratio":1.0,"height":1024,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/B09JBP37ZF.jpg?v=1776924191","width":1024}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eTaidacent Ohm Meter Resistance Tester Ohmmeter Digital DC Resistance Measuring Instrument Fixture Resistance Measure Panel Meter (200 Ohm, DC5V with Cover)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eParameter Power supply: DC5V\/DC12V optional (current consumption is less than\n50mA) Display range: -1999 ~ 1999 Font size: 0.56 inches red LED Measurement\naccuracy: 0.5 level ± 2 words Temperature drift coefficient: less than\n100PPM\/C Working environment: 0-50%℃; 80%RH Dimensions: 79x43x28mm Hole size:\n76x39.5mm (±0.5~1mm) Package type: flat right-angle frame, purple frosted\nwindow Resistance Range: 200Ω Display range: 0- 199.9 Resolution: 100mΩ Input\nimpedance: 200Ω Range: 2KΩ Display range: 0- 1.999 Resolution: 1Ω Input\nimpedance: 2KΩ Range: 20KΩ Display range: 0- 19.99 Resolution: 10Ω Input\nimpedance: 20KΩ Range: 200KΩ Display range: 0- 199.9 Resolution: 100Ω Input\nimpedance: 200KΩ Above 200Ω, within 2KΩ, please select 2KΩ range, resolution\nis 1Ω Above 2KΩ, within 20KΩ, please select 20KΩ range, resolution is 10Ω\nAbove 20KΩ, within 200KΩ, please select 200KΩ range, resolution is 100Ω\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003ePower supply: DC5V\/DC12V optional (current consumption is less than 50mA)\u003c\/li\u003e\n \u003cli\u003eThis ohmmeter is a common ground instrument, non-isolated, it is recommended to use a separate power supply, that is, the power supply is not related to the signal\u003c\/li\u003e\n \u003cli\u003eThe resistance meter cannot be measured with electricity, otherwise the meter will be burnt out\u003c\/li\u003e\n \u003cli\u003eSelect a suitable range, if the range is selected too much, the small resistance cannot be recognized or the measurement is inaccurate\u003c\/li\u003e\n \u003cli\u003eThe meter head is a common ground instrument (that is, the negative pole of the power supply and the negative pole of the signal are connected), it is recommended to use a separate, independent, and isolated power supply (that is, the power supply and the measurement terminal are not related)\u003c\/li\u003e\n \u003c\/ul\u003e"}
