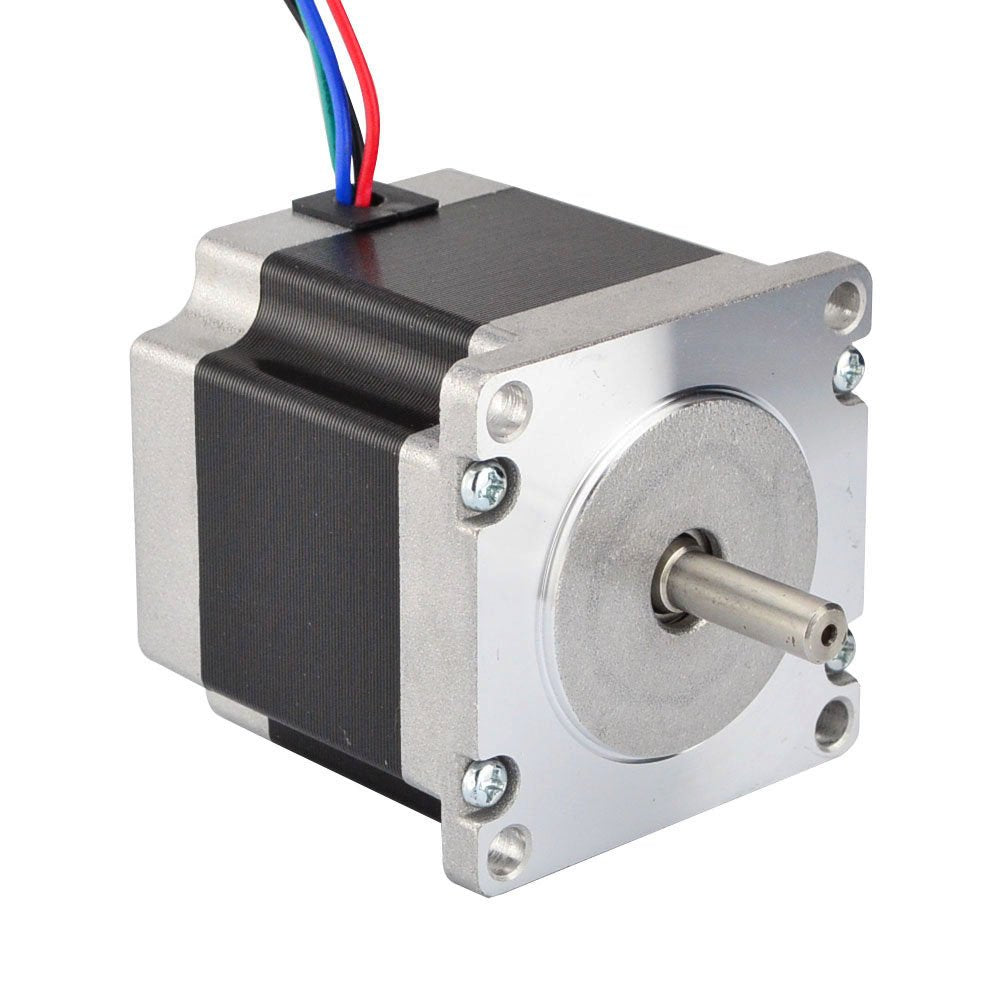

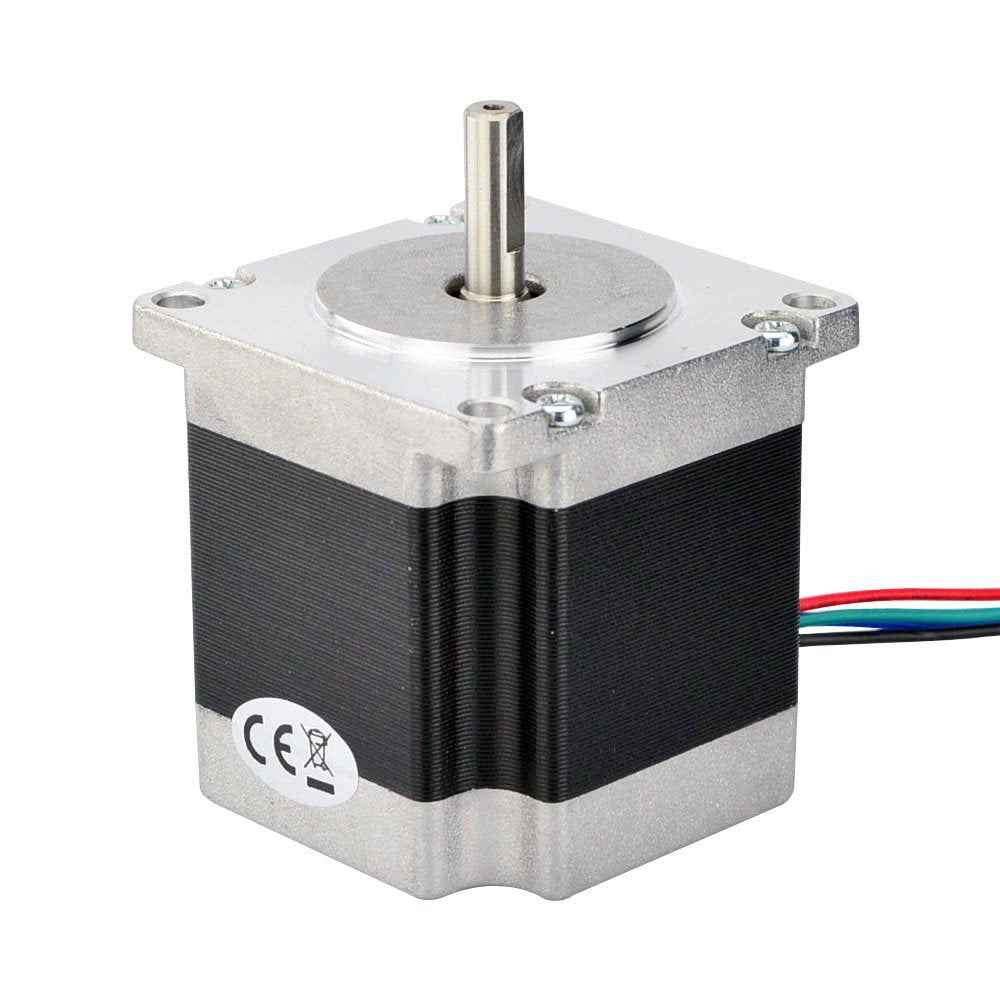

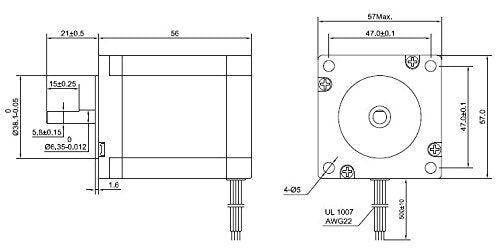

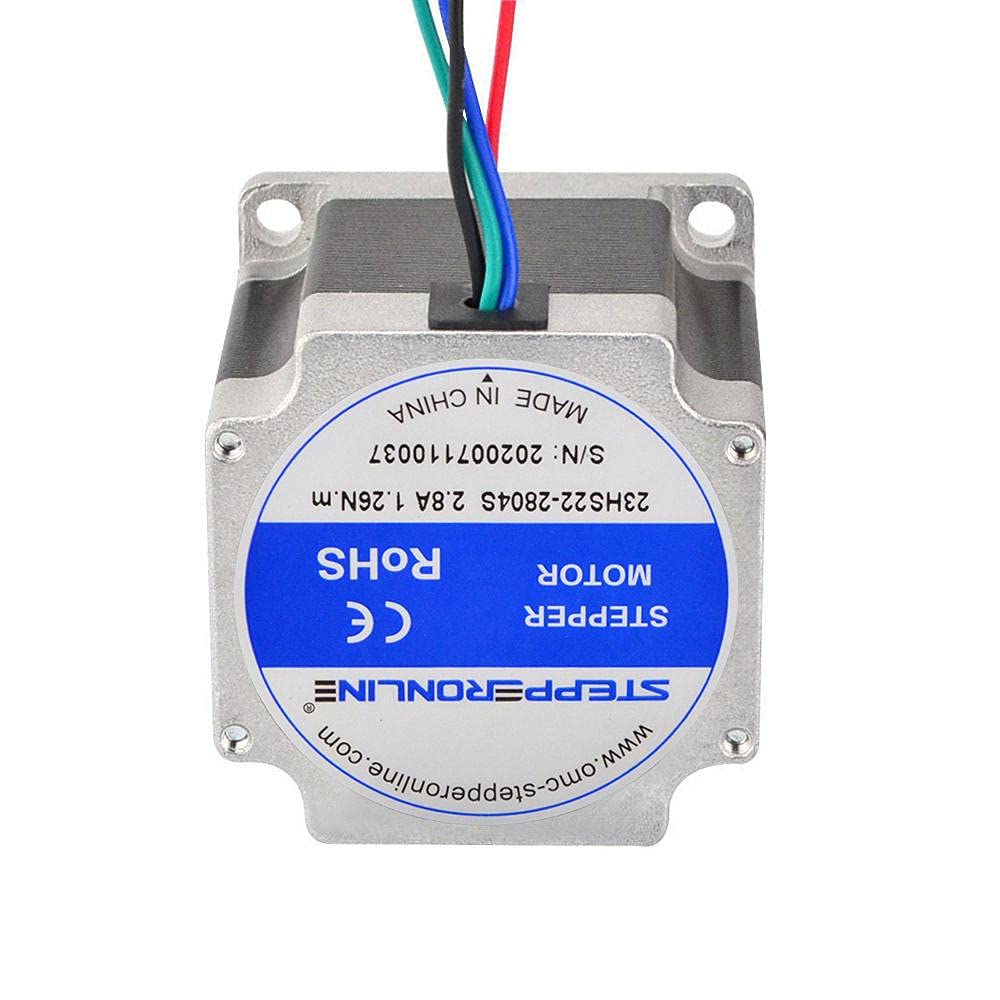

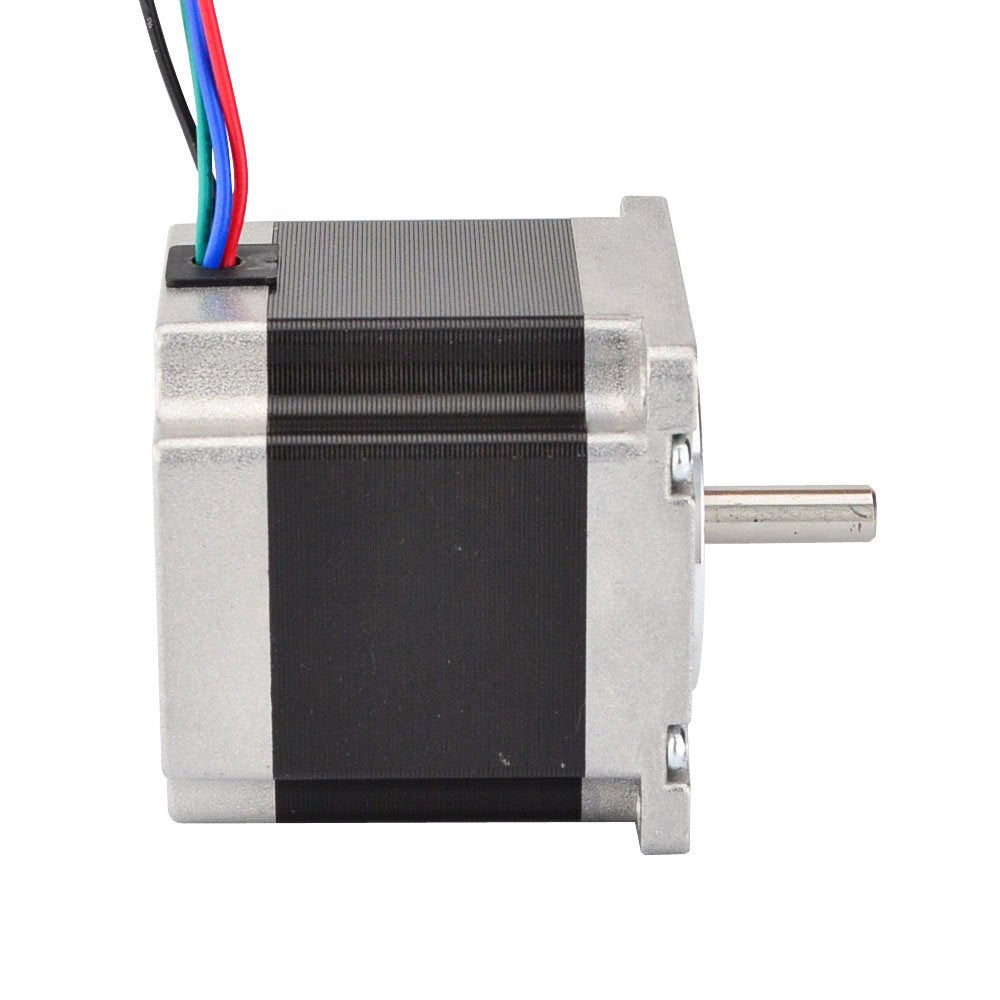

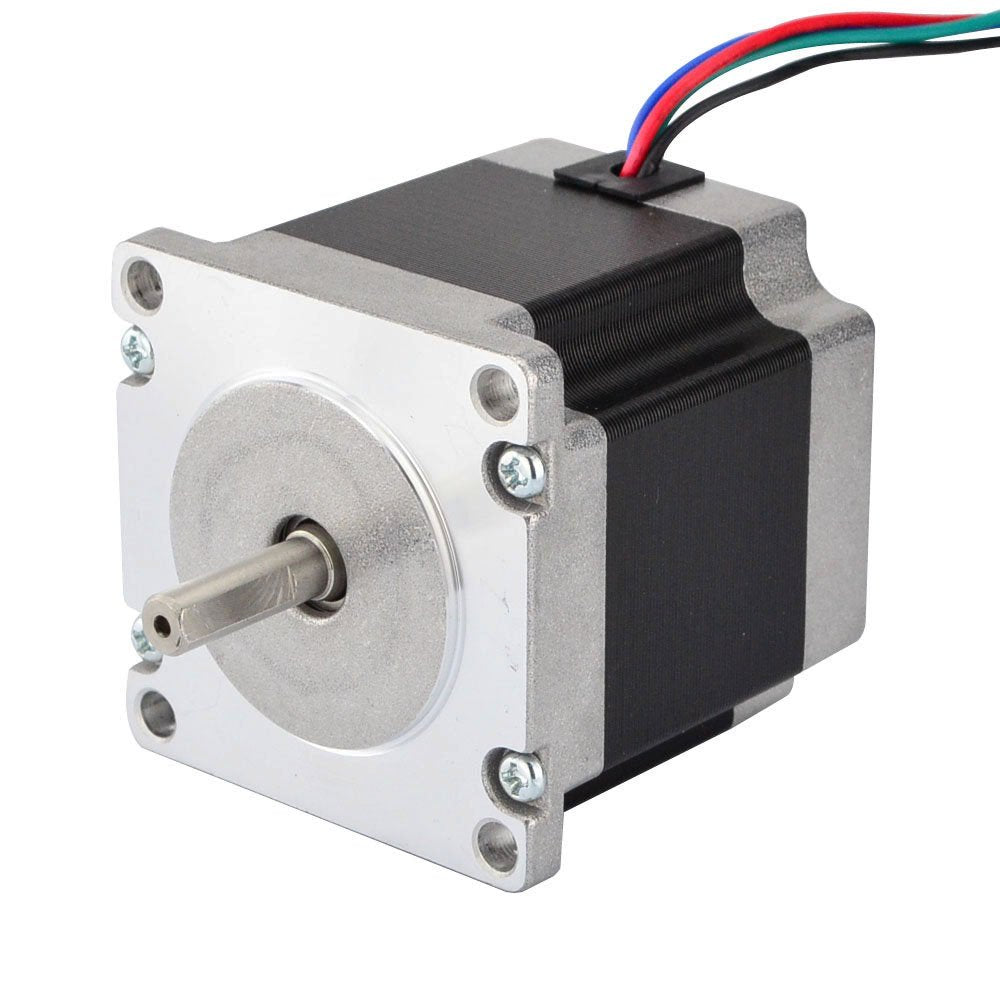

{"id":9428422689005,"title":"STEPPERONLINE Nema 23 CNC Stepper Motor 2.8A 175.6oz.in\/1.24Nm CNC Stepping Motor DIY CNC Mill","handle":"stepperonline-nema-23-cnc-stepper-motor-2-8a-175-6oz-in-1-24nm-cnc-stepping-motor-diy-cnc-mill","description":"\u003ch3\u003eSTEPPERONLINE Nema 23 CNC Stepper Motor 2.8A 175.6oz.in\/1.24Nm CNC Stepping Motor DIY CNC Mill\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis bipolar Nema 23 stepper motor with 1.8 deg. step angle (200\nsteps\/revolution). Each phase draws 2.8A, allowing for a holding torque of\n1.24Nm(175.6oz.in). Electrical Specification: Manufacturer Part Number:\n23HS22-2804S Motor Type: Bipolar Stepper Step Angle: 1.8 deg. Holding\nTorque: 1.24Nm(175.6oz.in) Rated Current\/phase: 2.8A Phase Resistance:\n0.9ohms Inductance: 2.5mH+\/-20%(1KHz) Physical Specification: Frame Size:\n57 x 57mm Body Length: 56mm Shaft Diameter: 6.35mm Shaft Length: 21mm \nNumber of Leads: 4 Lead Length: 500mm Weight: 700g Connection: Black(A+),\nGreen(A-), Red(B+), Blue(B-) Warning: Make sure the motor connect to a\nconstant current or chopper drive controller before you test motor. Connecting\nthe motor directly to a power supply will destroy the motor.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eHigher Torque\u003c\/li\u003e\n \u003cli\u003e1.24Nm(175.6oz.in) holding torque\u003c\/li\u003e\n \u003cli\u003eNEMA 23 bipolar 2.24\"x2.24\"x2.2\" 4-wire\u003c\/li\u003e\n \u003cli\u003e1.8 deg. step angle(200 steps\/rev)\u003c\/li\u003e\n \u003cli\u003eRated current 2.8A \u0026amp; resistance 0.9ohms\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-07-12T11:42:27+10:00","created_at":"2026-07-10T00:18:28+10:00","vendor":"STEPPERONLINE","type":"3D Printer Motors","tags":["home_improvement_July2026"],"price":19300,"price_min":19300,"price_max":19300,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":50262335586541,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B00PNEPF5I","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"STEPPERONLINE Nema 23 CNC Stepper Motor 2.8A 175.6oz.in\/1.24Nm CNC Stepping Motor DIY CNC Mill","public_title":null,"options":["Default Title"],"price":19300,"weight":816,"compare_at_price":null,"inventory_management":"shopify","barcode":"714485662461","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/leoforward.com\/cdn\/shop\/files\/B00PNEPF5I.jpg?v=1783606710","\/\/leoforward.com\/cdn\/shop\/files\/611_lM8SoEL.jpg?v=1783606710","\/\/leoforward.com\/cdn\/shop\/files\/61UFkW_RMxL.jpg?v=1783606710","\/\/leoforward.com\/cdn\/shop\/files\/61aUa0IbkIL.jpg?v=1783606710","\/\/leoforward.com\/cdn\/shop\/files\/51Bev1LjwiS.jpg?v=1783606710","\/\/leoforward.com\/cdn\/shop\/files\/41X_lNLxokL.jpg?v=1783606710","\/\/leoforward.com\/cdn\/shop\/files\/31cKfwDcIqL.jpg?v=1783606710"],"featured_image":"\/\/leoforward.com\/cdn\/shop\/files\/B00PNEPF5I.jpg?v=1783606710","options":["Title"],"media":[{"alt":null,"id":40827547189485,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/leoforward.com\/cdn\/shop\/files\/B00PNEPF5I.jpg?v=1783606710"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/B00PNEPF5I.jpg?v=1783606710","width":1000},{"alt":null,"id":40827547222253,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/leoforward.com\/cdn\/shop\/files\/611_lM8SoEL.jpg?v=1783606710"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/611_lM8SoEL.jpg?v=1783606710","width":1000},{"alt":null,"id":40827547255021,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/leoforward.com\/cdn\/shop\/files\/61UFkW_RMxL.jpg?v=1783606710"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/61UFkW_RMxL.jpg?v=1783606710","width":1000},{"alt":null,"id":40827547287789,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/leoforward.com\/cdn\/shop\/files\/61aUa0IbkIL.jpg?v=1783606710"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/61aUa0IbkIL.jpg?v=1783606710","width":1000},{"alt":null,"id":40827547320557,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/leoforward.com\/cdn\/shop\/files\/51Bev1LjwiS.jpg?v=1783606710"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/51Bev1LjwiS.jpg?v=1783606710","width":1000},{"alt":null,"id":40827547353325,"position":6,"preview_image":{"aspect_ratio":2.008,"height":249,"width":500,"src":"\/\/leoforward.com\/cdn\/shop\/files\/41X_lNLxokL.jpg?v=1783606710"},"aspect_ratio":2.008,"height":249,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/41X_lNLxokL.jpg?v=1783606710","width":500},{"alt":null,"id":40827547386093,"position":7,"preview_image":{"aspect_ratio":2.632,"height":190,"width":500,"src":"\/\/leoforward.com\/cdn\/shop\/files\/31cKfwDcIqL.jpg?v=1783606710"},"aspect_ratio":2.632,"height":190,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/31cKfwDcIqL.jpg?v=1783606710","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eSTEPPERONLINE Nema 23 CNC Stepper Motor 2.8A 175.6oz.in\/1.24Nm CNC Stepping Motor DIY CNC Mill\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis bipolar Nema 23 stepper motor with 1.8 deg. step angle (200\nsteps\/revolution). Each phase draws 2.8A, allowing for a holding torque of\n1.24Nm(175.6oz.in). Electrical Specification: Manufacturer Part Number:\n23HS22-2804S Motor Type: Bipolar Stepper Step Angle: 1.8 deg. Holding\nTorque: 1.24Nm(175.6oz.in) Rated Current\/phase: 2.8A Phase Resistance:\n0.9ohms Inductance: 2.5mH+\/-20%(1KHz) Physical Specification: Frame Size:\n57 x 57mm Body Length: 56mm Shaft Diameter: 6.35mm Shaft Length: 21mm \nNumber of Leads: 4 Lead Length: 500mm Weight: 700g Connection: Black(A+),\nGreen(A-), Red(B+), Blue(B-) Warning: Make sure the motor connect to a\nconstant current or chopper drive controller before you test motor. Connecting\nthe motor directly to a power supply will destroy the motor.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eHigher Torque\u003c\/li\u003e\n \u003cli\u003e1.24Nm(175.6oz.in) holding torque\u003c\/li\u003e\n \u003cli\u003eNEMA 23 bipolar 2.24\"x2.24\"x2.2\" 4-wire\u003c\/li\u003e\n \u003cli\u003e1.8 deg. step angle(200 steps\/rev)\u003c\/li\u003e\n \u003cli\u003eRated current 2.8A \u0026amp; resistance 0.9ohms\u003c\/li\u003e\n \u003c\/ul\u003e"}
