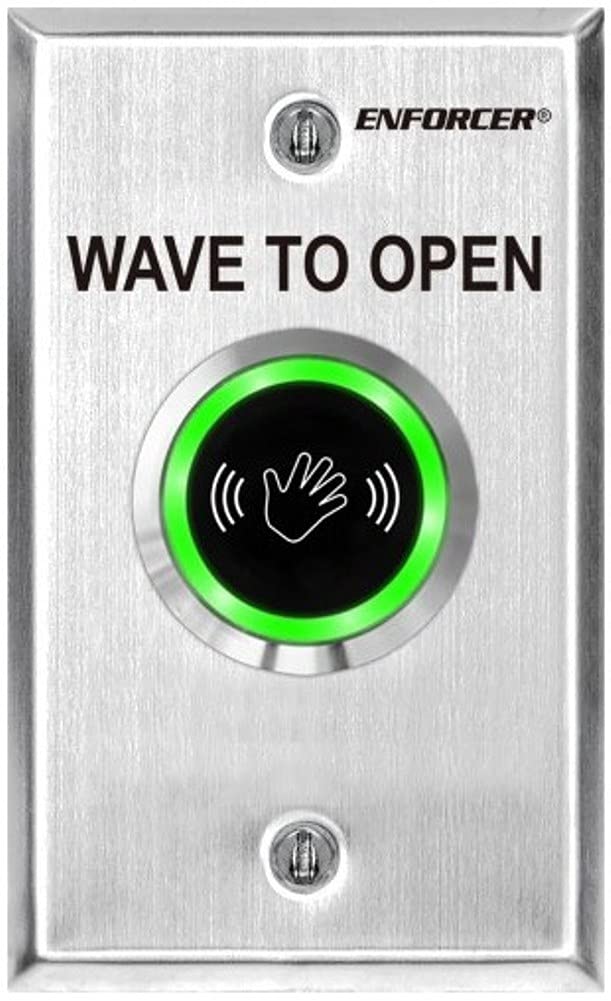

Seco-Larm SD-9263-KSQ Outdoor Wave-to-Open Sensor, Single-Gang with English Message; Adjustable Sensor Range Up to 7" (18cm); 1.2A Relay, Adjustable Trigger Duration 0.8~30 Seconds or Toggle
Seco-Larm SD-9263-KSQ Outdoor Wave-to-Open Sensor, Single-Gang with English Message; Adjustable Sensor Range Up to 7" (18cm); 1.2A Relay, Adjustable Trigger Duration 0.8~30 Seconds or Toggle
Seco-Larm SD-9263-KSQ Outdoor Wave-to-Open Sensor, Single-Gang with English Message; Adjustable Sensor Range Up to 7" (18cm); 1.2A Relay, Adjustable Trigger Duration 0.8~30 Seconds or Toggle The ENFORCER Outdoor Wave-to-Open Sensor is a full-featured exit plate which uses IR technology to allow egress from a protected area or activate a device with the simple wave of a hand. Key Features: - Adjustable sensor range up to 7" (18cm) - Weatherproof (IP65) for outdoor use - Stainless steel plate - 1.2A relay, adjustable trigger duration 0.8~30 seconds or toggle - LED illuminated sensor area for easy identification - Selectable LED colors (turns from red to green or green to red) to show sensor activated - ETL UL294 Listed Specifications: - Current Draw: Standby- 16mA@12VDC / 25mA@24VDC, Triggered- 25mA@12VDC / 32mA@24VDC - Sensing Range: 2"~7" (5~18cm) - Operating Voltage: 12~24 VDC - Reaction time: 10mS - LEDs - Red: Standby (Colors are reversible) - LEDs - Green: Triggered (Colors are reversible) - Relay Type: Form C dry contact 1.2A@24VDC - Output Time: 0.5~30 s, toggle - Operating Temperature: -4°~131°F (-20°~55°C) - Dimensions: 4-1/2" x 2-3/4" x 1-1/2" (115 x 70 x 39 mm) - Weight: 108g - Enclosure: IP65
Product Features
- Adjustable sensor range up to 7" (18cm)
- Weatherproof (IP65) for outdoor use, Stainless steel plate
- 1.2A relay, adjustable trigger duration 0.8~30 seconds or toggle
- LED illuminated sensor area for easy identification
- Selectable LED colors (turns from red to green or green to red) to show sensor activated
