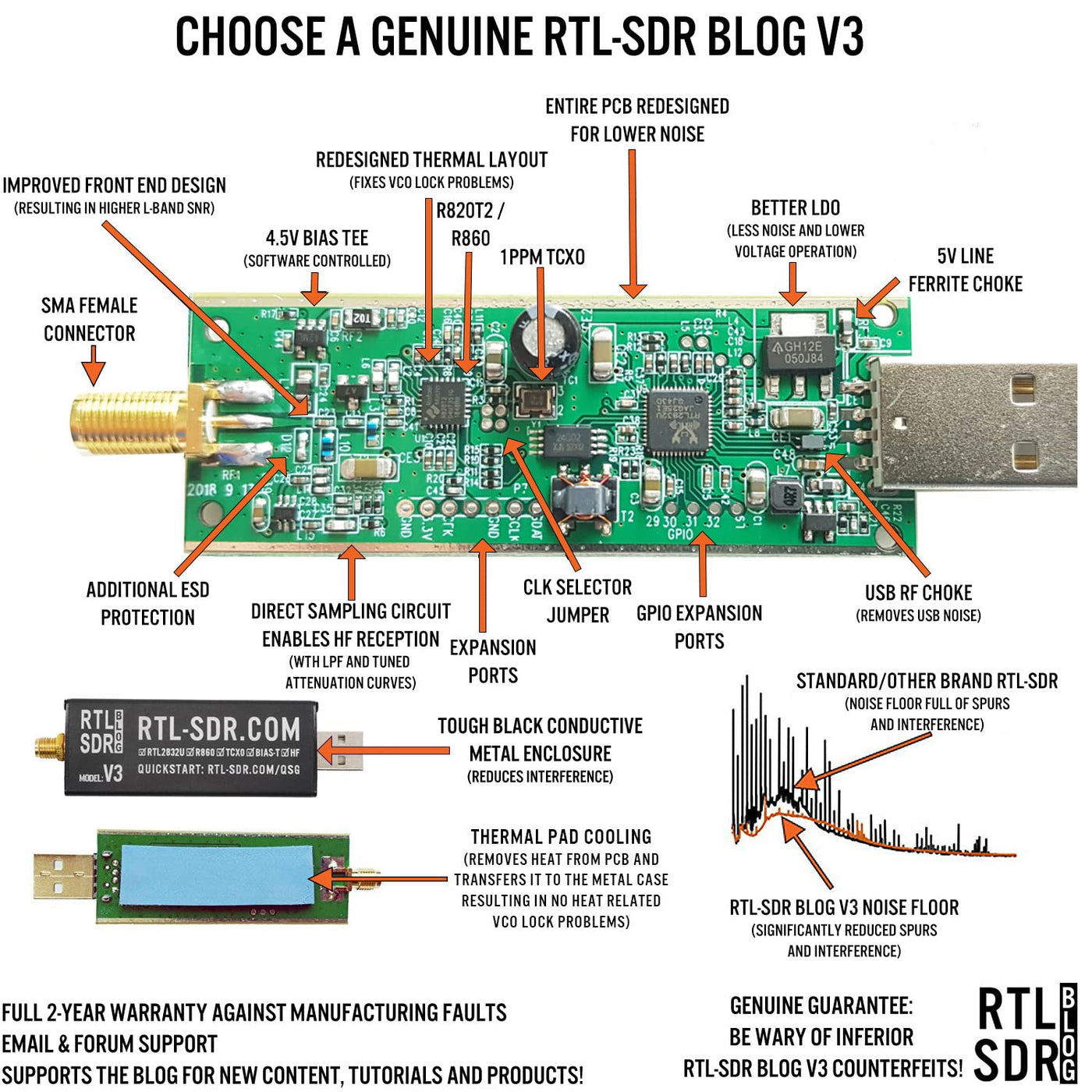

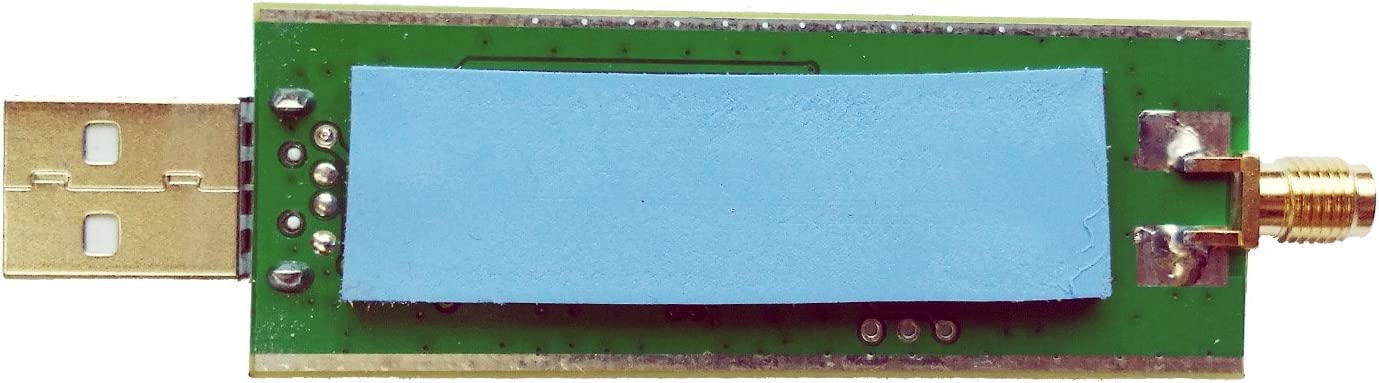

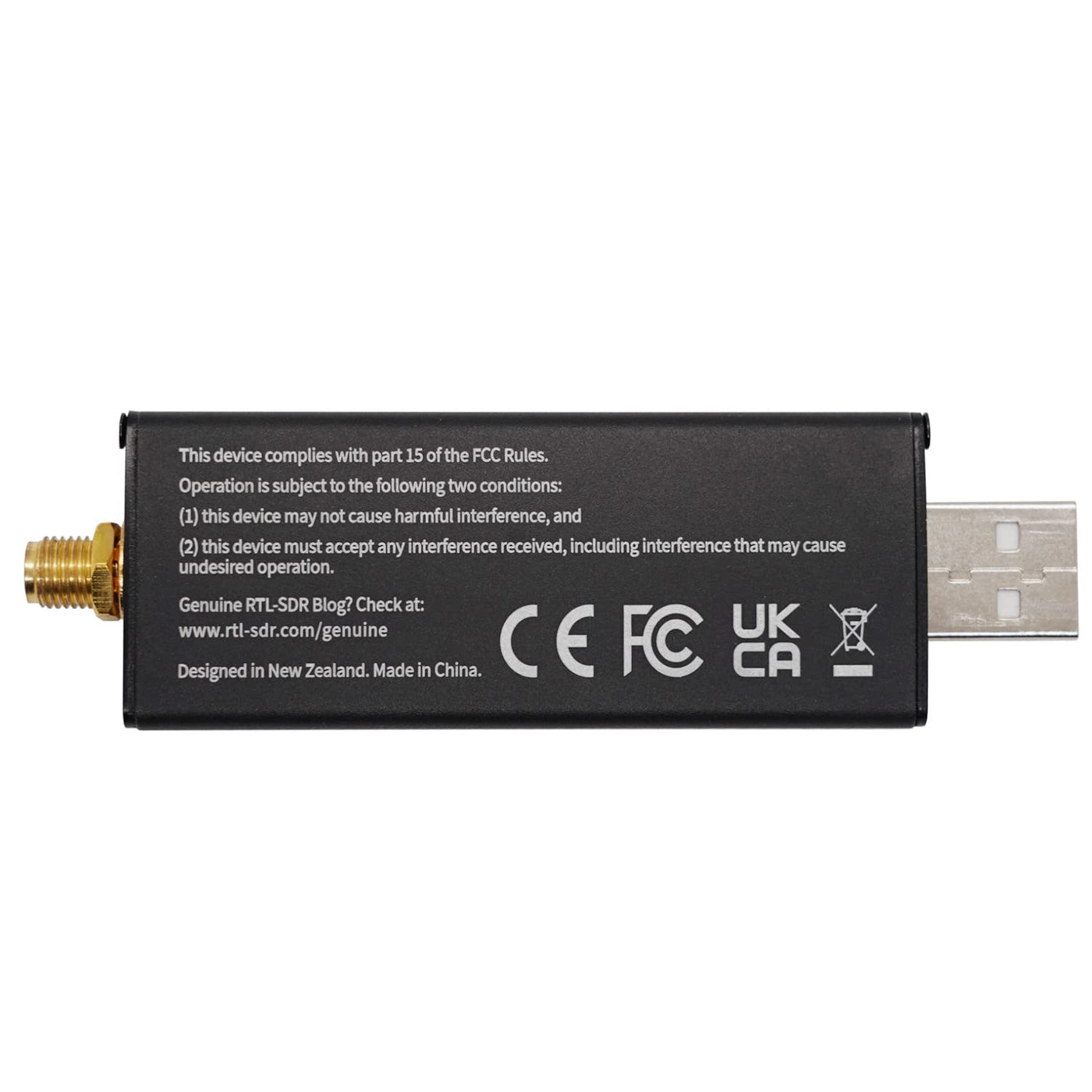

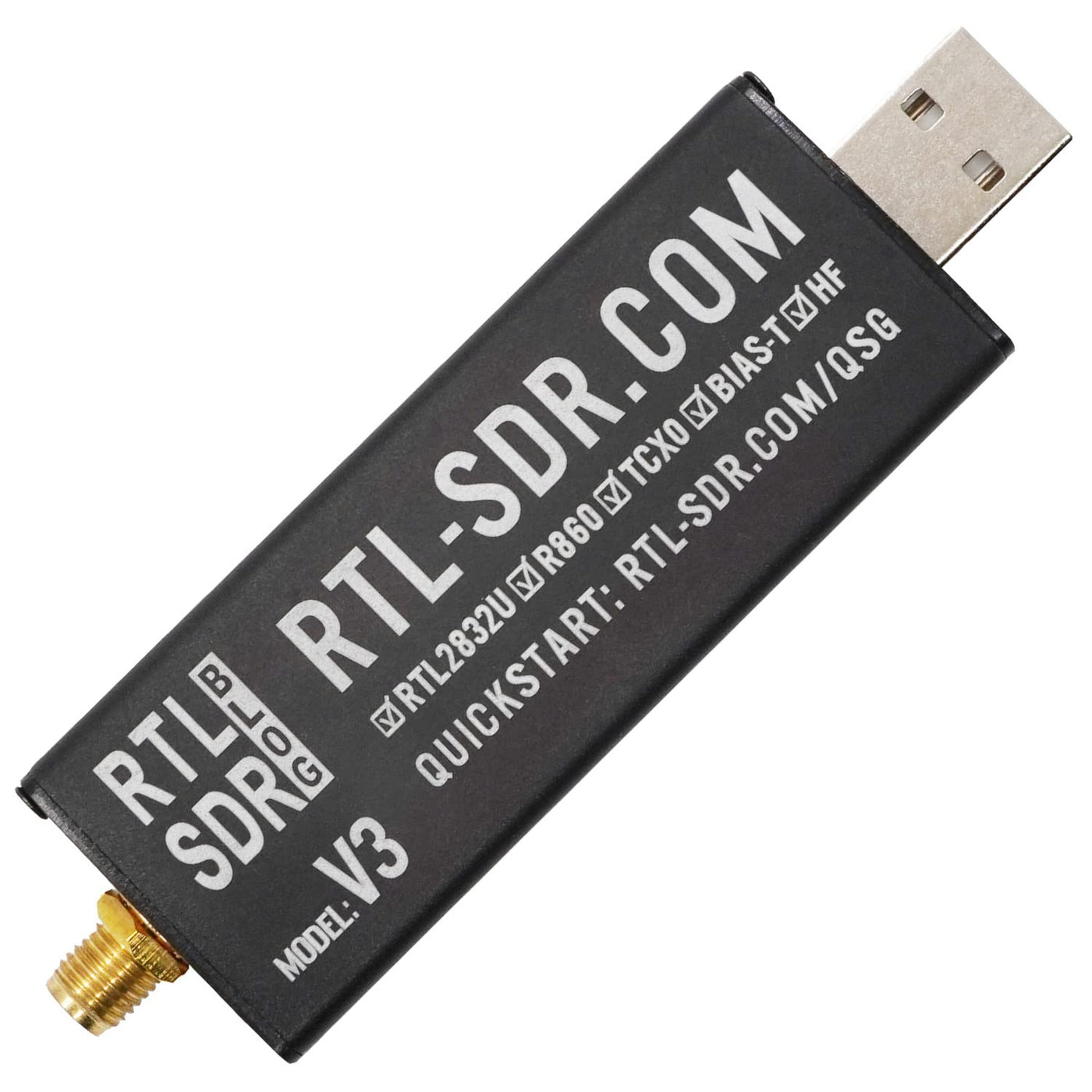

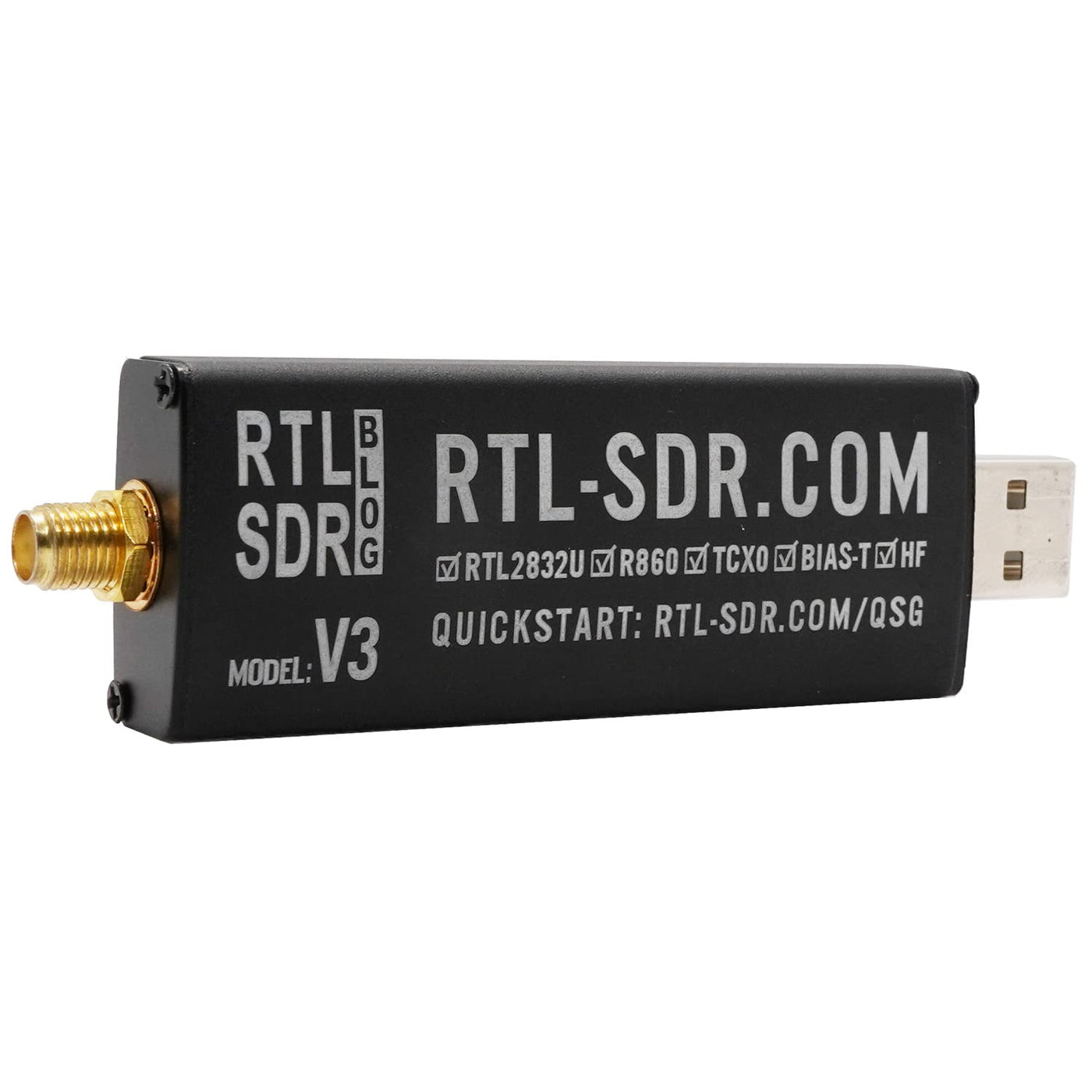

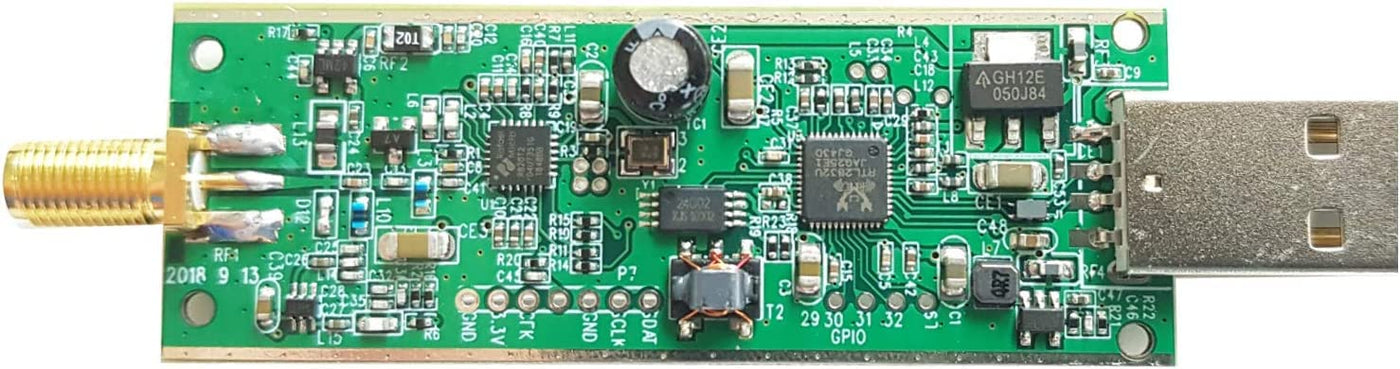

{"id":9154736193773,"title":"RTL-SDR Blog V3 R860 RTL2832U 1PPM TCXO SMA Software Defined Radio (Dongle Only) (Black) Black","handle":"rtl-sdr-blog-v3-r860-rtl2832u-1ppm-tcxo-sma-software-defined-radio-dongle-only-black-black","description":"\u003ch3\u003eRTL-SDR Blog V3 R860 RTL2832U 1PPM TCXO SMA Software Defined Radio (Dongle Only) (Black)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis is an RTL-SDR blog V3 software defined radio receiver with RTL2832U ADC\nchip, R860 tuner, 1PPM TCXO, SMA F connector and aluminium case with passive\ncooling. Tunes from 500 kHz to 1.7 GHz with up to 3.2 MHz (2.4 MHz stable) of\nbandwidth. (HF works in direct sampling mode with reduced performance). Works\nwith free software like SDR, HDSDR, SDR-Radio, GQRX or SDR Touch on Android.\nWorks on Windows, OSX, Linux, Android and computers like the Raspberry Pi.\nThis model has several improvements over other brands. It uses the improved\nR820T2 tuner, a 1PPM TCXO, better components, a redesigned lower noise PCB,\ncooling improvements, extra ESD protection and an SMA F connector. It also has\na software activatable bias-tee for powering LNA's and active antennas. Please\nfollow the quickstart guide linked in the included the manual for installation\nof the drivers and free software. For enabling HF reception below 24 MHz\nplease see the V3 features guide and please feel free to contact us via Amazon\nmessaging for technical support - we're happy to help.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eIncludes 1x RTL-SDR Blog brand R860 RTL2832U 1PPM TCXO HF Bias Tee SMA Dongle (V3) (Dongle Only)\u003c\/li\u003e\n \u003cli\u003eSeveral improvements over other brands including use of the R860 tuner, improved component tolerances, a 1 PPM temperature compensated oscillator (TCXO), SMA F connector, aluminum shielded case with thermal pad for passive cooling, and an activatable bias tee circuit.\u003c\/li\u003e\n \u003cli\u003eCan tune from 500 kHz to 1.7 GHz and has up to 3.2 MHz of instantaneous bandwidth (2.4 MHz stable). (HF reception below 24 MHz in direct sampling mode with reduced performance). Please note RTL-SDR dongles are RX only.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-10-24T10:16:51+11:00","created_at":"2025-10-24T10:16:47+11:00","vendor":"RTL-SDR Blog","type":"External TV Tuners","tags":["electronics_selected_Oct2025","weight_unknown"],"price":26800,"price_min":26800,"price_max":26800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":48915284820205,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0BMKZCKTF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RTL-SDR Blog V3 R860 RTL2832U 1PPM TCXO SMA Software Defined Radio (Dongle Only) (Black) Black","public_title":null,"options":["Default Title"],"price":26800,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"783495030843","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/leoforward.com\/cdn\/shop\/files\/B0BMKZCKTF.jpg?v=1775798852","\/\/leoforward.com\/cdn\/shop\/files\/61R79w7h9NL.jpg?v=1761261410","\/\/leoforward.com\/cdn\/shop\/files\/61XSnRdwLRL_f04b84df-2b66-4ed3-9cbd-8cb9177e557c.jpg?v=1761261410","\/\/leoforward.com\/cdn\/shop\/files\/61vL6PCMV5L.jpg?v=1761261410","\/\/leoforward.com\/cdn\/shop\/files\/51hSoxBIzBL_c523db08-4cbf-4687-8e93-f552690cf704.jpg?v=1761261409","\/\/leoforward.com\/cdn\/shop\/files\/81X0sZk5GfL.jpg?v=1761261410","\/\/leoforward.com\/cdn\/shop\/files\/71YXJhMXYnL.jpg?v=1761261410"],"featured_image":"\/\/leoforward.com\/cdn\/shop\/files\/B0BMKZCKTF.jpg?v=1775798852","options":["Title"],"media":[{"alt":null,"id":36968868315373,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/leoforward.com\/cdn\/shop\/files\/B0BMKZCKTF.jpg?v=1775798852"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/B0BMKZCKTF.jpg?v=1775798852","width":1500},{"alt":null,"id":36968868348141,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/leoforward.com\/cdn\/shop\/files\/61R79w7h9NL.jpg?v=1761261410"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/61R79w7h9NL.jpg?v=1761261410","width":1500},{"alt":null,"id":36968868380909,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/leoforward.com\/cdn\/shop\/files\/61XSnRdwLRL_f04b84df-2b66-4ed3-9cbd-8cb9177e557c.jpg?v=1761261410"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/61XSnRdwLRL_f04b84df-2b66-4ed3-9cbd-8cb9177e557c.jpg?v=1761261410","width":1500},{"alt":null,"id":36968868413677,"position":4,"preview_image":{"aspect_ratio":3.79,"height":390,"width":1478,"src":"\/\/leoforward.com\/cdn\/shop\/files\/61vL6PCMV5L.jpg?v=1761261410"},"aspect_ratio":3.79,"height":390,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/61vL6PCMV5L.jpg?v=1761261410","width":1478},{"alt":null,"id":36968868446445,"position":5,"preview_image":{"aspect_ratio":3.601,"height":383,"width":1379,"src":"\/\/leoforward.com\/cdn\/shop\/files\/51hSoxBIzBL_c523db08-4cbf-4687-8e93-f552690cf704.jpg?v=1761261409"},"aspect_ratio":3.601,"height":383,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/51hSoxBIzBL_c523db08-4cbf-4687-8e93-f552690cf704.jpg?v=1761261409","width":1379},{"alt":null,"id":36968868479213,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/leoforward.com\/cdn\/shop\/files\/81X0sZk5GfL.jpg?v=1761261410"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/81X0sZk5GfL.jpg?v=1761261410","width":1500},{"alt":null,"id":36968868511981,"position":7,"preview_image":{"aspect_ratio":0.882,"height":1500,"width":1323,"src":"\/\/leoforward.com\/cdn\/shop\/files\/71YXJhMXYnL.jpg?v=1761261410"},"aspect_ratio":0.882,"height":1500,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/71YXJhMXYnL.jpg?v=1761261410","width":1323}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eRTL-SDR Blog V3 R860 RTL2832U 1PPM TCXO SMA Software Defined Radio (Dongle Only) (Black)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis is an RTL-SDR blog V3 software defined radio receiver with RTL2832U ADC\nchip, R860 tuner, 1PPM TCXO, SMA F connector and aluminium case with passive\ncooling. Tunes from 500 kHz to 1.7 GHz with up to 3.2 MHz (2.4 MHz stable) of\nbandwidth. (HF works in direct sampling mode with reduced performance). Works\nwith free software like SDR, HDSDR, SDR-Radio, GQRX or SDR Touch on Android.\nWorks on Windows, OSX, Linux, Android and computers like the Raspberry Pi.\nThis model has several improvements over other brands. It uses the improved\nR820T2 tuner, a 1PPM TCXO, better components, a redesigned lower noise PCB,\ncooling improvements, extra ESD protection and an SMA F connector. It also has\na software activatable bias-tee for powering LNA's and active antennas. Please\nfollow the quickstart guide linked in the included the manual for installation\nof the drivers and free software. For enabling HF reception below 24 MHz\nplease see the V3 features guide and please feel free to contact us via Amazon\nmessaging for technical support - we're happy to help.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eIncludes 1x RTL-SDR Blog brand R860 RTL2832U 1PPM TCXO HF Bias Tee SMA Dongle (V3) (Dongle Only)\u003c\/li\u003e\n \u003cli\u003eSeveral improvements over other brands including use of the R860 tuner, improved component tolerances, a 1 PPM temperature compensated oscillator (TCXO), SMA F connector, aluminum shielded case with thermal pad for passive cooling, and an activatable bias tee circuit.\u003c\/li\u003e\n \u003cli\u003eCan tune from 500 kHz to 1.7 GHz and has up to 3.2 MHz of instantaneous bandwidth (2.4 MHz stable). (HF reception below 24 MHz in direct sampling mode with reduced performance). Please note RTL-SDR dongles are RX only.\u003c\/li\u003e\n \u003c\/ul\u003e"}
