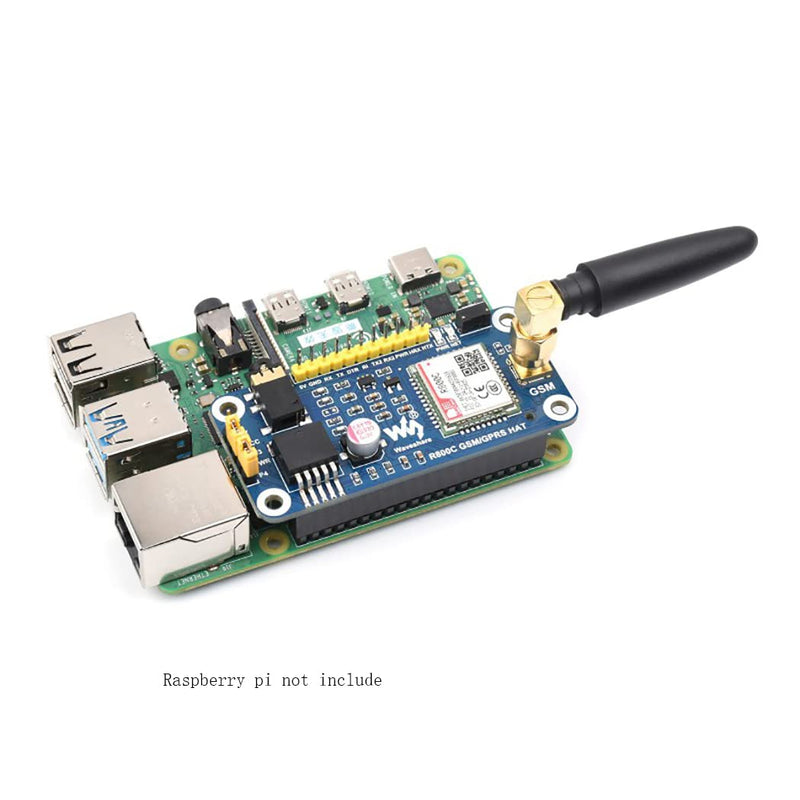

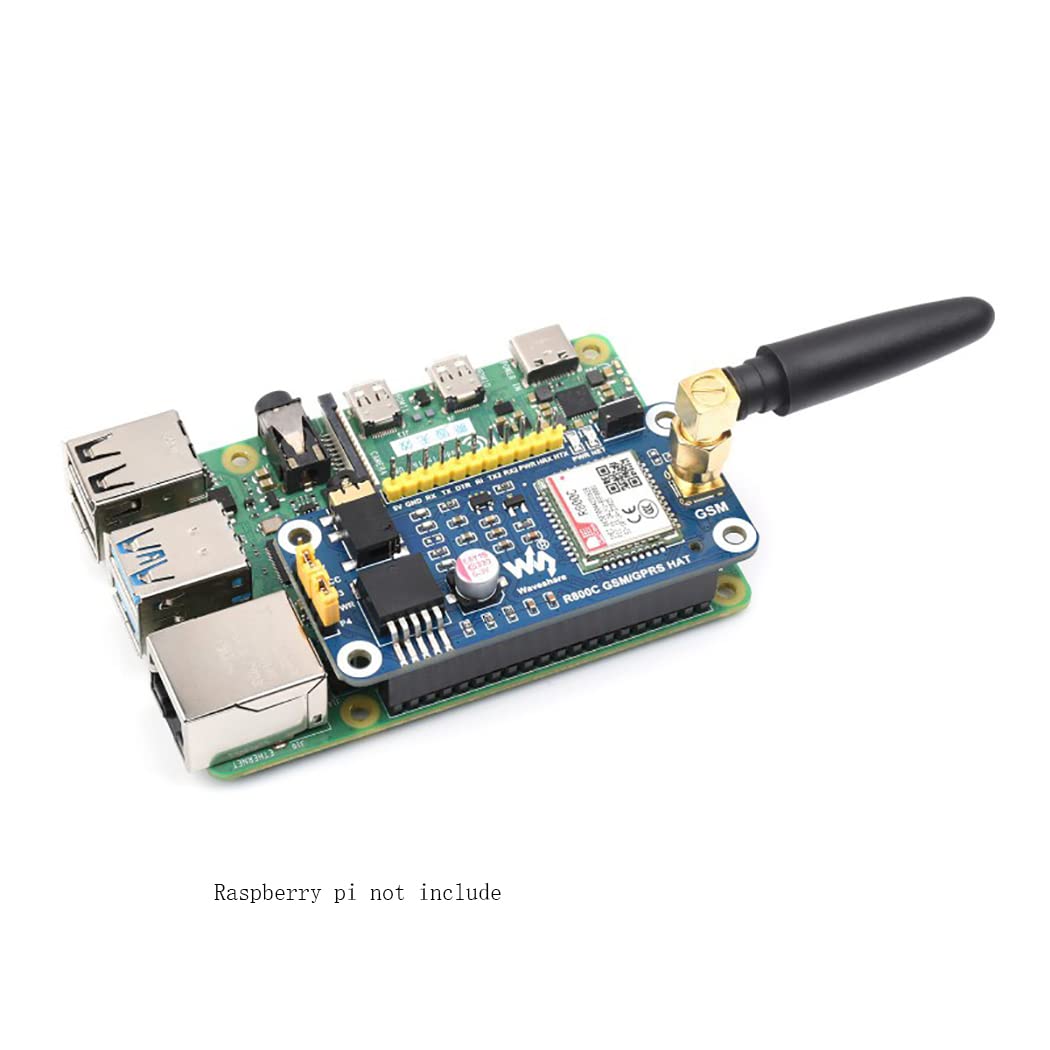

{"id":9153171489005,"title":"R800C GSM\/GPRS HAT for Raspberry Pi Series \u0026 Jetson Nano, Support 2G Communication, Phone Call \u0026 SMS","handle":"r800c-gsm-gprs-hat-for-raspberry-pi-series-jetson-nano-support-2g-communication-phone-call-sms","description":"\u003ch3\u003eR800C GSM\/GPRS HAT for Raspberry Pi Series \u0026amp; Jetson Nano, Support 2G Communication, Phone Call \u0026amp; SMS\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eFeatures The R800C GSM\/GPRS HAT is a handy, low power Raspberry Pi HAT which\r\nfeatures multi-communication functionalities: GSM, GPRS, and phone call,\r\napplicable to countries or regions with 2G network coverage, up to 85.6kbps\r\nGPRS speed. It allows your Pi to easily make a telephone call, send messages,\r\nconnect to wireless Internet, and so on. Standard Raspberry Pi 40PIN GPIO\r\nextension header, supports Raspberry Pi series boards and Jetson Nano Supports\r\nSMS, phone call, GPRS, TCP\/IP, DTMF, HTTP, FTPl, etc. UART interface, for\r\nconnecting controller boards like Arduino\/STM32 Onboard voltage translator,\r\n3.3V by default, switch to 5V via jumper 2x LED indicators, easy to monitor\r\nthe working status SIM card slot, supports 1.8V\/3V SIM card Baudrate: 2400bps\r\n~ 115200bps (115200bps by default) Control via AT commands (3GPP TS 27.007,\r\n27.005, and SIMCOM enhanced AT Commands) Supports SIM application toolkit: GSM\r\n11.14 Release 99 Comes with online development resources and manual (examples\r\nfor Raspberry Pi\/Jetson Nano\/Ardui\/STM32) Package include 1. R800C GSM\/GPRS\r\nHAT x1 2. GSM Antenna x1 3. RPi screws pack (2pcs) x1 Resources available\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eSupports SMS, phone call, GPRS, TCP\/IP, DTMF, HTTP, FTPl, etc.\u003c\/li\u003e\r\n \u003cli\u003eStandard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards and Jetson Nano\u003c\/li\u003e\r\n \u003cli\u003eUART interface, for connecting controller boards like Ardui\/STM32\u003c\/li\u003e\r\n \u003cli\u003eComes with online development resources and manual (examples for Raspberry Pi\/Jetson Nano\/Arduino\/STM32)\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2025-10-22T22:58:28+11:00","created_at":"2025-10-22T22:58:25+11:00","vendor":"Coolwell","type":"Single Board Computers","tags":["electronics_selected_Oct2025"],"price":16200,"price_min":16200,"price_max":16200,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":48909180829933,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0BPRQ7DV2","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"R800C GSM\/GPRS HAT for Raspberry Pi Series \u0026 Jetson Nano, Support 2G Communication, Phone Call \u0026 SMS","public_title":null,"options":["Default Title"],"price":16200,"weight":36,"compare_at_price":null,"inventory_management":"shopify","barcode":"749877937681","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/leoforward.com\/cdn\/shop\/files\/B0BPRQ7DV2.jpg?v=1775797353","\/\/leoforward.com\/cdn\/shop\/files\/61af4wCz5lL.jpg?v=1761134307","\/\/leoforward.com\/cdn\/shop\/files\/61Xhd-U_B5L.jpg?v=1761134307","\/\/leoforward.com\/cdn\/shop\/files\/51cRkgk2ZuL.jpg?v=1761134307","\/\/leoforward.com\/cdn\/shop\/files\/61DJCVv37HL.jpg?v=1761134307","\/\/leoforward.com\/cdn\/shop\/files\/71FioF4mipL.jpg?v=1761134307","\/\/leoforward.com\/cdn\/shop\/files\/71wtz833D7L.jpg?v=1761134307"],"featured_image":"\/\/leoforward.com\/cdn\/shop\/files\/B0BPRQ7DV2.jpg?v=1775797353","options":["Title"],"media":[{"alt":null,"id":36955099332845,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1050,"width":1050,"src":"\/\/leoforward.com\/cdn\/shop\/files\/B0BPRQ7DV2.jpg?v=1775797353"},"aspect_ratio":1.0,"height":1050,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/B0BPRQ7DV2.jpg?v=1775797353","width":1050},{"alt":null,"id":36955099365613,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1050,"width":1050,"src":"\/\/leoforward.com\/cdn\/shop\/files\/61af4wCz5lL.jpg?v=1761134307"},"aspect_ratio":1.0,"height":1050,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/61af4wCz5lL.jpg?v=1761134307","width":1050},{"alt":null,"id":36955099398381,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1050,"width":1050,"src":"\/\/leoforward.com\/cdn\/shop\/files\/61Xhd-U_B5L.jpg?v=1761134307"},"aspect_ratio":1.0,"height":1050,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/61Xhd-U_B5L.jpg?v=1761134307","width":1050},{"alt":null,"id":36955099431149,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1050,"width":1050,"src":"\/\/leoforward.com\/cdn\/shop\/files\/51cRkgk2ZuL.jpg?v=1761134307"},"aspect_ratio":1.0,"height":1050,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/51cRkgk2ZuL.jpg?v=1761134307","width":1050},{"alt":null,"id":36955099463917,"position":5,"preview_image":{"aspect_ratio":0.967,"height":1204,"width":1164,"src":"\/\/leoforward.com\/cdn\/shop\/files\/61DJCVv37HL.jpg?v=1761134307"},"aspect_ratio":0.967,"height":1204,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/61DJCVv37HL.jpg?v=1761134307","width":1164},{"alt":null,"id":36955099496685,"position":6,"preview_image":{"aspect_ratio":0.523,"height":2230,"width":1166,"src":"\/\/leoforward.com\/cdn\/shop\/files\/71FioF4mipL.jpg?v=1761134307"},"aspect_ratio":0.523,"height":2230,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/71FioF4mipL.jpg?v=1761134307","width":1166},{"alt":null,"id":36955099529453,"position":7,"preview_image":{"aspect_ratio":0.275,"height":2560,"width":705,"src":"\/\/leoforward.com\/cdn\/shop\/files\/71wtz833D7L.jpg?v=1761134307"},"aspect_ratio":0.275,"height":2560,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/71wtz833D7L.jpg?v=1761134307","width":705}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eR800C GSM\/GPRS HAT for Raspberry Pi Series \u0026amp; Jetson Nano, Support 2G Communication, Phone Call \u0026amp; SMS\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eFeatures The R800C GSM\/GPRS HAT is a handy, low power Raspberry Pi HAT which\r\nfeatures multi-communication functionalities: GSM, GPRS, and phone call,\r\napplicable to countries or regions with 2G network coverage, up to 85.6kbps\r\nGPRS speed. It allows your Pi to easily make a telephone call, send messages,\r\nconnect to wireless Internet, and so on. Standard Raspberry Pi 40PIN GPIO\r\nextension header, supports Raspberry Pi series boards and Jetson Nano Supports\r\nSMS, phone call, GPRS, TCP\/IP, DTMF, HTTP, FTPl, etc. UART interface, for\r\nconnecting controller boards like Arduino\/STM32 Onboard voltage translator,\r\n3.3V by default, switch to 5V via jumper 2x LED indicators, easy to monitor\r\nthe working status SIM card slot, supports 1.8V\/3V SIM card Baudrate: 2400bps\r\n~ 115200bps (115200bps by default) Control via AT commands (3GPP TS 27.007,\r\n27.005, and SIMCOM enhanced AT Commands) Supports SIM application toolkit: GSM\r\n11.14 Release 99 Comes with online development resources and manual (examples\r\nfor Raspberry Pi\/Jetson Nano\/Ardui\/STM32) Package include 1. R800C GSM\/GPRS\r\nHAT x1 2. GSM Antenna x1 3. RPi screws pack (2pcs) x1 Resources available\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eSupports SMS, phone call, GPRS, TCP\/IP, DTMF, HTTP, FTPl, etc.\u003c\/li\u003e\r\n \u003cli\u003eStandard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards and Jetson Nano\u003c\/li\u003e\r\n \u003cli\u003eUART interface, for connecting controller boards like Ardui\/STM32\u003c\/li\u003e\r\n \u003cli\u003eComes with online development resources and manual (examples for Raspberry Pi\/Jetson Nano\/Arduino\/STM32)\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
