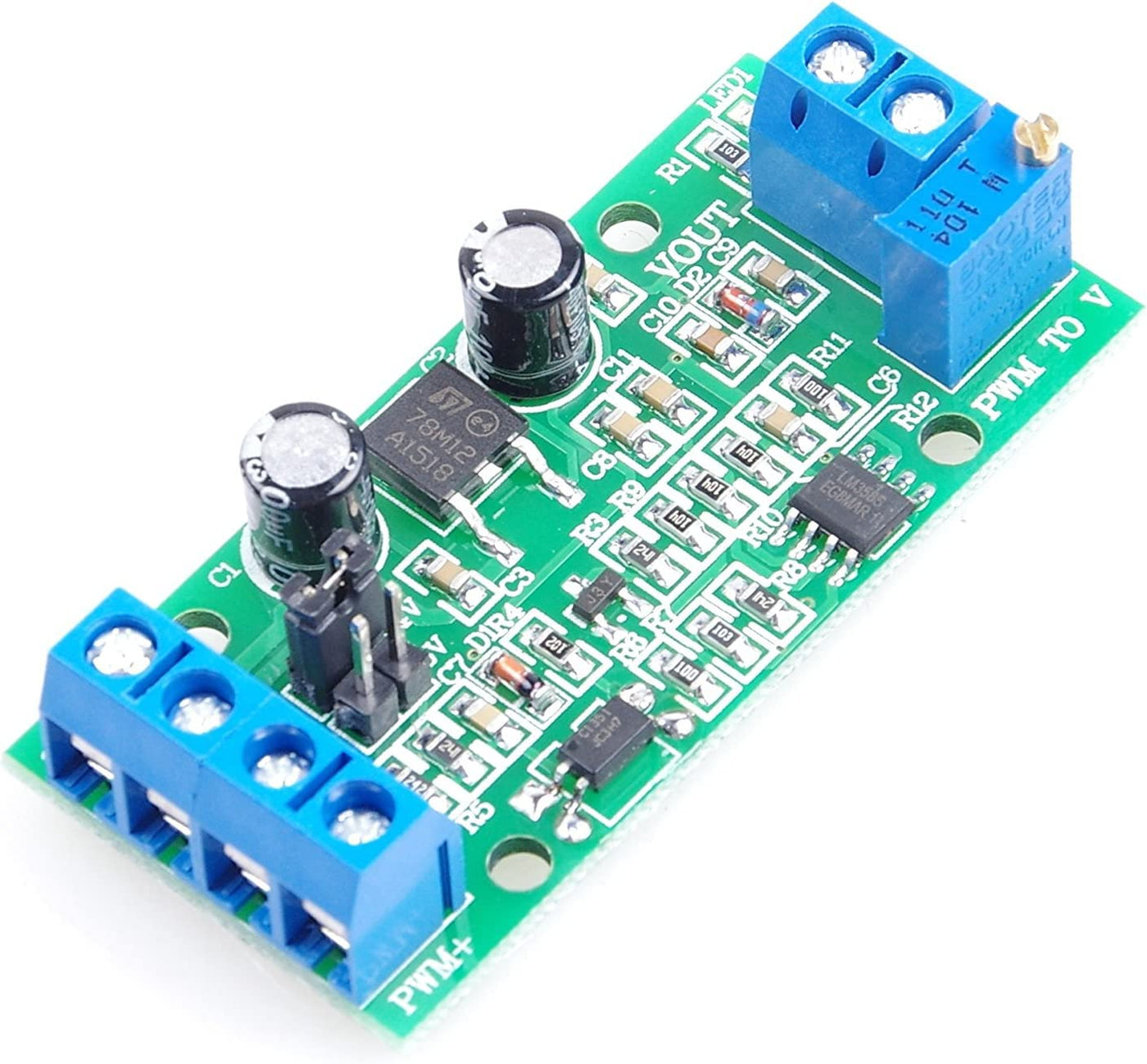

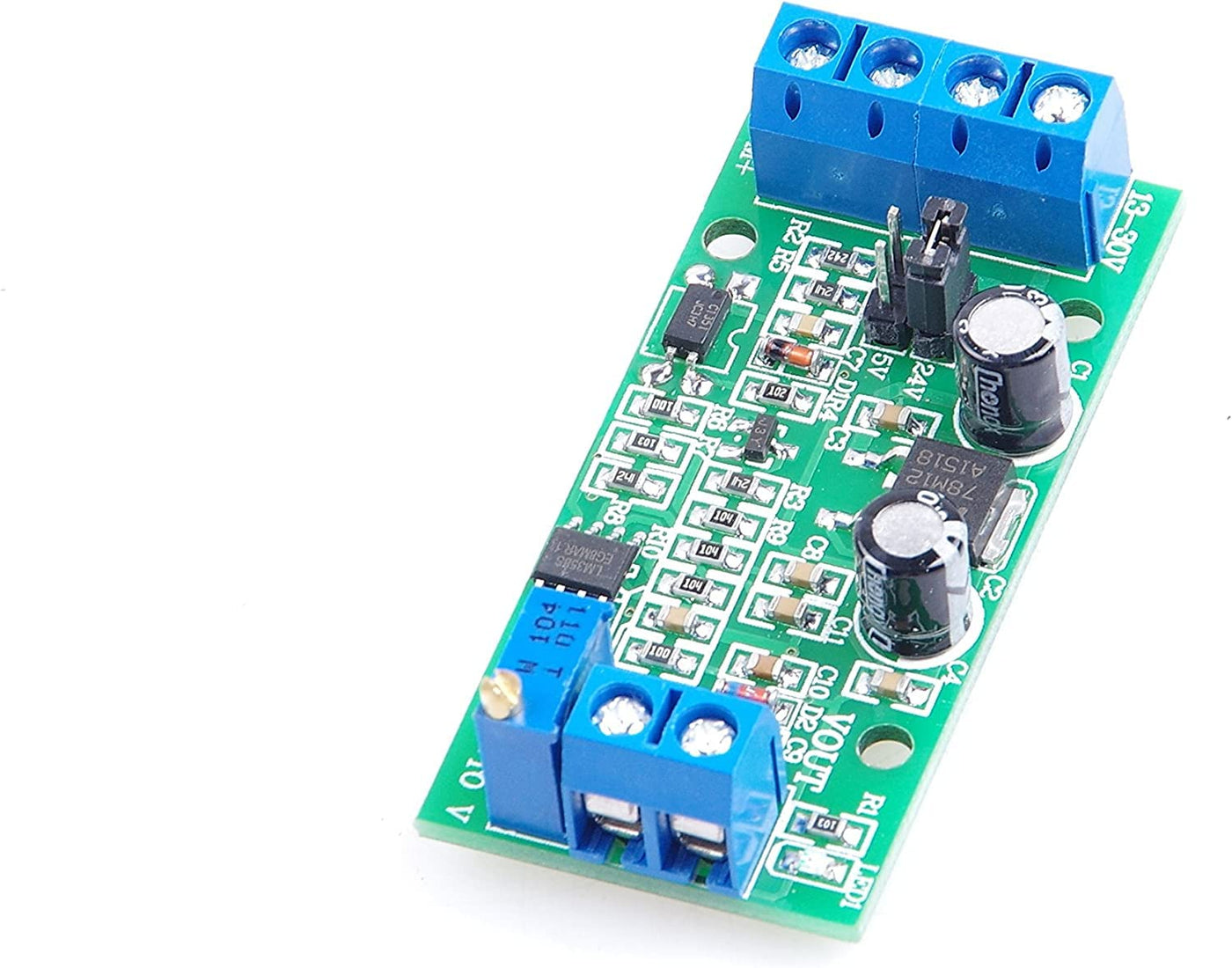

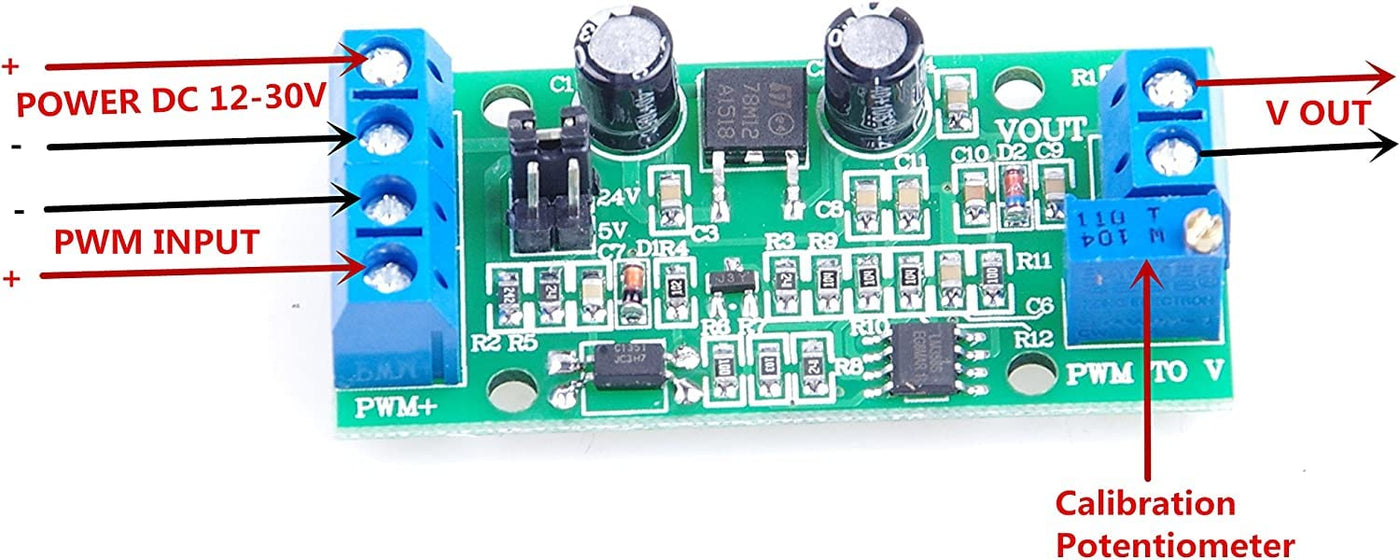

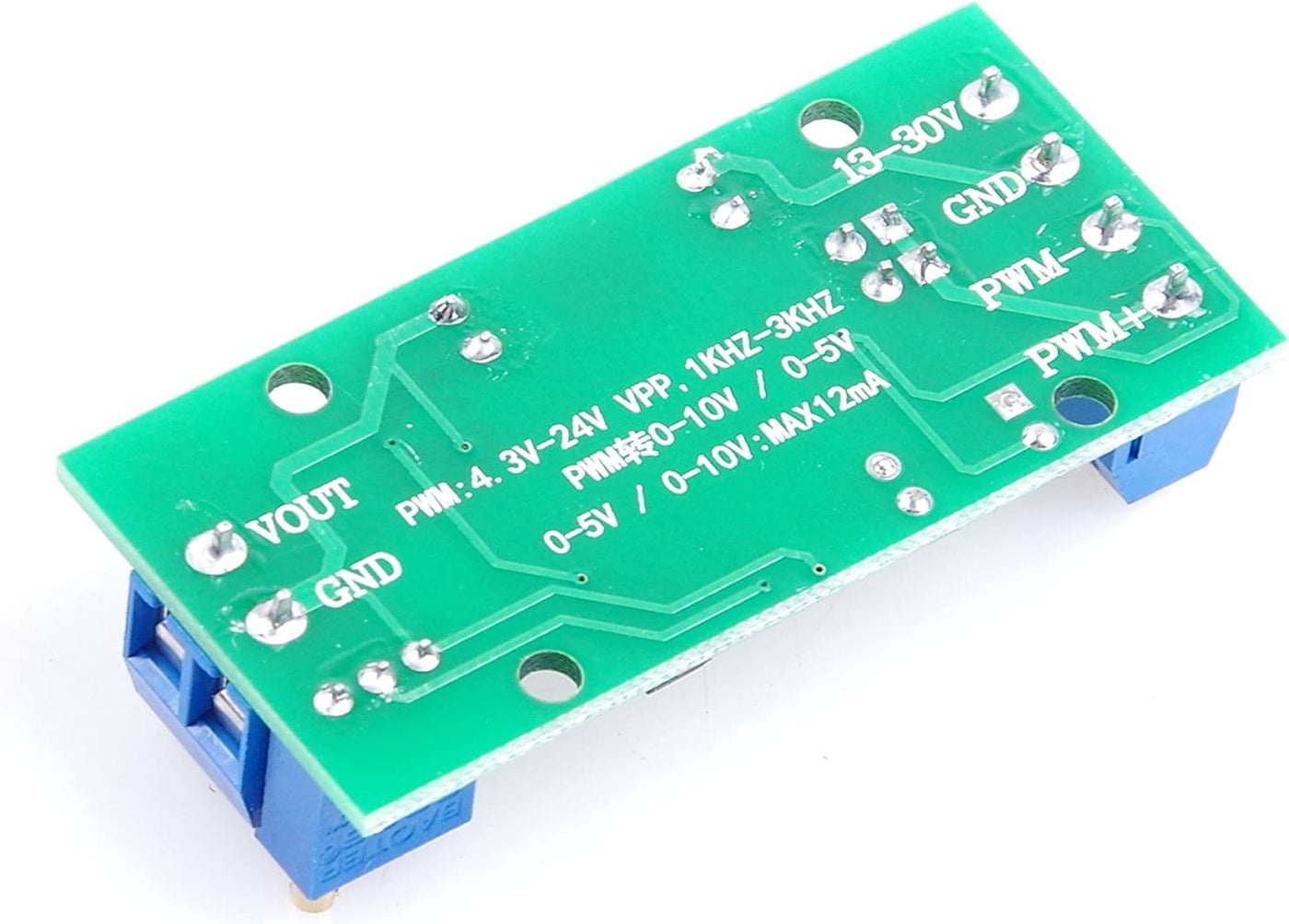

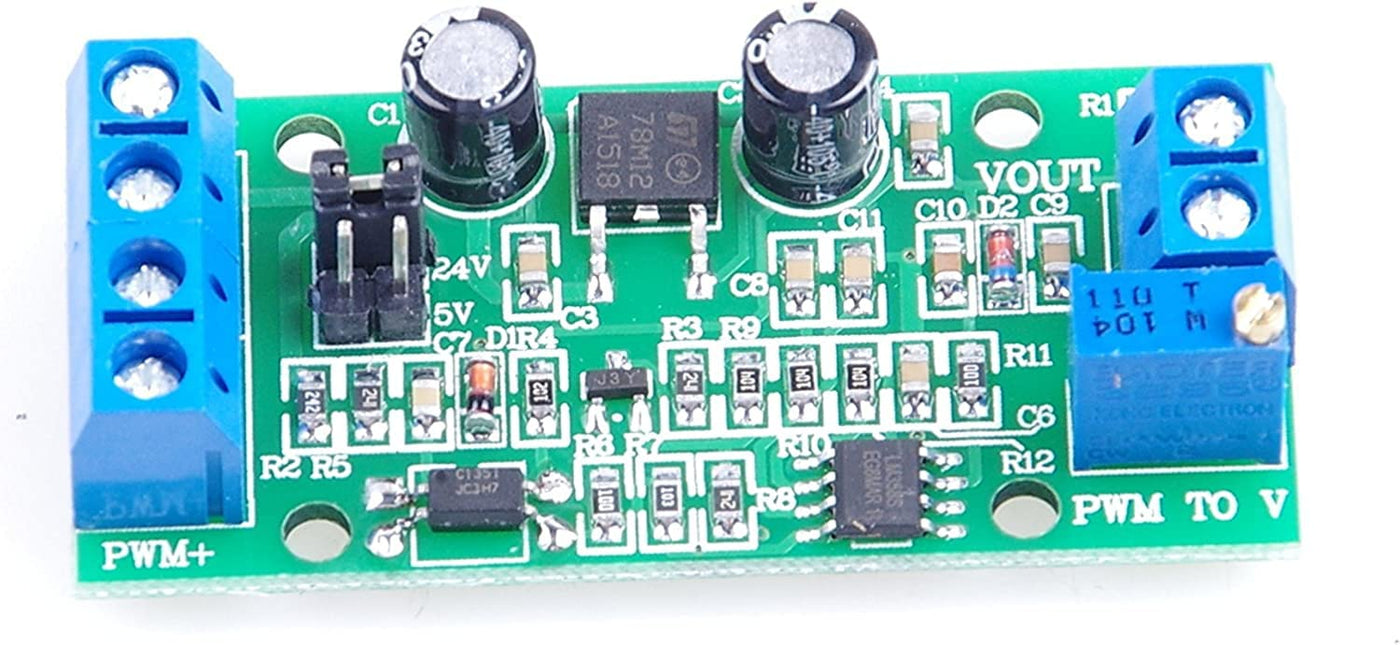

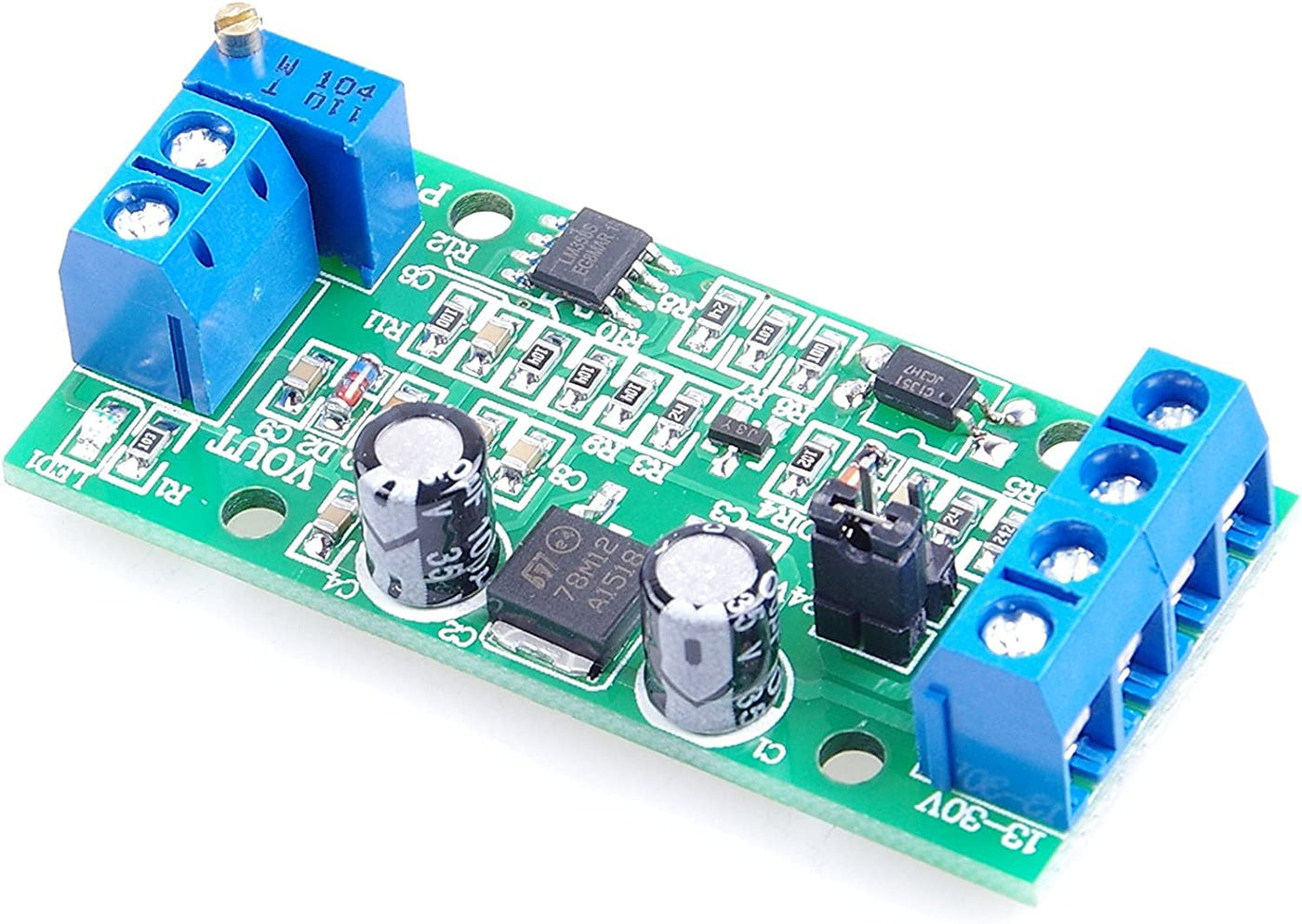

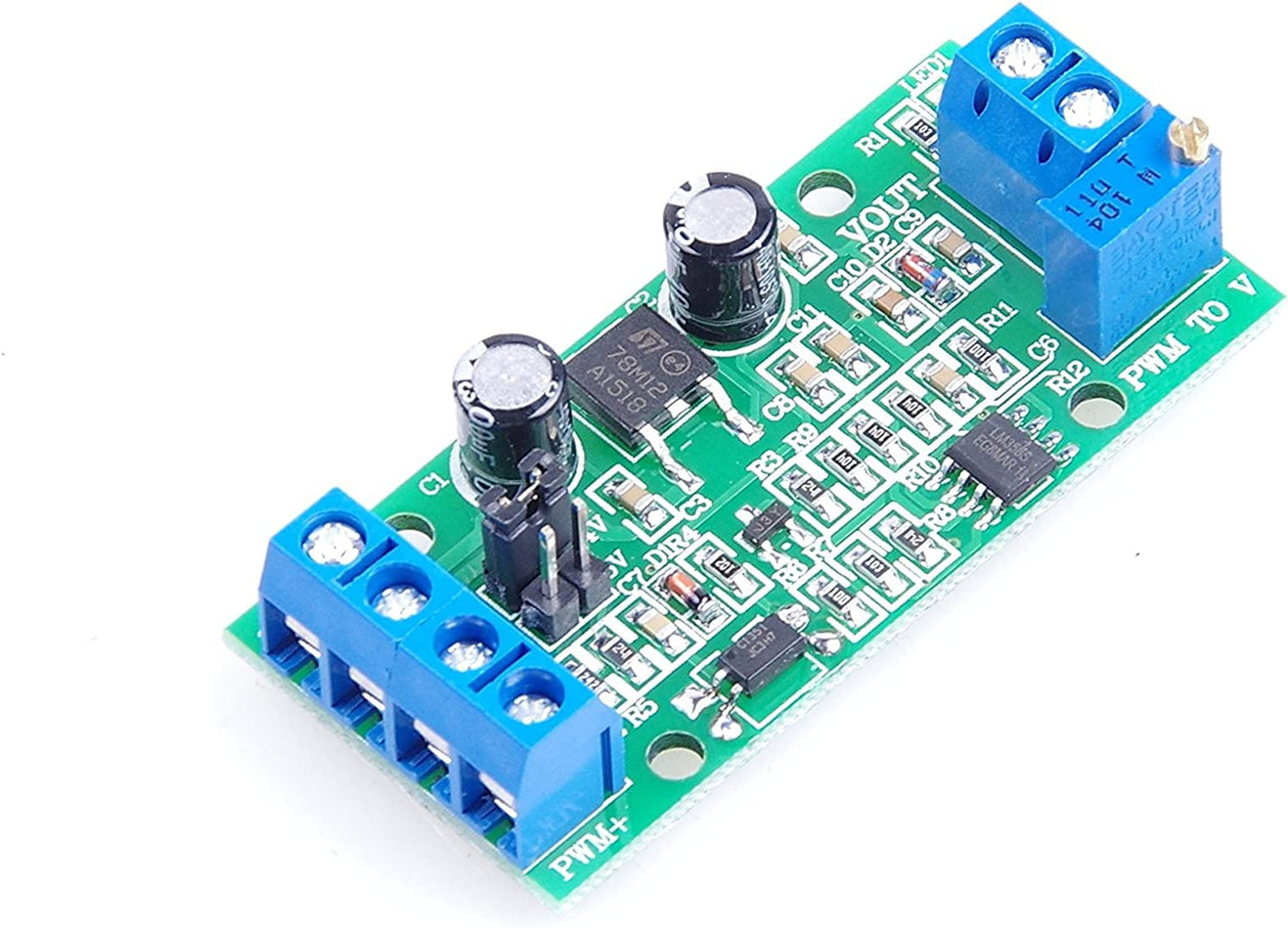

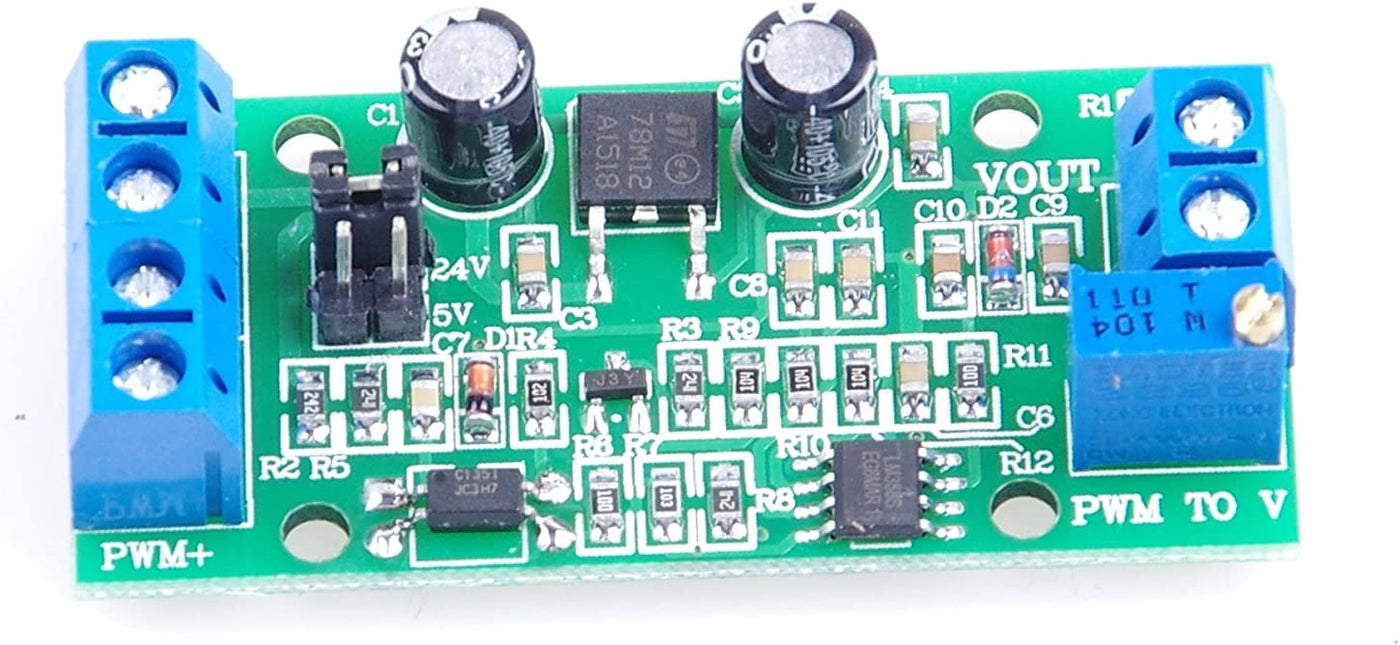

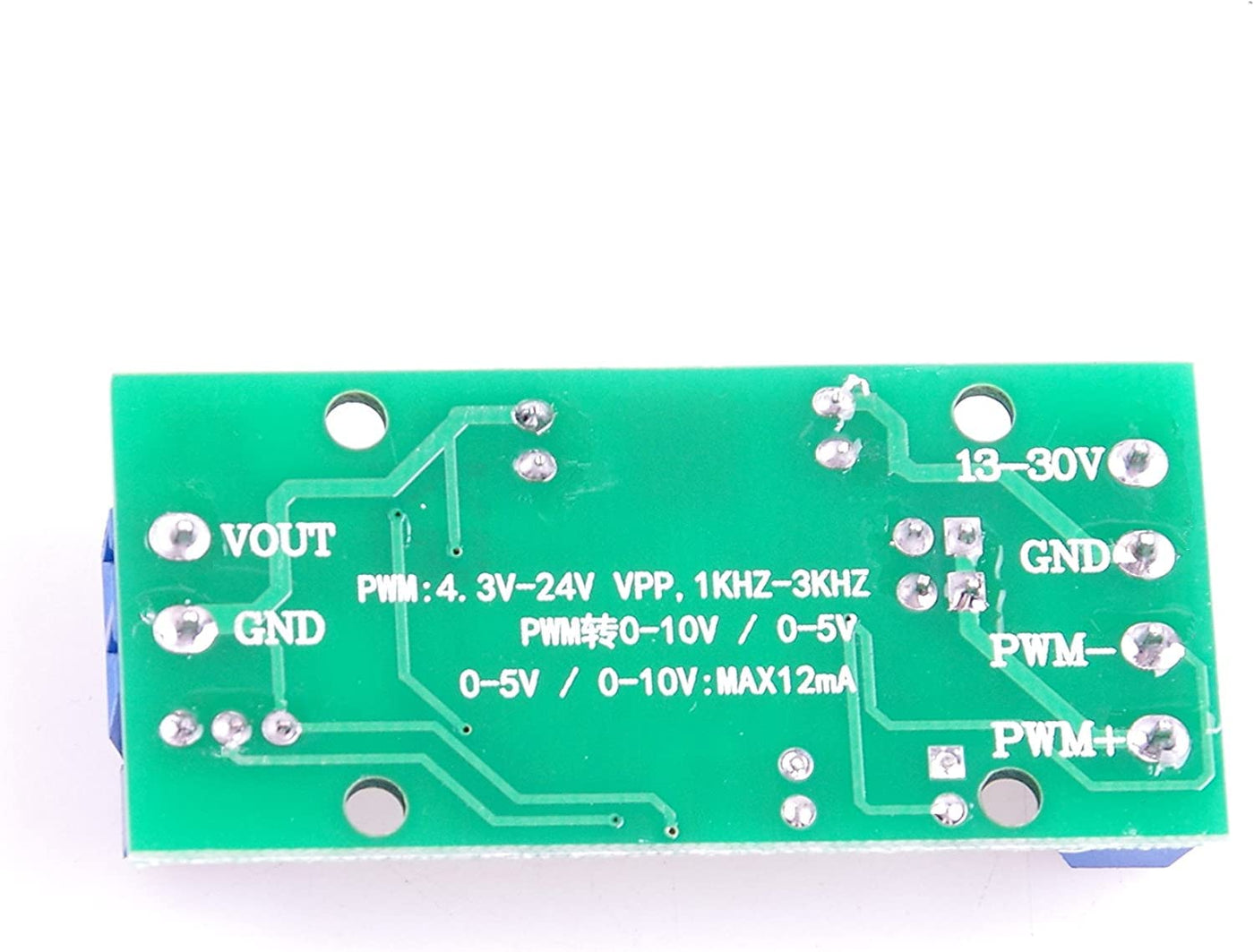

{"id":9148023668973,"title":"PWM-to-Voltage Module 0% -100% PWM Converted to DC 0-10V Voltage Analog to Digital","handle":"pwm-to-voltage-module-0-100-pwm-converted-to-dc-0-10v-voltage-analog-to-digital","description":"\u003ch3\u003ePWM-to-Voltage Module 0% -100% PWM Converted to DC 0-10V Voltage Analog to Digital\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eInput voltage: DC12 - 30V (power requirements: more than 100MA) ) Output\r\nvoltage: 0-10V PWM signal reception frequency range: 100HZ-3KHZ (suggest\r\n1KHZ-3KHZ can also make other frequency PWM signal). 4.5-10V peak-peak level,\r\njumper plug in 5V, level signal is mainly used for conventional industrial\r\ncontrol card, 5V CPU interface. 10-24V peak-peak level, jumper inserted in\r\n24V. Level signal is mainly used for conventional PLC interface. 12V level,\r\nthe power supply can not be 12VDC power supply, at least more than 15VDC power\r\nsupply, if you must use 12V power supply, you can also order 12VDC power\r\nconverter. Conversion range: 0% ~ 100% PWM conversion to 0 ~ 10V voltage.\r\nSize: 56 26 12 mm (L W H). Interface Description: 1, PWM +: PWM signal\r\ninput +. 2, PWM-: PWM signal input-. 3, VCC: positive input power. 4, GND:\r\npower ground. 5, GND: signal ground. And the power supply GND port is\r\nconnected to ground 6, OUT: analog voltage (0-10V or 0-5V) output port.\r\nDescription: After the electrical connection, there is no input signal, the\r\noutput 0V, there is input only output. When powering up for the first time,\r\nyou can do a calibration and debugging: Find a 50% duty cycle signal to DIN-,\r\nDIN +. The amplitude corresponds to the selected model, 3.3V or 5V or 24V.\r\nFrequency 1KHZ-3KHZ, with a multimeter to measure the AO, GND two ports, then\r\nthe table shows about 5.4V, adjust the potentiometer on the board, so that the\r\nmultimeter display at 5.40v. This will calibrate your pulse signal and the\r\nCorrespondence between modules. The resolution of this module is 0.1V. Output\r\ncurrent capacity of 10MA. If the percentage of duty cycle is opposite to the\r\nvoltage, you can check (or select) the pins that set the PWM output in MACH3\r\nsoftware to check the check box of STEP LOW and ACTIVE pins.\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003e1. Convert 0-100% PWM digital signal into analog signal.\u003c\/li\u003e\r\n \u003cli\u003e2. The input digital signal can be a 0-100% PWM signal at 3.3V or 5V or 24V\u003c\/li\u003e\r\n \u003cli\u003e3. Output analog signal can be 0-10V voltage or 0-5V voltage.\u003c\/li\u003e\r\n \u003cli\u003e4. Widely used in PLC; SCM or other industrial control panel signal interface switch.\u003c\/li\u003e\r\n \u003cli\u003e5. Power anti-reverse function\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2025-10-18T04:20:14+11:00","created_at":"2025-10-18T04:20:10+11:00","vendor":"KNACRO","type":"","tags":["electronics_selected_Oct2025"],"price":11000,"price_min":11000,"price_max":11000,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":48890082001133,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0C68YB5X4","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"PWM-to-Voltage Module 0% -100% PWM Converted to DC 0-10V Voltage Analog to Digital","public_title":null,"options":["Default Title"],"price":11000,"weight":15,"compare_at_price":null,"inventory_management":"shopify","barcode":"744591546218","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/leoforward.com\/cdn\/shop\/files\/B0C68YB.jpg?v=1775790727","\/\/leoforward.com\/cdn\/shop\/files\/616x71U6jfL.jpg?v=1760721613","\/\/leoforward.com\/cdn\/shop\/files\/61pjDqjoY-L.jpg?v=1760721613","\/\/leoforward.com\/cdn\/shop\/files\/71QJvGQ0j0L.jpg?v=1760721613","\/\/leoforward.com\/cdn\/shop\/files\/71AwjTGV-4L.jpg?v=1760721613","\/\/leoforward.com\/cdn\/shop\/files\/618Jv5MjLlL.jpg?v=1760721612","\/\/leoforward.com\/cdn\/shop\/files\/71-iWxgWNKL.jpg?v=1760721613","\/\/leoforward.com\/cdn\/shop\/files\/61x0wJhfxkL.jpg?v=1760721612","\/\/leoforward.com\/cdn\/shop\/files\/61q6hm3o3OL.jpg?v=1760721613"],"featured_image":"\/\/leoforward.com\/cdn\/shop\/files\/B0C68YB.jpg?v=1775790727","options":["Title"],"media":[{"alt":null,"id":36927003328749,"position":1,"preview_image":{"aspect_ratio":1.408,"height":1065,"width":1500,"src":"\/\/leoforward.com\/cdn\/shop\/files\/B0C68YB.jpg?v=1775790727"},"aspect_ratio":1.408,"height":1065,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/B0C68YB.jpg?v=1775790727","width":1500},{"alt":null,"id":36927003361517,"position":2,"preview_image":{"aspect_ratio":2.5,"height":600,"width":1500,"src":"\/\/leoforward.com\/cdn\/shop\/files\/616x71U6jfL.jpg?v=1760721613"},"aspect_ratio":2.5,"height":600,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/616x71U6jfL.jpg?v=1760721613","width":1500},{"alt":null,"id":36927003394285,"position":3,"preview_image":{"aspect_ratio":2.171,"height":668,"width":1450,"src":"\/\/leoforward.com\/cdn\/shop\/files\/61pjDqjoY-L.jpg?v=1760721613"},"aspect_ratio":2.171,"height":668,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/61pjDqjoY-L.jpg?v=1760721613","width":1450},{"alt":null,"id":36927003427053,"position":4,"preview_image":{"aspect_ratio":1.078,"height":1307,"width":1409,"src":"\/\/leoforward.com\/cdn\/shop\/files\/71QJvGQ0j0L.jpg?v=1760721613"},"aspect_ratio":1.078,"height":1307,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/71QJvGQ0j0L.jpg?v=1760721613","width":1409},{"alt":null,"id":36927003459821,"position":5,"preview_image":{"aspect_ratio":1.388,"height":1081,"width":1500,"src":"\/\/leoforward.com\/cdn\/shop\/files\/71AwjTGV-4L.jpg?v=1760721613"},"aspect_ratio":1.388,"height":1081,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/71AwjTGV-4L.jpg?v=1760721613","width":1500},{"alt":null,"id":36927003492589,"position":6,"preview_image":{"aspect_ratio":2.171,"height":691,"width":1500,"src":"\/\/leoforward.com\/cdn\/shop\/files\/618Jv5MjLlL.jpg?v=1760721612"},"aspect_ratio":2.171,"height":691,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/618Jv5MjLlL.jpg?v=1760721612","width":1500},{"alt":null,"id":36927003525357,"position":7,"preview_image":{"aspect_ratio":1.272,"height":1179,"width":1500,"src":"\/\/leoforward.com\/cdn\/shop\/files\/71-iWxgWNKL.jpg?v=1760721613"},"aspect_ratio":1.272,"height":1179,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/71-iWxgWNKL.jpg?v=1760721613","width":1500},{"alt":null,"id":36927003558125,"position":8,"preview_image":{"aspect_ratio":1.317,"height":1139,"width":1500,"src":"\/\/leoforward.com\/cdn\/shop\/files\/61x0wJhfxkL.jpg?v=1760721612"},"aspect_ratio":1.317,"height":1139,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/61x0wJhfxkL.jpg?v=1760721612","width":1500},{"alt":null,"id":36927003590893,"position":9,"preview_image":{"aspect_ratio":1.395,"height":1063,"width":1483,"src":"\/\/leoforward.com\/cdn\/shop\/files\/61q6hm3o3OL.jpg?v=1760721613"},"aspect_ratio":1.395,"height":1063,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/61q6hm3o3OL.jpg?v=1760721613","width":1483}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003ePWM-to-Voltage Module 0% -100% PWM Converted to DC 0-10V Voltage Analog to Digital\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eInput voltage: DC12 - 30V (power requirements: more than 100MA) ) Output\r\nvoltage: 0-10V PWM signal reception frequency range: 100HZ-3KHZ (suggest\r\n1KHZ-3KHZ can also make other frequency PWM signal). 4.5-10V peak-peak level,\r\njumper plug in 5V, level signal is mainly used for conventional industrial\r\ncontrol card, 5V CPU interface. 10-24V peak-peak level, jumper inserted in\r\n24V. Level signal is mainly used for conventional PLC interface. 12V level,\r\nthe power supply can not be 12VDC power supply, at least more than 15VDC power\r\nsupply, if you must use 12V power supply, you can also order 12VDC power\r\nconverter. Conversion range: 0% ~ 100% PWM conversion to 0 ~ 10V voltage.\r\nSize: 56 26 12 mm (L W H). Interface Description: 1, PWM +: PWM signal\r\ninput +. 2, PWM-: PWM signal input-. 3, VCC: positive input power. 4, GND:\r\npower ground. 5, GND: signal ground. And the power supply GND port is\r\nconnected to ground 6, OUT: analog voltage (0-10V or 0-5V) output port.\r\nDescription: After the electrical connection, there is no input signal, the\r\noutput 0V, there is input only output. When powering up for the first time,\r\nyou can do a calibration and debugging: Find a 50% duty cycle signal to DIN-,\r\nDIN +. The amplitude corresponds to the selected model, 3.3V or 5V or 24V.\r\nFrequency 1KHZ-3KHZ, with a multimeter to measure the AO, GND two ports, then\r\nthe table shows about 5.4V, adjust the potentiometer on the board, so that the\r\nmultimeter display at 5.40v. This will calibrate your pulse signal and the\r\nCorrespondence between modules. The resolution of this module is 0.1V. Output\r\ncurrent capacity of 10MA. If the percentage of duty cycle is opposite to the\r\nvoltage, you can check (or select) the pins that set the PWM output in MACH3\r\nsoftware to check the check box of STEP LOW and ACTIVE pins.\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003e1. Convert 0-100% PWM digital signal into analog signal.\u003c\/li\u003e\r\n \u003cli\u003e2. The input digital signal can be a 0-100% PWM signal at 3.3V or 5V or 24V\u003c\/li\u003e\r\n \u003cli\u003e3. Output analog signal can be 0-10V voltage or 0-5V voltage.\u003c\/li\u003e\r\n \u003cli\u003e4. Widely used in PLC; SCM or other industrial control panel signal interface switch.\u003c\/li\u003e\r\n \u003cli\u003e5. Power anti-reverse function\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
