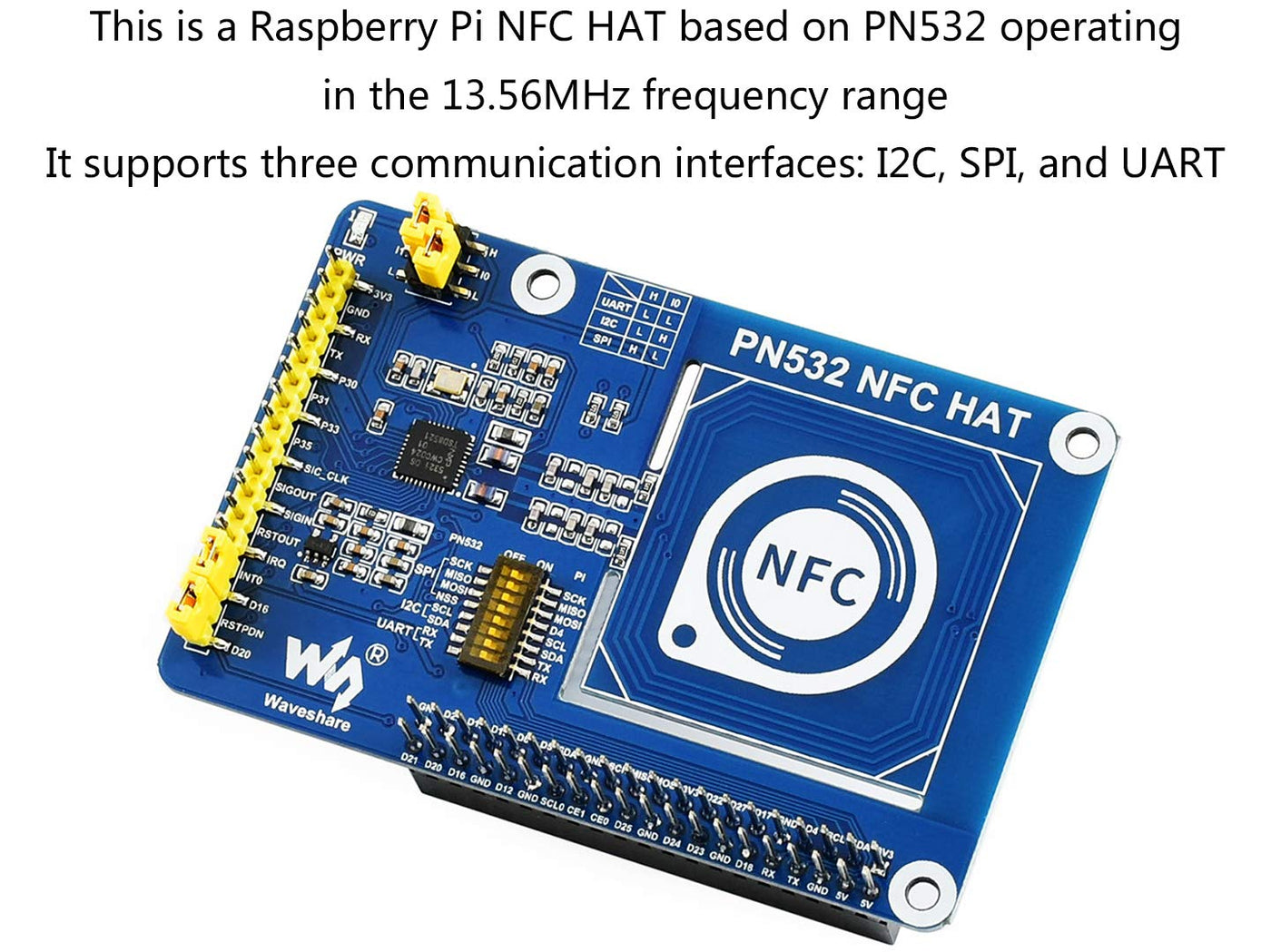

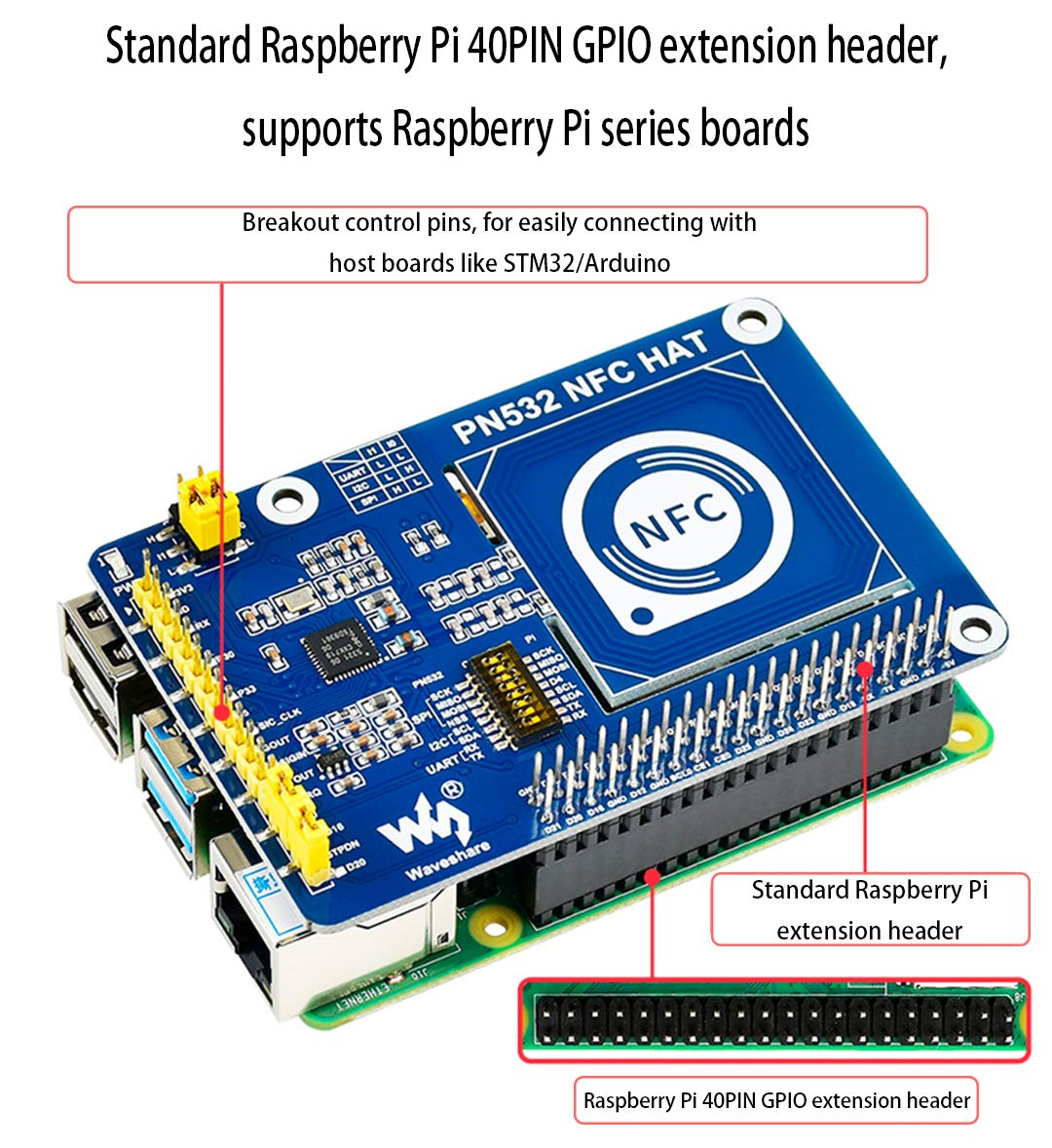

{"id":9140867727597,"title":"PN532 NFC HAT for Raspberry Pi 4B\/3B+\/3B\/2B\/Zero\/Zero W - I2C \/ SPI\/UART Interface, Supports Various NFC\/RFID Cards","handle":"pn532-nfc-hat-for-raspberry-pi-4b-3b-3b-2b-zero-zero-w-i2c-spi-uart-interface-supports-various-nfc-rfid-cards","description":"\u003ch3\u003ePN532 NFC HAT for Raspberry Pi 4B\/3B+\/3B\/2B\/Zero\/Zero W - I2C \/ SPI\/UART Interface, Supports Various NFC\/RFID Cards\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eOverview This is a Raspberry Pi NFC HAT based on PN532 operating in the\r\n13.56MHz frequency range. It supports three communication interfaces: I2C,\r\nSPI, and UART. NFC (Near Field Communication) is a wireless technology allows\r\ncontactless point-to-point data communication between devices within a short\r\ndistance of 10 cm. It is widely used in applications such as access control\r\nsystem, smart tickets, meal card, etc. Based on the popular NFC controller\r\nPN532 with multi interface options, this HAT will easily enable NFC function\r\nfor your Raspberry Pi. Features Onboard standard Raspberry Pi 40PIN GPIO\r\nextension header, supports Raspberry Pi series boards Reserving breakout\r\ncontrol pins, for easily connecting with host boards like STM32\/Arduino\r\nOnboard PN532 chip, supports various NFC\/RFID cards like MIFARE\/NTAG2xx, etc.\r\nThree interface options: I2C, SPI, and UART, configured via jumpers and\r\nswitches Comes with development resources and manual (examples for Raspberry\r\nPython\/C, STM32, Arduino): \/\/bit.ly\/3tlyyEb Specifications NFC controller:\r\nPN532 Operating voltage: 3.3V\/5V Operating frequency: 13.56MHz Communication\r\ninterfaces: I2C, SPI, UART (default) Default baudrate: 115200 bps Operating\r\nmodes: --reader\/writer mode supporting ISO\/IEC 14443A \/ MIFARE scheme\r\n--reader\/writer mode supporting FeliCa scheme --reader\/writer mode supporting\r\nISO\/IEC 14443B scheme --card operation mode supporting ISO 14443A \/ MIFARE\r\nscheme --card operation mode supporting FeliCa scheme --card operation mode\r\nsupporting ISO\/IEC18092, ECM340 point-to-point Applications Contactless\r\npayment system Bluetooth and WiFi devices chaining Social sharing function\r\nlike sharing contacts, photos, and videos Smart phone NFC app Package Content\r\nPN532 NFC HAT x1 MIFARE Classic 1K Card x1\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eThis is a Raspberry Pi NFC HAT based on PN532 operating in the 13.56MHz frequency range. NFC (Near Field Communication) is a wireless technology that allows contactless point-to-point data communication between devices within a short distance of 10 cm. It is widely used in applications such as access control systems, smart tickets, meal cards, etc.\u003c\/li\u003e\r\n \u003cli\u003eIt supports three communication interfaces: I2C, SPI, and UART, configured via jumpers and switches\u003c\/li\u003e\r\n \u003cli\u003eOnboard standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards\u003c\/li\u003e\r\n \u003cli\u003eReserving breakout control pins, for easily connecting with host boards like STM32\/ and forArduino\u003c\/li\u003e\r\n \u003cli\u003eOnboard PN532 chip, supports various NFC\/RFID cards like MIFARE\/NTAG2xx, etc. Based on the popular NFC controller PN532 with multi-interface options, this HAT will easily enable NFC function for your Raspberry Pi.\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2025-10-16T03:35:08+11:00","created_at":"2025-10-16T03:35:04+11:00","vendor":"waveshare","type":"","tags":["electronics_selected_Oct2025"],"price":14900,"price_min":14900,"price_max":14900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":48876786909421,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0CKXZ4WJK","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"PN532 NFC HAT for Raspberry Pi 4B\/3B+\/3B\/2B\/Zero\/Zero W - I2C \/ SPI\/UART Interface, Supports Various NFC\/RFID Cards","public_title":null,"options":["Default Title"],"price":14900,"weight":18,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/leoforward.com\/cdn\/shop\/files\/B0CKXZ4WJK.jpg?v=1775787758","\/\/leoforward.com\/cdn\/shop\/files\/71H5DpolCYL.jpg?v=1760546107","\/\/leoforward.com\/cdn\/shop\/files\/71b1_Tv7fwL.jpg?v=1760546107","\/\/leoforward.com\/cdn\/shop\/files\/71fGG3pfMuL.jpg?v=1760546107","\/\/leoforward.com\/cdn\/shop\/files\/81mXR9GK-UL.jpg?v=1760546107","\/\/leoforward.com\/cdn\/shop\/files\/71f0VuCVn5L.jpg?v=1760546107","\/\/leoforward.com\/cdn\/shop\/files\/71opfP8ZwWL.jpg?v=1760546107"],"featured_image":"\/\/leoforward.com\/cdn\/shop\/files\/B0CKXZ4WJK.jpg?v=1775787758","options":["Title"],"media":[{"alt":null,"id":36911669575917,"position":1,"preview_image":{"aspect_ratio":1.334,"height":1601,"width":2136,"src":"\/\/leoforward.com\/cdn\/shop\/files\/B0CKXZ4WJK.jpg?v=1775787758"},"aspect_ratio":1.334,"height":1601,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/B0CKXZ4WJK.jpg?v=1775787758","width":2136},{"alt":null,"id":36911669608685,"position":2,"preview_image":{"aspect_ratio":1.334,"height":1080,"width":1441,"src":"\/\/leoforward.com\/cdn\/shop\/files\/71H5DpolCYL.jpg?v=1760546107"},"aspect_ratio":1.334,"height":1080,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/71H5DpolCYL.jpg?v=1760546107","width":1441},{"alt":null,"id":36911669641453,"position":3,"preview_image":{"aspect_ratio":1.334,"height":1080,"width":1441,"src":"\/\/leoforward.com\/cdn\/shop\/files\/71b1_Tv7fwL.jpg?v=1760546107"},"aspect_ratio":1.334,"height":1080,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/71b1_Tv7fwL.jpg?v=1760546107","width":1441},{"alt":null,"id":36911669674221,"position":4,"preview_image":{"aspect_ratio":0.917,"height":1178,"width":1080,"src":"\/\/leoforward.com\/cdn\/shop\/files\/71fGG3pfMuL.jpg?v=1760546107"},"aspect_ratio":0.917,"height":1178,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/71fGG3pfMuL.jpg?v=1760546107","width":1080},{"alt":null,"id":36911669706989,"position":5,"preview_image":{"aspect_ratio":1.334,"height":1080,"width":1441,"src":"\/\/leoforward.com\/cdn\/shop\/files\/81mXR9GK-UL.jpg?v=1760546107"},"aspect_ratio":1.334,"height":1080,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/81mXR9GK-UL.jpg?v=1760546107","width":1441},{"alt":null,"id":36911669739757,"position":6,"preview_image":{"aspect_ratio":1.333,"height":1080,"width":1440,"src":"\/\/leoforward.com\/cdn\/shop\/files\/71f0VuCVn5L.jpg?v=1760546107"},"aspect_ratio":1.333,"height":1080,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/71f0VuCVn5L.jpg?v=1760546107","width":1440},{"alt":null,"id":36911669772525,"position":7,"preview_image":{"aspect_ratio":1.083,"height":1080,"width":1170,"src":"\/\/leoforward.com\/cdn\/shop\/files\/71opfP8ZwWL.jpg?v=1760546107"},"aspect_ratio":1.083,"height":1080,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/71opfP8ZwWL.jpg?v=1760546107","width":1170}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003ePN532 NFC HAT for Raspberry Pi 4B\/3B+\/3B\/2B\/Zero\/Zero W - I2C \/ SPI\/UART Interface, Supports Various NFC\/RFID Cards\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eOverview This is a Raspberry Pi NFC HAT based on PN532 operating in the\r\n13.56MHz frequency range. It supports three communication interfaces: I2C,\r\nSPI, and UART. NFC (Near Field Communication) is a wireless technology allows\r\ncontactless point-to-point data communication between devices within a short\r\ndistance of 10 cm. It is widely used in applications such as access control\r\nsystem, smart tickets, meal card, etc. Based on the popular NFC controller\r\nPN532 with multi interface options, this HAT will easily enable NFC function\r\nfor your Raspberry Pi. Features Onboard standard Raspberry Pi 40PIN GPIO\r\nextension header, supports Raspberry Pi series boards Reserving breakout\r\ncontrol pins, for easily connecting with host boards like STM32\/Arduino\r\nOnboard PN532 chip, supports various NFC\/RFID cards like MIFARE\/NTAG2xx, etc.\r\nThree interface options: I2C, SPI, and UART, configured via jumpers and\r\nswitches Comes with development resources and manual (examples for Raspberry\r\nPython\/C, STM32, Arduino): \/\/bit.ly\/3tlyyEb Specifications NFC controller:\r\nPN532 Operating voltage: 3.3V\/5V Operating frequency: 13.56MHz Communication\r\ninterfaces: I2C, SPI, UART (default) Default baudrate: 115200 bps Operating\r\nmodes: --reader\/writer mode supporting ISO\/IEC 14443A \/ MIFARE scheme\r\n--reader\/writer mode supporting FeliCa scheme --reader\/writer mode supporting\r\nISO\/IEC 14443B scheme --card operation mode supporting ISO 14443A \/ MIFARE\r\nscheme --card operation mode supporting FeliCa scheme --card operation mode\r\nsupporting ISO\/IEC18092, ECM340 point-to-point Applications Contactless\r\npayment system Bluetooth and WiFi devices chaining Social sharing function\r\nlike sharing contacts, photos, and videos Smart phone NFC app Package Content\r\nPN532 NFC HAT x1 MIFARE Classic 1K Card x1\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eThis is a Raspberry Pi NFC HAT based on PN532 operating in the 13.56MHz frequency range. NFC (Near Field Communication) is a wireless technology that allows contactless point-to-point data communication between devices within a short distance of 10 cm. It is widely used in applications such as access control systems, smart tickets, meal cards, etc.\u003c\/li\u003e\r\n \u003cli\u003eIt supports three communication interfaces: I2C, SPI, and UART, configured via jumpers and switches\u003c\/li\u003e\r\n \u003cli\u003eOnboard standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards\u003c\/li\u003e\r\n \u003cli\u003eReserving breakout control pins, for easily connecting with host boards like STM32\/ and forArduino\u003c\/li\u003e\r\n \u003cli\u003eOnboard PN532 chip, supports various NFC\/RFID cards like MIFARE\/NTAG2xx, etc. Based on the popular NFC controller PN532 with multi-interface options, this HAT will easily enable NFC function for your Raspberry Pi.\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
