Pentair Pentek ECP5-20 Sediment Water Filter, 20-Inch, Whole House Pleated Cellulose Polyester Replacement Cartridge, 20" x 2.5", White End-Cap, 5 Micron 5 Micron - White

In Stock. Leaves warehouse within 2 - 3 business days

$204.00 AUD
Maximum quantity available reached.
Shop now & enjoy FREE shipping Australia-wide
More detailed product descriptions
Free Shipping Australia Wide
100% Safe & Secure Checkout
100 Days Return Policy *
1 Year Warranty *

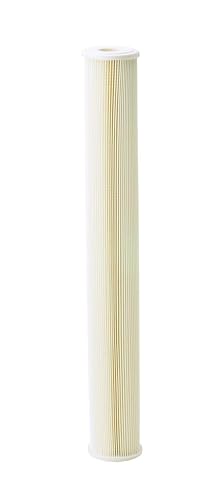

Pentair Pentek ECP5-20 Sediment Water Filter, 20-Inch, Whole House Pleated Cellulose Polyester Replacement Cartridge, 20" x 2.5", White End-Cap, 5 Micron

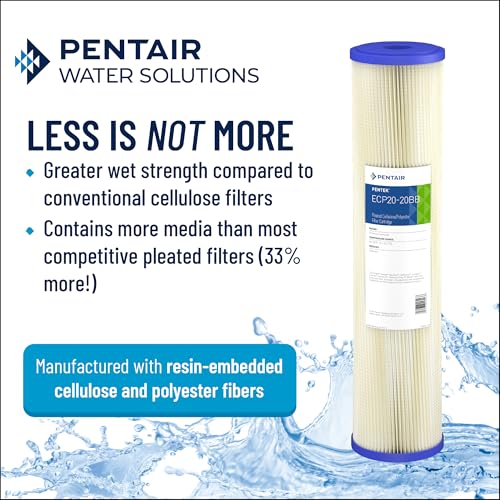

Pentair Pentek ECP Series cartridges are made from a special formulation of resin-impregnated cellulose and polyester fibers. This unique blend provides higher wet strength than regular cellulose cartridges while delivering high flow rates and strong dirt-holding capacity at extremely low pressure drop. The ECP5-20 is the 20-inch, nominal 5 micron version and reduces fine dirt, sand, silt, rust, and other sediment to help keep your water cleaner and help protect appliances, plumbing, and downstream filters.The pleated media is formed around a polypropylene core for added strength, and the overlap seam is sonically welded to reduce internal bypass for more efficient filtration with minimal unloading and media migration. The Standard 20-inch cartridge contains 12 square feet of media surface area, and the initial pressure drop is less than 1 psi at 10 gpm. The cartridge is rated for water temperatures from 40 to 125 degrees F.With maximum dimensions of 2.63 inch by 20 inch (67 mm x 508 mm), the ECP5-20 is a drop-in replacement for standard 20-inch whole-house sediment housings. The white color-coded endcap identifies the 5 micron rating for quick reordering. Replace the cartridge when you notice a drop in water pressure or water quality.

Product Features

  • KEEP YOUR WATER CLEANER - The nominal 5 micron pleated media reduces fine dirt, sand, silt, rust, and sediment particles, helping keep your water cleaner and helping protect appliances, plumbing, and downstream filters.
  • STRONGER MEDIA, LOW PRESSURE DROP - A special blend of resin-impregnated cellulose and polyester fibers gives higher wet strength than regular cellulose, with high flow and an initial pressure drop under 1 psi at 10 gpm.
  • BUILT TO RESIST BYPASS - Media is pleated around a durable polypropylene core, and the overlap seam is sonically welded to reduce internal bypass for more efficient, consistent filtration with minimal media migration.

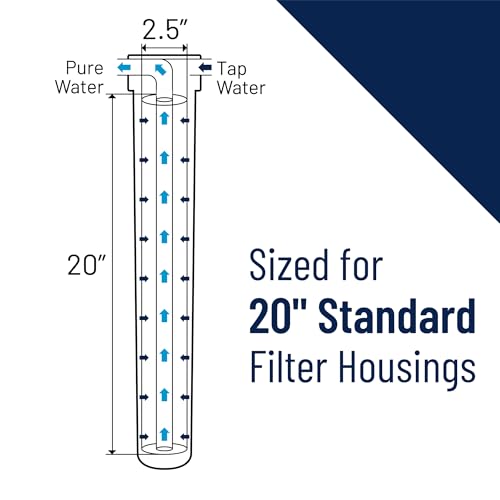

  • FITS 20-INCH STANDARD HOUSINGS - Maximum cartridge dimensions are 2.63 inch by 20 inch (67 mm x 508 mm), a drop-in replacement for standard 20-inch whole-house sediment cartridges, with 12 square feet of pleated media.

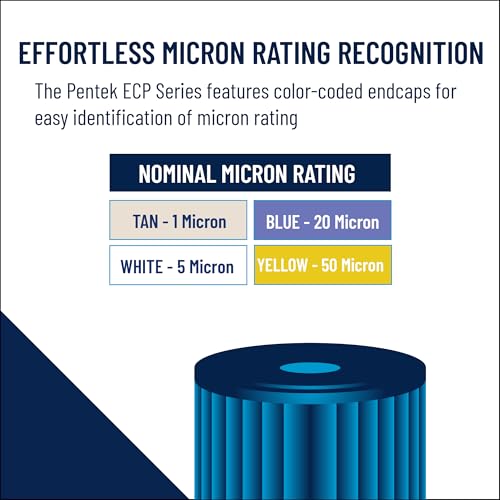

  • EASY TO MONITOR AND REPLACE - Rated for 40 to 125 degrees F, with a white color-coded endcap marking the 5 micron rating; replace the cartridge when you notice a drop in water pressure or water quality.
