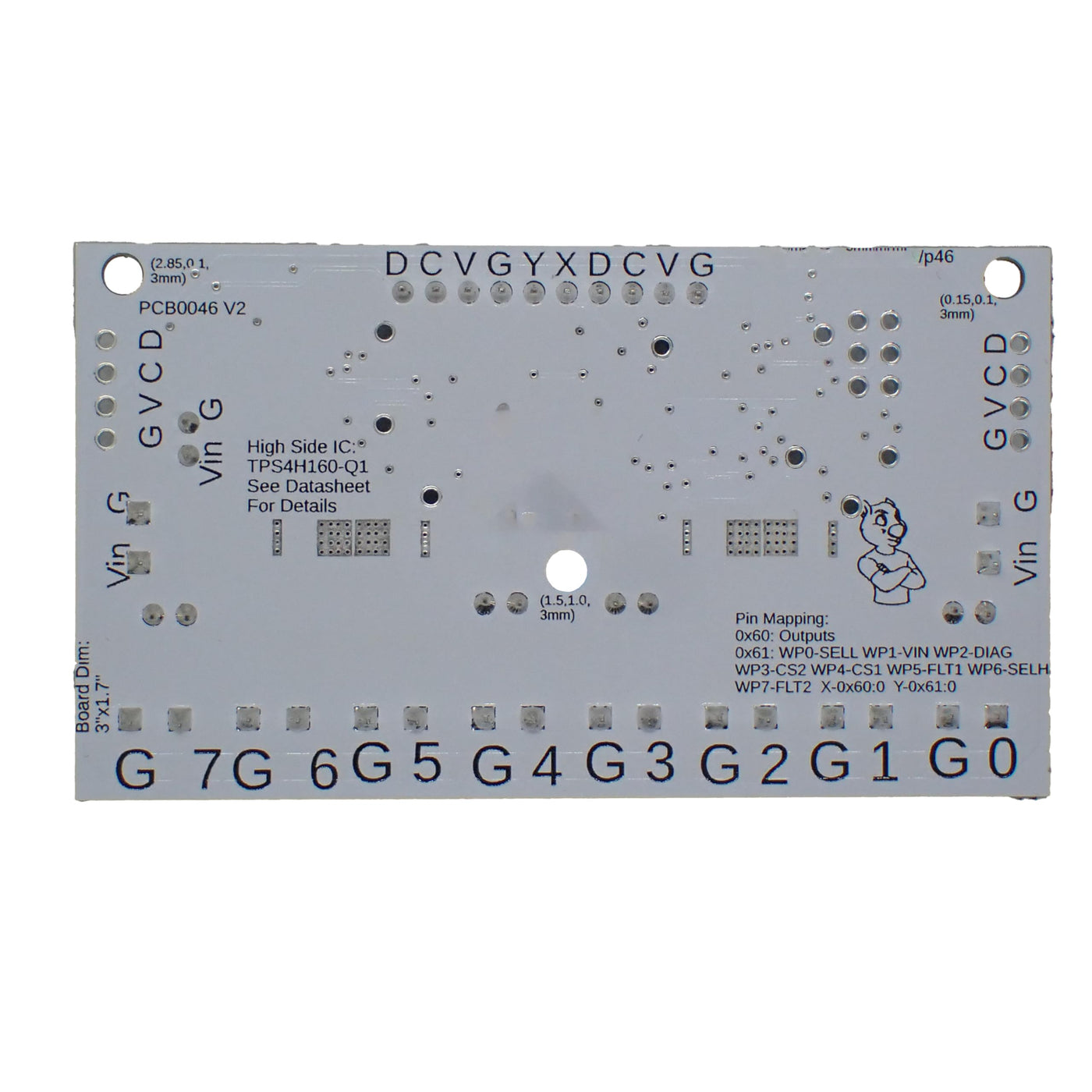

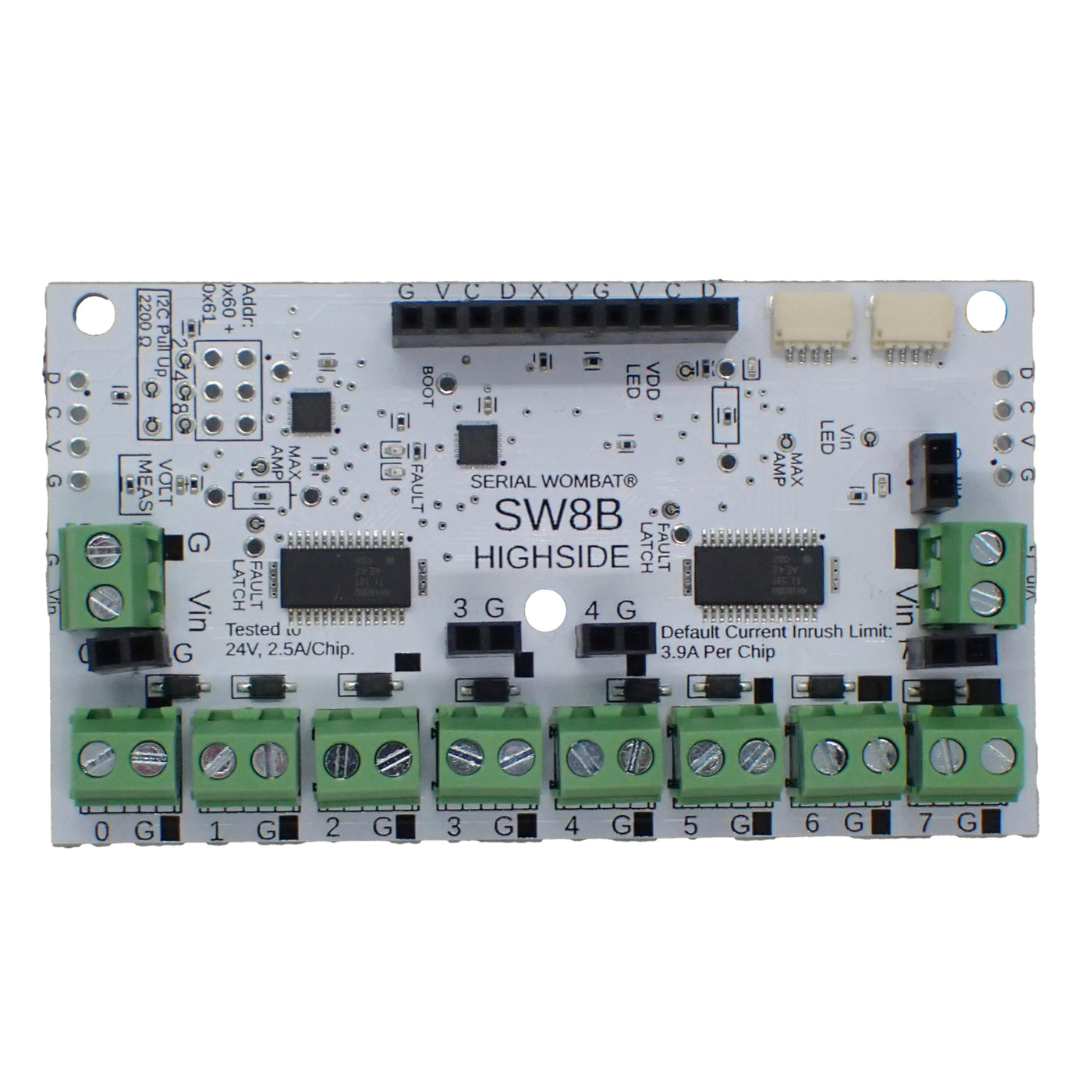

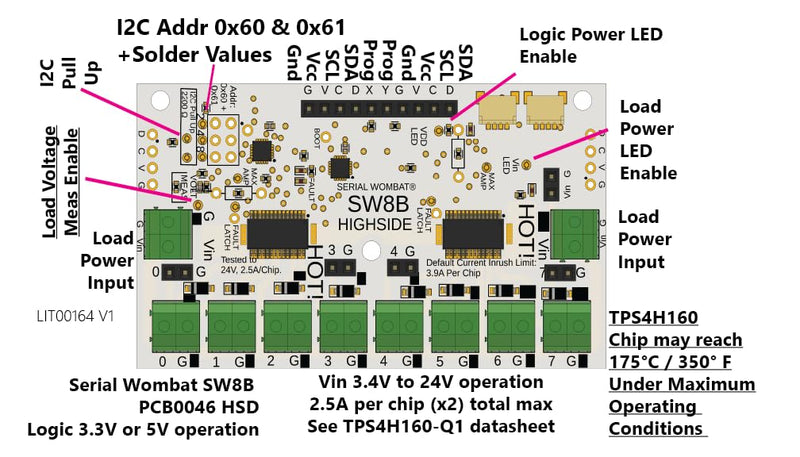

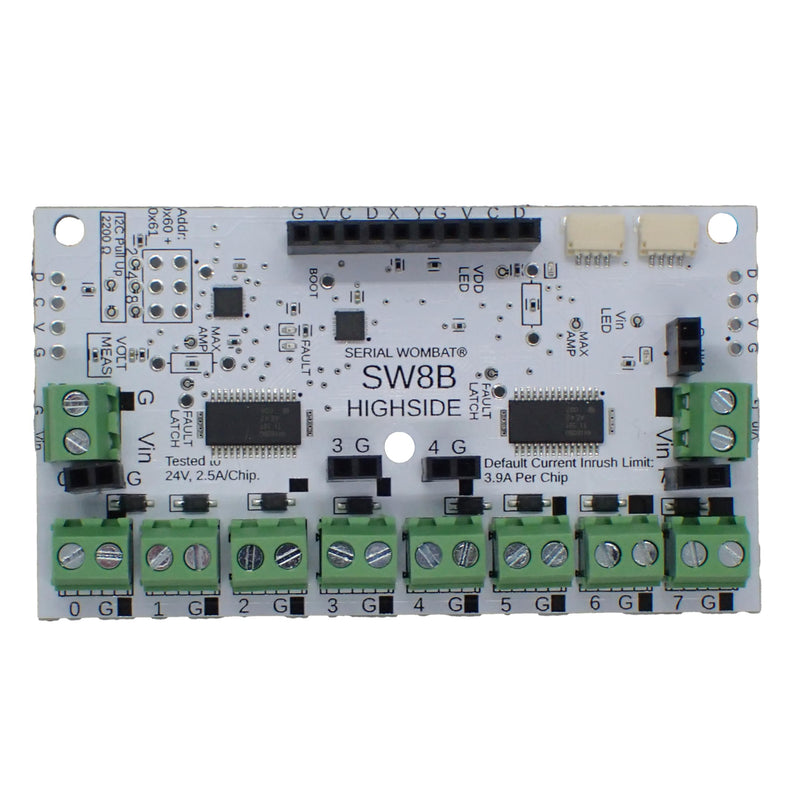

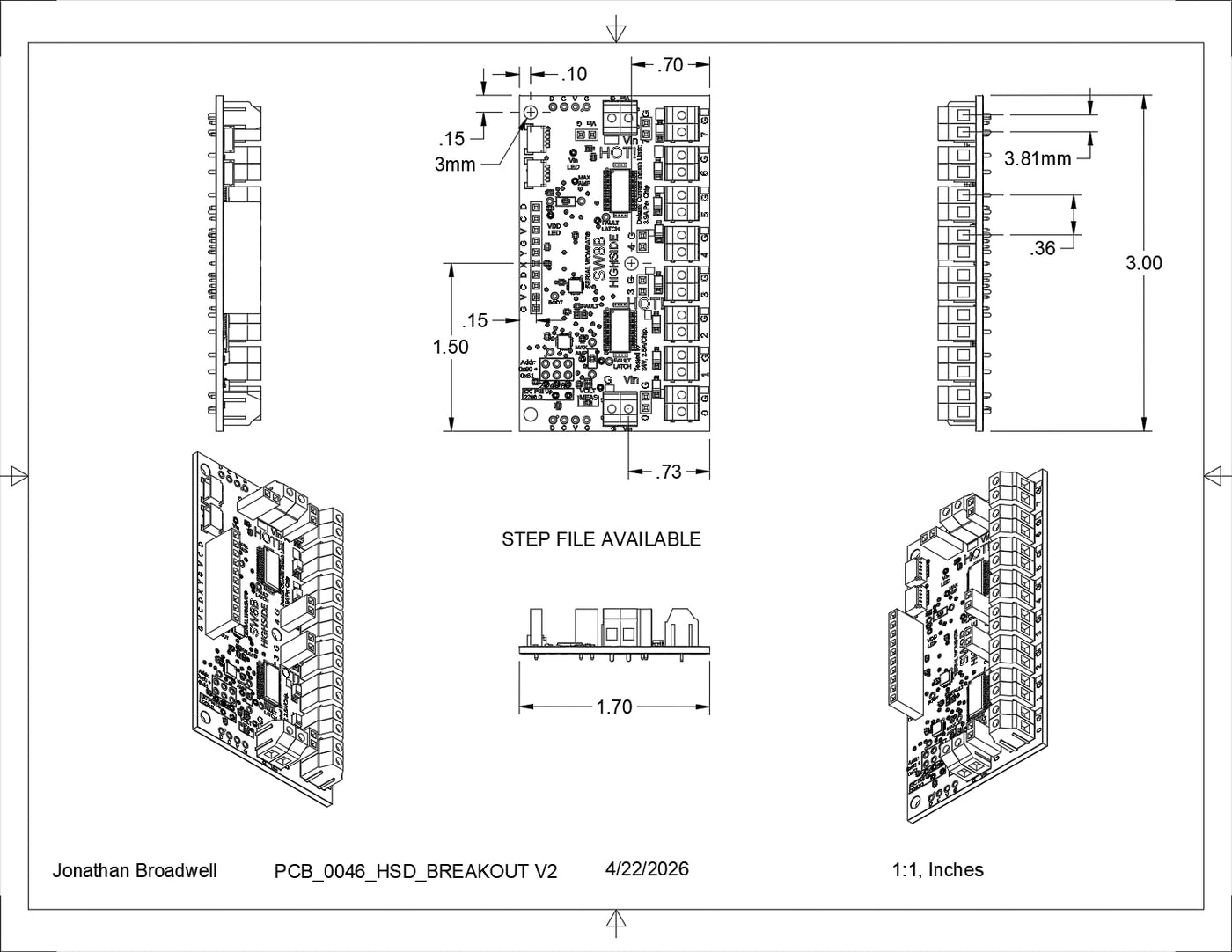

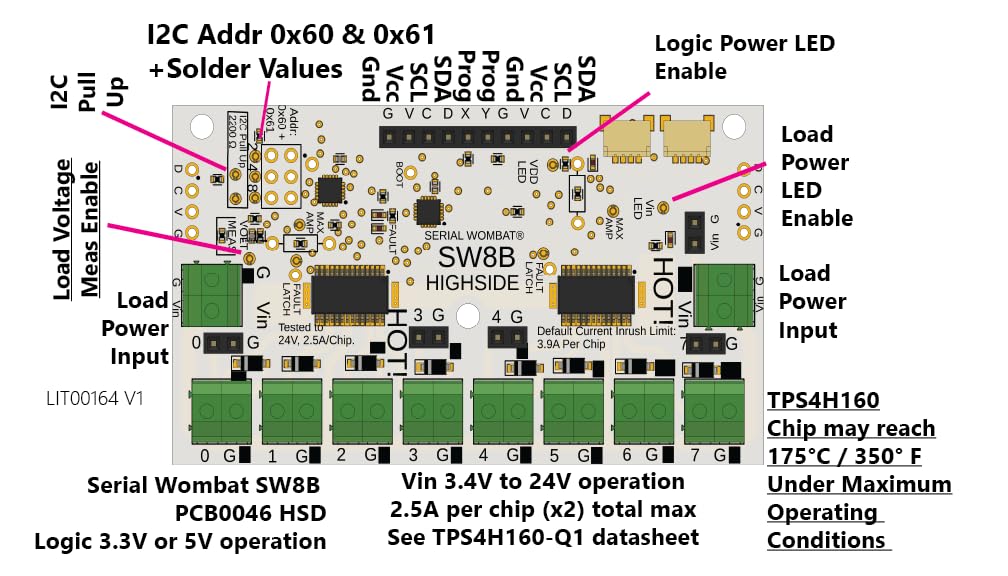

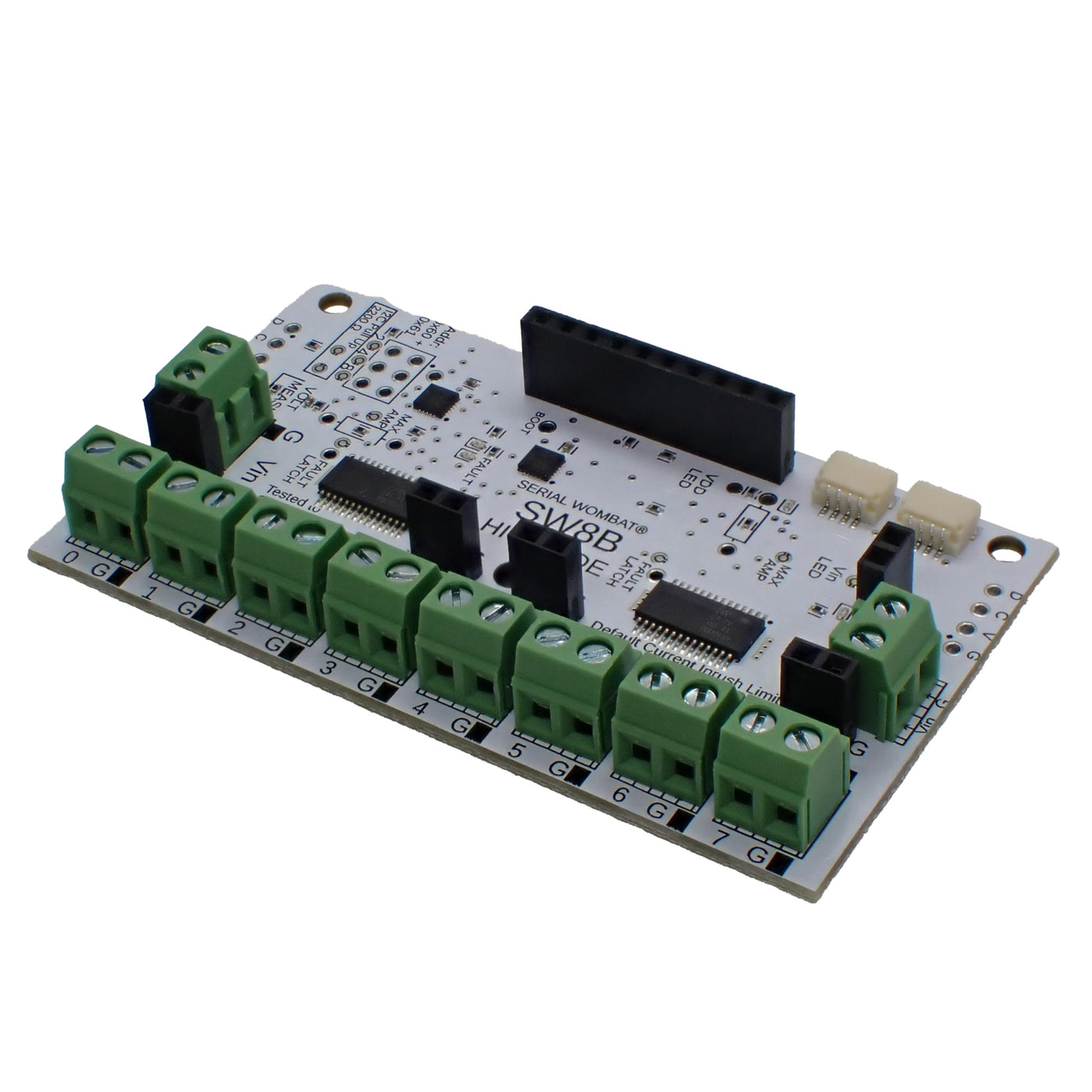

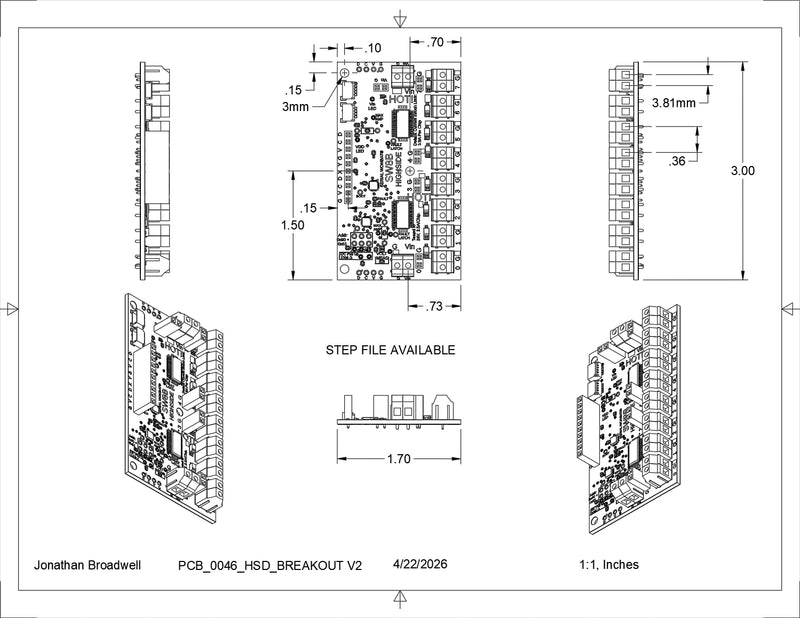

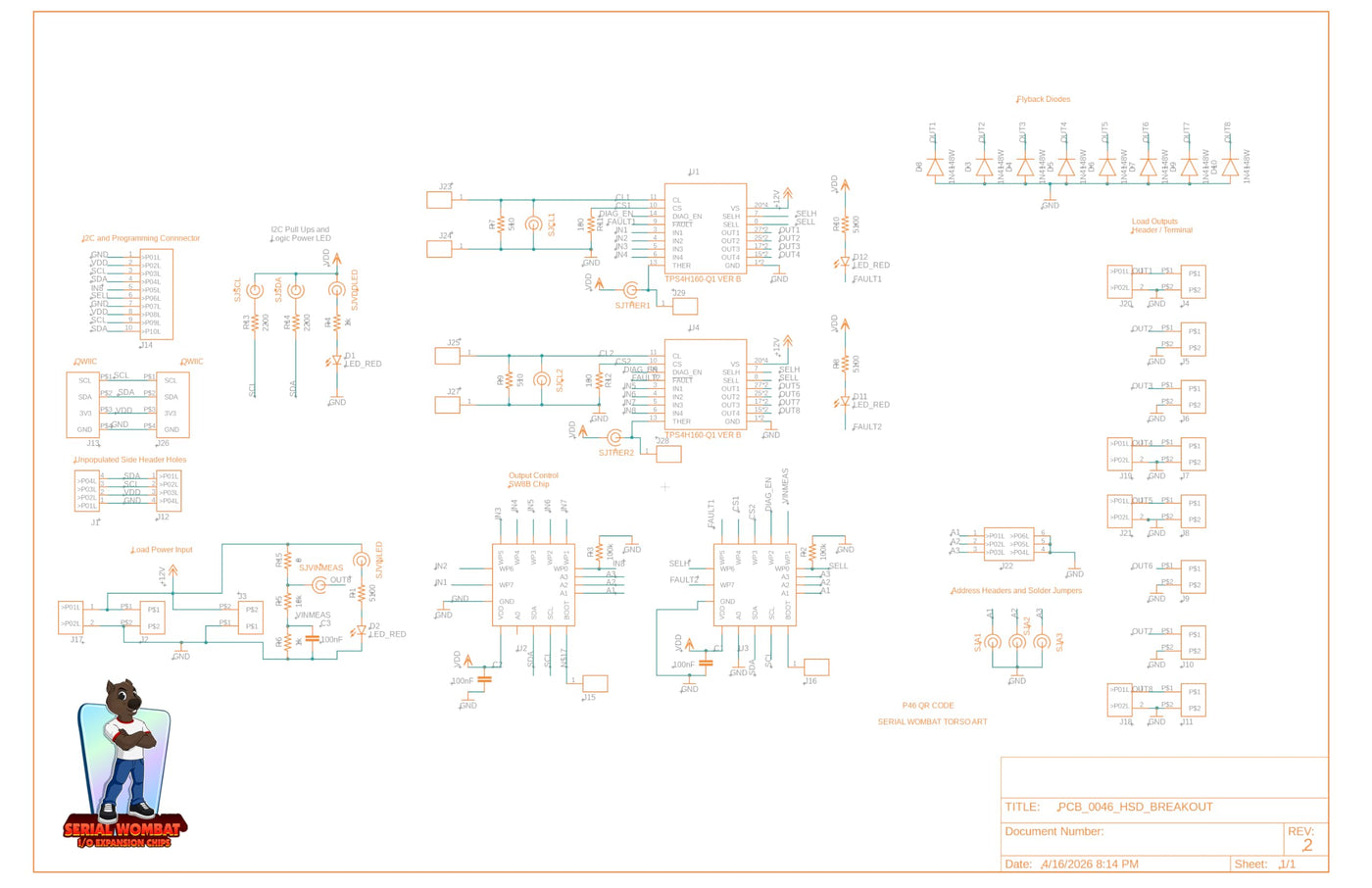

{"id":9533071261933,"title":"PCB0046 Serial Wombat HSD SW8B I2C Controlled 8 Channel High Side Driver Board (1) 1","handle":"pcb0046-serial-wombat-hsd-sw8b-i2c-controlled-8-channel-high-side-driver-board-1-1","description":"\u003ch3\u003ePCB0046 Serial Wombat HSD SW8B I2C Controlled 8 Channel High Side Driver Board (1)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e8 efficient High Side Outputs over I2C. Digital Output or configurable frequency PWM. Ideal for relays, solenoids, lamps, fans, motors, automotive loads, and other switched devices. 160 mOhm typical per-channel resistance when on.\u003c\/li\u003e\n \u003cli\u003eBuilt-In current feedback and diagnostics over I2C - Monitor current draw on each output channel and detect fault conditions directly from software. Current feedback and diagnostic reporting help your application understand load behavior and react intelligently.\u003c\/li\u003e\n \u003cli\u003eCurrent Limiting - On board thermal limiting activates if average per-IC current exceeds 2.5 A . Fault reaction can either automatically restart current when the driver chip drops below the thermal limit, or remain latched off until the host changes the input (solder jumper configurable)\u003c\/li\u003e\n \u003cli\u003eInrush Limiting - On driver PWM limits inrush current. This can be helpful for improving stability in systems that drive large inductive loads such as motors.\u003c\/li\u003e\n \u003cli\u003eOn board PWM generation using Serial Wombat firmware. Each channel can have a different PWM duty cycle and frequency. This allows flexibility in driving inductive loads that is not avaialble through normal Arduino functions.\u003c\/li\u003e\n \u003cli\u003eOn board monitoring of load and logic input voltages. These values can be read over I2C. Optional logic and load power indicator LEDs can be enabled via solder jumper\u003c\/li\u003e\n \u003cli\u003e3.3 or 5V logic operation. 3.7 V to 24V load drive voltage.\u003c\/li\u003e\n \u003cli\u003eFlexible I2C configuration. I2C address can be set with solder jumpers to range from 0x60 to 0x6F . Optional header pins allow flexible configuration using header jumpers. On board solder jumpers can add 2200 ohm pull up I2C bus resistors.\u003c\/li\u003e\n \u003cli\u003eArduino, Python \/ MicroPython \/ CircuitPython and C# libraries are available. Extenstive examples and online tutorials. Firmware is open source .\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-08-17T22:33:05+10:00","created_at":"2026-08-17T16:44:07+10:00","vendor":"Serial Wombat","type":"Single Board Computers","tags":["electronics_NR_Aug2026"],"price":11500,"price_min":11500,"price_max":11500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":50497691877613,"title":"1","option1":"1","option2":null,"option3":null,"sku":"B0H3DB9CVY","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"PCB0046 Serial Wombat HSD SW8B I2C Controlled 8 Channel High Side Driver Board (1) 1 - 1","public_title":"1","options":["1"],"price":11500,"weight":43,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/leoforward.com\/cdn\/shop\/files\/B0H3DB9CVY.jpg?v=1786949049","\/\/leoforward.com\/cdn\/shop\/files\/817VFQylcML.jpg?v=1786949049","\/\/leoforward.com\/cdn\/shop\/files\/71t0-Fr6xeL.jpg?v=1786949049","\/\/leoforward.com\/cdn\/shop\/files\/61OCH-ZaGaL.jpg?v=1786949049","\/\/leoforward.com\/cdn\/shop\/files\/71VNVsin8nL.jpg?v=1786949049","\/\/leoforward.com\/cdn\/shop\/files\/71TskK_F28L.jpg?v=1786949049"],"featured_image":"\/\/leoforward.com\/cdn\/shop\/files\/B0H3DB9CVY.jpg?v=1786949049","options":["Number of Items"],"media":[{"alt":null,"id":41582318125293,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2560,"width":2560,"src":"\/\/leoforward.com\/cdn\/shop\/files\/B0H3DB9CVY.jpg?v=1786949049"},"aspect_ratio":1.0,"height":2560,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/B0H3DB9CVY.jpg?v=1786949049","width":2560},{"alt":null,"id":41582318158061,"position":2,"preview_image":{"aspect_ratio":1.0,"height":2560,"width":2560,"src":"\/\/leoforward.com\/cdn\/shop\/files\/817VFQylcML.jpg?v=1786949049"},"aspect_ratio":1.0,"height":2560,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/817VFQylcML.jpg?v=1786949049","width":2560},{"alt":null,"id":41582318190829,"position":3,"preview_image":{"aspect_ratio":1.0,"height":2560,"width":2560,"src":"\/\/leoforward.com\/cdn\/shop\/files\/71t0-Fr6xeL.jpg?v=1786949049"},"aspect_ratio":1.0,"height":2560,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/71t0-Fr6xeL.jpg?v=1786949049","width":2560},{"alt":null,"id":41582318223597,"position":4,"preview_image":{"aspect_ratio":1.75,"height":576,"width":1008,"src":"\/\/leoforward.com\/cdn\/shop\/files\/61OCH-ZaGaL.jpg?v=1786949049"},"aspect_ratio":1.75,"height":576,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/61OCH-ZaGaL.jpg?v=1786949049","width":1008},{"alt":null,"id":41582318256365,"position":5,"preview_image":{"aspect_ratio":1.545,"height":1657,"width":2560,"src":"\/\/leoforward.com\/cdn\/shop\/files\/71VNVsin8nL.jpg?v=1786949049"},"aspect_ratio":1.545,"height":1657,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/71VNVsin8nL.jpg?v=1786949049","width":2560},{"alt":null,"id":41582318289133,"position":6,"preview_image":{"aspect_ratio":1.294,"height":1158,"width":1499,"src":"\/\/leoforward.com\/cdn\/shop\/files\/71TskK_F28L.jpg?v=1786949049"},"aspect_ratio":1.294,"height":1158,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/71TskK_F28L.jpg?v=1786949049","width":1499}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003ePCB0046 Serial Wombat HSD SW8B I2C Controlled 8 Channel High Side Driver Board (1)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e8 efficient High Side Outputs over I2C. Digital Output or configurable frequency PWM. Ideal for relays, solenoids, lamps, fans, motors, automotive loads, and other switched devices. 160 mOhm typical per-channel resistance when on.\u003c\/li\u003e\n \u003cli\u003eBuilt-In current feedback and diagnostics over I2C - Monitor current draw on each output channel and detect fault conditions directly from software. Current feedback and diagnostic reporting help your application understand load behavior and react intelligently.\u003c\/li\u003e\n \u003cli\u003eCurrent Limiting - On board thermal limiting activates if average per-IC current exceeds 2.5 A . Fault reaction can either automatically restart current when the driver chip drops below the thermal limit, or remain latched off until the host changes the input (solder jumper configurable)\u003c\/li\u003e\n \u003cli\u003eInrush Limiting - On driver PWM limits inrush current. This can be helpful for improving stability in systems that drive large inductive loads such as motors.\u003c\/li\u003e\n \u003cli\u003eOn board PWM generation using Serial Wombat firmware. Each channel can have a different PWM duty cycle and frequency. This allows flexibility in driving inductive loads that is not avaialble through normal Arduino functions.\u003c\/li\u003e\n \u003cli\u003eOn board monitoring of load and logic input voltages. These values can be read over I2C. Optional logic and load power indicator LEDs can be enabled via solder jumper\u003c\/li\u003e\n \u003cli\u003e3.3 or 5V logic operation. 3.7 V to 24V load drive voltage.\u003c\/li\u003e\n \u003cli\u003eFlexible I2C configuration. I2C address can be set with solder jumpers to range from 0x60 to 0x6F . Optional header pins allow flexible configuration using header jumpers. On board solder jumpers can add 2200 ohm pull up I2C bus resistors.\u003c\/li\u003e\n \u003cli\u003eArduino, Python \/ MicroPython \/ CircuitPython and C# libraries are available. Extenstive examples and online tutorials. Firmware is open source .\u003c\/li\u003e\n \u003c\/ul\u003e"}
