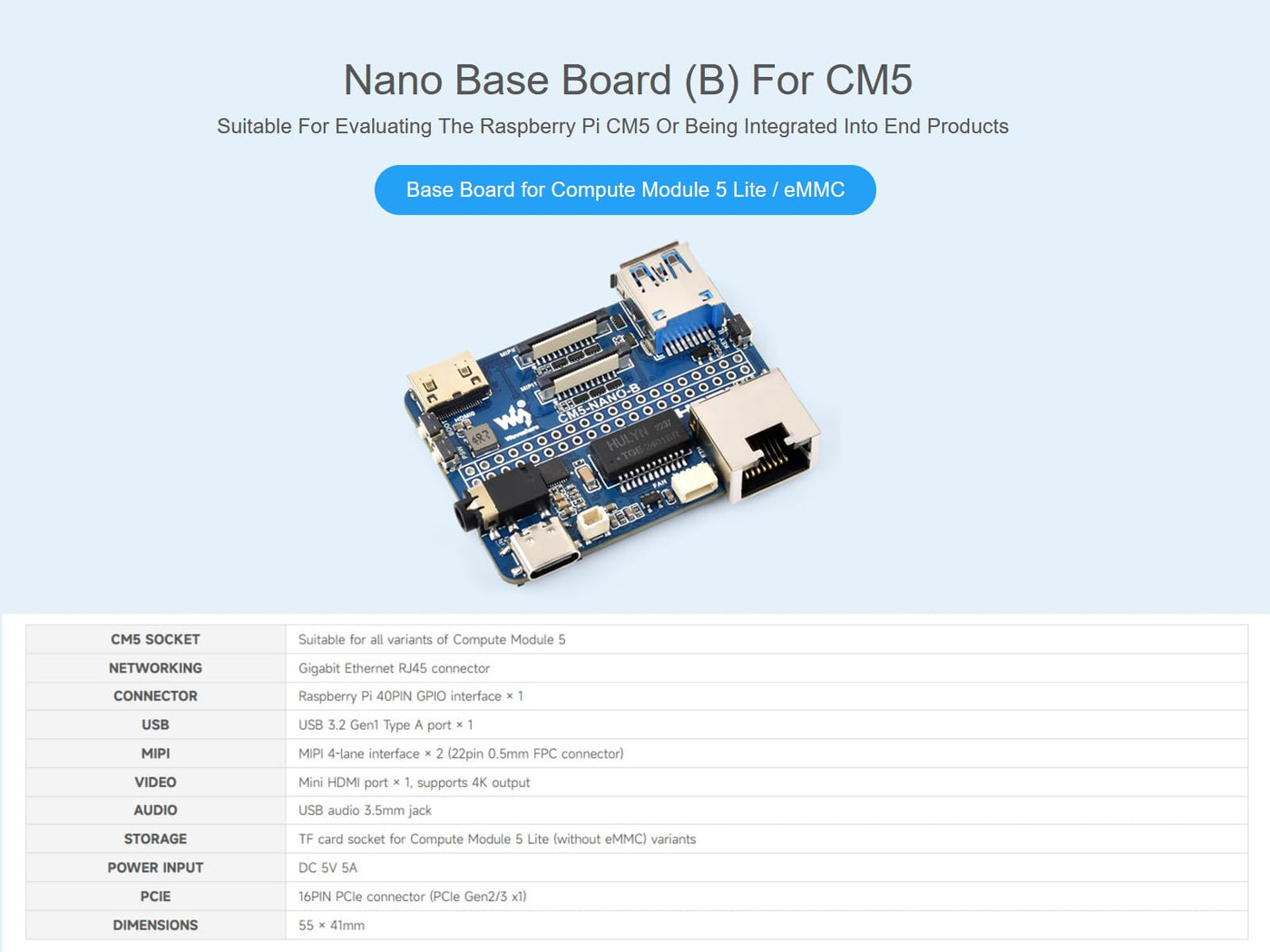

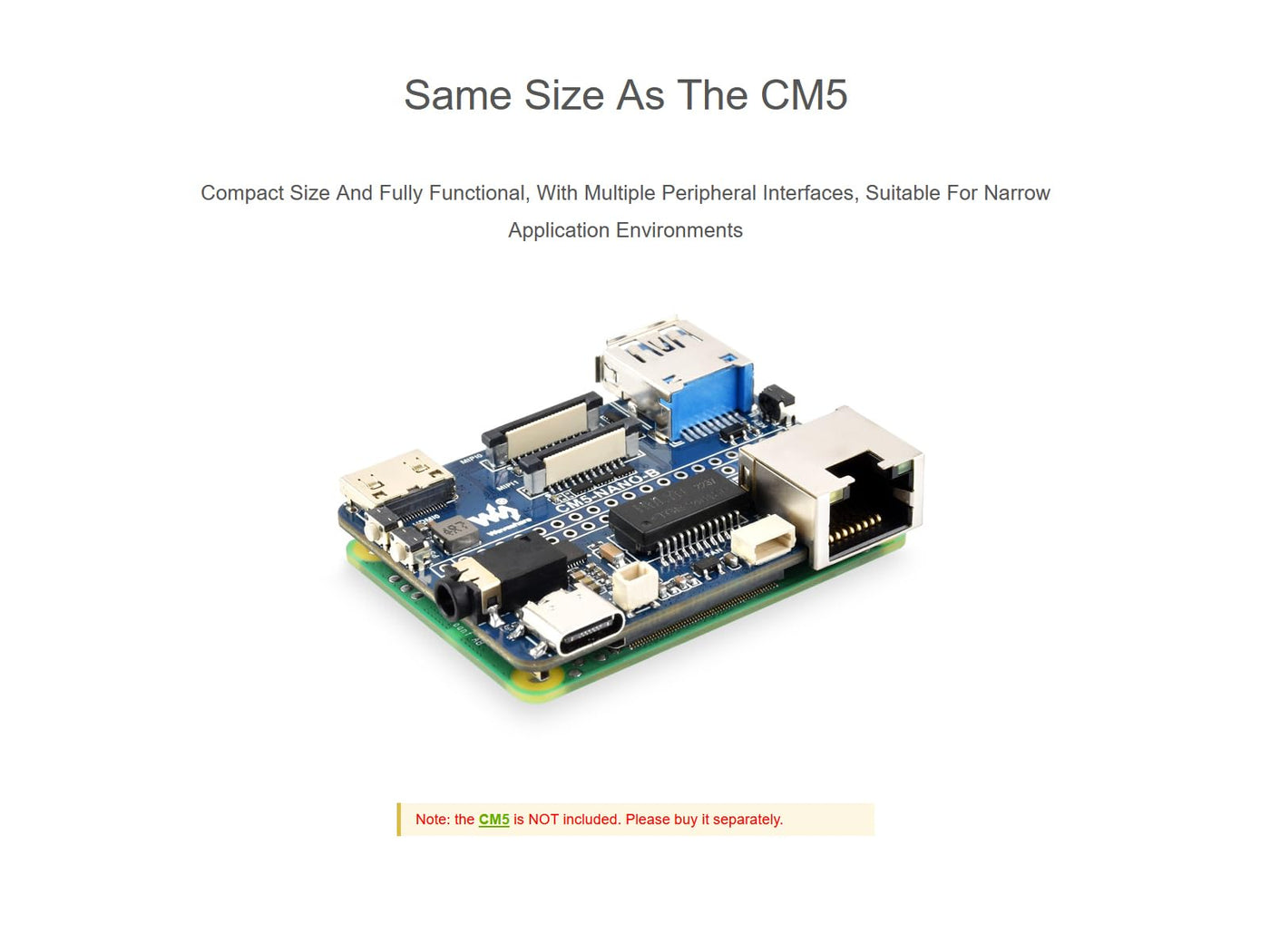

{"id":9154804547821,"title":"Nano Base Board for Raspberry Pi Compute Module 5 Lite\/eMMC Series Board, Same Size as CM5, with CM5 Socket\/40PIN GPIO Header\/RJ45 Gigabit Eth\/16PIN PCIe\/HDMI\/USB 3.2\/Audio\/MIPI Interface etc.","handle":"nano-base-board-for-raspberry-pi-compute-module-5-lite-emmc-series-board-same-size-as-cm5-with-cm5-socket-40pin-gpio-header-rj45-gigabit-eth-16pin-pcie-hdmi-usb-3-2-audio-mipi-interface-etc","description":"\u003ch3\u003eNano Base Board for Raspberry Pi Compute Module 5 Lite\/eMMC Series Board, Same Size as CM5, with CM5 Socket\/40PIN GPIO Header\/RJ45 Gigabit Eth\/16PIN PCIe\/HDMI\/USB 3.2\/Audio\/MIPI Interface etc.\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eOverview Nano Base Board (B) for Raspberry Pi Compute Module 5 Lite \/ eMMC\nSeries Module, Same Size As The CM5, Suitable For Evaluating The Compute\nModule 5 or Being Integrated Into End Products Specifications CM5 socket--\nSuitable for all variants of Compute Module 5 Networking-- Gigabit Ethernet\nRJ45 connector Connector-- 40PIN GPIO interface × 1 USB-- USB 3.2 Gen1 Type A\nport × 1 MIPI-- MIPI 4-lane interface × 2 (22pin 0.5mm FPC connector) Video--\nMini HDMI port × 1, supports 4K output Audio-- USB audio 3.5mm jack Storage--\nTF card socket for Compute Module 5 Lite (without eMMC) variants Power input--\nDC 5V 5A PCIe-- 16PIN PCIe connector (PCIe Gen2\/3 x1) Dimensions-- 55 × 41mm\nPrecautions 1. It is forbidden to unplug and unplug any device other than USB\nwhen it is charged 2. Type C can be used as a USB SLAVE interface to flash\nimages 3. Onboard default USB 3.2 Gen1 port 4. The onboard BOOT button, you\ncan press the BOOT button before powering on, and connect to the computer\nthrough Type C to let the device enter the flashing mode 5. Do not connect\nother devices when using Type C to flash. Insufficient power supply for\nburning will cause the device to be unrecognized 6. USB TYPE A interface\nmaximum power output 2A Package Content CM5-NANO-B x1 220PIN color-coded\nstraight pinheader x1 NOTE: Online Development Resources and Technical Support\nare provided, please feel free to contact us if you have any problem!\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eNano Base Board (B) for Raspberry Pi Compute Module 5 Lite \/ eMMC series module, same size as the CM5, with multiple peripheral interfaces, suitable for evaluating the Compute Module 5 or being integrated into end products\u003c\/li\u003e\n \u003cli\u003eOnboard CM5 socket suitable for all variants of Compute Module 5, 40PIN GPIO interface for connecting to various HAT modules, RJ45 Gigabit Ethernet port for network access, USB 3.2 Gen1 high speed interface for connecting sorts of USB devices\u003c\/li\u003e\n \u003cli\u003eOnboard Dual MIPI interfaces for connecting to DSI displays or CSI cameras, Mini HDMI port supports 4K output, 3.5mm jack for Audio output, 16PIN PCIe connector for connecting sorts of PI5 PCIe adapter boards, TF card socket for Compute Module 5 Lite (without eMMC) variants\u003c\/li\u003e\n \u003cli\u003eIt is forbidden to unplug and unplug any device other than USB when it is charged. Type C can be used as a USB SLAVE interface to flash images. Do not connect other devices when using Type C to flash. Insufficient power supply for burning will cause the device to be unrecognized\u003c\/li\u003e\n \u003cli\u003eOnboard default USB 3.2 Gen1 port. USB TYPE A interface maximum power output 2A. The onboard BOOT button, you can press the BOOT button before powering on, and connect to the computer through Type C to let the device enter the flashing mode\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-10-24T10:33:06+11:00","created_at":"2025-10-24T10:33:02+11:00","vendor":"waveshare","type":"Single Board Computers","tags":["electronics_selected_Oct2025","weight_unknown"],"price":22600,"price_min":22600,"price_max":22600,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":48915376865517,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0F21N698W","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Nano Base Board for Raspberry Pi Compute Module 5 Lite\/eMMC Series Board, Same Size as CM5, with CM5 Socket\/40PIN GPIO Header\/RJ45 Gigabit Eth\/16PIN PCIe\/HDMI\/USB 3.2\/Audio\/MIPI Interface etc.","public_title":null,"options":["Default Title"],"price":22600,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"790885236266","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/leoforward.com\/cdn\/shop\/files\/B0F21N698W.jpg?v=1775799202","\/\/leoforward.com\/cdn\/shop\/files\/61PKbHrNOXL.jpg?v=1761262385","\/\/leoforward.com\/cdn\/shop\/files\/61Geq3-ZuGL.jpg?v=1761262384","\/\/leoforward.com\/cdn\/shop\/files\/71SvbYEvlFL.jpg?v=1761262385","\/\/leoforward.com\/cdn\/shop\/files\/612MFZRYqyL.jpg?v=1761262385","\/\/leoforward.com\/cdn\/shop\/files\/71AGnbad3AL.jpg?v=1761262384","\/\/leoforward.com\/cdn\/shop\/files\/712LC1rFScL.jpg?v=1761262385"],"featured_image":"\/\/leoforward.com\/cdn\/shop\/files\/B0F21N698W.jpg?v=1775799202","options":["Title"],"media":[{"alt":null,"id":36968954003693,"position":1,"preview_image":{"aspect_ratio":1.333,"height":1200,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/files\/B0F21N698W.jpg?v=1775799202"},"aspect_ratio":1.333,"height":1200,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/B0F21N698W.jpg?v=1775799202","width":1600},{"alt":null,"id":36968954036461,"position":2,"preview_image":{"aspect_ratio":1.333,"height":1200,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/files\/61PKbHrNOXL.jpg?v=1761262385"},"aspect_ratio":1.333,"height":1200,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/61PKbHrNOXL.jpg?v=1761262385","width":1600},{"alt":null,"id":36968954069229,"position":3,"preview_image":{"aspect_ratio":1.333,"height":1200,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/files\/61Geq3-ZuGL.jpg?v=1761262384"},"aspect_ratio":1.333,"height":1200,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/61Geq3-ZuGL.jpg?v=1761262384","width":1600},{"alt":null,"id":36968954101997,"position":4,"preview_image":{"aspect_ratio":1.333,"height":1200,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/files\/71SvbYEvlFL.jpg?v=1761262385"},"aspect_ratio":1.333,"height":1200,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/71SvbYEvlFL.jpg?v=1761262385","width":1600},{"alt":null,"id":36968954134765,"position":5,"preview_image":{"aspect_ratio":1.333,"height":1200,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/files\/612MFZRYqyL.jpg?v=1761262385"},"aspect_ratio":1.333,"height":1200,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/612MFZRYqyL.jpg?v=1761262385","width":1600},{"alt":null,"id":36968954167533,"position":6,"preview_image":{"aspect_ratio":1.333,"height":1200,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/files\/71AGnbad3AL.jpg?v=1761262384"},"aspect_ratio":1.333,"height":1200,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/71AGnbad3AL.jpg?v=1761262384","width":1600},{"alt":null,"id":36968954200301,"position":7,"preview_image":{"aspect_ratio":1.333,"height":1200,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/files\/712LC1rFScL.jpg?v=1761262385"},"aspect_ratio":1.333,"height":1200,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/712LC1rFScL.jpg?v=1761262385","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eNano Base Board for Raspberry Pi Compute Module 5 Lite\/eMMC Series Board, Same Size as CM5, with CM5 Socket\/40PIN GPIO Header\/RJ45 Gigabit Eth\/16PIN PCIe\/HDMI\/USB 3.2\/Audio\/MIPI Interface etc.\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eOverview Nano Base Board (B) for Raspberry Pi Compute Module 5 Lite \/ eMMC\nSeries Module, Same Size As The CM5, Suitable For Evaluating The Compute\nModule 5 or Being Integrated Into End Products Specifications CM5 socket--\nSuitable for all variants of Compute Module 5 Networking-- Gigabit Ethernet\nRJ45 connector Connector-- 40PIN GPIO interface × 1 USB-- USB 3.2 Gen1 Type A\nport × 1 MIPI-- MIPI 4-lane interface × 2 (22pin 0.5mm FPC connector) Video--\nMini HDMI port × 1, supports 4K output Audio-- USB audio 3.5mm jack Storage--\nTF card socket for Compute Module 5 Lite (without eMMC) variants Power input--\nDC 5V 5A PCIe-- 16PIN PCIe connector (PCIe Gen2\/3 x1) Dimensions-- 55 × 41mm\nPrecautions 1. It is forbidden to unplug and unplug any device other than USB\nwhen it is charged 2. Type C can be used as a USB SLAVE interface to flash\nimages 3. Onboard default USB 3.2 Gen1 port 4. The onboard BOOT button, you\ncan press the BOOT button before powering on, and connect to the computer\nthrough Type C to let the device enter the flashing mode 5. Do not connect\nother devices when using Type C to flash. Insufficient power supply for\nburning will cause the device to be unrecognized 6. USB TYPE A interface\nmaximum power output 2A Package Content CM5-NANO-B x1 220PIN color-coded\nstraight pinheader x1 NOTE: Online Development Resources and Technical Support\nare provided, please feel free to contact us if you have any problem!\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eNano Base Board (B) for Raspberry Pi Compute Module 5 Lite \/ eMMC series module, same size as the CM5, with multiple peripheral interfaces, suitable for evaluating the Compute Module 5 or being integrated into end products\u003c\/li\u003e\n \u003cli\u003eOnboard CM5 socket suitable for all variants of Compute Module 5, 40PIN GPIO interface for connecting to various HAT modules, RJ45 Gigabit Ethernet port for network access, USB 3.2 Gen1 high speed interface for connecting sorts of USB devices\u003c\/li\u003e\n \u003cli\u003eOnboard Dual MIPI interfaces for connecting to DSI displays or CSI cameras, Mini HDMI port supports 4K output, 3.5mm jack for Audio output, 16PIN PCIe connector for connecting sorts of PI5 PCIe adapter boards, TF card socket for Compute Module 5 Lite (without eMMC) variants\u003c\/li\u003e\n \u003cli\u003eIt is forbidden to unplug and unplug any device other than USB when it is charged. Type C can be used as a USB SLAVE interface to flash images. Do not connect other devices when using Type C to flash. Insufficient power supply for burning will cause the device to be unrecognized\u003c\/li\u003e\n \u003cli\u003eOnboard default USB 3.2 Gen1 port. USB TYPE A interface maximum power output 2A. The onboard BOOT button, you can press the BOOT button before powering on, and connect to the computer through Type C to let the device enter the flashing mode\u003c\/li\u003e\n \u003c\/ul\u003e"}
