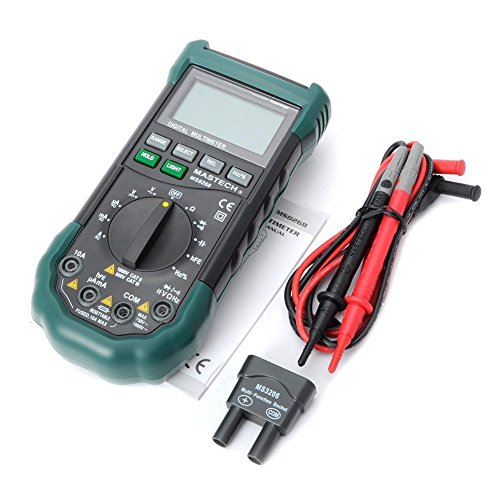

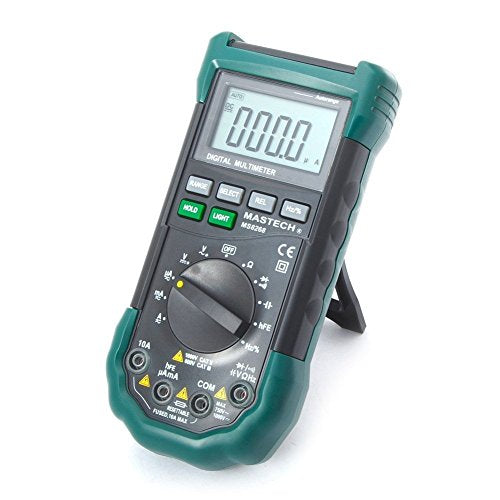

{"id":9574878216429,"title":"Mastech MS8268 Digital AC\/DC Auto\/Manual Range Digital Multimeter Meter","handle":"mastech-ms8268-digital-ac-dc-auto-manual-range-digital-multimeter-meter","description":"\u003ch3\u003eMastech MS8268 Digital AC\/DC Auto\/Manual Range Digital Multimeter Meter\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eFeatures Display: 3 3\/4 digital large LCD with 4000 counts Manual \u0026amp; Auto\nranges Data hold Backlight Full overload protection Built-resettable fuse\nprotection Fuse Protection: mA and mA file: resettable fuse; 10A file: F\n10A\/250V 6.332mm Misconnection alarm system Red lights to show the correct\nterminals Audible warning for over-range \"Sleep mode\", auto power off \u0026amp; low\nbattery indication Unit symbol display Continuity test Diode test Duty Cycle\nMeasurement Relative value measurement Specifications DC voltage:\n400m\/4V\/40V\/400V +-0.7%, 1000V +- 0.8% AC voltage: 400mV +-3.0%, 4V\/40V\/400V\n+-0.8%, 750V +-1.0% Resistance: 400\/4k\/40k\/400k\/4M¸ +-1.0%, 40M¸ +-2.0% DC\ncurrent: 400uA\/4000uA\/40mA\/400mA +-1.5%,10A +-2.0% AC current:\n400uA\/4000uA\/40mA\/400mA +- 1.5%,10A +-3.0% Capacitance: 20n\/200n\/2uF\/20uF\n+-4.0% Frequency: 10\/100\/1000\/10k\/200kHz +-2.0% Transistor hFE: 1 ~ 1000\nContinuity test Diode test Duty Cycle Measurement Relative value measurement\nSampling Rate: approx. 3 times \/ second Test Leads: 1KV 10A Safety Standards:\nIEC1010-1, CAT. III 600V \u0026amp; CAT. II 1000V Operating Temperature: 0 ~ 40 C (32 ~\n104 F) Operating Humidity: below 80% RH, Storage Temperature: -10 ~ 60 C (14~\n140 F) Storage Humidity: below 80% RH Power: 3 x 1.5V AAA batteries (included)\nDimensions: 195 mm x 92 mm x 55mm (7.68' X 3.62' X 2.17' inch) Weight:\nApprox.380g (13.40oz)\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003c\/ul\u003e","published_at":"2026-09-16T01:36:21+10:00","created_at":"2026-09-09T15:21:53+10:00","vendor":"Mastech","type":"Multi Testers","tags":["industrial_Sep2026"],"price":31800,"price_min":31800,"price_max":31800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":50651498086637,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0050LVFS0","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Mastech MS8268 Digital AC\/DC Auto\/Manual Range Digital Multimeter Meter","public_title":null,"options":["Default Title"],"price":31800,"weight":635,"compare_at_price":null,"inventory_management":"shopify","barcode":"714833891291","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/leoforward.com\/cdn\/shop\/files\/B0050LVFS0.jpg?v=1788931315","\/\/leoforward.com\/cdn\/shop\/files\/41R0L7Mfn6L.jpg?v=1788931315","\/\/leoforward.com\/cdn\/shop\/files\/516cicjJZCL.jpg?v=1788931315"],"featured_image":"\/\/leoforward.com\/cdn\/shop\/files\/B0050LVFS0.jpg?v=1788931315","options":["Title"],"media":[{"alt":null,"id":41958402752749,"position":1,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/leoforward.com\/cdn\/shop\/files\/B0050LVFS0.jpg?v=1788931315"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/B0050LVFS0.jpg?v=1788931315","width":500},{"alt":null,"id":41958402785517,"position":2,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/leoforward.com\/cdn\/shop\/files\/41R0L7Mfn6L.jpg?v=1788931315"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/41R0L7Mfn6L.jpg?v=1788931315","width":500},{"alt":null,"id":41958402818285,"position":3,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/leoforward.com\/cdn\/shop\/files\/516cicjJZCL.jpg?v=1788931315"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/516cicjJZCL.jpg?v=1788931315","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eMastech MS8268 Digital AC\/DC Auto\/Manual Range Digital Multimeter Meter\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eFeatures Display: 3 3\/4 digital large LCD with 4000 counts Manual \u0026amp; Auto\nranges Data hold Backlight Full overload protection Built-resettable fuse\nprotection Fuse Protection: mA and mA file: resettable fuse; 10A file: F\n10A\/250V 6.332mm Misconnection alarm system Red lights to show the correct\nterminals Audible warning for over-range \"Sleep mode\", auto power off \u0026amp; low\nbattery indication Unit symbol display Continuity test Diode test Duty Cycle\nMeasurement Relative value measurement Specifications DC voltage:\n400m\/4V\/40V\/400V +-0.7%, 1000V +- 0.8% AC voltage: 400mV +-3.0%, 4V\/40V\/400V\n+-0.8%, 750V +-1.0% Resistance: 400\/4k\/40k\/400k\/4M¸ +-1.0%, 40M¸ +-2.0% DC\ncurrent: 400uA\/4000uA\/40mA\/400mA +-1.5%,10A +-2.0% AC current:\n400uA\/4000uA\/40mA\/400mA +- 1.5%,10A +-3.0% Capacitance: 20n\/200n\/2uF\/20uF\n+-4.0% Frequency: 10\/100\/1000\/10k\/200kHz +-2.0% Transistor hFE: 1 ~ 1000\nContinuity test Diode test Duty Cycle Measurement Relative value measurement\nSampling Rate: approx. 3 times \/ second Test Leads: 1KV 10A Safety Standards:\nIEC1010-1, CAT. III 600V \u0026amp; CAT. II 1000V Operating Temperature: 0 ~ 40 C (32 ~\n104 F) Operating Humidity: below 80% RH, Storage Temperature: -10 ~ 60 C (14~\n140 F) Storage Humidity: below 80% RH Power: 3 x 1.5V AAA batteries (included)\nDimensions: 195 mm x 92 mm x 55mm (7.68' X 3.62' X 2.17' inch) Weight:\nApprox.380g (13.40oz)\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003c\/ul\u003e"}
