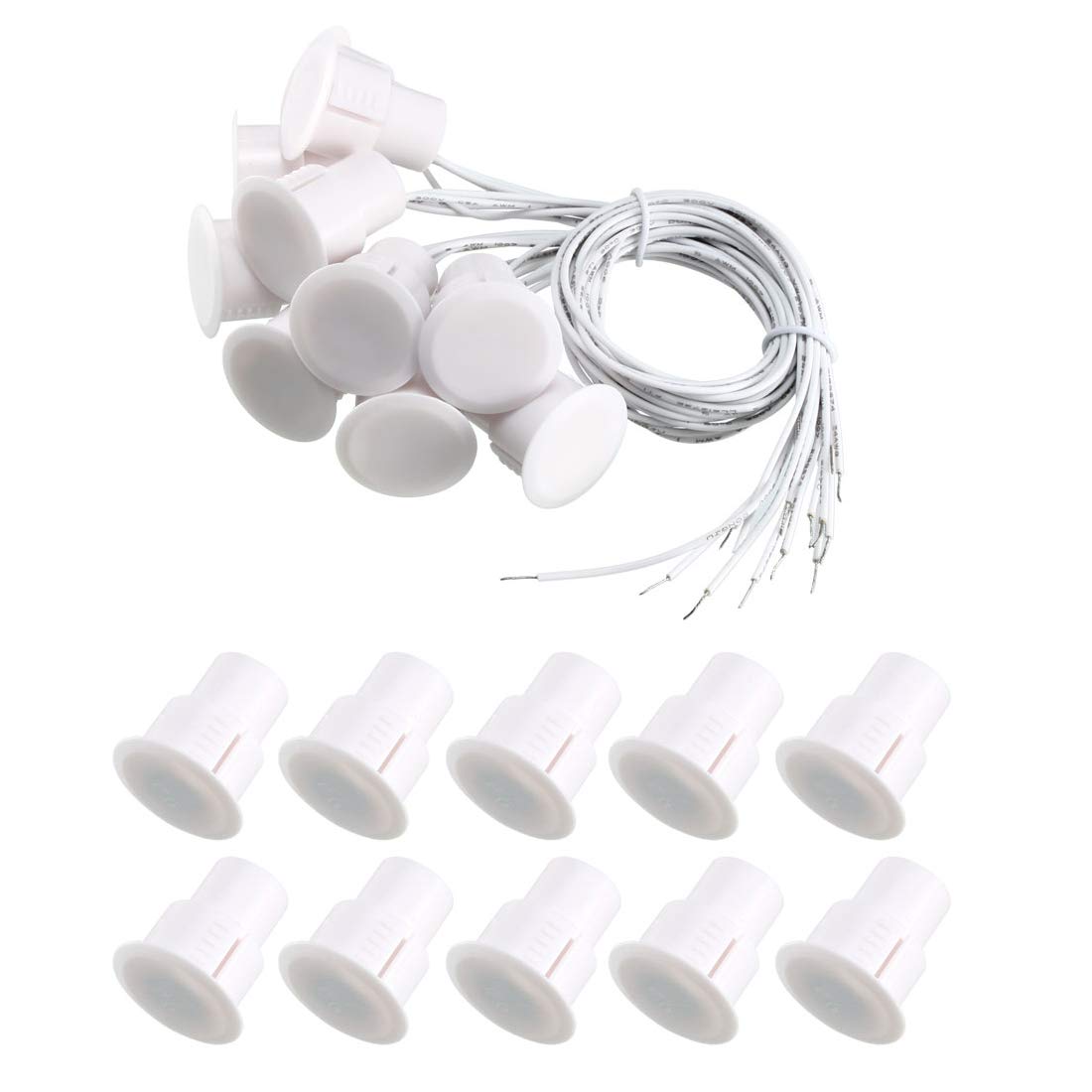

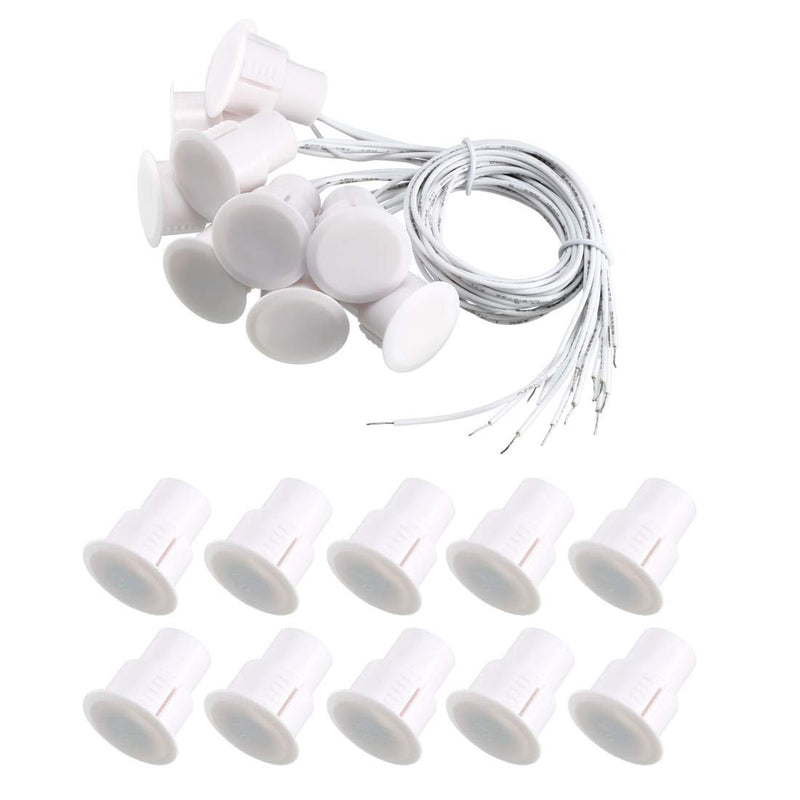

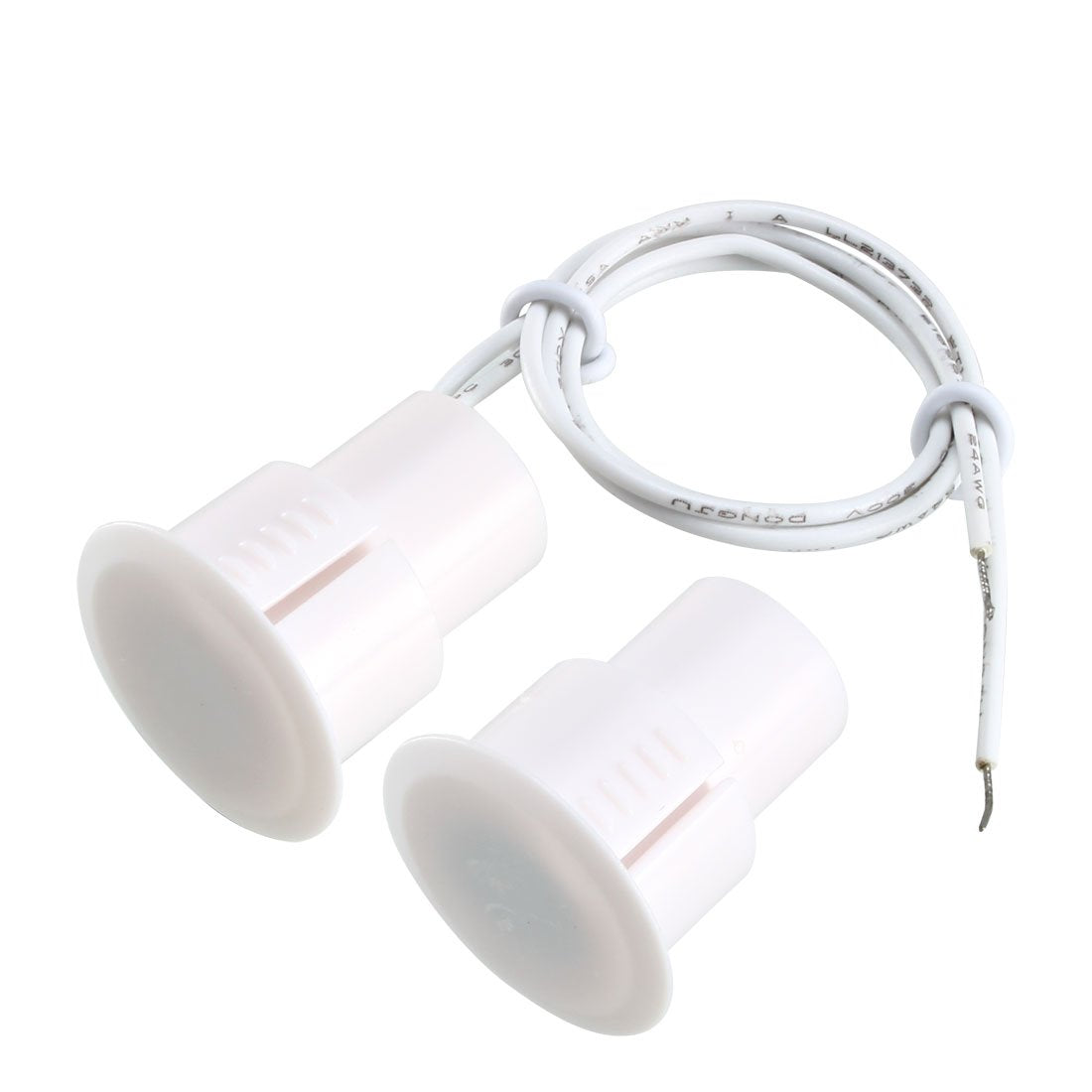

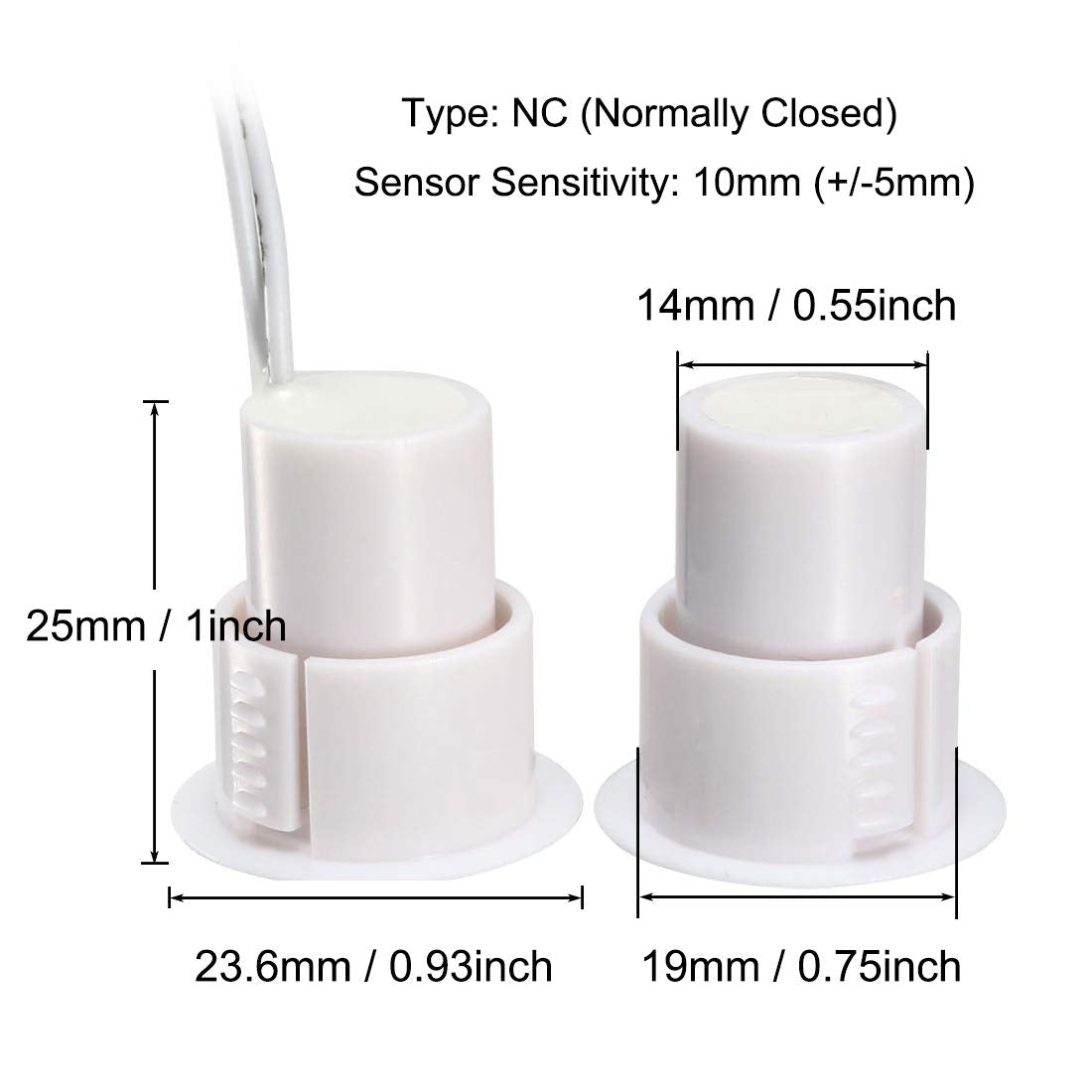

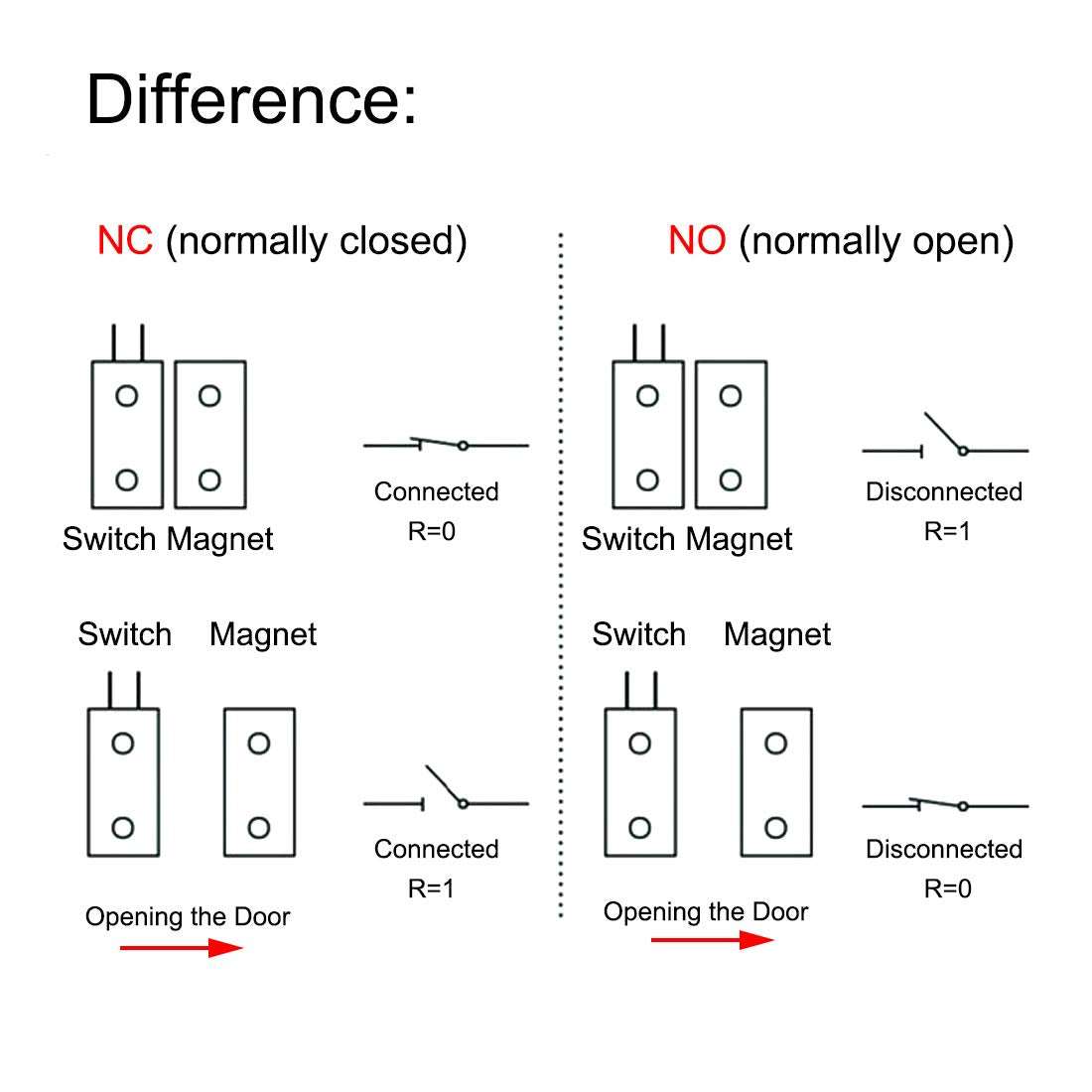

{"id":9338232602861,"title":"Magnetic Reed Switch RC-36 NC Recessed Wired Window Door Contact Sensor for Home Security and Burglar Alarm Systems 10 Pcs NC 10pcs","handle":"magnetic-reed-switch-rc-36-nc-recessed-wired-window-door-contact-sensor-for-home-security-and-burglar-alarm-systems-10-pcs-nc-10pcs","description":"\u003ch3\u003eMagnetic Reed Switch RC-36 NC Recessed Wired Window Door Contact Sensor for Home Security and Burglar Alarm Systems 10 Pcs\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eNORMALLY CLOSEDWhen the switch is close to the magnet, the circuit is\nconductive(light on); when the switch is separated from the magnet, the\ncircuit is not conductive(light off).WIDE APPLICAIONSWork with all access\ncontrol and burglar alarm systems. Can be installed in wooden or aluminum\nalloy doors and windows.PLEASE NOTEA magnetic door contact can only provide a\nswitching signal to the device. It cannot directly load the power supply and\ncannot be directly connected to the lamp.Specifications: Model: RC-36Contact\nType: NC(Normally Closed)Max. Sensor Sensitivity: 10mm(+\/-5mm)Max. Current:\n150mAMax. Voltage: 100VWorking Voltage: DC0-24VMax. Contact Power:\n10WSize(Approx.): 25 x 23.6mm \/ 0.98 x 0.93inch (HD)Cable Length(Each): 30cm\n\/ 11.8inchHousing Material: ABSWire Type: 1007\/24300mmUL Package Content: 5\nx Magnetic Door Switch\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eMATERIAL - The switch housing is made of ABS flame retardant material and reed switch, is resistant to high temperature and deformation.\u003c\/li\u003e\n \u003cli\u003eNORMALLY CLOSED(NC) - When the switch is close to the magnet, the circuit is conductive(light on); when the switch is separated from the magnet, the circuit is not conductive(light off).\u003c\/li\u003e\n \u003cli\u003eACTUATION DISTANCE - 10mm transmitting distance. The contact has fast reflection and accurate detection.\u003c\/li\u003e\n \u003cli\u003eWORKING CONDITIONS - When the magnetic door is energized, the voltage is controlled at DC 0V-24V and the supply current cannot exceed 1A. The load current is 150mA.\u003c\/li\u003e\n \u003cli\u003eWIDE APPLICATIONS - Work with all access control and burglar alarm systems. Can be installed in wooden or aluminum alloy doors and windows.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-04-15T16:03:04+10:00","created_at":"2026-04-15T16:03:00+10:00","vendor":"VictorsHome","type":"Home Security Systems","tags":["electronics_Apr2026"],"price":12900,"price_min":12900,"price_max":12900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":49784951865581,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07YBGWTR4","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Magnetic Reed Switch RC-36 NC Recessed Wired Window Door Contact Sensor for Home Security and Burglar Alarm Systems 10 Pcs NC 10pcs","public_title":null,"options":["Default Title"],"price":12900,"weight":209,"compare_at_price":null,"inventory_management":"shopify","barcode":"795274019710","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/leoforward.com\/cdn\/shop\/files\/B07YBGWTR4.jpg?v=1776925630","\/\/leoforward.com\/cdn\/shop\/files\/51yf1uih66L.jpg?v=1776232983","\/\/leoforward.com\/cdn\/shop\/files\/61AOX4HDWFL.jpg?v=1776232983","\/\/leoforward.com\/cdn\/shop\/files\/51QB1-srPSL.jpg?v=1776232983"],"featured_image":"\/\/leoforward.com\/cdn\/shop\/files\/B07YBGWTR4.jpg?v=1776925630","options":["Title"],"media":[{"alt":null,"id":39389818519789,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/leoforward.com\/cdn\/shop\/files\/B07YBGWTR4.jpg?v=1776925630"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/B07YBGWTR4.jpg?v=1776925630","width":1100},{"alt":null,"id":39389818552557,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/leoforward.com\/cdn\/shop\/files\/51yf1uih66L.jpg?v=1776232983"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/51yf1uih66L.jpg?v=1776232983","width":1100},{"alt":null,"id":39389818585325,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/leoforward.com\/cdn\/shop\/files\/61AOX4HDWFL.jpg?v=1776232983"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/61AOX4HDWFL.jpg?v=1776232983","width":1100},{"alt":null,"id":39389818618093,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/leoforward.com\/cdn\/shop\/files\/51QB1-srPSL.jpg?v=1776232983"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/51QB1-srPSL.jpg?v=1776232983","width":1100}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eMagnetic Reed Switch RC-36 NC Recessed Wired Window Door Contact Sensor for Home Security and Burglar Alarm Systems 10 Pcs\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eNORMALLY CLOSEDWhen the switch is close to the magnet, the circuit is\nconductive(light on); when the switch is separated from the magnet, the\ncircuit is not conductive(light off).WIDE APPLICAIONSWork with all access\ncontrol and burglar alarm systems. Can be installed in wooden or aluminum\nalloy doors and windows.PLEASE NOTEA magnetic door contact can only provide a\nswitching signal to the device. It cannot directly load the power supply and\ncannot be directly connected to the lamp.Specifications: Model: RC-36Contact\nType: NC(Normally Closed)Max. Sensor Sensitivity: 10mm(+\/-5mm)Max. Current:\n150mAMax. Voltage: 100VWorking Voltage: DC0-24VMax. Contact Power:\n10WSize(Approx.): 25 x 23.6mm \/ 0.98 x 0.93inch (HD)Cable Length(Each): 30cm\n\/ 11.8inchHousing Material: ABSWire Type: 1007\/24300mmUL Package Content: 5\nx Magnetic Door Switch\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eMATERIAL - The switch housing is made of ABS flame retardant material and reed switch, is resistant to high temperature and deformation.\u003c\/li\u003e\n \u003cli\u003eNORMALLY CLOSED(NC) - When the switch is close to the magnet, the circuit is conductive(light on); when the switch is separated from the magnet, the circuit is not conductive(light off).\u003c\/li\u003e\n \u003cli\u003eACTUATION DISTANCE - 10mm transmitting distance. The contact has fast reflection and accurate detection.\u003c\/li\u003e\n \u003cli\u003eWORKING CONDITIONS - When the magnetic door is energized, the voltage is controlled at DC 0V-24V and the supply current cannot exceed 1A. The load current is 150mA.\u003c\/li\u003e\n \u003cli\u003eWIDE APPLICATIONS - Work with all access control and burglar alarm systems. Can be installed in wooden or aluminum alloy doors and windows.\u003c\/li\u003e\n \u003c\/ul\u003e"}
