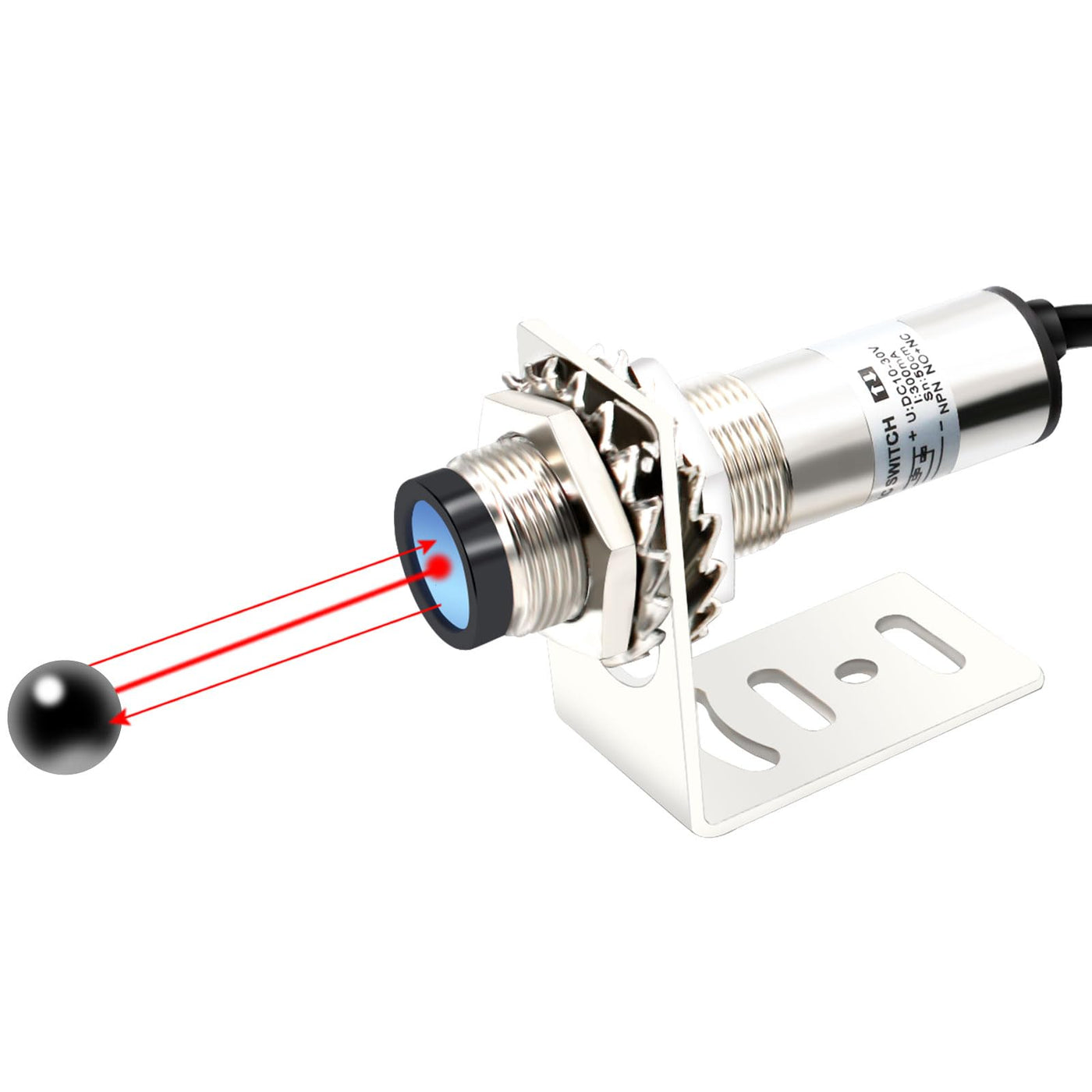

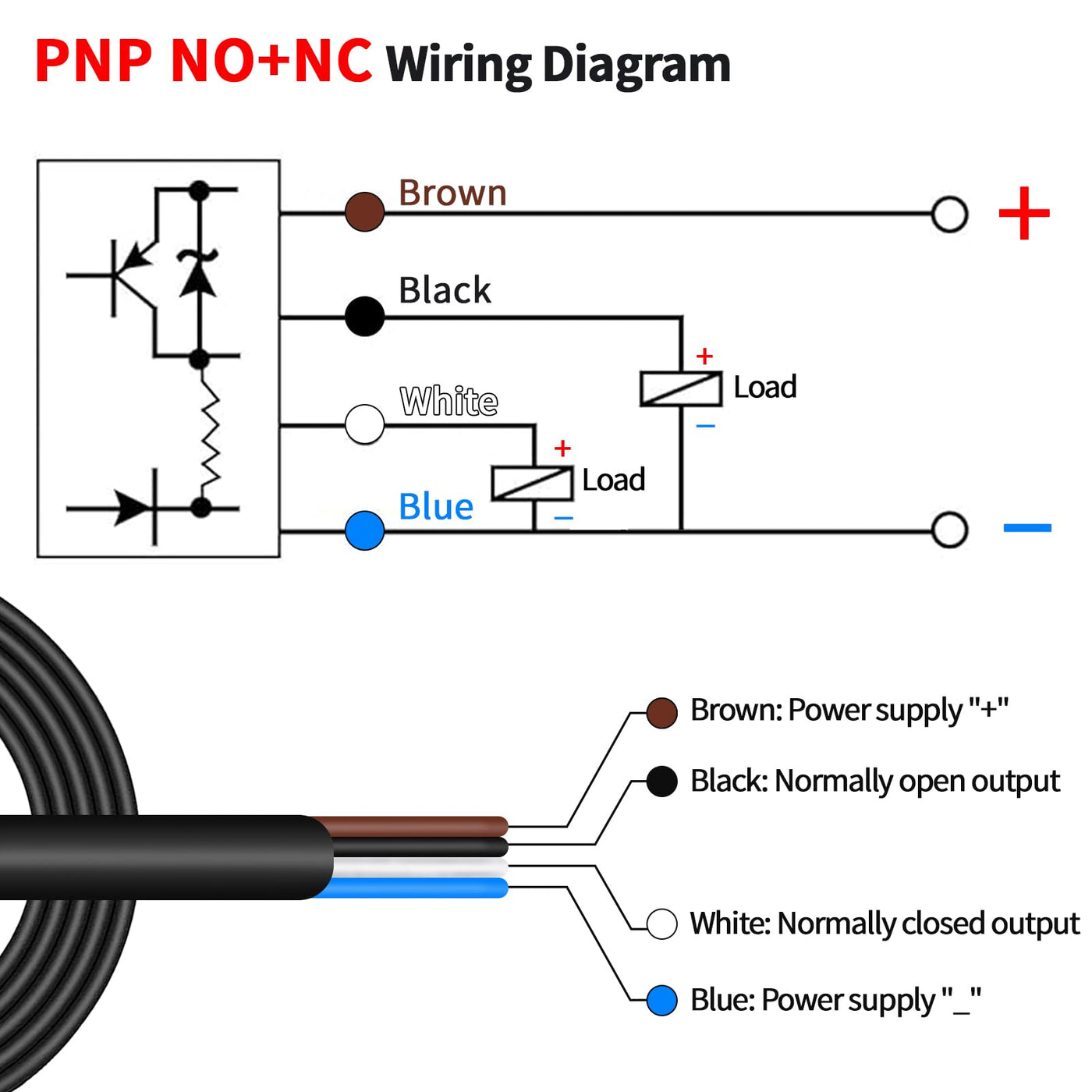

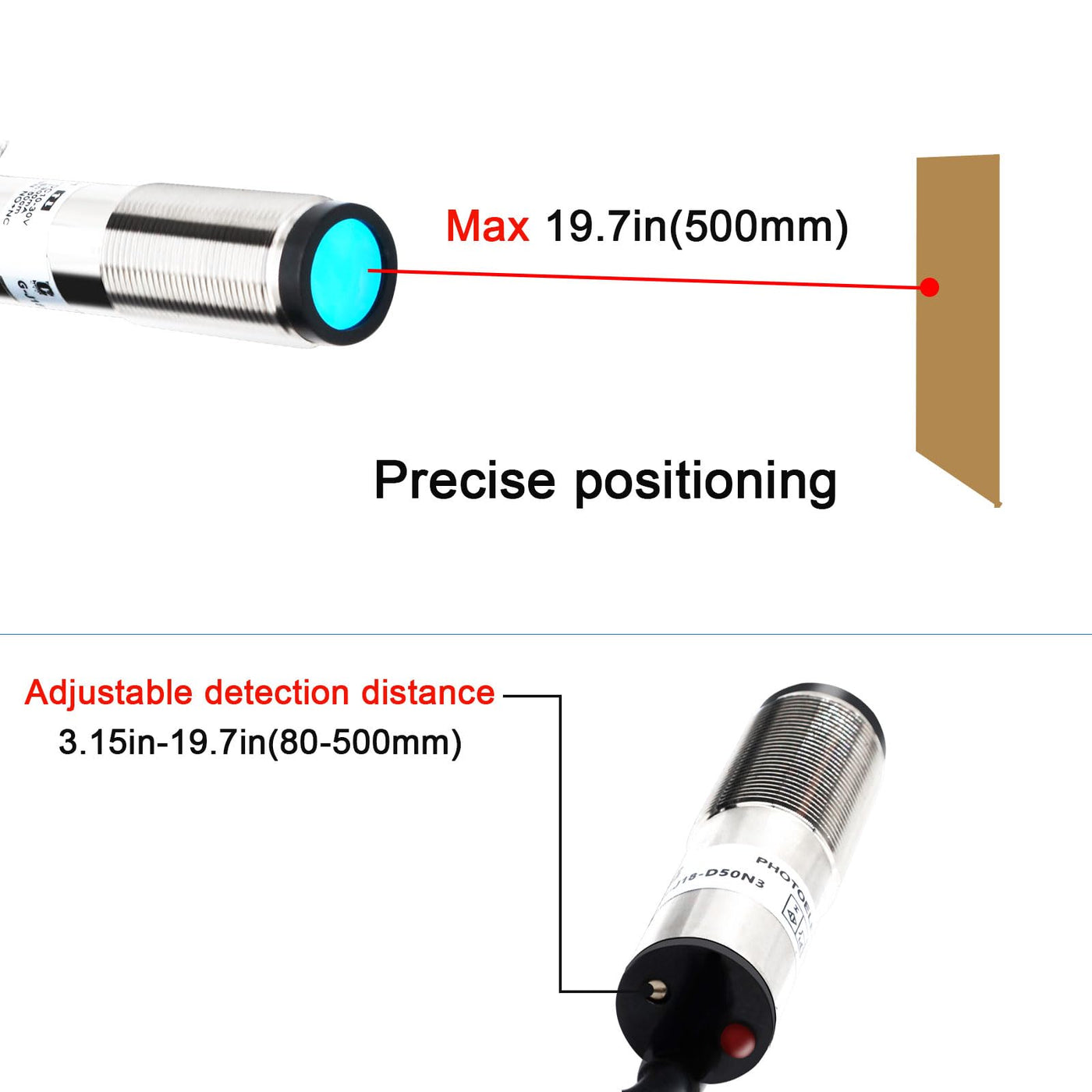

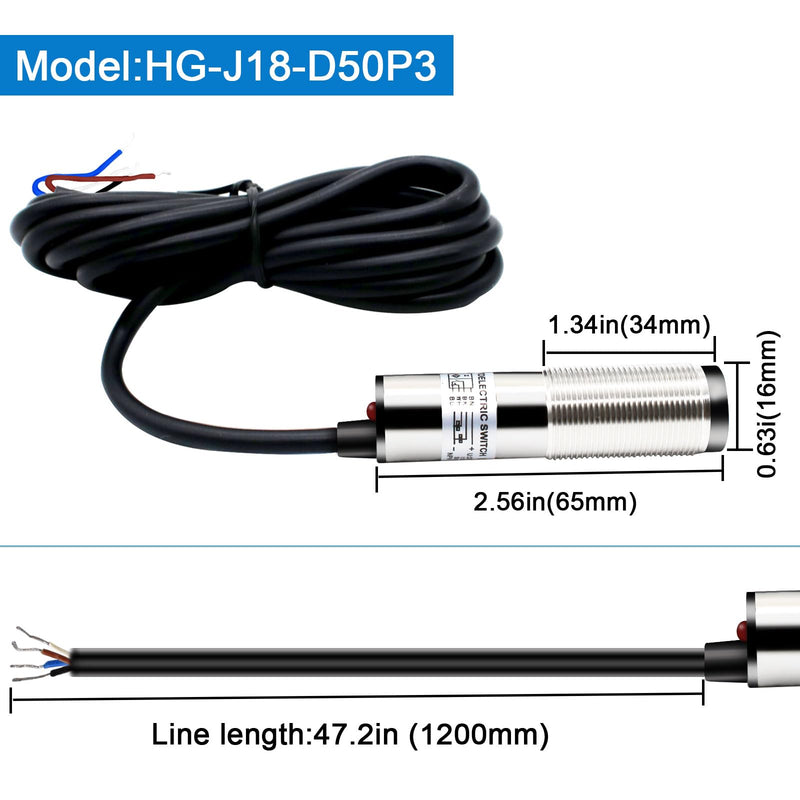

{"id":9336624218349,"title":"LCLCTC12V 24V Laser Sensor photoelectric Switch PNP NO + NC M18;Input(10-30VDC), 4 Wires; Detection Distance 8-50cm; HG18-D50P3, Normally Open and Normally Closed","handle":"lclctc12v-24v-laser-sensor-photoelectric-switch-pnp-no-nc-m18-input10-30vdc-4-wires-detection-distance-8-50cm-hg18-d50p3-normally-open-and-normally-closed","description":"\u003ch3\u003eLCLCTC12V 24V Laser Sensor photoelectric Switch PNP NO + NC M18;Input(10-30VDC), 4 Wires; Detection Distance 8-50cm; HG18-D50P3, Normally Open and Normally Closed\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eHG-18-50P3, PNP NO+NC, detection distance 80cm-500cm\/3.15in-19.7in The laser\nphotoelectric switch is a kind of photoelectric switch using the principle of\nlaser, which detects the position and distance of the object through the\ndetection of the laser beam. A laser photoelectric switch usually consists of\na laser, a lens and a receiver. The laser emits a laser beam, which is focused\nby the lens and irradiates the receiver. When the laser beam is blocked by an\nobject, the signal strength received by the receiver changes, and the trigger\ncircuit sends out a signal or controls the circuit. Compared with traditional\nphotoelectric switches, laser photoelectric switches have higher detection\naccuracy and sensitivity, and can detect very small object movement and\nocclusion. At the same time, the laser photoelectric switch also has higher\nreliability and stability, and can work normally in harsh environments. Laser\nphotoelectric switches are widely used in robots, industrial automation\nequipment, automobile manufacturing, aerospace and other fields to detect the\nposition, distance and motion state of objects\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThis model is PNP NO+NC,4 wire,No or nc can be used alone or together\u003c\/li\u003e\n \u003cli\u003eResponse speed: 1ms ;High sensitivity: The laser photoelectric switch has higher sensitivity and can detect extremely small changes in optical signals, and is suitable for application scenarios that require high sensitivity.\u003c\/li\u003e\n \u003cli\u003eDetection distance: 0-500mm\/0-196.85in; adjustable\u003c\/li\u003e\n \u003cli\u003eWith short circuit protection, reverse polarity protection, open collector\u003c\/li\u003e\n \u003cli\u003eNo-load current \u0026lt;30mA; load voltage 30VDC; maximum load current 200mA, switching frequency: 500HZ\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-04-14T14:43:35+10:00","created_at":"2026-04-14T14:43:31+10:00","vendor":"LCLCTC","type":"Photoelectric Sensors","tags":["electronics_Apr2026"],"price":14000,"price_min":14000,"price_max":14000,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":49780610826477,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0CJ22X6H3","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LCLCTC12V 24V Laser Sensor photoelectric Switch PNP NO + NC M18;Input(10-30VDC), 4 Wires; Detection Distance 8-50cm; HG18-D50P3, Normally Open and Normally Closed","public_title":null,"options":["Default Title"],"price":14000,"weight":141,"compare_at_price":null,"inventory_management":"shopify","barcode":"PNPNOC","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/leoforward.com\/cdn\/shop\/files\/B0CJ22X6H3.jpg?v=1776924837","\/\/leoforward.com\/cdn\/shop\/files\/61ZP4LVi1_L.jpg?v=1776141814","\/\/leoforward.com\/cdn\/shop\/files\/61BZODRXzaL.jpg?v=1776141814","\/\/leoforward.com\/cdn\/shop\/files\/61viqDVuS3L.jpg?v=1776141814","\/\/leoforward.com\/cdn\/shop\/files\/71oV-8H5SfL_6b782e01-de94-4aeb-b654-bd431bccdd81.jpg?v=1776141814","\/\/leoforward.com\/cdn\/shop\/files\/61FdfrjTRPL.jpg?v=1776141814","\/\/leoforward.com\/cdn\/shop\/files\/71RxztTUzQL_445ed5c5-200b-4b05-be24-bf5d0b1e7aad.jpg?v=1776141814"],"featured_image":"\/\/leoforward.com\/cdn\/shop\/files\/B0CJ22X6H3.jpg?v=1776924837","options":["Title"],"media":[{"alt":null,"id":39369666363629,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/files\/B0CJ22X6H3.jpg?v=1776924837"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/B0CJ22X6H3.jpg?v=1776924837","width":1600},{"alt":null,"id":39369666396397,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/files\/61ZP4LVi1_L.jpg?v=1776141814"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/61ZP4LVi1_L.jpg?v=1776141814","width":1600},{"alt":null,"id":39369666429165,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/files\/61BZODRXzaL.jpg?v=1776141814"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/61BZODRXzaL.jpg?v=1776141814","width":1600},{"alt":null,"id":39369666461933,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/files\/61viqDVuS3L.jpg?v=1776141814"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/61viqDVuS3L.jpg?v=1776141814","width":1600},{"alt":null,"id":39369666494701,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/files\/71oV-8H5SfL_6b782e01-de94-4aeb-b654-bd431bccdd81.jpg?v=1776141814"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/71oV-8H5SfL_6b782e01-de94-4aeb-b654-bd431bccdd81.jpg?v=1776141814","width":1600},{"alt":null,"id":39369666527469,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/files\/61FdfrjTRPL.jpg?v=1776141814"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/61FdfrjTRPL.jpg?v=1776141814","width":1600},{"alt":null,"id":39369666560237,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/files\/71RxztTUzQL_445ed5c5-200b-4b05-be24-bf5d0b1e7aad.jpg?v=1776141814"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/71RxztTUzQL_445ed5c5-200b-4b05-be24-bf5d0b1e7aad.jpg?v=1776141814","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eLCLCTC12V 24V Laser Sensor photoelectric Switch PNP NO + NC M18;Input(10-30VDC), 4 Wires; Detection Distance 8-50cm; HG18-D50P3, Normally Open and Normally Closed\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eHG-18-50P3, PNP NO+NC, detection distance 80cm-500cm\/3.15in-19.7in The laser\nphotoelectric switch is a kind of photoelectric switch using the principle of\nlaser, which detects the position and distance of the object through the\ndetection of the laser beam. A laser photoelectric switch usually consists of\na laser, a lens and a receiver. The laser emits a laser beam, which is focused\nby the lens and irradiates the receiver. When the laser beam is blocked by an\nobject, the signal strength received by the receiver changes, and the trigger\ncircuit sends out a signal or controls the circuit. Compared with traditional\nphotoelectric switches, laser photoelectric switches have higher detection\naccuracy and sensitivity, and can detect very small object movement and\nocclusion. At the same time, the laser photoelectric switch also has higher\nreliability and stability, and can work normally in harsh environments. Laser\nphotoelectric switches are widely used in robots, industrial automation\nequipment, automobile manufacturing, aerospace and other fields to detect the\nposition, distance and motion state of objects\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThis model is PNP NO+NC,4 wire,No or nc can be used alone or together\u003c\/li\u003e\n \u003cli\u003eResponse speed: 1ms ;High sensitivity: The laser photoelectric switch has higher sensitivity and can detect extremely small changes in optical signals, and is suitable for application scenarios that require high sensitivity.\u003c\/li\u003e\n \u003cli\u003eDetection distance: 0-500mm\/0-196.85in; adjustable\u003c\/li\u003e\n \u003cli\u003eWith short circuit protection, reverse polarity protection, open collector\u003c\/li\u003e\n \u003cli\u003eNo-load current \u0026lt;30mA; load voltage 30VDC; maximum load current 200mA, switching frequency: 500HZ\u003c\/li\u003e\n \u003c\/ul\u003e"}
