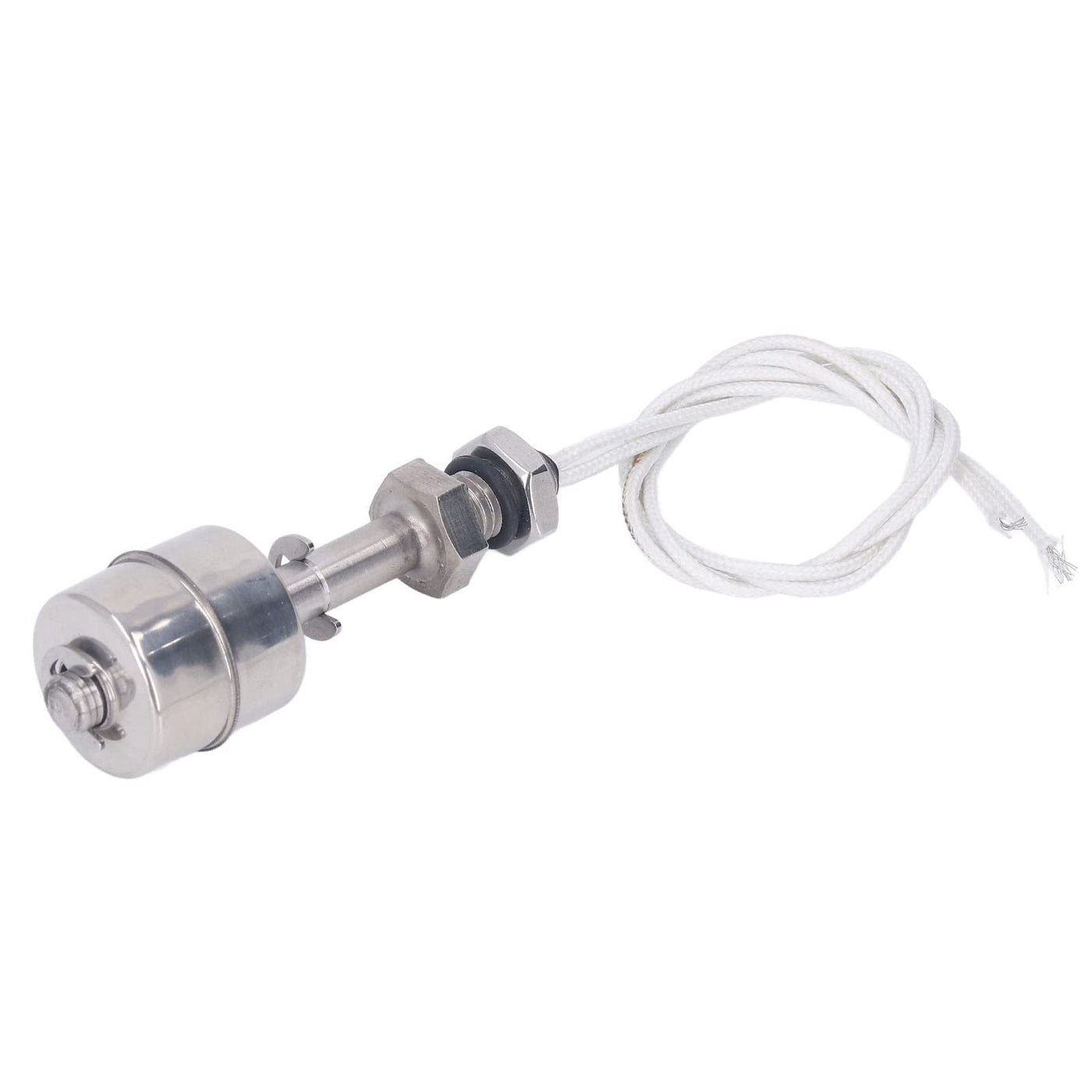

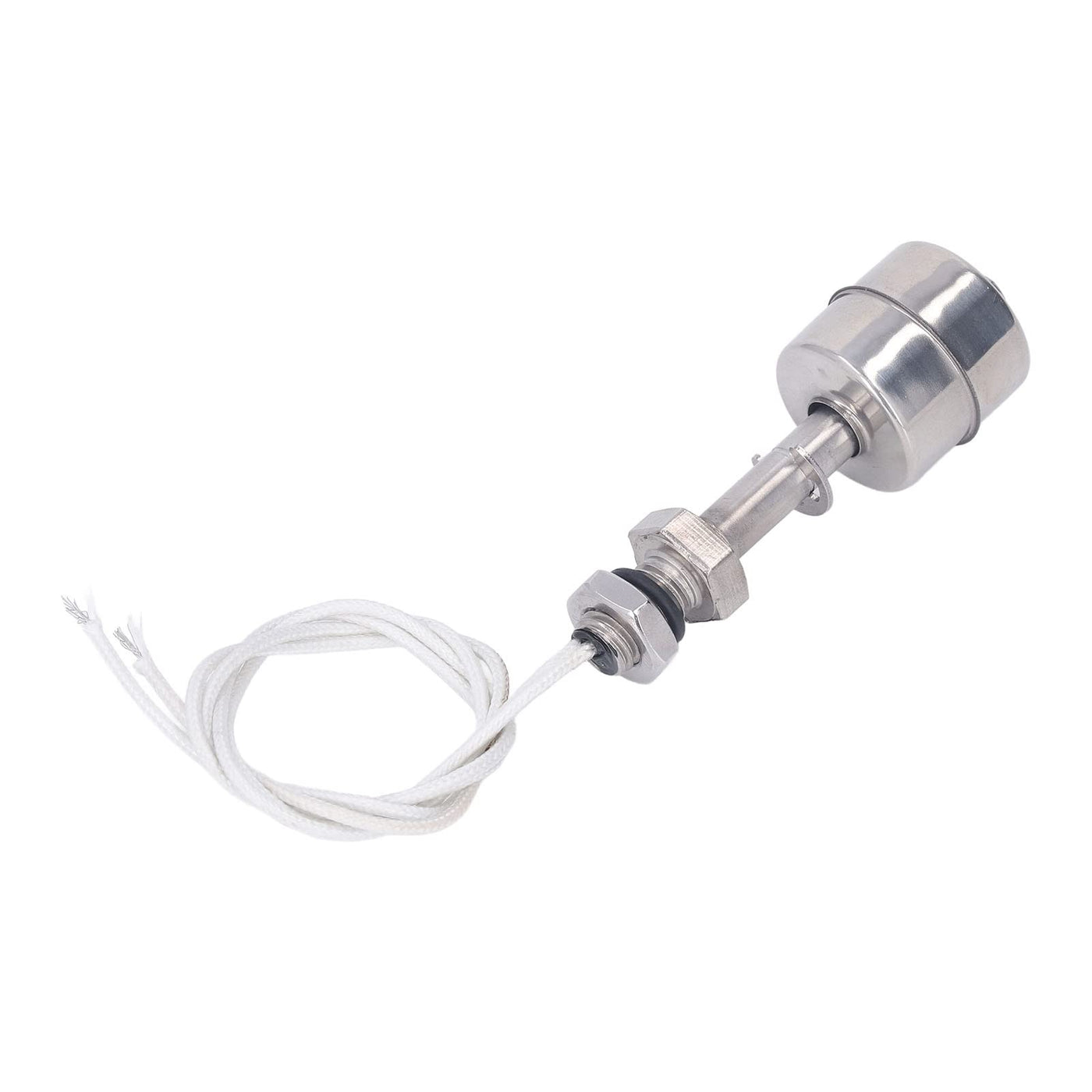

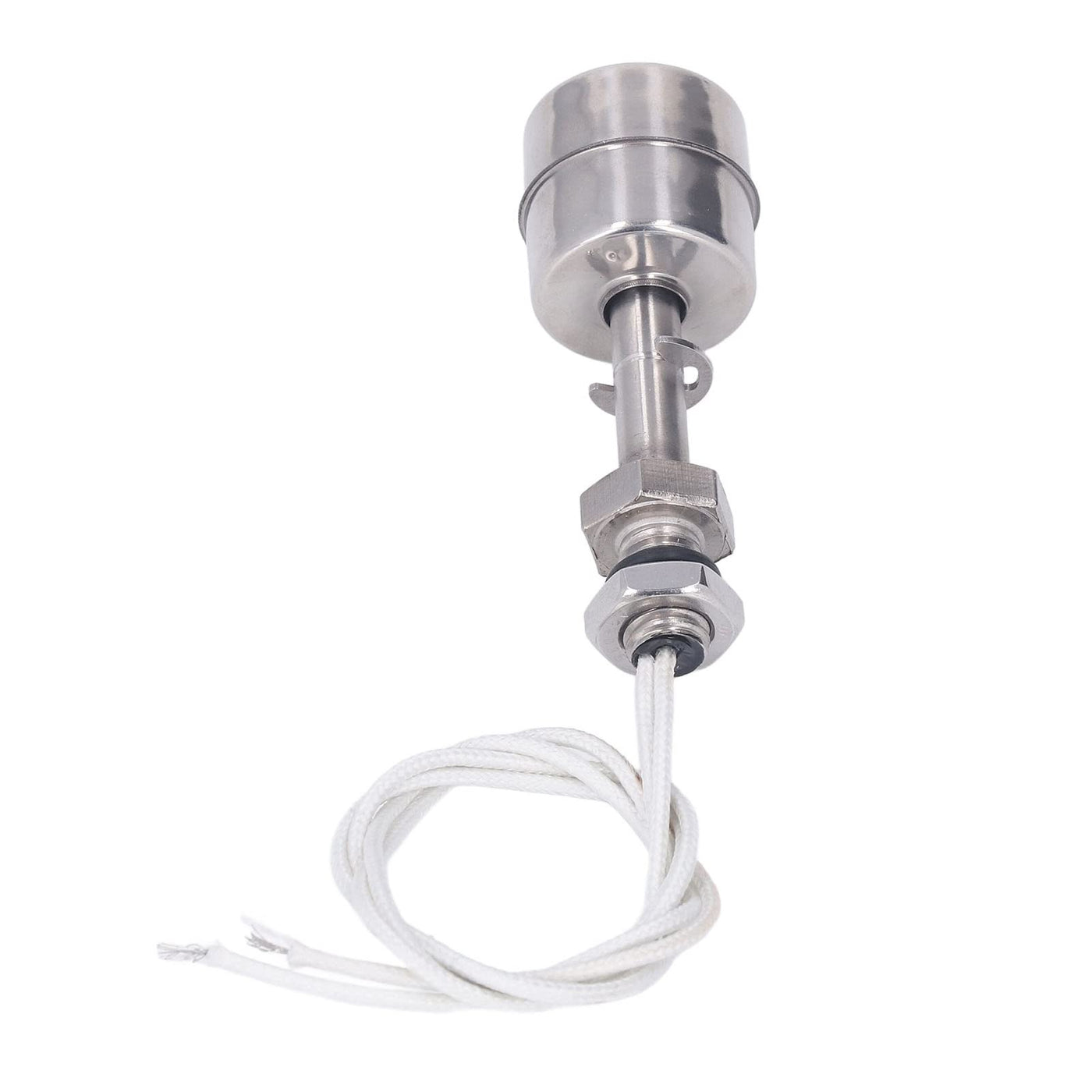

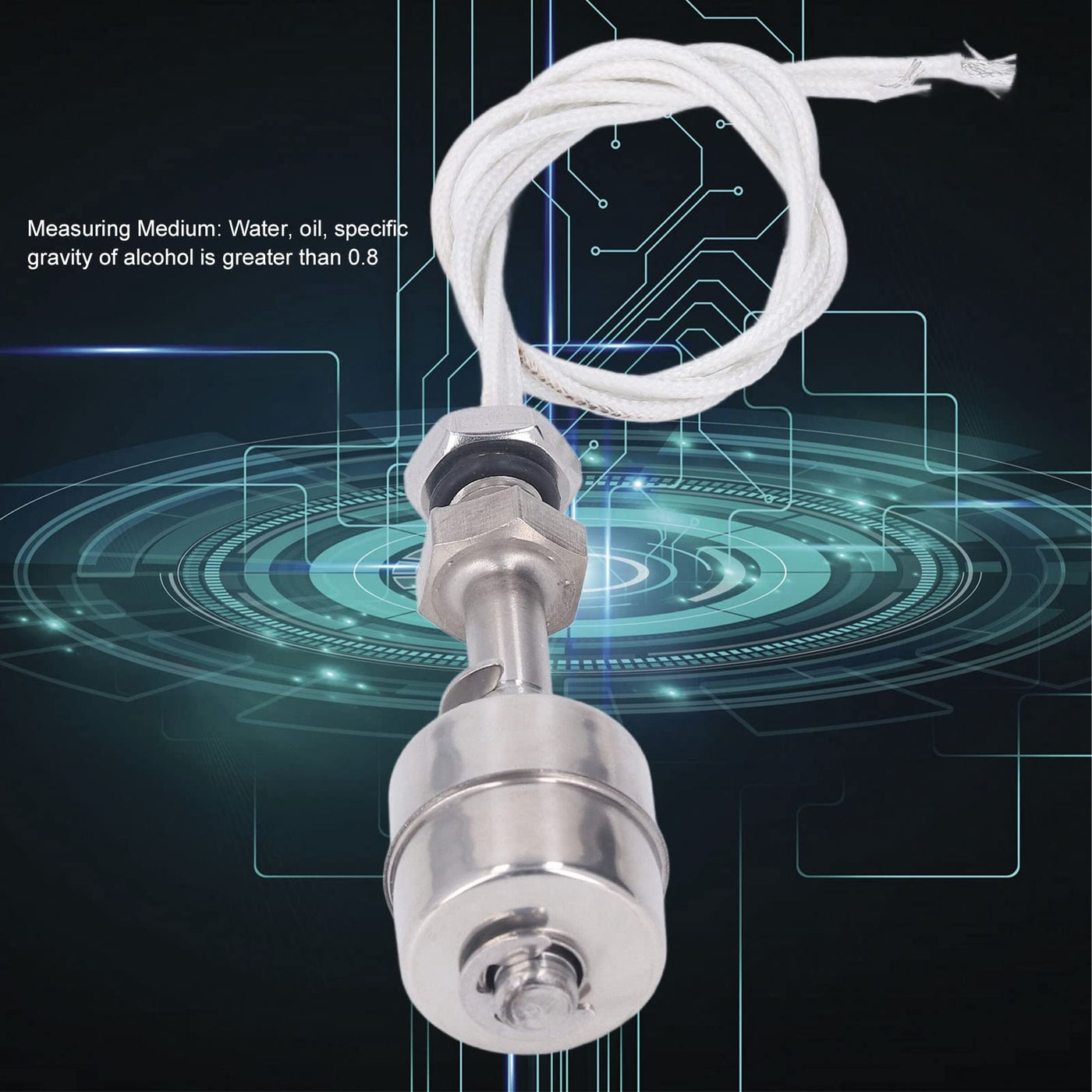

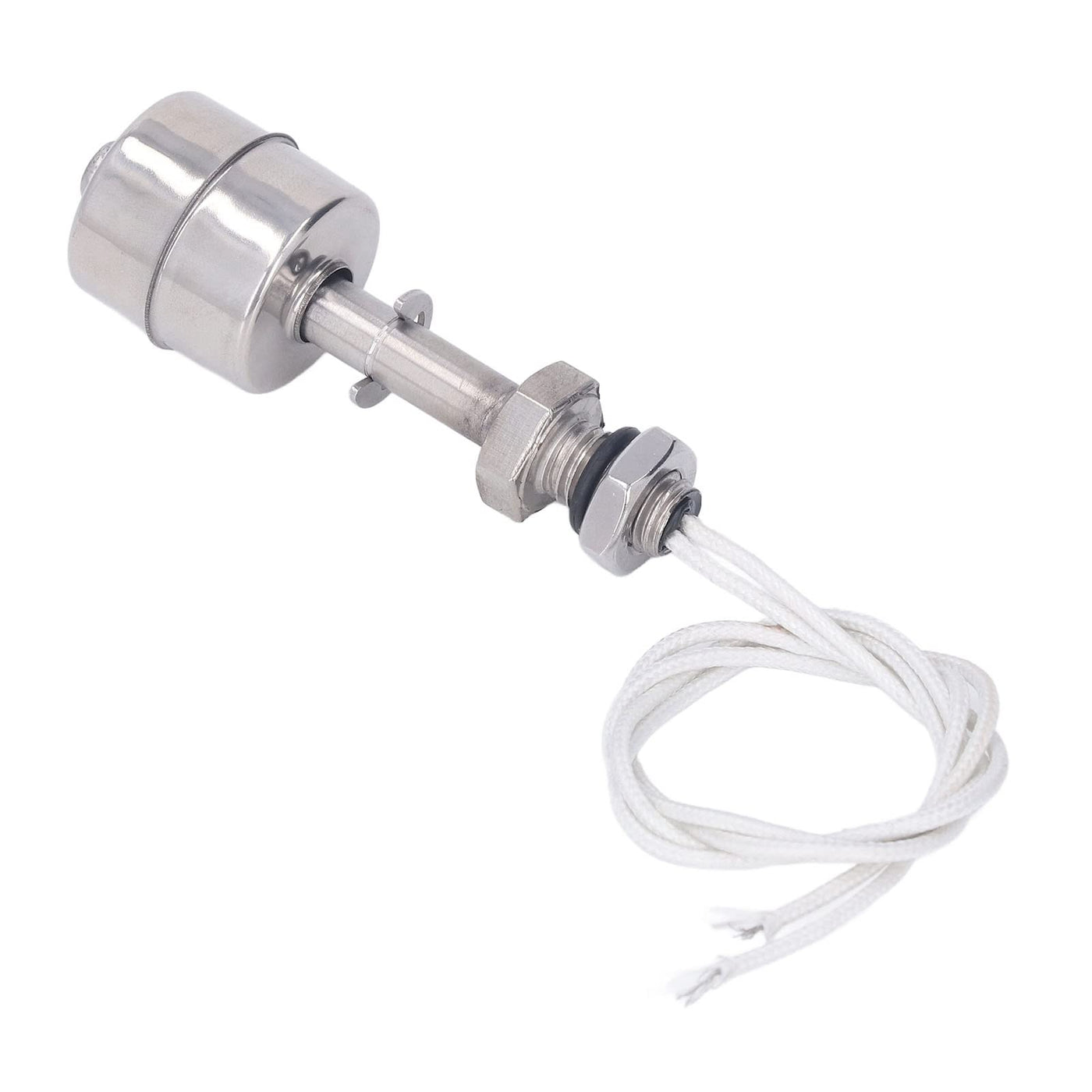

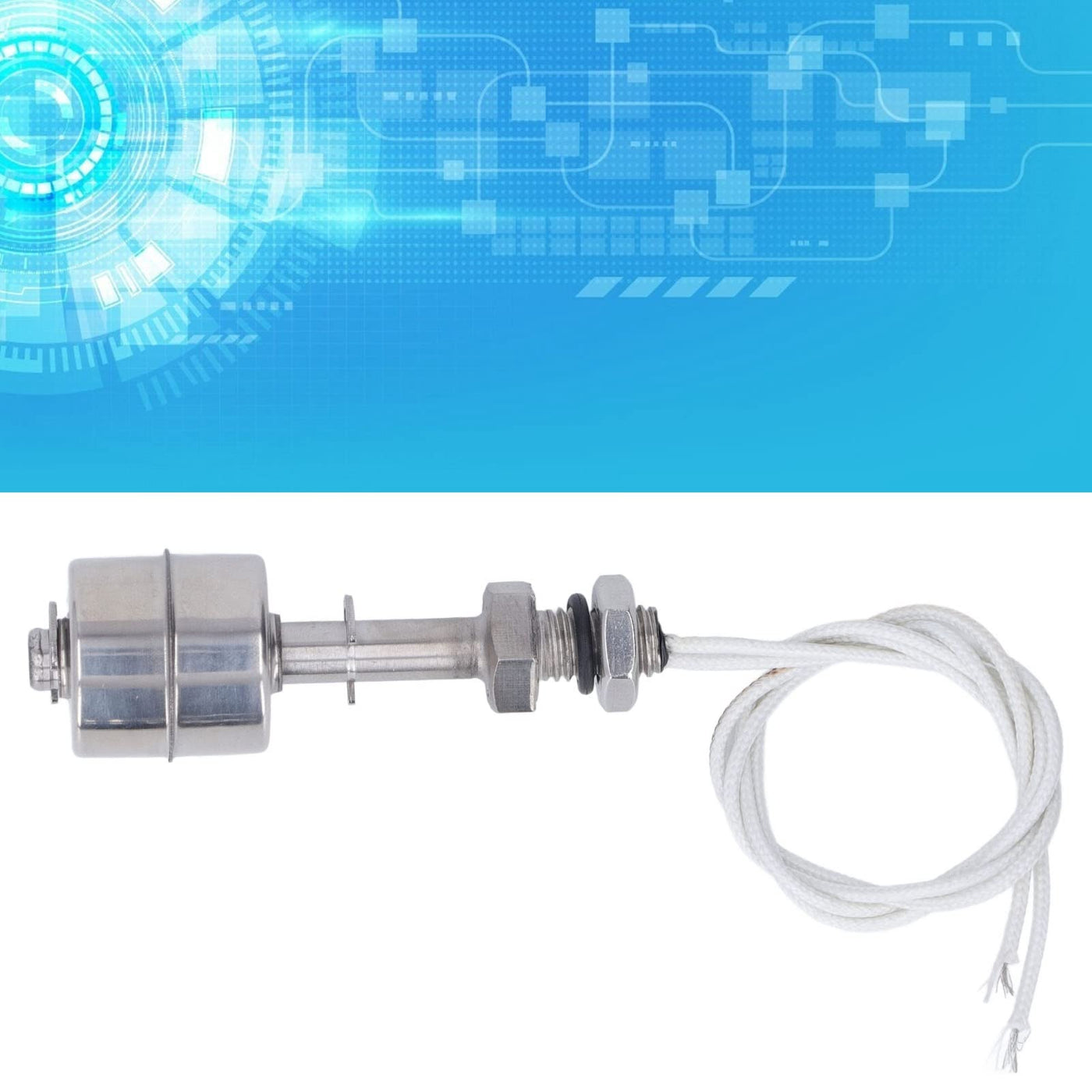

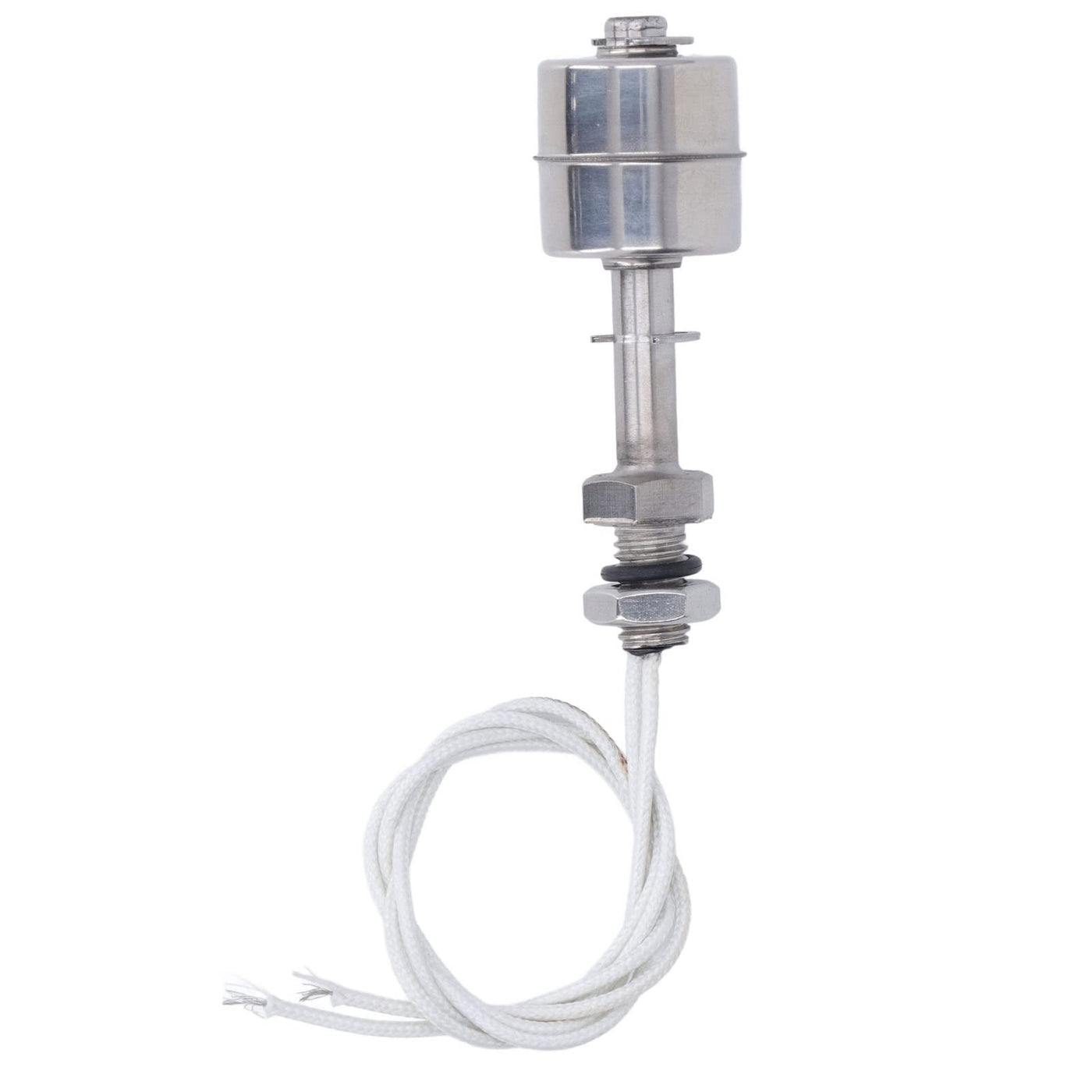

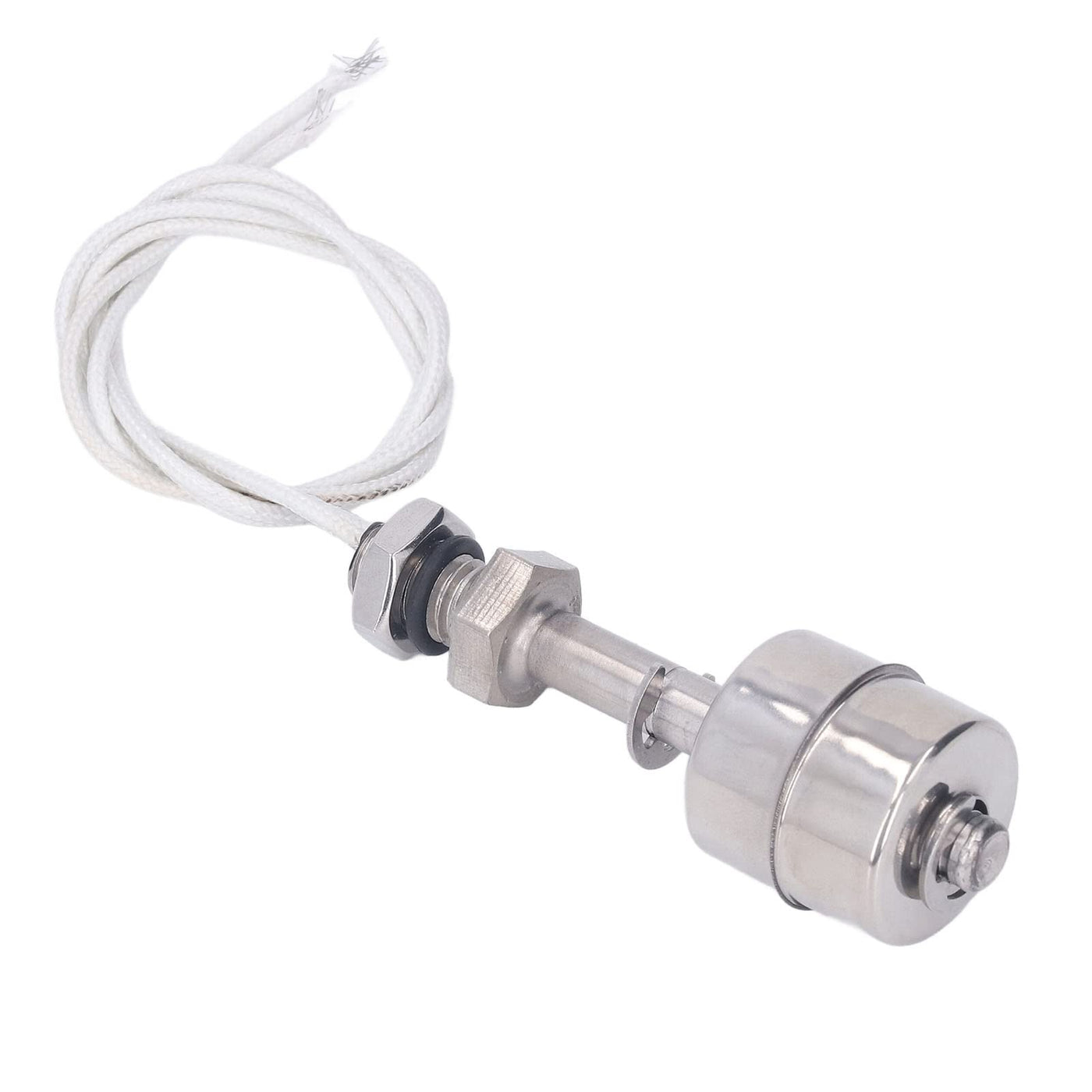

{"id":9336443896045,"title":"Kadimendium Liquid Level Float Switch ，10mm Stroke Stainless Steel Liquid Water Oil Level Switch Sensor 0‑220V 65mm L Water Level Float Sensor","handle":"kadimendium-liquid-level-float-switch-10mm-stroke-stainless-steel-liquid-water-oil-level-switch-sensor-0-220v-65mm-l-water-level-float-sensor","description":"\u003ch3\u003eKadimendium Liquid Level Float Switch ，10mm Stroke Stainless Steel Liquid Water Oil Level Switch Sensor 0‑220V 65mm L Water Level Float Sensor\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecification : Material : SUS304 SUS316 Stroke : Approx . 10mm\/0 . 4in\nMeasuring Medium : Water , oil , specificof alcohol is greater than 0 . 8\nWorking Voltage : 0 220 (V) Working Current : 0 . 5 1 (A) Medium Temperature :\n20℃ to 120℃ Operating Temperature : 0℃ to 120℃ Maximum Temperature: 120 (℃)\nWorking Pressure : 1 (Mpa) Maximum Withstand Voltage : 5 (Mpa) Maximum Power :\nLow voltage : 10W High Voltage : 50W Maximum Switching Current : Low voltage :\n0 . 5A High Voltage : 1 . 5A Package List : 1 x Liquid Level Float Switch Note\n: 1 . The float ball is made of all stainless steel 304 , and the clamp spring\nis made of 316L . 2 . Low voltage means that the float switch can be used for\n0‑110V DC voltage circuit . High voltage means that the float switch can be\nused for AC 0‑220V and DC 0‑200V lines . 3 . High temperaturemeans that the\nfloat switch can withstand 120℃ for a long time . 4 . High temperature high\nvoltage are white silicone high temperature wires , and low voltage are\nordinary black wires . 5 . Float switch cannot directly control solenoid valve\nor high power relay , AC contactor , etc . Add a small relay for conversion .\n6 . The float stroke is 10mm , that is , the control range is 10mm . If the\ncontrol range is large , two combinations can be used , one long and one short\n.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eStainless steel material: the is made of all stainless steel 304, and the clamp spring is made of 316l, which is rust and wear resistance, and stable in corrosive environments, very practical\u003c\/li\u003e\n \u003cli\u003eProduct feature: the liquid can withstand a maximum of 5mpa and a maximum temperature resistance of 120 C, enabling it to work in most environments\u003c\/li\u003e\n \u003cli\u003eWide voltage range: the liquid can work at 0 to ac, 0 to 200v, and the working current is 0.5 to 1a, which is applicable to most power supplies\u003c\/li\u003e\n \u003cli\u003eWide control range: sensor stroke range is 10mm, and the liquid can be controlled within 10mm, with a wide range of applications\u003c\/li\u003e\n \u003cli\u003eMulti purpose: this can be widely used for drinking fountains, heaters, solar energy, conditioners, humidifiers, coffee makers, small refrigerators, etc.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-04-14T13:51:29+10:00","created_at":"2026-04-14T13:51:26+10:00","vendor":"Kadimendium","type":"Liquid Level Sensors","tags":["electronics_Apr2026"],"price":8400,"price_min":8400,"price_max":8400,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":49780250575085,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0BR45DF52","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Kadimendium Liquid Level Float Switch ，10mm Stroke Stainless Steel Liquid Water Oil Level Switch Sensor 0‑220V 65mm L Water Level Float Sensor","public_title":null,"options":["Default Title"],"price":8400,"weight":72,"compare_at_price":null,"inventory_management":"shopify","barcode":"Kadimendium4are5198yx322","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/leoforward.com\/cdn\/shop\/files\/B0BR45DF52.jpg?v=1776923595","\/\/leoforward.com\/cdn\/shop\/files\/51bNAvQ04LL.jpg?v=1776138688","\/\/leoforward.com\/cdn\/shop\/files\/51tlTqgHxtL.jpg?v=1776138688","\/\/leoforward.com\/cdn\/shop\/files\/51vXvzS0NzL.jpg?v=1776138688","\/\/leoforward.com\/cdn\/shop\/files\/71FMPaAi8GL.jpg?v=1776138688","\/\/leoforward.com\/cdn\/shop\/files\/51Sw11a9ITL.jpg?v=1776138688","\/\/leoforward.com\/cdn\/shop\/files\/51YG0FbPBFL.jpg?v=1776138688","\/\/leoforward.com\/cdn\/shop\/files\/51XVfgu72XL.jpg?v=1776138688","\/\/leoforward.com\/cdn\/shop\/files\/61Z9yNZzJzL.jpg?v=1776138688"],"featured_image":"\/\/leoforward.com\/cdn\/shop\/files\/B0BR45DF52.jpg?v=1776923595","options":["Title"],"media":[{"alt":null,"id":39368800108781,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/leoforward.com\/cdn\/shop\/files\/B0BR45DF52.jpg?v=1776923595"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/B0BR45DF52.jpg?v=1776923595","width":1601},{"alt":null,"id":39368800141549,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/leoforward.com\/cdn\/shop\/files\/51bNAvQ04LL.jpg?v=1776138688"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/51bNAvQ04LL.jpg?v=1776138688","width":1601},{"alt":null,"id":39368800174317,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/leoforward.com\/cdn\/shop\/files\/51tlTqgHxtL.jpg?v=1776138688"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/51tlTqgHxtL.jpg?v=1776138688","width":1601},{"alt":null,"id":39368800207085,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/leoforward.com\/cdn\/shop\/files\/51vXvzS0NzL.jpg?v=1776138688"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/51vXvzS0NzL.jpg?v=1776138688","width":1601},{"alt":null,"id":39368800239853,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/leoforward.com\/cdn\/shop\/files\/71FMPaAi8GL.jpg?v=1776138688"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/71FMPaAi8GL.jpg?v=1776138688","width":1601},{"alt":null,"id":39368800272621,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/leoforward.com\/cdn\/shop\/files\/51Sw11a9ITL.jpg?v=1776138688"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/51Sw11a9ITL.jpg?v=1776138688","width":1601},{"alt":null,"id":39368800305389,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/leoforward.com\/cdn\/shop\/files\/51YG0FbPBFL.jpg?v=1776138688"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/51YG0FbPBFL.jpg?v=1776138688","width":1601},{"alt":null,"id":39368800338157,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/leoforward.com\/cdn\/shop\/files\/51XVfgu72XL.jpg?v=1776138688"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/51XVfgu72XL.jpg?v=1776138688","width":1601},{"alt":null,"id":39368800370925,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/leoforward.com\/cdn\/shop\/files\/61Z9yNZzJzL.jpg?v=1776138688"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/61Z9yNZzJzL.jpg?v=1776138688","width":1601}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eKadimendium Liquid Level Float Switch ，10mm Stroke Stainless Steel Liquid Water Oil Level Switch Sensor 0‑220V 65mm L Water Level Float Sensor\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecification : Material : SUS304 SUS316 Stroke : Approx . 10mm\/0 . 4in\nMeasuring Medium : Water , oil , specificof alcohol is greater than 0 . 8\nWorking Voltage : 0 220 (V) Working Current : 0 . 5 1 (A) Medium Temperature :\n20℃ to 120℃ Operating Temperature : 0℃ to 120℃ Maximum Temperature: 120 (℃)\nWorking Pressure : 1 (Mpa) Maximum Withstand Voltage : 5 (Mpa) Maximum Power :\nLow voltage : 10W High Voltage : 50W Maximum Switching Current : Low voltage :\n0 . 5A High Voltage : 1 . 5A Package List : 1 x Liquid Level Float Switch Note\n: 1 . The float ball is made of all stainless steel 304 , and the clamp spring\nis made of 316L . 2 . Low voltage means that the float switch can be used for\n0‑110V DC voltage circuit . High voltage means that the float switch can be\nused for AC 0‑220V and DC 0‑200V lines . 3 . High temperaturemeans that the\nfloat switch can withstand 120℃ for a long time . 4 . High temperature high\nvoltage are white silicone high temperature wires , and low voltage are\nordinary black wires . 5 . Float switch cannot directly control solenoid valve\nor high power relay , AC contactor , etc . Add a small relay for conversion .\n6 . The float stroke is 10mm , that is , the control range is 10mm . If the\ncontrol range is large , two combinations can be used , one long and one short\n.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eStainless steel material: the is made of all stainless steel 304, and the clamp spring is made of 316l, which is rust and wear resistance, and stable in corrosive environments, very practical\u003c\/li\u003e\n \u003cli\u003eProduct feature: the liquid can withstand a maximum of 5mpa and a maximum temperature resistance of 120 C, enabling it to work in most environments\u003c\/li\u003e\n \u003cli\u003eWide voltage range: the liquid can work at 0 to ac, 0 to 200v, and the working current is 0.5 to 1a, which is applicable to most power supplies\u003c\/li\u003e\n \u003cli\u003eWide control range: sensor stroke range is 10mm, and the liquid can be controlled within 10mm, with a wide range of applications\u003c\/li\u003e\n \u003cli\u003eMulti purpose: this can be widely used for drinking fountains, heaters, solar energy, conditioners, humidifiers, coffee makers, small refrigerators, etc.\u003c\/li\u003e\n \u003c\/ul\u003e"}
