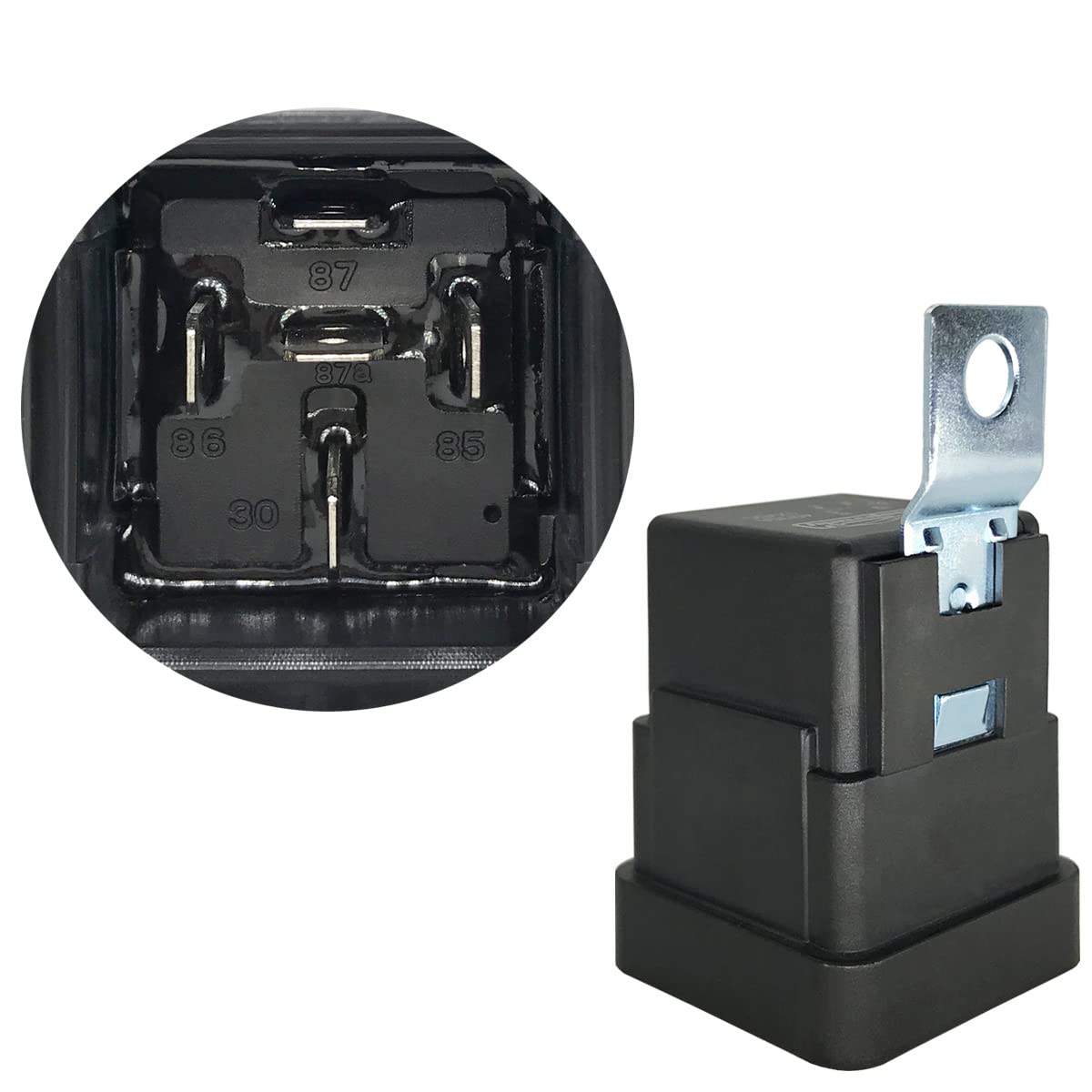

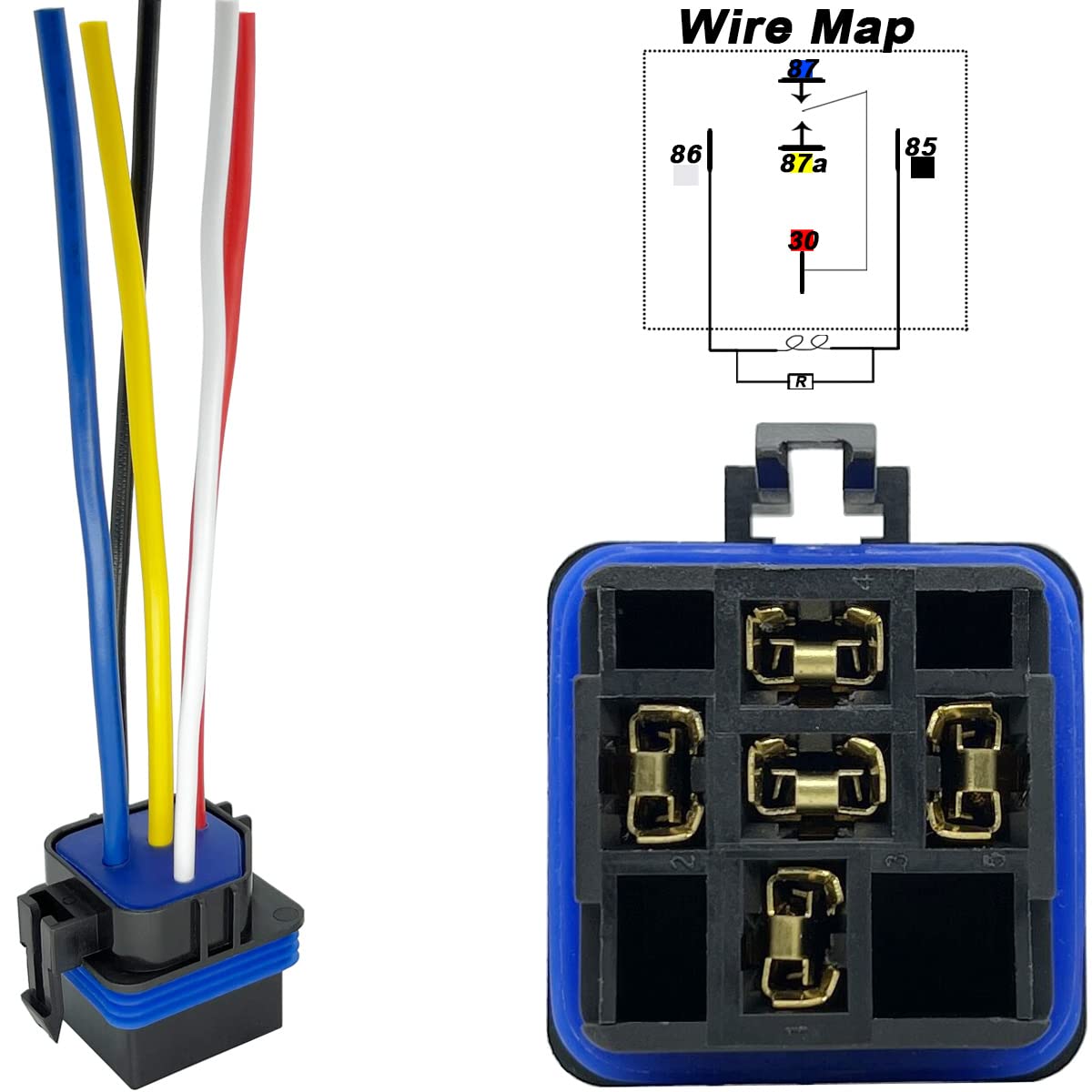

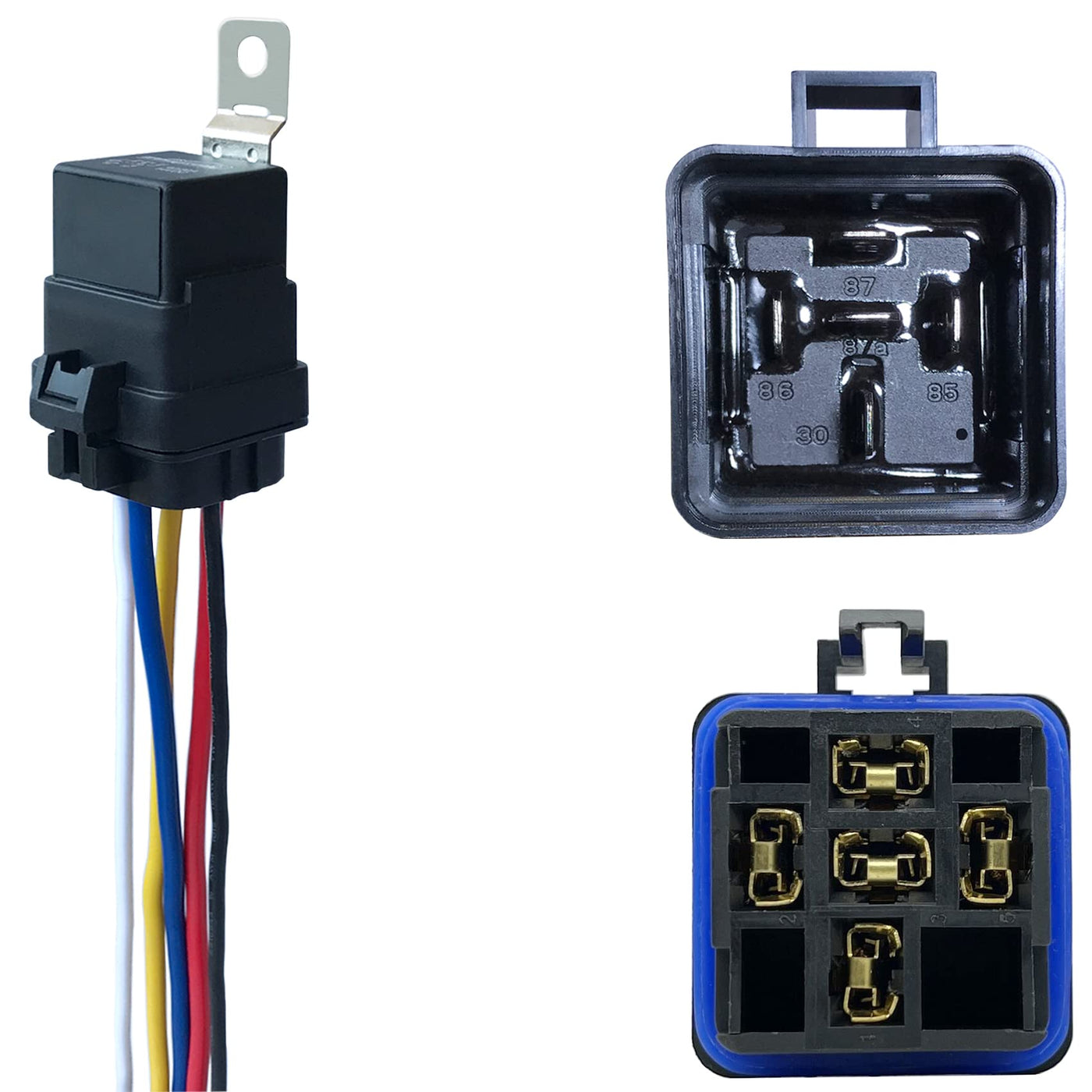

{"id":9137750868205,"title":"irhapsody 1 Pack 40\/30 AMP 12V DC Waterproof Relay Kit with Heavy-Duty Pigtail, 5-PIN SPDT Automotive Relay","handle":"irhapsody-1-pack-40-30-amp-12v-dc-waterproof-relay-kit-with-heavy-duty-pigtail-5-pin-spdt-automotive-relay","description":"\u003ch3\u003eirhapsody 1 Pack 40\/30 AMP 12V DC Waterproof Relay Kit with Heavy-Duty Pigtail, 5-PIN SPDT Automotive Relay\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eNominal Coil Voltage: 12 V DC Coil Power: 1.8 W Coil Resistance: 80 Ω Must\r\nOperate Voltage: 6~8 V DC Must Release Voltage: 0.6~3.6 V DC Maximum Applied\r\nVoltage: 15.6 V DC Contact Ratings: NO 40A 14V DC Contact Resistance: 100mMAX\r\n(at6VDC 1A) Max Switching Current: 40A Max Switching Power: 560 W Life\r\nExpectancy Electrical: 100,000 Operations (at30 Operations\/minute) Life\r\nExpectancy Machanical: 10,000,000 Operations Temperature Range: -30 ~ +80\r\ndegrees Celsius Vibration Resistance: 10~55Hz, 1.5mm Shock Resistance:\r\nOperations Extremes: 10g. Damage Limits: 100g Hunidity: 40% ~ 85% Insulation\r\nResistance: 100mΩ Min at500VDC Dielectric Strength Between Open Contacts:\r\n500VAC (for one minute\/sec) Between Contactw and coil: 750AC (for one\r\nminute\/sec) Operate Tice: 7ms Release Tice: 5ms Package Content: 1 x 12VDC\r\nwaterproof relay kit\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eNever go beyond its capabilities. Try to stay 10 to 15% below what the rate is for\u003c\/li\u003e\r\n \u003cli\u003e12-volt 5-prong relay. Excellent water-repellent and dustproof ability, but not using it in water\u003c\/li\u003e\r\n \u003cli\u003eBe careful when plugging the relay into the socket. If you push hard, you will bend the female connector\u003c\/li\u003e\r\n \u003cli\u003ePrimary leads use 12 a.w.g tinned copper wire. Coil leads use 16 a.w.g\u003c\/li\u003e\r\n \u003cli\u003eSPDT relay: it has both normally open and normally closed terminals, terminal 87A is powered when the relay is inactive and switches the power to terminal 87 when the relay is activated\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2025-10-13T20:58:54+11:00","created_at":"2025-10-13T20:58:51+11:00","vendor":"iRhapsody","type":"Accessory Power","tags":["AUTO_bestsellers_Oct2025"],"price":9800,"price_min":9800,"price_max":9800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":48865618723053,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B074QV54V1","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"irhapsody 1 Pack 40\/30 AMP 12V DC Waterproof Relay Kit with Heavy-Duty Pigtail, 5-PIN SPDT Automotive Relay","public_title":null,"options":["Default Title"],"price":9800,"weight":100,"compare_at_price":null,"inventory_management":"shopify","barcode":"IY-5PinRelay-1","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/leoforward.com\/cdn\/shop\/files\/B074QV54V1.jpg?v=1775783231","\/\/leoforward.com\/cdn\/shop\/files\/619Yi6dgqZL.jpg?v=1760349533","\/\/leoforward.com\/cdn\/shop\/files\/61KESSoXNaL.jpg?v=1760349533","\/\/leoforward.com\/cdn\/shop\/files\/61rx_3A-bVL_11ddead9-6f19-4070-8b0e-66e92b53f35f.jpg?v=1760349533","\/\/leoforward.com\/cdn\/shop\/files\/61nhrNUV22L_b23b31c5-9cba-485f-952d-a0e54c398ad9.jpg?v=1760349534"],"featured_image":"\/\/leoforward.com\/cdn\/shop\/files\/B074QV54V1.jpg?v=1775783231","options":["Title"],"media":[{"alt":null,"id":36889944883437,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1700,"width":1700,"src":"\/\/leoforward.com\/cdn\/shop\/files\/B074QV54V1.jpg?v=1775783231"},"aspect_ratio":1.0,"height":1700,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/B074QV54V1.jpg?v=1775783231","width":1700},{"alt":null,"id":36889944916205,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/leoforward.com\/cdn\/shop\/files\/619Yi6dgqZL.jpg?v=1760349533"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/619Yi6dgqZL.jpg?v=1760349533","width":1200},{"alt":null,"id":36889944948973,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/leoforward.com\/cdn\/shop\/files\/61KESSoXNaL.jpg?v=1760349533"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/61KESSoXNaL.jpg?v=1760349533","width":1200},{"alt":null,"id":36889944981741,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/leoforward.com\/cdn\/shop\/files\/61rx_3A-bVL_11ddead9-6f19-4070-8b0e-66e92b53f35f.jpg?v=1760349533"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/61rx_3A-bVL_11ddead9-6f19-4070-8b0e-66e92b53f35f.jpg?v=1760349533","width":1200},{"alt":null,"id":36889945014509,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/leoforward.com\/cdn\/shop\/files\/61nhrNUV22L_b23b31c5-9cba-485f-952d-a0e54c398ad9.jpg?v=1760349534"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/61nhrNUV22L_b23b31c5-9cba-485f-952d-a0e54c398ad9.jpg?v=1760349534","width":1200}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eirhapsody 1 Pack 40\/30 AMP 12V DC Waterproof Relay Kit with Heavy-Duty Pigtail, 5-PIN SPDT Automotive Relay\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eNominal Coil Voltage: 12 V DC Coil Power: 1.8 W Coil Resistance: 80 Ω Must\r\nOperate Voltage: 6~8 V DC Must Release Voltage: 0.6~3.6 V DC Maximum Applied\r\nVoltage: 15.6 V DC Contact Ratings: NO 40A 14V DC Contact Resistance: 100mMAX\r\n(at6VDC 1A) Max Switching Current: 40A Max Switching Power: 560 W Life\r\nExpectancy Electrical: 100,000 Operations (at30 Operations\/minute) Life\r\nExpectancy Machanical: 10,000,000 Operations Temperature Range: -30 ~ +80\r\ndegrees Celsius Vibration Resistance: 10~55Hz, 1.5mm Shock Resistance:\r\nOperations Extremes: 10g. Damage Limits: 100g Hunidity: 40% ~ 85% Insulation\r\nResistance: 100mΩ Min at500VDC Dielectric Strength Between Open Contacts:\r\n500VAC (for one minute\/sec) Between Contactw and coil: 750AC (for one\r\nminute\/sec) Operate Tice: 7ms Release Tice: 5ms Package Content: 1 x 12VDC\r\nwaterproof relay kit\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eNever go beyond its capabilities. Try to stay 10 to 15% below what the rate is for\u003c\/li\u003e\r\n \u003cli\u003e12-volt 5-prong relay. Excellent water-repellent and dustproof ability, but not using it in water\u003c\/li\u003e\r\n \u003cli\u003eBe careful when plugging the relay into the socket. If you push hard, you will bend the female connector\u003c\/li\u003e\r\n \u003cli\u003ePrimary leads use 12 a.w.g tinned copper wire. Coil leads use 16 a.w.g\u003c\/li\u003e\r\n \u003cli\u003eSPDT relay: it has both normally open and normally closed terminals, terminal 87A is powered when the relay is inactive and switches the power to terminal 87 when the relay is activated\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
