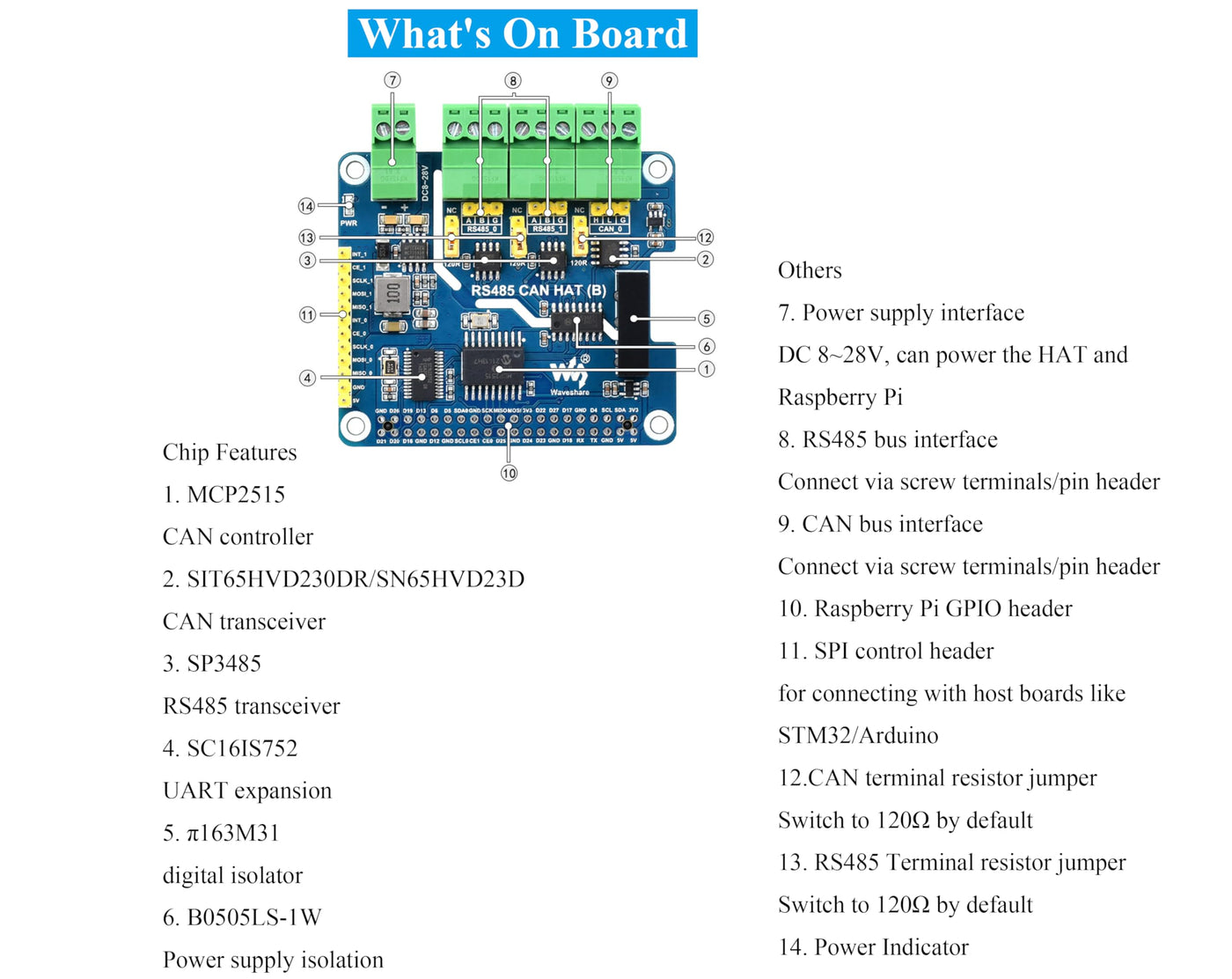

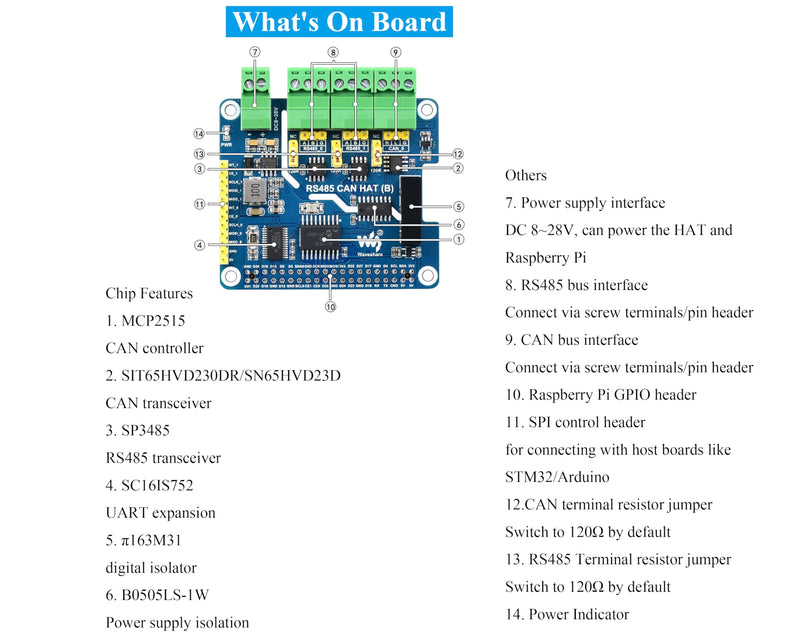

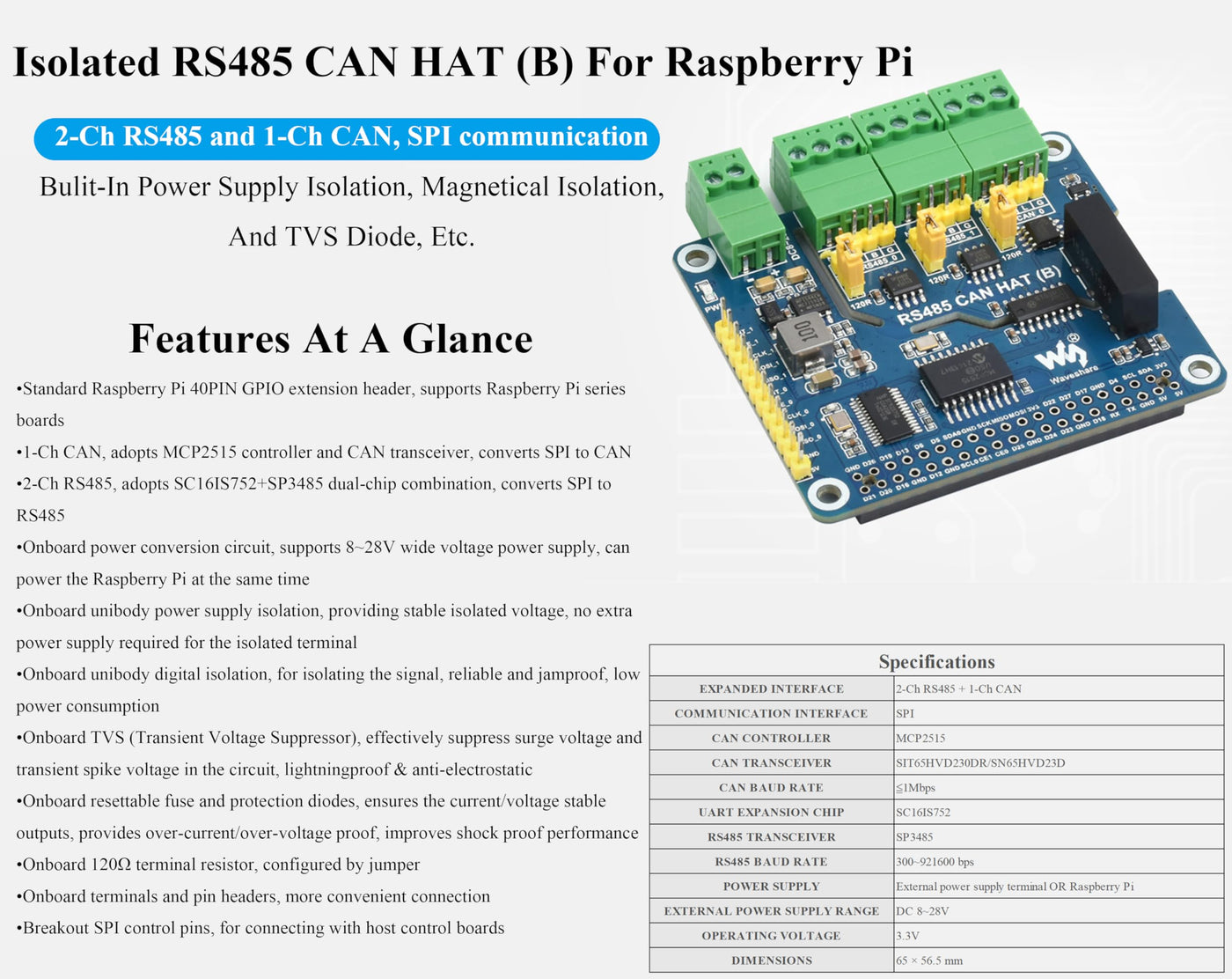

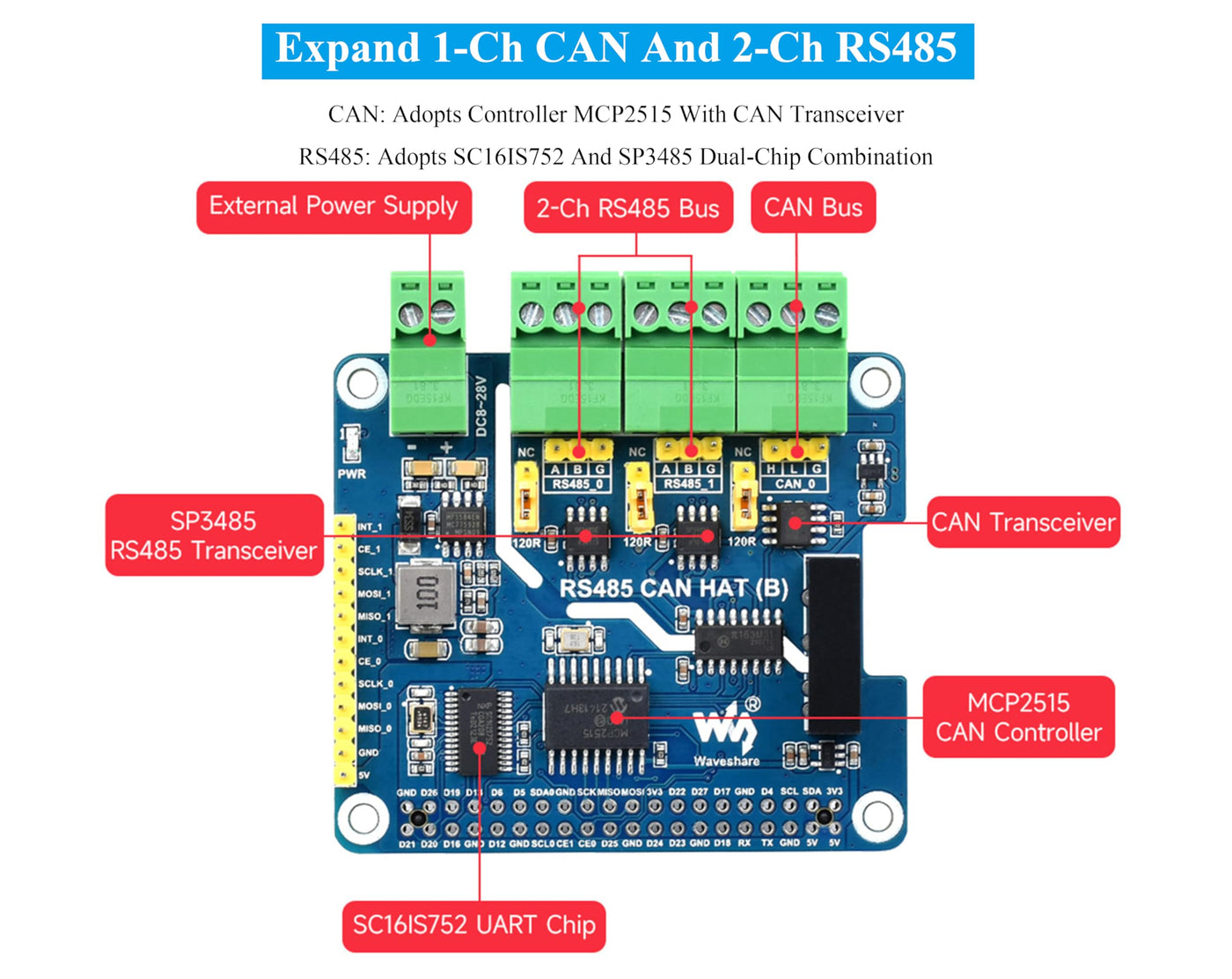

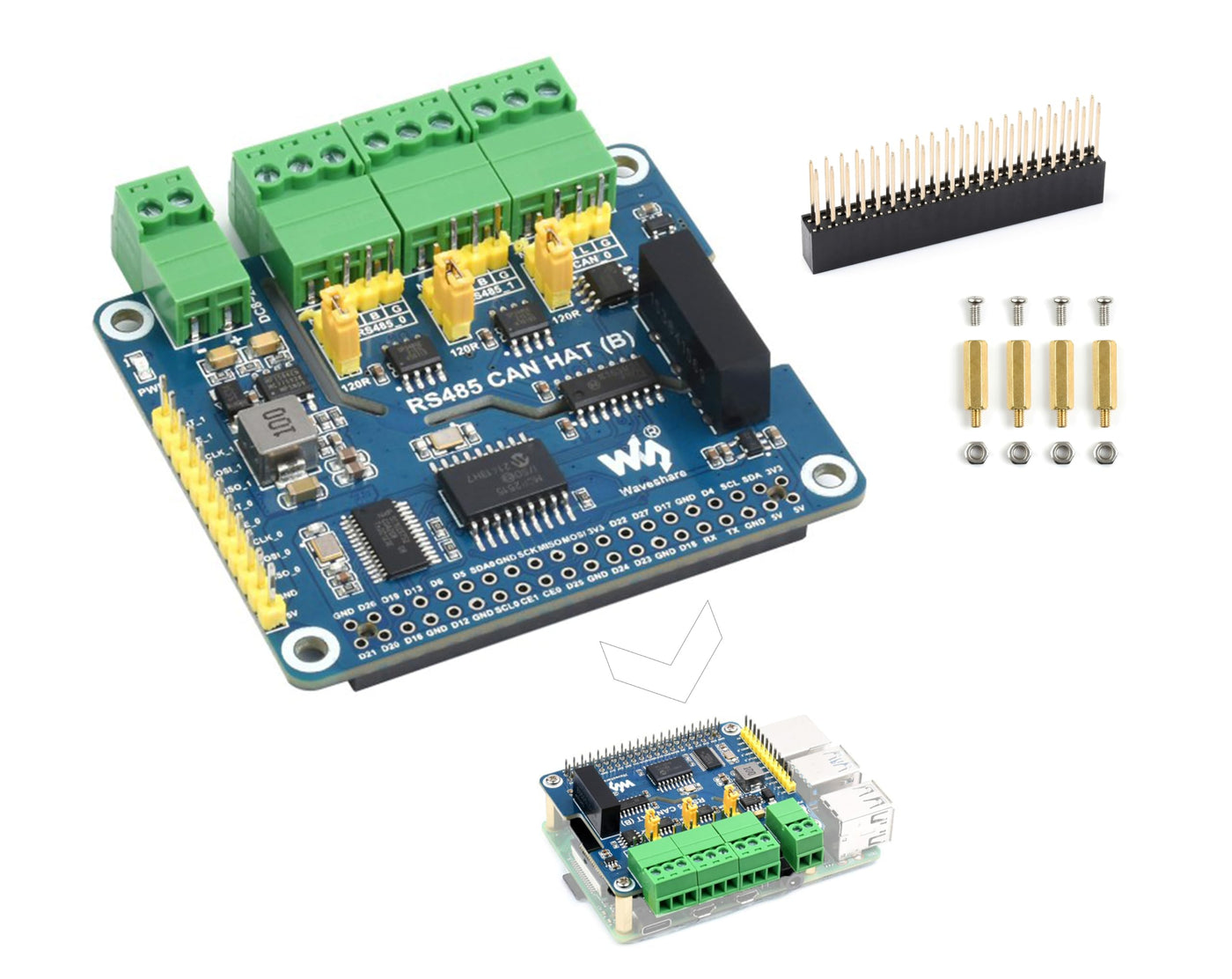

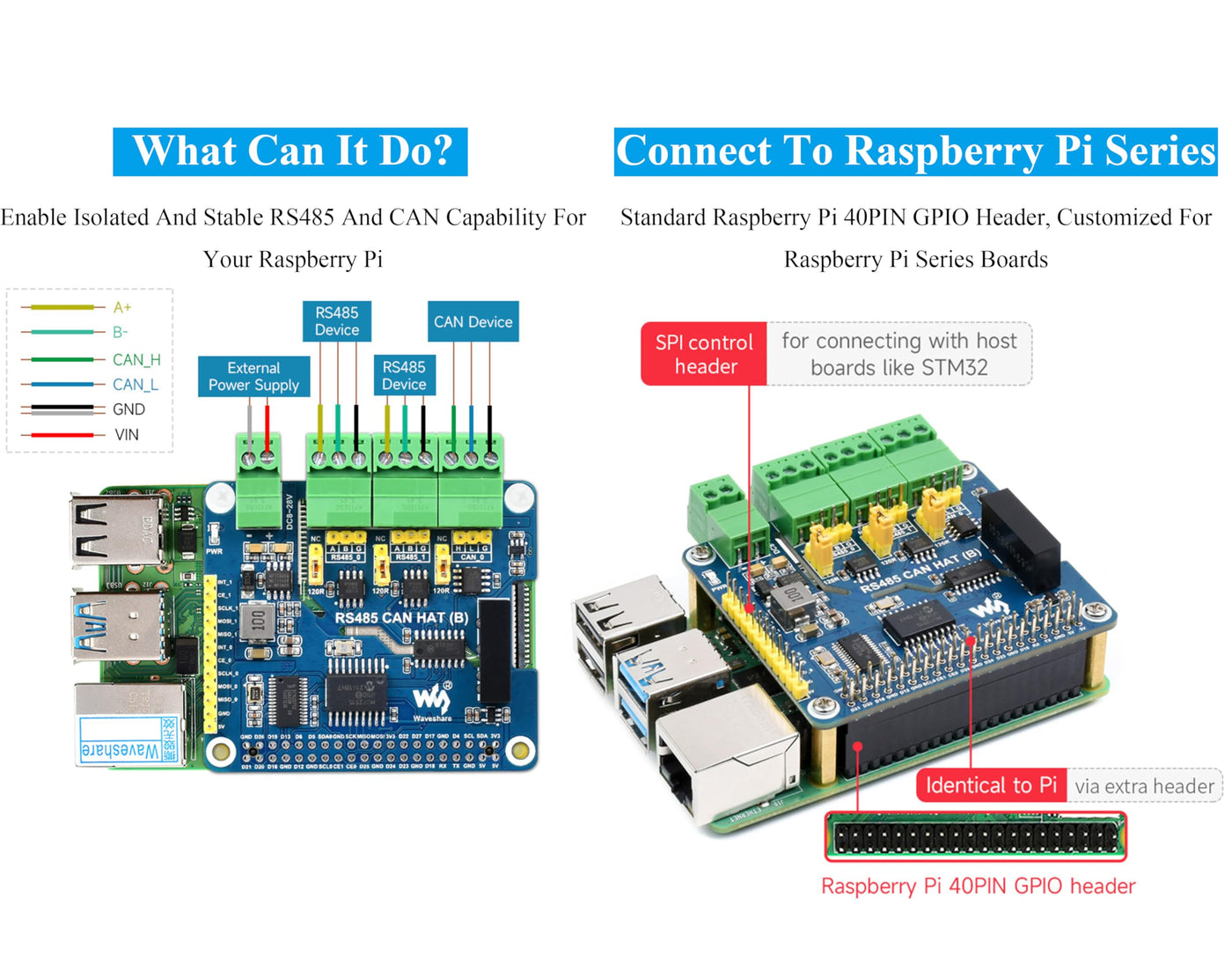

{"id":9139125453037,"title":"Industrial Isolated RS485 CAN HAT Compatible with Raspberry Pi 5\/4B\/3B+\/3B\/ZeroW\/WH\/Zero 2W\/Pico W\/Pico 2 W, Expand 2-Ch RS485 and 1-CH CAN, SPI Communication, Bulit-in Multi Protections","handle":"industrial-isolated-rs485-can-hat-compatible-with-raspberry-pi-5-4b-3b-3b-zerow-wh-zero-2w-pico-w-pico-2-w-expand-2-ch-rs485-and-1-ch-can-spi-communication-bulit-in-multi-protections","description":"\u003ch3\u003eIndustrial Isolated RS485 CAN HAT Compatible with Raspberry Pi 5\/4B\/3B+\/3B\/ZeroW\/WH\/Zero 2W\/Pico W\/Pico 2 W, Expand 2-Ch RS485 and 1-CH CAN, SPI Communication, Bulit-in Multi Protections\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003e\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eIsolated RS485 CAN HAT (B), Standard Pi 40PIN GPIO Header, Compatible with Raspberry Pi Series Boards, Bulit-in Multi Protections. It Enable Isolated And Stable RS485 And CAN Capability For Your RPi.\u003c\/li\u003e\r\n \u003cli\u003eExpand 1-Ch CAN and 2-Ch RS485--- 1-Ch CAN,: adopts MCP2515 controller and CAN transceiver, converts SPI to CAN. 2-Ch RS485: adopts SC16IS752+SP3485 dual-chip combination, converts SPI to RS485.\u003c\/li\u003e\r\n \u003cli\u003eIndustrial Grade Isolation Protection--- Onboard unibody power supply isolation, providing stable isolated voltage, no extra power supply required for the isolated terminal. Onboard unibody digital isolation, for isolating the signal, reliable and jamproof, low power consumption.\u003c\/li\u003e\r\n \u003cli\u003eOnboard power conversion circuit, supports 8~28V wide voltage power supply, can power the RPi at the same time. Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, light-ning-proof \u0026amp; anti-electrostatic.\u003c\/li\u003e\r\n \u003cli\u003eOnboard resettable fuse and protection diodes, ensures the current\/voltage stable outputs, provides over-current\/over-voltage proof, improves shock proof performance. Onboard 120 terminal resistor, configured by jumper.\u003c\/li\u003e\r\n \u003cli\u003eOnboard terminals and pin headers, more convenient connection. Breakout SPI control pins, for connecting with host control boards.\u003c\/li\u003e\r\n \u003cli\u003eComes with relevant resources and tutorials to help you get started quickly: bit.ly\/3fk7v5w\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2025-10-14T19:52:41+11:00","created_at":"2025-10-14T19:52:37+11:00","vendor":"UeeKKoo","type":"","tags":["electronics_selected_Oct2025"],"price":14900,"price_min":14900,"price_max":14900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":48869941739757,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0F193JH4J","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Industrial Isolated RS485 CAN HAT Compatible with Raspberry Pi 5\/4B\/3B+\/3B\/ZeroW\/WH\/Zero 2W\/Pico W\/Pico 2 W, Expand 2-Ch RS485 and 1-CH CAN, SPI Communication, Bulit-in Multi Protections","public_title":null,"options":["Default Title"],"price":14900,"weight":9,"compare_at_price":null,"inventory_management":"shopify","barcode":"RS485 CAN HAT (B)","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/leoforward.com\/cdn\/shop\/files\/B0F193JH4J.jpg?v=1775786934","\/\/leoforward.com\/cdn\/shop\/files\/81xSsTTd51L.jpg?v=1760431959","\/\/leoforward.com\/cdn\/shop\/files\/81MIkFdXP-L.jpg?v=1760431959","\/\/leoforward.com\/cdn\/shop\/files\/81dkJw1K8PL.jpg?v=1760431960","\/\/leoforward.com\/cdn\/shop\/files\/81iG5dhoHnL.jpg?v=1760431960","\/\/leoforward.com\/cdn\/shop\/files\/71kpIR185aL.jpg?v=1760431960","\/\/leoforward.com\/cdn\/shop\/files\/81GLR_ltnOL.jpg?v=1760431959","\/\/leoforward.com\/cdn\/shop\/files\/71t2y0RfGsL.jpg?v=1760431959","\/\/leoforward.com\/cdn\/shop\/files\/71lvub7Nr9L.jpg?v=1760431959"],"featured_image":"\/\/leoforward.com\/cdn\/shop\/files\/B0F193JH4J.jpg?v=1775786934","options":["Title"],"media":[{"alt":null,"id":36900452139245,"position":1,"preview_image":{"aspect_ratio":1.259,"height":2033,"width":2560,"src":"\/\/leoforward.com\/cdn\/shop\/files\/B0F193JH4J.jpg?v=1775786934"},"aspect_ratio":1.259,"height":2033,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/B0F193JH4J.jpg?v=1775786934","width":2560},{"alt":null,"id":36900452172013,"position":2,"preview_image":{"aspect_ratio":1.259,"height":2033,"width":2560,"src":"\/\/leoforward.com\/cdn\/shop\/files\/81xSsTTd51L.jpg?v=1760431959"},"aspect_ratio":1.259,"height":2033,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/81xSsTTd51L.jpg?v=1760431959","width":2560},{"alt":null,"id":36900452204781,"position":3,"preview_image":{"aspect_ratio":1.259,"height":2033,"width":2560,"src":"\/\/leoforward.com\/cdn\/shop\/files\/81MIkFdXP-L.jpg?v=1760431959"},"aspect_ratio":1.259,"height":2033,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/81MIkFdXP-L.jpg?v=1760431959","width":2560},{"alt":null,"id":36900452237549,"position":4,"preview_image":{"aspect_ratio":1.259,"height":2033,"width":2560,"src":"\/\/leoforward.com\/cdn\/shop\/files\/81dkJw1K8PL.jpg?v=1760431960"},"aspect_ratio":1.259,"height":2033,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/81dkJw1K8PL.jpg?v=1760431960","width":2560},{"alt":null,"id":36900452270317,"position":5,"preview_image":{"aspect_ratio":1.259,"height":2033,"width":2560,"src":"\/\/leoforward.com\/cdn\/shop\/files\/81iG5dhoHnL.jpg?v=1760431960"},"aspect_ratio":1.259,"height":2033,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/81iG5dhoHnL.jpg?v=1760431960","width":2560},{"alt":null,"id":36900452303085,"position":6,"preview_image":{"aspect_ratio":1.259,"height":2033,"width":2560,"src":"\/\/leoforward.com\/cdn\/shop\/files\/71kpIR185aL.jpg?v=1760431960"},"aspect_ratio":1.259,"height":2033,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/71kpIR185aL.jpg?v=1760431960","width":2560},{"alt":null,"id":36900452335853,"position":7,"preview_image":{"aspect_ratio":1.259,"height":2033,"width":2560,"src":"\/\/leoforward.com\/cdn\/shop\/files\/81GLR_ltnOL.jpg?v=1760431959"},"aspect_ratio":1.259,"height":2033,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/81GLR_ltnOL.jpg?v=1760431959","width":2560},{"alt":null,"id":36900452368621,"position":8,"preview_image":{"aspect_ratio":1.259,"height":2033,"width":2560,"src":"\/\/leoforward.com\/cdn\/shop\/files\/71t2y0RfGsL.jpg?v=1760431959"},"aspect_ratio":1.259,"height":2033,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/71t2y0RfGsL.jpg?v=1760431959","width":2560},{"alt":null,"id":36900452401389,"position":9,"preview_image":{"aspect_ratio":1.333,"height":1200,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/files\/71lvub7Nr9L.jpg?v=1760431959"},"aspect_ratio":1.333,"height":1200,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/71lvub7Nr9L.jpg?v=1760431959","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eIndustrial Isolated RS485 CAN HAT Compatible with Raspberry Pi 5\/4B\/3B+\/3B\/ZeroW\/WH\/Zero 2W\/Pico W\/Pico 2 W, Expand 2-Ch RS485 and 1-CH CAN, SPI Communication, Bulit-in Multi Protections\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003e\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eIsolated RS485 CAN HAT (B), Standard Pi 40PIN GPIO Header, Compatible with Raspberry Pi Series Boards, Bulit-in Multi Protections. It Enable Isolated And Stable RS485 And CAN Capability For Your RPi.\u003c\/li\u003e\r\n \u003cli\u003eExpand 1-Ch CAN and 2-Ch RS485--- 1-Ch CAN,: adopts MCP2515 controller and CAN transceiver, converts SPI to CAN. 2-Ch RS485: adopts SC16IS752+SP3485 dual-chip combination, converts SPI to RS485.\u003c\/li\u003e\r\n \u003cli\u003eIndustrial Grade Isolation Protection--- Onboard unibody power supply isolation, providing stable isolated voltage, no extra power supply required for the isolated terminal. Onboard unibody digital isolation, for isolating the signal, reliable and jamproof, low power consumption.\u003c\/li\u003e\r\n \u003cli\u003eOnboard power conversion circuit, supports 8~28V wide voltage power supply, can power the RPi at the same time. Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, light-ning-proof \u0026amp; anti-electrostatic.\u003c\/li\u003e\r\n \u003cli\u003eOnboard resettable fuse and protection diodes, ensures the current\/voltage stable outputs, provides over-current\/over-voltage proof, improves shock proof performance. Onboard 120 terminal resistor, configured by jumper.\u003c\/li\u003e\r\n \u003cli\u003eOnboard terminals and pin headers, more convenient connection. Breakout SPI control pins, for connecting with host control boards.\u003c\/li\u003e\r\n \u003cli\u003eComes with relevant resources and tutorials to help you get started quickly: bit.ly\/3fk7v5w\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
