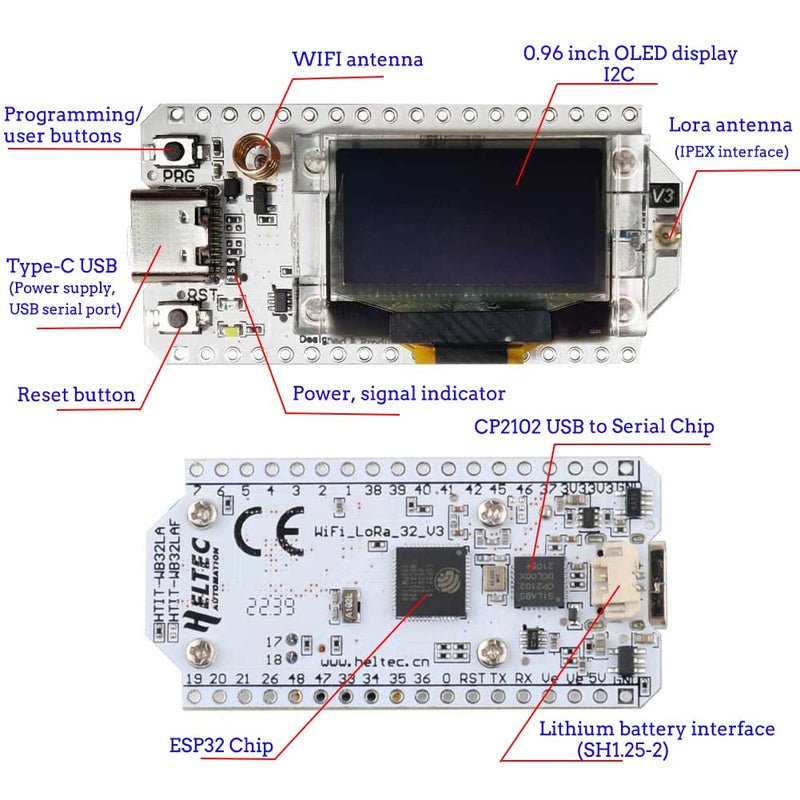

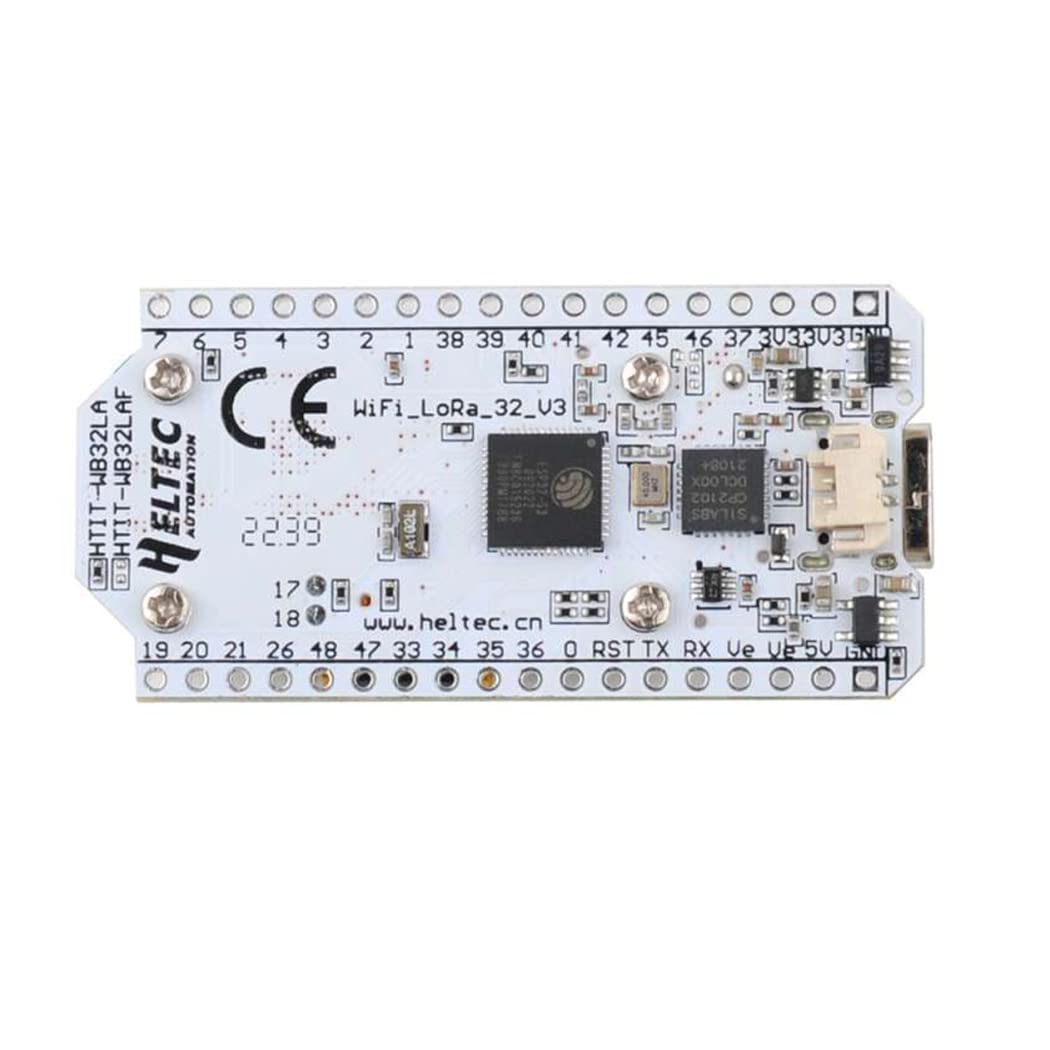

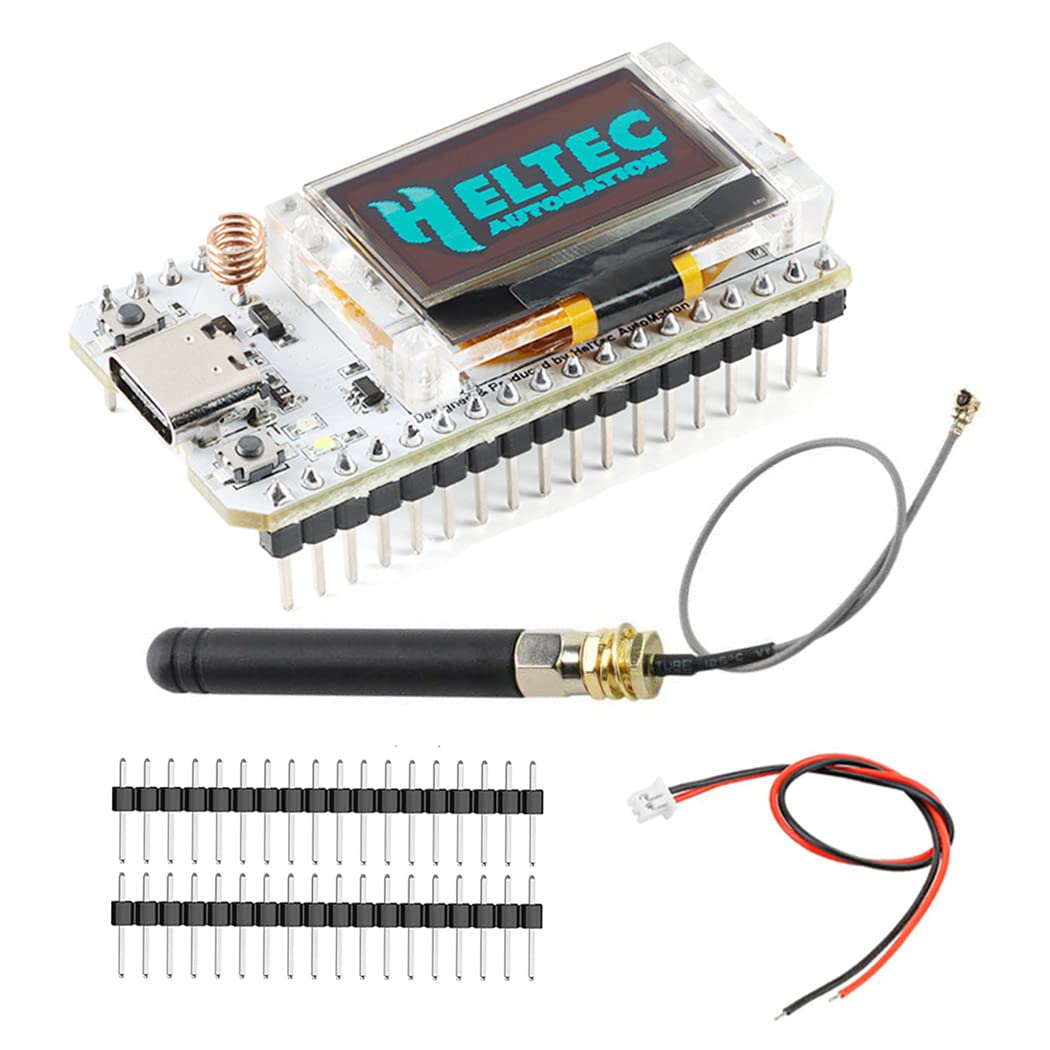

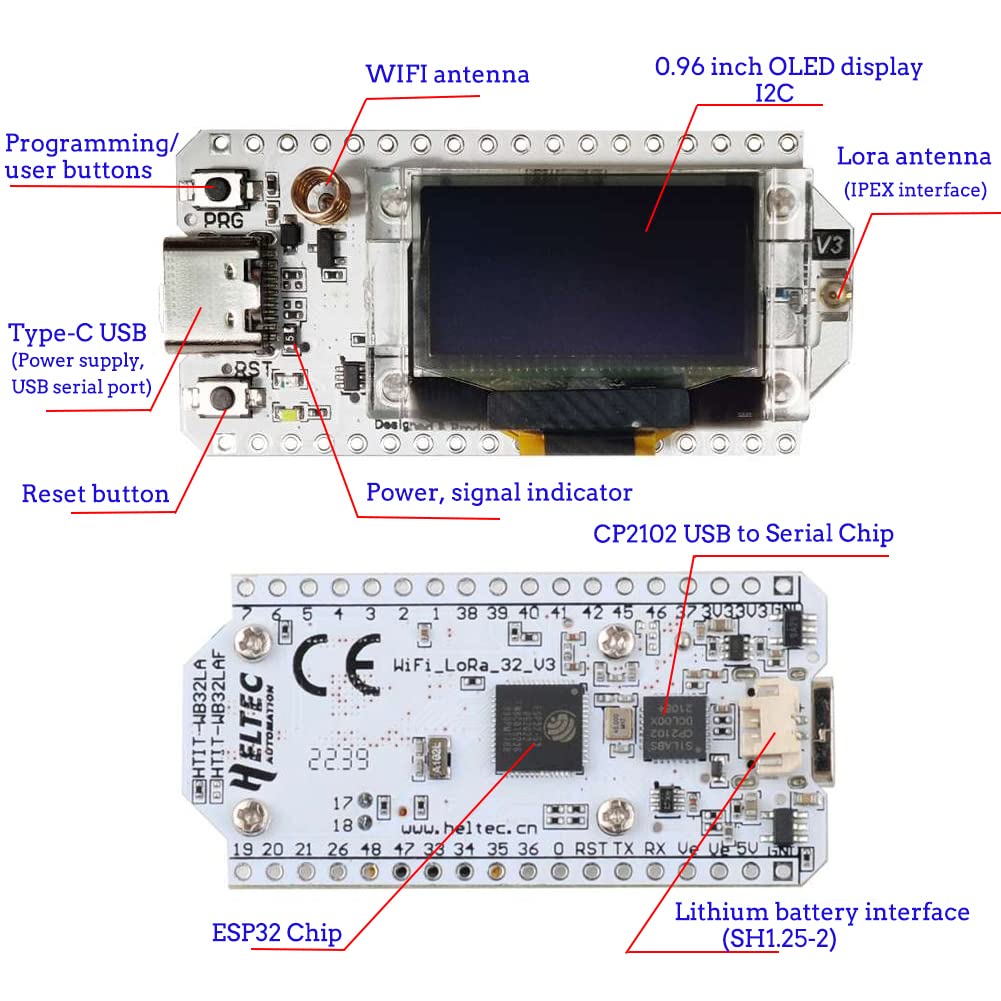

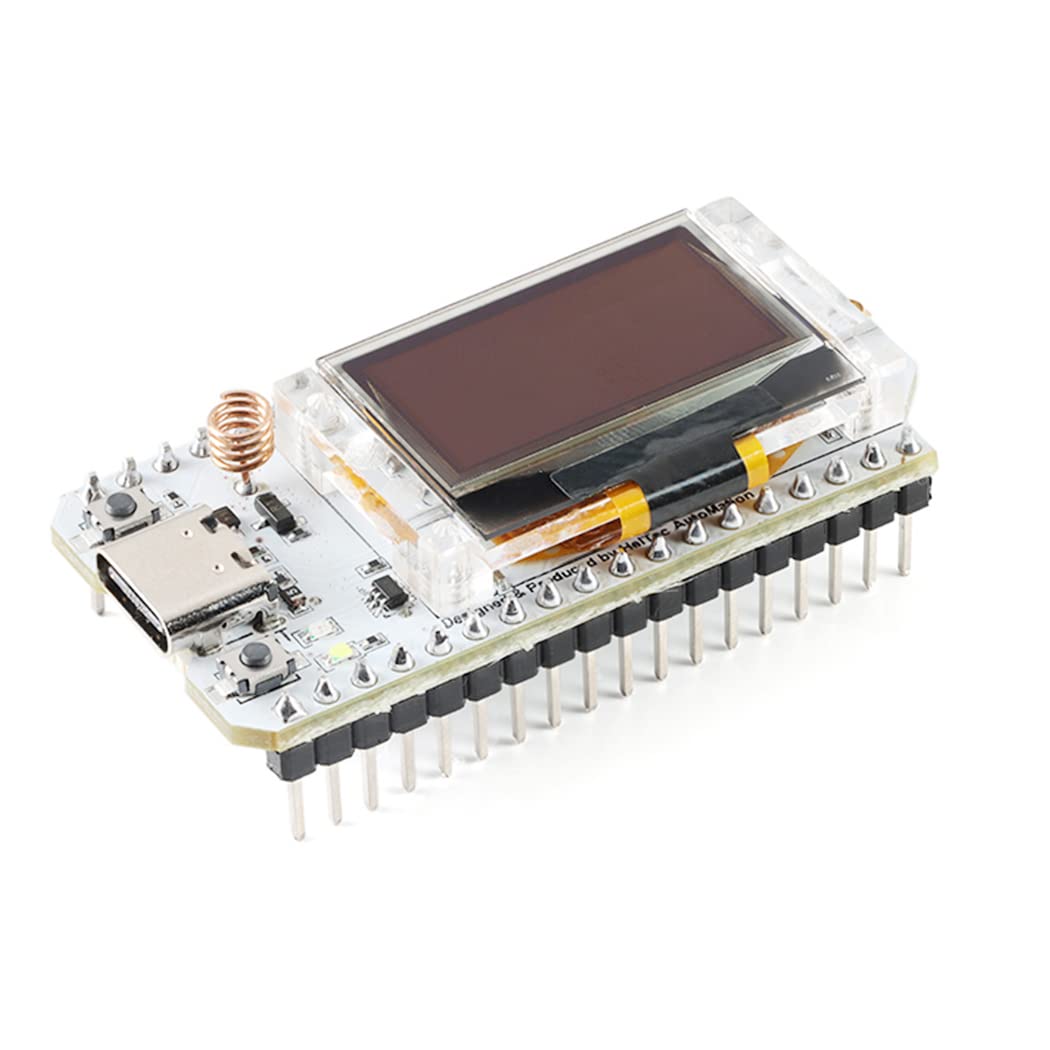

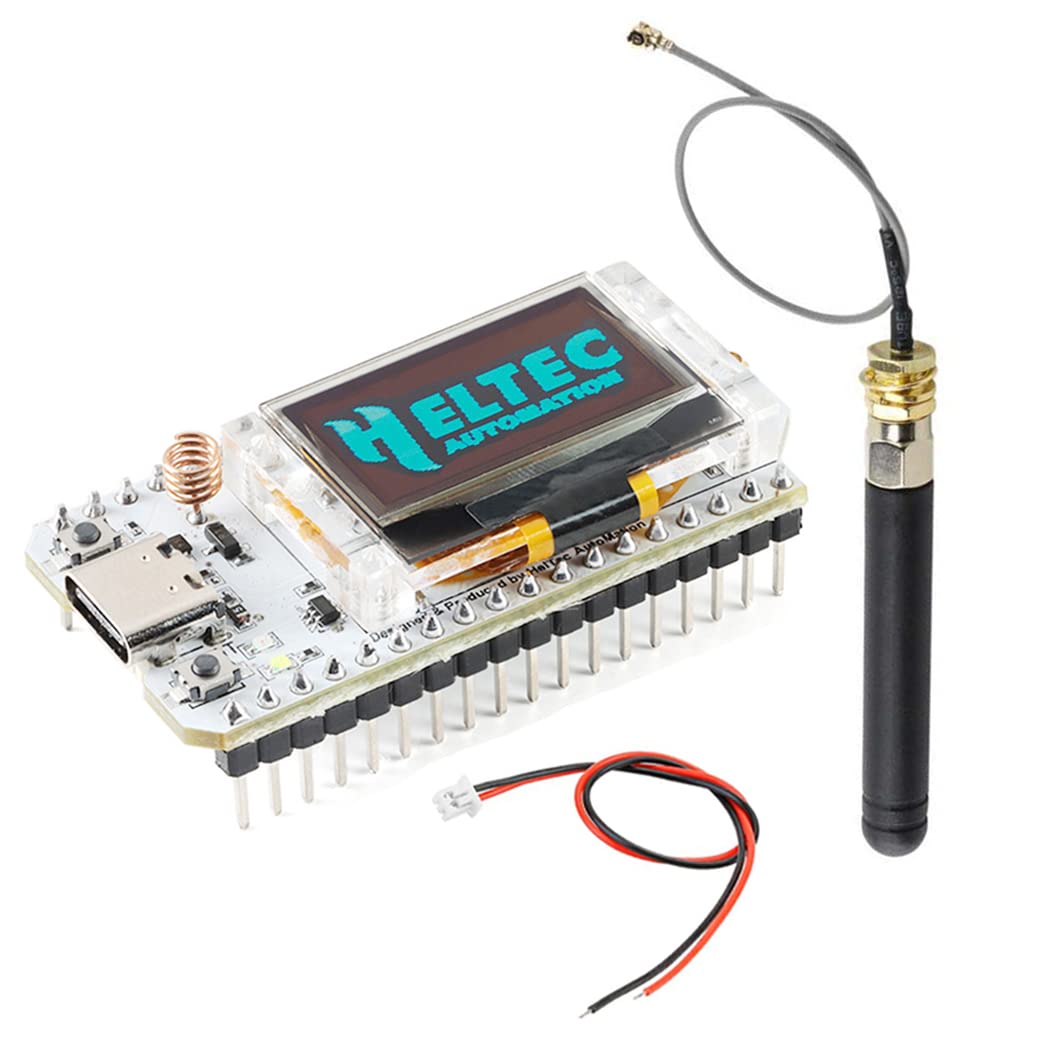

{"id":9143277125869,"title":"HiLetgo ESP32 V3 LoRa V3 SX1262 0.96 inch OLED Display Development Board WiFi Bluetooth Dual Core 240MHz CP2102 and 863-928MHz Antenna for Arduino Smart Home WiFi LoRa 32(Unsoldered)","handle":"hiletgo-esp32-v3-lora-v3-sx1262-0-96-inch-oled-display-development-board-wifi-bluetooth-dual-core-240mhz-cp2102-and-863-928mhz-antenna-for-arduino-smart-home-wifi-lora-32unsoldered","description":"\u003ch3\u003eHiLetgo ESP32 V3 LoRa V3 SX1262 0.96 inch OLED Display Development Board WiFi Bluetooth Dual Core 240MHz CP2102 and 863-928MHz Antenna for Arduino Smart Home WiFi LoRa 32(Unsoldered)\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eHiLetgo ESP32 LoRa V3 SX1262 0.96 inch OLED Display Development Board WIFI\r\nBluetooth Dual Core 240MHz CP2102 and 863-928MHz Antenna for Arduino Smart\r\nWIFI LoRa 32 Description: This product is based on the WIFI Kit 32 added\r\nSX1262 chip, that is, LoRa remote modem, 868MHz frequency, about -139dBm high\r\nsensitivity, +20 dBm power output, high reliability, transmission distance\r\n(measured open area communication distance 3.6Km). Onboard 32MByte Flash, Wi-\r\nFi antenna, 0.96-inch blue OLED display, lithium battery charging circuit and\r\ninterface, CP2102 USB to serial chip, the perfect support for Arduino\r\ndevelopment environment, can be very simple and fast for program verification\r\nand product development. Specification: Operating voltage: 3.3V to 7V\r\nOperating temperature range: -40 ° C to + 90 ° C Supports Sniffer, Station,\r\nsoftAP and Wi-Fi Direct modes Data rate: 150 Mbps 11n HT40,72 Mbps 11n HT20,54\r\nMbps 11g, 11 Mbps 11b Transmit power: 19.5 dBm 11b, 16.5 dBm 11g, 15.5 dBm 11n\r\nReceiver sensitivity up to - 139 dBm UDP continues to throughput by 135 Mbps\r\nPackage Including: 1 ESP32 LoRa V3 Development Board with OLED display 1 \r\n863-928MHz Antenna 1 Pin sticker 2 Pin headers\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eMicroprocessor: ESP32-S3FN8 dual-core processor, frequency up to 240 MHz\u003c\/li\u003e\r\n \u003cli\u003eSX1262 LoRa node chip.\u003c\/li\u003e\r\n \u003cli\u003eOnboard SH1.25-2 battery interface, integrated lithium battery management system\u003c\/li\u003e\r\n \u003cli\u003eOnboard 0.96-inch 128*64 dot matrix OLED display\u003c\/li\u003e\r\n \u003cli\u003eIntegrated CP2102 USB to serial port chip, convenient for program downloading, and debugging information printing.\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2025-10-17T03:20:56+11:00","created_at":"2025-10-17T03:20:53+11:00","vendor":"HiLetgo","type":"","tags":["electronics_selected_Oct2025"],"price":15300,"price_min":15300,"price_max":15300,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":48882118820077,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07WHRS2XG","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"HiLetgo ESP32 V3 LoRa V3 SX1262 0.96 inch OLED Display Development Board WiFi Bluetooth Dual Core 240MHz CP2102 and 863-928MHz Antenna for Arduino Smart Home WiFi LoRa 32(Unsoldered)","public_title":null,"options":["Default Title"],"price":15300,"weight":30,"compare_at_price":null,"inventory_management":"shopify","barcode":"3-01-1496","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/leoforward.com\/cdn\/shop\/files\/B07WHRS2XG.jpg?v=1775789103","\/\/leoforward.com\/cdn\/shop\/files\/61Gnrq_wboL.jpg?v=1760631655","\/\/leoforward.com\/cdn\/shop\/files\/51dTEXYC5mL.jpg?v=1760631655","\/\/leoforward.com\/cdn\/shop\/files\/51BWzY1DLTL.jpg?v=1760631655","\/\/leoforward.com\/cdn\/shop\/files\/61yaq4B9kzL.jpg?v=1760631655","\/\/leoforward.com\/cdn\/shop\/files\/51NM2jk-qgL.jpg?v=1760631655"],"featured_image":"\/\/leoforward.com\/cdn\/shop\/files\/B07WHRS2XG.jpg?v=1775789103","options":["Title"],"media":[{"alt":null,"id":36919818518765,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1050,"width":1050,"src":"\/\/leoforward.com\/cdn\/shop\/files\/B07WHRS2XG.jpg?v=1775789103"},"aspect_ratio":1.0,"height":1050,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/B07WHRS2XG.jpg?v=1775789103","width":1050},{"alt":null,"id":36919818551533,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1050,"width":1050,"src":"\/\/leoforward.com\/cdn\/shop\/files\/61Gnrq_wboL.jpg?v=1760631655"},"aspect_ratio":1.0,"height":1050,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/61Gnrq_wboL.jpg?v=1760631655","width":1050},{"alt":null,"id":36919818584301,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1050,"width":1050,"src":"\/\/leoforward.com\/cdn\/shop\/files\/51dTEXYC5mL.jpg?v=1760631655"},"aspect_ratio":1.0,"height":1050,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/51dTEXYC5mL.jpg?v=1760631655","width":1050},{"alt":null,"id":36919818617069,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1050,"width":1050,"src":"\/\/leoforward.com\/cdn\/shop\/files\/51BWzY1DLTL.jpg?v=1760631655"},"aspect_ratio":1.0,"height":1050,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/51BWzY1DLTL.jpg?v=1760631655","width":1050},{"alt":null,"id":36919818649837,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/leoforward.com\/cdn\/shop\/files\/61yaq4B9kzL.jpg?v=1760631655"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/61yaq4B9kzL.jpg?v=1760631655","width":1001},{"alt":null,"id":36919818682605,"position":6,"preview_image":{"aspect_ratio":1.674,"height":598,"width":1001,"src":"\/\/leoforward.com\/cdn\/shop\/files\/51NM2jk-qgL.jpg?v=1760631655"},"aspect_ratio":1.674,"height":598,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/51NM2jk-qgL.jpg?v=1760631655","width":1001}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eHiLetgo ESP32 V3 LoRa V3 SX1262 0.96 inch OLED Display Development Board WiFi Bluetooth Dual Core 240MHz CP2102 and 863-928MHz Antenna for Arduino Smart Home WiFi LoRa 32(Unsoldered)\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eHiLetgo ESP32 LoRa V3 SX1262 0.96 inch OLED Display Development Board WIFI\r\nBluetooth Dual Core 240MHz CP2102 and 863-928MHz Antenna for Arduino Smart\r\nWIFI LoRa 32 Description: This product is based on the WIFI Kit 32 added\r\nSX1262 chip, that is, LoRa remote modem, 868MHz frequency, about -139dBm high\r\nsensitivity, +20 dBm power output, high reliability, transmission distance\r\n(measured open area communication distance 3.6Km). Onboard 32MByte Flash, Wi-\r\nFi antenna, 0.96-inch blue OLED display, lithium battery charging circuit and\r\ninterface, CP2102 USB to serial chip, the perfect support for Arduino\r\ndevelopment environment, can be very simple and fast for program verification\r\nand product development. Specification: Operating voltage: 3.3V to 7V\r\nOperating temperature range: -40 ° C to + 90 ° C Supports Sniffer, Station,\r\nsoftAP and Wi-Fi Direct modes Data rate: 150 Mbps 11n HT40,72 Mbps 11n HT20,54\r\nMbps 11g, 11 Mbps 11b Transmit power: 19.5 dBm 11b, 16.5 dBm 11g, 15.5 dBm 11n\r\nReceiver sensitivity up to - 139 dBm UDP continues to throughput by 135 Mbps\r\nPackage Including: 1 ESP32 LoRa V3 Development Board with OLED display 1 \r\n863-928MHz Antenna 1 Pin sticker 2 Pin headers\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eMicroprocessor: ESP32-S3FN8 dual-core processor, frequency up to 240 MHz\u003c\/li\u003e\r\n \u003cli\u003eSX1262 LoRa node chip.\u003c\/li\u003e\r\n \u003cli\u003eOnboard SH1.25-2 battery interface, integrated lithium battery management system\u003c\/li\u003e\r\n \u003cli\u003eOnboard 0.96-inch 128*64 dot matrix OLED display\u003c\/li\u003e\r\n \u003cli\u003eIntegrated CP2102 USB to serial port chip, convenient for program downloading, and debugging information printing.\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
