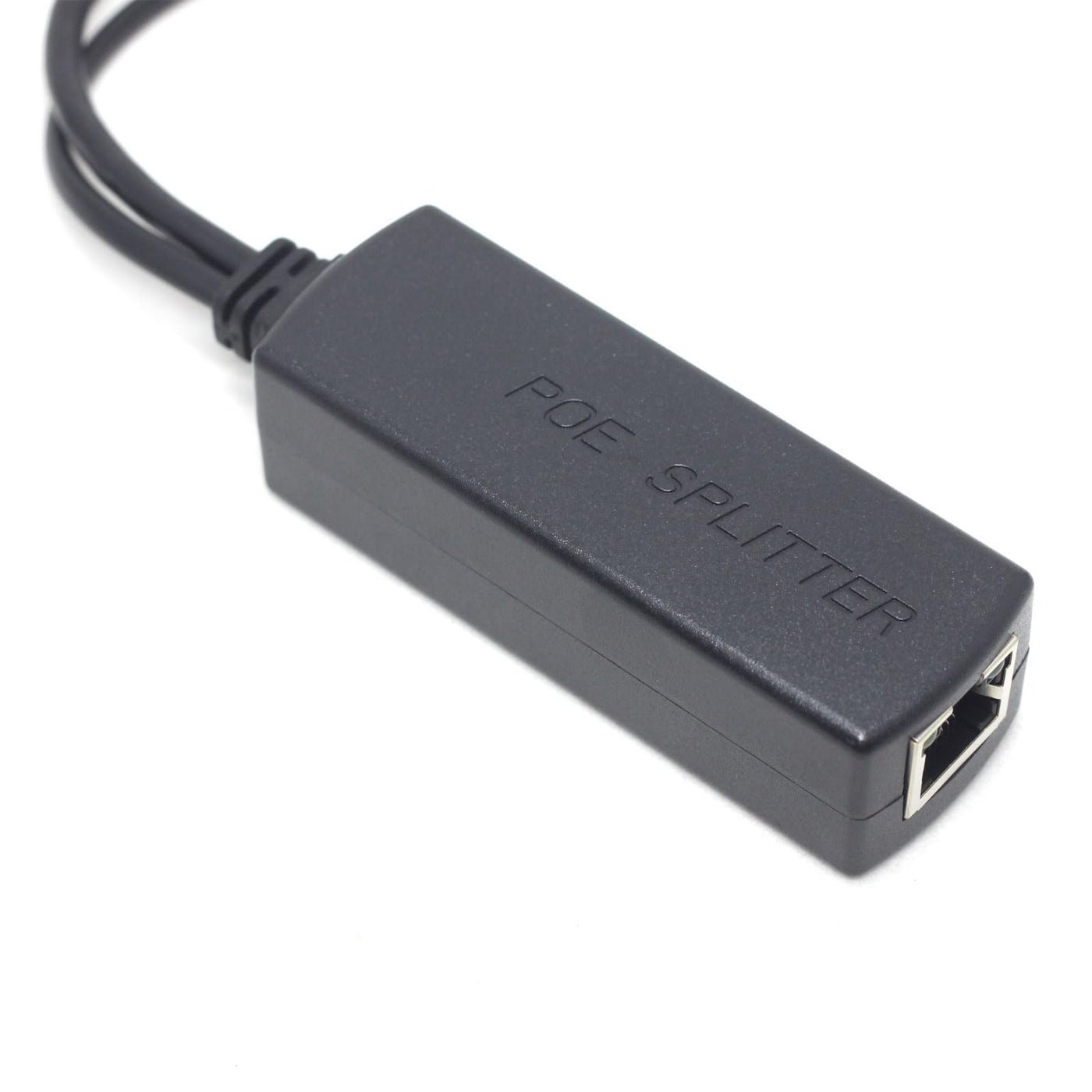

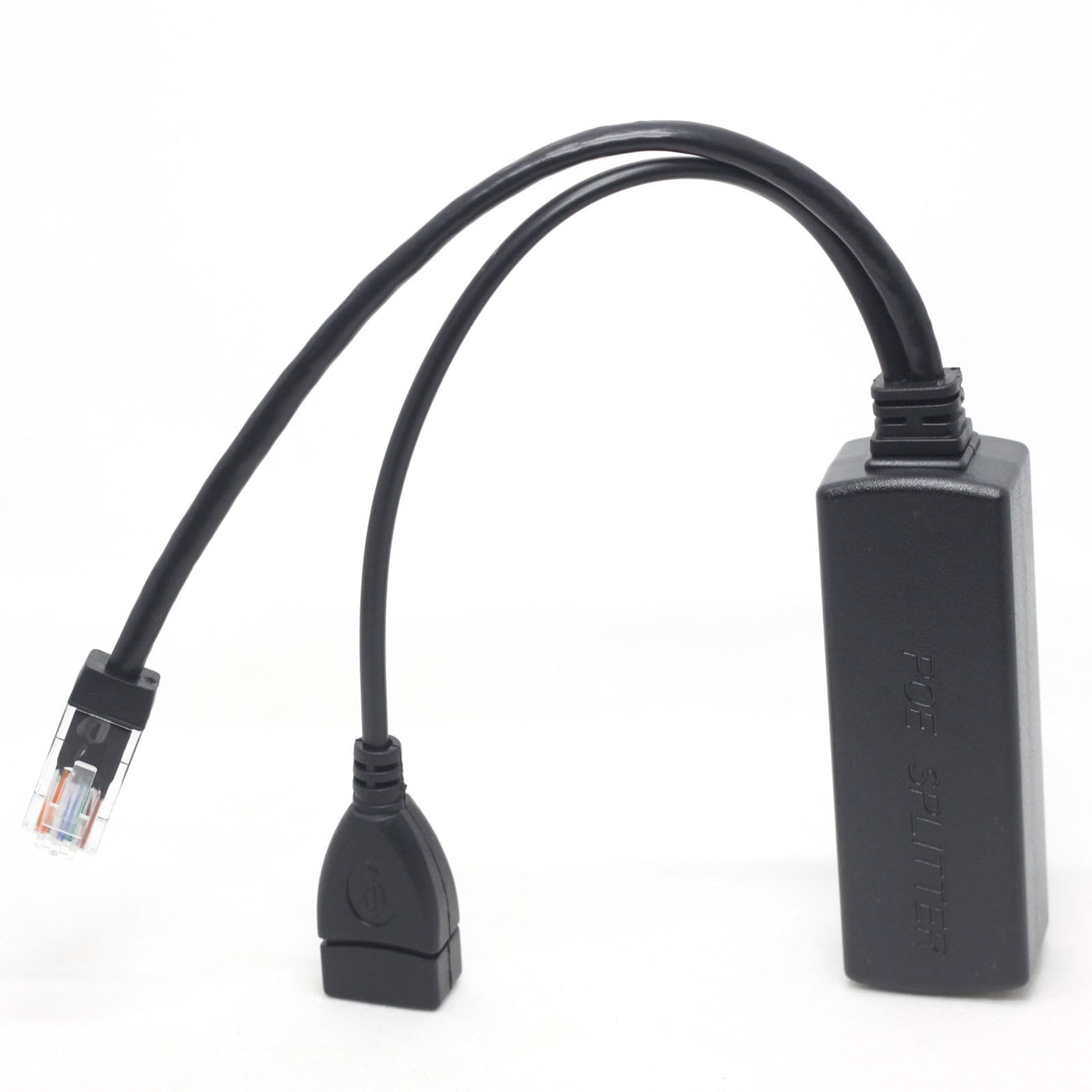

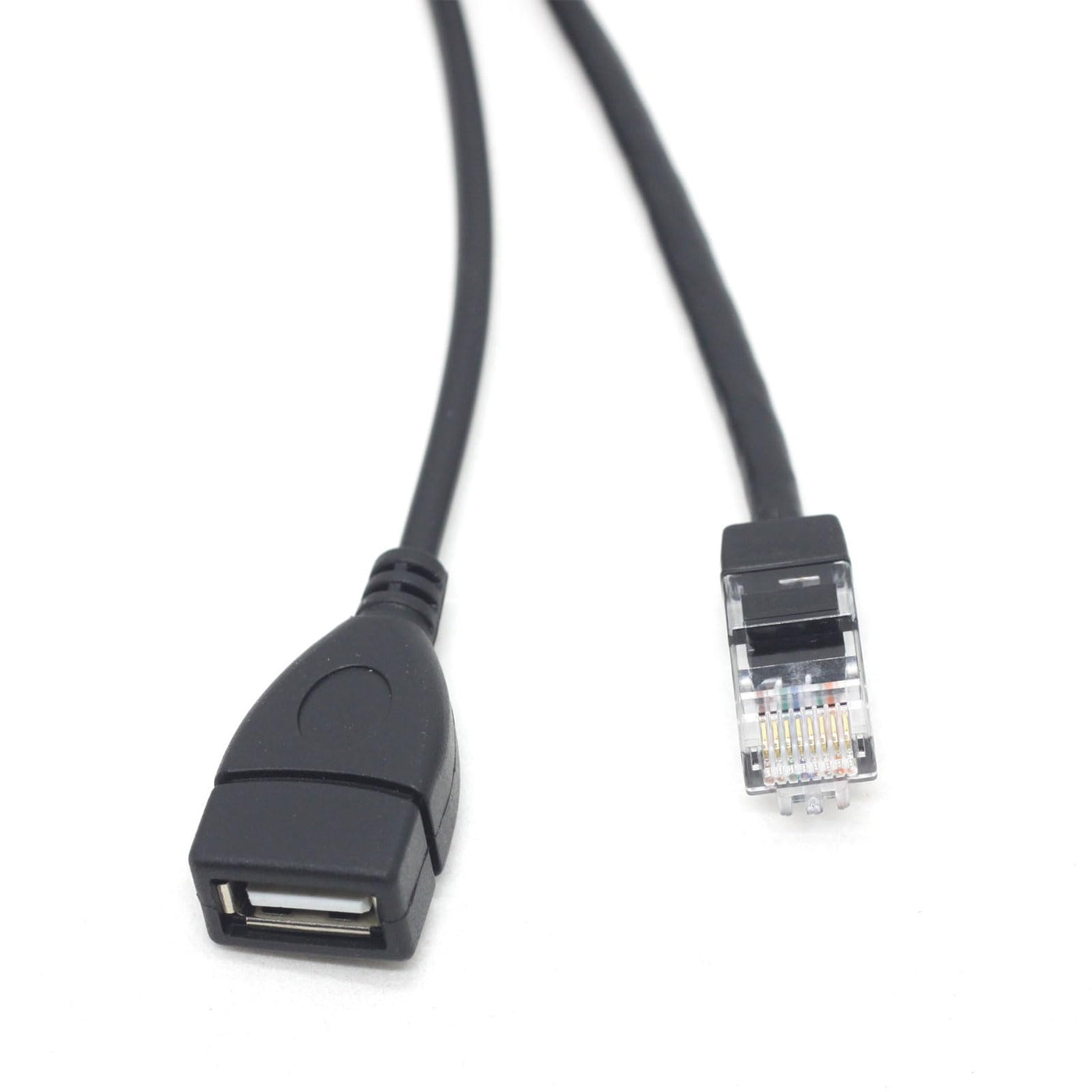

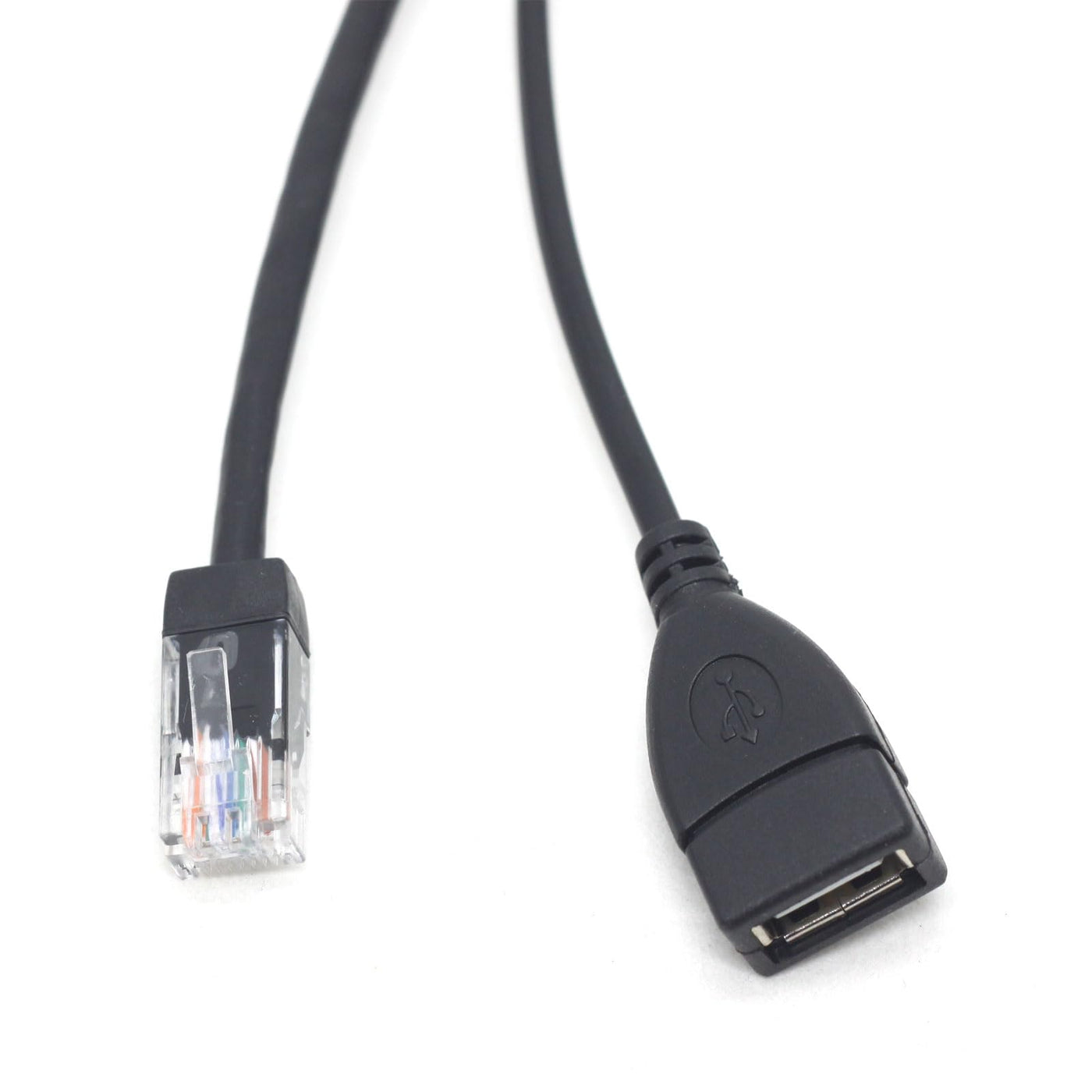

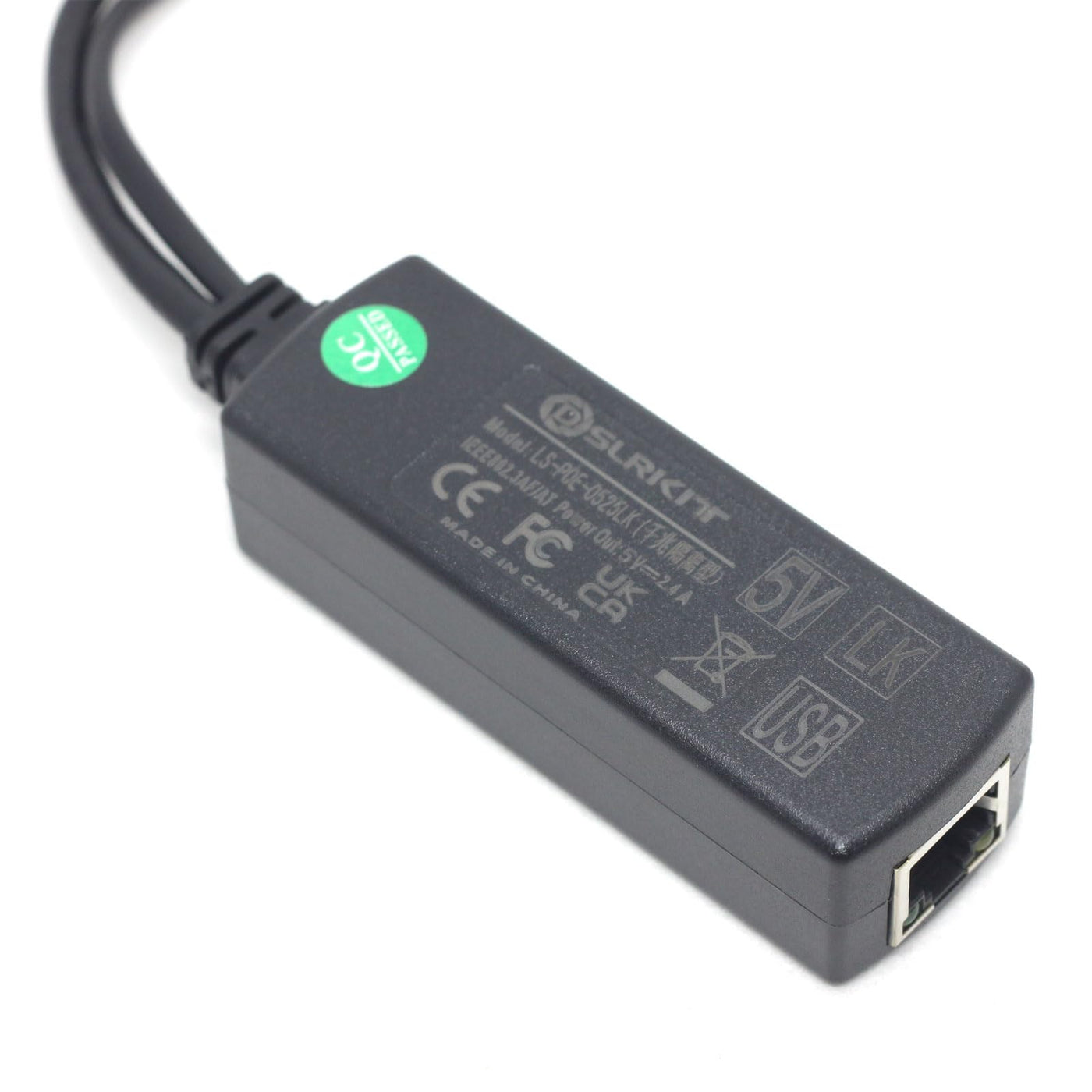

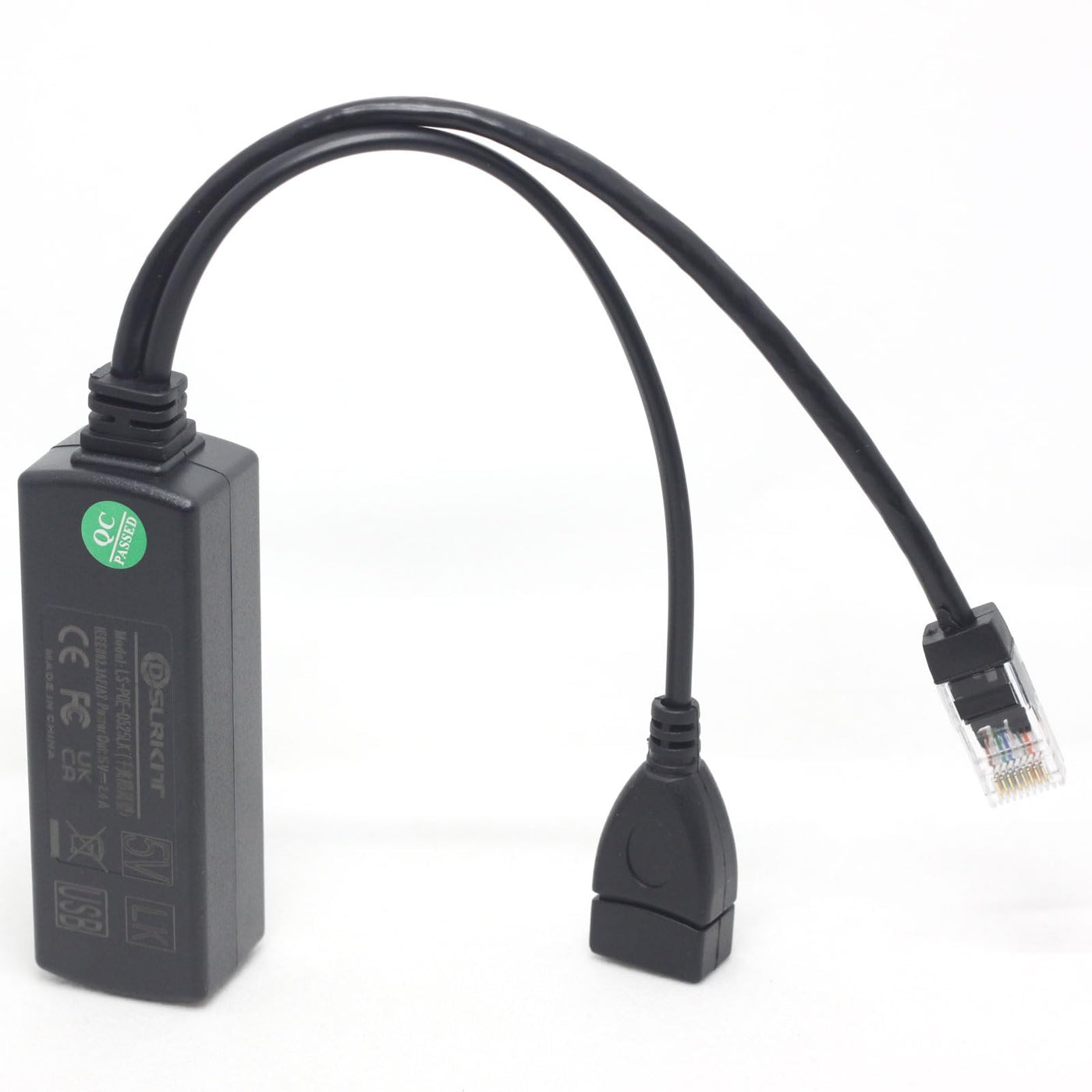

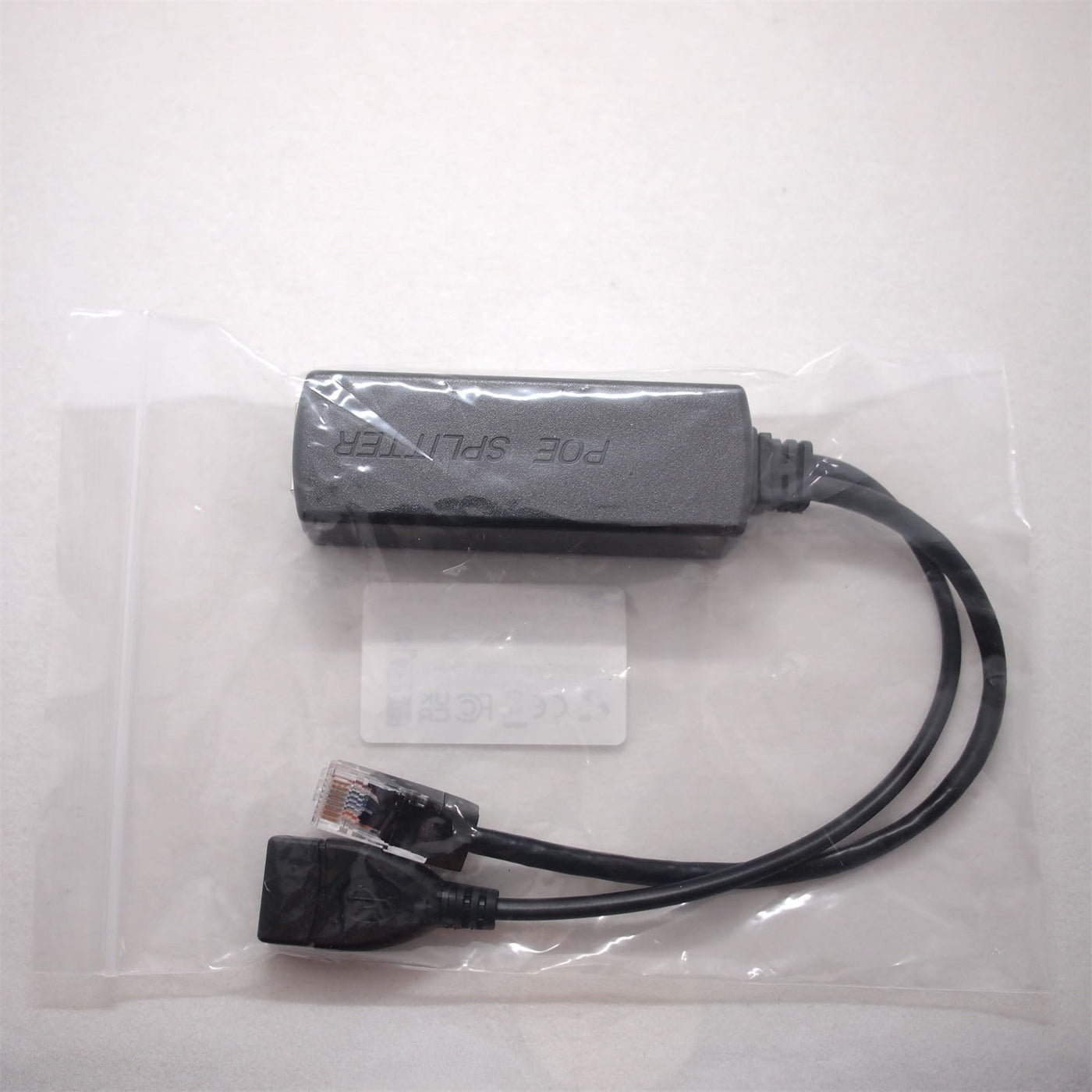

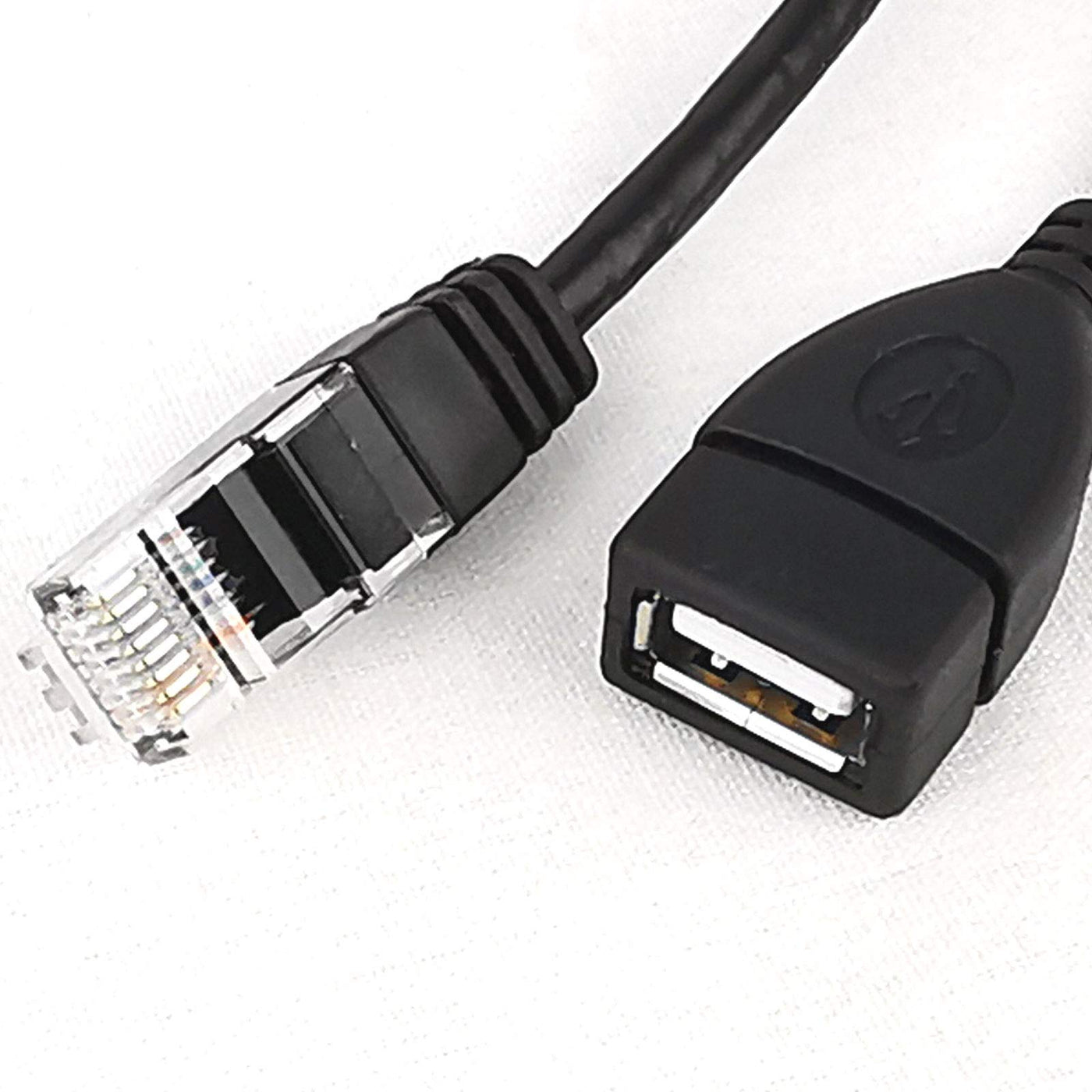

{"id":9152151847149,"title":"Gigabit Ethernet Active PoE Splitter 48V to 5V 2.4A with USB Female Type A Port","handle":"gigabit-ethernet-active-poe-splitter-48v-to-5v-2-4a-with-usb-female-type-a-port","description":"\u003ch3\u003eGigabit Ethernet Active PoE Splitter 48V to 5V 2.4A with USB Female Type A Port\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eSpecification: Compliant with IEEE802.3af Isolation: 2.5kV Power Input(RJ45\r\nfemale): DC44~57V Power Output(USB TYPE A Female): DC5V 2.4A Data\u0026amp;Power INPUT\r\nPort: from RJ45 female (Compliant with IEEE802.3af\/at PoE) Data Output Port:\r\nRJ45 Male Power Output Port: USB TYPE A Female Data Transfer Rate:\r\n10\/100\/1000Mbps Data Pin: RJ45 pin 1,2,3,4,5,6,7,8 Devices will be detected\r\nbefore poe input Power Pin:support both 1\/2(+\/-),3\/6(-\/+) or 4\/5(+),7\/8(-)\r\nBody size: 80 x 27x 22 mm DC cable length：165mm RJ45 Modular Plug cable\r\nlength：155mm Weight : 55g Operation Temperatue:-20℃ ~ 45℃ Storage\r\nTemperature:-30℃ ~ 70℃ RJ45 female INPUT Port: Support the IEEE\r\n802.3af\/802.3at the Power over Ethernet PoE Switch Support 48V-55V Unsolicited\r\nPower Over Ethernet PoE Switch Support 48V-55V Unsolicited Power Over Ethernet\r\nPoE injector Item Included: Gigabit Ethernet 5V2.4A Active PoE Splitter(USB\r\nTYPE A Female) x1 Note: Yellow LED(power) will be light up when USB connects\r\nto the device. Green LED(data) never light in any circumstances. This splitter\r\nallows data to input and output through its RJ45 port, but no indicator on\r\nthis splitter indicates the status of the data transfer. Only one power\r\nindicator shows the working status of the POE. When using 80.3af\/802.3at\r\nstandard PoE switch (or injector) to connect this PoE splitter,and the Power\r\nOutput Port (USB TYPE A Female) is not loaded (unconnected device), the PoE\r\nsplitter will enter standby mode. Data Output Port (RJ45 Male) will not work\r\nat this moment.\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eThe product must be used in conjunction with a PoE switch or PoE injector\u003c\/li\u003e\r\n \u003cli\u003ePower Output Port: USB TYPE A Female Port\u003c\/li\u003e\r\n \u003cli\u003eOutput voltage of 5V, the maximum output current of 2.4A. Suitable for the Tablet PC or mobile and other DC5V device\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2025-10-21T13:34:10+11:00","created_at":"2025-10-21T13:34:05+11:00","vendor":"DSLRKIT","type":"Switches","tags":["electronics_selected_Oct2025"],"price":10800,"price_min":10800,"price_max":10800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":48903906754797,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07W6KM59K","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Gigabit Ethernet Active PoE Splitter 48V to 5V 2.4A with USB Female Type A Port","public_title":null,"options":["Default Title"],"price":10800,"weight":60,"compare_at_price":null,"inventory_management":"shopify","barcode":"G48V-FeUSB","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/leoforward.com\/cdn\/shop\/files\/B07W6KM59K.jpg?v=1775795185","\/\/leoforward.com\/cdn\/shop\/files\/71R4NwSqckL.jpg?v=1761014047","\/\/leoforward.com\/cdn\/shop\/files\/61eiSOmhGfL.jpg?v=1761014047","\/\/leoforward.com\/cdn\/shop\/files\/61WJ-Ord1cL.jpg?v=1761014047","\/\/leoforward.com\/cdn\/shop\/files\/51H9TMppQ6L.jpg?v=1761014047","\/\/leoforward.com\/cdn\/shop\/files\/51pFR8kX69L.jpg?v=1761014047","\/\/leoforward.com\/cdn\/shop\/files\/51P5D4rzsoL.jpg?v=1761014048","\/\/leoforward.com\/cdn\/shop\/files\/61fhYFmV2pL.jpg?v=1761014048"],"featured_image":"\/\/leoforward.com\/cdn\/shop\/files\/B07W6KM59K.jpg?v=1775795185","options":["Title"],"media":[{"alt":null,"id":36943592292589,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/files\/B07W6KM59K.jpg?v=1775795185"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/B07W6KM59K.jpg?v=1775795185","width":1600},{"alt":null,"id":36943592325357,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/files\/71R4NwSqckL.jpg?v=1761014047"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/71R4NwSqckL.jpg?v=1761014047","width":1600},{"alt":null,"id":36943592358125,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/files\/61eiSOmhGfL.jpg?v=1761014047"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/61eiSOmhGfL.jpg?v=1761014047","width":1600},{"alt":null,"id":36943592390893,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/files\/61WJ-Ord1cL.jpg?v=1761014047"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/61WJ-Ord1cL.jpg?v=1761014047","width":1600},{"alt":null,"id":36943592423661,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/files\/51H9TMppQ6L.jpg?v=1761014047"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/51H9TMppQ6L.jpg?v=1761014047","width":1600},{"alt":null,"id":36943592456429,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/files\/51pFR8kX69L.jpg?v=1761014047"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/51pFR8kX69L.jpg?v=1761014047","width":1600},{"alt":null,"id":36943592489197,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/files\/51P5D4rzsoL.jpg?v=1761014048"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/51P5D4rzsoL.jpg?v=1761014048","width":1600},{"alt":null,"id":36943592521965,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/files\/61fhYFmV2pL.jpg?v=1761014048"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/61fhYFmV2pL.jpg?v=1761014048","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eGigabit Ethernet Active PoE Splitter 48V to 5V 2.4A with USB Female Type A Port\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eSpecification: Compliant with IEEE802.3af Isolation: 2.5kV Power Input(RJ45\r\nfemale): DC44~57V Power Output(USB TYPE A Female): DC5V 2.4A Data\u0026amp;Power INPUT\r\nPort: from RJ45 female (Compliant with IEEE802.3af\/at PoE) Data Output Port:\r\nRJ45 Male Power Output Port: USB TYPE A Female Data Transfer Rate:\r\n10\/100\/1000Mbps Data Pin: RJ45 pin 1,2,3,4,5,6,7,8 Devices will be detected\r\nbefore poe input Power Pin:support both 1\/2(+\/-),3\/6(-\/+) or 4\/5(+),7\/8(-)\r\nBody size: 80 x 27x 22 mm DC cable length：165mm RJ45 Modular Plug cable\r\nlength：155mm Weight : 55g Operation Temperatue:-20℃ ~ 45℃ Storage\r\nTemperature:-30℃ ~ 70℃ RJ45 female INPUT Port: Support the IEEE\r\n802.3af\/802.3at the Power over Ethernet PoE Switch Support 48V-55V Unsolicited\r\nPower Over Ethernet PoE Switch Support 48V-55V Unsolicited Power Over Ethernet\r\nPoE injector Item Included: Gigabit Ethernet 5V2.4A Active PoE Splitter(USB\r\nTYPE A Female) x1 Note: Yellow LED(power) will be light up when USB connects\r\nto the device. Green LED(data) never light in any circumstances. This splitter\r\nallows data to input and output through its RJ45 port, but no indicator on\r\nthis splitter indicates the status of the data transfer. Only one power\r\nindicator shows the working status of the POE. When using 80.3af\/802.3at\r\nstandard PoE switch (or injector) to connect this PoE splitter,and the Power\r\nOutput Port (USB TYPE A Female) is not loaded (unconnected device), the PoE\r\nsplitter will enter standby mode. Data Output Port (RJ45 Male) will not work\r\nat this moment.\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eThe product must be used in conjunction with a PoE switch or PoE injector\u003c\/li\u003e\r\n \u003cli\u003ePower Output Port: USB TYPE A Female Port\u003c\/li\u003e\r\n \u003cli\u003eOutput voltage of 5V, the maximum output current of 2.4A. Suitable for the Tablet PC or mobile and other DC5V device\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
