Gardner Bender 25-089 WingGard Twist-On Wire Connectors, 14-6 AWG, Electrical Wire Nut, 10 pk, Blue
Gardner Bender 25-089 WingGard Twist-On Wire Connectors, 14-6 AWG, Electrical Wire Nut, 10 pk, Blue

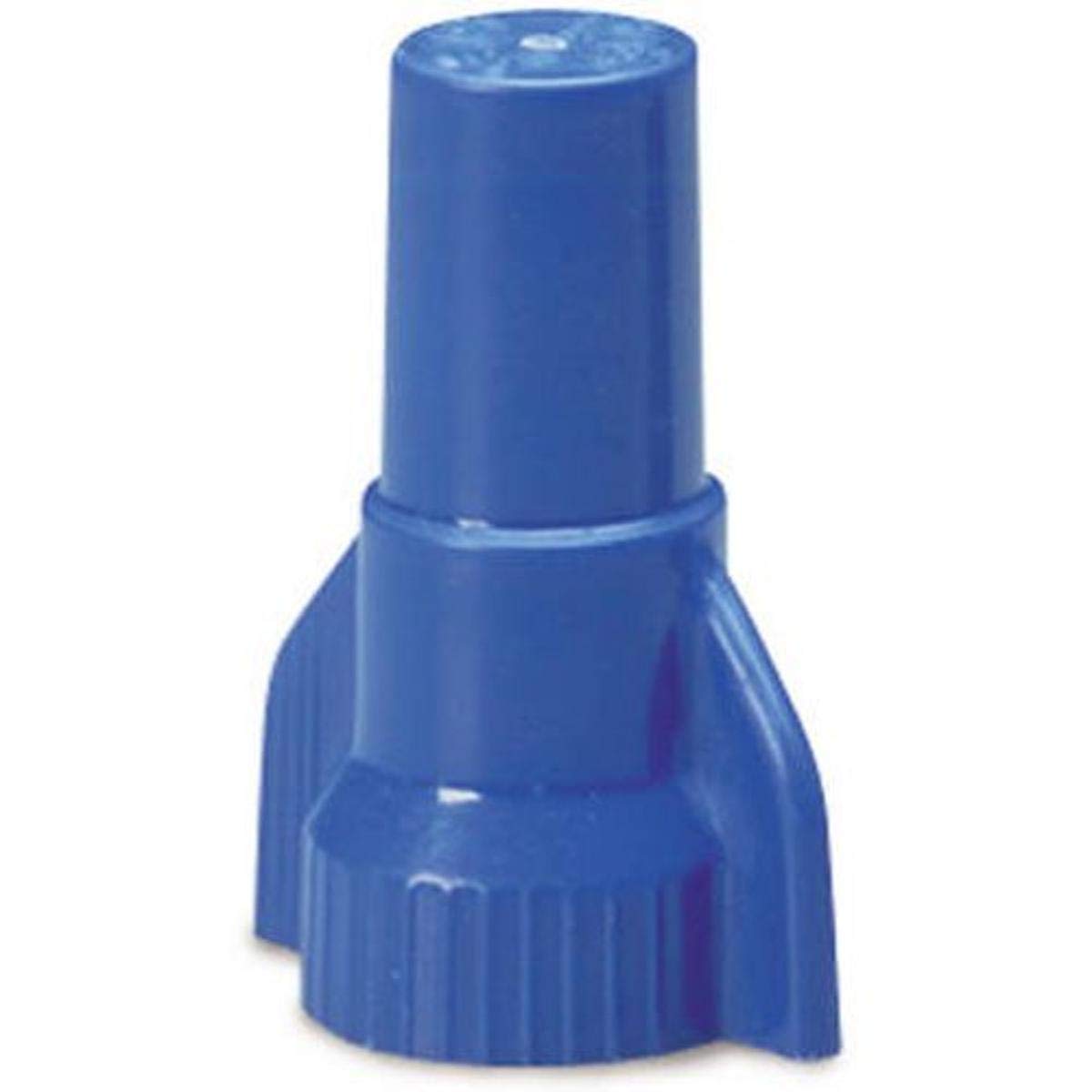

Gardner Bender 25-089 WingGard Twist-On Wire Connectors, 14-6 AWG, Electrical Wire Nut, 10 pk, Blue,Large From the Manufacturer The Gardner Bender Blue WingGard Color-Coded Screw-On Wire Connector makes quick, secure connections with its easy-on wing-type design that provides positive continuity between conductors. The expandable square wire spring creates a strong vibration-resistant connection. The tough, thermoplastic shell shields against environmental extremes, and the high dielectric shell features a deep skirt design to prevent exposure of bare wire while providing superior flash- over protection. The Blue WingGard connector is applicable to wires 14 to 6 AWG with a minimum combination of one 10 with one 12 and a maximum combination of one 6 STR with two 8 STR.
Product Features
- DESIGNED TO LAST: Wings are knurled for a sure grip and offset from centerline for greater twisting leverage. Square wire spring grabs and holds wires for secure connections.
- DESIGNED TO LAST: Square-wire zinc-plated spring instantly adjusts to the shape and size of the splice
- FLAME-RETARDANT TEMPERATURE RATING: Flame-retardant properties resist heat distortion up to 105C / 221F
- HIGH-DIELECTRIC: shell features deep skirt design to prevent exposure of bare wire - COPPER TO COPPER connections only
- STANDARD RATING: 600V max in building wire and at 1000V max in lighting, fixtures/luminaries and signs
- long lasting connections
- WIRE RANGE: 1 #10 with 1 #12 (Min) to 1 #8 Str with #8 Str (Max)
