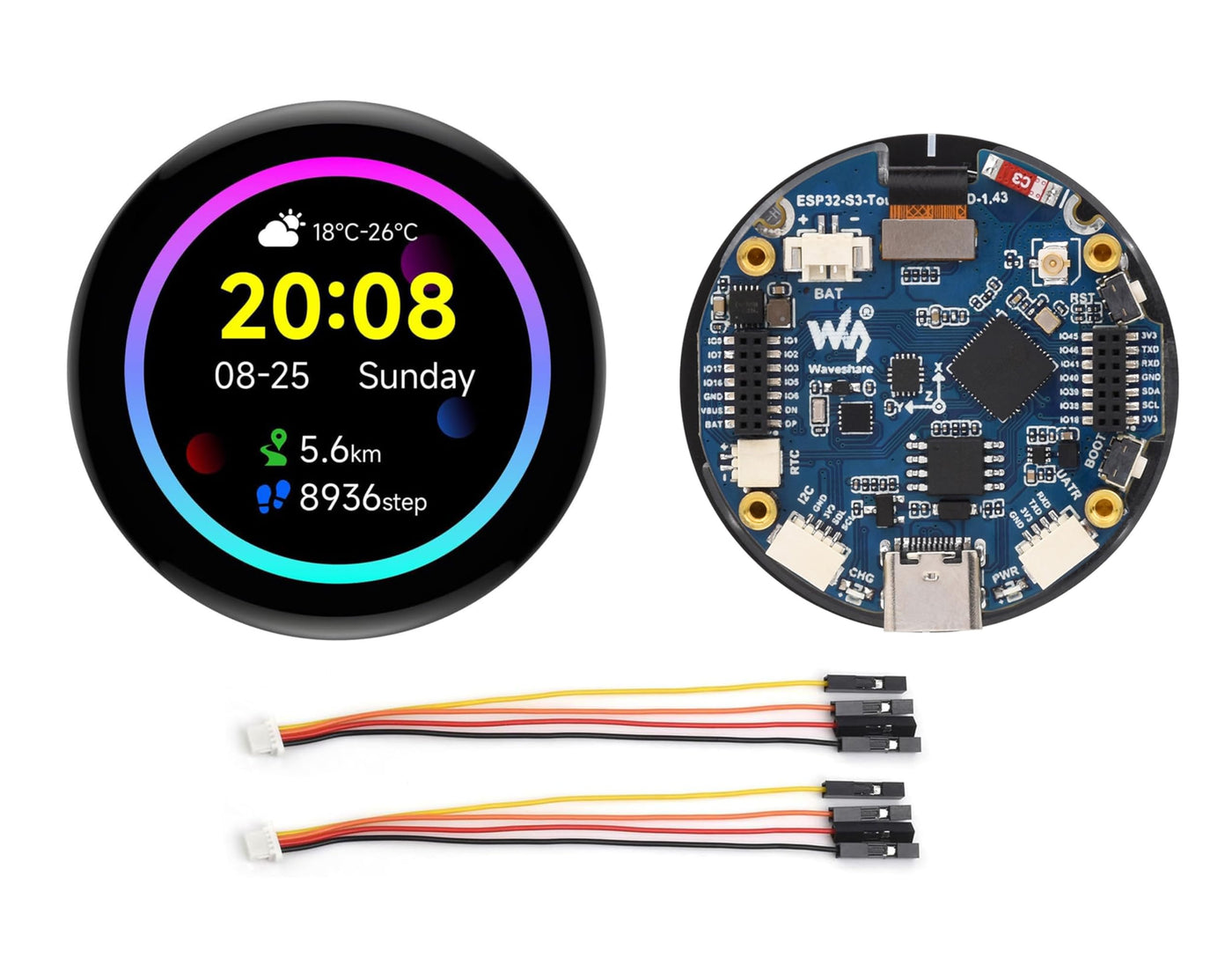

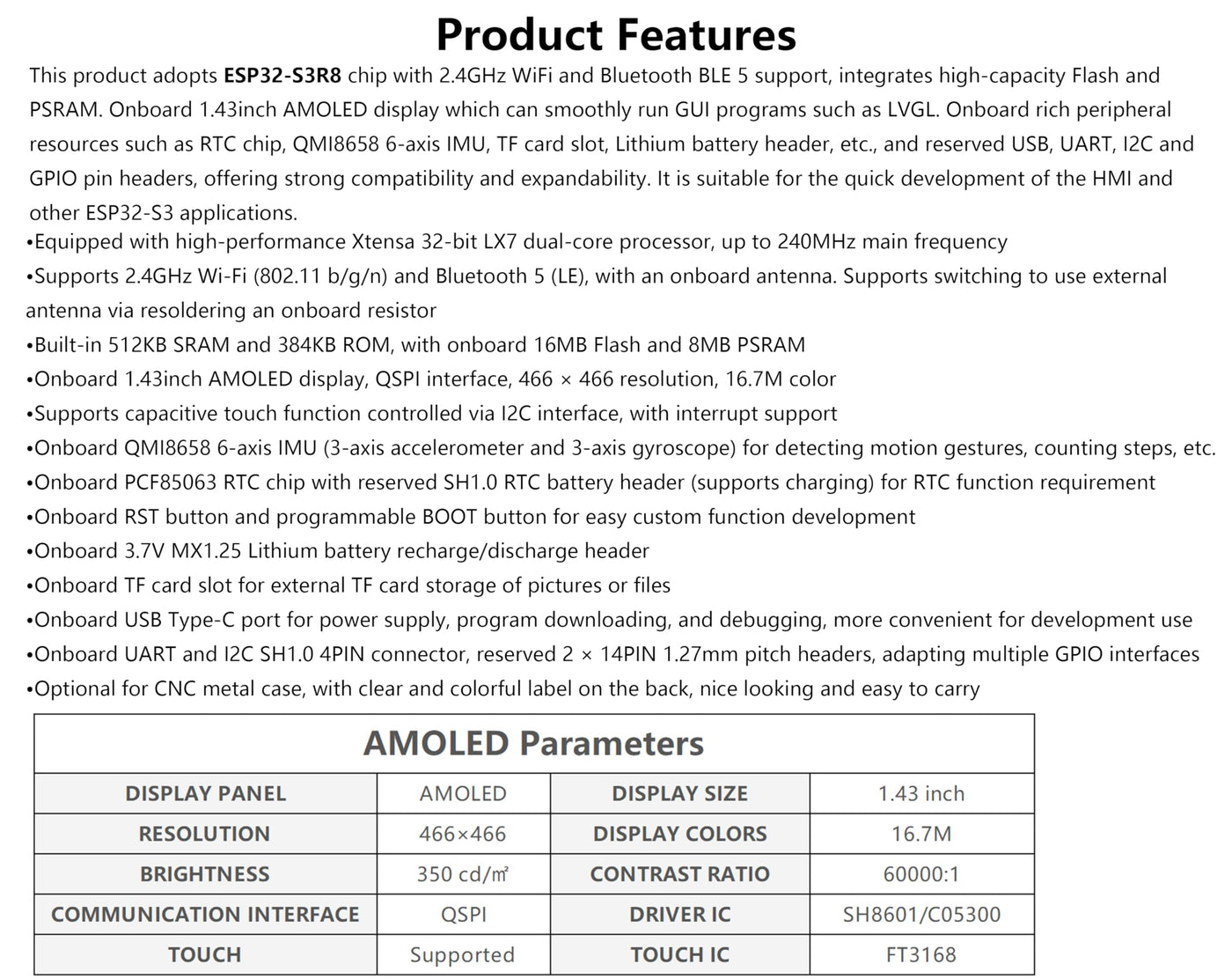

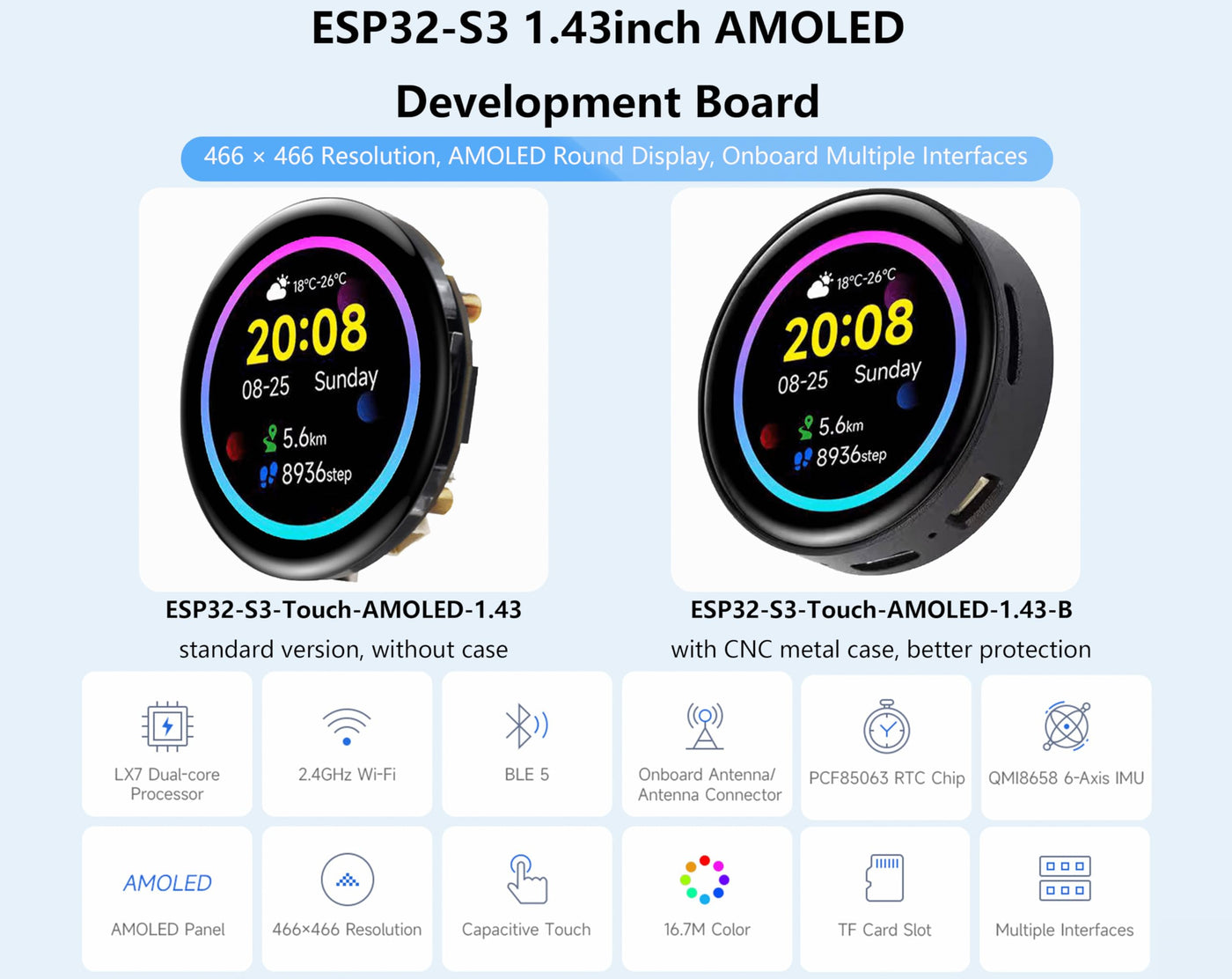

{"id":9151375802605,"title":"ESP32-S3 1.43inch AMOLED Display Development Board, 466×466 Resolution 16.7M Color QSPI Interface, ESP32 with Capacitive Touch AMOLED Round LCD, Support 2.4 GHz Wi-Fi and Bluetooth 5","handle":"esp32-s3-1-43inch-amoled-display-development-board-466-466-resolution-16-7m-color-qspi-interface-esp32-with-capacitive-touch-amoled-round-lcd-support-2-4-ghz-wi-fi-and-bluetooth-5","description":"\u003ch3\u003eESP32-S3 1.43inch AMOLED Display Development Board, 466×466 Resolution 16.7M Color QSPI Interface, ESP32 with Capacitive Touch AMOLED Round LCD, Support 2.4 GHz Wi-Fi and Bluetooth 5\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003e\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eESP32-S3 1.43inch AMOLED Development Board, equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz Wi-Fi (802.11 b\/g\/n) and Bluetooth 5 (LE), with an onboard antenna.\u003c\/li\u003e\r\n \u003cli\u003eSupports switching to use external antenna via resoldering an onboard resistor. Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM.\u003c\/li\u003e\r\n \u003cli\u003eOnboard 1.43inch AMOLED display, QSPI interface, 466 466 resolution. 178 wide viewing angle. Excellent Display Performance, 16.7M color, wide viewing angle. Supports capacitive touch function controlled via I2C interface, with interrupt support.\u003c\/li\u003e\r\n \u003cli\u003eOnboard Multiple Interfaces: Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc. Onboard PCF85063 R-T-C chip with reserved SH1.0 R-T-C ba tte -ry header (supports charging) for R-T-C function requirement.\u003c\/li\u003e\r\n \u003cli\u003eOnboard RST button and programmable BOOT button for easy custom function development. Onboard 3.7V MX1.25 Li -thi um ba tte -ry recharge\/discharge header. Onboard TF card slot for external TF card storage of pictures or files.\u003c\/li\u003e\r\n \u003cli\u003eOnboard USB Type-C port for power supply, program downloading, and debugging, more convenient for development use. Onboard UART and I2C SH1.0 4PIN connector, reserved 2 14PIN 1.27mm pitch headers, adapting multiple GPIO interfaces.\u003c\/li\u003e\r\n \u003cli\u003eAdopts AMOLED screen. The next-generation display technology, compared to those traditional LCD displays, the AMOLED screen features precise light-control capability, representing more delicate colors, more picture details, and more vivid video image.\u003c\/li\u003e\r\n \u003cli\u003eCurrently provides two development tools and frameworks, Arduino IDE and ESP-IDF, providing flexible development options, you can choose the right development tool according to your project needs and personal habits. Please check: n9.cl\/enjbl\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2025-10-20T14:08:45+11:00","created_at":"2025-10-20T14:08:40+11:00","vendor":"Wonrabai","type":"Single Board Computers","tags":["electronics_selected_Oct2025"],"price":18600,"price_min":18600,"price_max":18600,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":48900945510637,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0DXKT8S7C","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ESP32-S3 1.43inch AMOLED Display Development Board, 466×466 Resolution 16.7M Color QSPI Interface, ESP32 with Capacitive Touch AMOLED Round LCD, Support 2.4 GHz Wi-Fi and Bluetooth 5","public_title":null,"options":["Default Title"],"price":18600,"weight":91,"compare_at_price":null,"inventory_management":"shopify","barcode":"ESP32-S3-Touch-AMOLED-1.43","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/leoforward.com\/cdn\/shop\/files\/B0DXKT8S7C.jpg?v=1775794989","\/\/leoforward.com\/cdn\/shop\/files\/71nyieMBMwL.jpg?v=1760929724","\/\/leoforward.com\/cdn\/shop\/files\/81pDUGetbRL.jpg?v=1760929723","\/\/leoforward.com\/cdn\/shop\/files\/81AZ5lj117L.jpg?v=1760929724","\/\/leoforward.com\/cdn\/shop\/files\/71shQ1CCooL.jpg?v=1760929723","\/\/leoforward.com\/cdn\/shop\/files\/81Q-WiudTQL.jpg?v=1760929723","\/\/leoforward.com\/cdn\/shop\/files\/71Iw8S60irL.jpg?v=1760929724","\/\/leoforward.com\/cdn\/shop\/files\/71DCTLtGrlL.jpg?v=1760929723","\/\/leoforward.com\/cdn\/shop\/files\/61e6nEE3uUL.jpg?v=1760929723"],"featured_image":"\/\/leoforward.com\/cdn\/shop\/files\/B0DXKT8S7C.jpg?v=1775794989","options":["Title"],"media":[{"alt":null,"id":36938284433645,"position":1,"preview_image":{"aspect_ratio":1.259,"height":2033,"width":2560,"src":"\/\/leoforward.com\/cdn\/shop\/files\/B0DXKT8S7C.jpg?v=1775794989"},"aspect_ratio":1.259,"height":2033,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/B0DXKT8S7C.jpg?v=1775794989","width":2560},{"alt":null,"id":36938284466413,"position":2,"preview_image":{"aspect_ratio":1.259,"height":2033,"width":2560,"src":"\/\/leoforward.com\/cdn\/shop\/files\/71nyieMBMwL.jpg?v=1760929724"},"aspect_ratio":1.259,"height":2033,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/71nyieMBMwL.jpg?v=1760929724","width":2560},{"alt":null,"id":36938284499181,"position":3,"preview_image":{"aspect_ratio":1.259,"height":2033,"width":2560,"src":"\/\/leoforward.com\/cdn\/shop\/files\/81pDUGetbRL.jpg?v=1760929723"},"aspect_ratio":1.259,"height":2033,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/81pDUGetbRL.jpg?v=1760929723","width":2560},{"alt":null,"id":36938284531949,"position":4,"preview_image":{"aspect_ratio":1.259,"height":2033,"width":2560,"src":"\/\/leoforward.com\/cdn\/shop\/files\/81AZ5lj117L.jpg?v=1760929724"},"aspect_ratio":1.259,"height":2033,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/81AZ5lj117L.jpg?v=1760929724","width":2560},{"alt":null,"id":36938284564717,"position":5,"preview_image":{"aspect_ratio":1.259,"height":2033,"width":2560,"src":"\/\/leoforward.com\/cdn\/shop\/files\/71shQ1CCooL.jpg?v=1760929723"},"aspect_ratio":1.259,"height":2033,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/71shQ1CCooL.jpg?v=1760929723","width":2560},{"alt":null,"id":36938284597485,"position":6,"preview_image":{"aspect_ratio":1.259,"height":2033,"width":2560,"src":"\/\/leoforward.com\/cdn\/shop\/files\/81Q-WiudTQL.jpg?v=1760929723"},"aspect_ratio":1.259,"height":2033,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/81Q-WiudTQL.jpg?v=1760929723","width":2560},{"alt":null,"id":36938284630253,"position":7,"preview_image":{"aspect_ratio":1.259,"height":2033,"width":2560,"src":"\/\/leoforward.com\/cdn\/shop\/files\/71Iw8S60irL.jpg?v=1760929724"},"aspect_ratio":1.259,"height":2033,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/71Iw8S60irL.jpg?v=1760929724","width":2560},{"alt":null,"id":36938284663021,"position":8,"preview_image":{"aspect_ratio":1.259,"height":2033,"width":2560,"src":"\/\/leoforward.com\/cdn\/shop\/files\/71DCTLtGrlL.jpg?v=1760929723"},"aspect_ratio":1.259,"height":2033,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/71DCTLtGrlL.jpg?v=1760929723","width":2560},{"alt":null,"id":36938284695789,"position":9,"preview_image":{"aspect_ratio":1.259,"height":2033,"width":2560,"src":"\/\/leoforward.com\/cdn\/shop\/files\/61e6nEE3uUL.jpg?v=1760929723"},"aspect_ratio":1.259,"height":2033,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/61e6nEE3uUL.jpg?v=1760929723","width":2560}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eESP32-S3 1.43inch AMOLED Display Development Board, 466×466 Resolution 16.7M Color QSPI Interface, ESP32 with Capacitive Touch AMOLED Round LCD, Support 2.4 GHz Wi-Fi and Bluetooth 5\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003e\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eESP32-S3 1.43inch AMOLED Development Board, equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz Wi-Fi (802.11 b\/g\/n) and Bluetooth 5 (LE), with an onboard antenna.\u003c\/li\u003e\r\n \u003cli\u003eSupports switching to use external antenna via resoldering an onboard resistor. Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM.\u003c\/li\u003e\r\n \u003cli\u003eOnboard 1.43inch AMOLED display, QSPI interface, 466 466 resolution. 178 wide viewing angle. Excellent Display Performance, 16.7M color, wide viewing angle. Supports capacitive touch function controlled via I2C interface, with interrupt support.\u003c\/li\u003e\r\n \u003cli\u003eOnboard Multiple Interfaces: Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc. Onboard PCF85063 R-T-C chip with reserved SH1.0 R-T-C ba tte -ry header (supports charging) for R-T-C function requirement.\u003c\/li\u003e\r\n \u003cli\u003eOnboard RST button and programmable BOOT button for easy custom function development. Onboard 3.7V MX1.25 Li -thi um ba tte -ry recharge\/discharge header. Onboard TF card slot for external TF card storage of pictures or files.\u003c\/li\u003e\r\n \u003cli\u003eOnboard USB Type-C port for power supply, program downloading, and debugging, more convenient for development use. Onboard UART and I2C SH1.0 4PIN connector, reserved 2 14PIN 1.27mm pitch headers, adapting multiple GPIO interfaces.\u003c\/li\u003e\r\n \u003cli\u003eAdopts AMOLED screen. The next-generation display technology, compared to those traditional LCD displays, the AMOLED screen features precise light-control capability, representing more delicate colors, more picture details, and more vivid video image.\u003c\/li\u003e\r\n \u003cli\u003eCurrently provides two development tools and frameworks, Arduino IDE and ESP-IDF, providing flexible development options, you can choose the right development tool according to your project needs and personal habits. Please check: n9.cl\/enjbl\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
