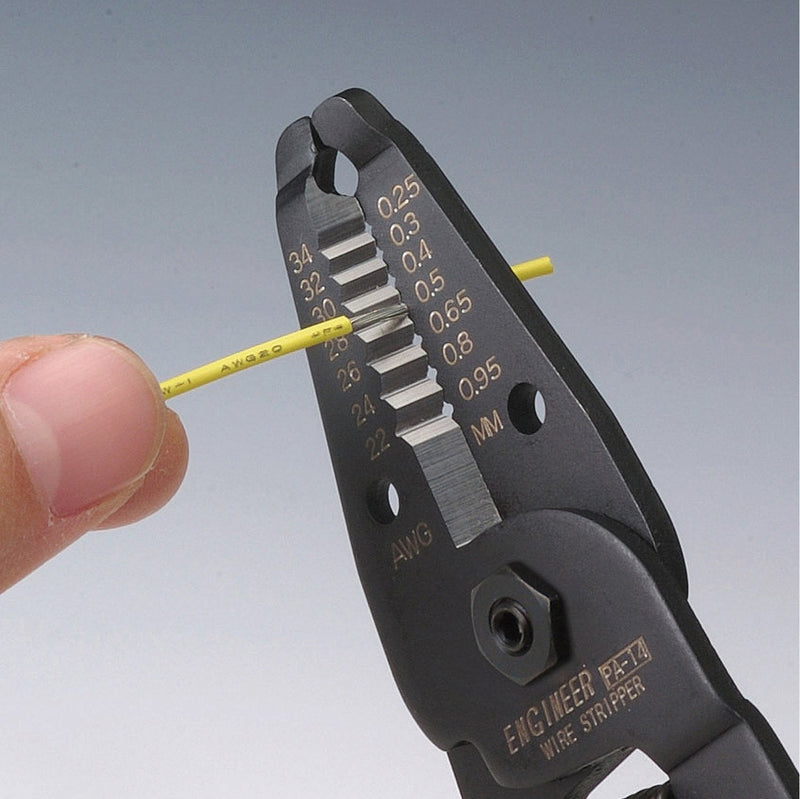

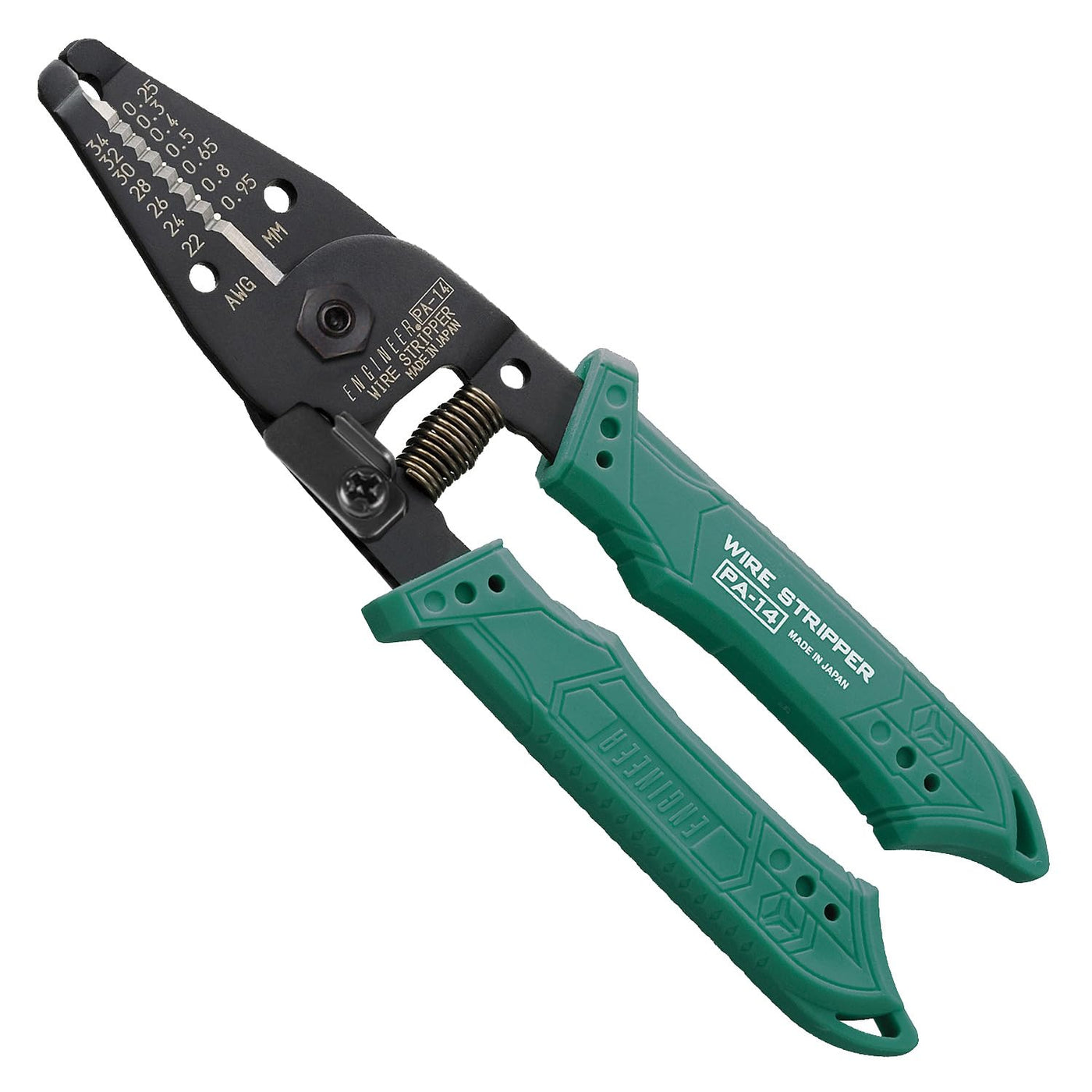

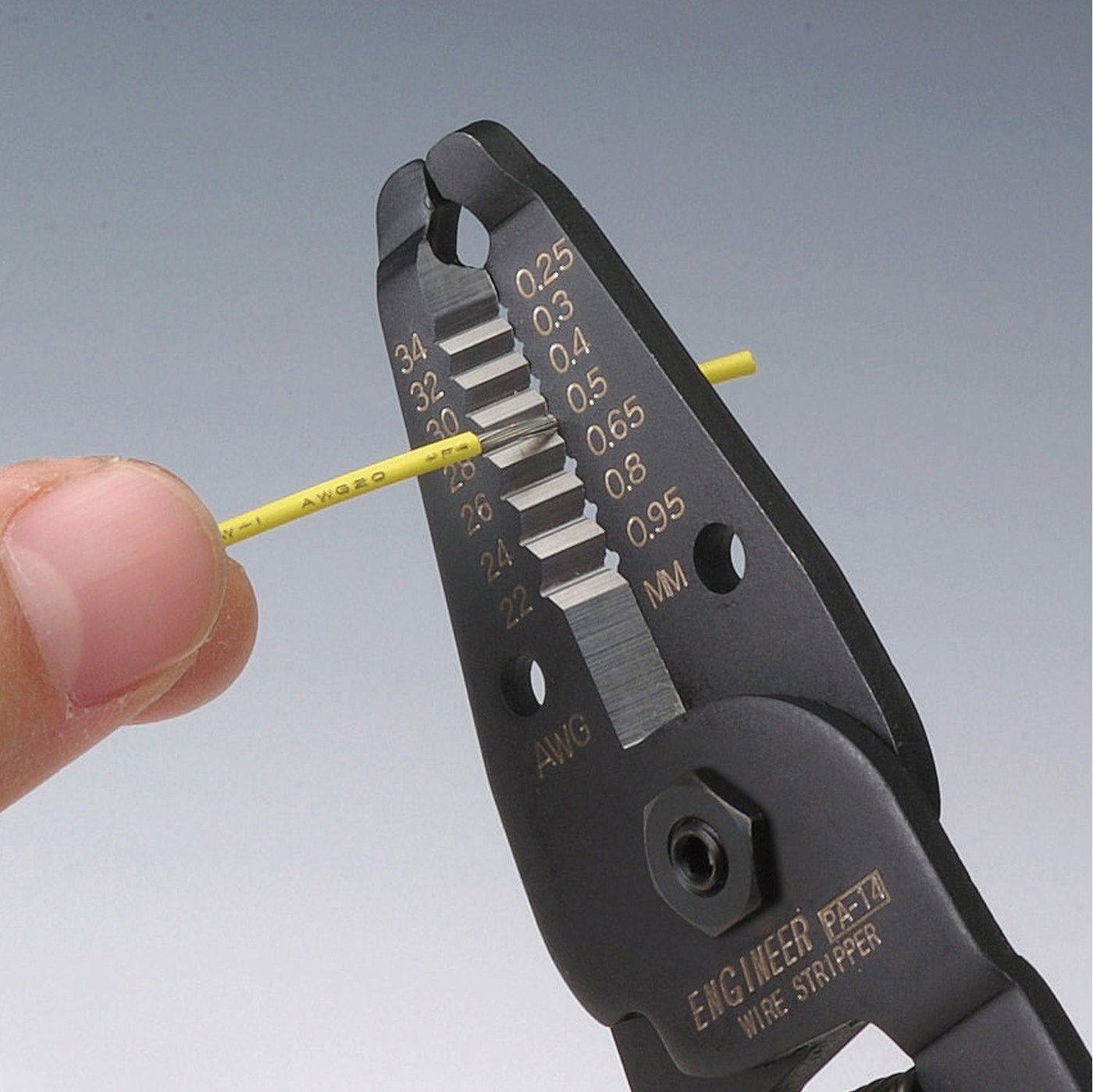

ENGINEER PA-14 Professional Precision Wire Stripper for Micro-Thin Wires. Made in Japan. Solid Wire (AWG 32-20), Stranded Wire (AWG 34-22). Sharp & Perfect Round Finishing Edge AWG34-22 For fine lines
ENGINEER PA-14 Professional Precision Wire Stripper for Micro-Thin Wires. Made in Japan. Solid Wire (AWG 32-20), Stranded Wire (AWG 34-22). Sharp & Perfect Round Finishing Edge

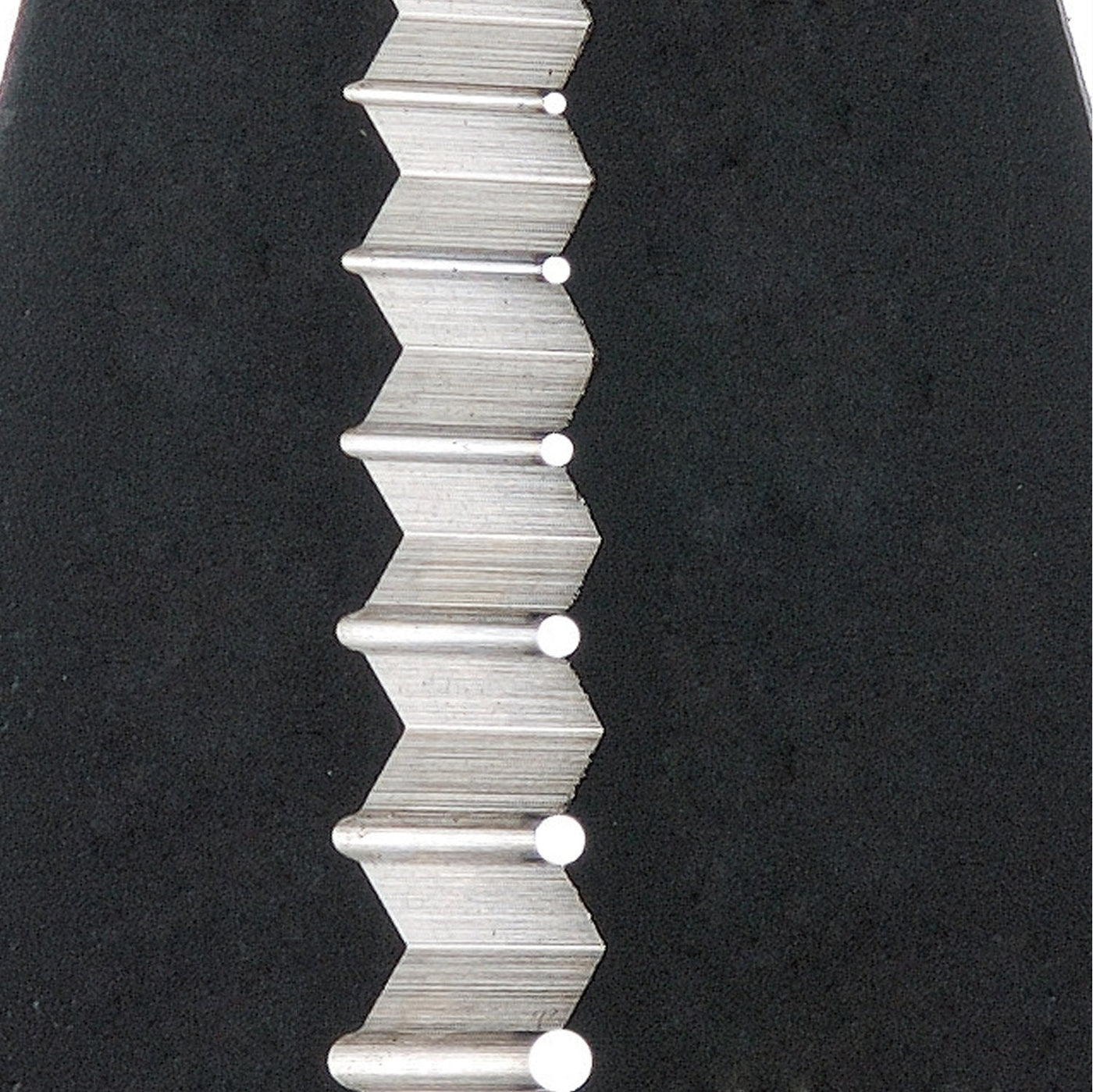

High performance stripper for outstanding sharpness. Strip holes are designed to fit both single and stranded lines. The precision polished finish creates a very round shape with a sharp edge without damaging the core line. The main body is made of high carbon steel, so it has excellent abrasion resistance. Environmentally friendly elastomer grip Excellent oil resistance. For fine lines The pin part uses a unique set pin, so it can be easily adjusted to loosen even after long periods of use. If you use the tool for a long time, the set pins that have been attached to the shaft may loosen or become uncomfortable. This may cause damage to the tools as well as the original performance. If the set pin is loose and rattle, please adjust the set pins. Wear protective glasses for safety. As the cut will scatter, please make sure there are no people or fragile items around the area before working. Do not use for cutting hard materials, piano wires, etc. Do not tighten the bolts and nuts on both ends to adjust the gap. This may cause the set pin to be damaged. Do not apply excessive torque when tightening. This may cause damage. (Tightening torque = less than 2N/m) Product Size: 2.0 x 6.9 inches (50 x 175 Weight: 4.6 oz (134 g). The specifications of the rivet part will change once the current product is out of stock.
Product Features
- Professional grade wire strippers designed to remove insulation from micro-thin wires swiftly, neatly and without deformation/no damage to wires' core.
- Strips both stranded copper wire AWG 34 ~ AWG 22 (SWG 38 ~ SWG 23) & Solid Wire AWG 32~AWG 20 (SWG 36 ~ SWG 21)
- Exceptionally sharp & precise High Carbon Steel Alloy Jaws. Clean edge to the insulation strip, with no damage to the copper conductor wires (unlike most automatic wire strippers)
- Spring loaded for easy operation (handles latch shut for storage). Oil-resistant elastomer (thermoplastic rubber) grips - very comfortable to hold and use

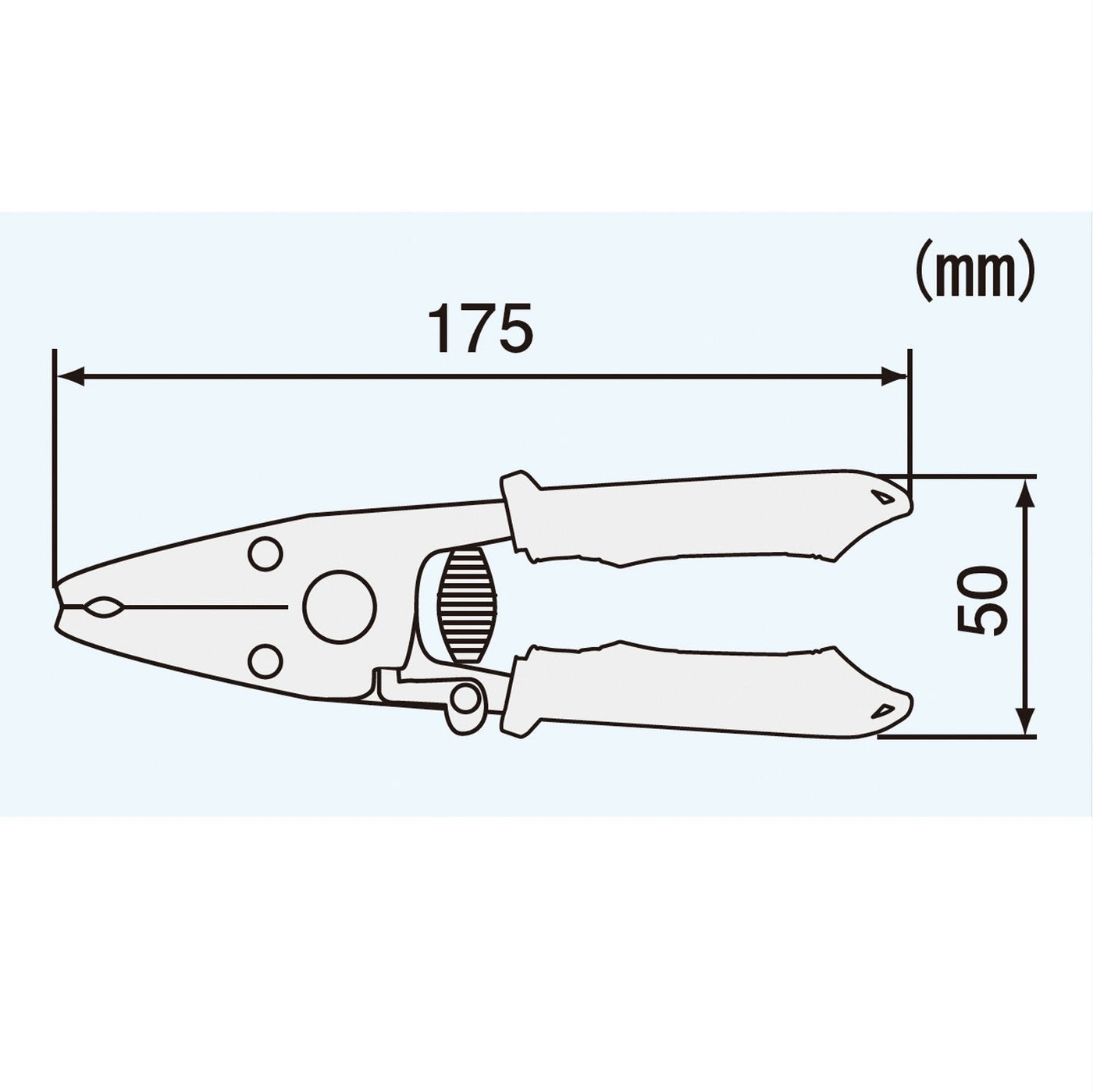

- Length: 175mm Handle Width: 50mm Weight: 134g
