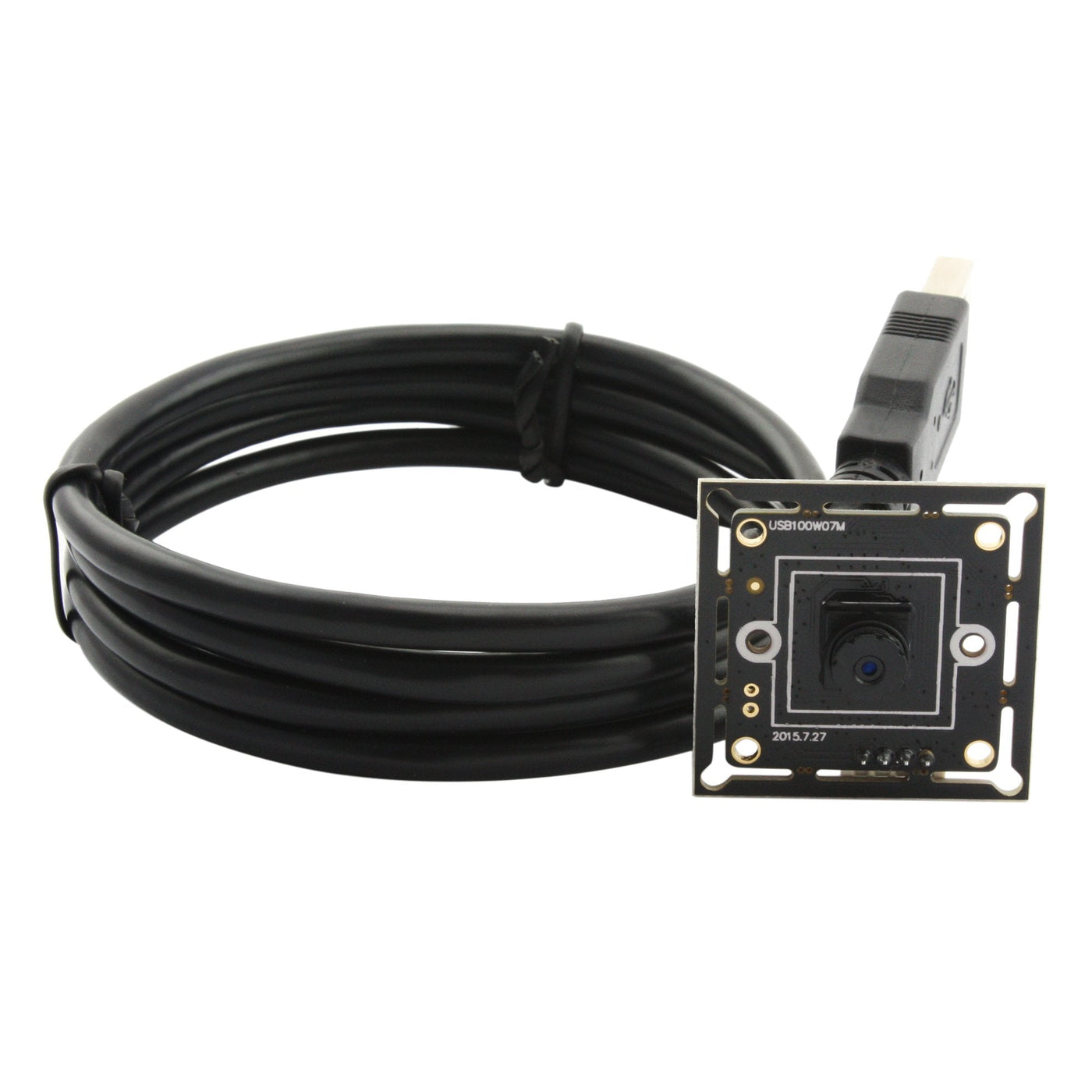

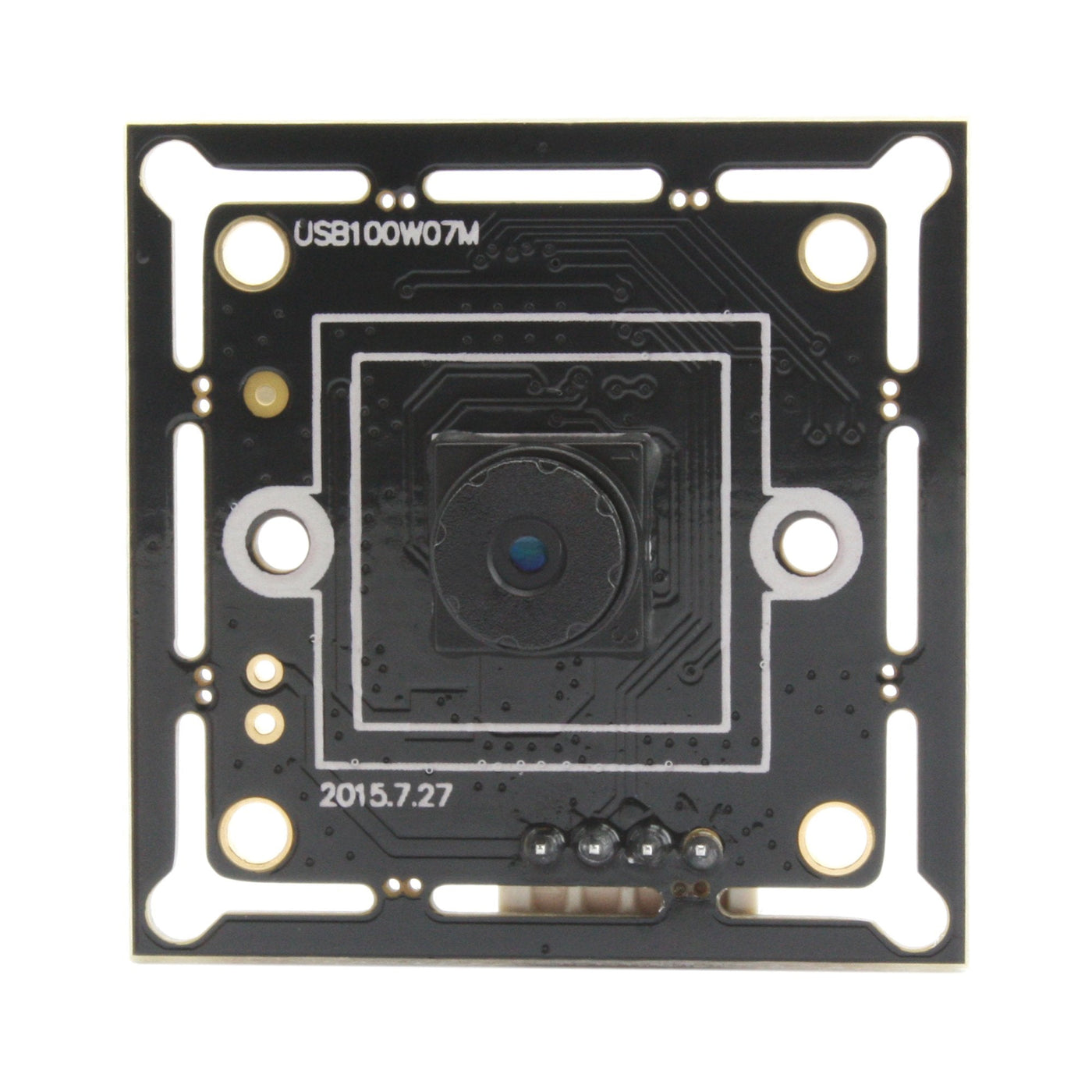

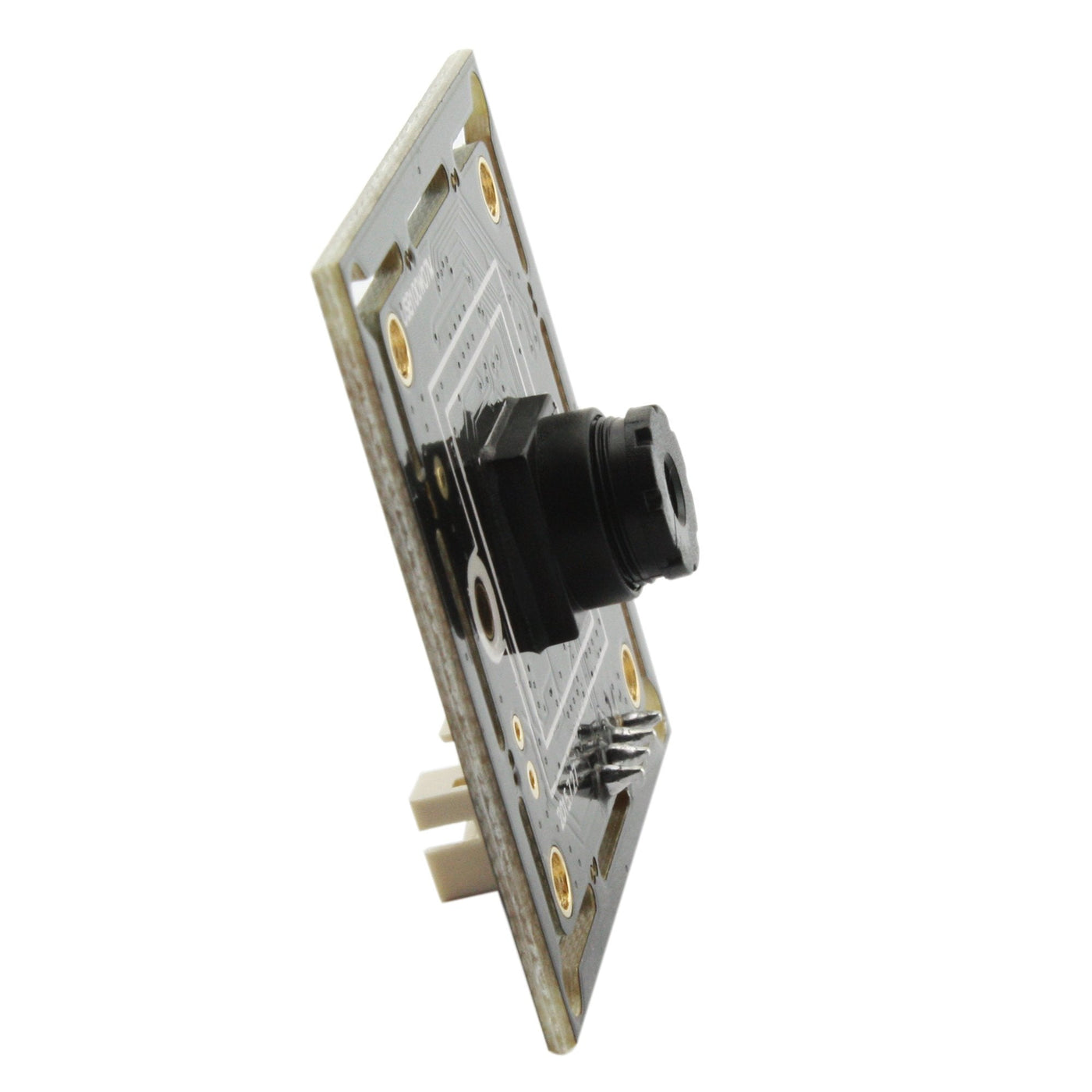

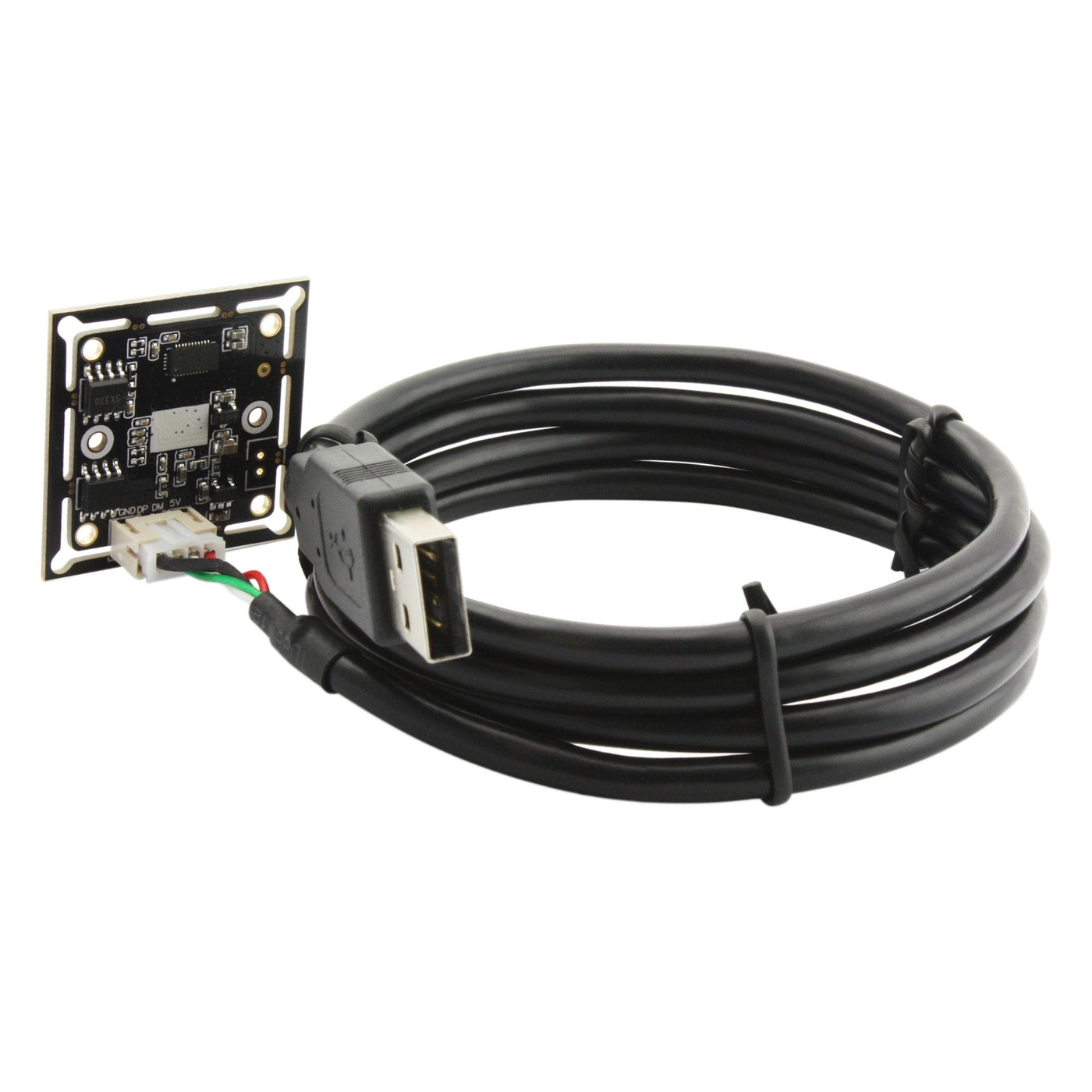

{"id":7880597569773,"title":"ELP megapixel Super Mini 720p USB Camera Module with 45degree Lens","handle":"elp-megapixel-super-mini-720p-usb-camera-module-with-45degree-lens","description":"\u003ch1\u003eELP megapixel Super Mini 720p USB Camera Module with 45degree Lens\u003c\/h1\u003e\n\u003cdiv style=\"max-width:512px;\"\u003e\u003c\/div\u003e\n\u003ch3\u003e\n\u003cspan class=\"glyphicon glyphicon-list-alt\"\u003e\u003c\/span\u003e Description\u003c\/h3\u003e\n\u003cp\u003eELP-USB100W07M-MHV45 is a 720P USB2.0 OmniVision OV9712 Color CMOS Sensor USB\nCamera Mini Size (3232\/2626mm) with M7 45degree wide angle Lens\nSpecification: Sensor OV9712 Lens Size 1\/4 inch Pixel Size 3.0um X 3.0um image\narea 3888m x 2430m Max. Resolution 1280(H)X720(V) Compression format MJPEG \/\nYUV2（YUYV） Resolution \u0026amp; frame MJPEG：320X240@ 30fps, 352X288@\n30fps640X360@60fps,640X480@ 30fps800X600@ 30fps,1280X720@ 30fps YUV： 320X240@\n30fps,352X288@ 30fps640X360@30fps,640X480@ 30fps800X600@ 15fps,1280X720@ 5fps\nS\/N Ratio 40dB Dynamic Range 69dB Sensitivity 3.7V\/lux-sec@550nm Mini\nillumination 0. 1lux Shutter Type Electronic rolling shutter \/ Frame exposure\nConnecting Port type USB2.0 High Speed Free Drive Protocol USB Video\nClass（UVC） Support OTG Protocol USB2.0 OTG AEC Support AEB Support AGC Support\nAdjustable parameters Brightness, Contrast, Saturation, Hue, Sharpness,\nGamma,Gain, White balance, Backlight Contrast, Exposure Lens Parameter\nStandard M7 LENS FOV(D)60 (H)45 Degree LED board power connector Support\n2P-2.0mm socket Power supply USB BUS POWER 4P-2.0mm socket Power supply DC5V\nOperating Voltage 120mA~180mA Working current -10～70℃ Working temperature\n-20～85℃ Board size \/Weight 32X32mm（Compatible 26X26mm）\/ about 30g Cable\nStandard 1M Operating system request Win7 Win8,Mac os, Linux 2.6 or\nabove,Android 4.0 or above\u003c\/p\u003e\n\u003cp\u003eFeatures:\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003e45 degree M7 lens mini camera module with USB plug\u0026amp;play port\u003c\/li\u003e\n\u003cli\u003eStandard M7 mini lens with super wide angle FOV(D)60 (H)45 Degree\u003c\/li\u003e\n\u003cli\u003emax 1280X720@ 30fps HD 720P high resolution\u003c\/li\u003e\n\u003cli\u003eusb2.0 high speed mini size 32x32\/26x26mm for small space insert\u003c\/li\u003e\n\u003cli\u003e1 Meter usb cord cable, support raspberry pi, opencv etc.\u003c\/li\u003e\n\u003c\/ul\u003e\n\n","published_at":"2022-08-11T15:41:46+10:00","created_at":"2022-08-11T15:41:50+10:00","vendor":"ELP","type":"Webcams","tags":["electronics_update_2022"],"price":16100,"price_min":16100,"price_max":16100,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":43107872145645,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B01DRJX8JU","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ELP megapixel Super Mini 720p USB Camera Module with 45degree Lens","public_title":null,"options":["Default Title"],"price":16100,"weight":59,"compare_at_price":null,"inventory_management":null,"barcode":"753510263679","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/leoforward.com\/cdn\/shop\/products\/B01DRJX8JU.jpg?v=1775730466","\/\/leoforward.com\/cdn\/shop\/products\/81WgOx3cydL.jpg?v=1660196510","\/\/leoforward.com\/cdn\/shop\/products\/71Z806u9oAL.jpg?v=1660196510","\/\/leoforward.com\/cdn\/shop\/products\/71dCTjPafJL.jpg?v=1660196510"],"featured_image":"\/\/leoforward.com\/cdn\/shop\/products\/B01DRJX8JU.jpg?v=1775730466","options":["Title"],"media":[{"alt":" [AUSTRALIA] - ELP megapixel Super Mini 720p USB Camera Module with 45degree Lens","id":30218978918637,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/leoforward.com\/cdn\/shop\/products\/B01DRJX8JU.jpg?v=1775730466"},"aspect_ratio":1.0,"height":2000,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/products\/B01DRJX8JU.jpg?v=1775730466","width":2000},{"alt":" [AUSTRALIA] - ELP megapixel Super Mini 720p USB Camera Module with 45degree Lens","id":30218978951405,"position":2,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/leoforward.com\/cdn\/shop\/products\/81WgOx3cydL.jpg?v=1660196510"},"aspect_ratio":1.0,"height":2000,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/products\/81WgOx3cydL.jpg?v=1660196510","width":2000},{"alt":" [AUSTRALIA] - ELP megapixel Super Mini 720p USB Camera Module with 45degree Lens","id":30218978984173,"position":3,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/leoforward.com\/cdn\/shop\/products\/71Z806u9oAL.jpg?v=1660196510"},"aspect_ratio":1.0,"height":2000,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/products\/71Z806u9oAL.jpg?v=1660196510","width":2000},{"alt":" [AUSTRALIA] - ELP megapixel Super Mini 720p USB Camera Module with 45degree Lens","id":30218979016941,"position":4,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/leoforward.com\/cdn\/shop\/products\/71dCTjPafJL.jpg?v=1660196510"},"aspect_ratio":1.0,"height":2000,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/products\/71dCTjPafJL.jpg?v=1660196510","width":2000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch1\u003eELP megapixel Super Mini 720p USB Camera Module with 45degree Lens\u003c\/h1\u003e\n\u003cdiv style=\"max-width:512px;\"\u003e\u003c\/div\u003e\n\u003ch3\u003e\n\u003cspan class=\"glyphicon glyphicon-list-alt\"\u003e\u003c\/span\u003e Description\u003c\/h3\u003e\n\u003cp\u003eELP-USB100W07M-MHV45 is a 720P USB2.0 OmniVision OV9712 Color CMOS Sensor USB\nCamera Mini Size (3232\/2626mm) with M7 45degree wide angle Lens\nSpecification: Sensor OV9712 Lens Size 1\/4 inch Pixel Size 3.0um X 3.0um image\narea 3888m x 2430m Max. Resolution 1280(H)X720(V) Compression format MJPEG \/\nYUV2（YUYV） Resolution \u0026amp; frame MJPEG：320X240@ 30fps, 352X288@\n30fps640X360@60fps,640X480@ 30fps800X600@ 30fps,1280X720@ 30fps YUV： 320X240@\n30fps,352X288@ 30fps640X360@30fps,640X480@ 30fps800X600@ 15fps,1280X720@ 5fps\nS\/N Ratio 40dB Dynamic Range 69dB Sensitivity 3.7V\/lux-sec@550nm Mini\nillumination 0. 1lux Shutter Type Electronic rolling shutter \/ Frame exposure\nConnecting Port type USB2.0 High Speed Free Drive Protocol USB Video\nClass（UVC） Support OTG Protocol USB2.0 OTG AEC Support AEB Support AGC Support\nAdjustable parameters Brightness, Contrast, Saturation, Hue, Sharpness,\nGamma,Gain, White balance, Backlight Contrast, Exposure Lens Parameter\nStandard M7 LENS FOV(D)60 (H)45 Degree LED board power connector Support\n2P-2.0mm socket Power supply USB BUS POWER 4P-2.0mm socket Power supply DC5V\nOperating Voltage 120mA~180mA Working current -10～70℃ Working temperature\n-20～85℃ Board size \/Weight 32X32mm（Compatible 26X26mm）\/ about 30g Cable\nStandard 1M Operating system request Win7 Win8,Mac os, Linux 2.6 or\nabove,Android 4.0 or above\u003c\/p\u003e\n\u003cp\u003eFeatures:\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003e45 degree M7 lens mini camera module with USB plug\u0026amp;play port\u003c\/li\u003e\n\u003cli\u003eStandard M7 mini lens with super wide angle FOV(D)60 (H)45 Degree\u003c\/li\u003e\n\u003cli\u003emax 1280X720@ 30fps HD 720P high resolution\u003c\/li\u003e\n\u003cli\u003eusb2.0 high speed mini size 32x32\/26x26mm for small space insert\u003c\/li\u003e\n\u003cli\u003e1 Meter usb cord cable, support raspberry pi, opencv etc.\u003c\/li\u003e\n\u003c\/ul\u003e\n\n"}
