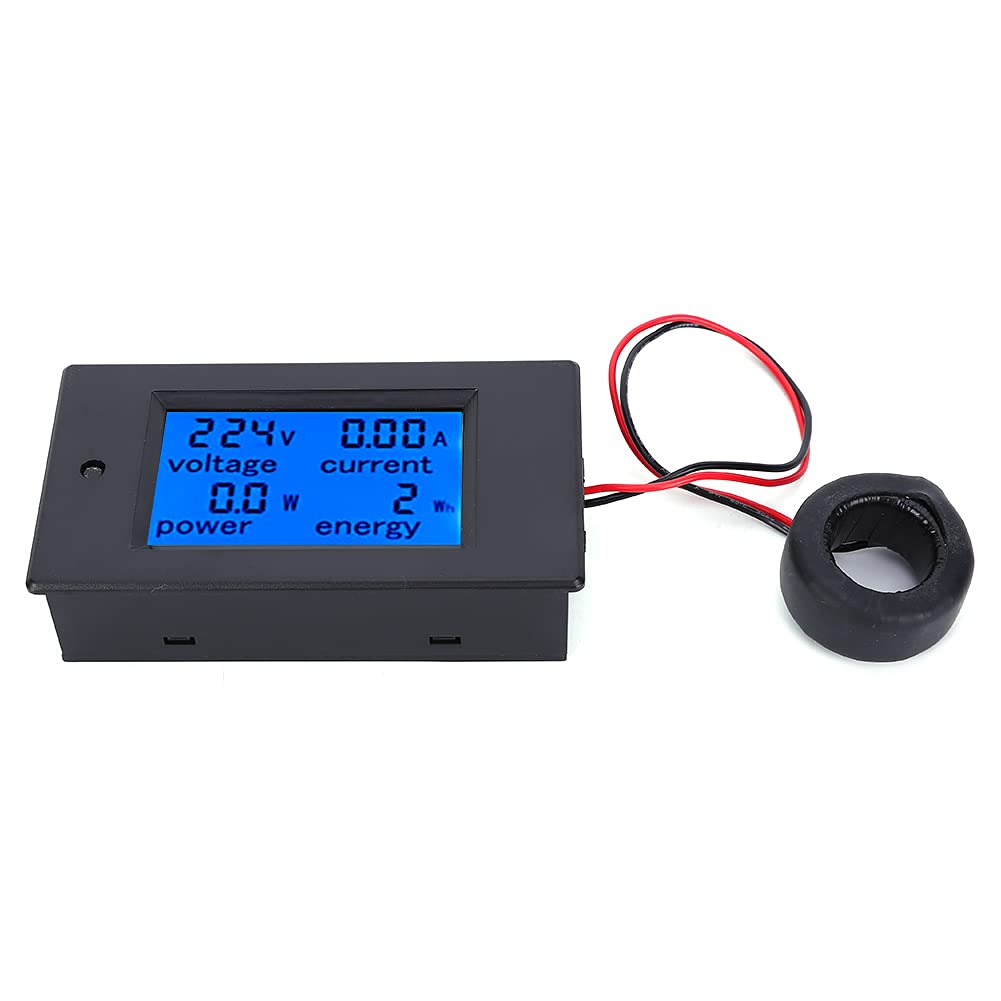

Digital Multifunction Meter, AC 80-260V 100A AC Volt Amp Tester Voltmeter Ammeter Watt Meter, LED Display Digital Current Voltage Power Energy Meter with Overload Alarm Function
Digital Multifunction Meter, AC 80-260V 100A AC Volt Amp Tester Voltmeter Ammeter Watt Meter, LED Display Digital Current Voltage Power Energy Meter with Overload Alarm Function

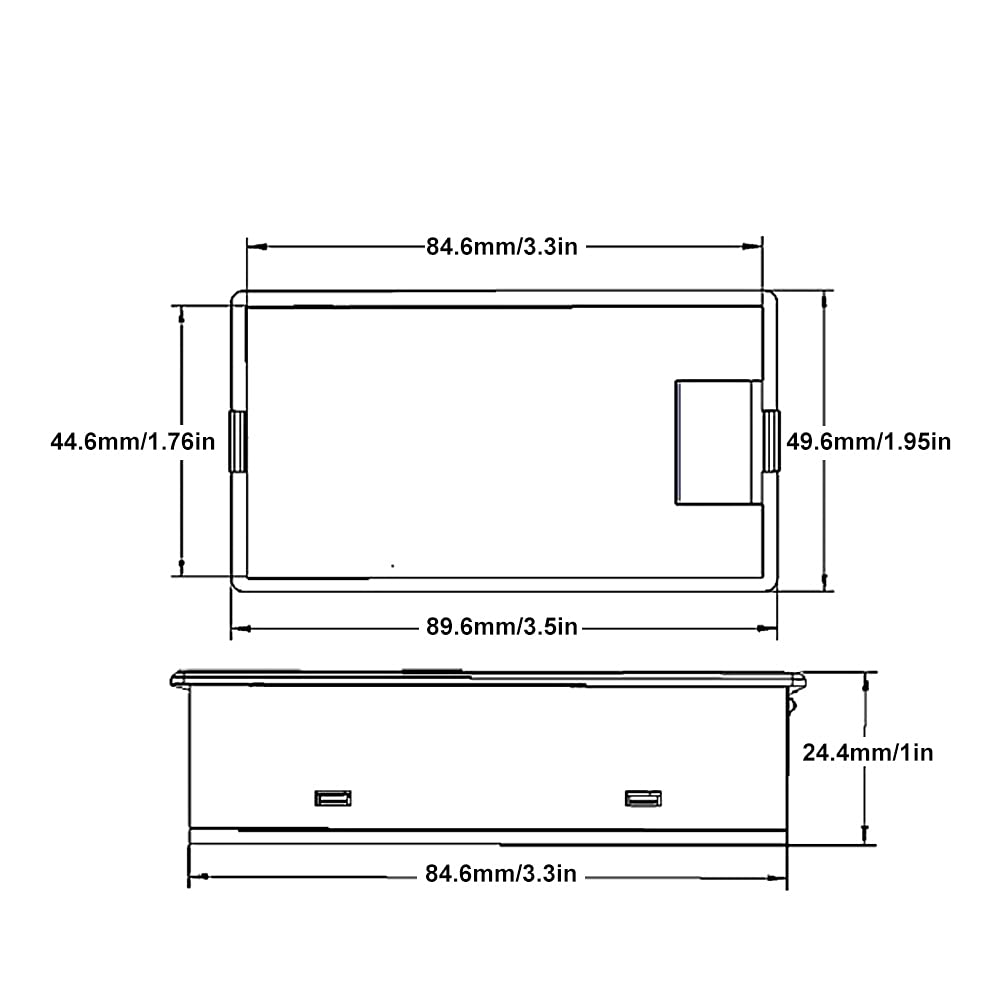

Specification: Condition: Brand New Item Type: Digital AC Meter Material: ABS Color: As shown in the picture Display Screen Size: Approx.51x30mm/2x1.2in Overall Size: Approx.89.6x49.6x24.4mm/3.5x2x1in(L x W x T) Power: Test Range: 0~22kW within 1KW, the display format is 0.0~.9W. 1KW and , the display format is 1000~9999W. 10KW display format: 10-22KW. Energy: Test Range: 0~9999kWh Within 10KWh, the display format is 0~9999Wh. 10kWh and , the display format is 10~9999kWh. Voltage: Test Range: 80~260V Display Format: 80~220V Current: Test Range: 0~100A Display Format: 0.00~99.00 Working Voltage: 80 - 260VAC Test Voltage: 80 - 260VAC Rated Power: 100A/22KW Working Frequency: 45-65Hz Measurement Accuracy: level 1.0 Weight: Approx.104g/3.7oz Backlight Controlling: The backlight can be turned on or off by shortly pressing the button. The backlight will be saved automatically when power is off. Reset Energy: Step1: Long press the key for 5 seconds until the number in energy display window flash, then release the key. Step2: Short press the key again, then the energy value is cleared and exit the reset flashing state. : Then long press the key again for 5 seconds until the number doesn't flash, it means the energy value is not cleared and will exit the reset state. Package List: 1 x Digital AC Meter 1 x Instruction Manual Note: 1. This module is suitable for indoor, please do not use outdoor. 2. Applied load should not exceed the rated power. 3. Wiring order can't be wrong.
Product Features
- Power alarm threshold preset function (can set power alarm threshold).
- Power alarm threshold preset function (can set power alarm threshold).

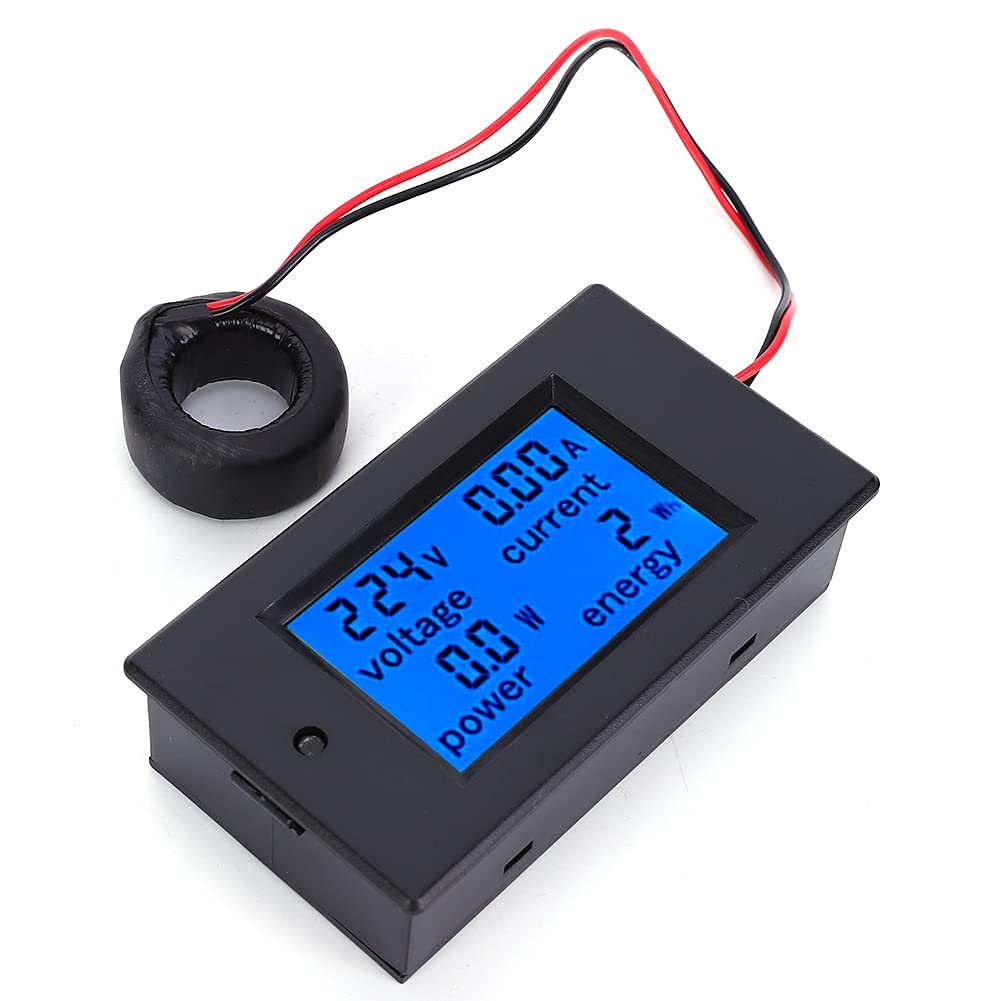

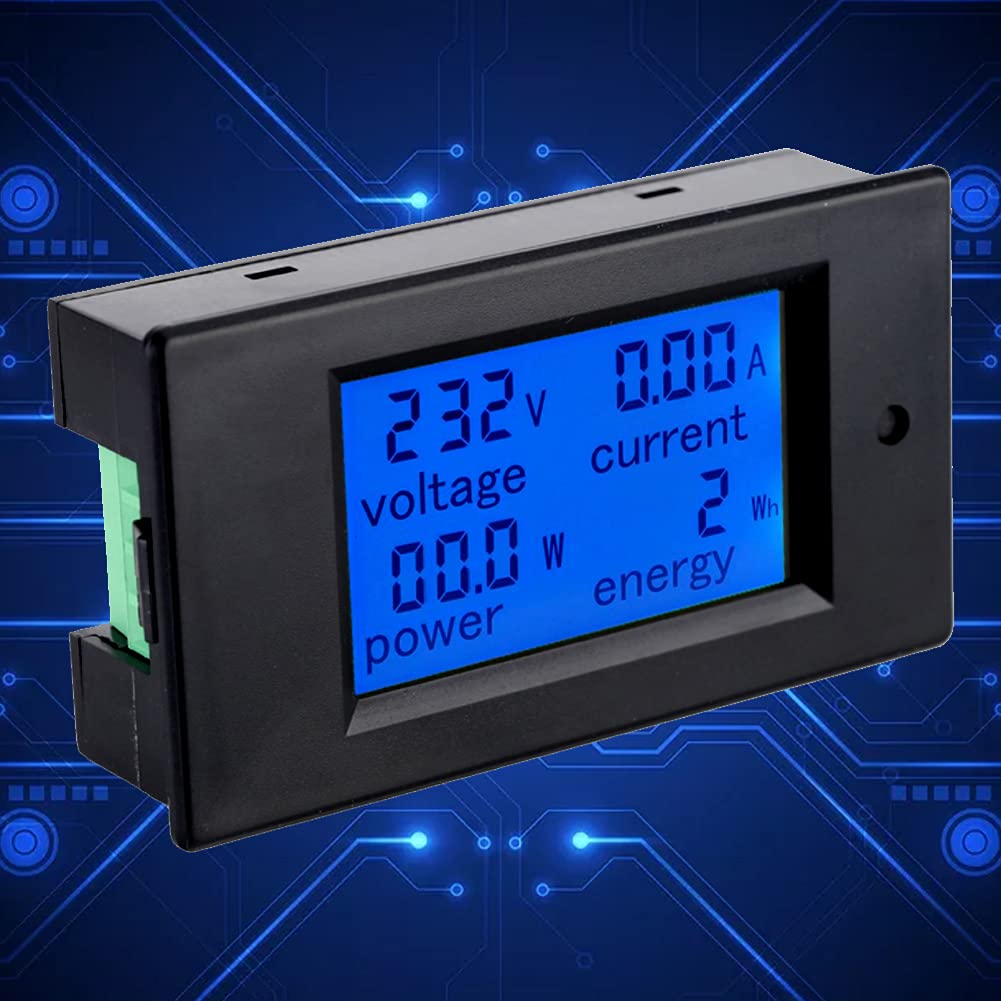

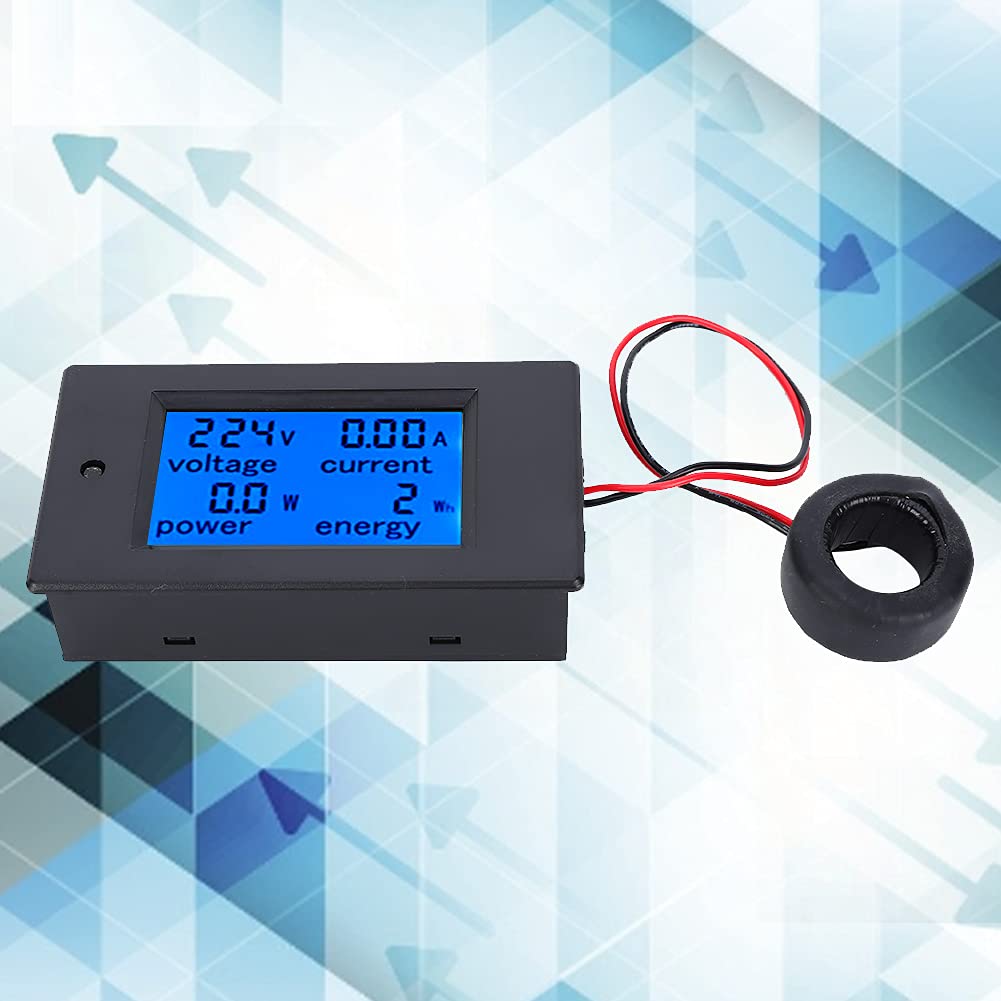

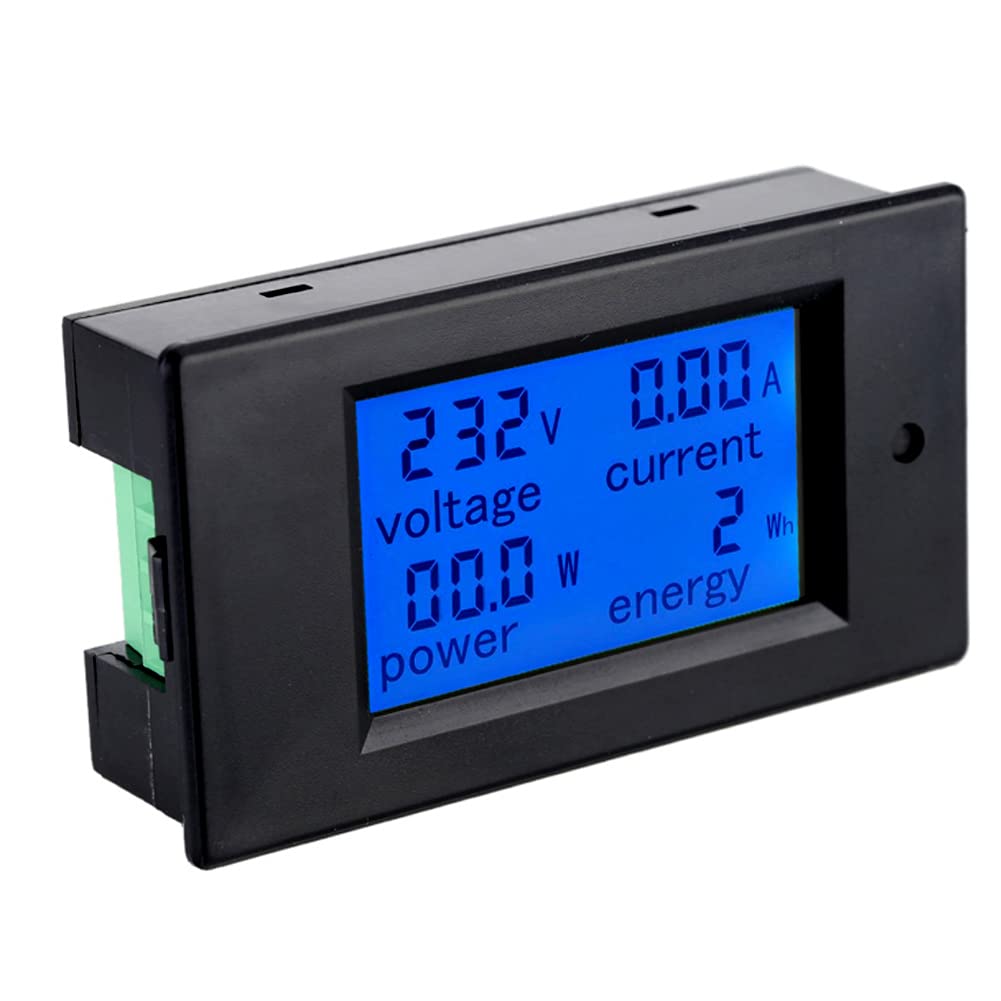

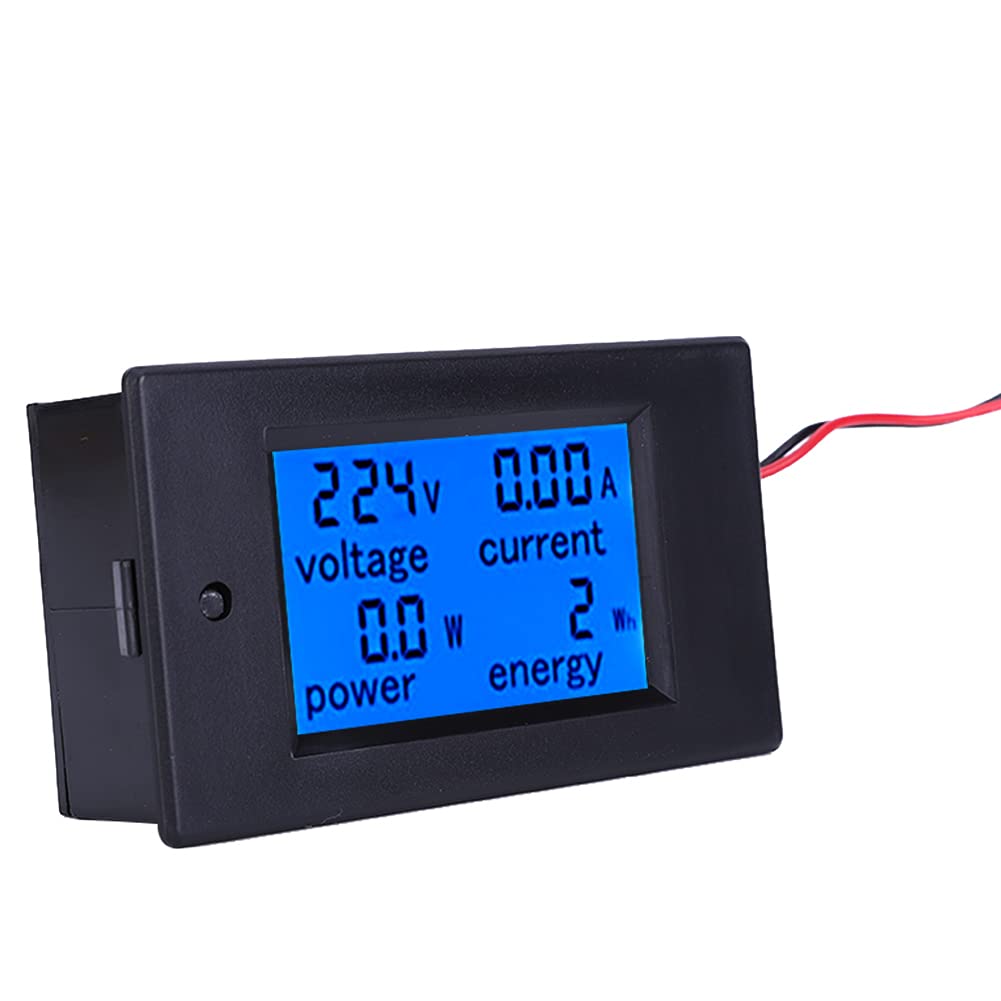

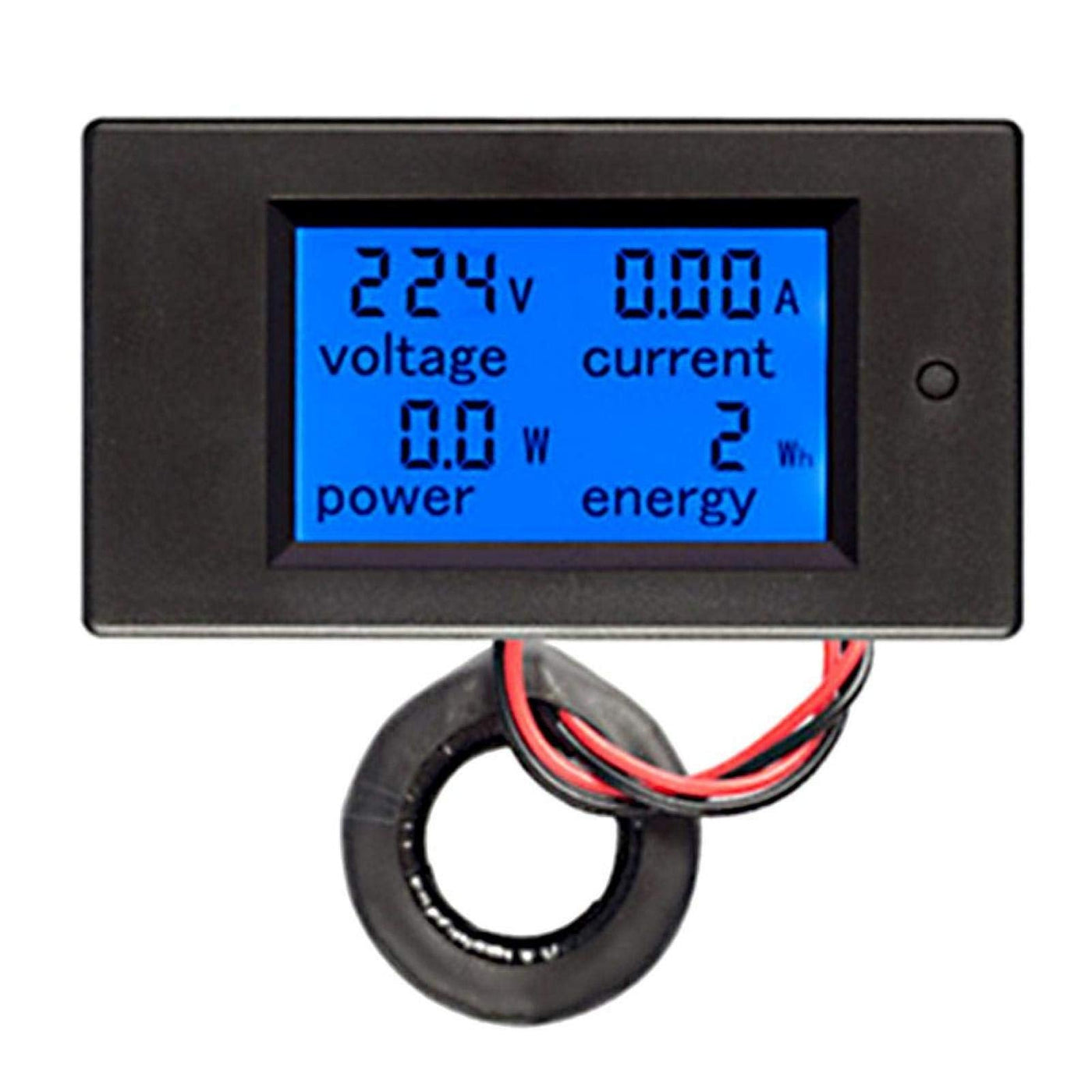

- Display interface is large-screen LCD, it can display voltage, current, power, energy parameters at the same time.
- The backlight can be turned on or off by shortly pressing the button. The backlight will be saved automatically when power is off.
- Overload alarm function (over power alarm threshold, backlight and power flicker).
- The instrument has the characteristics of and stability, small size, easy to carry.
