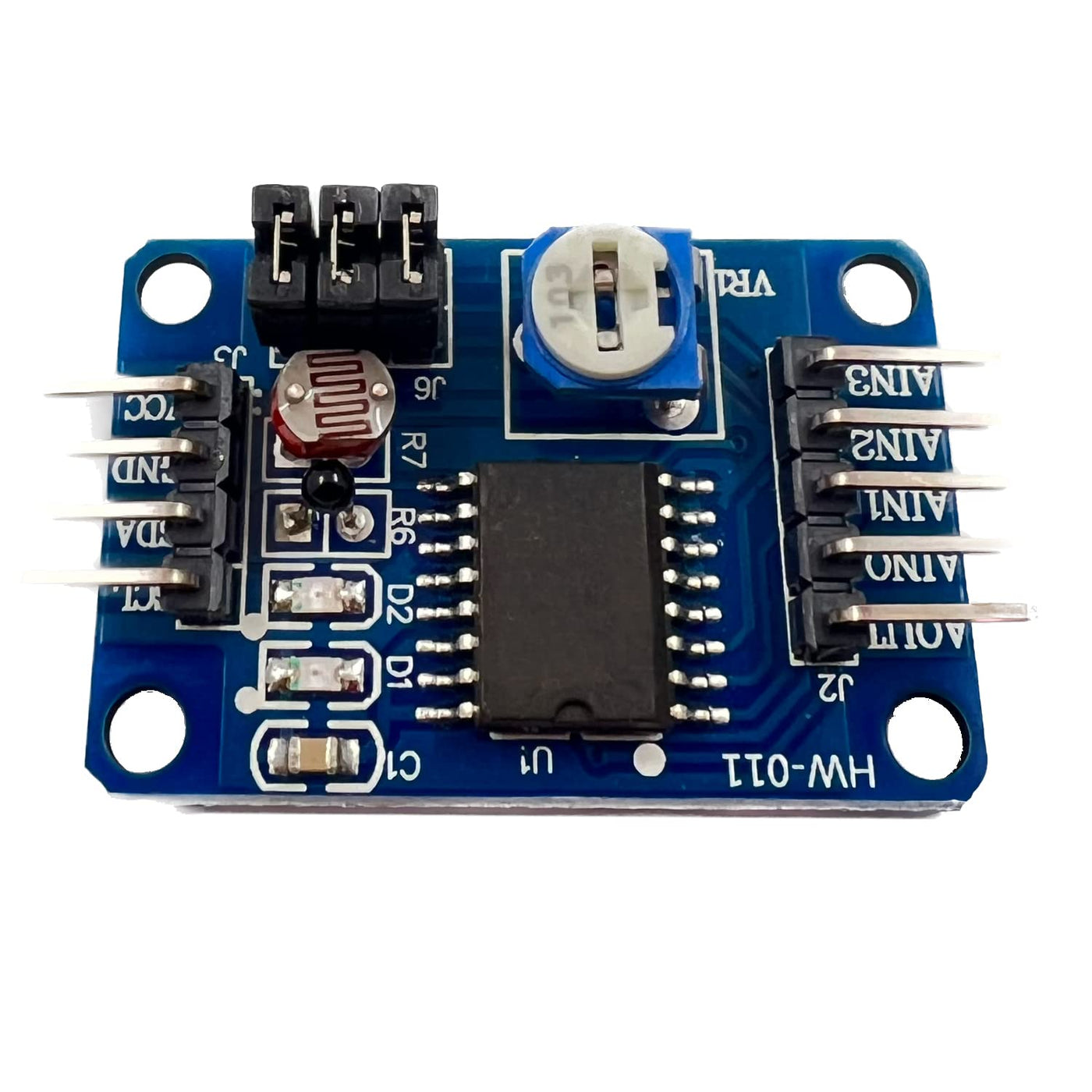

{"id":9152153125101,"title":"DEVMO PCF8591 AD\/DA Converter Module Analog to Digital Conversion Compatible with Ar-duino Raspberry Pi","handle":"devmo-pcf8591-ad-da-converter-module-analog-to-digital-conversion-compatible-with-ar-duino-raspberry-pi","description":"\u003ch3\u003eDEVMO PCF8591 AD\/DA Converter Module Analog to Digital Conversion Compatible with Ar-duino Raspberry Pi\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eThree module interface description The left and right side of the module,\r\nrespectively, outside the expansion of 2-pin connector, respectively, as\r\nfollows: Left AOUT chip DA output interface AINO chip analog input interface 0\r\nAIN1 chip analog input interface 1 AIN2 chip analog input interface 2 AIN3\r\nchip analog input interface 3 SCL IIC clock interface on the right then\r\nsingle-chip IO port SDA IIC digital interface connected MCU IO port GND module\r\nto ground VCC power interface external 3.3v-5vFour modules red short-circuit\r\ncap instructions Module a total of three red short-circuit cap, respectively,\r\nas follows: P4 connected to P4 short-circuit cap, select the thermistor access\r\ncircuit P5 connected to P5 short-circuit cap, select the photosensitive\r\nresistor access circuit P6 connected to P6 short-circuit cap, select 0-5V\r\nadjustable voltage access circuit\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eProduct Name : PCF8591 AD\/DA Converter Module;Working Voltage : 2.5-6V\u003c\/li\u003e\r\n \u003cli\u003eLow standby current.through the I2C bus serial input \/ output.\u003c\/li\u003e\r\n \u003cli\u003ePCB Size : 36 x 23mm\/1.4\" x 0.92\"(L*W);Hole Diameter : 3mm\/0.1\"\u003c\/li\u003e\r\n \u003cli\u003ePCF8591 by 3 hardware address pins addressing. Sampling rate PCF8591 I2C bus rate decided.\u003c\/li\u003e\r\n \u003cli\u003ePackage Content : 1 x PCF8591 AD\/DA Converter Module\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2025-10-21T13:36:27+11:00","created_at":"2025-10-21T13:36:23+11:00","vendor":"DEVMO","type":"Single Board Computers","tags":["electronics_selected_Oct2025"],"price":9800,"price_min":9800,"price_max":9800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":48903910424813,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07T4GBMWW","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"DEVMO PCF8591 AD\/DA Converter Module Analog to Digital Conversion Compatible with Ar-duino Raspberry Pi","public_title":null,"options":["Default Title"],"price":9800,"weight":45,"compare_at_price":null,"inventory_management":"shopify","barcode":"796753378458","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/leoforward.com\/cdn\/shop\/files\/B07T4GBMWW.jpg?v=1775795234","\/\/leoforward.com\/cdn\/shop\/files\/71gWzMMIzXL.jpg?v=1761014186","\/\/leoforward.com\/cdn\/shop\/files\/61sdDZx_0UL.jpg?v=1761014186","\/\/leoforward.com\/cdn\/shop\/files\/51iRKZgBseL.jpg?v=1761014185","\/\/leoforward.com\/cdn\/shop\/files\/61x4JlCJeeL.jpg?v=1761014186","\/\/leoforward.com\/cdn\/shop\/files\/61DPsc0teOL.jpg?v=1761014186"],"featured_image":"\/\/leoforward.com\/cdn\/shop\/files\/B07T4GBMWW.jpg?v=1775795234","options":["Title"],"media":[{"alt":null,"id":36943602974957,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/leoforward.com\/cdn\/shop\/files\/B07T4GBMWW.jpg?v=1775795234"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/B07T4GBMWW.jpg?v=1775795234","width":1500},{"alt":null,"id":36943603007725,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/leoforward.com\/cdn\/shop\/files\/71gWzMMIzXL.jpg?v=1761014186"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/71gWzMMIzXL.jpg?v=1761014186","width":1500},{"alt":null,"id":36943603040493,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/leoforward.com\/cdn\/shop\/files\/61sdDZx_0UL.jpg?v=1761014186"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/61sdDZx_0UL.jpg?v=1761014186","width":1500},{"alt":null,"id":36943603073261,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/leoforward.com\/cdn\/shop\/files\/51iRKZgBseL.jpg?v=1761014185"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/51iRKZgBseL.jpg?v=1761014185","width":1200},{"alt":null,"id":36943603106029,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/leoforward.com\/cdn\/shop\/files\/61x4JlCJeeL.jpg?v=1761014186"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/61x4JlCJeeL.jpg?v=1761014186","width":1500},{"alt":null,"id":36943603138797,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/leoforward.com\/cdn\/shop\/files\/61DPsc0teOL.jpg?v=1761014186"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/61DPsc0teOL.jpg?v=1761014186","width":1500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eDEVMO PCF8591 AD\/DA Converter Module Analog to Digital Conversion Compatible with Ar-duino Raspberry Pi\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eThree module interface description The left and right side of the module,\r\nrespectively, outside the expansion of 2-pin connector, respectively, as\r\nfollows: Left AOUT chip DA output interface AINO chip analog input interface 0\r\nAIN1 chip analog input interface 1 AIN2 chip analog input interface 2 AIN3\r\nchip analog input interface 3 SCL IIC clock interface on the right then\r\nsingle-chip IO port SDA IIC digital interface connected MCU IO port GND module\r\nto ground VCC power interface external 3.3v-5vFour modules red short-circuit\r\ncap instructions Module a total of three red short-circuit cap, respectively,\r\nas follows: P4 connected to P4 short-circuit cap, select the thermistor access\r\ncircuit P5 connected to P5 short-circuit cap, select the photosensitive\r\nresistor access circuit P6 connected to P6 short-circuit cap, select 0-5V\r\nadjustable voltage access circuit\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eProduct Name : PCF8591 AD\/DA Converter Module;Working Voltage : 2.5-6V\u003c\/li\u003e\r\n \u003cli\u003eLow standby current.through the I2C bus serial input \/ output.\u003c\/li\u003e\r\n \u003cli\u003ePCB Size : 36 x 23mm\/1.4\" x 0.92\"(L*W);Hole Diameter : 3mm\/0.1\"\u003c\/li\u003e\r\n \u003cli\u003ePCF8591 by 3 hardware address pins addressing. Sampling rate PCF8591 I2C bus rate decided.\u003c\/li\u003e\r\n \u003cli\u003ePackage Content : 1 x PCF8591 AD\/DA Converter Module\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
