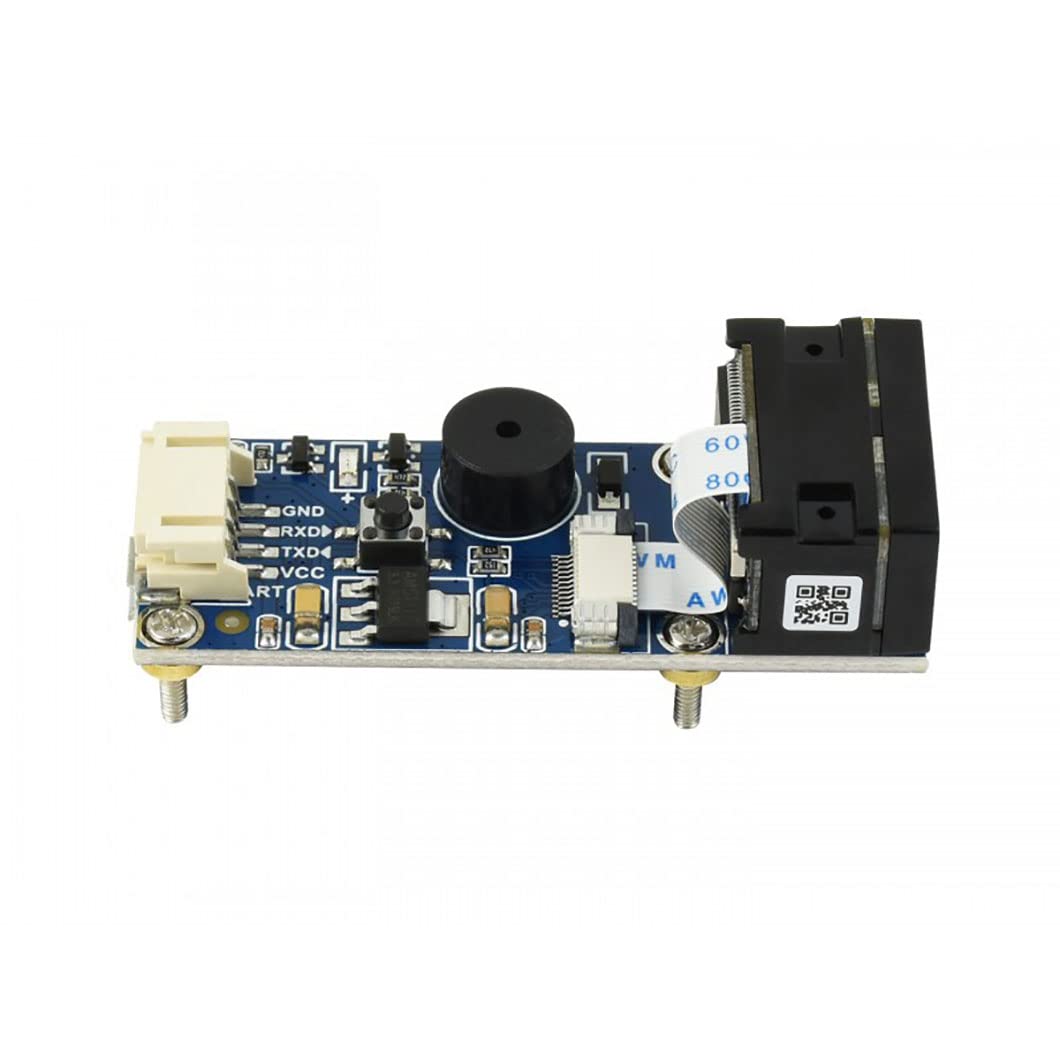

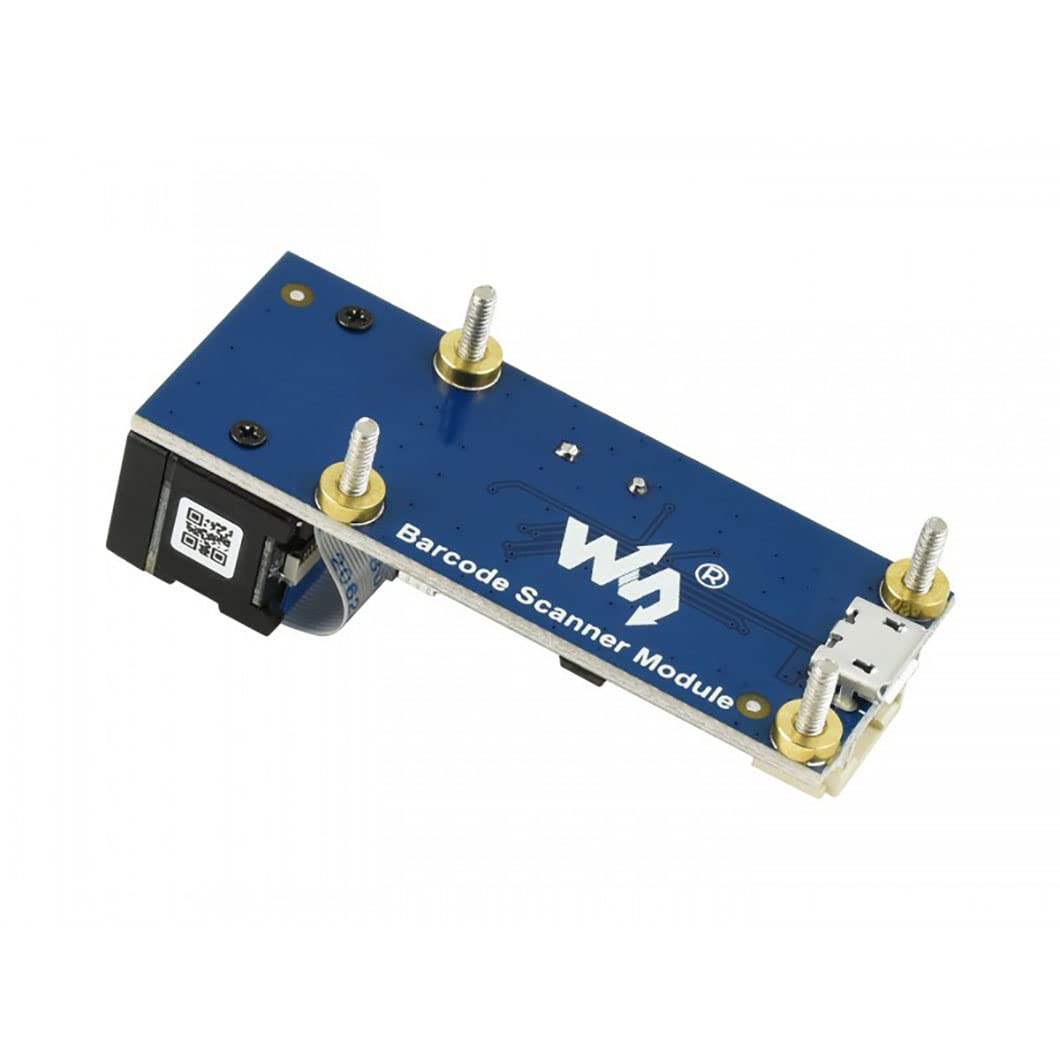

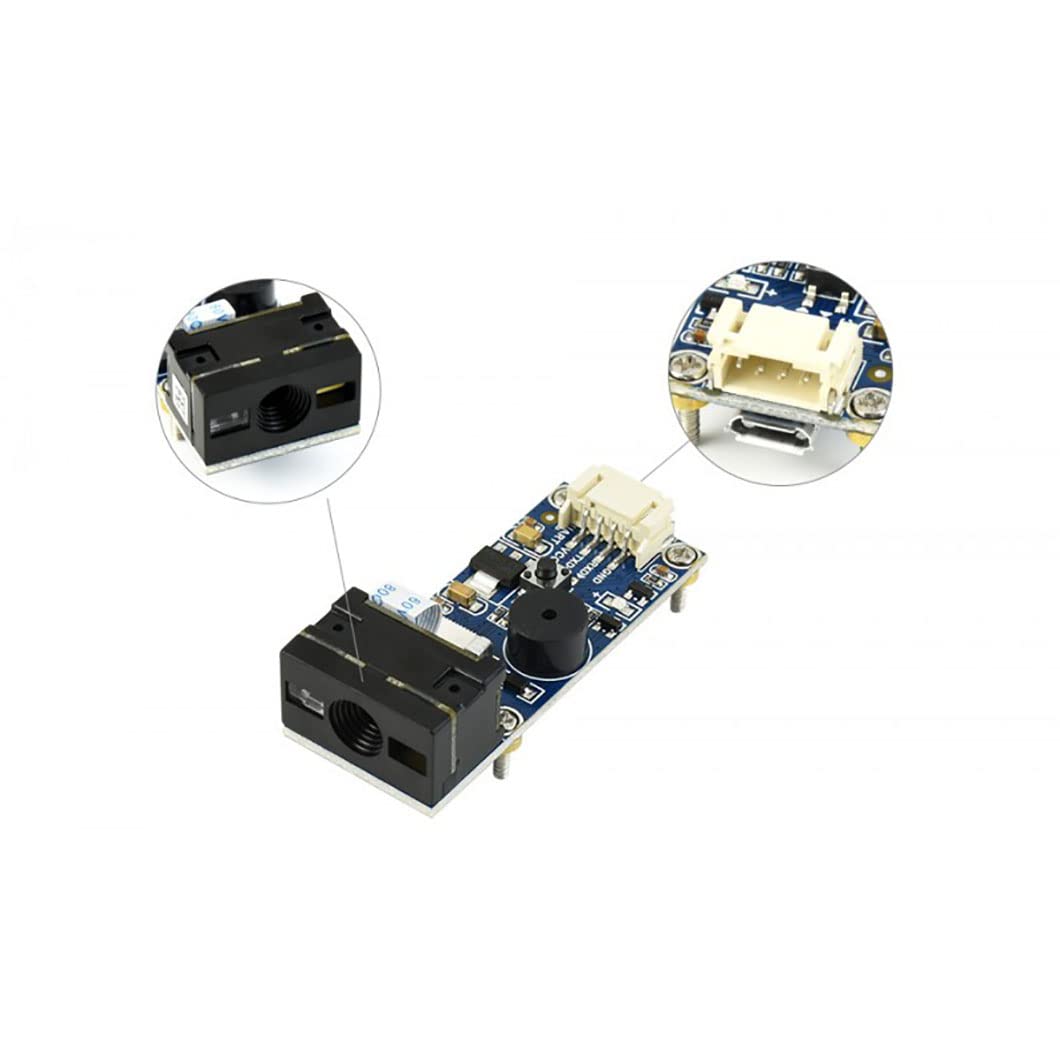

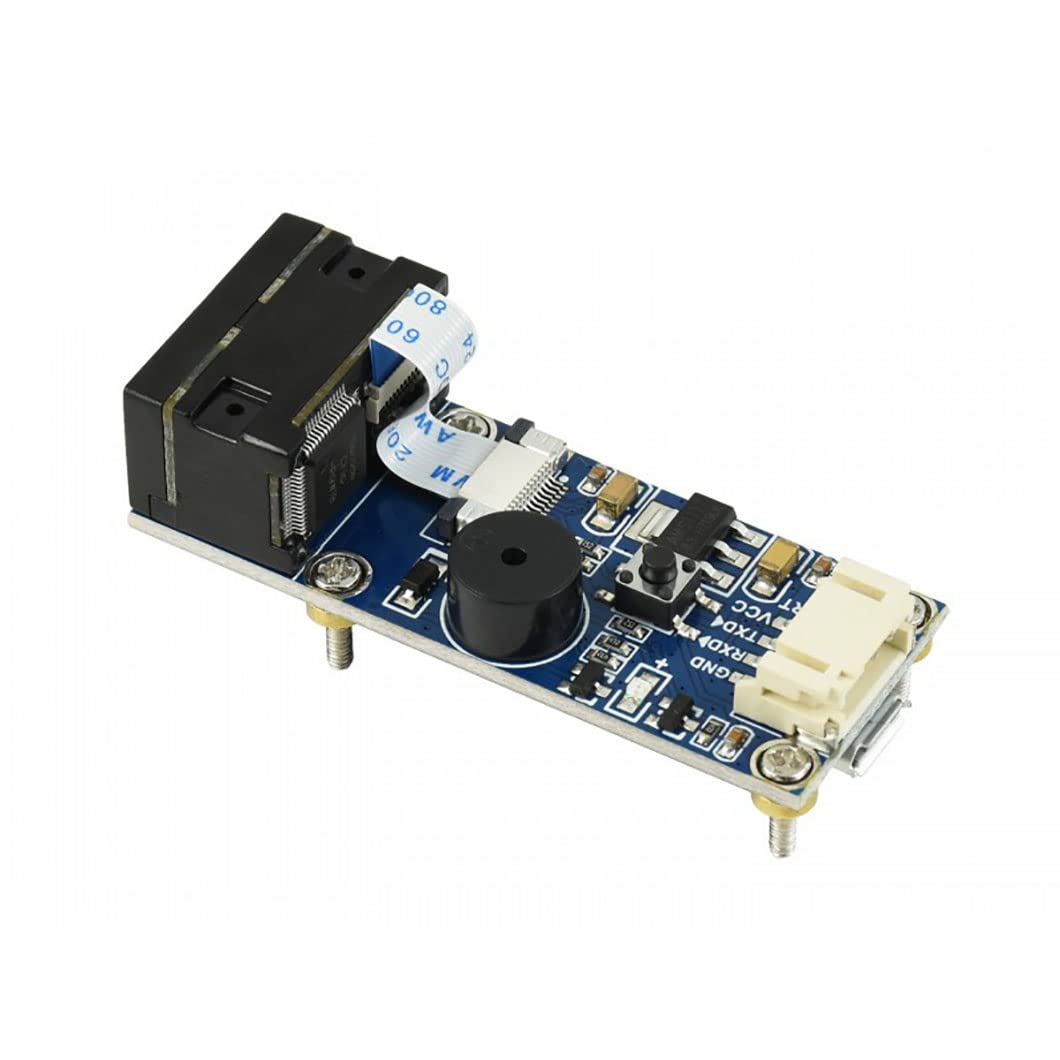

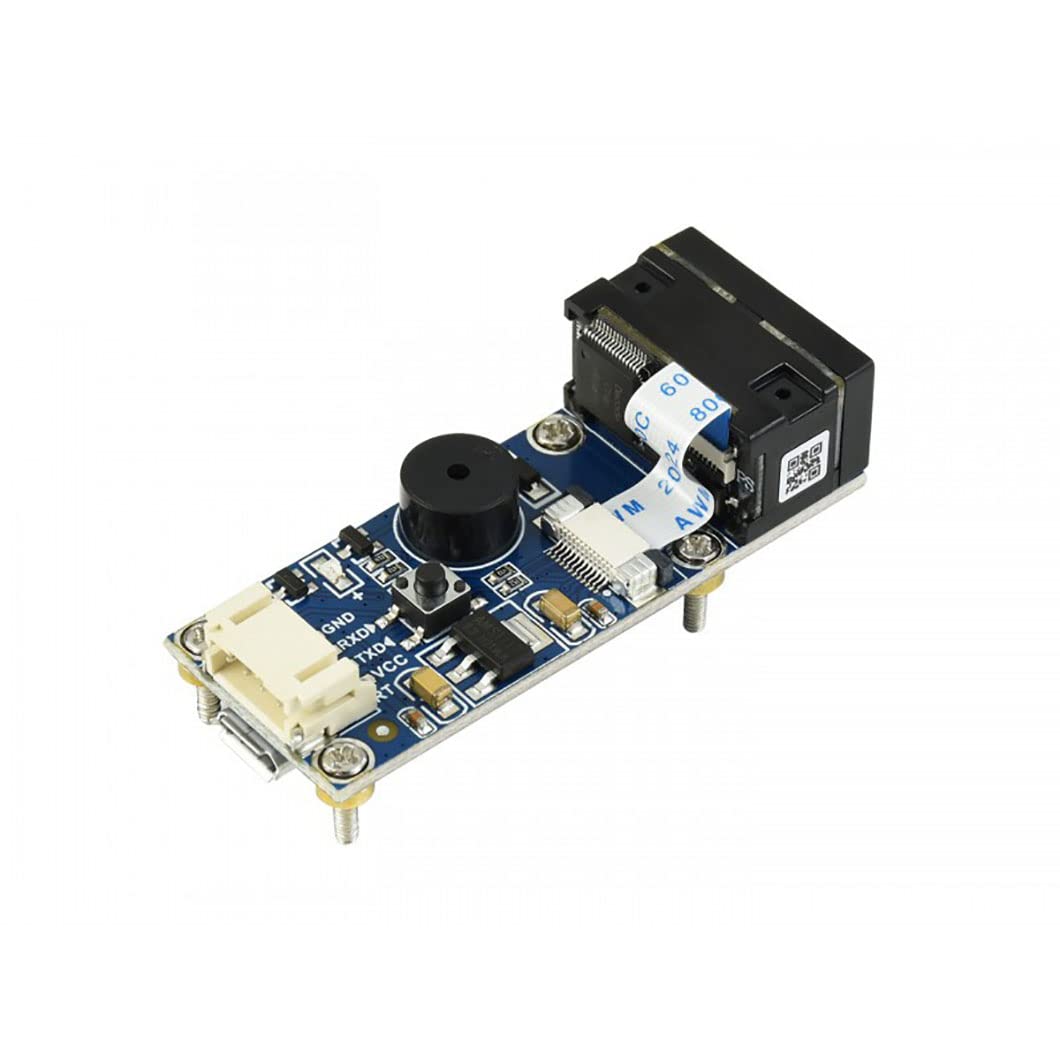

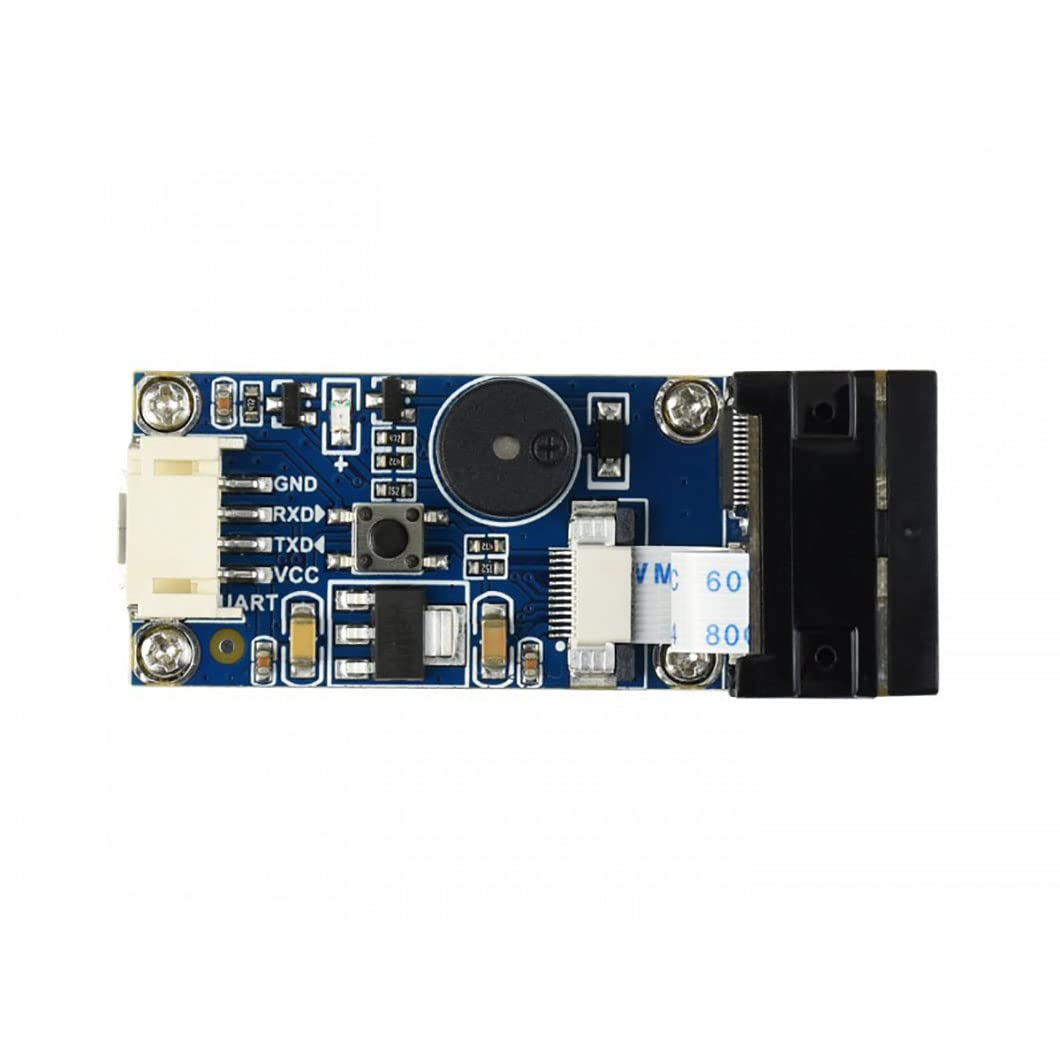

{"id":9143226171629,"title":"Barcode Scanner Module 1D\/2D Codes Reader Kit Read Barcode, QR Code etc Onboard Micro USB and UART Serial Port Woks in The Dark","handle":"barcode-scanner-module-1d-2d-codes-reader-kit-read-barcode-qr-code-etc-onboard-micro-usb-and-uart-serial-port-woks-in-the-dark","description":"\u003ch3\u003eBarcode Scanner Module 1D\/2D Codes Reader Kit Read Barcode, QR Code etc Onboard Micro USB and UART Serial Port Woks in The Dark\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eOverview This is a small 1D\/2D codes reader, by using the intelligent image\r\nrecognition algorithm, it will decode the barcode or 2D code on paper or\r\nscreen, fast and accurately. Through the onboard USB and UART interface, it\r\ncan be directly plugged into a computer, or be easily integrated to kinds of\r\ndevices due to its small form factor. Specifications Operating voltage: 5V\r\nOperating current: 135mA (scanning), 58mA (standby), 2mA (sleep) Operating\r\ntemperature: 0°C~60°C Operating humidity: 5%~95% (Non-condensing)\r\nCommunication interface: UART, USB Decodes 1D codes: Codebar, Code 11, Code\r\n39\/Code 93, UPC\/EAN, Code 128\/EAN128, Interleaved 2 of 5, Matrix 2 of 5, MSI\r\nCode, Industrial 2 of 5, GS1 Databar(RSS) Decodes 2D codes: QR code, Data\r\nMatrix, PDF417 Light source: white Scan angels: roll 360°, skew ±65°, pitch\r\n±60° Field of view: 28° (horizontal), 21.5° (vertical) Dimension: 53.3mm x\r\n21.4mm Package include 1. Barcode Scanner Module x1 2. USB type A plug to\r\nmicro B plug cable x1 3. PH2.0 4Pin x1\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eThe barcode scanner reader module is easy to use, requires no knowledges of image recognition\u003c\/li\u003e\r\n \u003cli\u003eThe barcode reader decodes various common 1D\/2D codes such as Barcode, QR code etc.\u003c\/li\u003e\r\n \u003cli\u003eThe small barcode reader module has onboard micro USB and UART serial port, allows to connect with computers or embedded devices\u003c\/li\u003e\r\n \u003cli\u003eThe scanner module is configurable via scanning 'configuration code\u003c\/li\u003e\r\n \u003cli\u003eThe code scanner module with onboard light source, works in the dark\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2025-10-17T02:55:17+11:00","created_at":"2025-10-17T02:55:12+11:00","vendor":"Coolwell","type":"","tags":["electronics_selected_Oct2025"],"price":21200,"price_min":21200,"price_max":21200,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":48881962582253,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0BS8W3V23","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Barcode Scanner Module 1D\/2D Codes Reader Kit Read Barcode, QR Code etc Onboard Micro USB and UART Serial Port Woks in The Dark","public_title":null,"options":["Default Title"],"price":21200,"weight":45,"compare_at_price":null,"inventory_management":"shopify","barcode":"749877938527","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/leoforward.com\/cdn\/shop\/files\/B0BS8W3V23.jpg?v=1775788568","\/\/leoforward.com\/cdn\/shop\/files\/51U3Th-QqSL.jpg?v=1760630115","\/\/leoforward.com\/cdn\/shop\/files\/51rhK8UJJpL.jpg?v=1760630114","\/\/leoforward.com\/cdn\/shop\/files\/5135abJn1dL.jpg?v=1760630114","\/\/leoforward.com\/cdn\/shop\/files\/51GdbilrYIL.jpg?v=1760630114","\/\/leoforward.com\/cdn\/shop\/files\/510-AmQPuLL.jpg?v=1760630115"],"featured_image":"\/\/leoforward.com\/cdn\/shop\/files\/B0BS8W3V23.jpg?v=1775788568","options":["Title"],"media":[{"alt":null,"id":36919481270509,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1060,"width":1060,"src":"\/\/leoforward.com\/cdn\/shop\/files\/B0BS8W3V23.jpg?v=1775788568"},"aspect_ratio":1.0,"height":1060,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/B0BS8W3V23.jpg?v=1775788568","width":1060},{"alt":null,"id":36919481303277,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1060,"width":1060,"src":"\/\/leoforward.com\/cdn\/shop\/files\/51U3Th-QqSL.jpg?v=1760630115"},"aspect_ratio":1.0,"height":1060,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/51U3Th-QqSL.jpg?v=1760630115","width":1060},{"alt":null,"id":36919481336045,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1060,"width":1060,"src":"\/\/leoforward.com\/cdn\/shop\/files\/51rhK8UJJpL.jpg?v=1760630114"},"aspect_ratio":1.0,"height":1060,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/51rhK8UJJpL.jpg?v=1760630114","width":1060},{"alt":null,"id":36919481368813,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1060,"width":1060,"src":"\/\/leoforward.com\/cdn\/shop\/files\/5135abJn1dL.jpg?v=1760630114"},"aspect_ratio":1.0,"height":1060,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/5135abJn1dL.jpg?v=1760630114","width":1060},{"alt":null,"id":36919481401581,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1060,"width":1060,"src":"\/\/leoforward.com\/cdn\/shop\/files\/51GdbilrYIL.jpg?v=1760630114"},"aspect_ratio":1.0,"height":1060,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/51GdbilrYIL.jpg?v=1760630114","width":1060},{"alt":null,"id":36919481434349,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1060,"width":1060,"src":"\/\/leoforward.com\/cdn\/shop\/files\/510-AmQPuLL.jpg?v=1760630115"},"aspect_ratio":1.0,"height":1060,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/510-AmQPuLL.jpg?v=1760630115","width":1060}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eBarcode Scanner Module 1D\/2D Codes Reader Kit Read Barcode, QR Code etc Onboard Micro USB and UART Serial Port Woks in The Dark\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eOverview This is a small 1D\/2D codes reader, by using the intelligent image\r\nrecognition algorithm, it will decode the barcode or 2D code on paper or\r\nscreen, fast and accurately. Through the onboard USB and UART interface, it\r\ncan be directly plugged into a computer, or be easily integrated to kinds of\r\ndevices due to its small form factor. Specifications Operating voltage: 5V\r\nOperating current: 135mA (scanning), 58mA (standby), 2mA (sleep) Operating\r\ntemperature: 0°C~60°C Operating humidity: 5%~95% (Non-condensing)\r\nCommunication interface: UART, USB Decodes 1D codes: Codebar, Code 11, Code\r\n39\/Code 93, UPC\/EAN, Code 128\/EAN128, Interleaved 2 of 5, Matrix 2 of 5, MSI\r\nCode, Industrial 2 of 5, GS1 Databar(RSS) Decodes 2D codes: QR code, Data\r\nMatrix, PDF417 Light source: white Scan angels: roll 360°, skew ±65°, pitch\r\n±60° Field of view: 28° (horizontal), 21.5° (vertical) Dimension: 53.3mm x\r\n21.4mm Package include 1. Barcode Scanner Module x1 2. USB type A plug to\r\nmicro B plug cable x1 3. PH2.0 4Pin x1\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eThe barcode scanner reader module is easy to use, requires no knowledges of image recognition\u003c\/li\u003e\r\n \u003cli\u003eThe barcode reader decodes various common 1D\/2D codes such as Barcode, QR code etc.\u003c\/li\u003e\r\n \u003cli\u003eThe small barcode reader module has onboard micro USB and UART serial port, allows to connect with computers or embedded devices\u003c\/li\u003e\r\n \u003cli\u003eThe scanner module is configurable via scanning 'configuration code\u003c\/li\u003e\r\n \u003cli\u003eThe code scanner module with onboard light source, works in the dark\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
