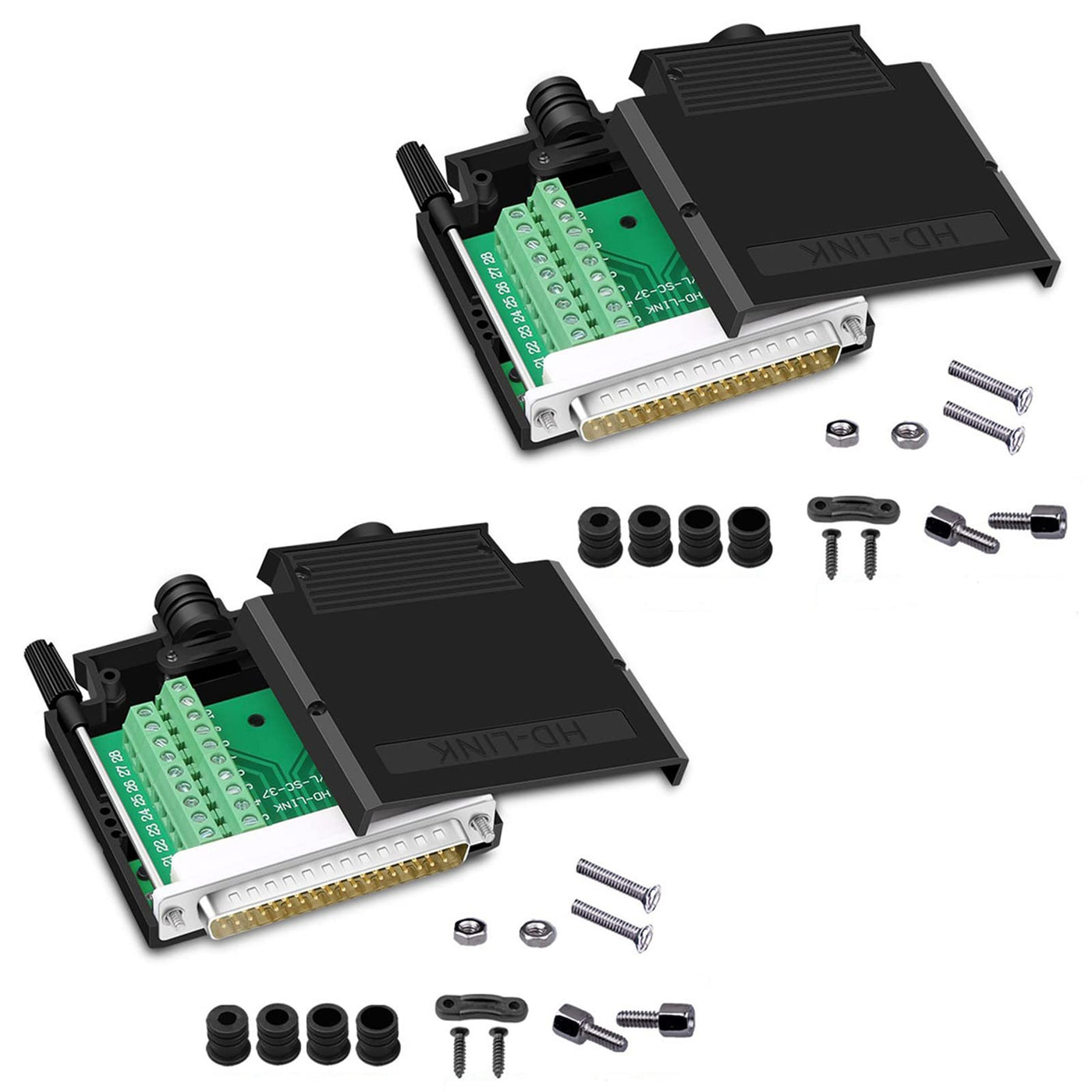

ANMBEST 2PCS Thinner DB37 Solderless RS232 D-SUB Serial to 37-pin Port Terminal Male Adapter Connector Breakout Board with Case Long Bolts Tail Pipe Male + Male
ANMBEST 2PCS Thinner DB37 Solderless RS232 D-SUB Serial to 37-pin Port Terminal Male Adapter Connector Breakout Board with Case Long Bolts Tail Pipe
These DB37 Male Solderless Connectors are used to terminate the connection type of a cable. They can easily be connected to a custom length cable as well as create a custom pinout, creating a permanent and durable connection for all applications. These connectors are made with high-quality materials to ensure durability and a long life. Technical Specifications: Name: Thin DB37 solderless module Plug type: male Accessories: housing, screw, card line buckle Connector material: pure copper plated joint Contact Material: Copper Housing material: environmentally friendly PP engineering materials Shell type: folding snap-on Opening size (cable port): 10.5mm/0.41″ Cable Specification: 26-16 AWG Torque: 0.2Nm (1.7Lb-In.) Thickness: 16mm/0.63″ Application: tax control machine, digital camera, PLC, PDA, MODEM, set-top box, barcode machine, industrial instrumentation, etc. Size: 76 mm×73.5 mm×16 mm/ 2.99″×2.89″×0.63″ Package includes: 2 x DB37 Male Solderless Connectors 2x cable pressing plate 4x Screws 4x Long bolts 2x 5mm tail pipe 2x 6mm tail pipe 2x 7.5mm tail pipe 2x 8.5mm tail pipe
Product Features
- EASY TO USE: No welding required, 128 type environmental protection copper terminal design, no need for soldering iron and cumbersome tools, easy wiring.
- REDUCE ERRORS: The terminal block area is clearly marked making proper termination virtually foolproof.
- THINNER: The thickness is only 16mm, which is 4mm thinner than the normal solderless connectors, ensuring that the product can be used in a narrow space.
- WIDELY APPLICATIONS: It can connect all kinds of serial devices. Such as computer and tax control machine, digital camera,PLC, PDA, MODEM, set-top box, barcode machine, industrial instrumentation and other equipment for communication.
