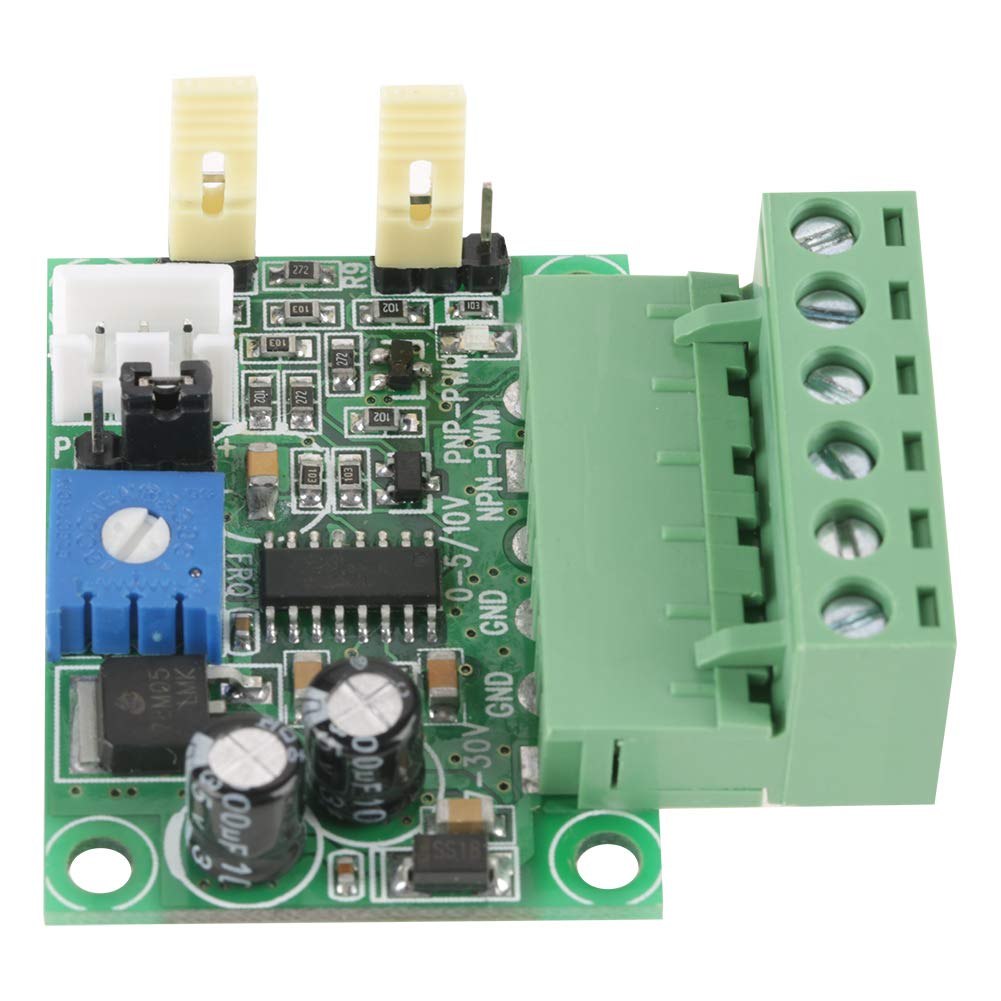

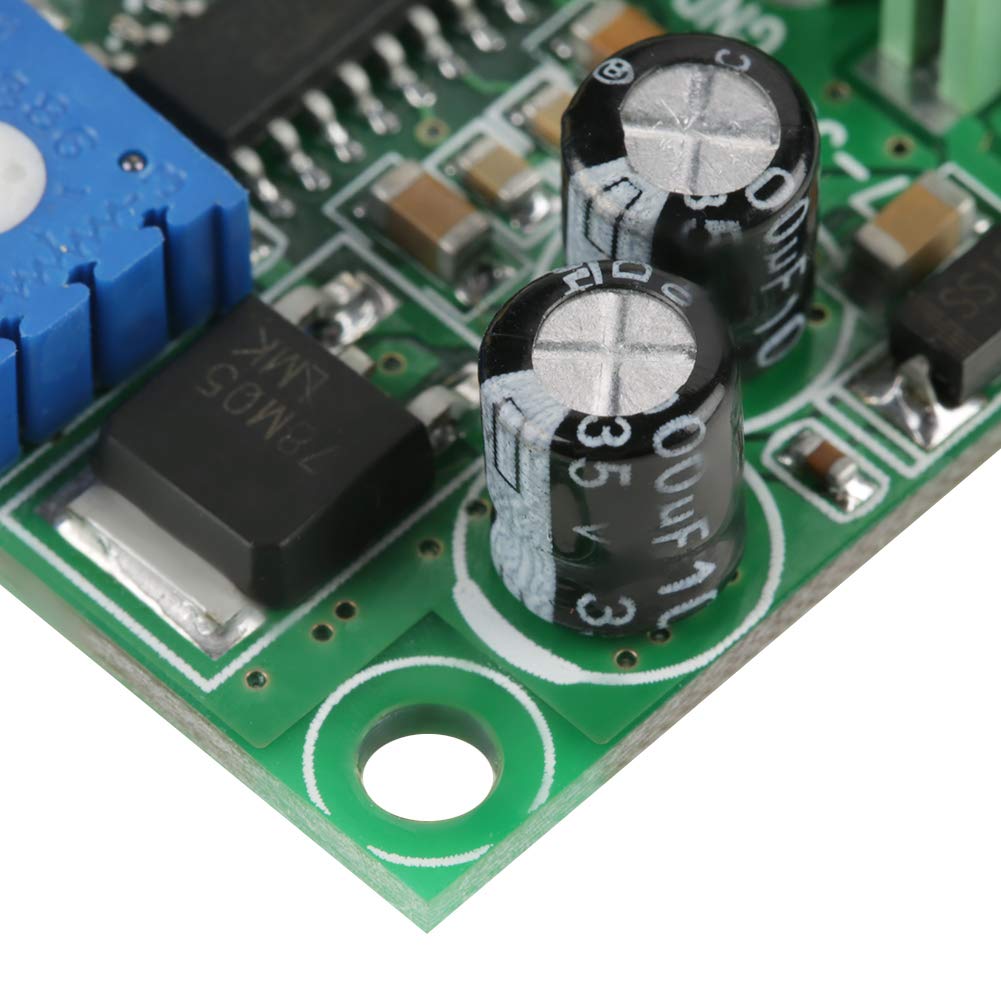

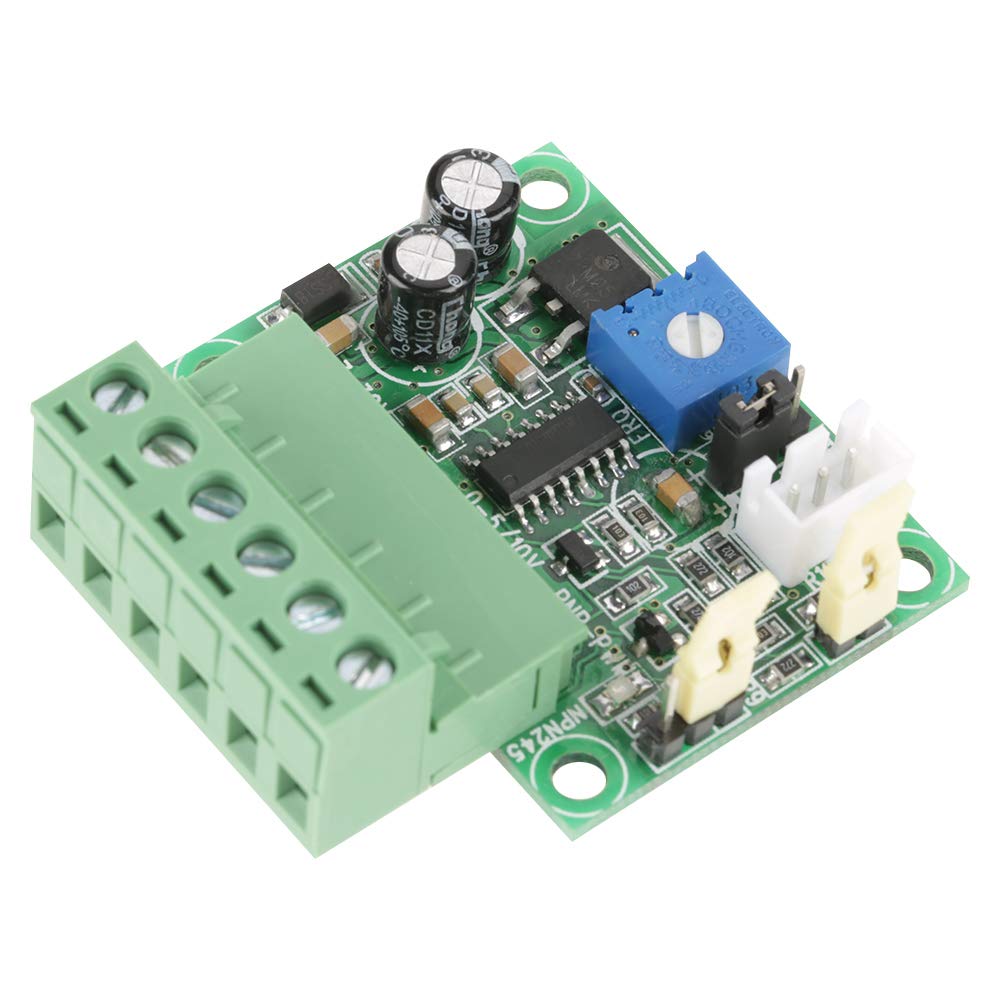

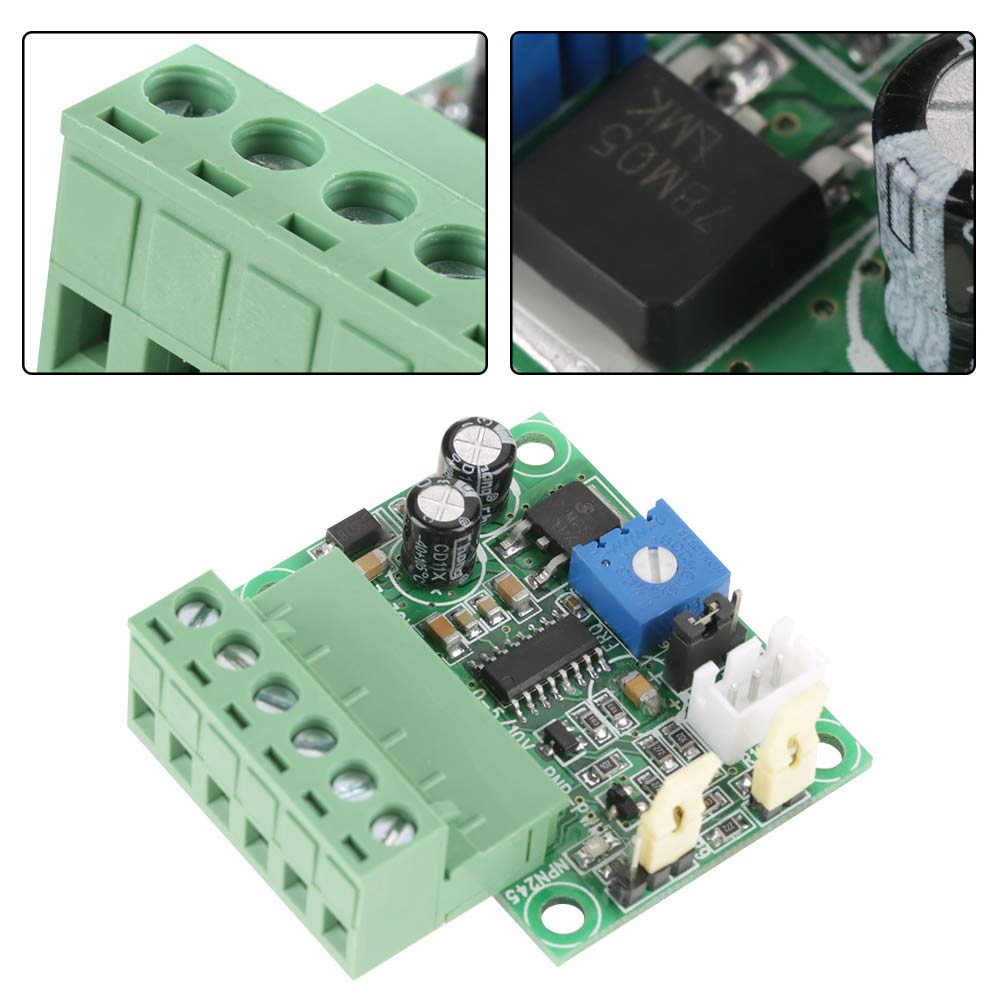

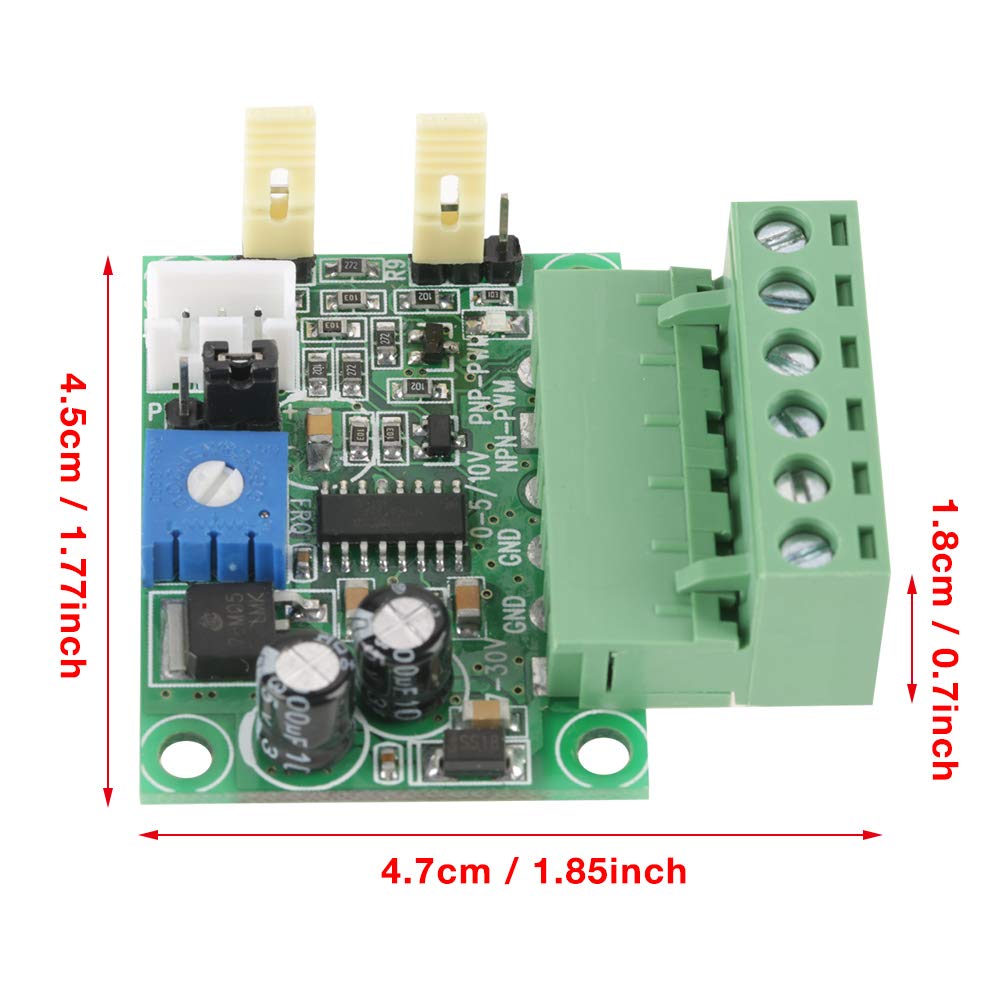

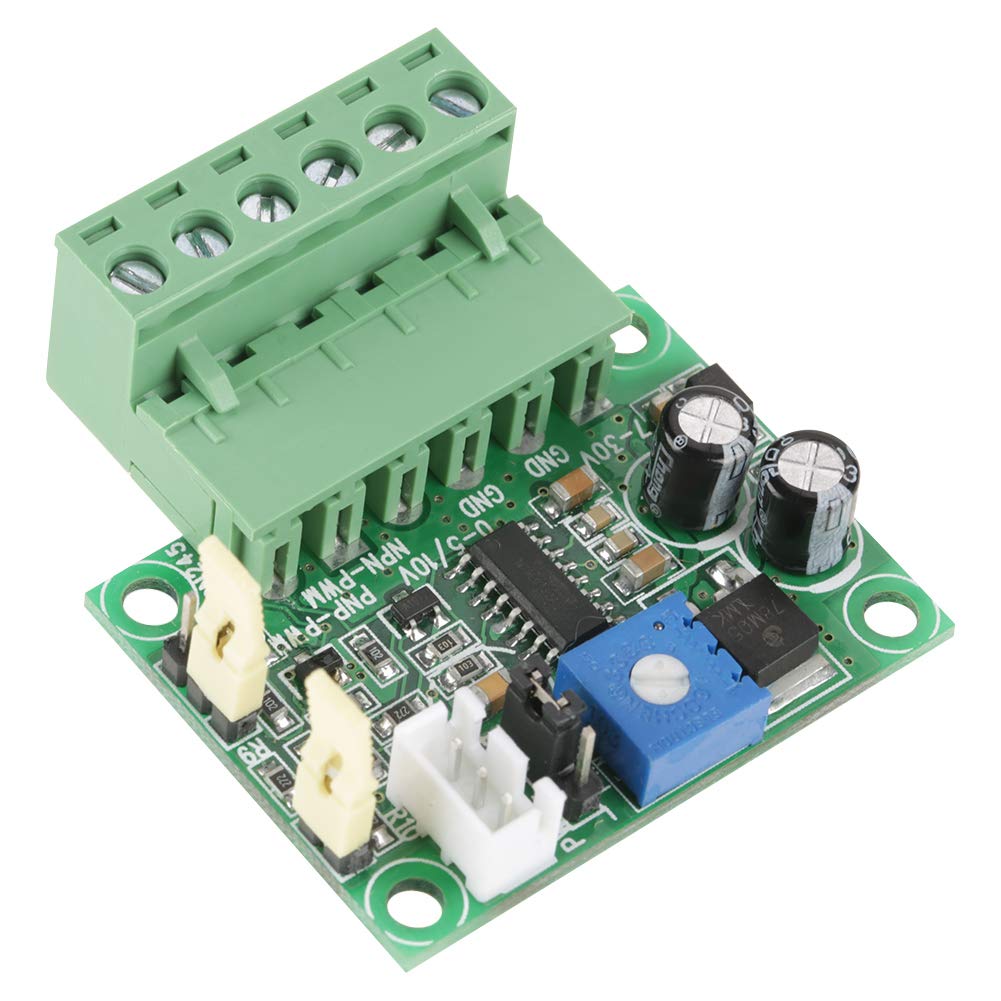

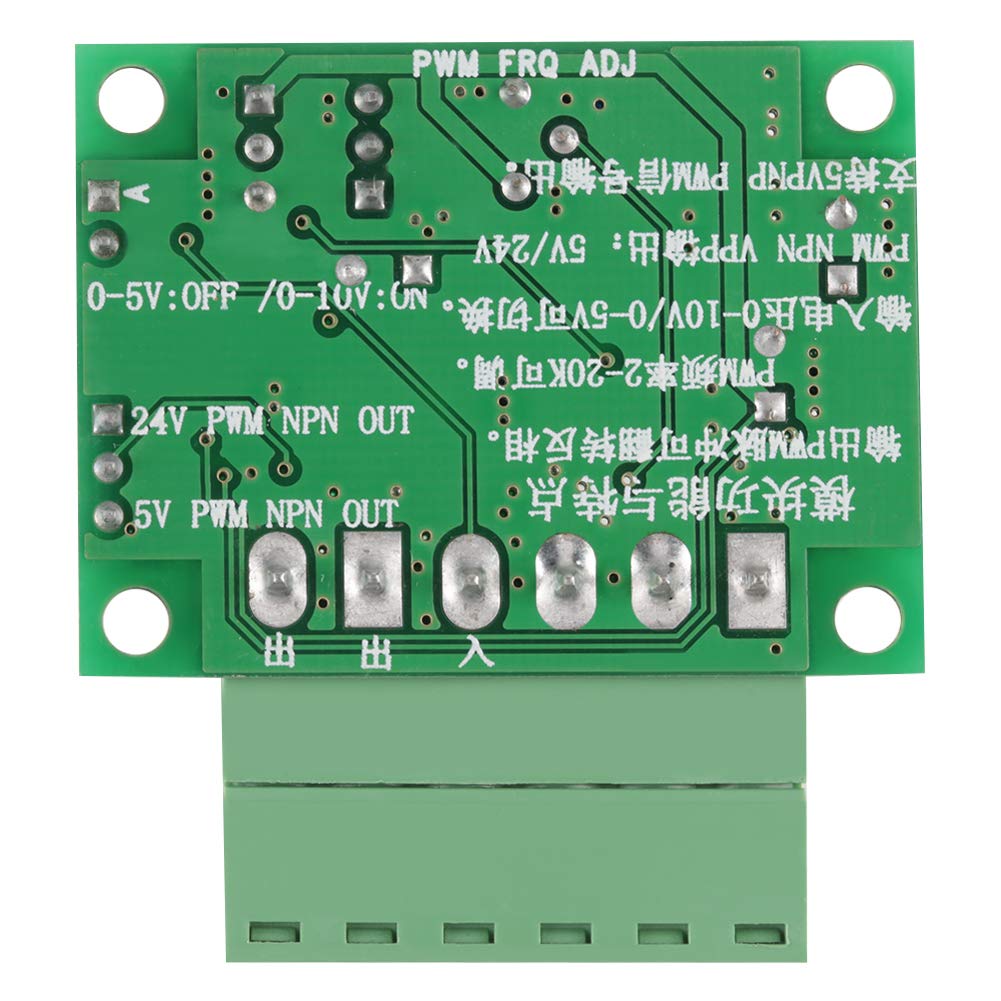

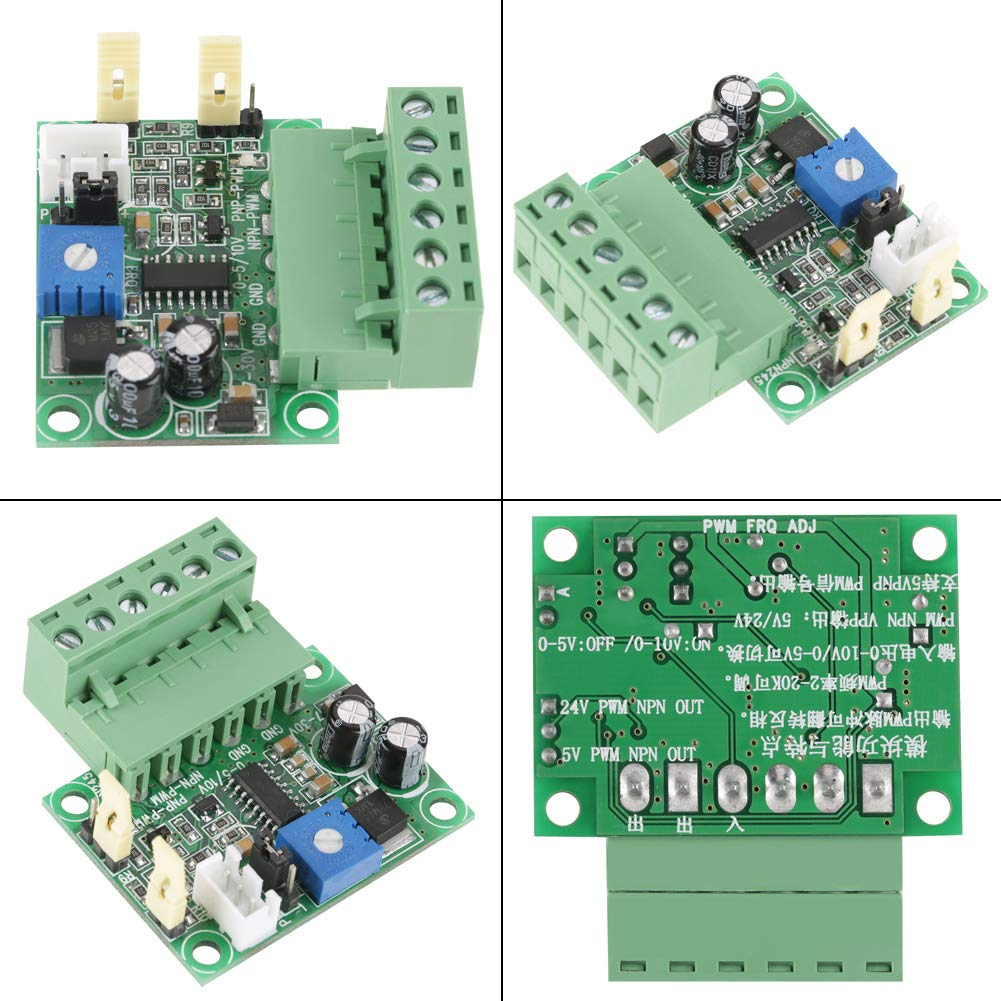

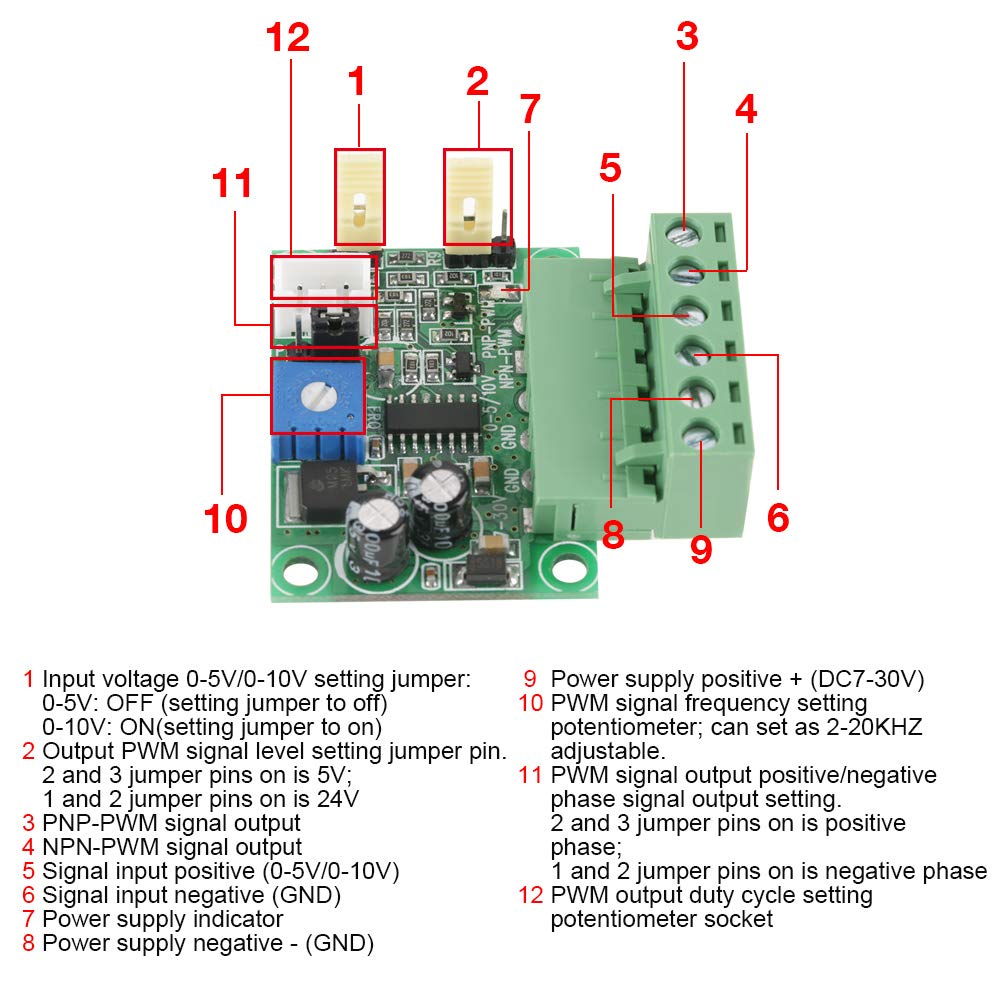

{"id":9154811363565,"title":"Analog Voltage To Pwm Converter, 0-5V\/0-10V Analog Input Voltage To 0-100% Pwm 2Khz20Khz Converter Module","handle":"analog-voltage-to-pwm-converter-0-5v-0-10v-analog-input-voltage-to-0-100-pwm-2khz20khz-converter-module","description":"\u003ch3\u003eAnalog Voltage To Pwm Converter, 0-5V\/0-10V Analog Input Voltage To 0-100% Pwm 2Khz20Khz Converter Module\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e​Features: This module can convert 0-5V or 0-10V analog input voltage into\n0-100% PWM signal. PWM frequency range is 2KHZ-20KHZ, maximum is 20KHZ,\ndefault minimum is 2KHZ. Default function is converting 0-10V into 0-100% 2KHZ\nPWM output frequency can be set by adjusting potentiometer as needed. PWM and\nvoltage can be direct ratio(positive phase output) or inverse ratio (negative\nphase output). There are two kinds of PWM signal, PNP-PWM output and NPN-PWM\noutput;the PNP-PWM output is only 5V level, NPN-PWM output is 5V and 24V\nlevel. NPN-PWM output supports common-cathode connection and common-anode\nconnection, 5V and 24V two levels. When output 24V level, it need 24V power\nsupply. For PNP-PWM output, the level can only be 5V. Can only use common-\ncathode connection, and connect to MCU, etc. Output PWM frequency is\nadjustable within 2KHZ-20KHZ; there are total 11 positions, respectively\ncorresponding to 2KHZ, 4KHZ, 6KHZ, 8KHZ maximum 20KHZ, default frequency is\n2KHZ. Used for PWM motor speed control interface circuit, instrumentation AD\ninterface conversion, and other applications that need convert voltage to PWM\nsignal. Specifications: Type: Voltage to PWM module Model: V-PWM Input Power\nSupply Voltage: 7-30V (recommend 15-30V DC) Input Power Supply Current: \u0026gt;200mA\nSize: Approx. 45 x 47 x 18mm\/1.8 x 1.9 x 0.7in Weight: 20g(approx.) Package\nIncludes: 1 x Converter Module Note: Please note that the new type and old\ntype of this product will be sent randomly, and make sure you will not mind\nbefore ordering.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eAPPLICATION: The voltage-to-PWM module is used for PWM motor speed control interface circuit, instrument AD interface conversion and other applications that need to convert voltage to PWM\u003c\/li\u003e\n \u003cli\u003eFUNCTION: This module can convert 0-5V or 0-10V analog input voltage into 0-100% PWM The default function is to convert 0-10V to 0-100% 2KHZ PWM the output frequency can be set by adjusting the potentiometer as needed\u003c\/li\u003e\n \u003cli\u003eFREQUENCY RANGE: The PWM frequency range is 2KHZ-20KHZ, the maximum value is 20KHZ, and the default minimum value is 2KHZ. PWM and voltage can be directly proportional (positive phase output) or inversely proportional (negative phase output)\u003c\/li\u003e\n \u003cli\u003eADJUSTABLE FREQUENCY: The output PWM frequency is adjustable from 2KHZ to 20KHZ; there are 11 gears, corresponding to 2KHZ, 4KHZ, 6KHZ, 8KHZ, the maximum is 20KHZ, and the default frequency is 2KHZ\u003c\/li\u003e\n \u003cli\u003eTWO KINDS OF OUTPUT: PWM has PNP-PWM output and NPN-PWM output; PNP-PWM output has only 5V level, NPN-PWM output has 5V and 24V level. NPN-PWM output supports common cathode connection and common anode connection, with two levels of 5V and 24V. When outputting 24V level, a 24V power supply is required. For PNP-PWM output, the level can only be 5V\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-10-24T10:43:47+11:00","created_at":"2025-10-24T10:43:44+11:00","vendor":"Taidda","type":"Power Converters","tags":["electronics_selected_Oct2025","weight_unknown"],"price":20300,"price_min":20300,"price_max":20300,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":48915405897965,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07VCLM4YN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Analog Voltage To Pwm Converter, 0-5V\/0-10V Analog Input Voltage To 0-100% Pwm 2Khz20Khz Converter Module","public_title":null,"options":["Default Title"],"price":20300,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"694951266778","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/leoforward.com\/cdn\/shop\/files\/B07VCLM4YN.jpg?v=1775799454","\/\/leoforward.com\/cdn\/shop\/files\/61jVGqCfH_L.jpg?v=1761263026","\/\/leoforward.com\/cdn\/shop\/files\/71hUuSkNKkL.jpg?v=1761263026","\/\/leoforward.com\/cdn\/shop\/files\/71N_IeLTtCL.jpg?v=1761263026","\/\/leoforward.com\/cdn\/shop\/files\/61fykHJ127L.jpg?v=1761263026","\/\/leoforward.com\/cdn\/shop\/files\/61GM_ruHtVL.jpg?v=1761263026","\/\/leoforward.com\/cdn\/shop\/files\/61AjbyCa0AL.jpg?v=1761263026","\/\/leoforward.com\/cdn\/shop\/files\/61484Snmb7L.jpg?v=1761263026","\/\/leoforward.com\/cdn\/shop\/files\/61tJt_hBATL.jpg?v=1761263026"],"featured_image":"\/\/leoforward.com\/cdn\/shop\/files\/B07VCLM4YN.jpg?v=1775799454","options":["Title"],"media":[{"alt":null,"id":36969010659565,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/leoforward.com\/cdn\/shop\/files\/B07VCLM4YN.jpg?v=1775799454"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/B07VCLM4YN.jpg?v=1775799454","width":1001},{"alt":null,"id":36969010692333,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/leoforward.com\/cdn\/shop\/files\/61jVGqCfH_L.jpg?v=1761263026"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/61jVGqCfH_L.jpg?v=1761263026","width":1001},{"alt":null,"id":36969010725101,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/leoforward.com\/cdn\/shop\/files\/71hUuSkNKkL.jpg?v=1761263026"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/71hUuSkNKkL.jpg?v=1761263026","width":1001},{"alt":null,"id":36969010757869,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/leoforward.com\/cdn\/shop\/files\/71N_IeLTtCL.jpg?v=1761263026"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/71N_IeLTtCL.jpg?v=1761263026","width":1001},{"alt":null,"id":36969010790637,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/leoforward.com\/cdn\/shop\/files\/61fykHJ127L.jpg?v=1761263026"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/61fykHJ127L.jpg?v=1761263026","width":1001},{"alt":null,"id":36969010823405,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/leoforward.com\/cdn\/shop\/files\/61GM_ruHtVL.jpg?v=1761263026"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/61GM_ruHtVL.jpg?v=1761263026","width":1001},{"alt":null,"id":36969010856173,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/leoforward.com\/cdn\/shop\/files\/61AjbyCa0AL.jpg?v=1761263026"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/61AjbyCa0AL.jpg?v=1761263026","width":1001},{"alt":null,"id":36969010888941,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/leoforward.com\/cdn\/shop\/files\/61484Snmb7L.jpg?v=1761263026"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/61484Snmb7L.jpg?v=1761263026","width":1001},{"alt":null,"id":36969010921709,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/leoforward.com\/cdn\/shop\/files\/61tJt_hBATL.jpg?v=1761263026"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/61tJt_hBATL.jpg?v=1761263026","width":1001}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eAnalog Voltage To Pwm Converter, 0-5V\/0-10V Analog Input Voltage To 0-100% Pwm 2Khz20Khz Converter Module\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e​Features: This module can convert 0-5V or 0-10V analog input voltage into\n0-100% PWM signal. PWM frequency range is 2KHZ-20KHZ, maximum is 20KHZ,\ndefault minimum is 2KHZ. Default function is converting 0-10V into 0-100% 2KHZ\nPWM output frequency can be set by adjusting potentiometer as needed. PWM and\nvoltage can be direct ratio(positive phase output) or inverse ratio (negative\nphase output). There are two kinds of PWM signal, PNP-PWM output and NPN-PWM\noutput;the PNP-PWM output is only 5V level, NPN-PWM output is 5V and 24V\nlevel. NPN-PWM output supports common-cathode connection and common-anode\nconnection, 5V and 24V two levels. When output 24V level, it need 24V power\nsupply. For PNP-PWM output, the level can only be 5V. Can only use common-\ncathode connection, and connect to MCU, etc. Output PWM frequency is\nadjustable within 2KHZ-20KHZ; there are total 11 positions, respectively\ncorresponding to 2KHZ, 4KHZ, 6KHZ, 8KHZ maximum 20KHZ, default frequency is\n2KHZ. Used for PWM motor speed control interface circuit, instrumentation AD\ninterface conversion, and other applications that need convert voltage to PWM\nsignal. Specifications: Type: Voltage to PWM module Model: V-PWM Input Power\nSupply Voltage: 7-30V (recommend 15-30V DC) Input Power Supply Current: \u0026gt;200mA\nSize: Approx. 45 x 47 x 18mm\/1.8 x 1.9 x 0.7in Weight: 20g(approx.) Package\nIncludes: 1 x Converter Module Note: Please note that the new type and old\ntype of this product will be sent randomly, and make sure you will not mind\nbefore ordering.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eAPPLICATION: The voltage-to-PWM module is used for PWM motor speed control interface circuit, instrument AD interface conversion and other applications that need to convert voltage to PWM\u003c\/li\u003e\n \u003cli\u003eFUNCTION: This module can convert 0-5V or 0-10V analog input voltage into 0-100% PWM The default function is to convert 0-10V to 0-100% 2KHZ PWM the output frequency can be set by adjusting the potentiometer as needed\u003c\/li\u003e\n \u003cli\u003eFREQUENCY RANGE: The PWM frequency range is 2KHZ-20KHZ, the maximum value is 20KHZ, and the default minimum value is 2KHZ. PWM and voltage can be directly proportional (positive phase output) or inversely proportional (negative phase output)\u003c\/li\u003e\n \u003cli\u003eADJUSTABLE FREQUENCY: The output PWM frequency is adjustable from 2KHZ to 20KHZ; there are 11 gears, corresponding to 2KHZ, 4KHZ, 6KHZ, 8KHZ, the maximum is 20KHZ, and the default frequency is 2KHZ\u003c\/li\u003e\n \u003cli\u003eTWO KINDS OF OUTPUT: PWM has PNP-PWM output and NPN-PWM output; PNP-PWM output has only 5V level, NPN-PWM output has 5V and 24V level. NPN-PWM output supports common cathode connection and common anode connection, with two levels of 5V and 24V. When outputting 24V level, a 24V power supply is required. For PNP-PWM output, the level can only be 5V\u003c\/li\u003e\n \u003c\/ul\u003e"}
