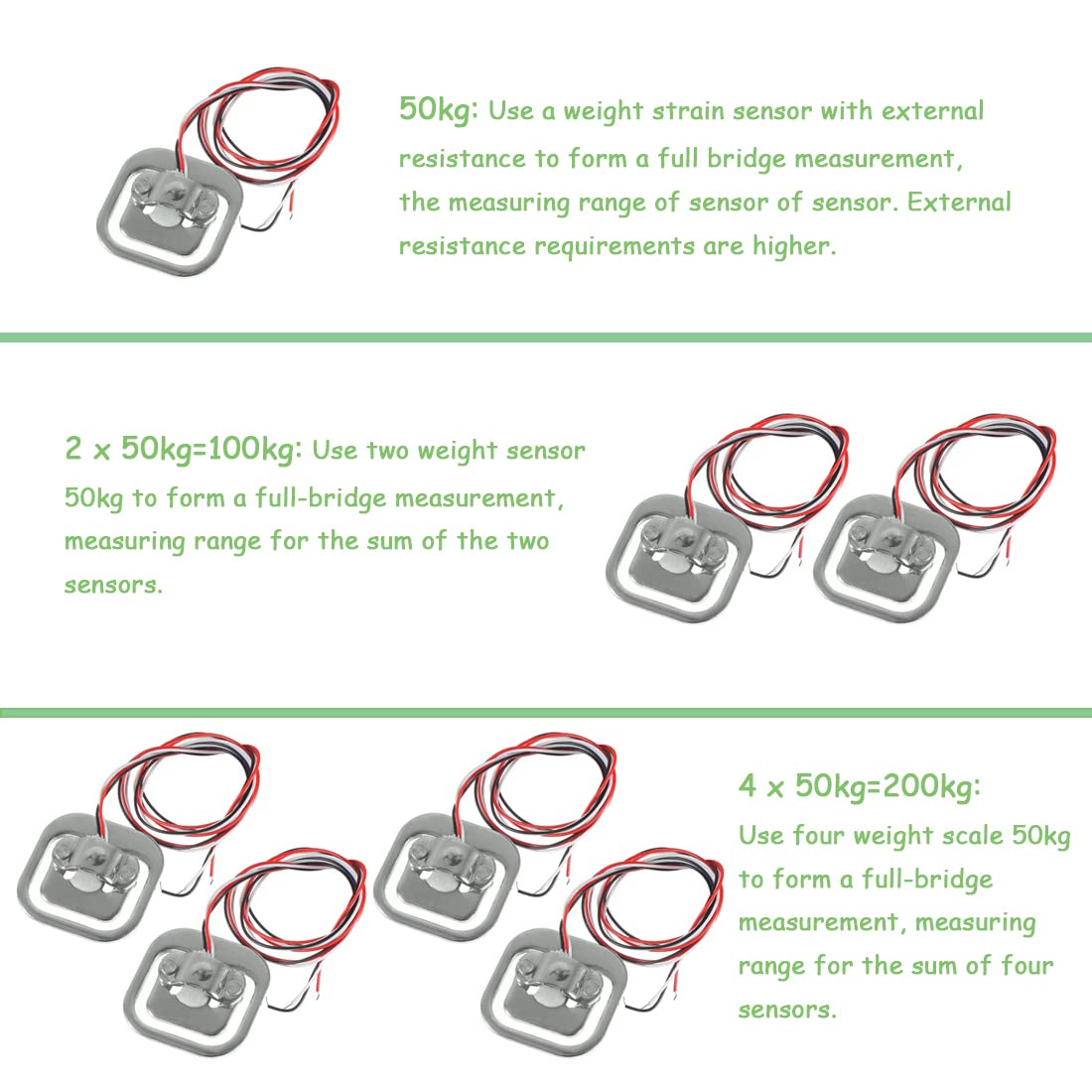

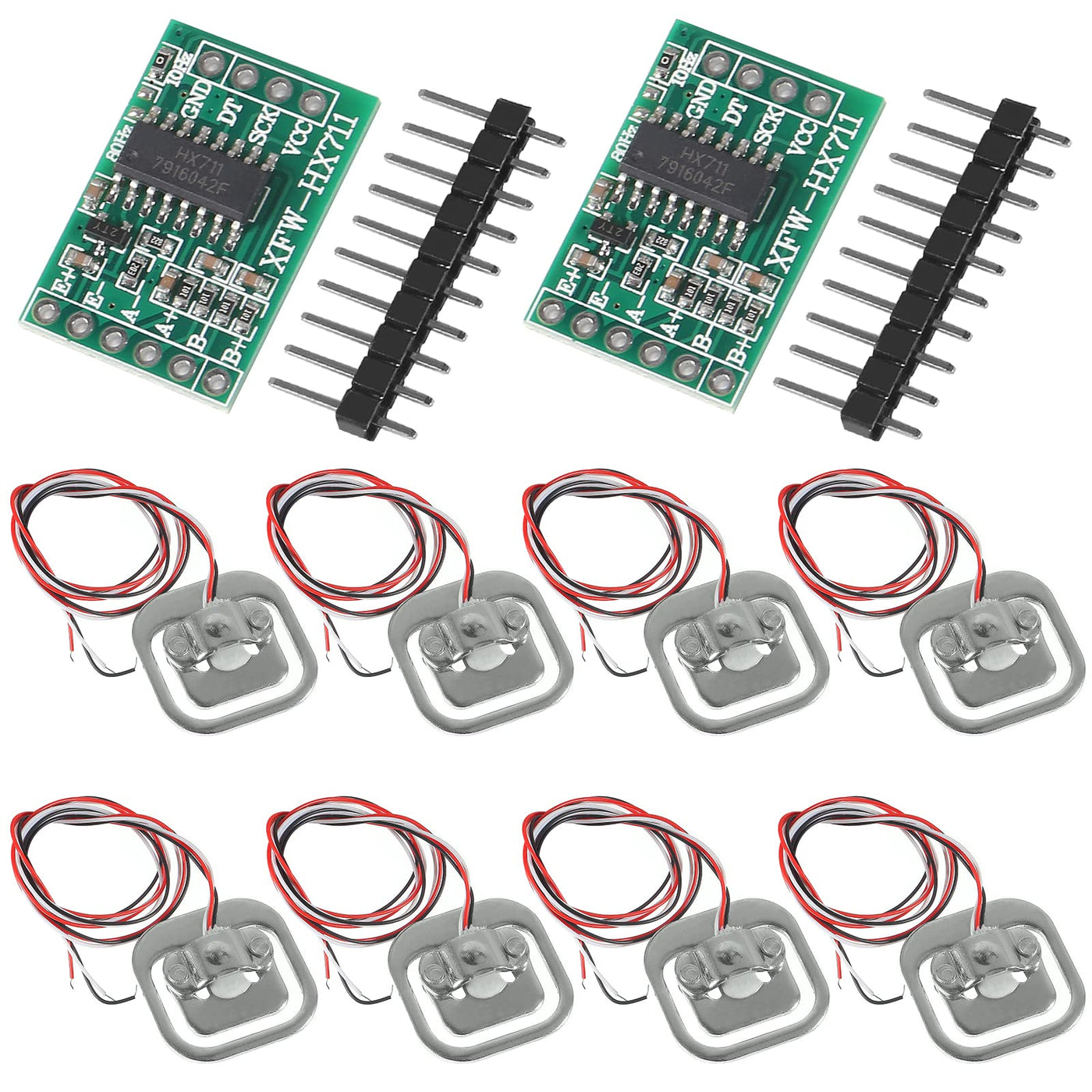

{"id":8456834613485,"title":"ALAMSCN 8 pieces half bridge load cell 50 kg half bridge strain gauge weight sensor + 2 pieces HX711 module for Arduino microcontroller DIY","handle":"alamscn-8-pieces-half-bridge-load-cell-50-kg-half-bridge-strain-gauge-weight-sensor-2-pieces-hx711-module-for-arduino-microcontroller-diy","description":"\u003ch3\u003eALAMSCN 8 pieces half bridge load cell 50kg half bridge strain gauge weight sensor + 2 pieces HX711 module for Arduino microcontroller DIY\u003c\/h3\u003e \u003cp id=\"b\"\u003eSpecifications: Capacity: 50kg\/110lb Structure:Half bridge Output sensitivity: 1.0 ± 15% mV\/V Non-linearity: 0.05% FS Input impedance: 1000±10ohm Output impedance: 1000 ± 10 ohm Insulation resistance: ≧2000 M ohm Operating temperature range: -10~+50℃ Overload capability: 150% FS This sensor is a group of half-bridge Strain gauges using the method can have the following three: ◆ Using a sensor with the external resistance to form a full bridge measurement, the range of a sensor range: 50kg. The requirements for external resistance are higher. ◆ The use of two sensors to form a full bridge measurement, measuring the range of two sensors and: 50kgx2=100kg ◆ The use of four sensors to form a full bridge measurement, measuring range of four sensors and the range: 50kgx4=200kg Package includes: 8 x 50kg half bridge load cell 2 x HX711 AD weight module\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003eThe 50kg load cell is a group of half bridge strain gauges. Use a 50kg load sensor with an external resistance to form a full bridge measurement.\u003c\/li\u003e \u003cli\u003ePackage included: 8 x human load cell sensor; 2 x HX711 module.\u003c\/li\u003e \u003cli\u003eThe HX711 module uses 24 high-precision A\/D converter chips hx711. It is a design specially developed for high-precision electronic scale design, with two analog input channels and the internal integration of the 128-fold amplifier with programmable gain.\u003c\/li\u003e \u003cli\u003eWith two weight sensors 50kg, form a full bridge measurement, measuring range for the sum of the two sensors : 50kgx2 = 100kg.\u003c\/li\u003e \u003cli\u003eUse four 50kg scales to form a full bridge measurement, measuring range for the sum of four sensors: 50kgx4 = 200kg\u003c\/li\u003e \u003c\/ul\u003e","published_at":"2024-03-11T18:53:58+11:00","created_at":"2024-03-11T18:54:08+11:00","vendor":"ALAMSCN","type":"Pressure probes \u0026 pressure sensors","tags":["industryDE"],"price":16500,"price_min":16500,"price_max":16500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45401807552749,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B09H6SLXZ6","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ALAMSCN 8 pieces half bridge load cell 50 kg half bridge strain gauge weight sensor + 2 pieces HX711 module for Arduino microcontroller DIY","public_title":null,"options":["Default Title"],"price":16500,"weight":700,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/leoforward.com\/cdn\/shop\/products\/81nnf1T1zvL.jpg?v=1710143648","\/\/leoforward.com\/cdn\/shop\/products\/61DcWjArCyL.jpg?v=1710143648","\/\/leoforward.com\/cdn\/shop\/products\/61TPDyINyVL.jpg?v=1710143648","\/\/leoforward.com\/cdn\/shop\/products\/51r1HwNbFzL.jpg?v=1710143648","\/\/leoforward.com\/cdn\/shop\/products\/71lohGKPh4L.jpg?v=1710143648","\/\/leoforward.com\/cdn\/shop\/products\/71q0Z_eHfHL.jpg?v=1710143648","\/\/leoforward.com\/cdn\/shop\/products\/71-NqEFiznL.jpg?v=1710143648"],"featured_image":"\/\/leoforward.com\/cdn\/shop\/products\/81nnf1T1zvL.jpg?v=1710143648","options":["Title"],"media":[{"alt":" [AUSTRALIA] - ALAMSCN 8 pieces half bridge load cell 50 kg half bridge strain gauge weight sensor + 2 pieces HX711 module for Arduino microcontroller DIY","id":32609919074541,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/products\/81nnf1T1zvL.jpg?v=1710143648"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/products\/81nnf1T1zvL.jpg?v=1710143648","width":1600},{"alt":" [AUSTRALIA] - ALAMSCN 8 pieces half bridge load cell 50 kg half bridge strain gauge weight sensor + 2 pieces HX711 module for Arduino microcontroller DIY","id":32609919107309,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/leoforward.com\/cdn\/shop\/products\/61DcWjArCyL.jpg?v=1710143648"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/products\/61DcWjArCyL.jpg?v=1710143648","width":1100},{"alt":" [AUSTRALIA] - ALAMSCN 8 pieces half bridge load cell 50 kg half bridge strain gauge weight sensor + 2 pieces HX711 module for Arduino microcontroller DIY","id":32609919140077,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/leoforward.com\/cdn\/shop\/products\/61TPDyINyVL.jpg?v=1710143648"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/products\/61TPDyINyVL.jpg?v=1710143648","width":1100},{"alt":" [AUSTRALIA] - ALAMSCN 8 pieces half bridge load cell 50 kg half bridge strain gauge weight sensor + 2 pieces HX711 module for Arduino microcontroller DIY","id":32609919172845,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/leoforward.com\/cdn\/shop\/products\/51r1HwNbFzL.jpg?v=1710143648"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/products\/51r1HwNbFzL.jpg?v=1710143648","width":1100},{"alt":" [AUSTRALIA] - ALAMSCN 8 pieces half bridge load cell 50 kg half bridge strain gauge weight sensor + 2 pieces HX711 module for Arduino microcontroller DIY","id":32609919205613,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/products\/71lohGKPh4L.jpg?v=1710143648"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/products\/71lohGKPh4L.jpg?v=1710143648","width":1600},{"alt":" [AUSTRALIA] - ALAMSCN 8 pieces half bridge load cell 50 kg half bridge strain gauge weight sensor + 2 pieces HX711 module for Arduino microcontroller DIY","id":32609919238381,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/products\/71q0Z_eHfHL.jpg?v=1710143648"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/products\/71q0Z_eHfHL.jpg?v=1710143648","width":1600},{"alt":" [AUSTRALIA] - ALAMSCN 8 pieces half bridge load cell 50 kg half bridge strain gauge weight sensor + 2 pieces HX711 module for Arduino microcontroller DIY","id":32609919271149,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/leoforward.com\/cdn\/shop\/products\/71-NqEFiznL.jpg?v=1710143648"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/products\/71-NqEFiznL.jpg?v=1710143648","width":1100}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eALAMSCN 8 pieces half bridge load cell 50kg half bridge strain gauge weight sensor + 2 pieces HX711 module for Arduino microcontroller DIY\u003c\/h3\u003e \u003cp id=\"b\"\u003eSpecifications: Capacity: 50kg\/110lb Structure:Half bridge Output sensitivity: 1.0 ± 15% mV\/V Non-linearity: 0.05% FS Input impedance: 1000±10ohm Output impedance: 1000 ± 10 ohm Insulation resistance: ≧2000 M ohm Operating temperature range: -10~+50℃ Overload capability: 150% FS This sensor is a group of half-bridge Strain gauges using the method can have the following three: ◆ Using a sensor with the external resistance to form a full bridge measurement, the range of a sensor range: 50kg. The requirements for external resistance are higher. ◆ The use of two sensors to form a full bridge measurement, measuring the range of two sensors and: 50kgx2=100kg ◆ The use of four sensors to form a full bridge measurement, measuring range of four sensors and the range: 50kgx4=200kg Package includes: 8 x 50kg half bridge load cell 2 x HX711 AD weight module\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003eThe 50kg load cell is a group of half bridge strain gauges. Use a 50kg load sensor with an external resistance to form a full bridge measurement.\u003c\/li\u003e \u003cli\u003ePackage included: 8 x human load cell sensor; 2 x HX711 module.\u003c\/li\u003e \u003cli\u003eThe HX711 module uses 24 high-precision A\/D converter chips hx711. It is a design specially developed for high-precision electronic scale design, with two analog input channels and the internal integration of the 128-fold amplifier with programmable gain.\u003c\/li\u003e \u003cli\u003eWith two weight sensors 50kg, form a full bridge measurement, measuring range for the sum of the two sensors : 50kgx2 = 100kg.\u003c\/li\u003e \u003cli\u003eUse four 50kg scales to form a full bridge measurement, measuring range for the sum of four sensors: 50kgx4 = 200kg\u003c\/li\u003e \u003c\/ul\u003e"}
