AIOMEST Digital Clamp Meter, 6000 Counts Handheld Multimeter Slim Voltage Tester Auto-Range 60A/400A True-RMS w/NCV, DC & AC, Temp, Volt Ammeter AI-7200D
AIOMEST Digital Clamp Meter, 6000 Counts Handheld Multimeter Slim Voltage Tester Auto-Range 60A/400A True-RMS w/NCV, DC & AC, Temp, Volt Ammeter AI-7200D

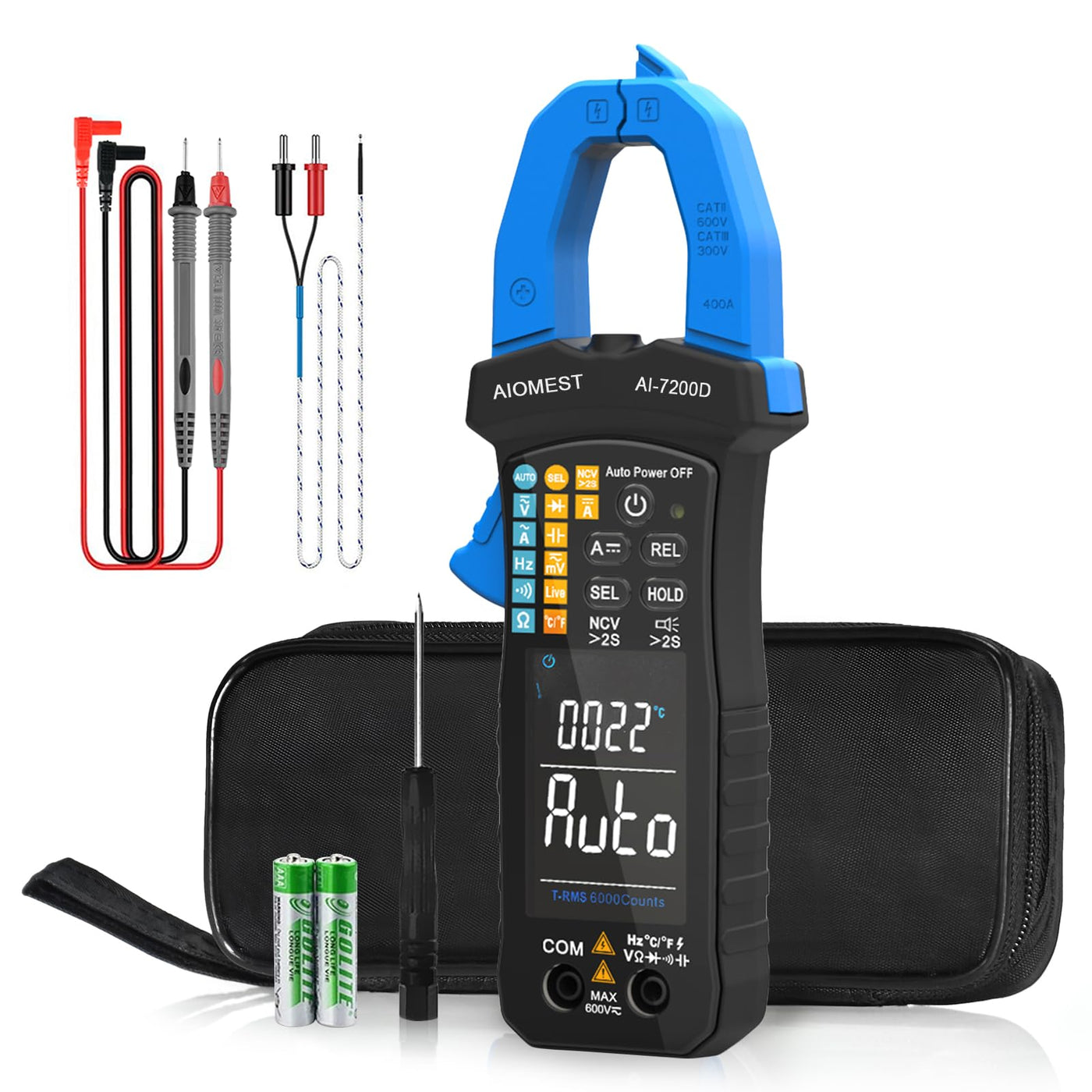

AIOMEST AI-7200D Duel Digital Clamp Meter New Multimeter – Your Go-To Tool for Precision Measurements!Measurement indicators: AC/DC current,AC/DC voltage, resistance, capacity, temperature, diode and audible continuity test, non- contact AC voltage (NCV) detection Max Voltage between input terminal and Earth Ground: CATⅡ600V or CATⅢ 300V Over-range Indication: display “OL” for the significant digit. Automatic Display of Negative Polarity “-”. Low Battery Indication: √ Max LCD Display: 6000 counts digit. Auto Range Control Clamp Opening Size: 26mm. Auto Power Off: When measurement exceeds 15minutes without pressing any key, the meter will auto power off. Power Supply: 1.5V×2 “AAA” R03P battery Operating Temp. : 0℃ to 40℃ (relative humidity <85%) Storage Temp.: -10℃ to 50℃ (relative humidity <85%) Guaranteed precision Temp.: 23±5℃ (relative humidity <70%) Dimension: 207(H)×75(W)×37(D)mm. Weight: Approx. 280g (including battery).What' s in the Box?√ 1 HP-7200D Clamp Meter√ 1 Test Leads: electric rating CATIII 600V,10A or better√ 1 “K” type thermocouple sensor probe√ 1 Operator’s Manual√ 2 Battery
Product Features

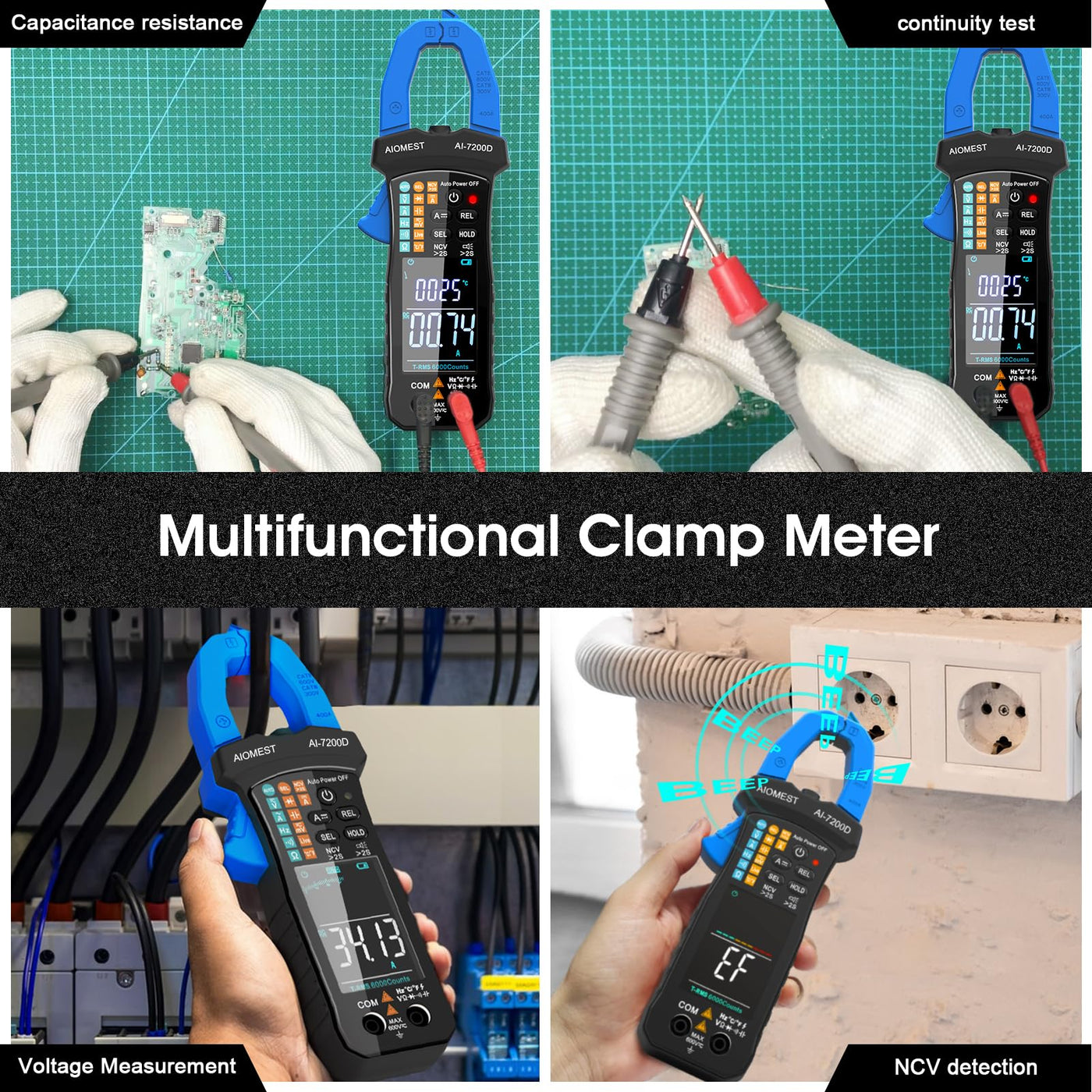

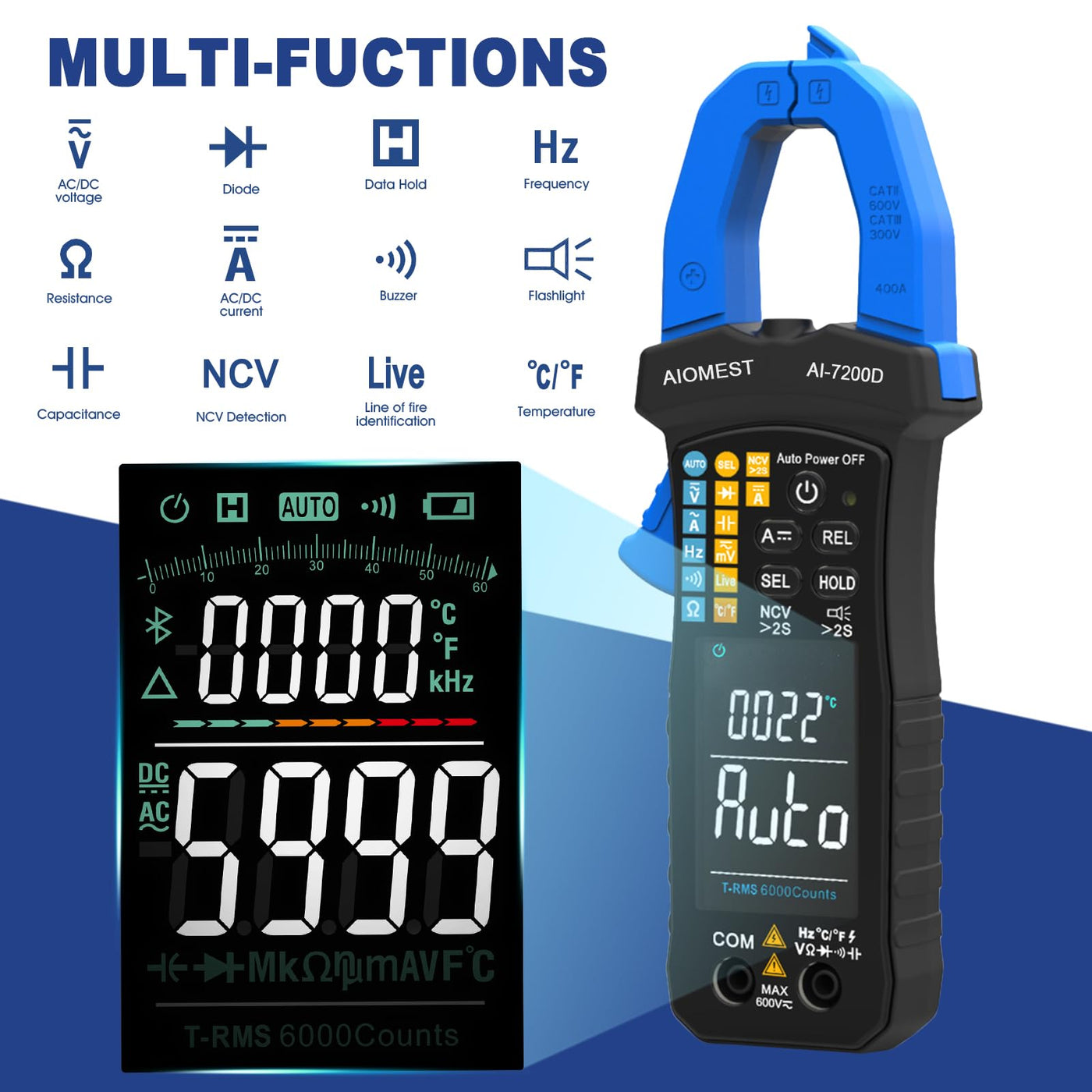

- Multi-Function Clamp MeterThe AI-7200D is your ultimate measurement tool, capable of accurately gauging AC/DC current, AC/DC voltage, resistance, capacitance, temperature, diode health, and conducting audible continuity tests. Moreover, it offers non-contact AC voltage (NCV) detection.
- Portable DesignThis digital clamp meter sets itself apart with its compact form, making it easier to carry on the go. With anti-dropping capacity and overload protection circuitry, The ammeter is designed to withstand the rigors of everyday use.

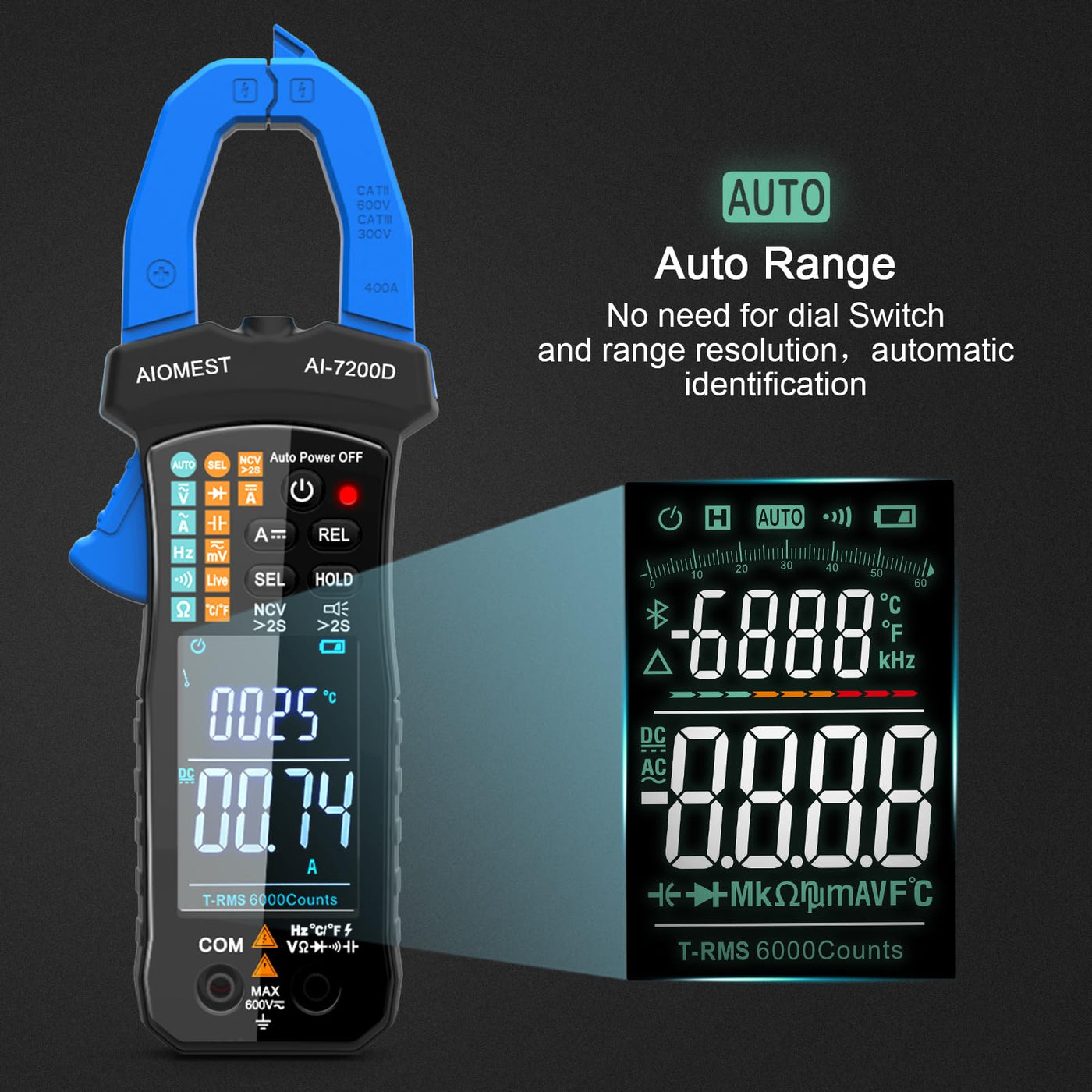

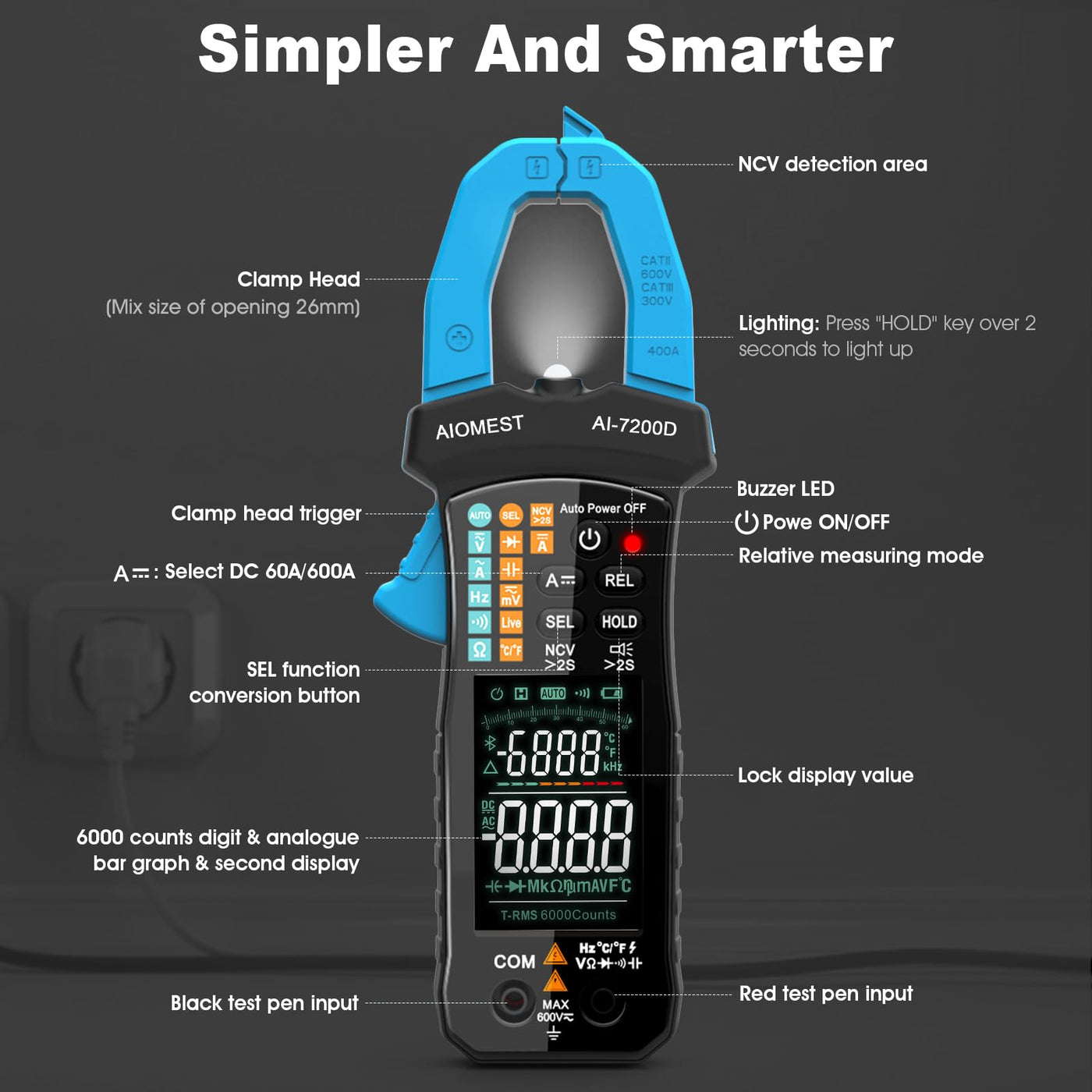

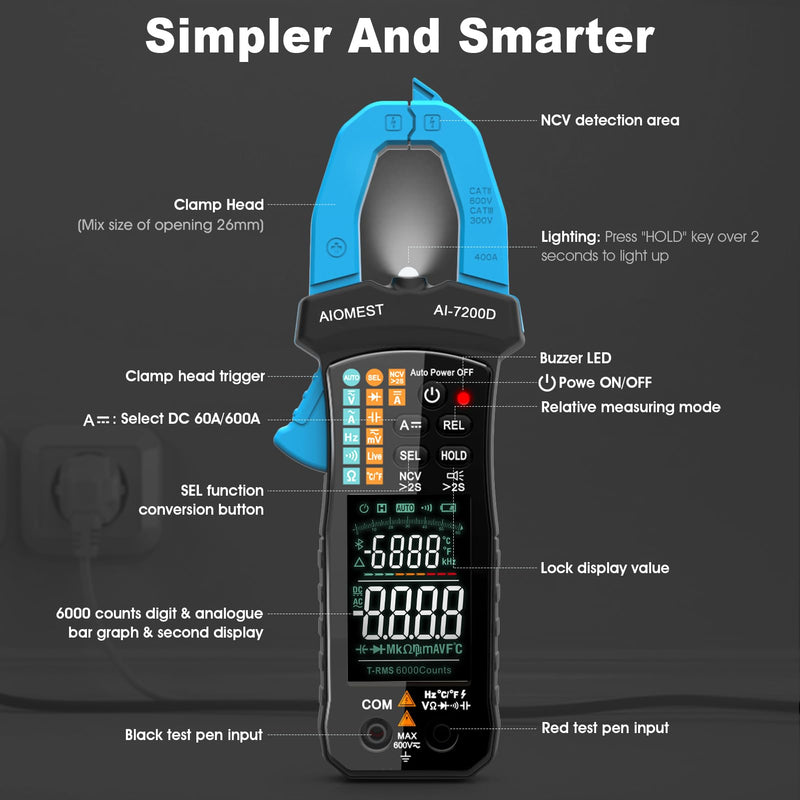

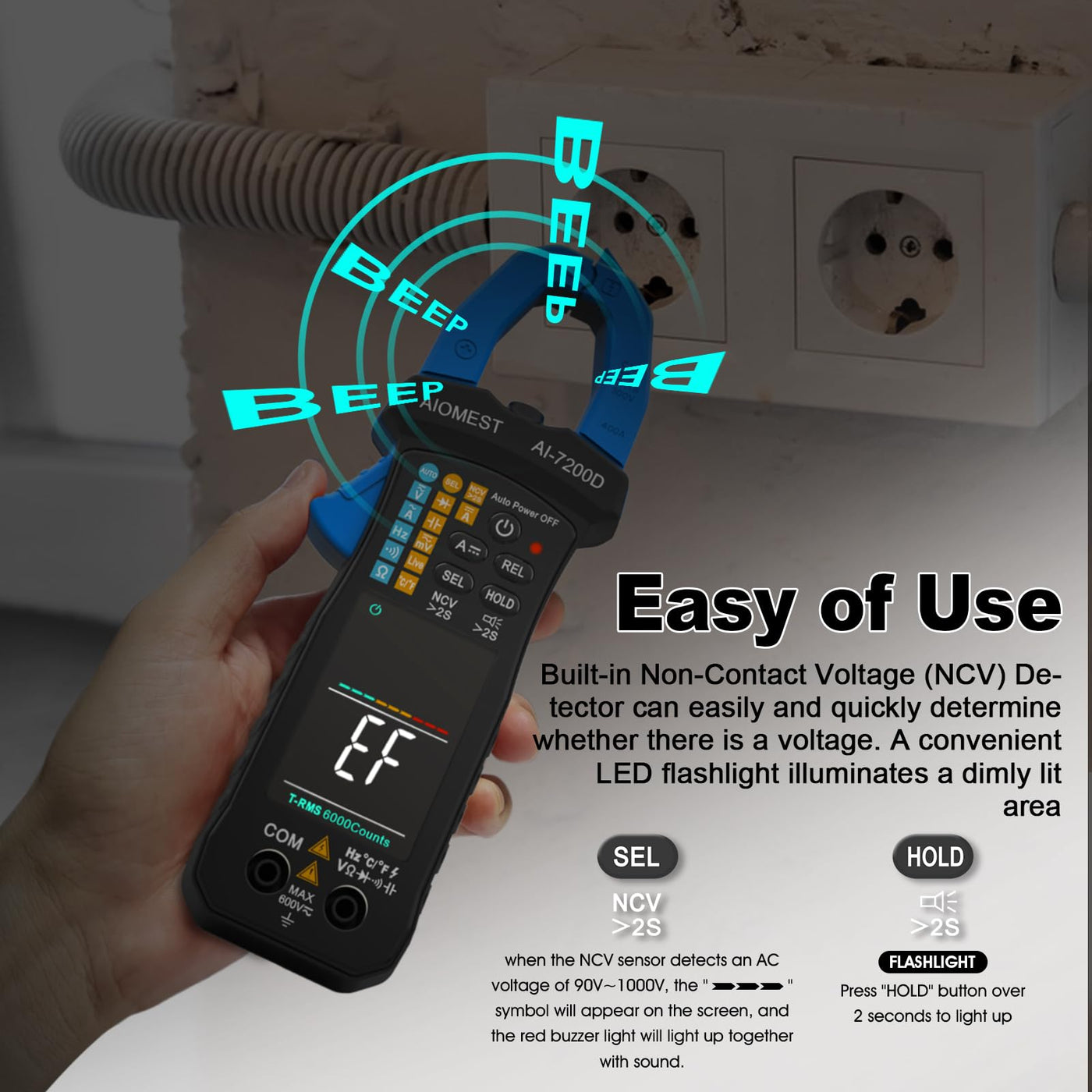

- Easy Use The AI-7200D Clamp multimeter boasts an automatic range function, ensuring a broad measurement spectrum and user-friendly operation. Featuring just 5 straightforward buttons and a generous 26mm(1.03in)clamp opening, it's an intuitive and efficient instrument. The NCV function swiftly alerts you to current presence.

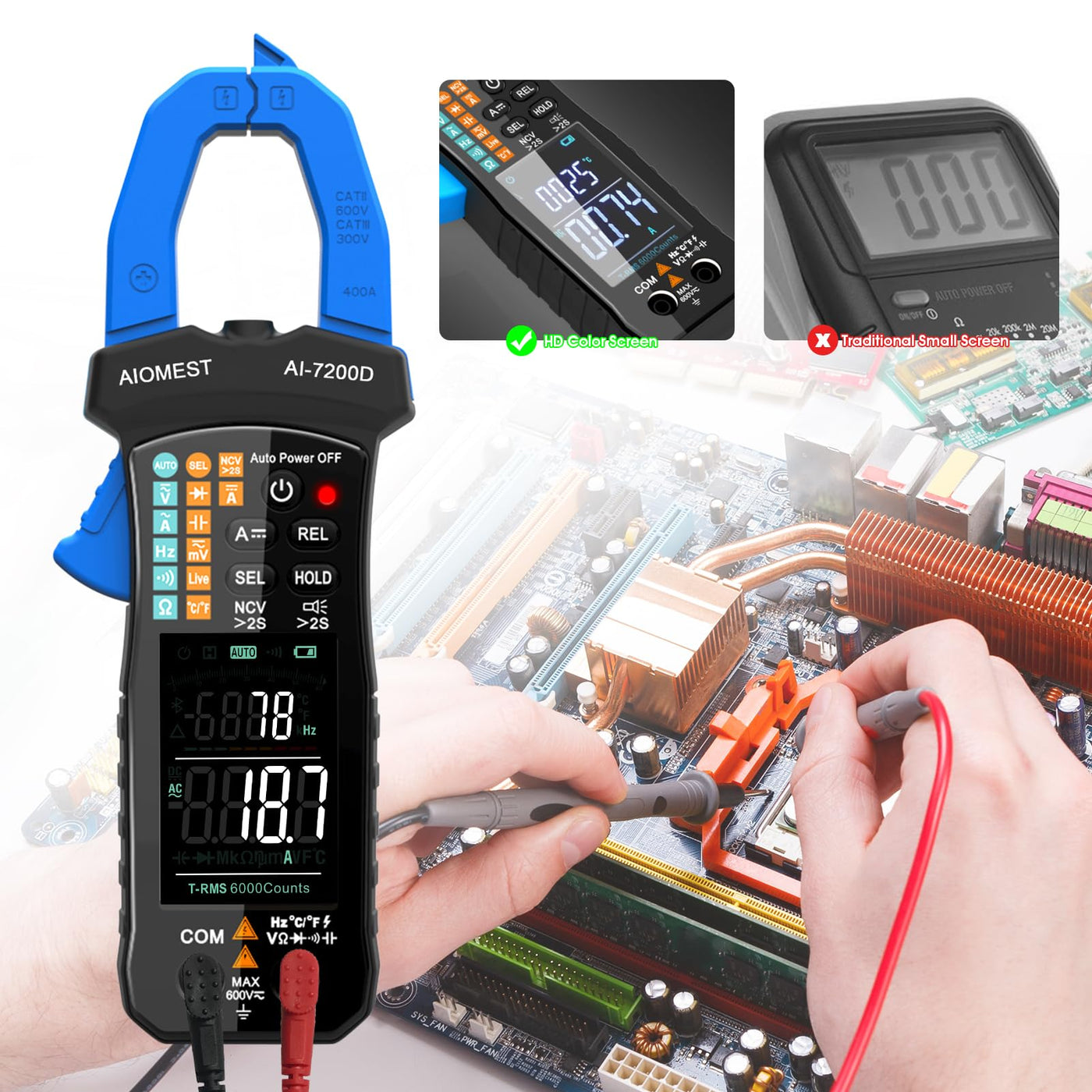

- Large DualLCD Display The upgraded model showcases a 6000-count digital & analog bar graph LCD display with 16mm high characters,. It simultaneously displays secondary measurements, significantly amplifying screen real estate and readability.
- Built to Last Powered by included batteries, this voltage clamp meter conserves energy by automatically powering down after 15 minutes. Plus, a low battery indicator on the display ensures peace of mind during usage.
