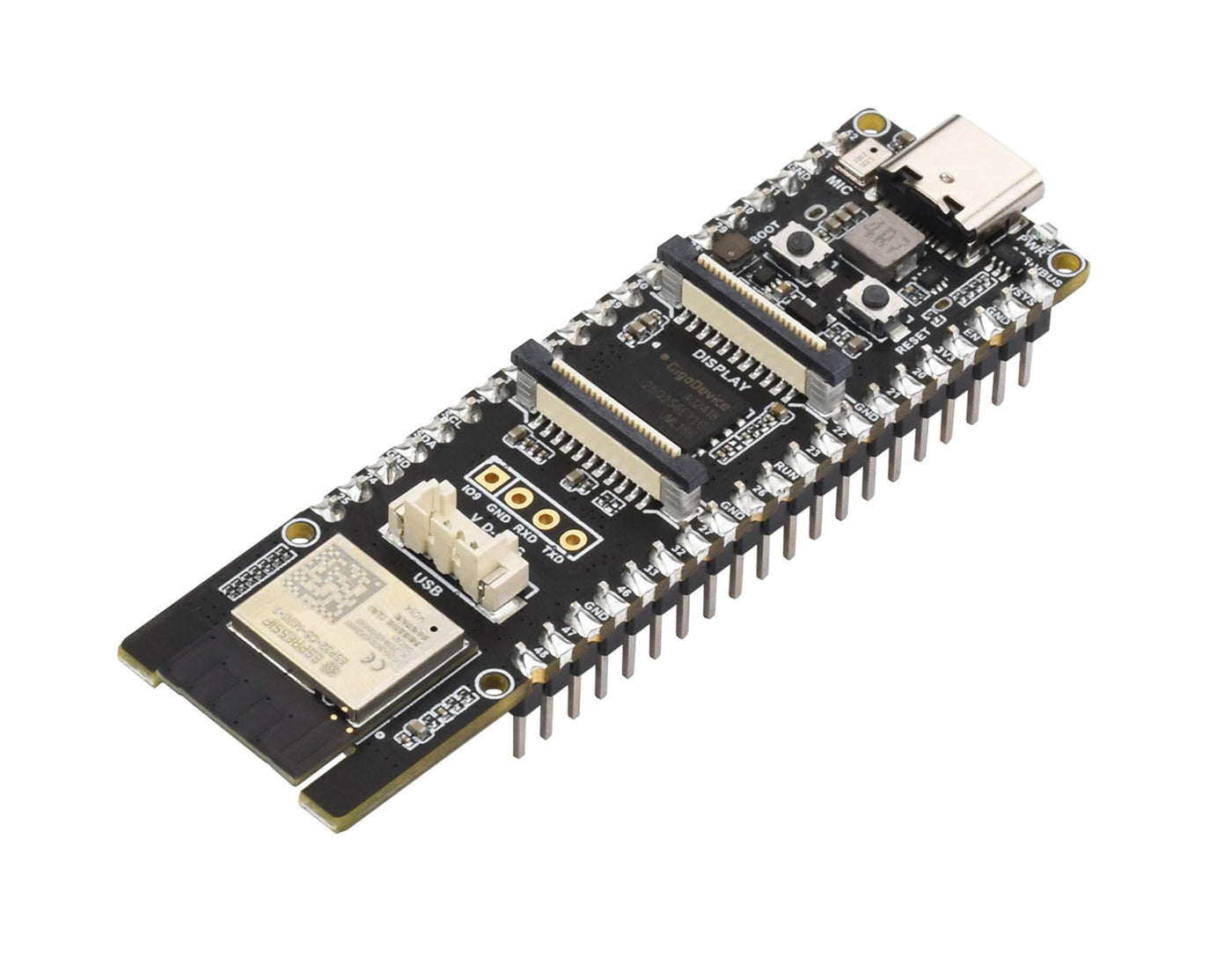

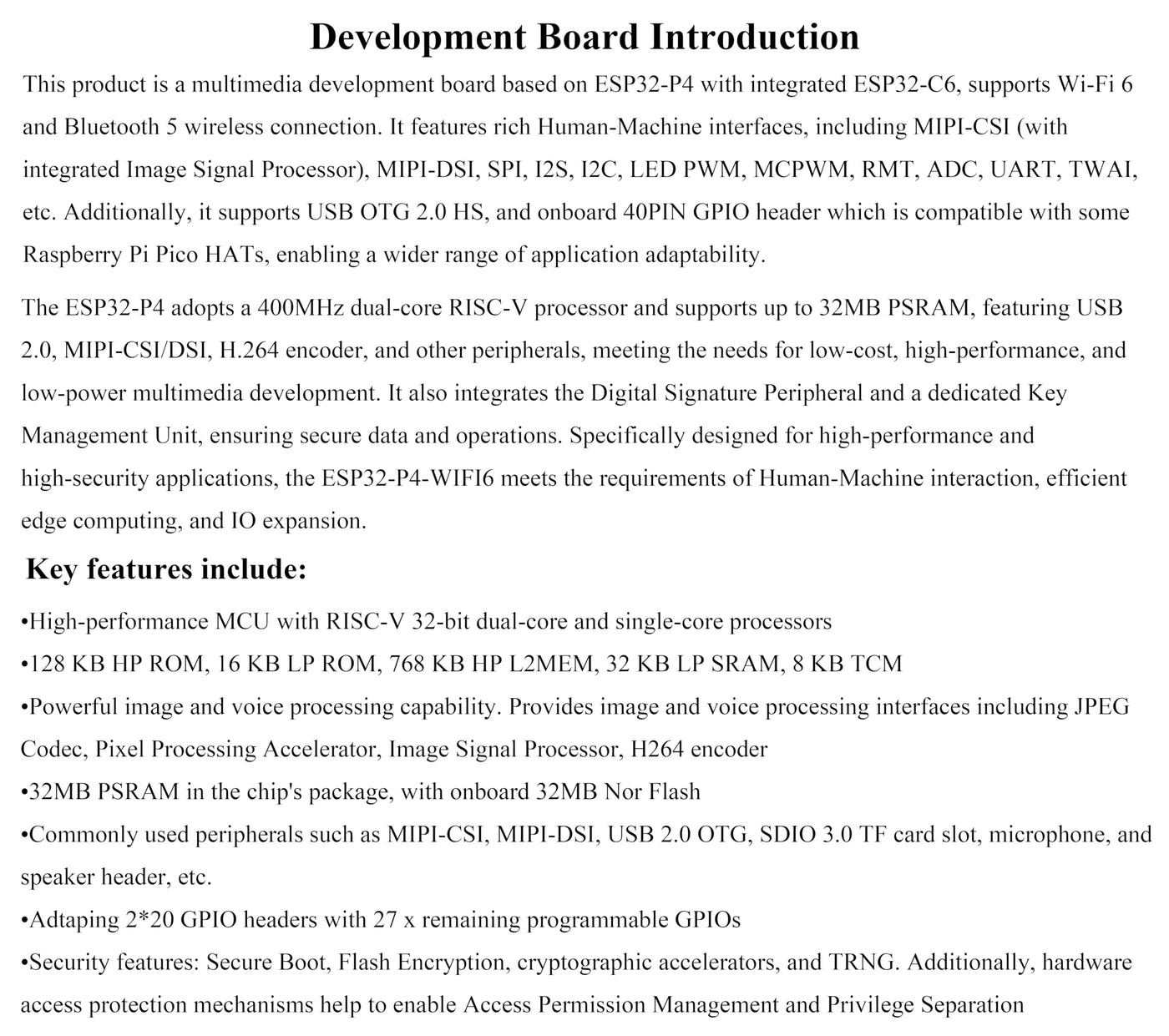

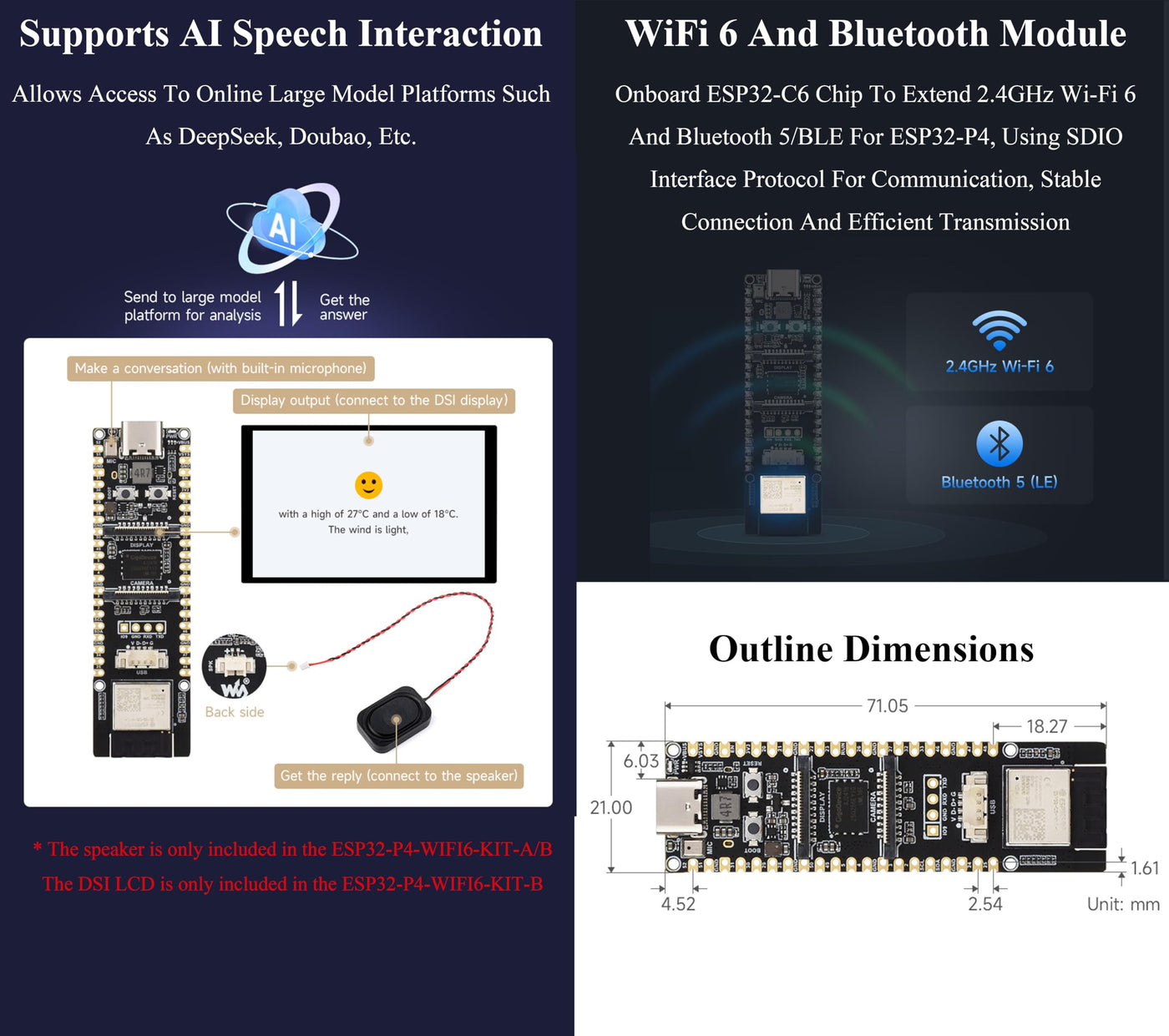

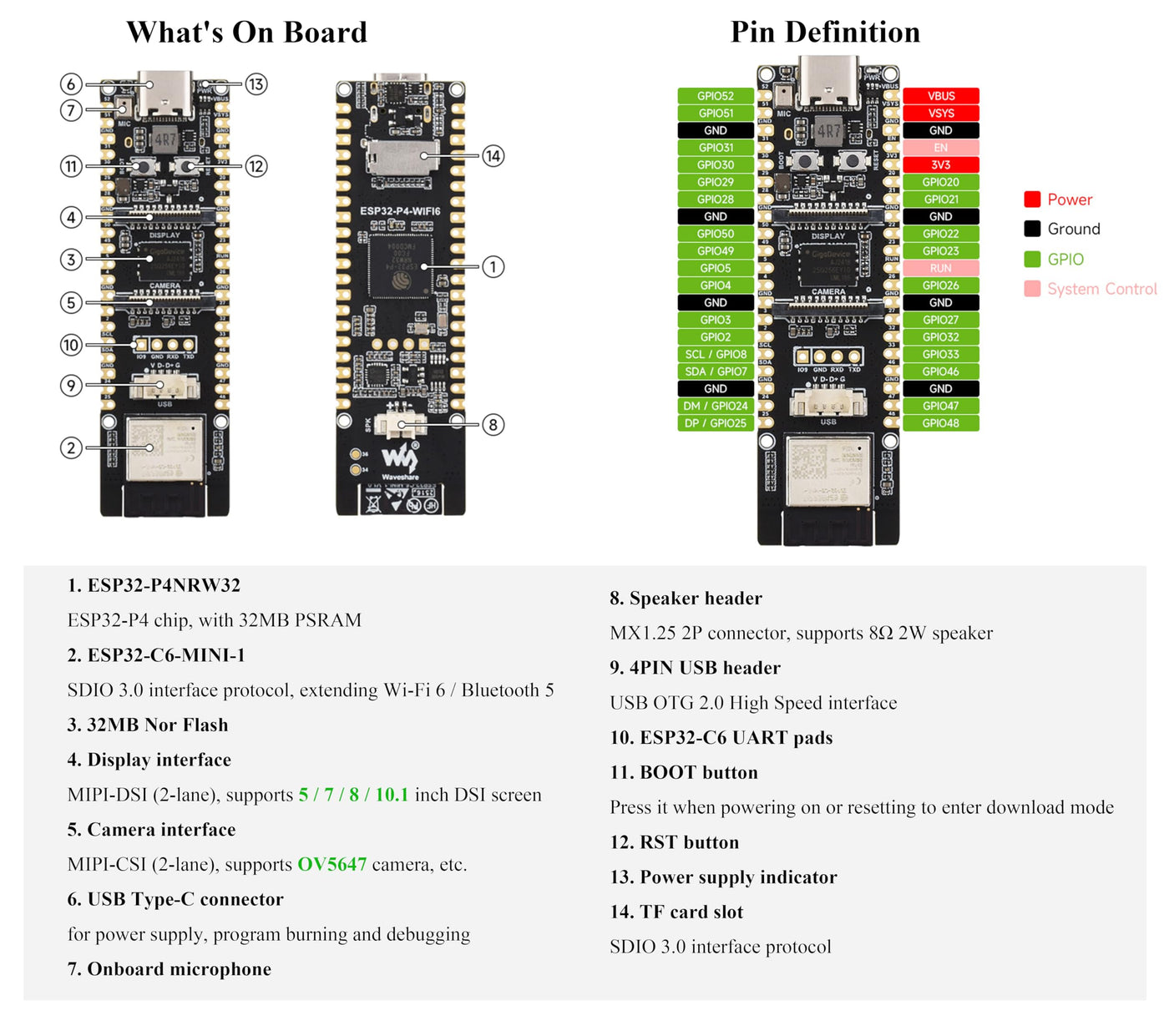

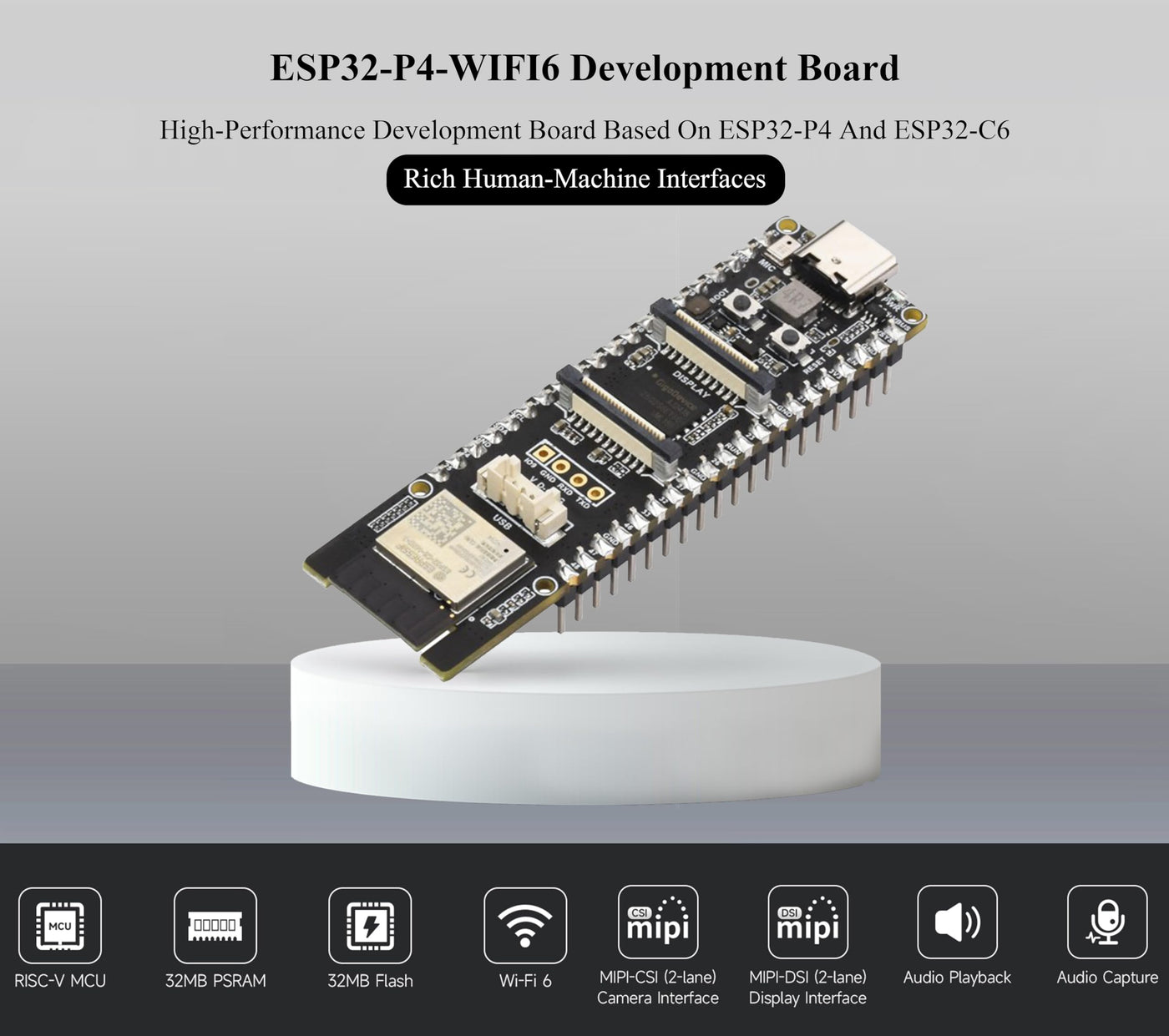

{"id":9147925332205,"title":"AI ESP32-P4-WIFI6 Development Board with Pre-Soldered Header, Based On ESP32-P4 and ESP32-C6, Supports Wi-Fi 6 and Bluetooth 5 \/ BLE, Rich Human-Machine Interfaces, Supports AI Speech Interaction","handle":"ai-esp32-p4-wifi6-development-board-with-pre-soldered-header-based-on-esp32-p4-and-esp32-c6-supports-wi-fi-6-and-bluetooth-5-ble-rich-human-machine-interfaces-supports-ai-speech-interaction","description":"\u003ch3\u003eAI ESP32-P4-WIFI6 Development Board with Pre-Soldered Header, Based On ESP32-P4 and ESP32-C6, Supports Wi-Fi 6 and Bluetooth 5 \/ BLE, Rich Human-Machine Interfaces, Supports AI Speech Interaction\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003e\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eESP32-P4-WIFI6 is a multimedia development board, based on ESP32-P4 with integrated ESP32-C6, and supports Wi-Fi 6 and BLE 5 wireless connections. It provides a rich set of human-machine interaction interfaces, additionally, it supports USB OTG 2.0 HS, and has a built-in 40PIN GPIO expansion interface on board that is compatible with Raspberry Pi HAT expansion boards, enabling a wider range of application adaptability.\u003c\/li\u003e\r\n \u003cli\u003eSupports AI Speech Interaction: Allows access to online large model platforms such as DeepSeek, ChatGPT, Doubao, etc. The ESP32-P4 integrates a digital signature peripheral and a dedicated key management unit to ensure data and operation security. The ESP32-P4-WIFI6 is specially designed for high-performance and high-security applications, meeting the needs of embedded systems in human-machine interaction, edge computing, and IO expansion.\u003c\/li\u003e\r\n \u003cli\u003eProcessor: High-performance MCU equipped with RISC-V 32-bit dual-core and single-core processors. Equipped with RISC-V 32-bit single-core processor (LP system). Equipped with ESP32-C6 WIFI\/BT co-processor, expand WIFI 6\/Bluetooth 5(BLE) and other functions through SDIO.\u003c\/li\u003e\r\n \u003cli\u003eMemory: 128 KB of high-performance (HP) system read-only memory (ROM). 16 KB of low-power (LP) system read-only memory (ROM). 768 KB of high-performance (HP) L2 memory (L2MEM). 32 KB of low-power (LP) SRAM. 8 KB of system tightly coupled memory (TCM). 32 MB PSRAM is stacked in the package, and the QSPI port is connected to 32MB Nor Flash.\u003c\/li\u003e\r\n \u003cli\u003ePeripheral Interfaces: 2 x 20 header pins onboard, 27 remaining programmable GPIOs, supporting a variety of peripheral devices. Onboard USB 2.0 OTG port, SDIO3.0 TF card slot, Type-C UART flashing port, convenient for different scenarios. Onboard speaker port, microphone, Codec chip and power amplifier chip can be used to achieve the ideal audio function requirements.\u003c\/li\u003e\r\n \u003cli\u003eOnboard MIPI-CSI high-definition camera port, support full HD 1080P picture acquisition and encoding, integrated image signal processor (ISP) and H264 video encoder, support H.264 \u0026amp; JPEG video encoding (1080P @30fps), easy to apply to computer vision, machine vision and other fields.\u003c\/li\u003e\r\n \u003cli\u003eOnboard MIPI-DSI high-definition screen display port, integrated pixel processing accelerator (PPA), 2D graphics acceleration controller (2D DMA), supporting JPEG image decoding (1080P @30fps), providing strong support for high-definition screen display and smooth HMI experience, convenient for application to smart home central control screen, industrial central control screen, vending machine and other scenarios.\u003c\/li\u003e\r\n \u003cli\u003eComes with Online Tutorial Usage Guide and Online Development Resource, Please check: n9.cl\/he67d4\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2025-10-18T03:51:44+11:00","created_at":"2025-10-18T03:51:39+11:00","vendor":"Wonrabai","type":"","tags":["electronics_selected_Oct2025"],"price":13900,"price_min":13900,"price_max":13900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":48889926418669,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0FMF891VT","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"AI ESP32-P4-WIFI6 Development Board with Pre-Soldered Header, Based On ESP32-P4 and ESP32-C6, Supports Wi-Fi 6 and Bluetooth 5 \/ BLE, Rich Human-Machine Interfaces, Supports AI Speech Interaction","public_title":null,"options":["Default Title"],"price":13900,"weight":9,"compare_at_price":null,"inventory_management":"shopify","barcode":"ESP32-P4-WIFI6-M","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/leoforward.com\/cdn\/shop\/files\/B0FMF891VT.jpg?v=1775790198","\/\/leoforward.com\/cdn\/shop\/files\/71zKYbNRu_L.jpg?v=1760719902","\/\/leoforward.com\/cdn\/shop\/files\/71nRA-8bqjL.jpg?v=1760719902","\/\/leoforward.com\/cdn\/shop\/files\/81isPWbP8OL.jpg?v=1760719902","\/\/leoforward.com\/cdn\/shop\/files\/81Z1E2UG5VL.jpg?v=1760719903","\/\/leoforward.com\/cdn\/shop\/files\/812FgHy3dRL.jpg?v=1760719902","\/\/leoforward.com\/cdn\/shop\/files\/81Hn964L3-L.jpg?v=1760719902","\/\/leoforward.com\/cdn\/shop\/files\/81R4gtNzMiL.jpg?v=1760719903","\/\/leoforward.com\/cdn\/shop\/files\/61QDIYIXsPL.jpg?v=1760719902"],"featured_image":"\/\/leoforward.com\/cdn\/shop\/files\/B0FMF891VT.jpg?v=1775790198","options":["Title"],"media":[{"alt":null,"id":36926648221933,"position":1,"preview_image":{"aspect_ratio":1.259,"height":2033,"width":2560,"src":"\/\/leoforward.com\/cdn\/shop\/files\/B0FMF891VT.jpg?v=1775790198"},"aspect_ratio":1.259,"height":2033,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/B0FMF891VT.jpg?v=1775790198","width":2560},{"alt":null,"id":36926648254701,"position":2,"preview_image":{"aspect_ratio":1.128,"height":2269,"width":2560,"src":"\/\/leoforward.com\/cdn\/shop\/files\/71zKYbNRu_L.jpg?v=1760719902"},"aspect_ratio":1.128,"height":2269,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/71zKYbNRu_L.jpg?v=1760719902","width":2560},{"alt":null,"id":36926648287469,"position":3,"preview_image":{"aspect_ratio":1.128,"height":2269,"width":2560,"src":"\/\/leoforward.com\/cdn\/shop\/files\/71nRA-8bqjL.jpg?v=1760719902"},"aspect_ratio":1.128,"height":2269,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/71nRA-8bqjL.jpg?v=1760719902","width":2560},{"alt":null,"id":36926648320237,"position":4,"preview_image":{"aspect_ratio":1.128,"height":2269,"width":2560,"src":"\/\/leoforward.com\/cdn\/shop\/files\/81isPWbP8OL.jpg?v=1760719902"},"aspect_ratio":1.128,"height":2269,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/81isPWbP8OL.jpg?v=1760719902","width":2560},{"alt":null,"id":36926648353005,"position":5,"preview_image":{"aspect_ratio":1.128,"height":2269,"width":2560,"src":"\/\/leoforward.com\/cdn\/shop\/files\/81Z1E2UG5VL.jpg?v=1760719903"},"aspect_ratio":1.128,"height":2269,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/81Z1E2UG5VL.jpg?v=1760719903","width":2560},{"alt":null,"id":36926648385773,"position":6,"preview_image":{"aspect_ratio":1.128,"height":2269,"width":2560,"src":"\/\/leoforward.com\/cdn\/shop\/files\/812FgHy3dRL.jpg?v=1760719902"},"aspect_ratio":1.128,"height":2269,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/812FgHy3dRL.jpg?v=1760719902","width":2560},{"alt":null,"id":36926648418541,"position":7,"preview_image":{"aspect_ratio":1.128,"height":2269,"width":2560,"src":"\/\/leoforward.com\/cdn\/shop\/files\/81Hn964L3-L.jpg?v=1760719902"},"aspect_ratio":1.128,"height":2269,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/81Hn964L3-L.jpg?v=1760719902","width":2560},{"alt":null,"id":36926648451309,"position":8,"preview_image":{"aspect_ratio":1.128,"height":2269,"width":2560,"src":"\/\/leoforward.com\/cdn\/shop\/files\/81R4gtNzMiL.jpg?v=1760719903"},"aspect_ratio":1.128,"height":2269,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/81R4gtNzMiL.jpg?v=1760719903","width":2560},{"alt":null,"id":36926648484077,"position":9,"preview_image":{"aspect_ratio":1.333,"height":1200,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/files\/61QDIYIXsPL.jpg?v=1760719902"},"aspect_ratio":1.333,"height":1200,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/61QDIYIXsPL.jpg?v=1760719902","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eAI ESP32-P4-WIFI6 Development Board with Pre-Soldered Header, Based On ESP32-P4 and ESP32-C6, Supports Wi-Fi 6 and Bluetooth 5 \/ BLE, Rich Human-Machine Interfaces, Supports AI Speech Interaction\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003e\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eESP32-P4-WIFI6 is a multimedia development board, based on ESP32-P4 with integrated ESP32-C6, and supports Wi-Fi 6 and BLE 5 wireless connections. It provides a rich set of human-machine interaction interfaces, additionally, it supports USB OTG 2.0 HS, and has a built-in 40PIN GPIO expansion interface on board that is compatible with Raspberry Pi HAT expansion boards, enabling a wider range of application adaptability.\u003c\/li\u003e\r\n \u003cli\u003eSupports AI Speech Interaction: Allows access to online large model platforms such as DeepSeek, ChatGPT, Doubao, etc. The ESP32-P4 integrates a digital signature peripheral and a dedicated key management unit to ensure data and operation security. The ESP32-P4-WIFI6 is specially designed for high-performance and high-security applications, meeting the needs of embedded systems in human-machine interaction, edge computing, and IO expansion.\u003c\/li\u003e\r\n \u003cli\u003eProcessor: High-performance MCU equipped with RISC-V 32-bit dual-core and single-core processors. Equipped with RISC-V 32-bit single-core processor (LP system). Equipped with ESP32-C6 WIFI\/BT co-processor, expand WIFI 6\/Bluetooth 5(BLE) and other functions through SDIO.\u003c\/li\u003e\r\n \u003cli\u003eMemory: 128 KB of high-performance (HP) system read-only memory (ROM). 16 KB of low-power (LP) system read-only memory (ROM). 768 KB of high-performance (HP) L2 memory (L2MEM). 32 KB of low-power (LP) SRAM. 8 KB of system tightly coupled memory (TCM). 32 MB PSRAM is stacked in the package, and the QSPI port is connected to 32MB Nor Flash.\u003c\/li\u003e\r\n \u003cli\u003ePeripheral Interfaces: 2 x 20 header pins onboard, 27 remaining programmable GPIOs, supporting a variety of peripheral devices. Onboard USB 2.0 OTG port, SDIO3.0 TF card slot, Type-C UART flashing port, convenient for different scenarios. Onboard speaker port, microphone, Codec chip and power amplifier chip can be used to achieve the ideal audio function requirements.\u003c\/li\u003e\r\n \u003cli\u003eOnboard MIPI-CSI high-definition camera port, support full HD 1080P picture acquisition and encoding, integrated image signal processor (ISP) and H264 video encoder, support H.264 \u0026amp; JPEG video encoding (1080P @30fps), easy to apply to computer vision, machine vision and other fields.\u003c\/li\u003e\r\n \u003cli\u003eOnboard MIPI-DSI high-definition screen display port, integrated pixel processing accelerator (PPA), 2D graphics acceleration controller (2D DMA), supporting JPEG image decoding (1080P @30fps), providing strong support for high-definition screen display and smooth HMI experience, convenient for application to smart home central control screen, industrial central control screen, vending machine and other scenarios.\u003c\/li\u003e\r\n \u003cli\u003eComes with Online Tutorial Usage Guide and Online Development Resource, Please check: n9.cl\/he67d4\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
