4PCS DS18B20 Waterproof Temperature Sensor Probes, Stainless Steel

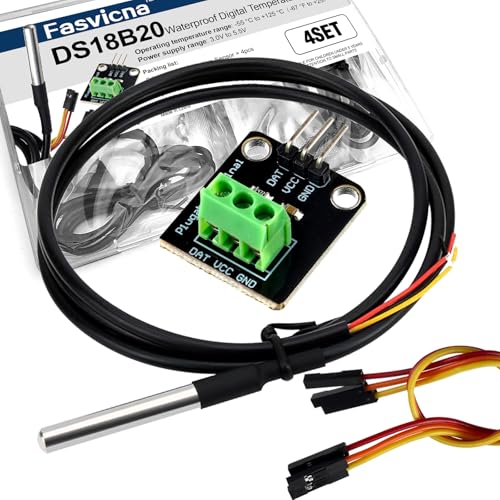

Waterproof DS18B20-compatible digital temperature sensor kit — includes 4 stainless-steel waterproof probes, 4 plugable terminal adapters (model DFR0055) and 4 sensor cables (model FIT0011). Each probe measures −55 °C to +125 °C (typical ±0.5 °C from −10 °C to +85 °C), with selectable 9–12 bit resolution (12-bit LSB = 0.0625 °C) and conversion time up to ~750 ms at 12-bit. Modules communicate over the 1-Wire bus and carry unique 64-bit ROM IDs for reliable multi-point monitoring; operate on 3.0–5.5 V — wire VCC → GND → DATA with a 4.7 kΩ pull-up and read via standard 1-Wire libraries on common 3.3 V / 5 V controllers. The probes are corrosion-resistant and water-sealed, supplied with ≈1 m PVC/PTFE leads (leads are not fully waterproof or flame- retardant; max continuous cable temp ≈85 °C) — seal cable joints for permanent submersion. Designed for fast, stable digital readings in wet or humid conditions, this kit is ideal for aquariums, refrigeration, HVAC, greenhouses, cable ducts, home-brewing and industrial temperature monitoring.

Product Features

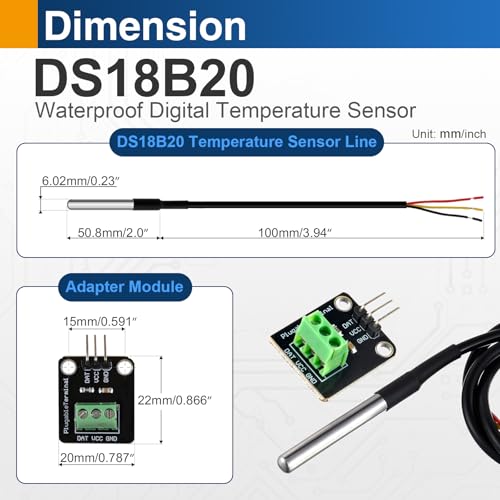

  • Premium materials: Stainless-steel probe with waterproof seal, approx. 67 mm and 2645 mm length, corrosion-resistant to reduce short-circuit risk. Supplied with 1 m PVC/PTFE-sheathed lead (cable is not fully waterproof or flame-retardant); cable maximum continuous temperature 85 C. For long-term submersion or humid use, seal the cable joint with heat-shrink, silicone, or epoxy.

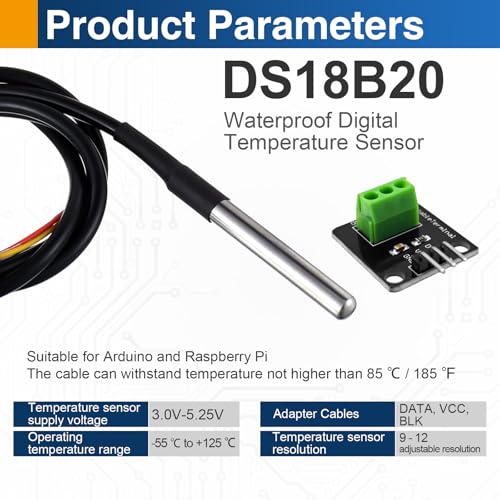

  • Temperature specs: Range 55 C to +125 C (67 F to +257 F); typical accuracy 0.5 C from 10 C to +85 C. Resolution selectable 9/10/11/12 bits (12-bit LSB = 0.0625 C); conversion time up to ~750 ms at 12-bit (994 ms, 10188 ms, 11375 ms). Supports user-programmable non-volatile upper/lower alarms (TH/TL) and alarm-search. Operates on a 3.05.5 V supply and supports both external-power and parasitic-power modes (external VDD recommended for stable long-distance or multi-sensor installations).

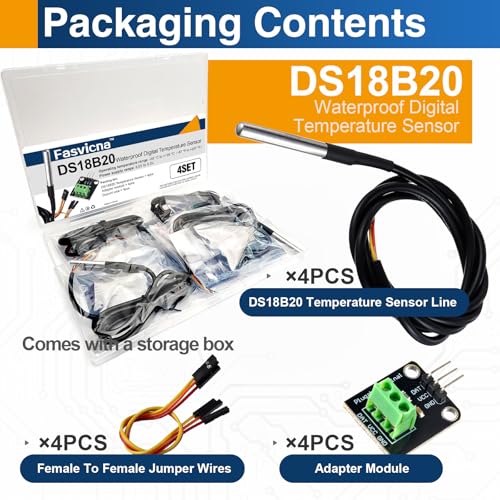

  • Package & wiring colors: Includes sensor model DS18B20 4, plugable terminal adapters (e.g., model DFR0055) 4, and 1m sensor cables (e.g., model FIT0011) 4. Sensor leads: green = DATA, red = VCC, yellow = GND. Adapters may be wired in two variantscheck before wiring: Type A: red=VCC, black=GND, yellow=DATA; Type B: red=VCC, yellow=GND, green=DATA. Verify mappings or test with a multimeter before powering.
  • 1-Wire bus notes: Uses the 1-Wire digital bus; each sensor has a unique 64-bit ROM ID for multi-point management. Use a 4.7 k pull-up from DATA to VCC; for long runs use shielded cable, proper grounding and waterproofed joints. Parasitic power is supported, but for critical or long-distance installations use separate VDD for stability.

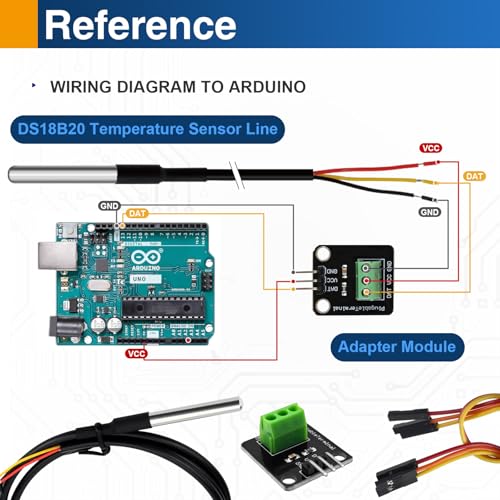

  • Quick installation: Insert each probe into a plugable terminal adapter (e.g., DFR0055) and connect to a host device (microcontrollers or single-board computers). Wire VCC (3.05.5 V) GND DATA (1-Wire) with a 4.7 k pull-up on DATA, and use standard 1-Wire libraries (for example, the DallasTemperature library) to read values. Calibrate with a short water bath or known temperature before deployment and seal all connections.
