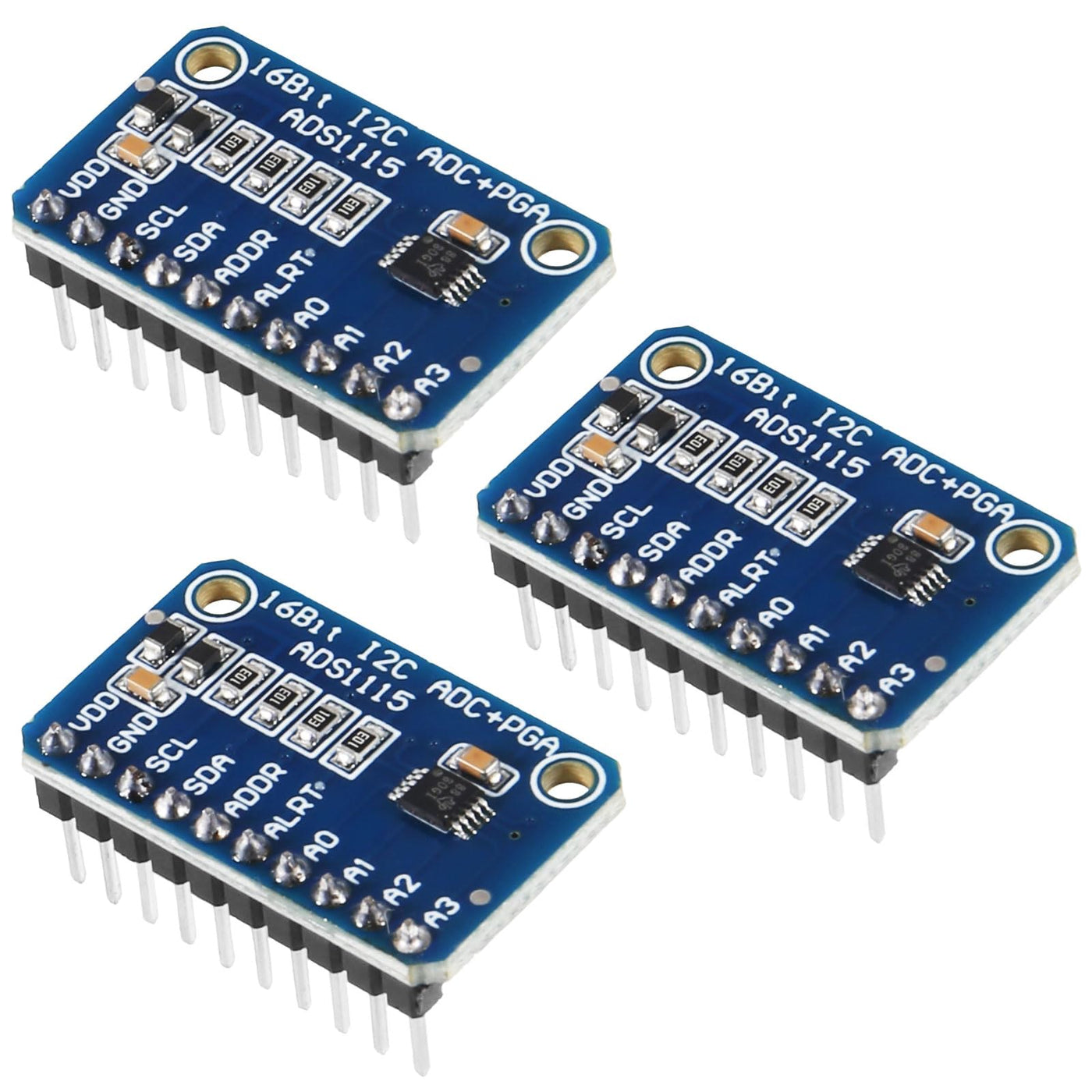

{"id":9338225393901,"title":"3pcs ADS1115 16 Bit 16 Byte 4 Channel I2C IIC Analog-to-Digital ADC PGA Converter with Programmable Gain Amplifier High Precision ADC Converter Development Board for Raspberry Pi Pre-Soldered","handle":"3pcs-ads1115-16-bit-16-byte-4-channel-i2c-iic-analog-to-digital-adc-pga-converter-with-programmable-gain-amplifier-high-precision-adc-converter-development-board-for-raspberry-pi-pre-soldered","description":"\u003ch3\u003e3pcs ADS1115 16 Bit 16 Byte 4 Channel I2C IIC Analog-to-Digital ADC PGA Converter with Programmable Gain Amplifier High Precision ADC Converter Development Board for Raspberry Pi Pre-Soldered\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eADS1115 16 Bit 16 Byte 4 Channel I2C IIC Analog-to-Digital ADC PGA Converter\nSpecifications: ADC Bit rate: 16 Bit Interface Type: I2C Channels: 4 Channel\nAN0 AN1 AN2 AN3 Input voltage: 2.0v-5.5v Channel input voltage : 0-VDD\nContinuous Mode: Only 150μA Single-Shot Mode: Auto Shut Down Programmable data\nrate: 8sps-860sps Input range programmed control, 7 types input ranges:\n-0.256V ~ + 0.256V, -0.512V ~ + 0.512V, -1.024V ~ + 1.024V, -2.048V ~ +\n2.048V, -4.096V ~ + 4.096 V, -6.144V ~ + 6.144V I2C 7-bit addresses between\n0x48-0x4B The ADS1115 provides 16-bit precision at 3300 samples\/second over\nI2C. I2C Analog-to-Digital Converter even includes a programmable gain\namplifier, up to x16, to help boost up smaller single\/differential signals to\nthe full range. Interfacing is done via I2C. Simply connect GND to ground, VDD\nto your logic power supply, and SCL\/SDA to your microcontroller's I2C port and\nrun the example code to start reading data. ADC Converter can help you use\nsensors such as, infrared or photodiodes, which provide analog values. Package\nIncluded: 3 ADS1115 16 Bit 4 Channel Analog-to-Digital ADC Converter\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eADS1115 16 Bit Analog-to-Digital-Converter High accuracy, programmable gain amplifier (PGA), four differential input channels, and internal oscillator for a variety of measurement and control applications.\u003c\/li\u003e\n \u003cli\u003eProgrammable Gain Amplifier (PGA)The gain of the input signal can be adjusted in steps of 1\/2, 1\/4, 1\/8 or 1\/16. This makes it suitable for applications with different input signals.\u003c\/li\u003e\n \u003cli\u003eLow Current ConsumptionThe ADS1115 is designed to consume very little power. In Continuous Mode, it draws a mere 150A, and in Single-Shot Mode, it intelligently enters Auto Shut-Down, ensuring minimal power usage when not actively converting analog signals.\u003c\/li\u003e\n \u003cli\u003eWide Supply RrangeThe voltage reference of these 16 bit ADC 4 channel module ranging from 2.0V to 5.5V, compatible with Raspberry Pi and other common microcontrollers.\u003c\/li\u003e\n \u003cli\u003eADS1115 Pre-SolderedSolderless! Pins are already attached. Ready to plug in and go.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-04-15T15:53:41+10:00","created_at":"2026-04-15T15:53:37+10:00","vendor":"AOICRIE","type":"Signal Converters","tags":["electronics_Apr2026"],"price":10500,"price_min":10500,"price_max":10500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":49784938922221,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0D14MBF4M","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"3pcs ADS1115 16 Bit 16 Byte 4 Channel I2C IIC Analog-to-Digital ADC PGA Converter with Programmable Gain Amplifier High Precision ADC Converter Development Board for Raspberry Pi Pre-Soldered","public_title":null,"options":["Default Title"],"price":10500,"weight":9,"compare_at_price":null,"inventory_management":"shopify","barcode":"687117711731","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/leoforward.com\/cdn\/shop\/files\/B0D14MBF4M.jpg?v=1776925424","\/\/leoforward.com\/cdn\/shop\/files\/71huBD2UiBL_d10d26d9-cbdc-4635-a843-2a814330ca20.jpg?v=1776232420","\/\/leoforward.com\/cdn\/shop\/files\/61ONQ74zlhL_68d0991e-2bd8-4e7e-add1-c9d81a5b783b.jpg?v=1776232420","\/\/leoforward.com\/cdn\/shop\/files\/61evletWc2L_f365e6bf-3f14-4ee1-9549-eaad05c0d79e.jpg?v=1776232420","\/\/leoforward.com\/cdn\/shop\/files\/71nW82Laq_L_1d670264-6a81-4a4f-b563-ef789b6e3ed8.jpg?v=1776232420","\/\/leoforward.com\/cdn\/shop\/files\/61HuUKq_7uL_85fa8c50-e7e5-4a3c-a557-2801e27ab59e.jpg?v=1776232420","\/\/leoforward.com\/cdn\/shop\/files\/61jtSMMaOEL_d9af4192-3ebb-454e-9603-ea500b2ab49c.jpg?v=1776232420"],"featured_image":"\/\/leoforward.com\/cdn\/shop\/files\/B0D14MBF4M.jpg?v=1776925424","options":["Title"],"media":[{"alt":null,"id":39389777363181,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/files\/B0D14MBF4M.jpg?v=1776925424"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/B0D14MBF4M.jpg?v=1776925424","width":1600},{"alt":null,"id":39389777395949,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/files\/71huBD2UiBL_d10d26d9-cbdc-4635-a843-2a814330ca20.jpg?v=1776232420"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/71huBD2UiBL_d10d26d9-cbdc-4635-a843-2a814330ca20.jpg?v=1776232420","width":1600},{"alt":null,"id":39389777428717,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/files\/61ONQ74zlhL_68d0991e-2bd8-4e7e-add1-c9d81a5b783b.jpg?v=1776232420"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/61ONQ74zlhL_68d0991e-2bd8-4e7e-add1-c9d81a5b783b.jpg?v=1776232420","width":1600},{"alt":null,"id":39389777461485,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/files\/61evletWc2L_f365e6bf-3f14-4ee1-9549-eaad05c0d79e.jpg?v=1776232420"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/61evletWc2L_f365e6bf-3f14-4ee1-9549-eaad05c0d79e.jpg?v=1776232420","width":1600},{"alt":null,"id":39389777494253,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/files\/71nW82Laq_L_1d670264-6a81-4a4f-b563-ef789b6e3ed8.jpg?v=1776232420"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/71nW82Laq_L_1d670264-6a81-4a4f-b563-ef789b6e3ed8.jpg?v=1776232420","width":1600},{"alt":null,"id":39389777527021,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/files\/61HuUKq_7uL_85fa8c50-e7e5-4a3c-a557-2801e27ab59e.jpg?v=1776232420"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/61HuUKq_7uL_85fa8c50-e7e5-4a3c-a557-2801e27ab59e.jpg?v=1776232420","width":1600},{"alt":null,"id":39389777559789,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/files\/61jtSMMaOEL_d9af4192-3ebb-454e-9603-ea500b2ab49c.jpg?v=1776232420"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/61jtSMMaOEL_d9af4192-3ebb-454e-9603-ea500b2ab49c.jpg?v=1776232420","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e3pcs ADS1115 16 Bit 16 Byte 4 Channel I2C IIC Analog-to-Digital ADC PGA Converter with Programmable Gain Amplifier High Precision ADC Converter Development Board for Raspberry Pi Pre-Soldered\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eADS1115 16 Bit 16 Byte 4 Channel I2C IIC Analog-to-Digital ADC PGA Converter\nSpecifications: ADC Bit rate: 16 Bit Interface Type: I2C Channels: 4 Channel\nAN0 AN1 AN2 AN3 Input voltage: 2.0v-5.5v Channel input voltage : 0-VDD\nContinuous Mode: Only 150μA Single-Shot Mode: Auto Shut Down Programmable data\nrate: 8sps-860sps Input range programmed control, 7 types input ranges:\n-0.256V ~ + 0.256V, -0.512V ~ + 0.512V, -1.024V ~ + 1.024V, -2.048V ~ +\n2.048V, -4.096V ~ + 4.096 V, -6.144V ~ + 6.144V I2C 7-bit addresses between\n0x48-0x4B The ADS1115 provides 16-bit precision at 3300 samples\/second over\nI2C. I2C Analog-to-Digital Converter even includes a programmable gain\namplifier, up to x16, to help boost up smaller single\/differential signals to\nthe full range. Interfacing is done via I2C. Simply connect GND to ground, VDD\nto your logic power supply, and SCL\/SDA to your microcontroller's I2C port and\nrun the example code to start reading data. ADC Converter can help you use\nsensors such as, infrared or photodiodes, which provide analog values. Package\nIncluded: 3 ADS1115 16 Bit 4 Channel Analog-to-Digital ADC Converter\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eADS1115 16 Bit Analog-to-Digital-Converter High accuracy, programmable gain amplifier (PGA), four differential input channels, and internal oscillator for a variety of measurement and control applications.\u003c\/li\u003e\n \u003cli\u003eProgrammable Gain Amplifier (PGA)The gain of the input signal can be adjusted in steps of 1\/2, 1\/4, 1\/8 or 1\/16. This makes it suitable for applications with different input signals.\u003c\/li\u003e\n \u003cli\u003eLow Current ConsumptionThe ADS1115 is designed to consume very little power. In Continuous Mode, it draws a mere 150A, and in Single-Shot Mode, it intelligently enters Auto Shut-Down, ensuring minimal power usage when not actively converting analog signals.\u003c\/li\u003e\n \u003cli\u003eWide Supply RrangeThe voltage reference of these 16 bit ADC 4 channel module ranging from 2.0V to 5.5V, compatible with Raspberry Pi and other common microcontrollers.\u003c\/li\u003e\n \u003cli\u003eADS1115 Pre-SolderedSolderless! Pins are already attached. Ready to plug in and go.\u003c\/li\u003e\n \u003c\/ul\u003e"}
