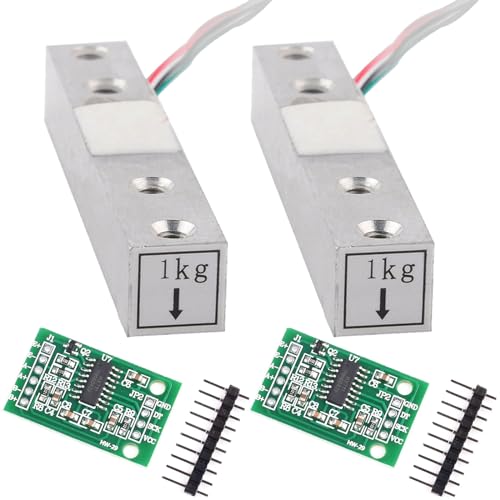

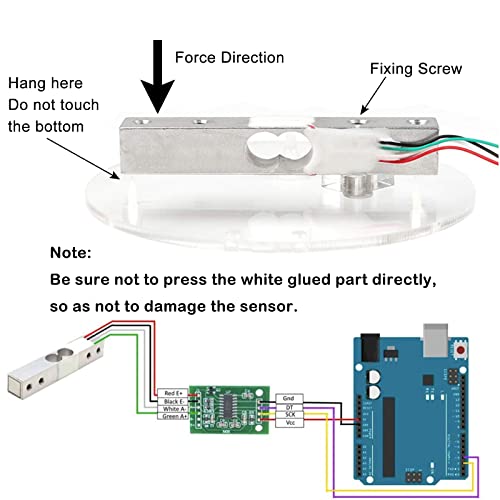

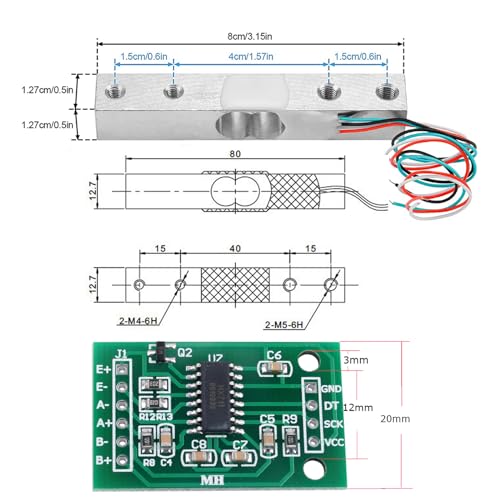

{"id":9574650544365,"title":"2sets 1kg Load Cell Weight Sensor + HX711 Weighing Sensor Dual-Channel 24 Bit Precision A\/D Module Pressure Sensor 2sets (1kg + HX711)","handle":"2sets-1kg-load-cell-weight-sensor-hx711-weighing-sensor-dual-channel-24-bit-precision-a-d-module-pressure-sensor-2sets-1kg-hx711","description":"\u003ch3\u003e2sets 1kg Load Cell Weight Sensor + HX711 Weighing Sensor Dual-Channel 24 Bit Precision A\/D Module Pressure Sensor\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription Four leads, easy to use,5-10V drive voltage applied, the force is\ndirectly output as a voltage change signal. Dimensions: 12.7mm 12.7mm 80mm\nSensor through the screw hole at one end fixed and the other end to keep\nfloating state, applying gravity following the direction indicated by label.\nParticular attention must not directly push the white plastic cover part, so\nas not to damage the sensor. Application: Kitchen scale Module: YZC-133\nCapacity: 1、5、10、20 Rated Output: 1.0±0.15mV\/V Nolinearity: 0.0005\nRepeatability: 0.0003 Hysteresis: 0.0003 Creep(5Min): 0.001 Temperature Effect\nOn Sensitivity: 0.003%RO\/°C Temperature Effect On Zero: 0.02%RO\/°C Zero\nBalance: ±0.1%RO Input Resistance: 1066±20Ω Output Resistance: 1000±20Ω\nInsulation Resistance: 2000MΩ(50V) Recommended Excitation Voltage: 5V\nCompensated Temperature Voltage: -10~+50°C Operating Temperature Range:\n-20~+65°C Safe Overload: 120%RO Ultimate Overload: 150%RO Load Cell Material:\nAluminium Connecting Cable: φ0.8X180mm HX711 Ad Module Load Cell Amplifier\nGreen PCB for Arduino Description: ●Two selectable differential input channels\n●On-chip active low noise PGA with selectable gain of 3264 and 128 ●On-chip\npower supply regulator for load-cell and ADC analog power supply ●On-chip\noscillator requiring no external component with optional external crystal ●On-\nchip power-on-reset ●Simple digital control and serial interface: pin-driven\ncontrolsno programming needed ●Simultaneous 50 and 60Hz supply rejection\n●Current consumption including on-chip analog power supply regulator: normal\noperation \u0026lt;1.5mApower down \u0026lt;1uA ●Operation supply voltage range: 2.6 ~ 5.5V\n●Operating Temperature Range:-20 degree ~ +85 degree Package included 2 X\nWeight Sensor 2 X HX711 A\/D Module\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eWeight options: 1kg 5kg 10kg 20kg\u003c\/li\u003e\n \u003cli\u003eConnection:Red to E+ \/ Black to E- \/ Green to A+ \/ White to A-\u003c\/li\u003e\n \u003cli\u003eFour leads, easy to use,5-10V drive voltage applied, the force is directly output as a voltage change signal\u003c\/li\u003e\n \u003cli\u003eMade of high quality aluminium alloy, parallel beam structure, suitable for electronic kitchen scales, small appliances force measurement, pet feeders and other intelligent weighing equipment\u003c\/li\u003e\n \u003cli\u003ePlease feel free to ask any questions you may have and will respond within 24 hours\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-09-16T02:26:38+10:00","created_at":"2026-09-09T13:58:50+10:00","vendor":"Wishiot","type":"Scale \u0026 Balance Parts","tags":["industrial_Sep2026"],"price":12500,"price_min":12500,"price_max":12500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":50650613678317,"title":"2sets (1kg + HX711)","option1":"2sets (1kg + HX711)","option2":null,"option3":null,"sku":"B0CRDBJ8L7","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"2sets 1kg Load Cell Weight Sensor + HX711 Weighing Sensor Dual-Channel 24 Bit Precision A\/D Module Pressure Sensor 2sets (1kg + HX711) - 2sets (1kg + HX711)","public_title":"2sets (1kg + HX711)","options":["2sets (1kg + HX711)"],"price":12500,"weight":60,"compare_at_price":null,"inventory_management":"shopify","barcode":"FZ1878X2","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/leoforward.com\/cdn\/shop\/files\/B0CRDBJ8L7.jpg?v=1788926332","\/\/leoforward.com\/cdn\/shop\/files\/41M4KRutcZL.jpg?v=1788926332","\/\/leoforward.com\/cdn\/shop\/files\/517HAThYKfL.jpg?v=1788926332","\/\/leoforward.com\/cdn\/shop\/files\/51tjMT2QaJL.jpg?v=1788926332","\/\/leoforward.com\/cdn\/shop\/files\/41hqTPxmGZL.jpg?v=1788926332","\/\/leoforward.com\/cdn\/shop\/files\/41iYLkXNcjL.jpg?v=1788926333"],"featured_image":"\/\/leoforward.com\/cdn\/shop\/files\/B0CRDBJ8L7.jpg?v=1788926332","options":["Material Type"],"media":[{"alt":null,"id":41956742267117,"position":1,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/leoforward.com\/cdn\/shop\/files\/B0CRDBJ8L7.jpg?v=1788926332"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/B0CRDBJ8L7.jpg?v=1788926332","width":500},{"alt":null,"id":41956742299885,"position":2,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/leoforward.com\/cdn\/shop\/files\/41M4KRutcZL.jpg?v=1788926332"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/41M4KRutcZL.jpg?v=1788926332","width":500},{"alt":null,"id":41956742332653,"position":3,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/leoforward.com\/cdn\/shop\/files\/517HAThYKfL.jpg?v=1788926332"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/517HAThYKfL.jpg?v=1788926332","width":500},{"alt":null,"id":41956742365421,"position":4,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/leoforward.com\/cdn\/shop\/files\/51tjMT2QaJL.jpg?v=1788926332"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/51tjMT2QaJL.jpg?v=1788926332","width":500},{"alt":null,"id":41956742398189,"position":5,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/leoforward.com\/cdn\/shop\/files\/41hqTPxmGZL.jpg?v=1788926332"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/41hqTPxmGZL.jpg?v=1788926332","width":500},{"alt":null,"id":41956742430957,"position":6,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/leoforward.com\/cdn\/shop\/files\/41iYLkXNcjL.jpg?v=1788926333"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/41iYLkXNcjL.jpg?v=1788926333","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e2sets 1kg Load Cell Weight Sensor + HX711 Weighing Sensor Dual-Channel 24 Bit Precision A\/D Module Pressure Sensor\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription Four leads, easy to use,5-10V drive voltage applied, the force is\ndirectly output as a voltage change signal. Dimensions: 12.7mm 12.7mm 80mm\nSensor through the screw hole at one end fixed and the other end to keep\nfloating state, applying gravity following the direction indicated by label.\nParticular attention must not directly push the white plastic cover part, so\nas not to damage the sensor. Application: Kitchen scale Module: YZC-133\nCapacity: 1、5、10、20 Rated Output: 1.0±0.15mV\/V Nolinearity: 0.0005\nRepeatability: 0.0003 Hysteresis: 0.0003 Creep(5Min): 0.001 Temperature Effect\nOn Sensitivity: 0.003%RO\/°C Temperature Effect On Zero: 0.02%RO\/°C Zero\nBalance: ±0.1%RO Input Resistance: 1066±20Ω Output Resistance: 1000±20Ω\nInsulation Resistance: 2000MΩ(50V) Recommended Excitation Voltage: 5V\nCompensated Temperature Voltage: -10~+50°C Operating Temperature Range:\n-20~+65°C Safe Overload: 120%RO Ultimate Overload: 150%RO Load Cell Material:\nAluminium Connecting Cable: φ0.8X180mm HX711 Ad Module Load Cell Amplifier\nGreen PCB for Arduino Description: ●Two selectable differential input channels\n●On-chip active low noise PGA with selectable gain of 3264 and 128 ●On-chip\npower supply regulator for load-cell and ADC analog power supply ●On-chip\noscillator requiring no external component with optional external crystal ●On-\nchip power-on-reset ●Simple digital control and serial interface: pin-driven\ncontrolsno programming needed ●Simultaneous 50 and 60Hz supply rejection\n●Current consumption including on-chip analog power supply regulator: normal\noperation \u0026lt;1.5mApower down \u0026lt;1uA ●Operation supply voltage range: 2.6 ~ 5.5V\n●Operating Temperature Range:-20 degree ~ +85 degree Package included 2 X\nWeight Sensor 2 X HX711 A\/D Module\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eWeight options: 1kg 5kg 10kg 20kg\u003c\/li\u003e\n \u003cli\u003eConnection:Red to E+ \/ Black to E- \/ Green to A+ \/ White to A-\u003c\/li\u003e\n \u003cli\u003eFour leads, easy to use,5-10V drive voltage applied, the force is directly output as a voltage change signal\u003c\/li\u003e\n \u003cli\u003eMade of high quality aluminium alloy, parallel beam structure, suitable for electronic kitchen scales, small appliances force measurement, pet feeders and other intelligent weighing equipment\u003c\/li\u003e\n \u003cli\u003ePlease feel free to ask any questions you may have and will respond within 24 hours\u003c\/li\u003e\n \u003c\/ul\u003e"}
