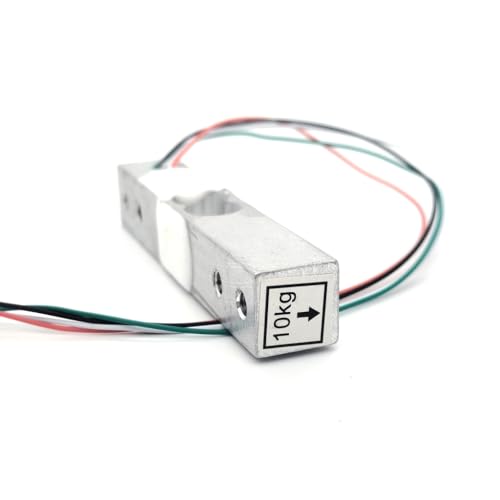

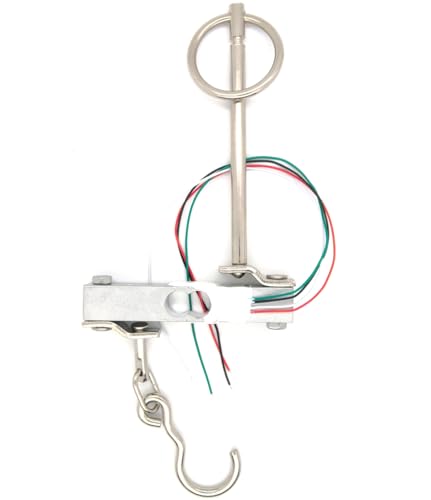

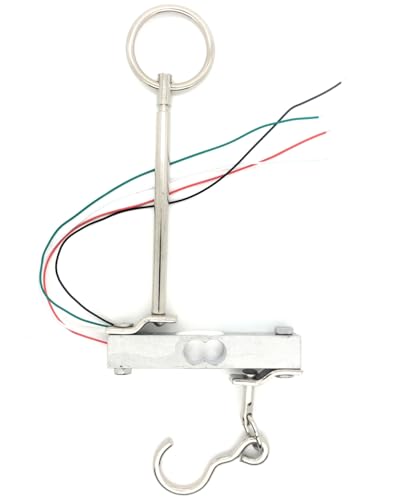

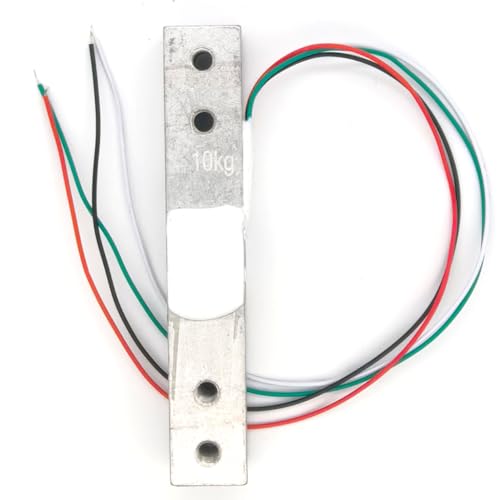

{"id":9575246627053,"title":"10Kg Straight Bar Load Cell with Hook – 4-Wire Strain Gauge Sensor","handle":"10kg-straight-bar-load-cell-with-hook-4-wire-strain-gauge-sensor","description":"\u003ch3\u003e10Kg Straight Bar Load Cell with Hook – 4-Wire Strain Gauge Sensor\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis straight bar load cell is a strain gauge sensor, can translate up to 10kg\nof pressure (force) into an electrical signal, made from an aluminum-alloy.\nThe resistance of a strain gauge changes when force is applied and the object\nis deformed along with the foil and this change will give a different\nelectrical output. With this gauge you will be able to tell just how heavy an\nobject is, if an object's weight changes over time, or if you simply need to\nsense the presence of an object by measuring strain or load applied to a\nsurface. This 10kg straight bar load cell comes attached to hardware that ends\nwith a hook. This allows you to easily install and hang your load cell. Strain\ngauges are useful for projects when you need to measure pressure, force,\nweight, and tension. Color code: Red (Excitation+), Green (Signal-), Black\n(Excitation-), and White (Signal+) NOTE: This is the load cell only—no\nconverter or ADC(like HX711) included. Must be calibrated using known weights\nafter installation for accurate readings. Specifications: Maximum capacity\n(E)max: 10KG Sensitivity(Cn): 1.0±0.1mV\/V Zero balance: -0.15±0.05mV\/V Non-\nlinearity(dlin): 0.03%F.S Hysteresis error(dhy): 0.03%F.S Repeatability:\n0.03%F.S Creep(3min): 0.05 %F.S Ouput resistance (RO): 1000±10Ω Temperature\neffect on zero balance （TK0）: 0.3%F.S\/10°C Temperature effect on sensitivity\n（TKC）: 0.3%F.S\/10°C Reference excitation voltage (Uref): 3---9VDC Safe load\nlimit (EL): 150 %F.S wiring: excitation(+):Red signal(+):Green\nexcitation(-):Black signal(-):White Dimensions: 75mm x 12.7mm x 12.7mm\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eComes attached to hardware that ends with a hook\u003c\/li\u003e\n \u003cli\u003eUseful for measuring pressure, force, weight, and tension\u003c\/li\u003e\n \u003cli\u003eMaximum capacity (E)max: 10KG, Sensitivity(Cn): 1.00.1mV\/V, safe load limit (EL): 150 %F.S, combined error: 0.05 %F.S, Reference excitation voltage (Uref): 3---9VDC, dimensions: 75mm x 12.7mm x 12.7mm\u003c\/li\u003e\n \u003cli\u003eLoad cell onlyno converter or ADC(like HX711) included. Must be calibrated using known weights after installation for accurate readings\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-09-16T00:06:25+10:00","created_at":"2026-09-09T19:25:22+10:00","vendor":"Generic","type":"Force Gauges","tags":["industrial_Sep2026"],"price":11900,"price_min":11900,"price_max":11900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":50652763226349,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0GKYMM8PT","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"10Kg Straight Bar Load Cell with Hook – 4-Wire Strain Gauge Sensor","public_title":null,"options":["Default Title"],"price":11900,"weight":80,"compare_at_price":null,"inventory_management":"shopify","barcode":"10kg","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/leoforward.com\/cdn\/shop\/files\/B0GKYMM8PT.jpg?v=1788945924","\/\/leoforward.com\/cdn\/shop\/files\/31b14lTb32L.jpg?v=1788945924","\/\/leoforward.com\/cdn\/shop\/files\/410fS19EJ4L.jpg?v=1788945924","\/\/leoforward.com\/cdn\/shop\/files\/31-eF-AvJRL.jpg?v=1788945924"],"featured_image":"\/\/leoforward.com\/cdn\/shop\/files\/B0GKYMM8PT.jpg?v=1788945924","options":["Title"],"media":[{"alt":null,"id":41960876638445,"position":1,"preview_image":{"aspect_ratio":0.798,"height":500,"width":399,"src":"\/\/leoforward.com\/cdn\/shop\/files\/B0GKYMM8PT.jpg?v=1788945924"},"aspect_ratio":0.798,"height":500,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/B0GKYMM8PT.jpg?v=1788945924","width":399},{"alt":null,"id":41960876671213,"position":2,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/leoforward.com\/cdn\/shop\/files\/31b14lTb32L.jpg?v=1788945924"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/31b14lTb32L.jpg?v=1788945924","width":500},{"alt":null,"id":41960876703981,"position":3,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/leoforward.com\/cdn\/shop\/files\/410fS19EJ4L.jpg?v=1788945924"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/410fS19EJ4L.jpg?v=1788945924","width":500},{"alt":null,"id":41960876736749,"position":4,"preview_image":{"aspect_ratio":0.862,"height":500,"width":431,"src":"\/\/leoforward.com\/cdn\/shop\/files\/31-eF-AvJRL.jpg?v=1788945924"},"aspect_ratio":0.862,"height":500,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/31-eF-AvJRL.jpg?v=1788945924","width":431}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e10Kg Straight Bar Load Cell with Hook – 4-Wire Strain Gauge Sensor\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis straight bar load cell is a strain gauge sensor, can translate up to 10kg\nof pressure (force) into an electrical signal, made from an aluminum-alloy.\nThe resistance of a strain gauge changes when force is applied and the object\nis deformed along with the foil and this change will give a different\nelectrical output. With this gauge you will be able to tell just how heavy an\nobject is, if an object's weight changes over time, or if you simply need to\nsense the presence of an object by measuring strain or load applied to a\nsurface. This 10kg straight bar load cell comes attached to hardware that ends\nwith a hook. This allows you to easily install and hang your load cell. Strain\ngauges are useful for projects when you need to measure pressure, force,\nweight, and tension. Color code: Red (Excitation+), Green (Signal-), Black\n(Excitation-), and White (Signal+) NOTE: This is the load cell only—no\nconverter or ADC(like HX711) included. Must be calibrated using known weights\nafter installation for accurate readings. Specifications: Maximum capacity\n(E)max: 10KG Sensitivity(Cn): 1.0±0.1mV\/V Zero balance: -0.15±0.05mV\/V Non-\nlinearity(dlin): 0.03%F.S Hysteresis error(dhy): 0.03%F.S Repeatability:\n0.03%F.S Creep(3min): 0.05 %F.S Ouput resistance (RO): 1000±10Ω Temperature\neffect on zero balance （TK0）: 0.3%F.S\/10°C Temperature effect on sensitivity\n（TKC）: 0.3%F.S\/10°C Reference excitation voltage (Uref): 3---9VDC Safe load\nlimit (EL): 150 %F.S wiring: excitation(+):Red signal(+):Green\nexcitation(-):Black signal(-):White Dimensions: 75mm x 12.7mm x 12.7mm\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eComes attached to hardware that ends with a hook\u003c\/li\u003e\n \u003cli\u003eUseful for measuring pressure, force, weight, and tension\u003c\/li\u003e\n \u003cli\u003eMaximum capacity (E)max: 10KG, Sensitivity(Cn): 1.00.1mV\/V, safe load limit (EL): 150 %F.S, combined error: 0.05 %F.S, Reference excitation voltage (Uref): 3---9VDC, dimensions: 75mm x 12.7mm x 12.7mm\u003c\/li\u003e\n \u003cli\u003eLoad cell onlyno converter or ADC(like HX711) included. Must be calibrated using known weights after installation for accurate readings\u003c\/li\u003e\n \u003c\/ul\u003e"}
