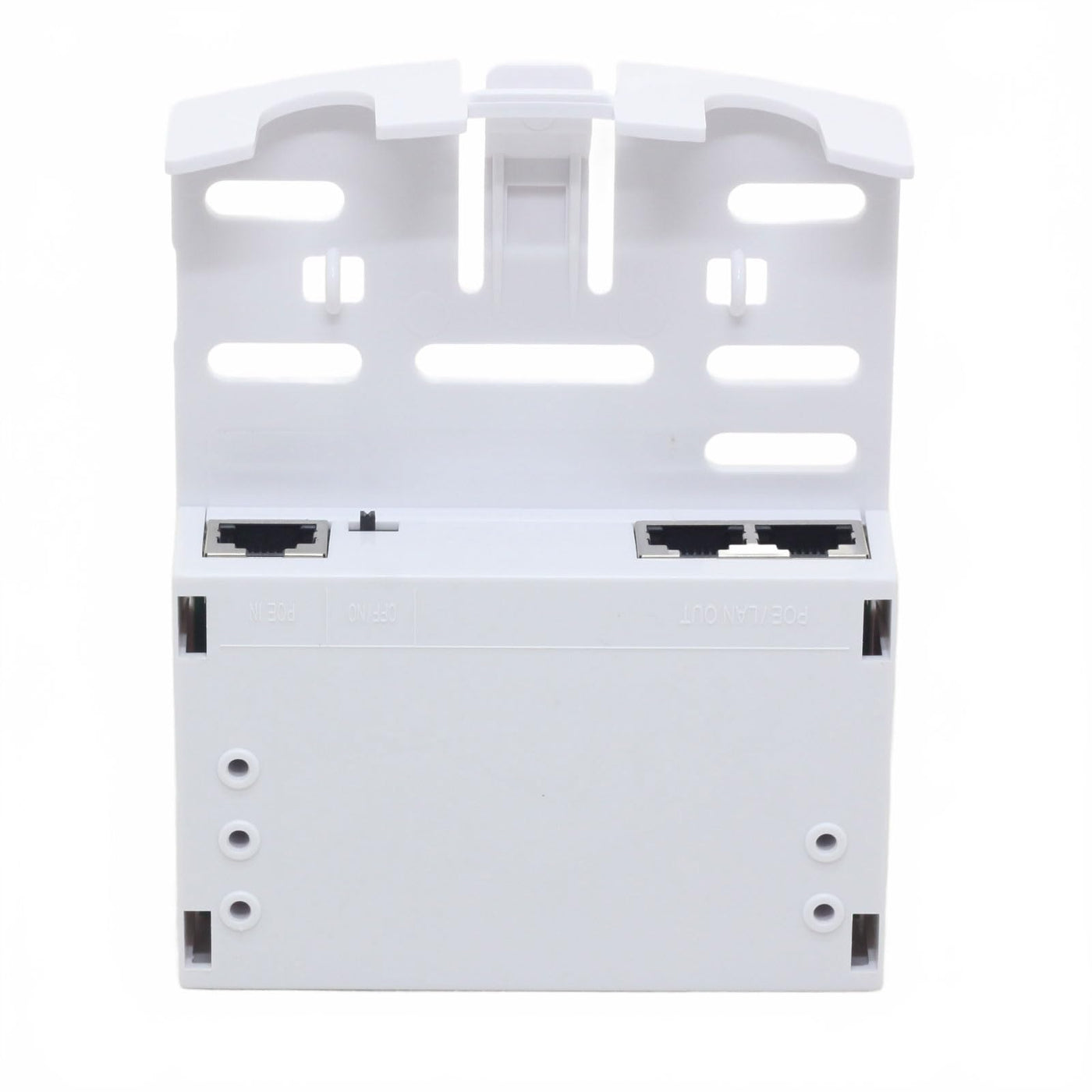

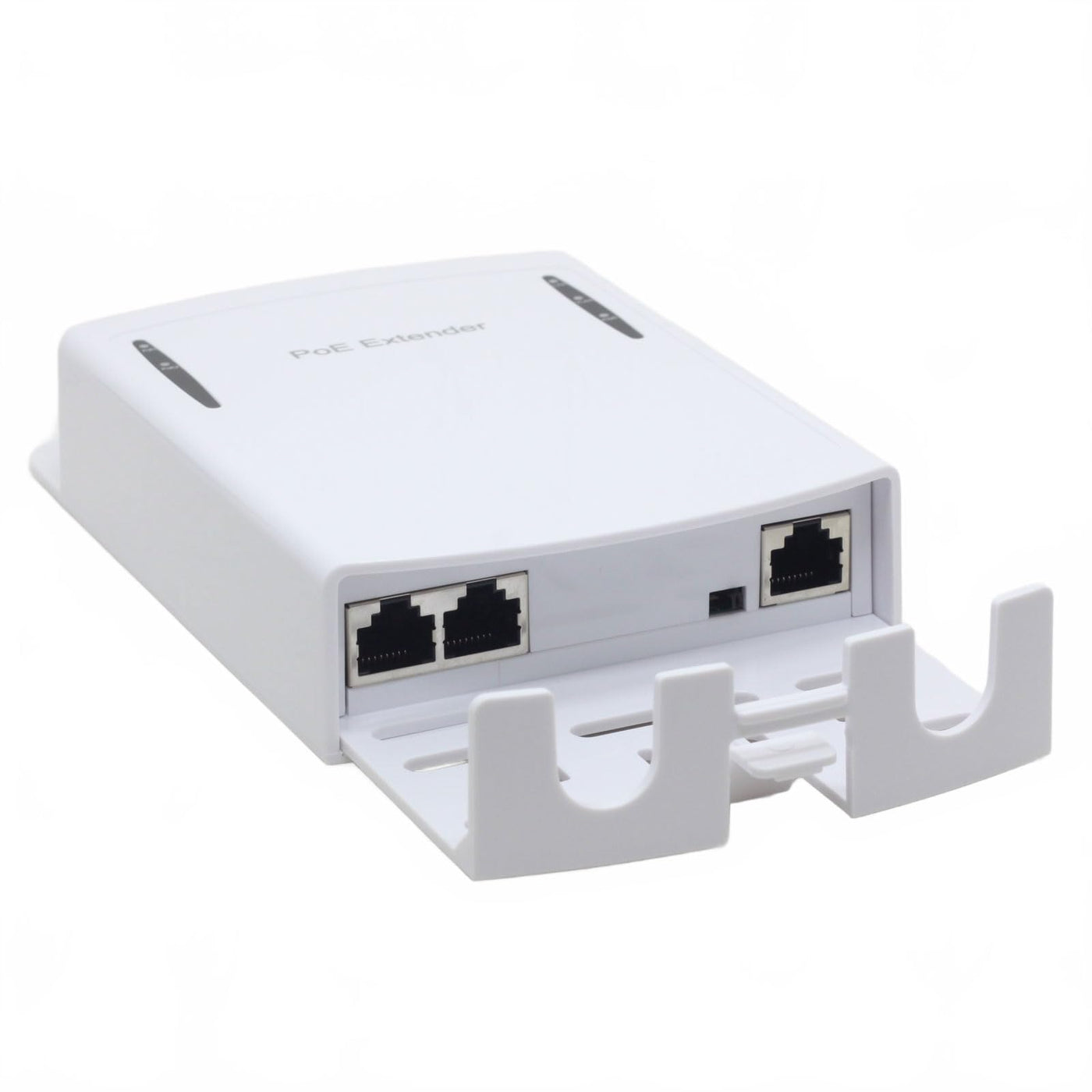

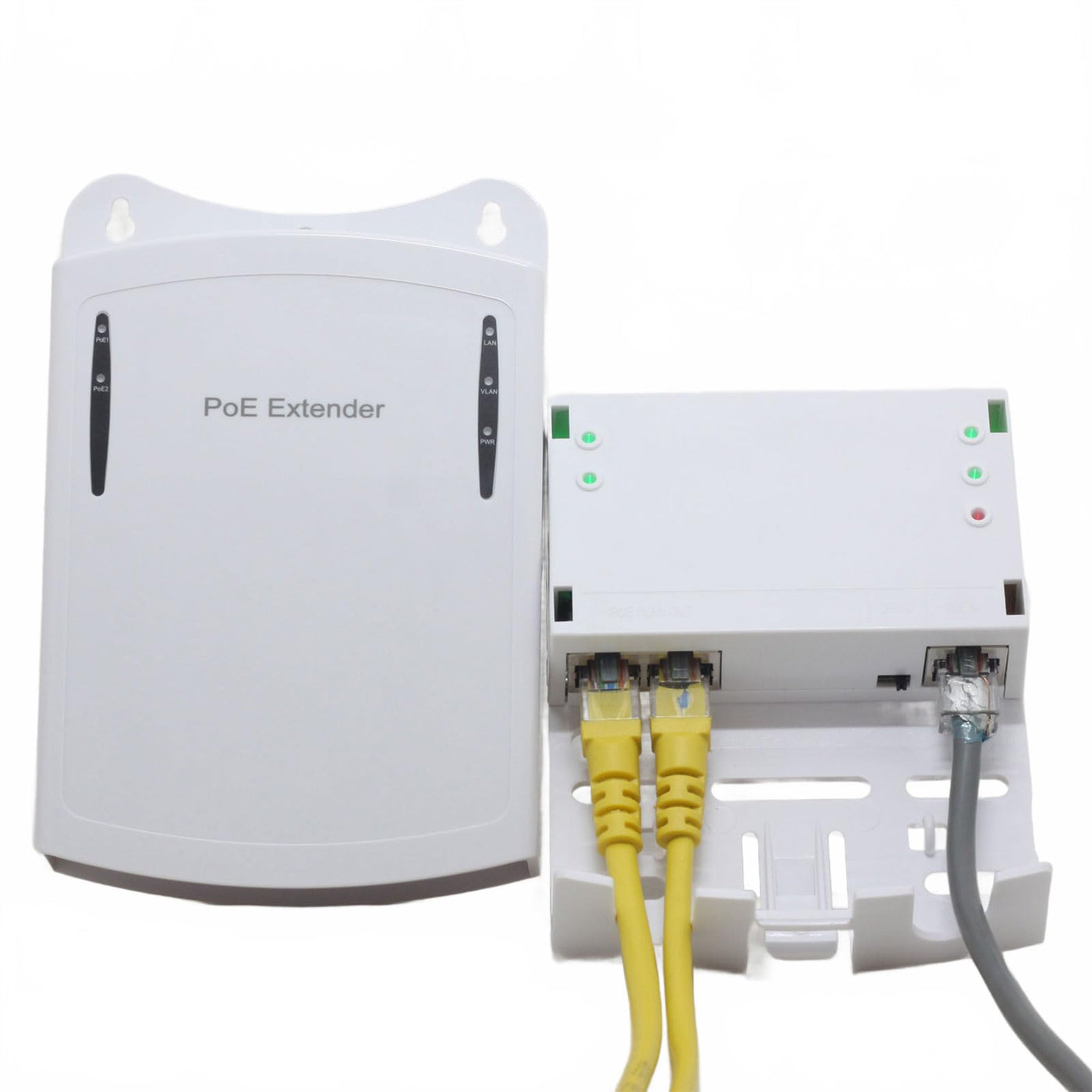

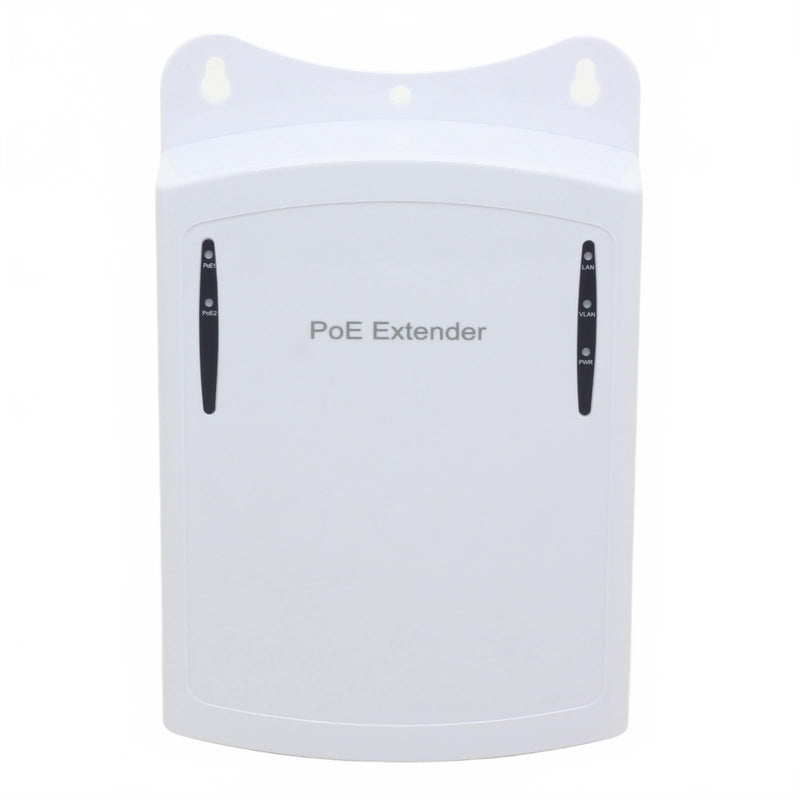

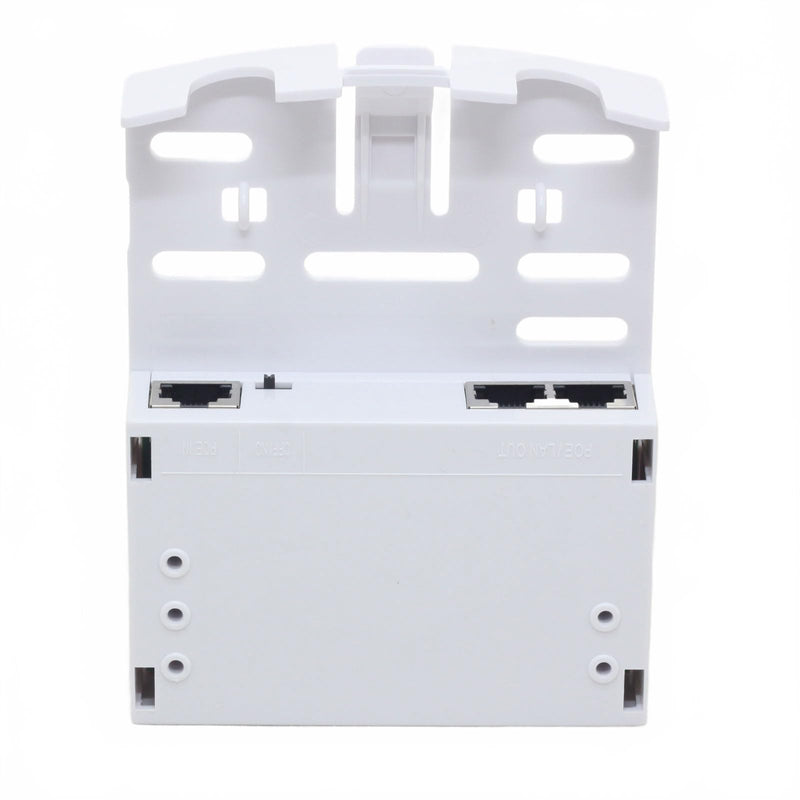

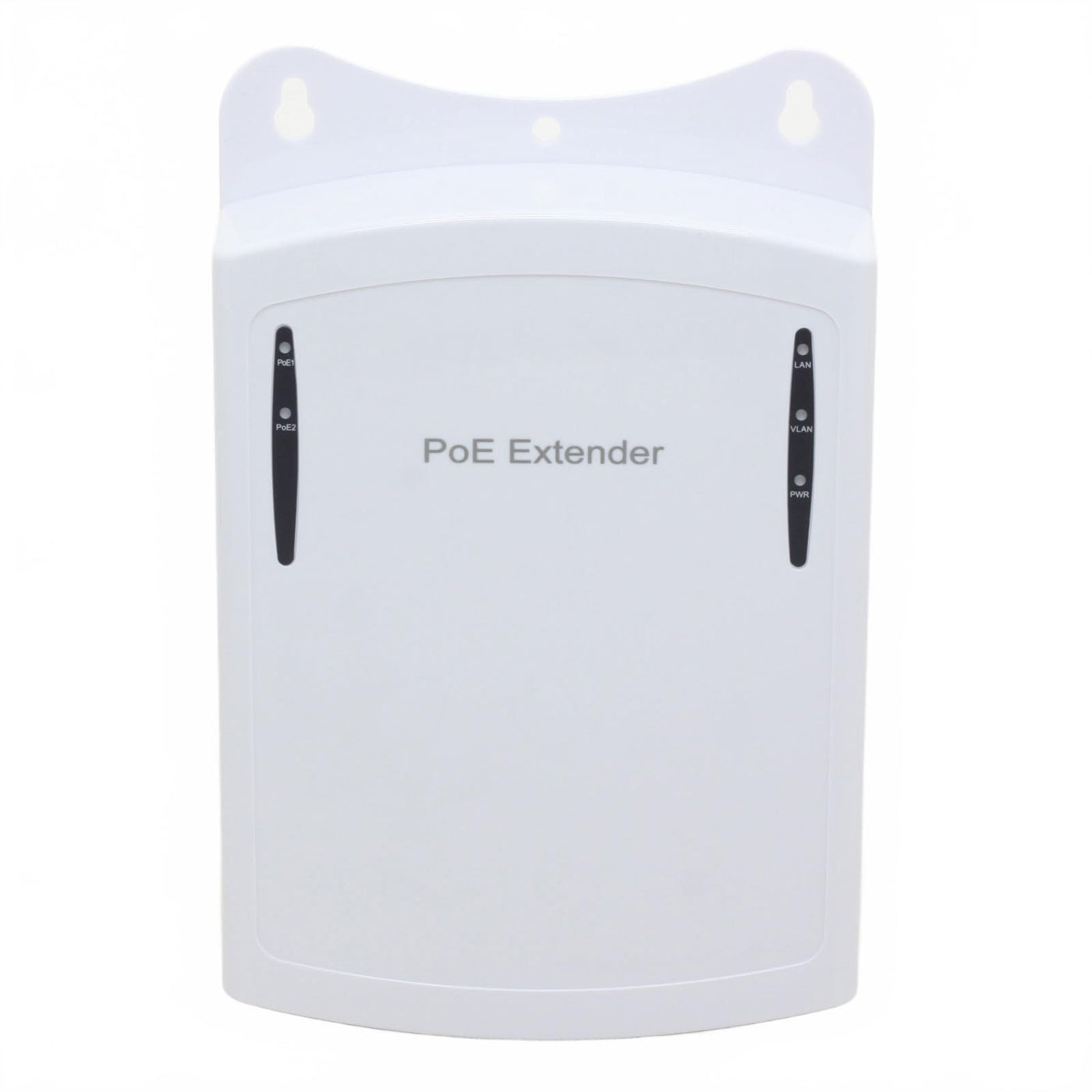

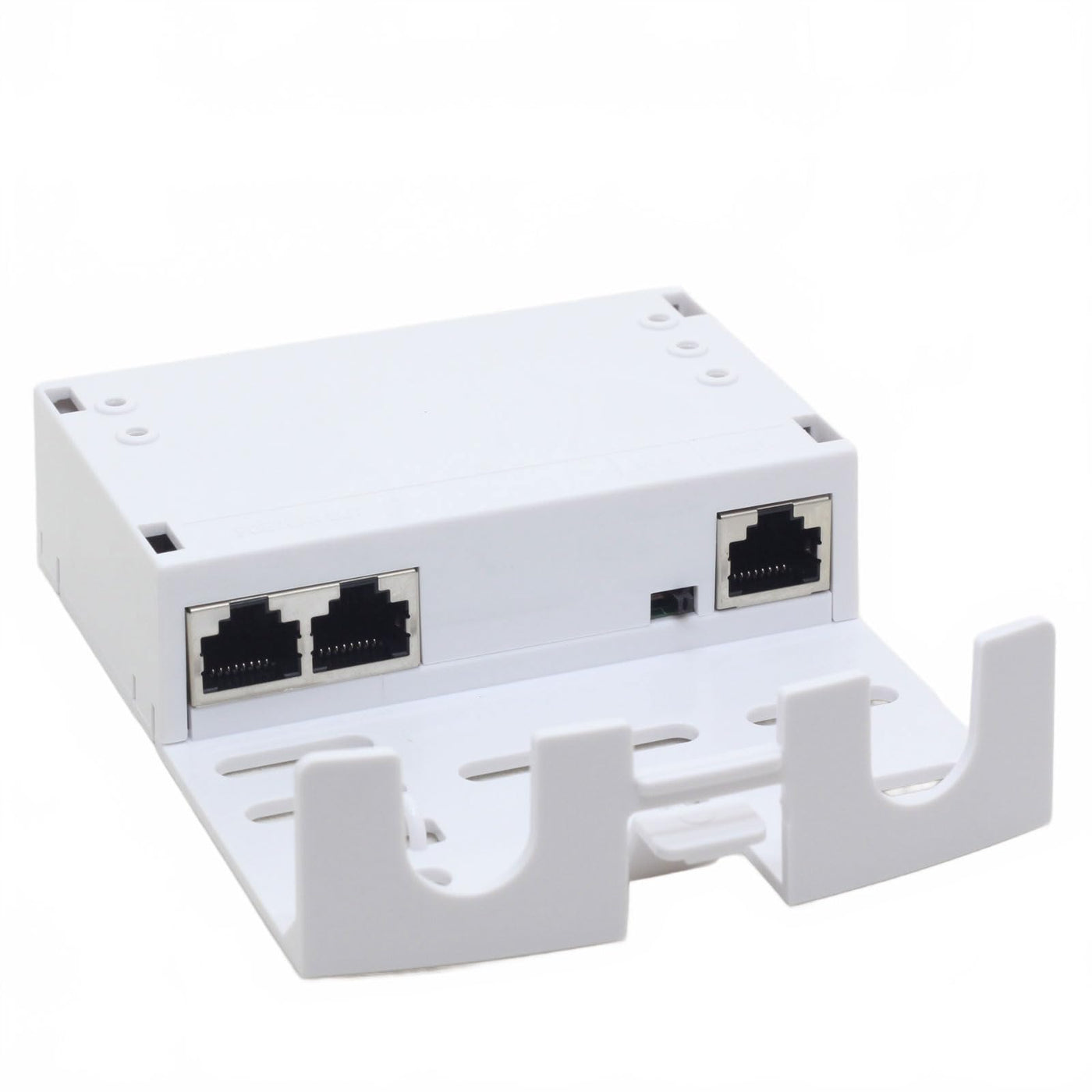

{"id":9152149455085,"title":"1 to 2 Port PoE Extender Cascade Repeater Outdoor Rainproof 3-Port PoE Switch","handle":"1-to-2-port-poe-extender-cascade-repeater-outdoor-rainproof-3-port-poe-switch","description":"\u003ch3\u003e1 to 2 Port PoE Extender Cascade Repeater Outdoor Rainproof 3-Port PoE Switch\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eThe Outdoor Rainproof PoE Passthrough Switch Extender allows you to easily\r\nexpand your PoE network without requiring local power, using only the upstream\r\nPoE input for power supply. Key Features: PoE Passthrough: Receives PoE power\r\nfrom upstream and extends to two PoE OUT ports. Supports IEEE 802.3af\/802.3at\r\nPoE switches and injectors. Supports DC48V~57V passive PoE switches and\r\ninjectors. Equipped with 3 10\/100M PoE ports: 1 PoE IN, 2 PoE OUT. Total power\r\ninput: 30W, total PoE output: 25W max, single port up to 24W. Extends PoE and\r\ndata up to 100m per segment using Cat5e\/Cat6. VLAN Long-Distance Mode (up to\r\n250m): The OFF\/ON switch controls the VLAN mode for the two POE\/LAN OUT ports:\r\nON (VLAN Enabled): The two POE\/LAN OUT ports are isolated from each other,\r\nallowing cable length up to 250 meters, with Ethernet speed reduced to 10\r\nMbps. OFF (VLAN Disabled): The two POE\/LAN OUT ports are not isolated,\r\nsupporting cable length up to 100 meters with Ethernet speed up to 100 Mbps.\r\nFlexible Cascading: When used with an 802.3at PoE switch, you can cascade up\r\nto three extenders for a maximum PoE extension of 400 meters (approx. 7W at\r\nthe far end). Recommended to use with 802.3at PoE switches for sufficient\r\npower delivery to IP cameras and devices. Using 802.3af PoE switches may\r\nresult in insufficient power for high-consumption devices. Specifications:\r\nStandards: IEEE 802.3af\/802.3at, 10\/100BASE-TX Input Voltage: 40-57V passive\r\nPoE supported RJ45 Pinout: 1\/2(+), 3\/6(-) or 4\/5(+), 7\/8(-) PoE Input Power:\r\n30W max PoE Output Power: 25W max (per port max 24W) Transmission Distance:\r\n250m (VLAN ON, 10 Mbps), 100m (VLAN OFF, 100 Mbps) Ethernet Speed: 10\/100 Mbps\r\nOperating Temperature: -10°C ~ 60°C (14°F ~ 140°F) Storage Temperature: -40°C\r\n~ 85°C (-40°F ~ 185°F) Operating Humidity: 10% ~ 90% non-condensing Storage\r\nHumidity: 5% ~ 95% non-condensing Dimensions: 14.3cm x 9.7cm x 3.2cm Weight:\r\n162g Package Includes: 1 x Outdoor PoE Passthrough Switch Extender\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eThe PoE Extneder does not require local power and is powered via the PoE input.The PoE Extneder does not require local power and is powered via the PoE input\u003c\/li\u003e\r\n \u003cli\u003eSupport the IEEE 802.3af\/802.3at the Power over Ethernet PoE Switch\u003c\/li\u003e\r\n \u003cli\u003eSupport DC48V~57V Passive Power Over Ethernet PoE Switch\u003c\/li\u003e\r\n \u003cli\u003eSupport DC48V~57V Passive Power Over Ethernet PoE injector\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2025-10-21T13:29:39+11:00","created_at":"2025-10-21T13:29:35+11:00","vendor":"DSLRKIT","type":"Switches","tags":["electronics_selected_Oct2025"],"price":13400,"price_min":13400,"price_max":13400,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":48903898235117,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0C8HDH17R","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1 to 2 Port PoE Extender Cascade Repeater Outdoor Rainproof 3-Port PoE Switch","public_title":null,"options":["Default Title"],"price":13400,"weight":190,"compare_at_price":null,"inventory_management":"shopify","barcode":"HX-FSPOE201","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/leoforward.com\/cdn\/shop\/files\/B0C8HDH17R.jpg?v=1775795090","\/\/leoforward.com\/cdn\/shop\/files\/51mWXePUvjL.jpg?v=1761013777","\/\/leoforward.com\/cdn\/shop\/files\/51yUHkthTGL.jpg?v=1761013778","\/\/leoforward.com\/cdn\/shop\/files\/61AapgtAoZL.jpg?v=1761013777","\/\/leoforward.com\/cdn\/shop\/files\/51vrW2CHPgL.jpg?v=1761013778","\/\/leoforward.com\/cdn\/shop\/files\/51VgMYbrZ_L.jpg?v=1761013777","\/\/leoforward.com\/cdn\/shop\/files\/51UoMpb41ZL.jpg?v=1761013778","\/\/leoforward.com\/cdn\/shop\/files\/513neHB4_YL.jpg?v=1761013778","\/\/leoforward.com\/cdn\/shop\/files\/71qkW-WuuhL.jpg?v=1761013778","\/\/leoforward.com\/cdn\/shop\/files\/61XC1Q_rhYL.jpg?v=1761013777","\/\/leoforward.com\/cdn\/shop\/files\/51IbRVl-rwL.jpg?v=1761013778","\/\/leoforward.com\/cdn\/shop\/files\/51h-ezoAVgL.jpg?v=1761013778"],"featured_image":"\/\/leoforward.com\/cdn\/shop\/files\/B0C8HDH17R.jpg?v=1775795090","options":["Title"],"media":[{"alt":null,"id":36943573745901,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/files\/B0C8HDH17R.jpg?v=1775795090"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/B0C8HDH17R.jpg?v=1775795090","width":1600},{"alt":null,"id":36943573778669,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/files\/51mWXePUvjL.jpg?v=1761013777"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/51mWXePUvjL.jpg?v=1761013777","width":1600},{"alt":null,"id":36943573811437,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/files\/51yUHkthTGL.jpg?v=1761013778"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/51yUHkthTGL.jpg?v=1761013778","width":1600},{"alt":null,"id":36943573844205,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/files\/61AapgtAoZL.jpg?v=1761013777"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/61AapgtAoZL.jpg?v=1761013777","width":1600},{"alt":null,"id":36943573876973,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/files\/51vrW2CHPgL.jpg?v=1761013778"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/51vrW2CHPgL.jpg?v=1761013778","width":1600},{"alt":null,"id":36943573909741,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/files\/51VgMYbrZ_L.jpg?v=1761013777"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/51VgMYbrZ_L.jpg?v=1761013777","width":1600},{"alt":null,"id":36943573942509,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/files\/51UoMpb41ZL.jpg?v=1761013778"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/51UoMpb41ZL.jpg?v=1761013778","width":1600},{"alt":null,"id":36943573975277,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/files\/513neHB4_YL.jpg?v=1761013778"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/513neHB4_YL.jpg?v=1761013778","width":1600},{"alt":null,"id":36943574008045,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/files\/71qkW-WuuhL.jpg?v=1761013778"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/71qkW-WuuhL.jpg?v=1761013778","width":1600},{"alt":null,"id":36943574040813,"position":10,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/files\/61XC1Q_rhYL.jpg?v=1761013777"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/61XC1Q_rhYL.jpg?v=1761013777","width":1600},{"alt":null,"id":36943574073581,"position":11,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/files\/51IbRVl-rwL.jpg?v=1761013778"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/51IbRVl-rwL.jpg?v=1761013778","width":1600},{"alt":null,"id":36943574106349,"position":12,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/leoforward.com\/cdn\/shop\/files\/51h-ezoAVgL.jpg?v=1761013778"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/leoforward.com\/cdn\/shop\/files\/51h-ezoAVgL.jpg?v=1761013778","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e1 to 2 Port PoE Extender Cascade Repeater Outdoor Rainproof 3-Port PoE Switch\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eThe Outdoor Rainproof PoE Passthrough Switch Extender allows you to easily\r\nexpand your PoE network without requiring local power, using only the upstream\r\nPoE input for power supply. Key Features: PoE Passthrough: Receives PoE power\r\nfrom upstream and extends to two PoE OUT ports. Supports IEEE 802.3af\/802.3at\r\nPoE switches and injectors. Supports DC48V~57V passive PoE switches and\r\ninjectors. Equipped with 3 10\/100M PoE ports: 1 PoE IN, 2 PoE OUT. Total power\r\ninput: 30W, total PoE output: 25W max, single port up to 24W. Extends PoE and\r\ndata up to 100m per segment using Cat5e\/Cat6. VLAN Long-Distance Mode (up to\r\n250m): The OFF\/ON switch controls the VLAN mode for the two POE\/LAN OUT ports:\r\nON (VLAN Enabled): The two POE\/LAN OUT ports are isolated from each other,\r\nallowing cable length up to 250 meters, with Ethernet speed reduced to 10\r\nMbps. OFF (VLAN Disabled): The two POE\/LAN OUT ports are not isolated,\r\nsupporting cable length up to 100 meters with Ethernet speed up to 100 Mbps.\r\nFlexible Cascading: When used with an 802.3at PoE switch, you can cascade up\r\nto three extenders for a maximum PoE extension of 400 meters (approx. 7W at\r\nthe far end). Recommended to use with 802.3at PoE switches for sufficient\r\npower delivery to IP cameras and devices. Using 802.3af PoE switches may\r\nresult in insufficient power for high-consumption devices. Specifications:\r\nStandards: IEEE 802.3af\/802.3at, 10\/100BASE-TX Input Voltage: 40-57V passive\r\nPoE supported RJ45 Pinout: 1\/2(+), 3\/6(-) or 4\/5(+), 7\/8(-) PoE Input Power:\r\n30W max PoE Output Power: 25W max (per port max 24W) Transmission Distance:\r\n250m (VLAN ON, 10 Mbps), 100m (VLAN OFF, 100 Mbps) Ethernet Speed: 10\/100 Mbps\r\nOperating Temperature: -10°C ~ 60°C (14°F ~ 140°F) Storage Temperature: -40°C\r\n~ 85°C (-40°F ~ 185°F) Operating Humidity: 10% ~ 90% non-condensing Storage\r\nHumidity: 5% ~ 95% non-condensing Dimensions: 14.3cm x 9.7cm x 3.2cm Weight:\r\n162g Package Includes: 1 x Outdoor PoE Passthrough Switch Extender\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eThe PoE Extneder does not require local power and is powered via the PoE input.The PoE Extneder does not require local power and is powered via the PoE input\u003c\/li\u003e\r\n \u003cli\u003eSupport the IEEE 802.3af\/802.3at the Power over Ethernet PoE Switch\u003c\/li\u003e\r\n \u003cli\u003eSupport DC48V~57V Passive Power Over Ethernet PoE Switch\u003c\/li\u003e\r\n \u003cli\u003eSupport DC48V~57V Passive Power Over Ethernet PoE injector\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
